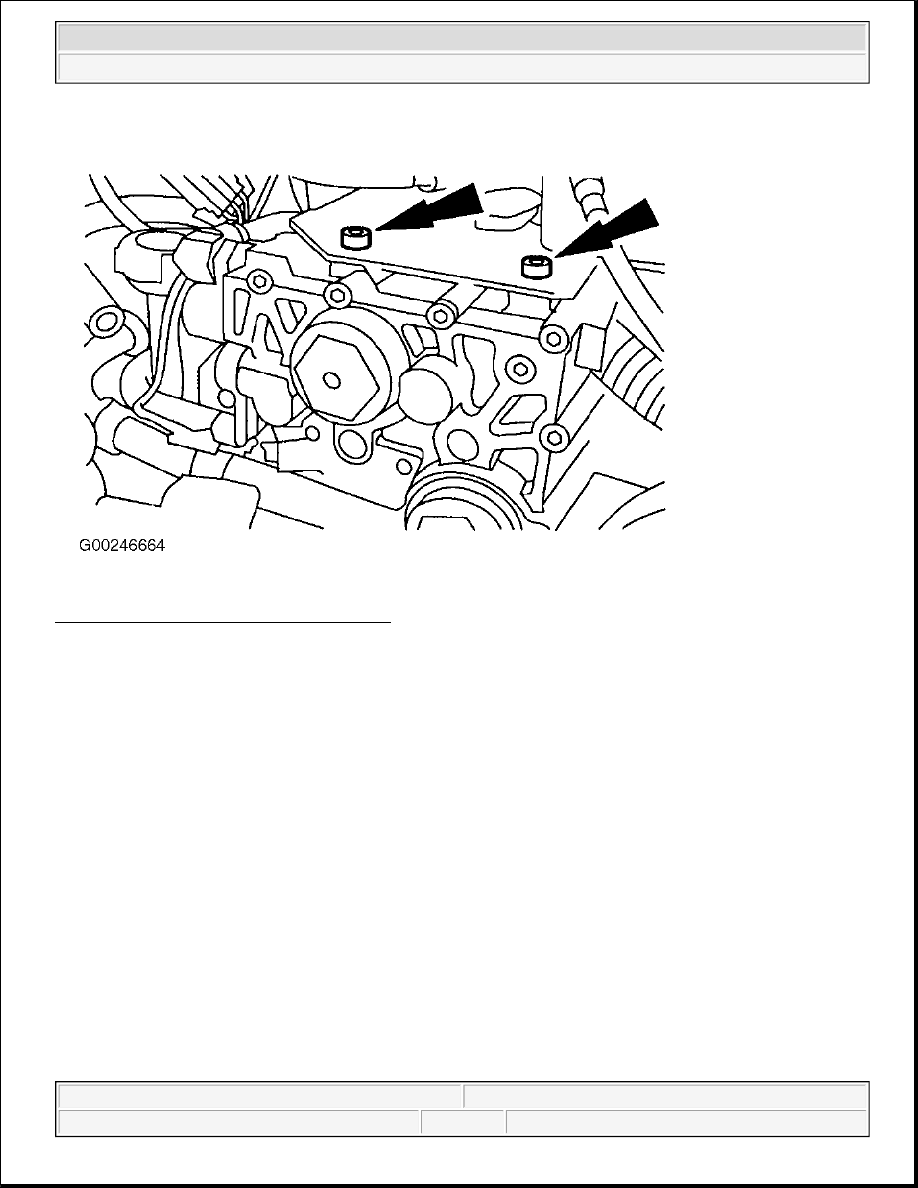

Fig. 20: Locating Vaporizer Retaining Bolts ADJUSTMENTS FUEL RAIL (TUNABLE "T") 1. Park vehicle on flat surface, set parking brake and place wheel chocks both in front of and behind front wheels. Turn ignition switch to OFF position. Place ALT/GAS switch to ALT position. Connect a 2. Connect New Generation Star (NGS) Tester (418-F048), to vehicle Data Link Connector (DLC). Turn the ignition switch to ON position. Select, monitor, and record Powertrain Control Module (PCM) PIDs; 3. Select, monitor, and record Alternate Fuel Control Module (AFCM) MAP PID and engine vacuum. Place transmission in Reverse while applying brake pedal then slowly apply pressure to accelerator pedal. WARNING: The following step requires engine to be running, in gear and at high
2003 Ford Pickup F150 2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - Bi-Fuel - Gasoline/LPG
|
