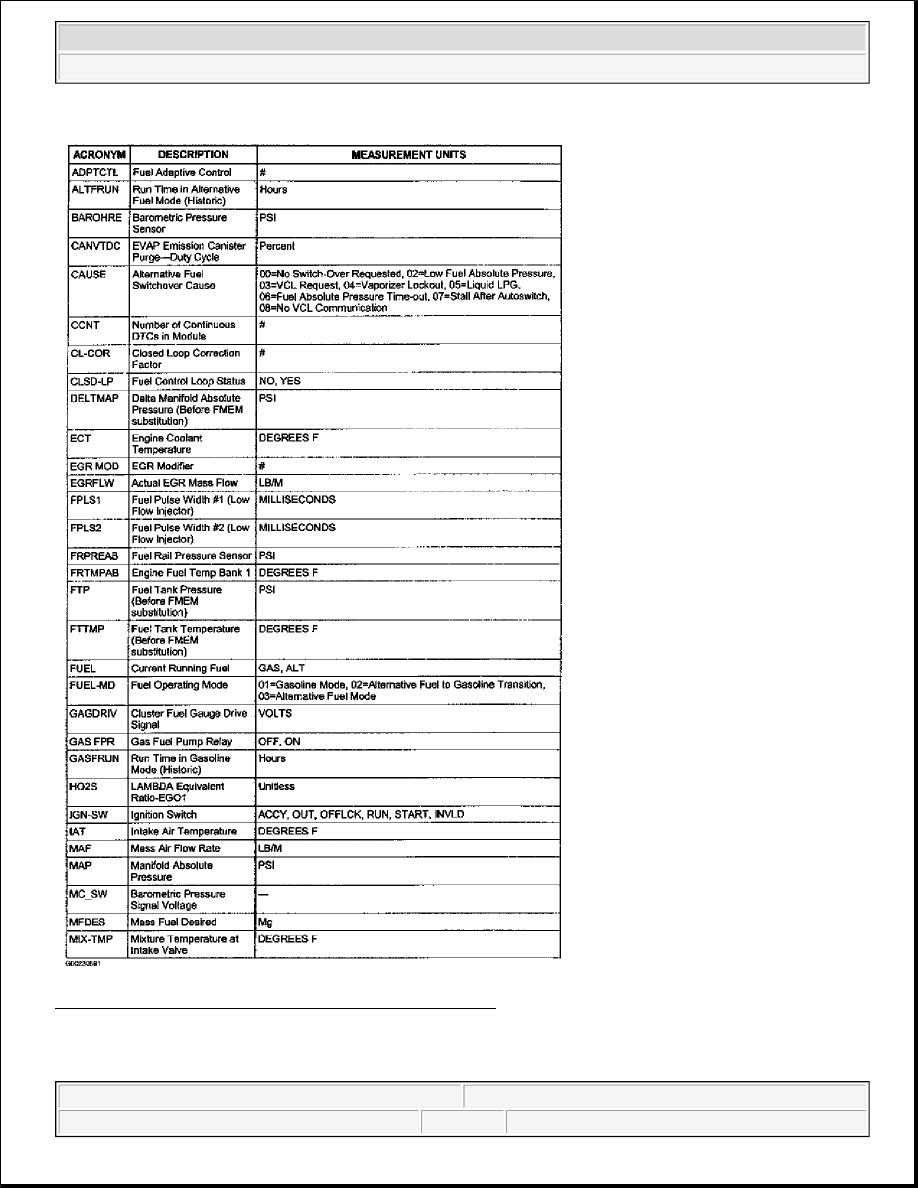

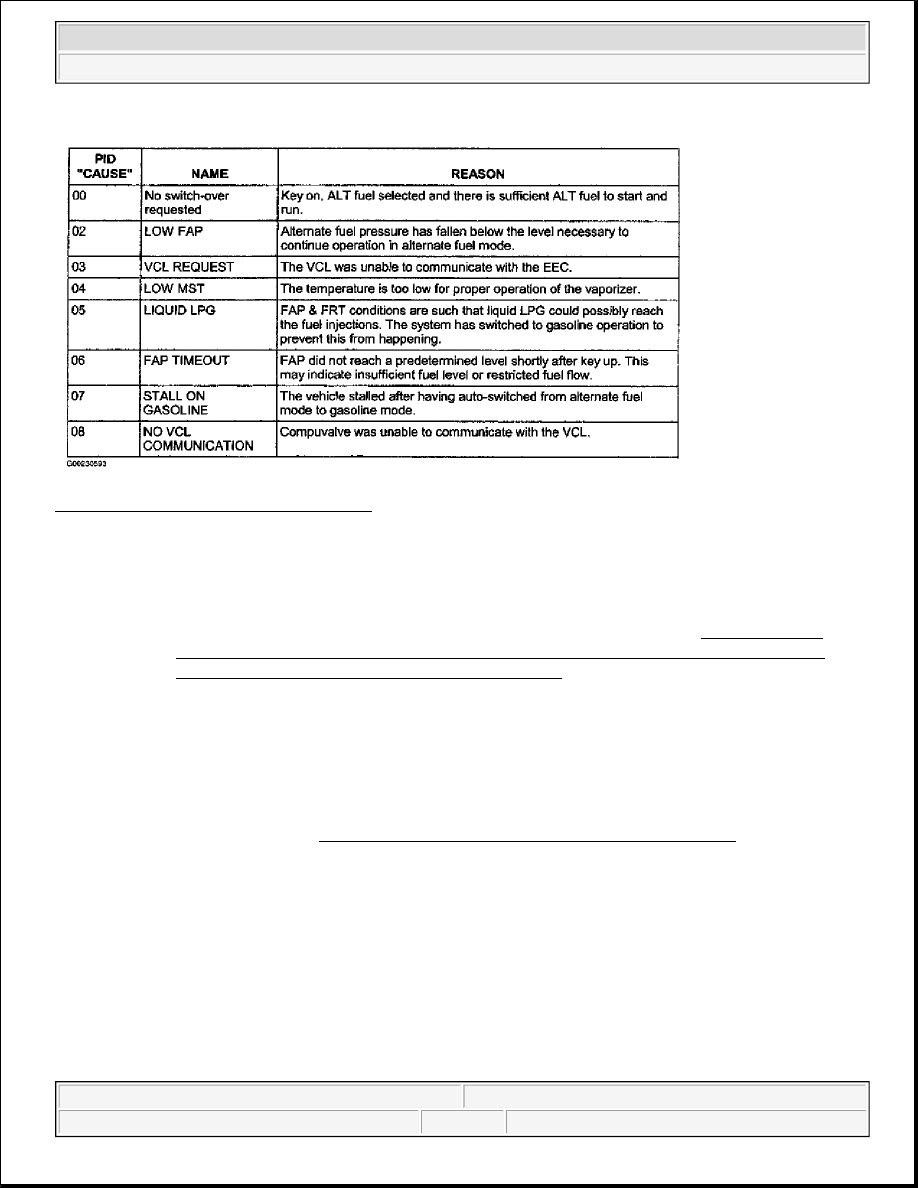

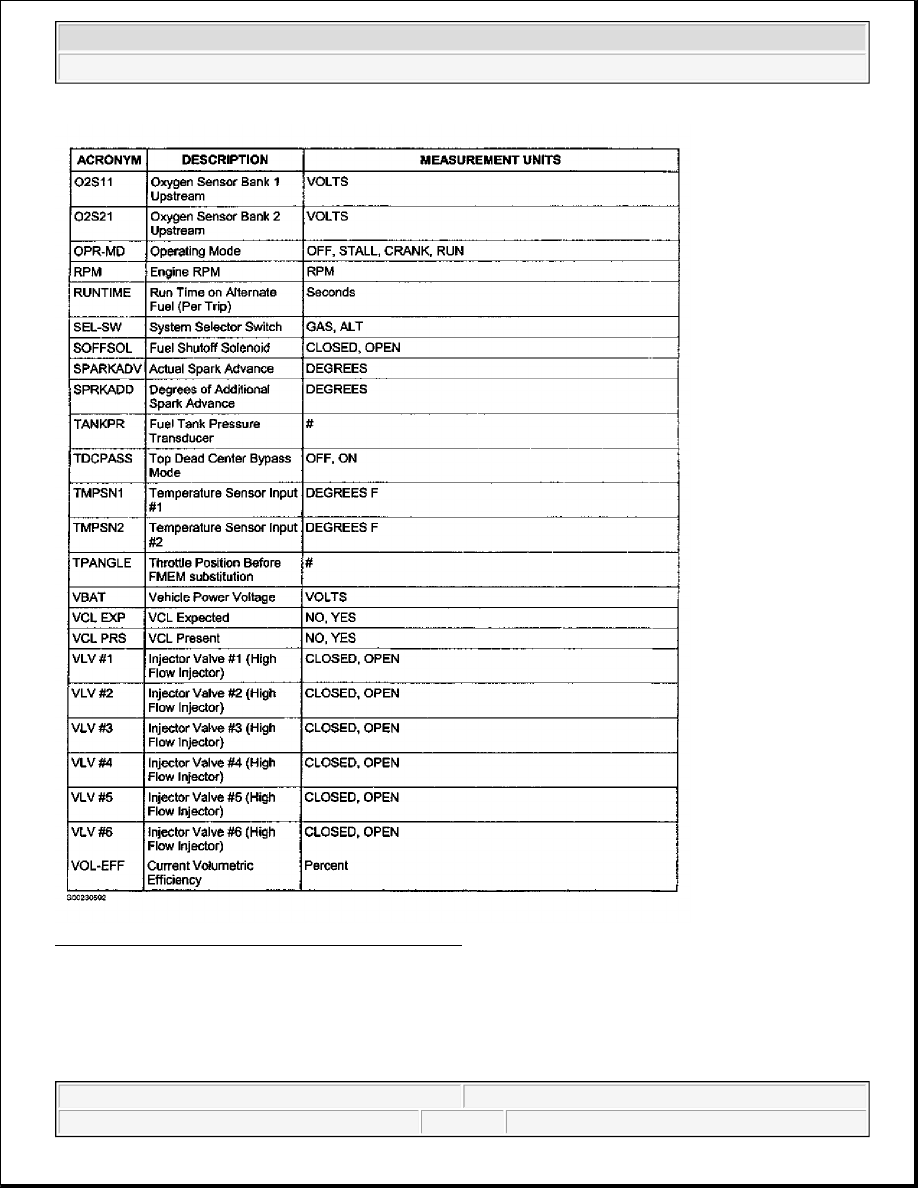

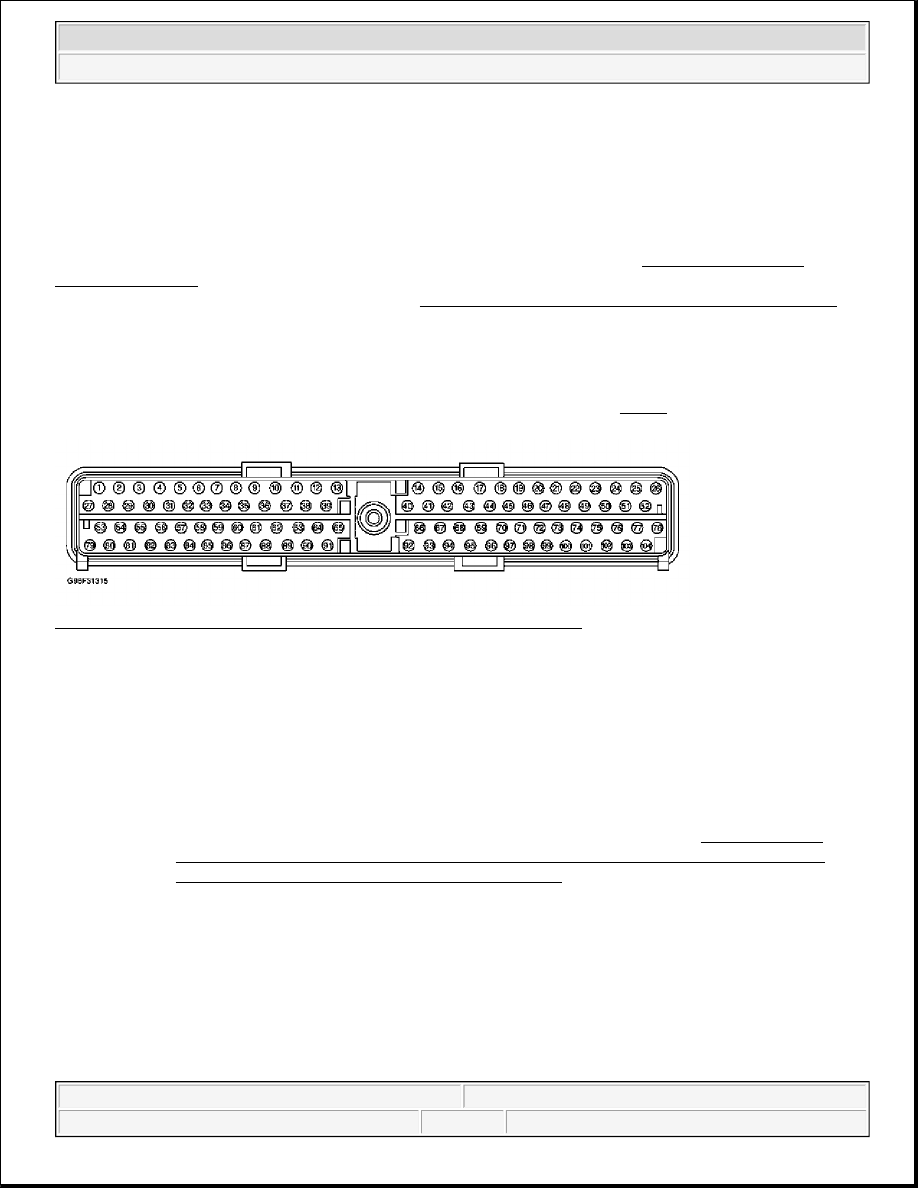

z Select PID/DATA MONITOR & RECORD. z Turn ignition switch to ON position or start engine and allow to idle. z Follow operating manuals from scan tool menu. z Select PIDs and press START to begin monitoring. Compare actual PID values on scan tool to PID values in appropriate chart under PIN VOLTAGE/PID PCM CONNECTORS Fig. 4: Identifying Powertrain Control Module Connector Terminals POWERTRAIN CONTROL MODULE LOCATIONS The powertrain control module is located on the right side of the engine compartment. PID DEFINITIONS & PIN VOLTAGE/PID VALUES PID DEFINITIONS NOTE: To identify PCM connector, refer to illustration. See Fig. 4 . NOTE: This list contains AFCM-specific PID's only. Alternative fuel misdiagnosis can NOTE: All references to 2V or 4V following an engine size or model is 2 or 4 valves per
2003 Ford Pickup F150 2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - F150 Pickup - Bi-Fuel - Gasoline/LPG
|
