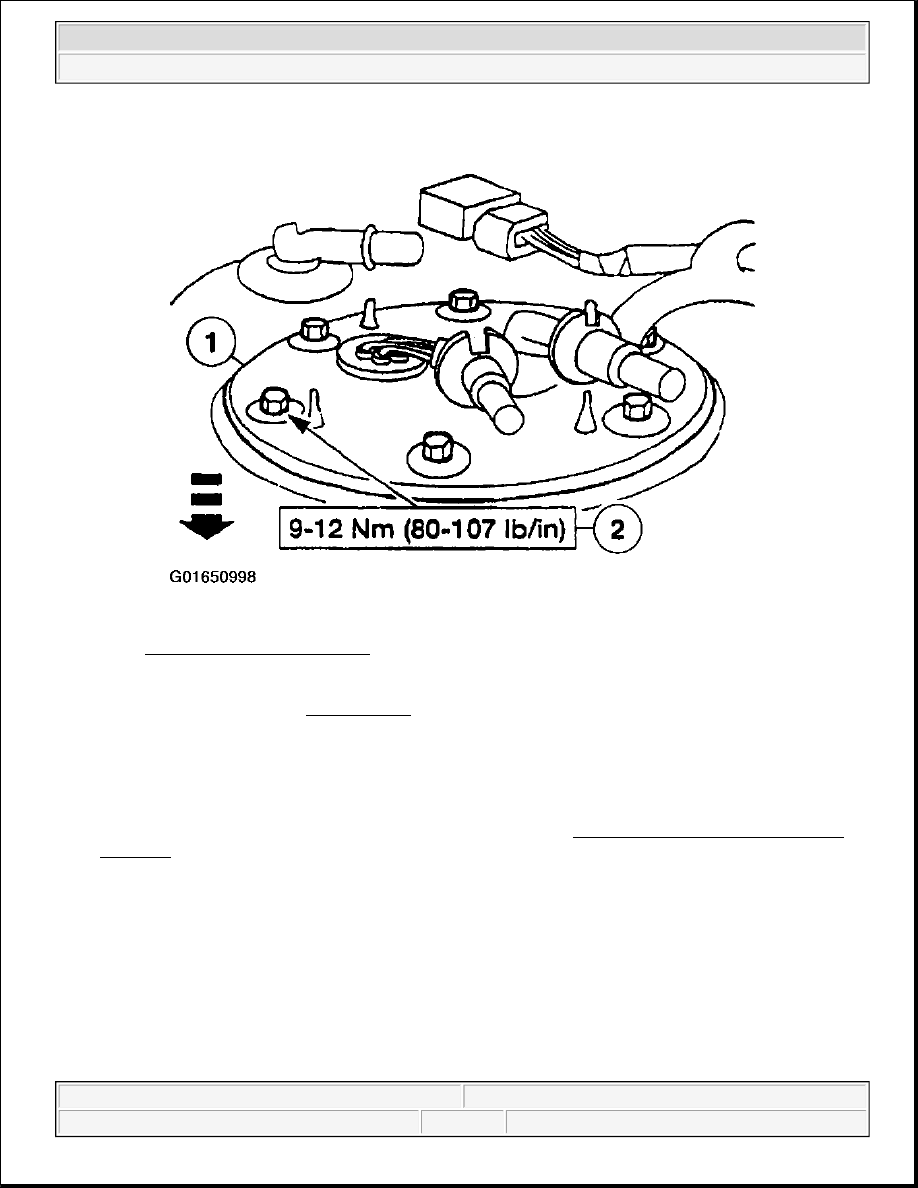

Fig. 33: Installing Fuel Pump
Courtesy of FORD MOTOR CO.

4. Install the fuel tank; refer to FUEL TANK .

FUEL PUMP - SUPERCHARGED ENGINE

Removal

1. Remove the fuel tank (9002). For additional information, refer to FUEL TANK - SUPERCHARGED

ENGINE .

2. Clean the area around the fuel pump mounting flange.

NOTE:

The fuel pump must be handled carefully to avoid damage to the float arm
and the filter.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup

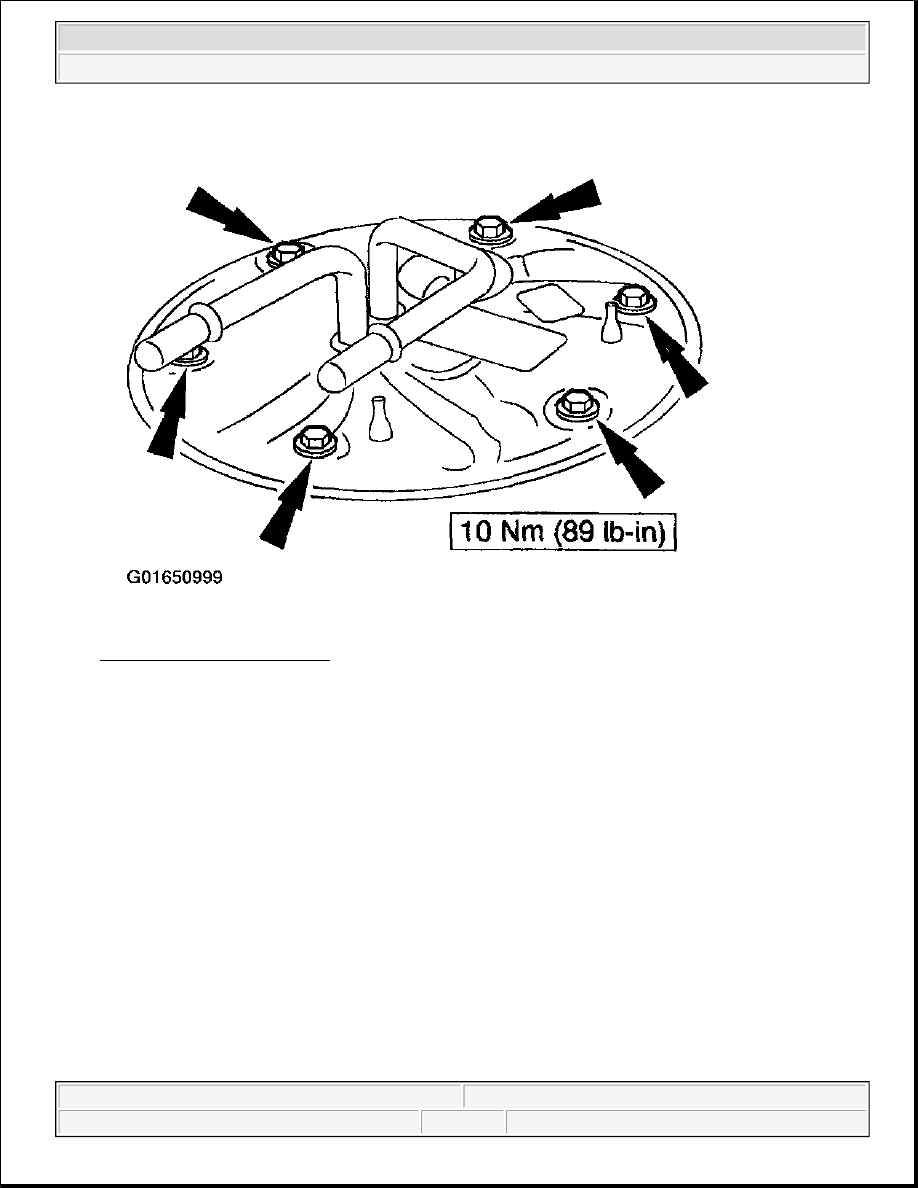

Fig. 34: Removing Fuel Pump
Courtesy of FORD MOTOR CO.

3. Remove the bolts and remove the fuel pump.

4. Remove and discard the fuel pump mounting gasket (9417).

Installation

1. Clean the fuel pump mounting flange and the fuel tank mounting surface.

2. Install the fuel pump mounting gasket on the mounting flange.

3. Install the fuel pump.

z

Position the fuel pump in the fuel tank or install the bolts.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup

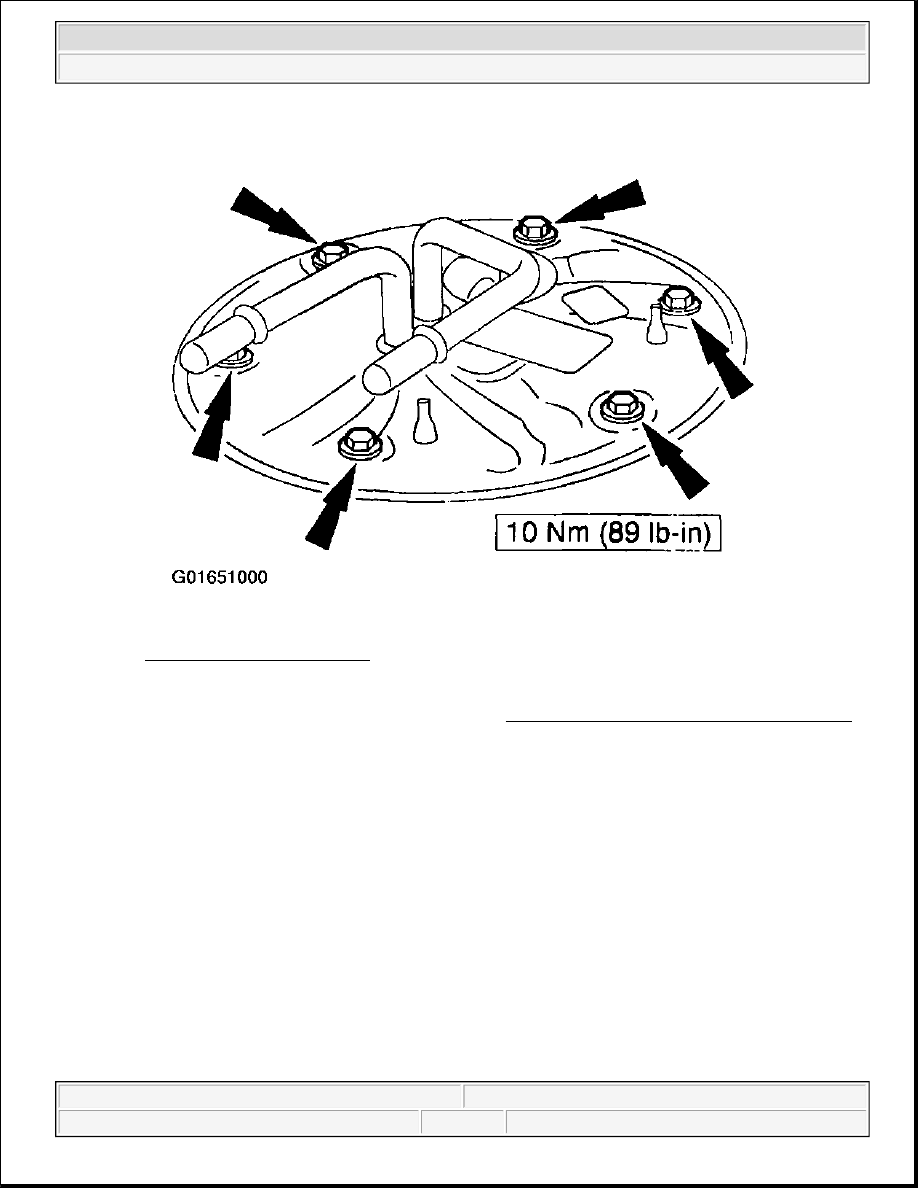

Fig. 35: Installing Fuel Pump
Courtesy of FORD MOTOR CO.

4. Install the fuel tank. For additional information, refer to FUEL TANK - SUPERCHARGED ENGINE .

FILLER PIPE

Removal

1. Remove fuel tank filler cap (9030).

2. Remove the screws.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup

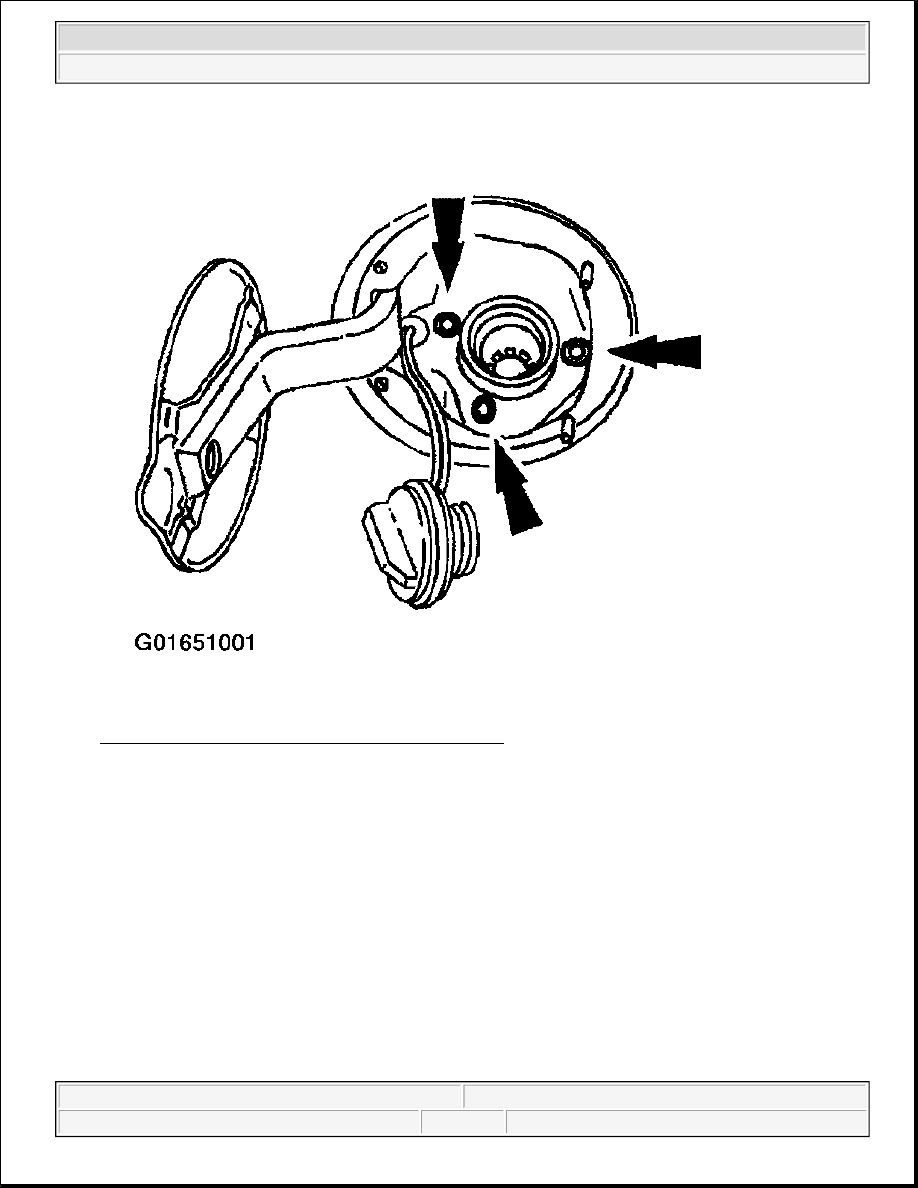

Fig. 36: Removing Fuel Tank Filler Cap And Screws
Courtesy of FORD MOTOR CO.

3. Remove one hose clamp on the fuel tank filler pipe support.
