Ford F150 Pickup. Manual - part 1120

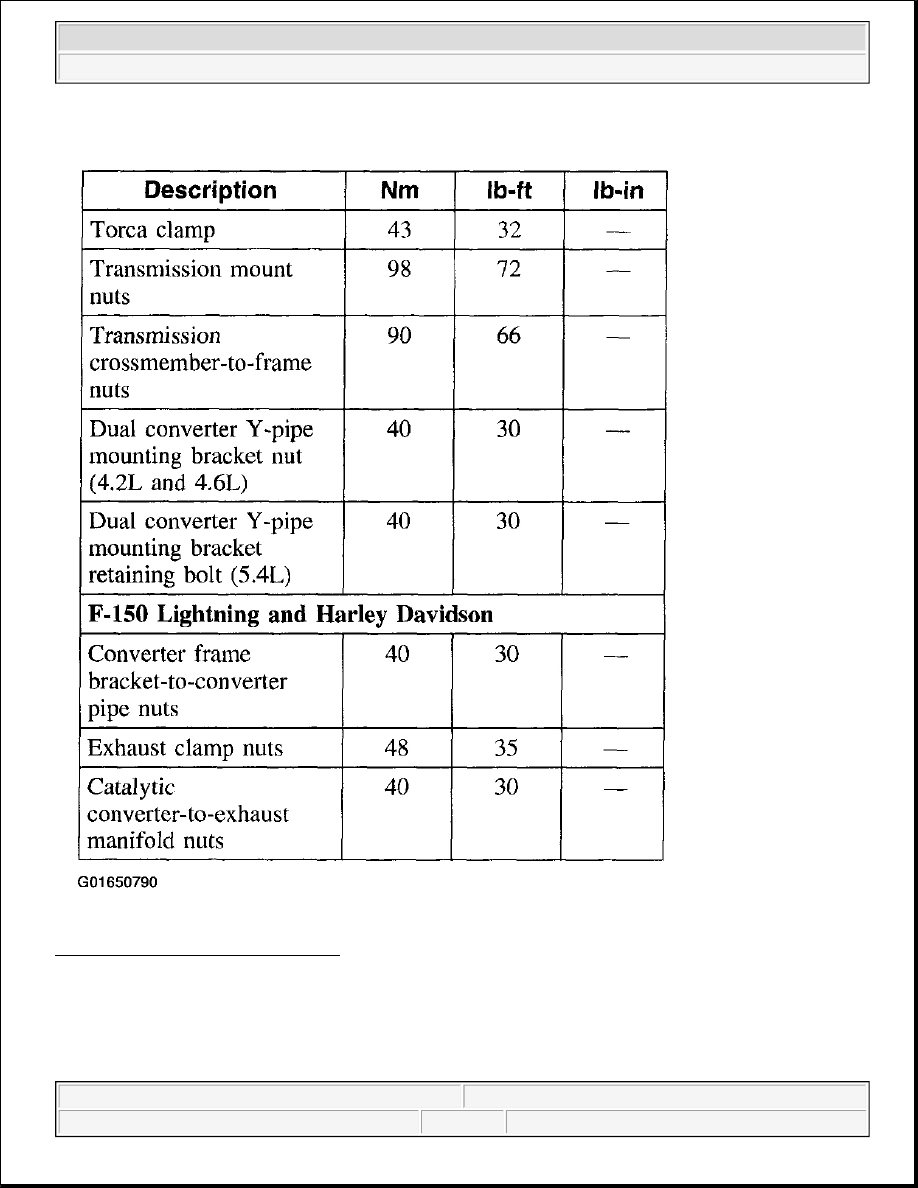

Fig. 3: Torque Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

EXHAUST SYSTEM



2003 Ford Pickup F150

2003 ENGINE Exhaust - F150 Pickup



The exhaust system consists of the components shown in the following illustrations.

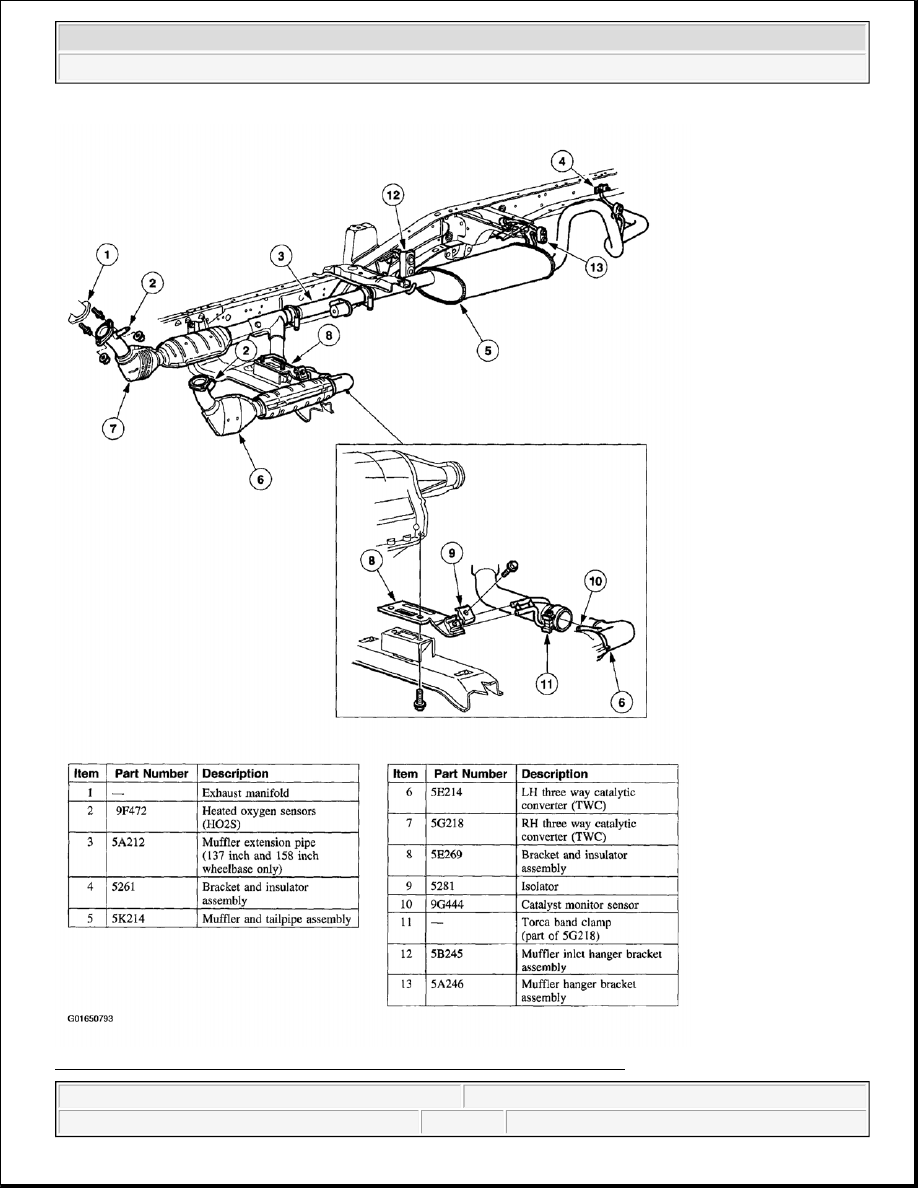

Fig. 4: Identifying Exhaust System Components - 4.2L Engine
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE Exhaust - F150 Pickup

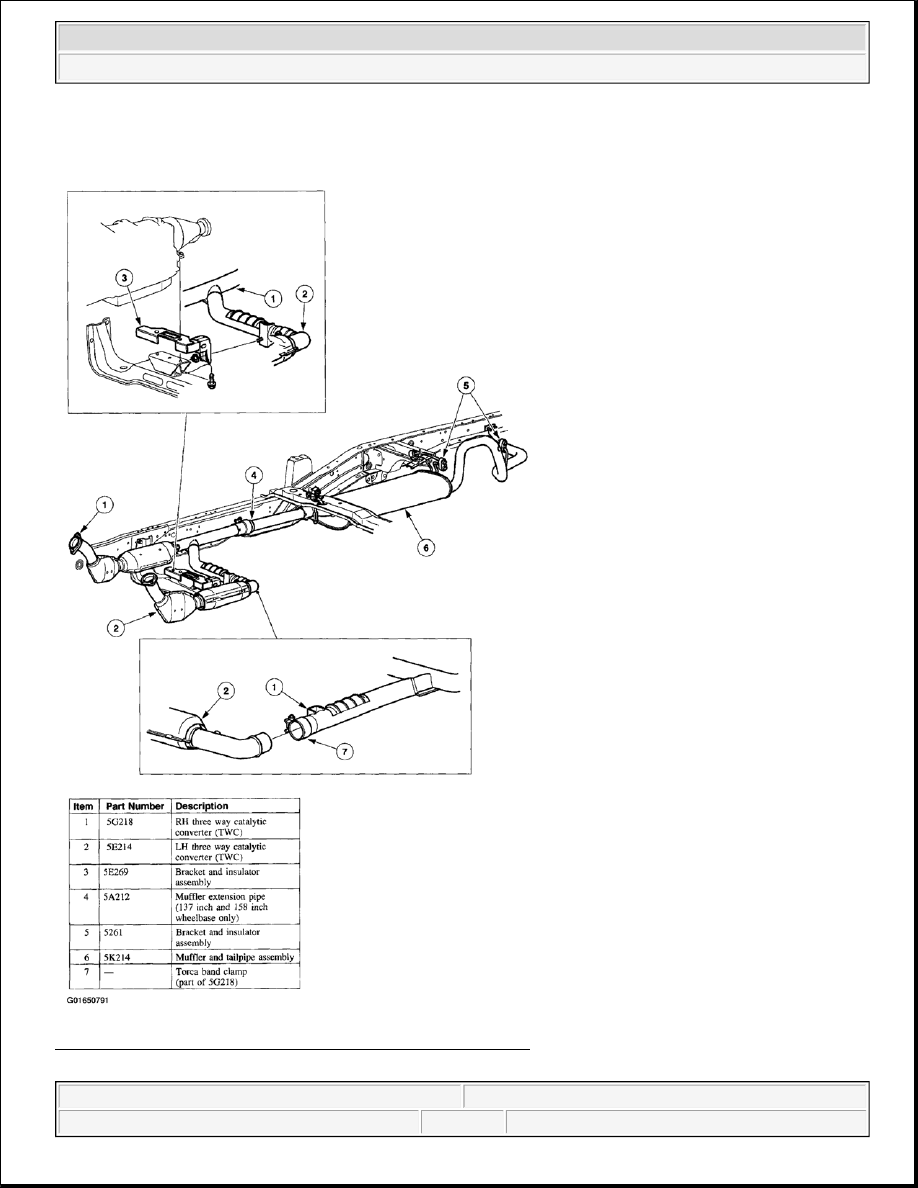

Fig. 5: Identifying Exhaust System Components - 4.6L Engine
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE Exhaust - F150 Pickup

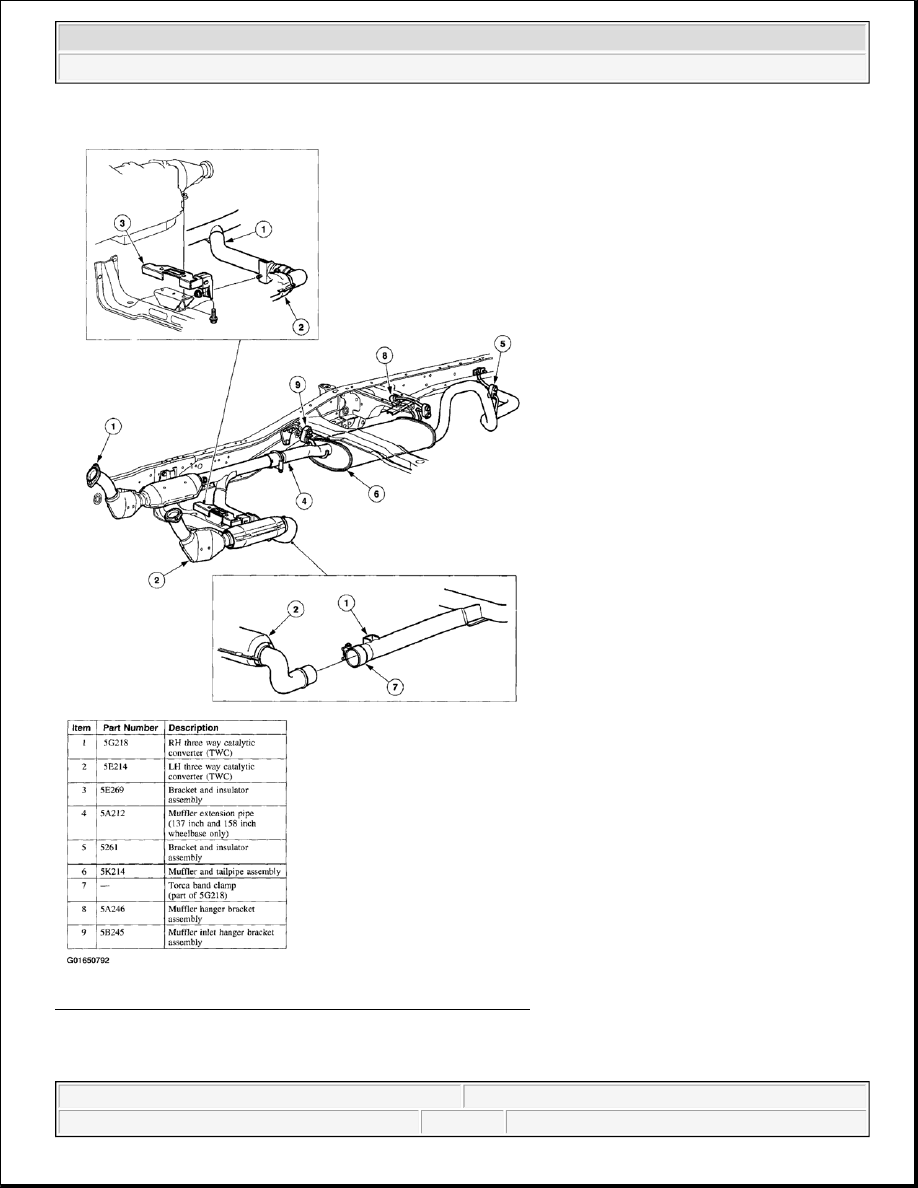

Fig. 6: Identifying Exhaust System Components - 5.4L Engine, 4X2 & 4X4



2003 Ford Pickup F150

2003 ENGINE Exhaust - F150 Pickup
