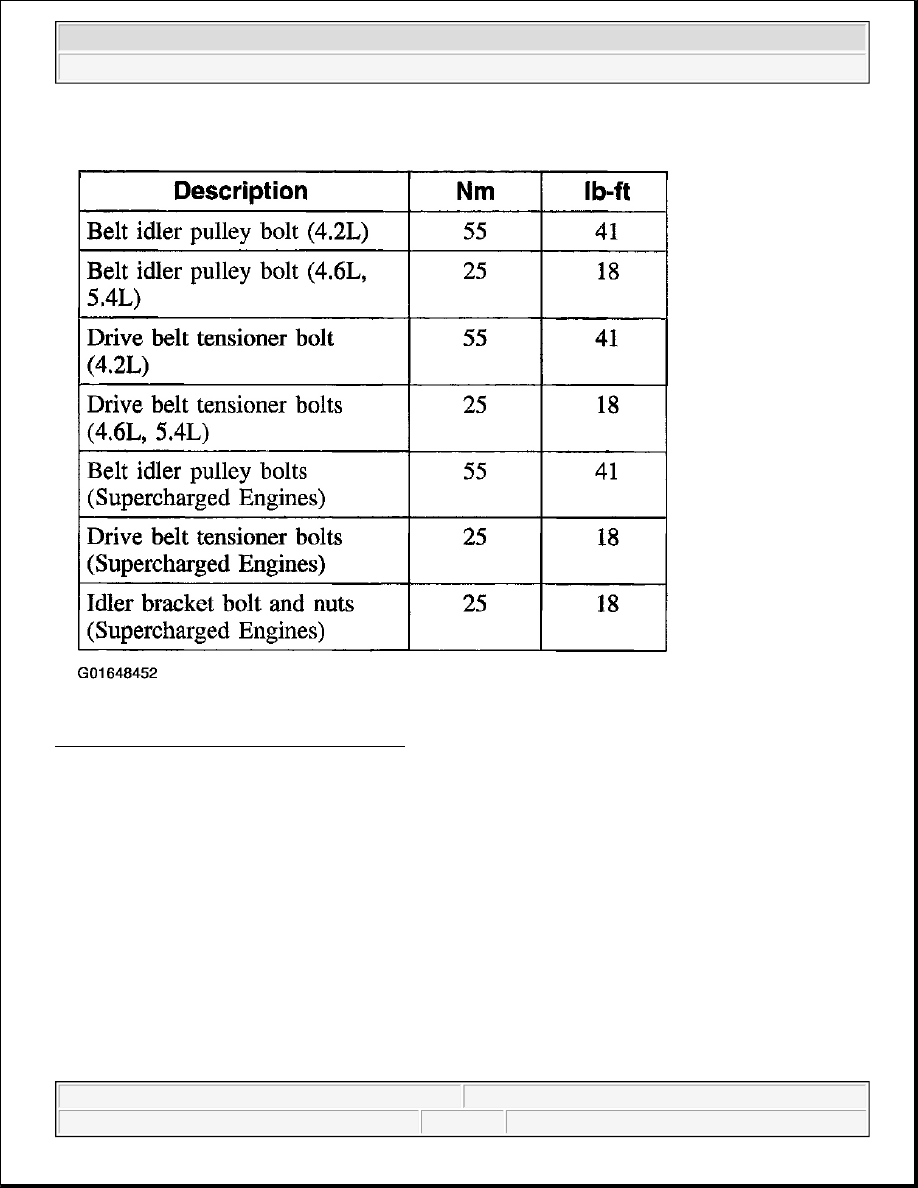

Fig. 2: Accessory Drive Torque Specifications
Courtesy of FORD MOTOR CO.

DESCRIPTION & OPERATION

ACCESSORY DRIVE

The accessory drive:

z

has a single serpentine drive belt with six ribs.

z

has automatic tensioning.

z

is not adjustable.

Component Locations - 4.2L With A/C



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup

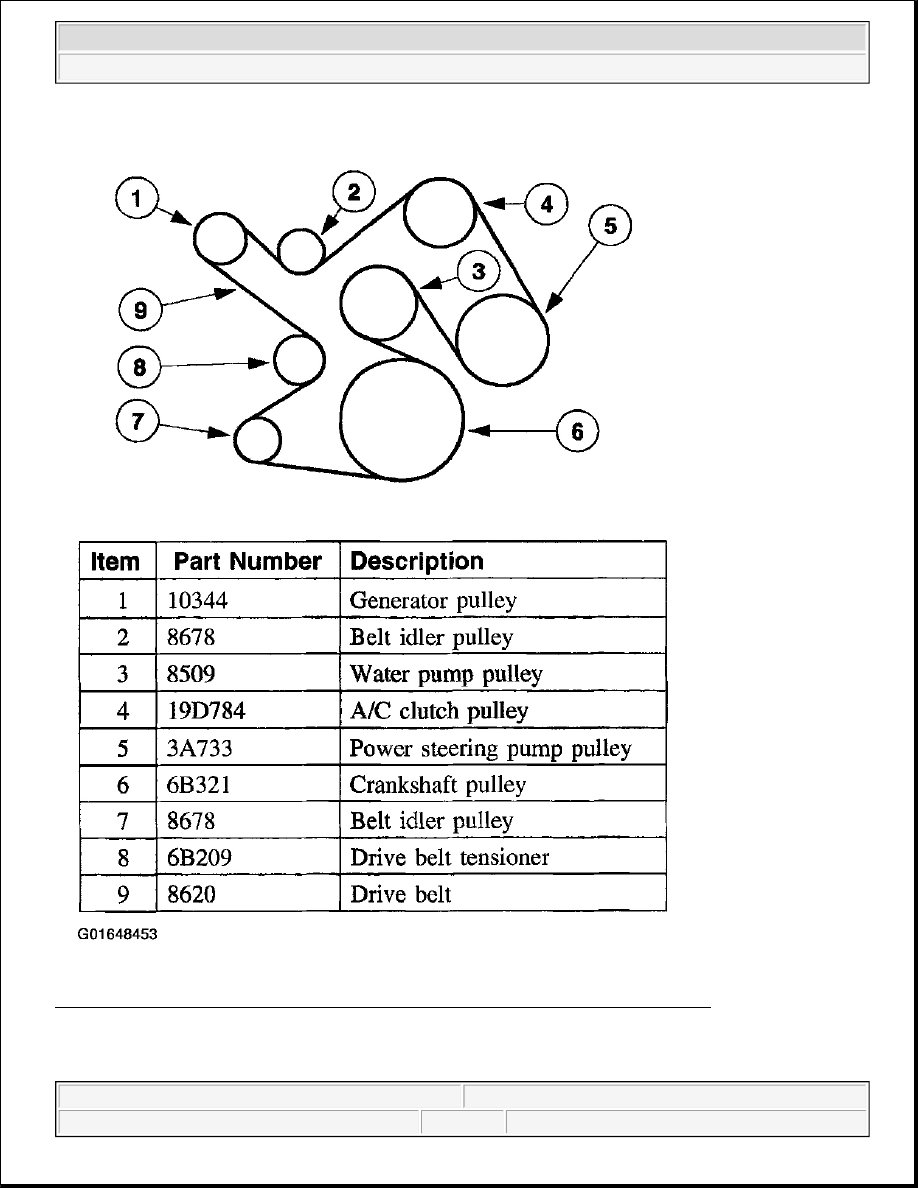

Fig. 3: Identifying Accessory Drive Routing & Component Locations - 4.2L With A/C
Courtesy of FORD MOTOR CO.

Component Locations - 4.2L Without A/C



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup

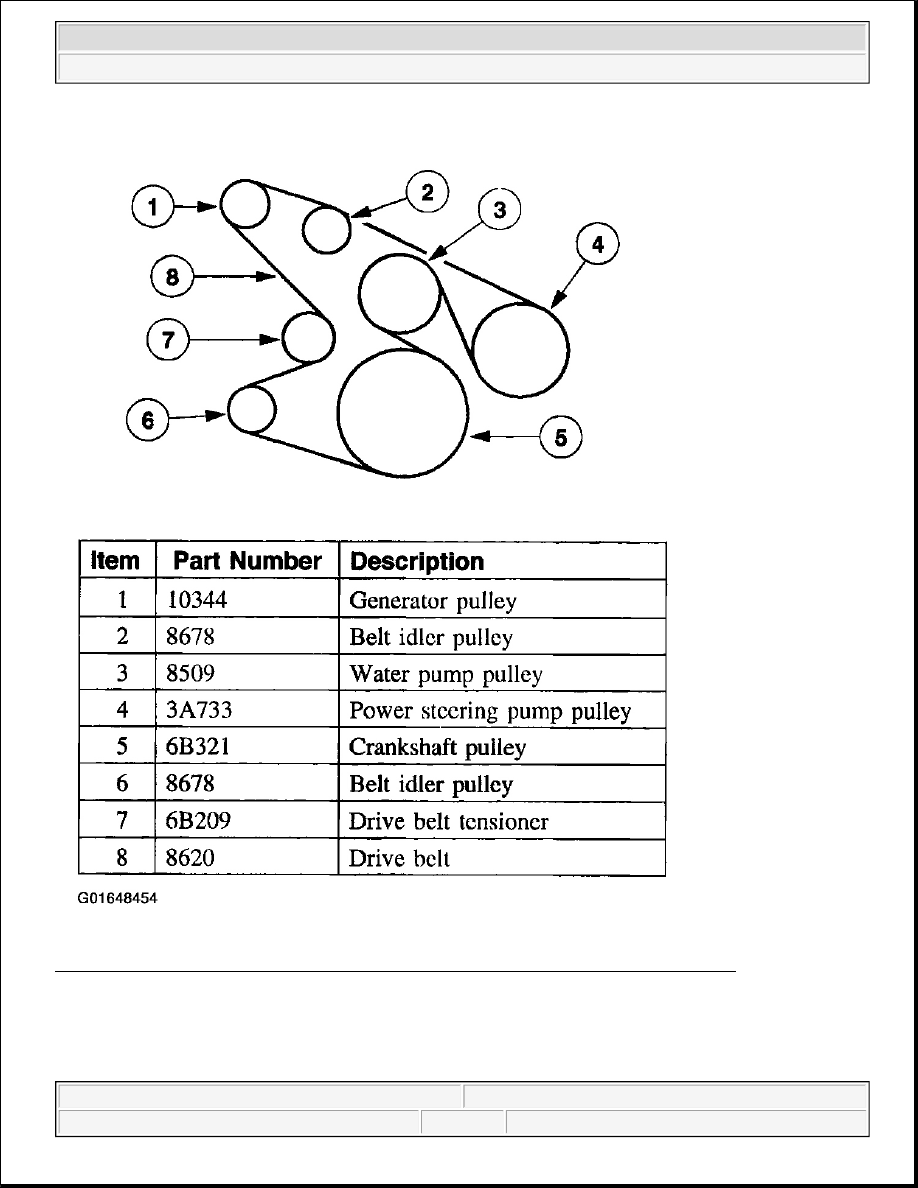

Fig. 4: Identifying Accessory Drive Routing & Component Locations - 4.2L Without A/C
Courtesy of FORD MOTOR CO.

Component Locations - 4.6L & 5.4L With A/C



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup

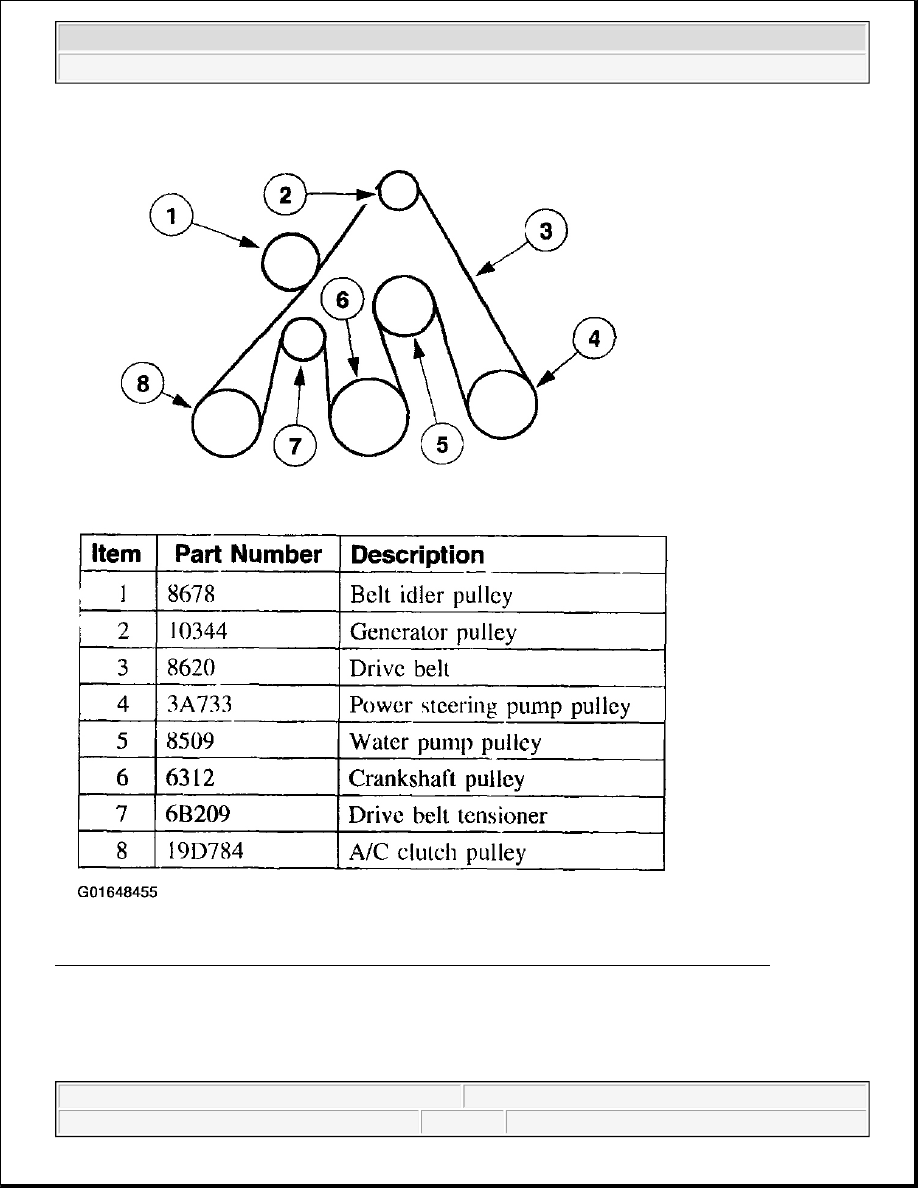

Fig. 5: Identifying Accessory Drive Routing & Component Locations - 4.6L & 5.4L With A/C
Courtesy of FORD MOTOR CO.

Component Locations - 4.6L & 5.4L Without A/C



2003 Ford Pickup F150

2003 ENGINE Accessory Drive - F150 Pickup
