Ford F150 Pickup. Manual - part 36

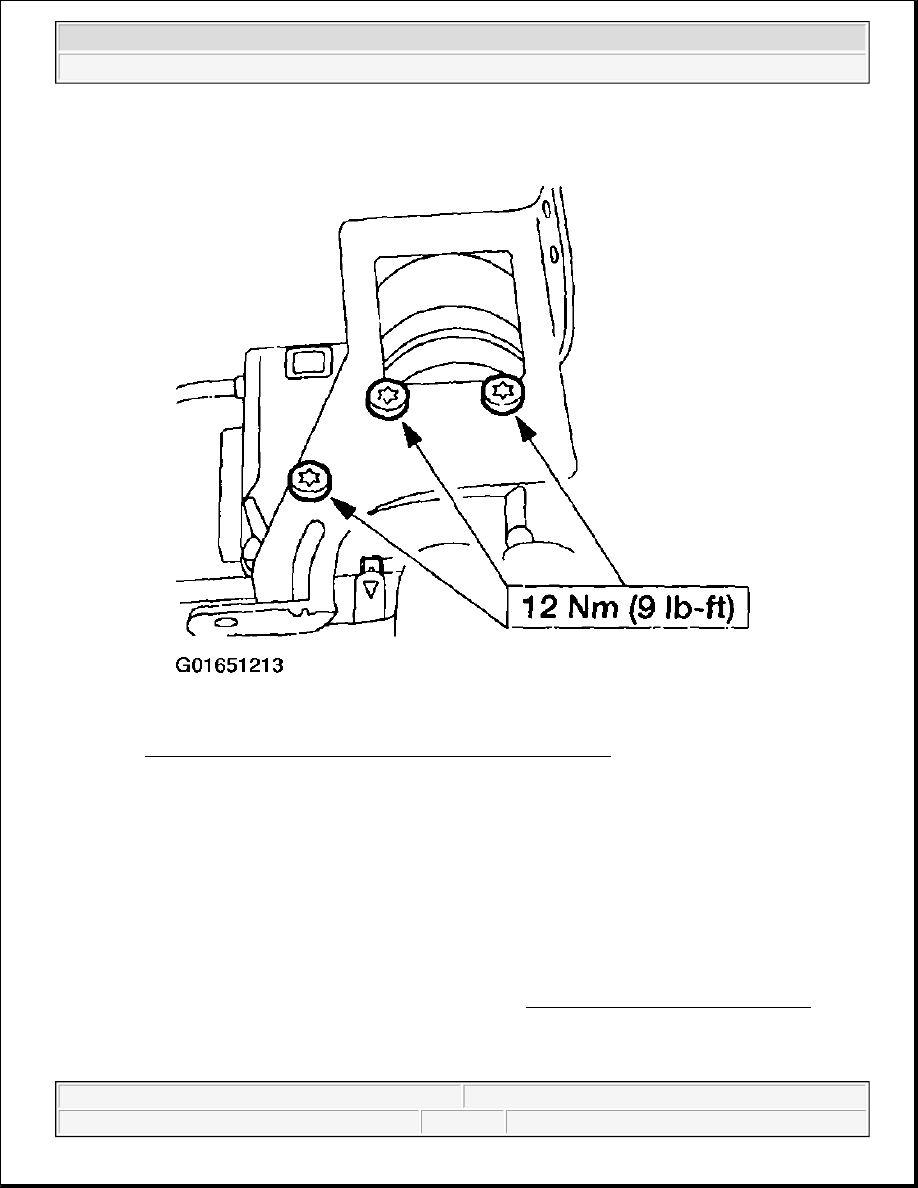

Fig. 42: Removing Screws And Speed Control Servo Bracket
Courtesy of FORD MOTOR CO.

6. To install, reverse the removal procedure.

SWITCH - SPEED CONTROL ACTUATOR

Removal

1. Remove the driver side air bag module (043B13). Refer to DRIVER-SIDE AIR BAG MODULE .

2. Remove the speed control switch (9C888).

1. Release the four (A) speed control switch clips and remove the (B) speed control actuator switch.

NOTE:

Make sure the rubber seal is fully seated onto the speed control cable
cap.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup



2. Disconnect the speed control actuator switch electrical connector.

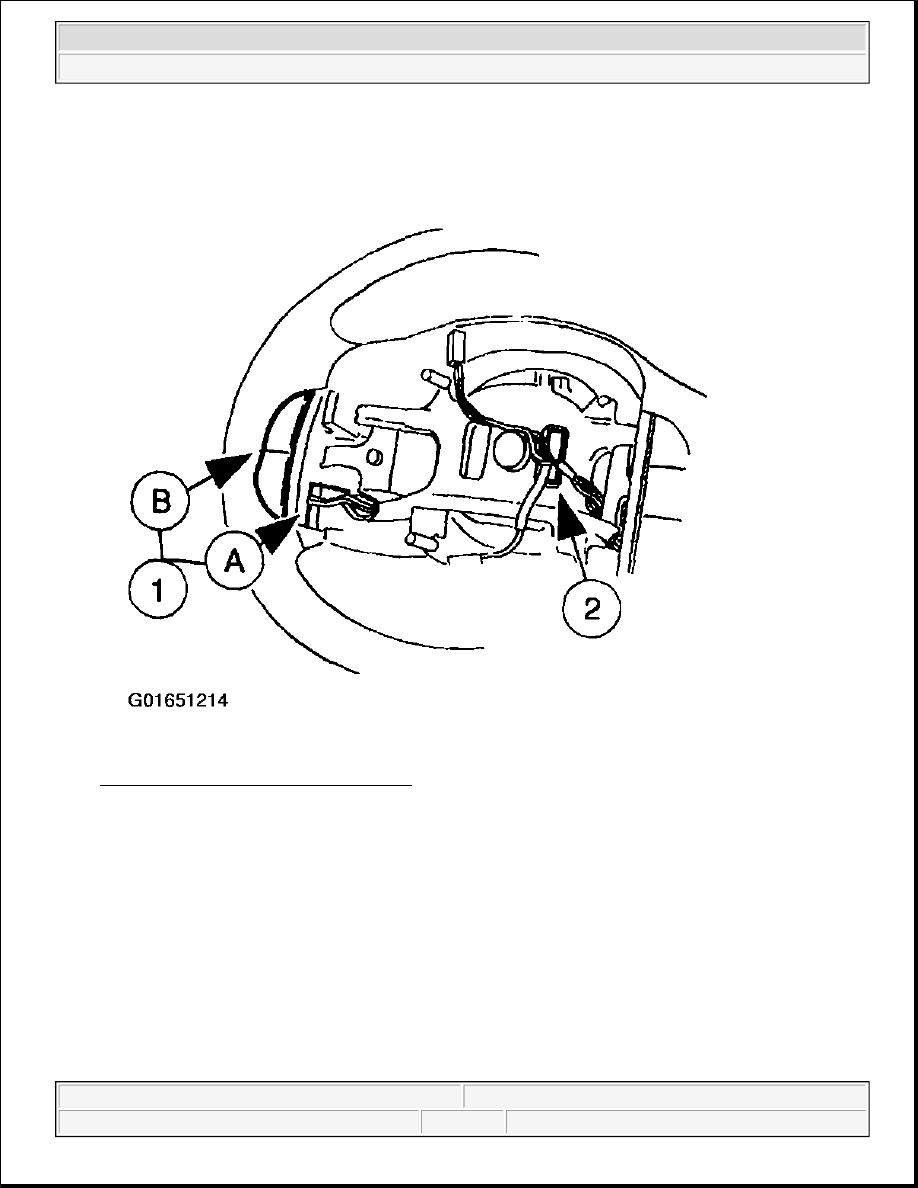

Fig. 43: Removing Speed Control Switch
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.

SWITCH - DEACTIVATOR

Removal

1. Disconnect the battery ground cable.

2. Disconnect the deactivator switch electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup

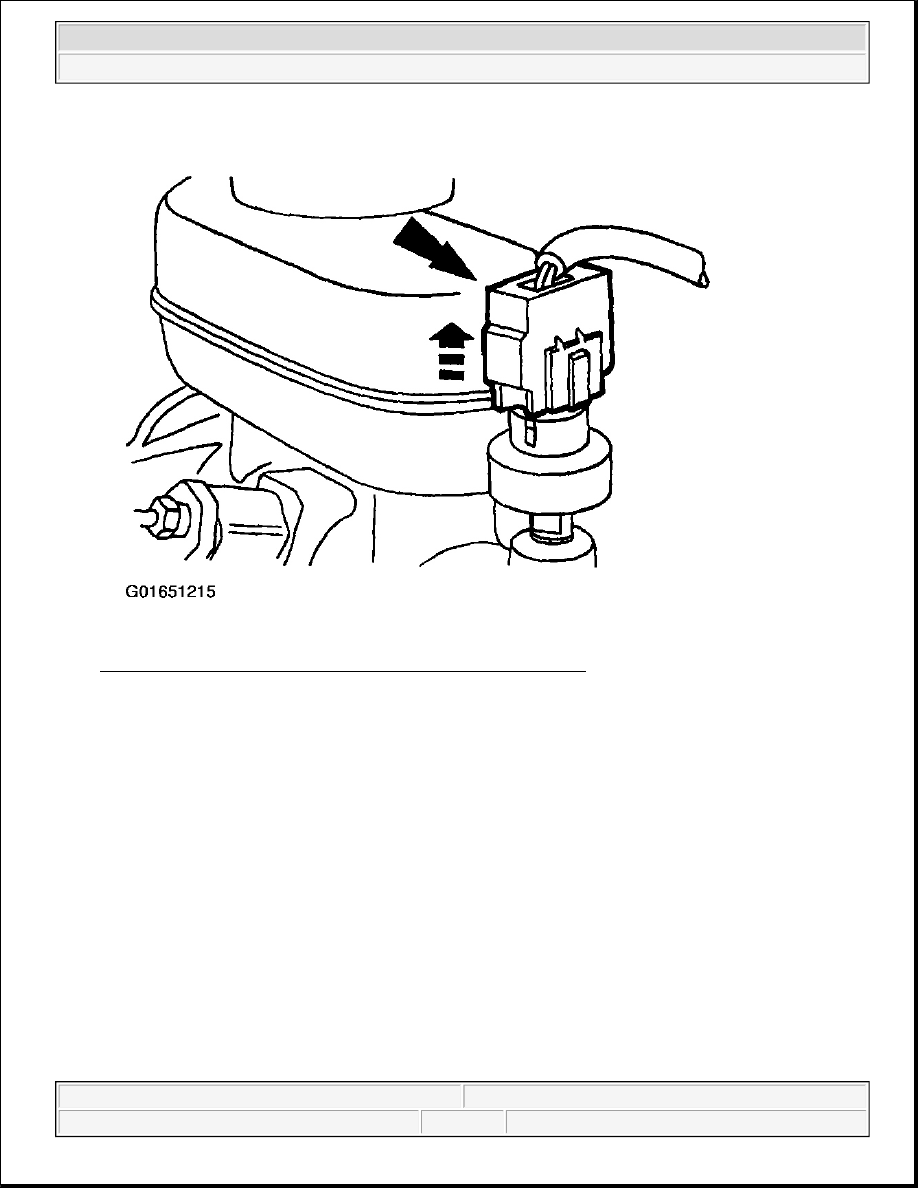

Fig. 44: Disconnecting Deactivator Switch Electrical Connector
Courtesy of FORD MOTOR CO.

WARNING:

Brake fluid contains polyglycol ethers and polyglycols. Avoid
contact with eyes. Wash hands thoroughly after handling. If brake
fluid contacts eyes, flush eyes with running water for 15 minutes.
Get medical attention if irritation persists. If taken internally, drink
water and induce vomiting. Get medical attention immediately.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is

spilled onto a painted or plastic surface, immediately wash it with
water.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Vehicle Speed Control - F150 Pickup

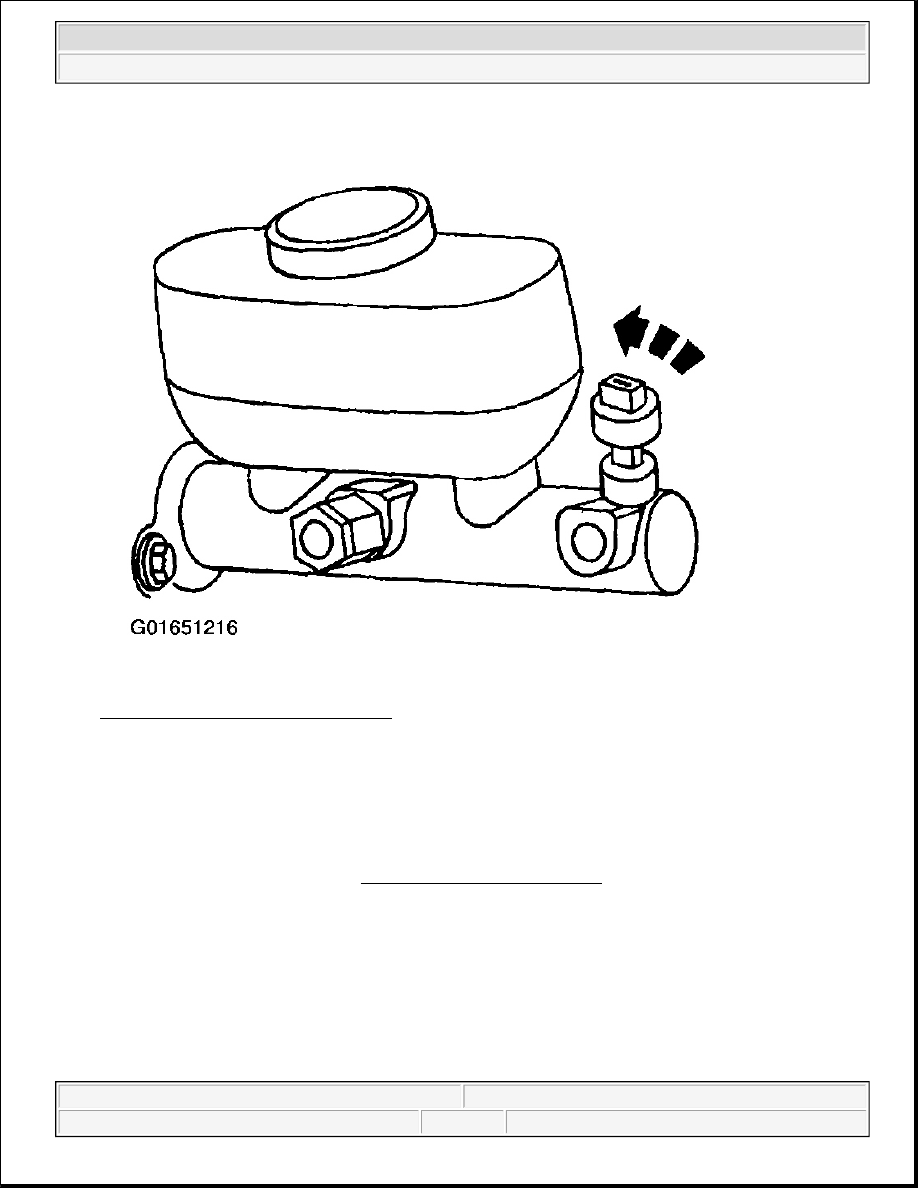

Fig. 45: Removing Deactivator Switch
Courtesy of FORD MOTOR CO.

3. Remove the deactivator switch.

Installation

NOTE:

After the deactivator switch is installed, it is necessary to bleed the brake
system; refer to BLEEDING BRAKE SYSTEM .
