E87786

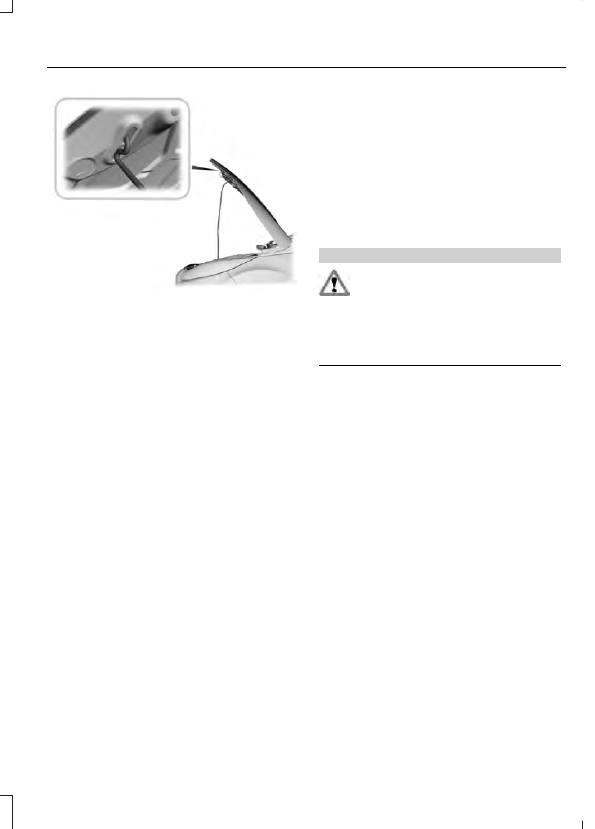

4. Open the hood.  Support the hood with

the strut.

Closing the Hood

1.

Remove the hood strut from the catch
and secure it correctly after use.

2. Lower the hood and allow it to drop

under its own weight for the last 8-12
in (20-30 cm).

Note: Make sure that the hood is correctly
closed.

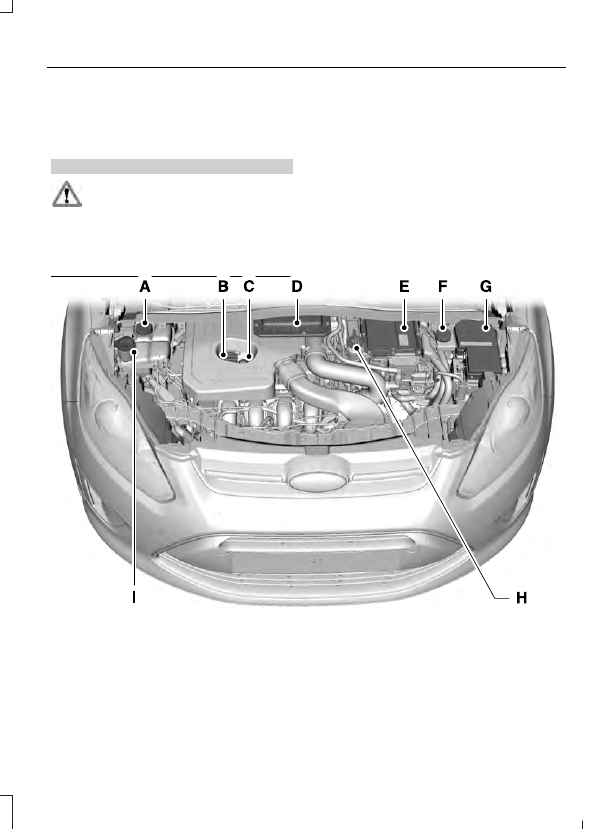

UNDER HOOD OVERVIEW -
HYBRID ELECTRIC VEHICLE
(HEV)

WARNING

The inverter system controller
contains various high-voltage
components that can cause serious

bodily harm or death. The inverter system
controller is not serviceable and should
never be touched, probed, or tampered
with.

Note: Do not attempt to service any of the
high-voltage components or wiring. For
easier identification, the high-voltage wiring
insulation is color coated orange.

A

B

C

D

E

F

G

H

I

E162485

Engine coolant reservoir cap.  See Engine Coolant Check (page 223).

A

Engine oil filler cap.  See Engine Oil Check (page 222).

B

Engine oil dipstick.  See Engine Oil Dipstick (page 222).

C

Engine air filter cover.  See Changing the Engine Air Filter (page 238).

D

Inverter system controller.

E

Brake fluid reservoir cap.  See Brake Fluid Check (page 227).

F

Power distribution box.  See Fuses (page 209).

G

Inverter system controller coolant reservoir cap.

H

Windshield washer fluid reservoir cap.  See Washer Fluid Check (page 227).

I

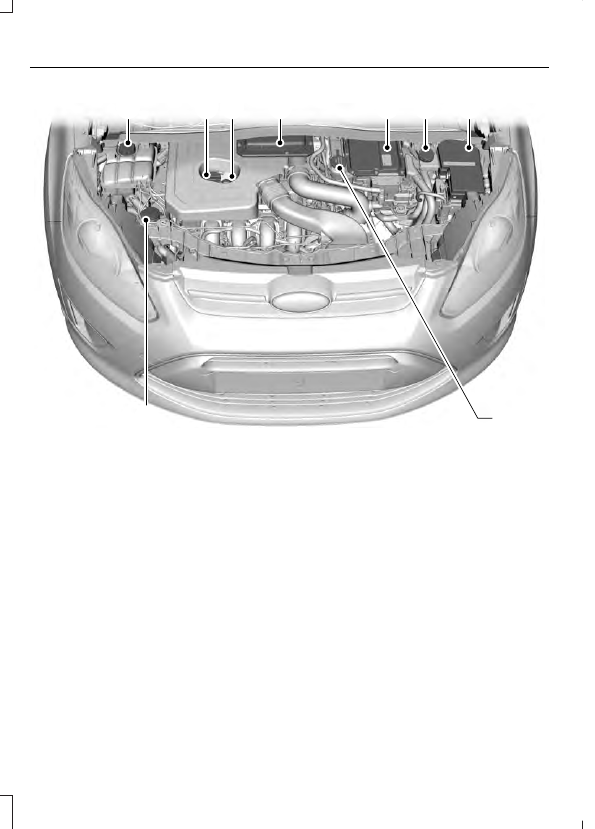

UNDER HOOD OVERVIEW -
PLUG-IN HYBRID ELECTRIC
VEHICLE (PHEV)

WARNING

The inverter system controller
contains various high-voltage
components that can cause serious

bodily harm or death. The inverter system
controller is not serviceable and should
never be touched, probed, or tampered
with.

Note: Do not attempt to service any of the
high-voltage components or wiring. For
easier identification, the high-voltage wiring
insulation is color coated orange.

E190353

Engine coolant reservoir cap.  See Engine Coolant Check (page 223).

A

Engine oil filler cap.  See Engine Oil Check (page 222).

B

Engine oil dipstick.  See Engine Oil Dipstick (page 222).

C

Engine air filter cover.  See Changing the Engine Air Filter (page 238).

D

Inverter system controller.

E

Brake fluid reservoir cap.  See Brake Fluid Check (page 227).

F

Power distribution box.  See Fuses (page 209).

G

Inverter system controller coolant reservoir cap.

H

Windshield washer fluid reservoir cap.  See Washer Fluid Check (page 227).

I

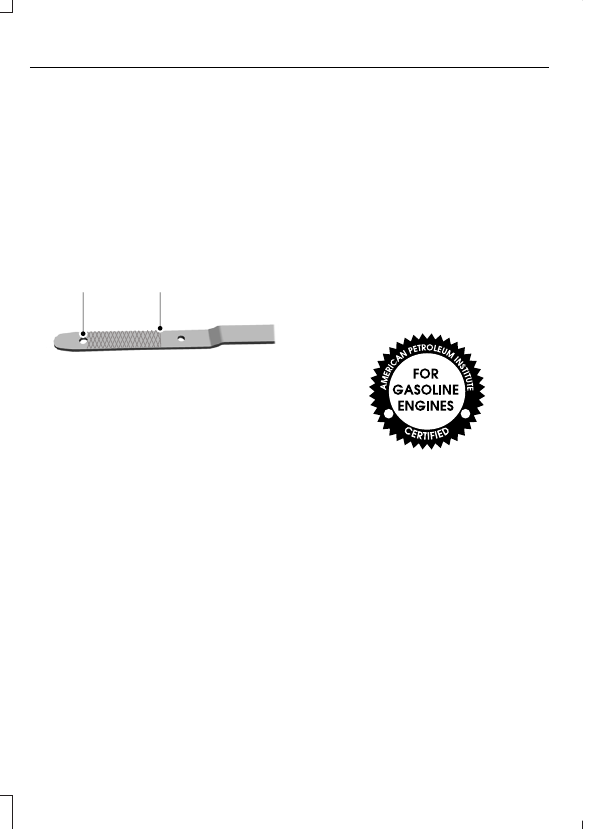

ENGINE OIL DIPSTICK

A

B

E169062

MIN

A

MAX

B

ENGINE OIL CHECK

Check the level before starting the engine
and make sure that the level is between
the MIN and the MAX marks.

1.

Make sure that your vehicle is on level
ground.

2. Switch the engine off and wait 10

minutes for the oil to drain into the oil
pan.

3. Remove the dipstick and wipe it with

a clean, lint-free cloth. Replace the
dipstick and remove it again to check
the oil level.

If the oil level is at the minimum mark, add
oil immediately.

Adding Engine Oil

Note: Do not remove the filler cap when
the engine is running.

Note: Do not add oil further than the MAX
mark. Oil levels above the MAX mark may
cause engine damage.

E142732

Only use oils certified for gasoline engines
by the American Petroleum Institute (API).
An oil with this trademark symbol
conforms to the current engine and
emission system protection standards and
fuel economy requirements of the
International Lubricants Specification
Advisory Council (ILSAC), comprised of
U.S. and Japanese automobile
manufacturers.

1.

Remove the filler cap.

2. Add engine oil that meets the Ford

specifications.  See Capacities and
Specifications (page 276).

3. Wipe off any spilled oil.
4. Replace the filler cap. Turn it until you

feel a strong resistance.
