When the indicator light on the power point
is:
•

On: The power point is working, the
ignition is on and a device is plugged
in.

•

Off: The power point is off, the ignition
is off or no device is plugged in.

•

Flashing: The power point is in fault
mode.

The power outlet temporarily turns off
power when in fault mode if the device
exceeds the 150 watt limit.  Unplug your
device and switch the ignition off.  Switch
the ignition back on, but do not plug your
device back in.  Let the system cool off and
switch the ignition off to reset the fault
mode.  Switch the ignition back on and
make sure the indicator light remains on.

Do not use the power point for certain
electric devices, including:
•

Cathode-ray, tube-type televisions.

•

Motor loads, such as vacuum cleaners,
electric saws and other electric power
tools or compressor-driven
refrigerators.

•

Measuring devices, which process
precise data, such as medical
equipment or measuring equipment.

•

Other appliances requiring an
extremely stable power supply such as
microcomputer-controlled electric
blankets or touch-sensor lamps.

CENTER CONSOLE

Stow items in the cup holder carefully as
items may become loose during hard
braking, acceleration or crashes, including
hot drinks which may spill.

Available console features include:

A

B

C

E142433

Cup holder.

A

Storage compartment with
auxiliary power point, USB port
and media hub.

B

Auxiliary power point.

C

OVERHEAD CONSOLE

E131605

Press near the rear edge of the door to
open it.

GENERAL INFORMATION

WARNINGS

Extended idling at high engine
speeds can produce very high
temperatures in the engine and

exhaust system, creating the risk of fire or
other damage.

Do not park, idle or drive your vehicle
on dry grass or other dry ground
cover. The emission system heats up

the engine compartment and exhaust
system, creating the risk of fire.

Do not start the vehicle in a closed
garage or in other enclosed areas.
Exhaust fumes can be toxic. Always

open the garage door before you start the
vehicle.

If you smell exhaust fumes inside
your vehicle, have your vehicle
checked by an authorized dealer

immediately. Do not drive your vehicle if
you smell exhaust fumes.

If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately 5 miles
(8 kilometers) after you reconnect it. This
is because the engine management system
must realign itself with the engine. You can
disregard any unusual driving
characteristics during this period.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

When you start the vehicle, avoid pressing
the accelerator pedal before and during
operation. Only use the accelerator pedal
when you have difficulty starting the
vehicle.

IGNITION SWITCH

E72128

0 (off) - The ignition is off.

Note: When you switch the ignition off and
leave your vehicle, do not leave your key in
the ignition. This could cause your vehicle
battery to lose charge.

I (accessory) - Allows the electrical
accessories, such as the radio, to operate
while the engine is not running.

Note: Do not leave the ignition key in this
position for too long. This could cause your
vehicle battery to lose charge.

II (on) - All electrical circuits are
operational and the warning lamps and
indicators illuminate.

III (start) - starts the vehicle into Ready to
Drive mode (indicated by the green "Ready
to Drive" icon on the instrument cluster).

KEYLESS STARTING

 (If Equipped)

Note: The keyless starting system may not
function if the key is close to metal objects
or electronic devices such as cellular
phones.

Note: A valid key must be located inside
your vehicle to switch the ignition on and
start the vehicle.

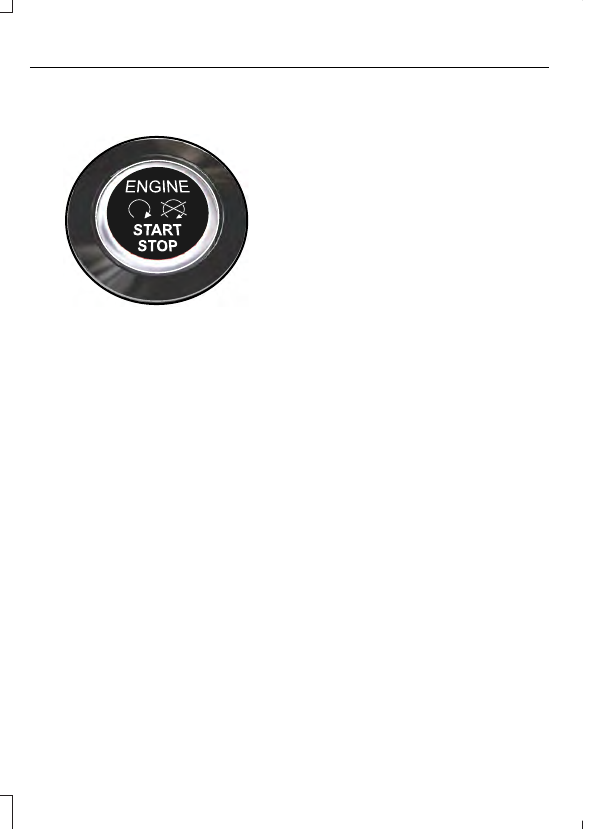

Ignition Modes

E142555

The keyless starting system has three
modes:
•

Off: Turns the ignition off.
•

Without applying the brake pedal,
press and release the button once
when the ignition is in the on mode,
or when the vehicle is on but not
moving.

•

On: All electrical circuits are
operational and the warning lamps and
indicators illuminate.
•

Without applying the brake pedal,
press and release the button once.

•

Start: Starts the vehicle into Ready to
Drive mode (indicated by the green
"Ready to Drive" icon on the instrument
cluster). The engine may not start
when the vehicle starts.
•

Press the brake pedal, and then
press the button until the vehicle
turns on.

STARTING A GASOLINE
ENGINE

When the engine starts for the first time
on your drive, the idle speed increases, this
helps to warm up the engine. If the engine
idle speed does not slow down
automatically, have your vehicle checked
by an authorized dealer.

Before starting the vehicle, check the
following:
•

Make sure all occupants have fastened
their safety belts.

•

Make sure the headlamps and
electrical accessories are off.

•

Make sure the parking brake is on.

•

Move the transmission selector lever
to position P.

•

Turn the ignition key to position II. If
your vehicle is equipped with a keyless
ignition, see the following instructions.

Vehicles with an Ignition Key

Note: Do not touch the accelerator pedal.

1.

Fully press the brake pedal.

2. Turn the key to position III to start the

vehicle. Release the key when the
vehicle starts.

Note: Cranking may last for up to 15
seconds, or until the vehicle starts.

Note: If you cannot start the vehicle on the
first try, wait for a short period and try again.

Vehicles with Keyless Start

Note: Do not touch the accelerator pedal.

1.

Fully press the brake pedal.

2. Press the button.
