Ford C-MAX Hybrid / Energi (2016 year). Manual - part 3





GENERAL INFORMATION

See the following sections for directions
on how to properly use safety restraints
for children.

WARNINGS

Always make sure your child is
secured properly in a device that is
appropriate for their height, age and

weight. Child safety restraints must be
bought separately from your vehicle.
Failure to follow these instructions and
guidelines may result in an increased risk
of serious injury or death to your child.

All children are shaped differently.
The recommendations for safety
restraints are based on probable

child height, age and weight thresholds
from National Highway Traffic Safety
Administration and other safety
organizations, or are the minimum
requirements of law. Ford recommends
checking with a NHTSA Certified Child
Passenger Safety Technician (CPST) and
consult your pediatrician to make sure your
child seat is appropriate for your child, and

WARNINGS

is compatible with and properly installed
in your vehicle. To locate a child seat fitting
station and CPST, contact the NHTSA toll
free at 1-888-327-4236 or go to
http://www.nhtsa.dot.gov. In Canada,
check with your local St. John Ambulance
office for referral to a CPST or for further
information, contact your provincial
ministry of transportation, locate your local
St. John Ambulance office by searching for
St. John Ambulance on the internet, or
Transport Canada at 1-800-333-0371
(http://www.tc.gc.ca). Failure to properly
restrain children in safety seats made
especially for their height, age, and weight
may result in an increased risk of serious
injury or death to your child.

Do not leave children or animals
unattended in the vehicle. On hot
days, the temperature in the trunk or

vehicle interior can rise very quickly.
Exposure of people or animals to these
high temperatures for even a short time
can cause death or serious heat-related
injuries, including brain damage. Small
children are particularly at risk.

Recommendations for Safety Restraints for Children

Recommended restraint

type

Child size, height, weight, or age

Child

Use a child safety seat

(sometimes called an

infant carrier, convertible

seat, or toddler seat).

Children weighing 40 lb (18 kg) or less

(generally age four or younger).

Infants or

toddlers

Use a belt-positioning

booster seat.

Children who have outgrown or no longer

properly fit in a child safety seat (gener-

ally children who are less than 4 ft. 9 in.

(1.45 m) tall, are greater than age four

and less than age 12, and between 40 lb

(18 kg) and 80 lb (36 kg) and upward to

100 lb (45 kg) if recommended by your

child restraint manufacturer).

Small children

Use a vehicle safety belt

having the lap belt snug

and low across the hips,

shoulder belt centered

across the shoulder and

chest, and seat back

upright.

Children who have outgrown or no longer

properly fit in a belt-positioning booster

seat (generally children who are at least
4 ft. 9 in. (1.45 m) tall or greater than 80

lb (36 kg) or 100 lb (45 kg) if recom-

mended by child restraint manufacturer).

Larger children

You are required by law to properly use
safety seats for infants and toddlers in
the United States and Canada.

Many states and provinces require that
small children use approved booster
seats until they reach age eight, a
height of 4 feet 9 inches (1.45 meters)
tall, or 80 pounds (36 kilograms).
Check your local and state or provincial
laws for specific requirements about
the safety of children in your vehicle.

When possible, always properly
restrain children 12 years of age and
under in a rear seating position of your
vehicle. Accident statistics suggest that
children are safer when properly
restrained in the rear seating positions
than in a front seating position.  See
Front Passenger Sensing System
(page 37).

INSTALLING CHILD
RESTRAINTS

Child Seats

E142594

Use a child safety seat (sometimes called
an infant carrier, convertible seat, or
toddler seat) for infants, toddlers, or
children weighing 40 pounds (18
kilograms) or less (generally age four or
younger).

Using Lap and Shoulder Belts

WARNINGS

Airbags can kill or injure a child in a
child seat. Never place a rear-facing
child seat in front of an active airbag.

If you must use a forward-facing child seat
in the front seat, move the seat all the way
back.

Airbags can kill or injure a child in a
child seat. Children 12 and under
should be properly restrained in the

rear seat whenever possible.

Depending on where you secure a
child restraint, and depending on the
child restraint design, you may block

access to certain safety belt buckle
assemblies and LATCH lower anchors,
rendering those features potentially
unusable. To avoid risk of injury, occupants
should only use seating positions where
they are able to be properly restrained.

When installing a child safety seat with
combination lap and shoulder belts:

Use the correct safety belt buckle for
that seating position.

Insert the belt tongue into the proper
buckle until you hear a snap and feel it
latch. Make sure the tongue is securely
fastened in the buckle.

Keep the buckle release button
pointing up and away from the safety
seat, with the tongue between the child
seat and the release button, to prevent
accidental unbuckling.

Place the vehicle seat upon which the
child seat will be installed in the upright
position.

Put the safety belt in the automatic
locking mode. See Step 5. This vehicle
does not require the use of a locking
clip.

Perform the following steps when
installing the child seat with combination
lap and shoulder belts:

Note: Although the child seat illustrated is
a forward facing child seat, the steps are
the same for installing a rear facing child
seat.

E142528

1.

Position the child safety seat in a seat
with a combination lap and shoulder
belt.

E142529

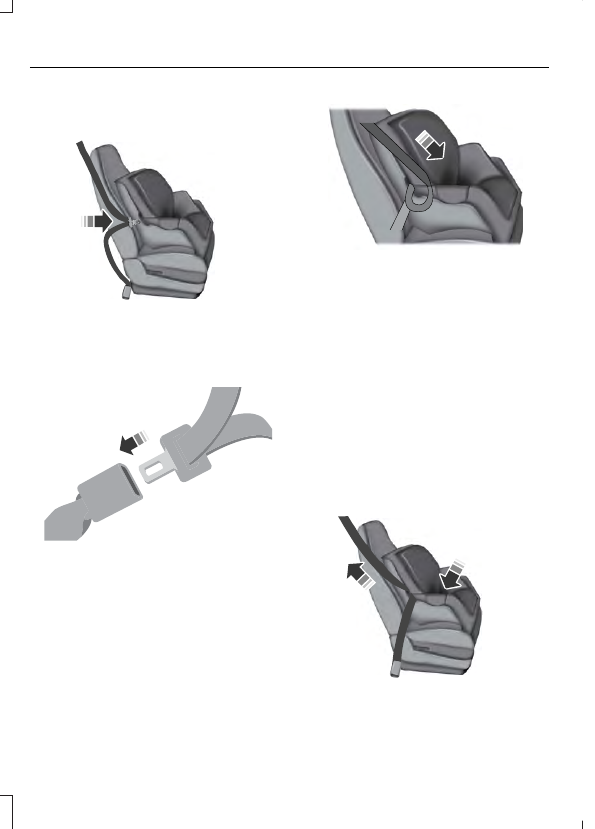

2. Pull down on the shoulder belt and

then grasp the shoulder belt and lap
belt together.

E142530

3. While holding the shoulder and lap belt

portions together, route the tongue
through the child seat according to the
child seat manufacturer's instructions.
Be sure the belt webbing is not twisted.

E142531

4. Insert the belt tongue into the proper

buckle (the buckle closest to the
direction the tongue is coming from)
for that seating position until you hear
a snap and feel the latch engage. Make
sure the tongue is latched securely by
pulling on it.

E142875

5. To put the retractor in the automatic

locking mode, grasp the shoulder
portion of the belt and pull downward
until all of the belt is pulled out.

Note: The automatic locking mode is
available on the front passenger and rear
seats.

6. Allow the belt to retract to remove

slack. The belt will click as it retracts
to indicate it is in the automatic locking
mode.

7.

Try to pull the belt out of the retractor
to make sure the retractor is in the
automatic locking mode (you should
not be able to pull more belt out). If the
retractor is not locked, unbuckle the
belt and repeat Steps 5 and 6.

E142533
