Speech recognition
Activation via the w button on the
Activating speech recognition
steering wheel
Press and hold s on the steering wheel
Embedded speech recognition
Press w on the steering wheel.
until a speech recognition session is
started.
The embedded speech recognition of the
The audio system mutes, a voice output
Infotainment system enables you to
message prompts you to say a
Adjusting the volume of voice
operate various functions of the
command, and help menus with the
prompts
Infotainment system via voice input. It
most important commands currently
Turn m on the control panel or press
recognises commands and numeric
available are shown on the display.
volume button on the steering wheel
sequences independently of the relevant
The speech recognition is ready for voice
upwards (increase volume)
À
or
speaker. The commands and numeric
input, after a beep has been given.
downwards (decrease volume)
Á
sequences can be spoken without a
You can now say a voice command to
voice pause between the individual
initiate a system function (e.g. playing a
Deactivating speech recognition
words.
preset radio station).
Press v on the steering wheel. The
In the event of incorrect operation or
speech recognition session is ended.
commands, the speech recognition
Interrupting a voice prompt
gives visual and / or acoustic feedback
As an experienced user, you can
Phone
and requests you to re-enter the desired
interrupt a voice prompt by briefly
command. Apart from this, the speech
pressing w on the steering wheel.
Important information for operation
recognition acknowledges important
A beep is heard immediately, and a
and traffic safety
commands and will enquire if necessary.
command can be stated without having
In general, there are different ways to
to wait.
9
WARNING
speak commands for performing the
desired actions.
Cancelling a dialogue sequence
Mobile phones have effects on your
To cancel a dialogue sequence and to
environment. For this reason safety
Note
deactivate the speech recognition, press
regulations and directions have been
To ensure that conversations inside the
v on the steering wheel.
prepared. You should be familiar with the
vehicle do not lead to unintentional triggering
related directions before you use the
of the system functions, the speech
Voice pass-thru application
telephone function.
recognition does not start until it has been
activated.
The voice pass-thru application of the
Infotainment system allows access to the
Activating speech recognition
9
WARNING
speech recognition commands on your
Note
smartphone.
Use of the hands-free facility while driving
Speech recognition is not available during an
Voice pass-through is available via the
can be dangerous because your
active phone call.
phone projection applications Apple
concentration is reduced when
CarPlay and Android Auto.
125
previously, the Infotainment system
On the Bluetooth device: enter
telephoning. Park your vehicle before you
use the hands-free facility. Follow the
establishes the connection
the PIN code and confirm your
stipulations of the country in which you find
automatically.
input.
yourself at present.
● Bluetooth operation considerably
The Infotainment system and
Do not forget to follow the special
drains the device's battery.
the device are paired.
regulations that apply in specific areas and
Therefore, connect the device to the
5. The phone book is downloaded
always switch off the mobile phone if the
USB port for charging.
automatically to the Infotainment
use of mobile phones is prohibited, if
interference is caused by the mobile
system. Depending on the phone,
Pairing a new device
phone or if dangerous situations can
the Infotainment system must be
1. Activate the Bluetooth function of the
occur.
allowed access to the phone book. If
Bluetooth device. For further
required, confirm the messages
information, see the operating
Pairing a device
displayed on the Bluetooth device.
instructions for the Bluetooth device.
If this function is not supported by the
During the pairing process, PIN code
2. Press a and then touch Bluetooth
Bluetooth device, a corresponding
exchange between the Bluetooth device
search.
message is displayed.
and the Infotainment system and
A search for all Bluetooth devices in
connection of the Bluetooth devices to
Operations on paired devices
the near environment is performed.
the Infotainment system are carried out.
3. Select the Bluetooth device you wish
Press a, select TEL and then select
Important information
to pair from the displayed list.
Bluetooth connection.
● Two paired Bluetooth devices can
4. Confirm the pairing procedure:
A list of all paired devices is displayed.
be connected to the Infotainment
● If SSP (secure simple pairing) is
system at the same time. One device
Changing the Bluetooth profile
supported:
in hands-free mode, the other in
settings
audio streaming mode, see
Confirm the messages on the
Touch % next to the desired paired
description on Bluetooth profile
Infotainment system and the
device.
settings below.
Bluetooth device.
Activate or deactivate the profile settings
However, two devices cannot be
● If SSP (secure simple pairing) is
as desired and confirm your settings.
used in hands-free mode at the
not supported:
same time.
On the Infotainment system: a
Connecting a paired device
● Pairing only needs to be carried out
message is displayed asking
Devices which are paired but not
once, unless the device is deleted
you to enter a PIN code on your
connected are identified by .
from the list of paired devices. If the
Bluetooth device.
Select the desired device to connect it.
device has been connected
126
Disconnecting a device
Initiating a phone call
To search for a contact via the first letter,
touch
r
and select the desired letter.
The currently connected device is
Entering a phone number
identified by .
Modifying or deleting a contact
Enter a phone number using the keypad
Select ð next to the contact and then
Select the device to disconnect it.
in the phone main menu.
select the desired option.
As soon as figures are entered, matching
Deleting a paired device
entries from the contacts list are
Using the call history
Touch e in the upper right corner of the
displayed in alphabetical order.
All incoming, outgoing, or missed calls
screen to display e icons next to each
Touch the desired list entry to initiate a
are registered.
paired device.
phone call.
Select Recent calls to see the call
Touch e next to the Bluetooth device you
history.
want to delete and confirm the displayed
Using the contacts list
Select the desired list entry to initiate a
message.
The contacts list contains all phone book
call.
entries from the connected Bluetooth
Phone main menu
device.
Incoming phone call
Press a to display the phone main
Select Contacts to see the contacts list.
If an audio mode, e.g. the radio or USB
menu.
mode, is active at the moment a call
comes in, the audio source is muted and
stays muted until the call ends.
A message with the caller's phone
number or name is displayed.
Searching for a contact
Many functions of the mobile phone can
The contacts are ordered by the first
now be controlled via the phone main
name or surname. To change the order,
menu (and associated submenus), and
touch OPTIONS and then p.
via the phone-specific controls on the
To scroll through the list, touch H or
steering wheel.
I.
To search for a contact via keyboard,
touch *.
127
To answer the call, touch v.
TOUCHSCREEN RADIO
To reject the call, touch
@
Introduction
To put the call on hold, touch /. To
resume to the call, touch l.
Note
This manual describes all options and
To mute the microphone of the
features available for the various Infotainment
Infotainment system, touch Micro OFF
systems. Certain descriptions, including
and 0 will appear. To cancel the mute
those for display and menu functions, may
function, press 0 again.
not apply to this vehicle due to model variant,
country specifications, special equipment or
To continue conversation via the mobile
accessories.
phone (private mode), touch t. To
reactivate the conversation via the
For additional information including some
Infotainment system, touch t again.
videos, visit us online.
Note
Important information on operation
If you leave the vehicle and lock it while you
and traffic safety
are still in a private mode phone
conversation, the Infotainment system may
9
WARNING
remain switched on until you leave the
Bluetooth reception area of the Infotainment
The Infotainment system must be used so
system.
that the vehicle can be driven safely at all
times. If in doubt, stop the vehicle and
operate the Infotainment system while the
vehicle is stationary.
Radio reception
Radio reception may be disrupted by
static, noise, distortion or loss of
reception due to:
● changes in distance from the
transmitter
● multipath reception due to reflection
● shadowing
128
TOUCHSCREEN RADIO

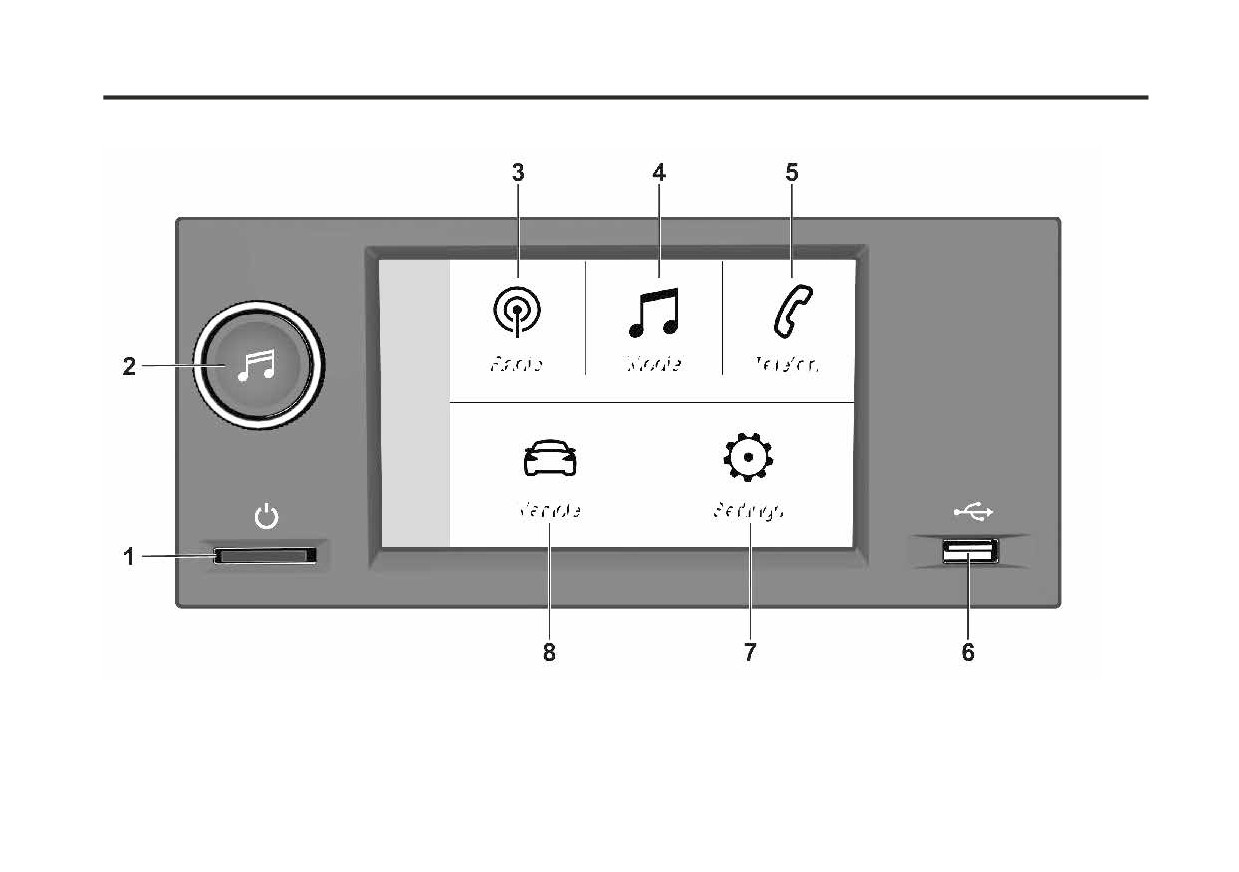

Control panel
129
1
)
Steering wheel controls
4
Short press: accept incoming
call, end a call or display the call list
Press: switch power on / off
Long press: reject incoming call
2
b
If phone call active: open call
Turn: adjust volume
in progress menu
3
i
5
Select audio source
Display the radio menu
6
Short press: display the radio
4
G
station list or the list of tracks
7
Á
/
À
Display the media menu for
external devices
Increase / decrease volume
5
a
Press both buttons to mute
the system, press one button
Display the phone menu if a
1
Short press: activate
to unmute the system
mobile phone is connected
smartphone voice
commands via the system
Display a list of all paired
2
Toggle through the menus of
devices if no phone is connected
the Driver Information Centre
6
h
3
Select next / previous preset
USB port for external devices
radio station when radio active
7
:
or select next / previous track
when external devices active
Display the system settings menu
8
_
or select next / previous entry
in station list, media list, call /
Display the vehicle settings menu
contacts list when operation
started via steering wheel controls
Short press: confirm selected
item or display the presets
130
Steering column controls
Increase / decrease volume
Top bar
Press both buttons to mute or
The top bar on the screen indicates the
unmute the system
following information:
● time
● temperature
Basic operation
Screen operations
The display of the Infotainment system
has a touch-sensitive surface that allows
direct interaction with the displayed
menu controls.
1
Radio: select the previous /
next preset radio station
CAUTION
Media: select the previous /
Do not use pointed or hard items like
next track
ballpoint pens, pencils or similar for touch
or select the previous / next
screen operation.
item in a menu or a list
Use the following finger gestures to
2
Short press: display the list of
control the Infotainment system.
radio stations or folders
Long press: update the list of
radio stations or display the
available sorting options for media
3
Confirm selected item
4
Short press: select audio
source, accept an incoming
call or end a call
Long press: display the call list
Buttons on the back side:
131
Touch
Returning to the previous screen
Audio
To return to the previous screen, touch
3
in the upper left corner of the
Overview
screen.
When
3
is touched on the home
screen, the audio screen will be
displayed.
Returning to the home screen
To return to the home screen, touch c.
System settings
To display the system settings menu, go
to the home screen and select :.
Touch is used to open a menu or select
an option.
The following submenus are available:
%
:
Touch to go to the previous
Display: Adjust the display
Touch and hold
station / song or touch and
brightness and the text scrolling or
turn the screen off.
hold for rewinding.
96.70
:
Touch to enter a frequency.
Date/Time: Adjust the date and the
/
:
Touch to go to the next
time.
station / song or touch and
System: Adjust the privacy settings
hold for fast forwarding.
for data sharing and vehicle position,
:
:
Adjust the audio settings.
reset the system to the factory
SOURCE : Select the audio source.
settings, adjust the units and see the
n
:
Display the station list /
system information.
tracklist.
Languages: Change the system
o
:
Display the favourites list.
language.
Sources
Bluetooth: Display a list of all paired
devices.
Touch SOURCE and select the desired
Touch and hold can be used to save
audio source. The currently active audio
Audio: Activate / deactivate speed
radio stations.
source will be indicated.
compensated volume and touch
tones and adjust sound distribution,
ambience, bass and treble.
132
When an external device will be
To save the currently active radio station
When an external audio source (via USB
connected, the Infotainment system
as a favourite, touch and hold the desired
or Bluetooth) is connected and selected
automatically selects the external device
row in the favourites list.
as audio source, the following symbols
as the audio source. When the external
will be displayed on the audio screen:
Traffic announcement
device will be disconnected, the previous
5
: Interrupt playback.
audio source will be selected.
Traffic announcement is a service of FM
4
: Resume playback.
radio stations. When traffic programme is
n
: Display the tracklist.
Station tuning
activated, the currently playing audio
: Display the library (folders, artists,
To tune into a certain radio station, open
source will be interrupted when an FM
albums, playlists, songs).
the station list
n
and touch ABC. All
radio station is broadcasting traffic news.
In the library *, the tracks can be sorted
receivable radio stations are sorted by
The audio source will be switched back
by artist, album etc.
the first letter.
when the traffic news are over.
When a folder is selected in the library
To tune into a specific frequency, touch
Traffic announcements can be activated
*, only the tracks of the corresponding
the frequency indication on the radio
or deactivated in the radio settings :.
main screen. A new screen will be
folder are displayed in the tracklist
n
RDS switching
displayed with a number pad. A
The following playback functions can be
frequency can be entered.
When RDS switching is activated, the
activated in the media settings ::
Infotainment system always tunes into
Repeat : Repeat the tracks of the
Station list
the best receivable broadcasting
current list.
To display the station list, touch
n
frequency of the currently active radio
Shuffle
: Play tracks in random order.
station.
The currently active radio station will be
Audio settings
indicated by
_
RDS switching can be activated or
deactivated in the radio settings :.
To adjust the audio settings, touch : on
Favourite radio stations will be indicated
by ;.
Note
the audio screen and select Audio
After switching, the volume might be
settings. The following settings can be
To update the station list, touch : and
different.
adjusted:
select Update list.
External devices
● Activate / deactivate speed
Favourites
compensated volume
A USB port for the connection of external
Up to 16 radio stations can be saved as
● Activate / deactivate touch tones
devices is located next to the Info
favourites. Touch o to display the
Display.
● Adjust sound distribution
favourites list.
● Adjust ambience, bass and treble
133
Speech recognition
Phone main menu
The following settings are adjustable:
The voice pass-thru application of the
● Putting phone calls automatically on
Infotainment system allows access to the
hold.
speech recognition commands on a
● Setting a voicemail number.
smartphone. See the smartphone
manufacturer's operating instructions to
Pairing a phone
find out whether the smartphone
To pair a mobile phone, proceed as
supports this feature.
follows:
In order to use the voice pass-thru
1. Enable Bluetooth on the mobile
application, the smartphone must be
phone and ensure it is visible for other
connected via Bluetooth.
devices.
Activating speech recognition
2. On the Info Display, select Telephone
I Manage devices.
Press and hold Y on the steering wheel
q
:
Display the call list.
3. Touch Add.
until a speech recognition session is
r : Display the contact list.
started.
s
:
Display the number pad.
Mobile phones are being searched.
t
:
Call the answering machine if a
4. Select the desired mobile phone.
Adjusting the volume of voice
voicemail number is set.
prompts
5. Select the Infotainment system from
V
:
Display a list of all paired devices.
the Bluetooth device list on the
Turn ) on the control panel or press the
:
:
Adjust the phone settings.
mobile phone.
volume button on the steering wheel
upwards (increase volume) Y or
Note
6. Compare and confirm the shown
downwards (decrease volume) Z.
On some mobile phones, access
code on the mobile phone and on the
permissions for contact and call lists may
Info Display. Touch OK on the Info
Deactivating speech recognition
have to be set when connecting the mobile
Display.
phone to the Infotainment system.
Press 6 on the steering wheel. The
Alternatively, a number pad might
Making a phone call
speech recognition session is ended.
appear on the Info Display. Enter the
code that is shown on the mobile
To make a phone call, either choose a
phone.
Phone
contact from the contact list or dial a
phone number via the number pad.
Not every mobile phone fully supports the
phone function. Therefore, deviations
Phone settings
from the range of functions described
To go to the phone settings menu, go to
below are possible.
the phone menu and select :.
134
Some mobile phones require access
Deleting a paired mobile phone
to certain phone features, follow the
1. In the phone menu on the Info
instructions.
Display, select Bluetooth I Manage
7. Determine whether the mobile phone
devices.
is to be connected for the phone
2. Touch Delete.
function and music streaming.
3. Select the desired mobile phone.
Once the mobile phone is successfully
paired, it will be connected automatically
4. Touch Yes.
and shown as connected.
The mobile phone is deleted.
If the mobile phone is connected for the
phone function, a will be displayed in the
list of paired devices.
If the mobile phone is connected for
music streaming, p will be displayed in
the list of paired devices.
Disconnecting and connecting a
mobile phone
1. In the phone menu on the Info
Display, select Bluetooth.
2. To disconnect the currently
connected mobile phone, touch the
corresponding mobile phone and
select Yes.
The mobile phone is disconnected.
3. To connect another paired mobile
phone, touch the corresponding
mobile phone and select Yes.
The mobile phone is connected.
135
RADIO
Introduction
Important information on operation
and traffic safety
9
WARNING
Drive safely at all times when using the
Infotainment system.
If in doubt, stop the vehicle before
operating the Infotainment system.
136
RADIO
Control panel
137
1
X
7
ß
12
Preset buttons
If switched off: short press:
Menu: one level back
Short press: select favourites
switch power on
Input: delete last character or
Long press: save radio
If switched on: short press:
entire entry
stations as favourites
mute system; long press:
8
MENU
13
Î
switch power off
Short press: display home page
Short press: toggle through
Turn: adjust volume
the different display modes
9
OK
2
BAND
Long press: turn display off
Short press: confirm a setting
Short press: toggle between
(while the sound remains active)
or open a submenu
the wavebands
14
SRCq
10
{ / }
3
TA INFO
Short press: toggle between
Radio: short press: manual
Short press: activate or
the audio sources
station search
deactivate traffic announcements
Long press: open phone
Media: short press: select
Long press: open the TA settings
menu if phone connected
next or previous folder, genre,
4
Info Display
artist or playlist; long press:
scroll in a list
5
G
H
/
I
Short press: open menu for
tone and volume settings
Radio: short press: automatic
6
LIST
station search for the
previous or next station; long
Radio: short press: display
press: seek up or down
stations list; long press:
update stations list
Media: short press: select
previous or next track; long
Media: short press: display
press: fast forward or rewind
folders list; long press: display
the track listing options
11
USB port
138
Steering wheel controls
4
Short press: accept incoming
Steering column controls
call, end a call or display the call list
Long press: reject incoming call
If phone call active: open call
in progress menu
5
Select audio source
6
Short press: display the radio
station list or the list of tracks
7
Á
/
À
Increase / decrease volume
Press both buttons to mute
the system, press one button
1
Short press: activate
1
Radio: select the previous /
to unmute the system
smartphone voice
next preset radio station
commands via the system
Media: select the previous /
2
Toggle through the menus of
next track
the Driver Information Centre
or select the previous / next
3
Select next / previous preset
item in a menu or a list
radio station when radio active
2
Short press: display the list of
or select next / previous track
radio stations or folders
when external devices active
Long press: update the list of
or select next / previous entry
radio stations or display the
in station list, media list, call /
available sorting options for media
contacts list when operation
3
Confirm selected item
started via steering wheel controls
4
Short press: select audio
Short press: confirm selected
source, accept an incoming
item or display the presets
call or end a call
Long press: display the call list
Buttons on the back side:
139
Increase / decrease volume
Control elements
The settings on page 1 can be set
individually for each audio source. The
Press both buttons to mute or
The Infotainment system is operated via
settings on page 2 are set for all audio
unmute the system
function buttons, navigation buttons and
sources.
menus that are shown on the display.
Press G to open the tone and volume
Inputs are made optionally via:
settings menu.
● the control panel on the Infotainment
system
● controls on the steering wheel
Basic operation
OK button
Press G again to display the second tone
Press OK:
and volume settings page. Alternatively,
● to confirm or activate the selected
select Other settings….
option
● to confirm a set value
System settings
● to activate or deactivate a function
Open the settings menu to perform some
● to open a menu
basic system configurations, e.g.:
● Adjust the display of units for
ß button
temperature or fuel consumption
Press ß:
● Change the display language
● to exit a menu
● Adjust date and time
● to return from a submenu to the next
higher menu level
Audio
Repeatedly press BAND to toggle
Audio settings
between the different wavebands. Select
In the tone and volume settings menu,
the desired waveband.
the tone characteristics and volume
As an alternative, repeatedly press
settings can be adjusted.
SRCq to toggle between all audio
sources and select the desired
waveband.
140
Scroll through the list and select the
Radio data system
desired station.
If the FM signal of a station is too weak
Note
to be picked up by the receiver, the
The station currently playing is marked with
Infotainment system can automatically
6.
tune to an alternative FM frequency to
Updating the stations list
continue the programme.
The station last selected in the respective
Press and hold LIST until a message
Activate the FM waveband and then
waveband is played.
indicating the update process is
press OK to display the waveband menu.
displayed.
Activate RDS.
Automatic station search
The stations list is updated.
Press
H
or
I
to play the previous or
Preset buttons
next station in the station memory.
The six favourite radio stations of each
Manual station search
waveband can be stored on preset
Press and hold
H
or
I. Release when
buttons. When pressing one of the preset
the required frequency has almost been
buttons, the favourites page is displayed.
If RDS alternative frequency search is
reached.
Note
activated, RDS is displayed in the top line
A search is made for the next station that
The station currently playing is marked with
of the screen. If a station is not an RDS
can be received and it is played
6.
station, RDS is crossed out.
automatically.
Storing preset stations
Note
To store a station to a preset button,
Station tuning
This function can also be changed via the
activate the desired waveband and
multimedia menus. Press MENU and then
Press or press and hold { or } to set
station. When the station is playing, press
select Multimedia.
the desired frequency manually.
and hold one of the preset button 1...6
Radio text
on which the desired station is to be
Stations lists
stored.
Radio text contains additional
The stations received best in the location
The station name or frequency is
information broadcasted by the radio
you are in are stored in the waveband-
displayed next to the respective favourite
stations, e.g. station name, title or artist
specific stations list.
on the screen.
of the song currently playing, news
information etc.
Displaying the stations list
Retrieving preset stations
Activate the FM waveband and then
Press LIST to display the stations list of
To retrieve a station stored as a favourite,
press OK to display the waveband menu.
the waveband currently active.
press the respective preset button 1...6.
Activate RadioText.
141
If the radio text function is activated,
Activate the FM waveband and then
Activating the USB music function
TXT is displayed in the top line of the
press OK to display the waveband menu.
If the device is not yet connected to the
screen. If a station does not support the
Activate DAB FM tracking.
Infotainment system, connect the device.
radio text function, TXT is crossed out.
Note
The Infotainment system automatically
Note
This function can also be changed via the
switches to USB music mode.
This function can also be changed via the
multimedia menus. Press MENU and then
multimedia menus. Press MENU and then
select Multimedia.
If the device is already connected,
select Multimedia.
repeatedly press SRCq to change to
If DAB FM automatical tracking is
USB music mode.
Traffic announcements (TA)
activated, DAB FM is displayed in the top
line of the screen. If a station does not
Playback of the audio tracks starts
Radio traffic service stations are RDS
support this function, DAB FM is
automatically.
stations that broadcast traffic news. If
crossed out.
this function is activated, only traffic
service stations are searched for and
DAB station details
played.
Activate the FM waveband and then
Radio and media playback is interrupted
press OK to display the waveband menu.
for the duration of the traffic
Select DAB details to display detailed
announcements.
information on the DAB station currently
To activate or deactivate the traffic
Playing the next or previous track
playing.
announcement standby facility of the
Press
I
to play the next track.
Infotainment system, press TA. A
External devices
corresponding message is displayed
Press
H
to play the previous track.
confirming your action.
On the control panel, there is a USB port
for the connection of external audio data
Fast forwarding and rewinding
If traffic announcements are activated,
TA is displayed in the top line of the
sources.
Press and hold
H
or
I. Release to
screen. If a station is not a radio traffic
Note
return to normal playback mode.
service station, TA is crossed out.
The socket must always be kept clean and
dry.
Playing the next or previous folder/
Digital audio broadcasting
artist/playlist
If the DAB signal of a service is too weak
CAUTION
Press } to play the next folder, artist,
to be picked up by the receiver, the
album, or playlist depending on the track
Avoid disconnecting the device during
Infotainment system can automatically
listing options.
playback. This may damage the device or
tune to an alternative FM frequency to
the Infotainment system.
continue the programme.
142
Press { to play the previous folder,
Activate the USB music mode and then
To completely disconnect the device,
artist, album, or playlist depending on the
press OK to display the USB music
select Disconnect telephone + media
track listing options.
menu.
player.
Activate the desired play mode.
Select Yes in the message and press
Browse menu
OK.
Normal: The songs of the album, folder
Using the browse menu, you can search
or playlist chosen are played in the usual
for a track via categories.
order.
Speech recognition
Browse function
Random: The songs of the album, folder
The voice pass-thru application of the
or playlist chosen are played in random
Infotainment system allows access to the
To display the browse list, press LIST.
order.
speech recognition commands on a
The tracks are sorted in categories of
folders, genres, artists, and playlists.
Random all: All tracks stored on the
smartphone. See the smartphone
device connected are played in random
manufacturer's operating instructions to
Select the desired categories and
order.
find out whether the smartphone
choose a track. Select the track to start
supports this feature.
playback.
Repeat: The album, folder or playlist
chosen is played repeatedly.
In order to use the voice pass-thru
Choice of track listing
application, the smartphone must be
Press and hold LIST to display a
Bluetooth music
connected via Bluetooth.
selection menu. Scroll through the list
Press MENU and then select
Activating speech recognition
and select the desired track listing
Connections. Select Connections
option. The browse menu is changed
Press and hold s on the steering wheel
management and then choose the
accordingly.
until a speech recognition session is
desired Bluetooth device to enter a
Note
submenu.
started.
Depending on the metadata stored on the
To serve as audio source, the device
device, not all track listing options may be
Adjusting the volume of voice
must be connected as media player.
available.
prompts
Select Connect media player or
Turn m on the control panel or press the
Note
Connect telephone + media player as
volume button on the steering wheel
This function can also be changed via the
desired. The device is connected.
upwards (increase volume)
À
or
multimedia menus. Press MENU and then
Select Disconnect media player to
downwards (decrease volume)
Á
select Multimedia.
disconnect the device only as Bluetooth
USB music menu
audio source. In this case, the
Deactivating speech recognition
connection for the telephone function
In the USB music menu, you can set the
Press v on the steering wheel. The
remains active.
play mode for the tracks on the device
speech recognition session is ended.
connected.
143
Phone
Press MENU, select Connections and
If the Bluetooth connection failed: start
press OK.
the procedure described above again or
Important information for operation
consult the operating instructions for the
Select Search for a device and press
and traffic safety
Bluetooth device.
OK. As soon as the device is detected,
the list Devices detected is displayed.
Initiating a phone call
9
WARNING
● If SSP (secure simple pairing) is
supported: Confirm the messages
Entering a number manually
Mobile phones have effects on your
on the Infotainment system and the
Press MENU, select Telephone and
environment. For this reason safety
regulations and directions have been
Bluetooth device.
then select Call.
prepared. You should be familiar with the
● If SSP (secure simple pairing) is not
related directions before you use the
supported: On the Infotainment
telephone function.
system: a message is displayed
asking you to enter a PIN code on
your Bluetooth device. On the
9
WARNING
Bluetooth device: enter the PIN code
Use of the hands-free facility while driving
and confirm your input.
can be dangerous because your
The device is automatically connected. In
Select Dial.
concentration is reduced when
the top line of the display, the Bluetooth
telephoning. Park your vehicle before you
symbol is changed: The X of the symbol
use the hands-free facility. Follow the
is suppressed and N is shown.
stipulations of the country in which you find
yourself at present.
Note
Do not forget to follow the special
Your mobile phone book will be downloaded
regulations that apply in specific areas and
automatically. The presentation and order of
always switch off the mobile phone if the
the telephone book entries may be different
use of mobile phones is prohibited, if
on the Infotainment system's display and the
Enter the desired number: Select the
interference is caused by the mobile
mobile phone's display.
desired digits and confirm each digit with
phone or if dangerous situations can
OK.
If the Bluetooth connection has been
occur.
successfully performed: in case another
To start dialling, select OK on the display.
Bluetooth device had been connected to
Pairing a Bluetooth device
Using the phone book
the Infotainment system, this device is
Activate the Bluetooth function of the
now disconnected from the system.
The phone book contains contact names
Bluetooth device. For further information,
and numbers.
see the operating instructions for the
Press MENU and then select
Bluetooth device.
Telephone.
144
Select Call and then select Directory.
To activate this function, press MENU
To reject the second call and continue
and then select Telephone.
the ongoing call: select No in the
To start dialling, scroll through the list and
message shown in the display.
select the desired entry name.
Functions during a phone call
Using the call list
All incoming, outgoing, or missed calls
During an ongoing phone call, you can
are registered in the call list.
use the functions of the contextual menu.
Press MENU and then select
Press OK to open the contextual menu.
Telephone.
Select Telephone management and
Select Call and then select Calls list.
then select Telephone parameters.
To start dialling, scroll through the list and
To activate the Automatic on hold
select the desired entry.
function, press OK.
Sending contacts from a mobile
Incoming phone call
device to the Infotainment system
If an audio mode, e.g. the radio or CD
To end the call, select Hang up.
With certain telephones connected by
mode, is active at the time of an incoming
Bluetooth, you can send a contact to the
To switch off the microphone, activate
call, the relating audio source will be
directory of the Infotainment system.
Micro OFF. To switch the microphone
muted and stay muted until the call ends.
Contacts imported this way are saved in
on, deselect Micro OFF.
a permanent directory visible to all,
To answer the call, select Yes in the
To transfer the call to the telephone (for
irrespective of the telephone connect.
message shown in the display.
example to leave the vehicle while
To enter this directory, press MENU and
To reject the call, select No in the
continuing the conversation), activate
then select Telephone.
message shown in the display or press
Telephone mode. To transfer the call to
and hold G on the steering wheel.
the Infotainment system, deselect
Select Directory management.
Telephone mode.
To put an incoming call on hold, select
The menu for this directory is not
On hold in the message shown in the
To put the call on hold, select On hold
accessible if it is empty.
display.
during an ongoing call. If a call has been
Putting incoming calls automatically
put on hold, the menu item On hold
Second incoming phone call
changes to Resume. To return to a call
on hold
If a second phone call comes in during an
put on hold, select Resume.
For safety reasons the Infotainment
ongoing call, a message is displayed.
To switch between two calls, select
system can put all incoming calls on hold
To answer the second call and end the
Switch.
by default.
ongoing call: select Yes in the message
shown in the display.
145
CLIMATE CONTROL
CLIMATE CONTROL SYSTEMS
Air distribution
l : to windscreen and front door
Heating and ventilation system
windows
M : to head area via adjustable air vents
Climate control systems
146
K : to foot well and windscreen
Heating and ventilation system
146
Air conditioning system
147
All combinations are possible.
Electronic climate control system . 149
Parking heater
152
Fan speed
Temperature preconditioning
153
Air vents
155
Controls for:
Adjustable air vents
155
● temperature n
Fixed air vents
156
● air distribution l, M and K
Maintenance
156
Air intake
156
● fan speed Z
Air conditioning regular operation . 156
● air recirculation u
Adjust the air flow by turning x to the
Service
156
● heated rear window and exterior
desired speed.
mirrors e
clockwise
: increase
● heated seats ß
anticklockwise : decrease
Heated rear window e 3 23.
Air recirculation system u
Heated exterior mirrors e 3 20.
Heated seats ß 3 30.
Temperature
Adjust the temperature by turning n to
the desired temperature.
HI
: warm
LO : cold
Heating will not be fully effective until the
engine has reached normal operating
temperature.
146
Press u to activate air recirculation
● Press l: the air distribution is
Heated exterior mirrors e 3 20.
mode. The LED in the button illuminates
directed towards the windscreen.
to indicate activation.
Temperature n
● Set temperature controller n to
Press u again to deactivate air
warmest level.
Adjust the temperature by turning n to
recirculation mode.
● Set fan speed x to highest level.
the desired temperature.
HI
: warm
● Switch on heated rear window e.
9
WARNING
LO : cold
● Open side air vents as required and
The exchange of fresh air is reduced in air
direct them towards the door
Heating will not be fully effective until the
recirculation mode. In operation without
windows.
engine has reached normal operating
cooling the air humidity increases, so the
temperature.
windows may mist up from inside. The
Heated rear window, windscreen and
quality of the passenger compartment air
exterior mirrors b 3 23.
Air distribution l, M, K
deteriorates, which may cause the vehicle
Heated seats ß 3 30.
occupants to feel drowsy.
l : to windscreen and front door
windows
Air conditioning system
In warm and very humid ambient air
M : to head area via adjustable air vents
conditions, the windscreen may mist up
K : to foot well
from outside when cold air is directed
towards it. If windscreen mists up from
All combinations are possible.
outside, activate windscreen wiper and
Fan speed x
deactivate l.
Adjust the air flow by turning x to the
Demisting and defrosting
desired speed.
Controls for:
clockwise
: increase
● temperature n
anticlockwise : decrease
● air distribution l, M and K
● fan speed x
● cooling A/C
● air recirculation q
● heated rear window and exterior
mirrors e
Heated rear window e 3 23.
147
Cooling A/C
Air recirculation system q
Maximum cooling
Press A/C to switch on cooling. The LED
Press u to activate air recirculation
Briefly open the windows so that hot air
in the button illuminates to indicate
mode. The LED in the button illuminates
can disperse quickly.
activation. Cooling is only functional
to indicate activation.
● Switch on cooling A/C.
when the engine is running and fan is
Press u again to deactivate air
● Press q for air recirculation system
switched on.
recirculation mode.
on.
Press A/C again to switch off cooling.
● Press M for air distribution.
The air conditioning system cools and
9
WARNING
● Set temperature control n to coldest
dehumidifies (dries) as soon as the
outside temperature is slightly above the
The exchange of fresh air is reduced in air
level.
recirculation mode. In operation without
freezing point. Therefore, condensation
● Set fan speed x to highest level.
cooling the air humidity increases, so the
may form and drip from under the
windows may mist up from inside. The
● Open all vents.
vehicle.
quality of the passenger compartment air
Heated rear window, windscreen and
If no cooling or drying is required, switch
deteriorates, which may cause the vehicle
exterior mirrors b 3 23.
off the cooling system for fuel saving
occupants to feel drowsy.
reasons.
Heated seats ß 3 30.
In warm and very humid ambient air
Activated cooling may inhibit Autostops.
conditions, the windscreen may mist up
Stop-start system 3 161.
from outside when cold air is directed
towards it. If windscreen mists up from
outside, activate windscreen wiper and
deactivate l.
148
Demisting and defrosting the
Electronic climate control system
Activated functions are indicated by the
windows
LED in the respective control.
The dual zone climate control allows
different temperatures for driver side and
The electronic climate control system is
front passenger side.
only fully operational when the engine is
running.
In automatic mode, temperature, fan
speed and air distribution are regulated
Make sure the sun sensor used by the
automatically.
electronic climate control system is not
covered 3 61.
Automatic mode AUTO
● Set fan speed x to highest level.
Controls for:
● Set temperature controller n to
manual air recirculation u
warmest level.
air distribution w
● Switch on cooling A/C, if required.
rocker switch for adjusting the
temperature on driver side and front
● Switch on heated rear window e.
passenger side
● Open side air vents as required and
demisting and defrosting h
direct them towards the door
windows.
cooling A/C
Basic setting for maximum comfort:
● Press AUTO, the air distribution and
Note
automatic mode AUTO
If the settings for demisting and defrosting
fan speed are regulated
dual zone temperature
are selected, an Autostop may be inhibited.
automatically.
synchronisation MONO
If the settings for demisting and defrosting
● Open all air vents to allow optimised
heated rear window and exterior
are selected while the engine is in an
air distribution in automatic mode.
Autostop, the engine will restart
mirrors e
automatically. Stop-start system 3 161.
fan speed
r
s
Stop-start system 3 161.
Heated rear window Ü 3 23.
Heated exterior mirrors Ü 3 20.
149
● Air conditioning must be activated
Fan speed
rs
Press w sucessively until the desired
for optimal cooling and demisting.
direction of the air distribution is
Press A/C to switch on air
displayed:
conditioning. The LED in the button
t : to windscreen and front door
indicates activation.
windows
● Set the preselected temperatures for
u : to head area and rear seats via
driver and front passenger using the
adjustable air vents
left and right rotary ring.
v : to front and rear foot well
Recommended temperature is
w : to windscreen and front door
22 °C.
windows, to head area and rear
Press successively AUTO to select the
seats via adjustable air vents, to
desired automatic settings:
front and rear foot well
● Soft Auto for a soft and silent air
Combinations of different air distribution
distribution.
options can be select by pressing w
Press
r
to increase or
s
to decrease
● Auto for thermal comfort and silent
sucessively.
the air flow.
air distribution.
To return to automatic air distribution,
To return to automatic mode, press
● Auto Fast for a dynamic and efficient
press AUTO.
AUTO.
air distribution.
Temperature preselection
Air distribution w
Manual settings
Climate control system settings can be
changed by activating the following
functions:
Set the preselected temperatures
separately for the driver and the front
passenger to the desired value using the
left and right switch for adjustusting the
temperature.
150
Recommended temperature is 22 °C.
Air conditioning A/C
Manual air recirculation u
Temperature is indicated in the display
beside the switches for adjusting the
temperature.
If the minimum temperature Lo is set, the
climate control system runs at maximum
cooling, if cooling A/C is switched on.
If the maximum temperature Hi is set, the
climate control system runs at maximum
heating.
Note
If A/C is switched on, reducing the set cabin
temperature can cause the engine to restart
from an Autostop or inhibit an Autostop.
Press A/C to switch on cooling. Cooling
Press u to activate the air recirculation
Stop-start system 3 161.
is only functional when the engine is
mode. u is shown in the display to
running and climate control fan is
indicate activation.
Dual zone temperature
switched on.
Press u again to deactivate recirculation
synchronisation MONO
Press A/C again to switch off cooling.
mode.
Press MONO to link passenger side
temperature setting to the driver side / to
The air conditioning system cools and
dehumidifies (dries) when outside
9
WARNING
remove the linking of the passenger side
temperature setting to the driver side.
temperature is above a specific level.
The exchange of fresh air is reduced in air
The passenger side temperature setting
Therefore condensation may form and
recirculation mode. In operation without
is linked to the driver side if the LED in the
drip from under the vehicle.
cooling, the air humidity increases, so the
button MONO is not illuminated.
If no cooling or drying is required, switch
windows may mist up from inside. The
off the cooling system for fuel saving
quality of the passenger compartment air
reasons.
deteriorates, which may cause the
occupants to feel drowsy.
In warm and very humid ambient air
conditions, the windscreen may mist up
from outside, when cold air is directed
towards it. If windscreen mists up from
outside, activate windscreen wiper and
deactivate l.
151
Demisting and defrosting the
If V is pressed while the engine is in an
The operating status of the parking
Autostop, the engine will restart
heater is shown by an indicator with a
windows h
automatically.
LED.
Stop-start system 3 161.
● LED illuminates: A timer has been
set.
Deactivation of electronic climate
● LED flashes: The system is
control system
operating.
The LED is extinguished at the end of the
heating operation or when the parking
heater is stopped using the remote
control.
The parking heater can be programmed
using the Graphic Info Display / Colour
Press
s
subsequently until the
Info Display. Additionally, the parking
electronic climate control system is
heater can be switched on and off using
Press h. The LED in the button
deactivated.
a remote control.
illuminates to indicate activation.
Air conditioning and automatic
Graphic Info Display
Parking heater
mode are automatically switched on.
Press MENU to open the menu page.
The LED in the button A/C
The parking heater allows to heat the
illuminates, AUTO is shown in the
Press Heating or Ventilation.
vehicle's interior and to ventilate the
display.
vehicle's interior with ambient air.
Press
H
or
I
to select the desired
Temperature and air distribution are
timer. Confirm with OK.
set automatically and the fan runs at
Set the required time of the timer: Press
high speed.
{ or } to set the desired value. Confirm
Switch on heated rear window e.
with OK.
Switch on heated windscreen ,.
To set the timer, press
H
or
I
to
select OK on the display. Confirm with
To return to previous mode, press
OK.
h again.
Touch screen Info Display
Note
If V is pressed while the engine is running,
Press d.
an Autostop will be inhibited until V is
pressed again.
Press Car Apps.
152
Press Temperature conditioning.
1. Remove the cap of the remote
control by unscrewing it with a coin
Close pop-up messages with Ù.
and remove the battery
Programme the parking heater
2. Replace battery with a battery of the
same type. Pay attention to the
Press Settings.
installation position.
Select Heating or Ventilation and then
3. Screw the cap in its place .
press ü.
Two starting times for the operation of
Temperature preconditioning
the parking heater can be programmed.
Press Time 1 or Time 2 to select the
The temperature preconditioning allows
desired timer and then press ü.
to heat the vehicle's interior and to
ventilate the vehicle's interior with
Define the time by pressing z Time 1 for
Press ì. The parking heater is activated.
ambient air.
the timer one or z Time 2 for the timer
Press OFF. The parking heater is
two.
deactivated.
Press ü to save the settings.
Replacing the battery in the remote
Activate / deactivate the
control
programming
If the indicator light of the remote control
turns yellow, the charging status of the
Press State.
battery is weak. If the indicator light does
Activate or deactivate Temperature
not illuminated anymore, the battery is
conditioning by pressing ON or
discharged and has to be replaced.
OFFand then press ü.
Only one starting time can be activated.
Parking heater via remote control
The temperature preconditioning can be
The parking heater can be switched on
programmed using the Infotainment
or off using a remote control.
system or the app.
The operating status of the temperature
preconditioning is shown by an indicator
with an LED.
153
● LED illuminates: A timer has been
● If two timers are defined and the
Press 6 to save the settings and set the
set.
activated timer is cancelled, the
timer.
inactive timer is not activated
● LED flashes: The system is
automatically. The timer has to be
operating.
activated manually.
The LED is extinguished at the end of the
● If only one timer is defined and
heating /ventilation operation or when the
activated and the vehicle is not
temperature preconditioning is stopped
started, the timer will be cancelled
using the remote control.
for the following day. The timer has
Operating conditions
to be activated again.
The temperature preconditioning can be
Graphic Info Display
activated both when the vehicle is
Press MENU to open the menu page.
charged and when is not charged. When
Press Heating or Ventilation.
the vehicle is not charged, the function is
only activated if the charging level of the
Press
H
or
I
to select the desired
high voltage battery is above 50 percent.
timer. Confirm with OK.
The temperature preconditioning is only
Set the required time of the timer: Press
activated when the ignition is off and the
7 or 8 to set the desired value.
vehicle is locked.
Confirm with OK.
To set the timer, press
H
or
I
to
Programming via Infotainment
select OK on the display. Confirm with
system
OK.
The temperature preconditioning can be
programmed using the Infotainment
Touch screen Info Display
system. Two timers can be defined. A
Press d.
timer defines the time at which the
Press Temperature conditioning.
vehicle's interior is to be heated /
ventilated to a factory-set temperature.
Activate Temperature conditioning by
pressing ON.
Restrictions:
Press Settings.
● Only one timer can be activated.
Select Heating or Ventilation.
Press Time 1 or Time 2 to select the
desired timer.
Define the time of the selected timer.
154
AIR VENTS
Outer air vents in the instrument
panel
Adjustable air vents
Air vents in the instrument panel
Direct the flow of air by tilting and
swivelling the slats.
Adjust the air flow to select the desired
Direct the flow of air by tilting and
speed.
swivelling the slats.
To close the vent, swivel the slats
x : increase air flow
Direct the flow of air by tilting and
x : decrease air flow
outwards.
swivelling the slats.
At least two air vents must be open while
Air vent in the glovebox
To close the vent, swivel the slats
cooling is on.
inwards.
9
WARNING
Do not attach any objects to the slats of
the air vents. Risk of damage and injury in
case of an accident.
Rear air vents in the centre console
To activate the distribution of climatised /
heated air via the rear air vents, press
E
Turn the slider up or down in order to
close or open the air vent.
155
Fixed air vents
MAINTENANCE
Service
Additional air vents are located beneath
For optimal cooling performance, it is
Air intake
the windscreen, the door windows and in
recommended to annually check the
the foot wells.
climate control system, starting
three years after initial vehicle
registration, including:
● functionality and pressure test
● heating functionality
● leakage check
● check of drive belts
● cleaning of condenser and
evaporator drainage
● performance check
The air intake in front of the windscreen
in the engine compartment must be kept
clear to allow air intake. Remove any
leaves, dirt or snow.
Air conditioning regular operation
In order to ensure continuously efficient
performance, cooling must be operated
for a few minutes once a month,
irrespective of the weather and time of
year. Operation with cooling is not
possible when the outside temperature is
too low.
156
DRIVING AND OPERATING
Hill start assist
175
Trailer hitch
215
Regenerative braking
175
General information
215
Ride control systems
175
Driving characteristics and towing
Electronic Stability Control and
tips
215
Driving hints
158
Traction Control system
175
Trailer towing
216
Control of the vehicle
158
Descent control system
176
Towing equipment
216
Steering
158
Selective ride control
177
Trailer stability assist
218
Starting and operating
158
Driver assistance systems
178
New vehicle running-in
158
Cruise control
178
Ignition switch positions
158
Speed limiter
181
Power button
158
Adaptive cruise control
183
Starting the engine
159
Forward collision alert
188
Overrun cut-off
160
Active emergency braking
189
Stop-start system
161
Front pedestrian protection
191
Parking
162
Parking assist
191
Engine exhaust
163
Advanced parking assist
194
Exhaust filter
163
Side blind spot alert
197
Catalytic converter
164
Passenger side camera
198
AdBlue
164
Panoramic view system
199
Rear view camera
201
Electric drive unit
167
Lane keep assist
203
Automatic transmission
168
Driver alert
205
Transmission display
168
Gear selection
168
Charging
206
Manual mode
170
General information
206
Electronic driving programmes
170
Charging types
207
Fault
171
Charging cable
207
Eco mode
171
Programmable charging
211
Charging status
212
Manual transmission
171
Fuel
213
Drive systems
172
Fuel for petrol engines
213
Drive modes
172
Fuel for diesel engines
213
Brakes
172
Refuelling
214
Antilock brake system
172
Fuel consumption - CO2-
Parking brake
173
Emissions
215
Brake assist
175
157
DRIVING HINTS
STARTING AND OPERATING
0 : ignition off: some functions remain
active until key is removed or driver's
Control of the vehicle
New vehicle running-in
door is opened, provided the ignition
was on previously
Do not brake unnecessarily hard for the
1 : ignition on power mode: ignition is
9
WARNING
first few journeys.
on, diesel engine is preheating,
During the first drive, smoke may occur
Do not drive on an easily ignitable surface.
control indicators illuminate and
because of wax and engine oil
The high temperature of the exhaust
most electrical functions are
system or other systems could ignite the
evaporating off the exhaust system. Park
operable
surface.
the vehicle in the open for a while after
2 : engine start: release key after engine
the first drive and avoid inhaling the
has been started
Never coast with engine not running
fumes.
Steering wheel lock
During the running-in period, fuel and
Many systems will not function in this
engine oil consumption may be higher.
situation (e.g. brake servo unit, power
Remove key from ignition switch and turn
steering). Driving in this manner is a
Additionally, the cleaning process of the
steering wheel until it engages.
danger to yourself and others.
exhaust filter may take place more often.
9
DANGER
All systems function during an Autostop.
Exhaust filter 3 163.
Stop-start system 3 161.
Never remove the key from ignition switch
Ignition switch positions
during driving as this will cause steering
Pedals
Turn key:
wheel lock.
To ensure the pedal travel is uninhibited,
there must be no mats in the area of the
Power button
pedals.
Use only floor mats, which fit properly
and are fixed by the retainers on the
driver side.
Steering
If power steering assist is lost because
the engine stops or due to a system
malfunction, the vehicle can be steered
but may require increased effort.
158
The electronic key must be inside the
This option is intended for emergencies
9
WARNING
vehicle.
only. Replace the electronic key battery
as soon as possible 3 8.
Engine start
If the vehicle battery is discharged, the
Operate the clutch pedal (manual
vehicle must not be towed or tow-started
For unlocking or locking the doors, see
transmission), the brake pedal and press
as the steering wheel lock cannot be
fault in radio remote control unit or
Start/Stop.
disengaged.
electronic key system 3 9.
Ignition on power mode without
Operation on vehicles with
Starting the engine
starting the engine
electronic key system in case of
Press Start/Stop without operating
failure
Vehicles with ignition switch
clutch or brake pedal. Control indicators
illuminate and most electrical functions
If either the electronic key fails or the
are operable.
battery of the electronic key is weak, a
message may be displayed in the Driver
Engine and ignition off
Information Centre.
Press Start/Stop briefly in each mode or
when engine is running and vehicle is
stationary. Some functions remain active
until driver's door is opened, provided the
ignition was on previously.
Emergency shut off during driving
Press Start/Stop for about three
seconds 3 159. Steering wheel locks as
soon as vehicle is stationary.
Turn key to position 1 to release the
Steering wheel lock
steering wheel lock.
The steering wheel lock activates
Manual transmission: operate clutch and
automatically when:
brake pedal.
● The vehicle is stationary.
Hold the electronic key with buttons
Automatic transmission: operate brake
outside at the marking on the steering
pedal and move selector lever to P or N.
● The ignition has been switched off.
column cover as shown in the illustration.
To release steering wheel lock, open and
Do not operate accelerator pedal.
Operate the clutch pedal (manual
close driver's door and switch the ignition
Diesel engines: wait until control
transmission), the brake pedal and press
on power mode or start the engine
indicator ! extinguishes.
Start/Stop.
directly.
Turn key briefly to position 2 and release
after engine has been started.
159
Manual transmission: during an
● Release button after starting
Starting the vehicle at low
Autostop, the engine can be started by
procedure begins. Diesel engine
temperatures
depressing the clutch pedal 3 161.
starts after control indicator ! for
Starting the engine without additional
preheating extinguishes.
Automatic transmission: during an
heaters is possible down to -25 °C for
Autostop, the engine can be started by
● Before restarting or to switch off the
diesel engines and -30 °C for petrol
releasing the brake pedal 3 161.
engine when vehicle is stationary,
engines. Required is an engine oil with
press Start/Stop once more briefly.
the correct viscosity, the correct fuel,
Vehicles with power button
To start the engine during an Autostop:
performed services and a sufficiently
charged vehicle battery. With
● Manual transmission: during an
temperatures below -30 °C the
Autostop, the engine can be started
automatic transmission requires a
by depressing the clutch pedal
warming phase of approx. five minutes.
3 161.
The selector lever must be in position P.
● Automatic transmission: during an
Autostop, the engine can be started
Heating functionalities
by releasing the brake pedal 3 161.
Note
Individual heating functionalities, such as
Emergency shut off during driving
heated seats or heated steering wheel, may
If the engine needs to be switched off
be temporarily unavailable in the event of
during driving in case of emergency,
electrical loading constraints. Functions will
press Start/Stop for five seconds.
be resumed after some minutes.
Manual transmission: operate clutch
Turbo engine warm-up
and brake pedal.
9
DANGER
Upon start-up, engine available torque
Automatic transmission: operate
brake pedal and move selector lever
Switching off the engine during driving may
may be limited for a short time, especially
cause loss of power support for brake and
when the engine temperature is cold. The
to P or N.
steering systems. Assistance systems and
limitation is to allow the lubrication
Do not operate accelerator pedal.
airbag systems are disabled. Lighting and
system to fully protect the engine.
Press Start/Stop button.
brake lights will extinguish. Therefore
power down the engine and ignition while
Overrun cut-off
driving only when required in case of
emergency.
The fuel supply is automatically cut off
during overrun, i.e. when the vehicle is
driven with a gear engaged but
accelerator pedal is released.
160
Depending on driving conditions, the
Deactivation
Vehicles with automatic
overrun cut-off may be deactivated.
transmission
If the vehicle is at a standstill with
Stop-start system
depressed brake pedal, Autostop is
activated automatically.
The stop-start system helps to save fuel
The engine will be switched off while the
and to reduce the exhaust emissions.
ignition stays on.
When conditions allow, it switches off the
engine as soon as the vehicle is at a low
The stop-start system will be disabled on
speed or at a standstill, e.g. at a traffic
inclines of 12% or more.
light or in a traffic jam.
Indication
Activation
The stop-start system is available as
soon as the engine is started, the vehicle
Deactivate the stop-start system
starts-off and the conditions as stated
manually by pressing Ò. The deactivation
below in this section are fulfilled.
is indicated when the LED in the button
The system is ready to operate when the
illuminates.
LED in the button Ò is not illuminated. To
Autostop
An Autostop is indicated by control
activate the system when the system is
indicator D.
deactivated, press Ó.
Vehicles with manual transmission
During an Autostop, the heating and
If the stop-start system is temporarily not
An Autostop can be activated at a
brake performance will be maintained.
available and the button Ò is pressed, the
standstill or at a speed below 20 km/h /
LED in the button flashes.
12 mph.
Conditions for an Autostop
Activate an Autostop as follows:
The stop-start system checks if each of
● Depress the clutch pedal.
the following conditions is fulfilled.
● Set the selector lever to neutral.
● The stop-start system is not
manually deactivated.
● Release the clutch pedal.
● The driver's door is closed or the
The engine will be switched off while the
driver's seat belt is fastened.
ignition stays on.
● The vehicle battery is sufficiently
charged and in good condition.
● The engine is warmed up.
161
The engine coolant temperature is
Power saving measures
● The stop-start system is manually
not too high.
During an Autostop, several electrical
deactivated.
The engine exhaust temperature is
features such as auxiliary electric heater
● The driver's seat belt is unfastened
not too high, e.g. after driving with
or rear window heating are disabled or
and the driver's door is opened.
high engine load.
switched to a power saving mode. The
● The engine temperature is too low.
fan speed of the climate control system
The ambient temperature is not too
is reduced to save power.
● The charging level of the vehicle
low.
battery is below a defined level.
The climate control system allows an
Restart of the engine by the driver
● The brake vacuum is not sufficient.
Autostop.
Vehicles with manual transmission
● The vehicle is driven at least at
The brake vacuum is sufficient.
Depress the clutch pedal without
walking speed.
The self-cleaning function of the
depressing the brake pedal to restart the
● The climate control system requests
exhaust filter is not active.
engine.
an engine start.
The vehicle was driven at least at
● The air conditioning is manually
Vehicles with automatic
walking speed since the last
switched on.
transmission
Autostop.
The engine is restarted if
If an electrical accessory, e.g. a portable
Otherwise an Autostop will be inhibited.
CD player, is connected to the power
● the brake pedal is released while the
Note
outlet, a brief power drop during the
selector lever is in position D or M
The Autostop may be inhibited for several
restart might be noticeable.
hours after a battery replacement or
● or the brake pedal is released or the
reconnection.
selector lever is in position N when
Parking
the selector lever is moved to
Certain settings of the climate control
position D or M
system may inhibit an Autostop.
9
WARNING
● or the selector lever is moved to
Climate control 3 147.
position R.
Do not park the vehicle on an easily
Immediately after higher speed driving an
ignitable surface. The high
Autostop may be inhibited.
Restart of the engine by the stop-
temperature of the exhaust system
start system
New vehicle running-in 3 158.
could ignite the surface.
The selector lever must be in neutral to
Vehicle battery discharge protection
Always apply the parking brake.
enable an automatic restart.
To ensure reliable engine restarts, several
If the vehicle is on a level surface or
If one of the following conditions occurs
vehicle battery discharge protection
uphill slope, engage first gear or
during an Autostop, the engine will be
features are implemented as part of the
set the selector lever to position
restarted automatically by the stop-start
stop-start system.
system:
162
In countries with extremely low
ENGINE EXHAUST
P. On an uphill slope, turn the front
temperatures it may be necessary to
wheels away from the kerb.
park the vehicle without applied parking
If the vehicle is on a downhill slope,
brake. Make sure to park the vehicle on
9
DANGER
engage reverse gear or set the
a level surface.
selector lever to position P. Turn
Engine exhaust gases contain poisonous
the front wheels towards the kerb.
carbon monoxide, which is colourless and
Close the windows.
odourless and could be fatal if inhaled.
Switch off the engine.
If exhaust gases enter the interior of the
vehicle, open the windows. Have the
Remove the ignition key from the
cause of the fault rectified by a workshop.
ignition switch or switch off ignition
Avoid driving with an open load
on vehicles with power button.
compartment, otherwise exhaust gases
Turn the steering wheel until the
could enter the vehicle.
steering wheel lock is felt to
engage.
Exhaust filter
Lock the vehicle.
Automatic cleaning process
Activate the anti-theft alarm system.
The exhaust filter system filters soot
The engine cooling fans may run
particles out of the exhaust gases.
after the engine has been switched
The start of saturation of the exhaust filter
off 3 222.
is indicated by the temporary illumination
of % or
C, accompanied by a
CAUTION
message in the Driver Information
Centre.
After running at high engine speeds or with
high engine loads, operate the engine
As soon as the traffic conditions permit,
briefly at a low load or run in neutral for
regenerate the filter by driving at a vehicle
approx. 30 seconds before switching off,
speed of at least 60 km/h / 40 mph until
in order to protect the turbocharger.
the control indicator extinguishes.
Note
Note
On a new vehicle, the first exhaust filter
In the event of an accident with airbag
regeneration operations may be
deployment, the engine is switched off
accompanied by a burning smell, which is
automatically if the vehicle comes to a
normal. Following prolonged operation of the
standstill within a certain time.
vehicle at very low speed or at idle, water
163
vapour can be emitted at the exhaust on
emergency, driving can be continued for
AdBlue freezes at a temperature of
acceleration. This does not affect the
a short period, keeping vehicle speed
approx. -11 °C. As the vehicle is
behaviour of the vehicle or the environment.
and engine speed low.
equipped with an AdBlue preheater, the
Cleaning process not possible
emissions reduction at low temperatures
AdBlue
is ensured. The AdBlue preheater works
If % or
C
stays on, accompanied by
automatically.
an audible signal and a message, this
General information
In some circumstances below the
indicates that the exhaust filter additive
mentioned temperature, an error
level is too low.
The selective catalytic reduction
message appears in the Driver
(BlueInjection) is a method to
The reservoir must be topped-up without
Information Centre. In this event, park the
substantially reduce the nitrogen oxides
delay. Seek the assistance of a
vehicle in a space with a higher ambient
in the exhaust emission. This is achieved
workshop.
temperature until AdBlue is liquefied.
by injecting a Diesel Exhaust Fluid (DEF)
into the exhaust system. The ammonia
Note
Catalytic converter
released by the fluid reacts with nitrous
Frozen and again liquefied AdBlue is usable
The catalytic converter reduces the
gases (NOx) from the exhaust and turns
without quality loss.
amount of harmful substances in the
it into nitrogen and water.
The typical AdBlue consumption is
exhaust gases.
approx. 2 l per 1000 km / 600 miles, but
The designation of this fluid is AdBlue®. It
is a non-toxic, non-flammable, colourless
can also be higher depending on driving
CAUTION
behaviour (e.g. high load or towing).
and odourless fluid which consists of
32% urea and 68% water.
Fuel grades other than those listed on
Level warnings
pages 3 213, 3 271 could damage the
9
WARNING
Depending on the calculated range of
catalytic converter or electronic
components.
AdBlue, different messages are
Avoid contact of your eyes or skin with
displayed in the Driver Information
Unburnt petrol will overheat and damage
AdBlue.
Centre. The messages and the
the catalytic converter. Therefore avoid
In case of eye or skin contact, rinse off with
restrictions are a legal requirement.
excessive use of the starter, running the
water.
fuel tank dry and starting the engine by
1. The first possible warning is Top up
pushing or towing.
emissions additive: Starting
CAUTION
prevented in 2400 km / 1500 mi.
In the event of misfiring, uneven engine
When switching on the ignition, this
running, a reduction in engine
Avoid contact of the paintwork with
warning will show up once briefly with
performance or other unusual problems,
AdBlue.
the calculated range. Additionally,
have the cause of the fault rectified by a
In case of contact, rinse off with water.
workshop as soon as possible. In an
control indicator u will illuminate and
164















Content      ..     2      3      4      5     ..
