Fuel System Cautions

CAUTION!

Follow these guidelines to maintain your vehicle’s
performance:
• The use of leaded gasoline is prohibited by Federal

law. Using leaded gasoline can impair engine perfor-
mance and damage the emissions control system.

• An out-of-tune engine or certain fuel or ignition

malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune or
malfunctioning and may require immediate service.
Contact an authorized dealer for service assistance.

• The use of fuel additives, which are now being sold

as octane enhancers, is not recommended. Most of
these products contain high concentrations of metha-
nol. Fuel system damage or vehicle performance
problems resulting from the use of such fuels or
additives is not the responsibility of the manufac-
turer and may void or not be covered under the New
Vehicle Limited Warranty.

NOTE:

Intentional tampering with the emissions control

system can result in civil penalties being assessed against
you.

Carbon Monoxide Warnings

WARNING!

Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon mon-
oxide poisoning:
• Do not inhale exhaust gases. They contain carbon

monoxide, a colorless and odorless gas, which can
kill. Never run the engine in a closed area, such as a
garage, and never sit in a parked vehicle with the
engine running for an extended period. If the vehicle
is stopped in an open area with the engine running
for more than a short period, adjust the ventilation
system to force fresh, outside air into the vehicle.

• Guard against carbon monoxide with proper main-

tenance. Have the exhaust system inspected every
time the vehicle is raised. Have any abnormal condi-
tions repaired promptly. Until repaired, drive with
all side windows fully open.

TECHNICAL SPECIFICATIONS

297

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FLUID CAPACITIES

U.S.

Metric

Fuel (Approximate)

12.7 Gallons

48.1 Liters

Engine Oil With Filter
1.4L Turbo Engine

4 Quarts

3.8 Liters

Cooling System
1.4L Turbo Engine (Mopar
Antifreeze/Engine Coolant 10 Year/
150,000 Mile Formula).

6.1 Quarts

5.8 Liters

FLUIDS AND LUBRICANTS

Engine

Component

Fluid, Lubricant, or Genuine Part

Engine Coolant – 1.4L Turbo Engine

We recommend you use Mopar Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Tech-
nology) or equivalent meeting the requirements of FCA
Material Standard MS-90032.

Engine Oil – 1.4L Turbo Engine

We recommend you use SAE 5W-40 API Certified Synthetic
Engine Oil, meeting the requirements of FCA Material
Standard MS-12991. Refer to your engine oil filler cap for
correct SAE grade.

298

TECHNICAL SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Component

Fluid, Lubricant, or Genuine Part

Engine Oil Filter – 1.4L Turbo Engine

We recommend you use Mopar Engine Oil Filter.

Spark Plugs – 1.4L Turbo Engine

We recommend you use Mopar Spark Plugs.

Fuel Selection – 1.4L Turbo Engine

91 Octane Recommended – 87 Octane Acceptable, 0-15%
Ethanol.

CAUTION!

• Mixing of engine coolant (antifreeze) other than

specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine dam-
age and may decrease corrosion protection. Organic
Additive Technology (OAT) engine coolant is differ-
ent and should not be mixed with Hybrid Organic
Additive Technology (HOAT) engine coolant (anti-
freeze) or any “globally compatible” coolant (anti-
freeze). If a non-OAT engine coolant (antifreeze) is
introduced into the cooling system in an emergency,
the cooling system will need to be drained, flushed,
and refilled with fresh OAT coolant (conforming to
MS.90032), by an authorized dealer as soon as pos-
sible.

(Continued)

CAUTION! (Continued)

• Do not use water alone or alcohol-based engine

coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.

• This vehicle has not been designed for use with

propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.

TECHNICAL SPECIFICATIONS

299

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Chassis

Component

Fluid, Lubricant, or Genuine Part

Automatic Transmission

Use only Mopar AW-1 Automatic Transmission Fluid or
equivalent. Failure to use the correct fluid may affect the
function or performance of your transmission.

Brake Master Cylinder

We recommend you use Mopar DOT 4. If DOT 4 brake
fluid is not available, then DOT 3 is acceptable.
If using DOT 4 brake fluid, the fluid must be changed every
24 months. This interval is time based only, mileage inter-
vals do not apply.

300

TECHNICAL SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UCONNECT SYSTEMS

For detailed information about your Uconnect system,
refer to your Uconnect Owner’s Instruction Supplement.

NOTE:

Uconnect screen images are for illustration pur-

poses only and may not reflect exact software for your
vehicle.

DRAG & DROP MENU BAR

The Uconnect features and services in the main menu bar
are easily changed for your convenience. Simply follow
these steps:

1. Press the “Uconnect

” button to open the App

screen.

2. Press and hold, then drag the selected App to replace an

existing shortcut in the main menu bar.

The new app shortcut, that was dragged down onto the
main menu bar, will now be an active App/shortcut.

NOTE:

This feature is only available if the vehicle is in

PARK.

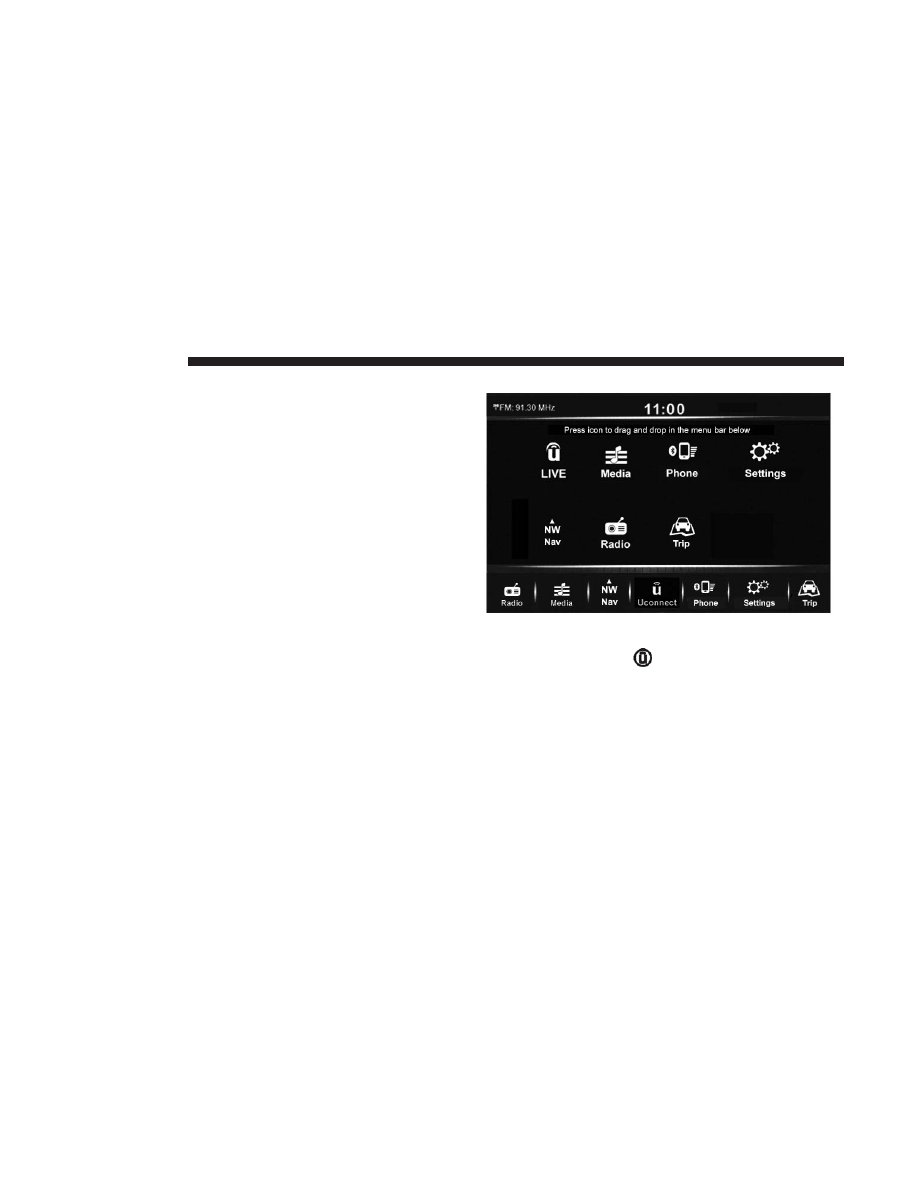

Uconnect 4/4 NAV Main Menu

302

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CYBERSECURITY

Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks. These
networks allow your vehicle to send and receive informa-
tion. This information allows systems and features in your
vehicle to function properly.

Your vehicle may be equipped with certain security fea-
tures to reduce the risk of unauthorized and unlawful
access to vehicle systems and wireless communications.
Vehicle software technology continues to evolve over time
and FCA US LLC, working with its suppliers, evaluates
and takes appropriate steps as needed. Similar to a com-
puter or other devices, your vehicle may require software
updates to improve the usability and performance of your
systems or to reduce the potential risk of unauthorized and
unlawful access to your vehicle systems.

The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software) is
installed.

WARNING!

• It is not possible to know or to predict all of the

possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be impaired
or a loss of vehicle control could occur that may
result in an accident involving serious injury or
death.

• ONLY insert media (e.g., USB, SD card, or CD) into

your vehicle if it came from a trusted source. Media
of unknown origin could possibly contain malicious
software, and if installed in your vehicle, it may
increase the possibility for vehicle systems to be
breached.

• As always, if you experience unusual vehicle behav-

ior, take your vehicle to your nearest authorized
dealer immediately.

MULTIMEDIA

303

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:
• FCA US LLC or your dealer may contact you directly

regarding software updates.

• To help further improve vehicle security and minimize

the potential risk of a security breach, vehicle owners
should:

• Routinely check www.driveuconnect.com/support/

software-update.html

(U.S.

Residents)

www.driveuconnect.ca (Canadian Residents) to learn
about available Uconnect software updates.

• Only connect and use trusted media devices (e.g.

personal mobile phones, USBs, CDs).

Privacy of any wireless and wired communications cannot
be assured. Third parties may unlawfully intercept infor-
mation and private communications without your consent.
For further information, refer to “Onboard Diagnostic
System (OBD II) Cybersecurity” in “Getting To Know Your
Instrument Panel”.

UCONNECT SETTINGS

Customer Programmable Features — Uconnect 4/4
NAV With 7–inch Display Settings

Press the Settings button to display the menu setting
screen. In this mode the Uconnect system allows you to
access programmable features that may be equipped such
as Language, Display, Units, Voice, Clock & Date, Safety/
Driving Assistance, Lights, Doors & Locks, Engine Off
Options, Phone, SiriusXM Setup, Restore Settings to De-
fault and Clear Personal Data.

NOTE:
• Only one touchscreen area may be selected at a time.
• Depending on the vehicles options, feature settings may

vary.

When making a selection, press the button on the touch-
screen to enter the desired mode. Once in the desired
mode, press and release the preferred setting until a
check-mark appears next to the setting, showing that
setting has been selected. Once the setting is complete,
either press the back arrow button on the touchscreen to

304

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

return to the previous menu, or press the “X” button on the
touchscreen to close out of the settings screen. Pressing the
Up or Down Arrow button on the right side of the screen
will allow you to toggle up or down through the available
settings.

Language

After pressing the “Language” button on the touchscreen,
the following settings will be available:

Setting Name

Selectable Options

Language

English

Français

Español

Display

After pressing the “Display” button on the touchscreen, the
following settings will be available:

Setting Name

Selectable Options

Display Mode

Auto

Instruction

NOTE:

When Day or Night is selected for the Display Mode, the usage of the Parade Mode feature will cause the

radio to activate the Display Brightness Day control even though the headlights are on.

Display Brightness With Headlights

–

Display Brightness With Headlights

OFF

–

Units

Metric

Touchscreen Beep

Off

Display Trip B

Off

MULTIMEDIA

305

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Units
• Units
When in this display, you may select to have the instru-
ment cluster display, odometer, and navigation system
changed between US and Metric units of measure. Press
“US,” “Metric” or “Custom.”

• Custom

When “Custom” is selected, you may select each unit of
measure independently displayed in the instrument cluster
display, and navigation system.

Setting Name

Selectable Options

Distance

Fuel Consumption

Pressure

Temperature

Metric

Distance

Fuel Consumption

Pressure

Temperature

Custom

Distance

Fuel Consumption

Pressure

Temperature

Voice

After pressing the “Voice” button on the touchscreen, the
following settings will be available:

Setting Name

Selectable Options

Voice Response Length

Brief

Detailed

Show Command List

Never

With Help

Always

306

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Clock & Date

After pressing the “Clock” button on the touchscreen, the
following settings will be available:

Setting Name

Selectable Options

Sync Time With GPS

Off

NOTE:
This feature allows you to automatically have the radio set the time. To change the Sync Time setting, press the “Sync
Time with Nav” button on the touchscreen.

Set Time Hours

–

NOTE:
This feature allows you to adjust the hours. The “Sync Time with Nav” button on the touchscreen must be un-
checked.

Set Time Minutes

–

NOTE:
This feature allows you to adjust the minutes. The “Sync Time with Nav” button on the touchscreen must be un-
checked.

Time Format

12hrs

24hrs

MULTIMEDIA

307

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Setting Name

Selectable Options

Show Time In Status Bar — If

Equipped

Off

NOTE:
This feature allows you to turn on or shut off the digital clock in the status bar.

Set Date (MM/DD/YY)

NOTE:
This feature allows you to set the date, month, and year using the plus and minus buttons.

Safety & Driving Assistance

After pressing the “Safety & Driving Assistance” button on
the touchscreen, the following settings will be available:

Setting Name

Selectable Options

ParkView Backup Camera

Active Guide Lines

Off

NOTE:
The “ParkView Backup Camera Active Guide Lines” feature overlays the Rear Backup Camera image with active, or
dynamic, grid lines to help illustrate the width of the vehicle and its project back up path, based on the steering
wheel position when the option is checked. A dashed center line overlay indicates the center of the vehicle to assist
with parking or aligning to a hitch/receiver.

308

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Setting Name

Selectable Options

ParkView Backup Camera

Delay

Off

NOTE:
The “ParkView Backup Camera Delay” setting determines whether or not the screen displays the rear view image
with dynamic grid lines for up to ten seconds after the vehicle is shifted out of REVERSE. This delay is canceled if
the vehicle’s speed exceeds 8 mph (13 km/h), the transmission is shifted into PARK, or the ignition is switched to the
OFF position.

Park Assist— If Equipped

OFF

Sound Only

Sound & Display

NOTE:
The “Park Assist” system setting scans for objects behind the vehicle when the transmission gear selector is in RE-
VERSE and the vehicle speed is less than 7 mph (11 km/h), when enabled. It provides an alert (audible and/or vi-
sual) to indicate the proximity to other objects. The system can be enabled with ”OFF,” Sound Only,” or “Sound &
Display.”
Rear Park Assist Volume—

If Equipped

Low

Medium

High

MULTIMEDIA

309

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lights

After pressing the “Lights” button on the touchscreen, the
following settings will be available:

Setting Name

Selectable Options

Interior Ambient Lights

–

NOTE:

When this feature is selected, it allows the adjustment of the brightness of the interior ambient lighting.

Greeting Lights

Daytime Running

Lights

Off

Cornering Lights

Off

NOTE:

When this feature is selected, if the steering wheel rotation angle is large or the turn signal indicators are on,

a light (incorporated in the fog light) will turn on, on the relevant side to improve visibility at night.

310

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Doors & Locks

After pressing the “Doors & Locks” button on the touch-
screen, the following settings will be available:

Setting Name

Selectable Options

Auto Door Locks

Off

NOTE:

When this feature is selected, all doors will lock automatically when the vehicle reaches a speed of 15 mph

(24 km/h).

Engine Off Options

After pressing the “Engine Off Options” button on the
touchscreen, the following settings will be available:

Setting Name

Selectable Options

Radio Off Delay

0 MIN

20 MIN

MULTIMEDIA

311

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Audio

After pressing the “Audio” button on the touchscreen, the
following settings will be available:

Setting Name

Selectable Options

Balance/Fade

Speaker Icon

Arrow Buttons

NOTE:

When in this display you may adjust the Balance and Fade settings.

Equalizer

–

NOTE:

When in this display you may adjust the Bass, Mid and Treble settings.

Speed Adjust

Volume

Off

Surround Sound

Off

Loudness

Off

AUX Volume Offset

Off

NOTE:
The “AUX Volume Offset” feature provides the ability to tune the audio level for portable devices connected through
the AUX input.

Auto Play

Off

NOTE:

USB devices will automatically play media when AutoPlay is turned On.

312

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fiat 500L (2019 year). Instruction - part 19
