Fiat 500 Abarth (2016 year). Instruction

The right-hand control is a rocker-type switch with a
pushbutton in the center and controls the volume and
mode of the sound system. Pushing the top of the rocker
switch will increase the volume, and pushing the bottom
of the rocker switch will decrease the volume.

Pushing the center button will make the radio switch
between the various modes available (AM/FM/SAT/
AUX/Media Player, etc.) and can also be used to select/
enter an item while scrolling through menu.

The left-hand control is a rocker-type switch with a
push-button in the center. The function of the left-hand
control is different depending on which mode you are in.

The following describes the left-hand control operation in
each mode.

Radio Operation

Pushing the top of the switch will “Seek” up for the next
listenable station and pushing the bottom of the switch
will “Seek” down for the next listenable station.

The button located in the center of the left-hand control
will tune to the next preset station that you have pro-
grammed in the radio preset button.

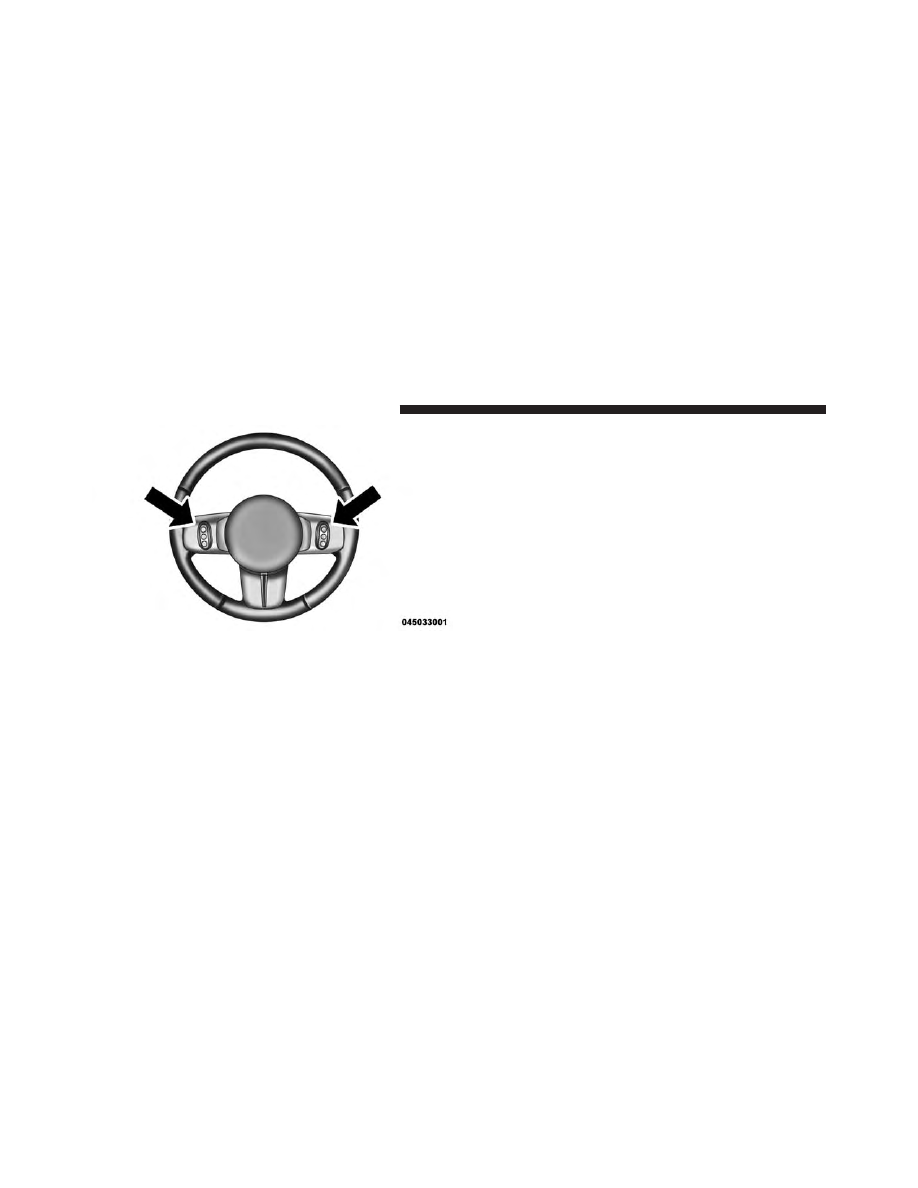

Remote Sound System Controls (Back View Of Steering

Wheel)

212

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

RADIO OPERATION AND MOBILE PHONES

Under certain conditions, the mobile phone being on in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the mobile phone antenna. This condition is
not harmful to the radio. If your radio performance does
not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during mobile phone operation.

CLIMATE CONTROLS

The air conditioning and heating system is designed to
make you comfortable in all types of weather.

Instruction Heating And Air Conditioning

The Instruction Climate controls consist of a series of rotary
dials and one inner push knob.

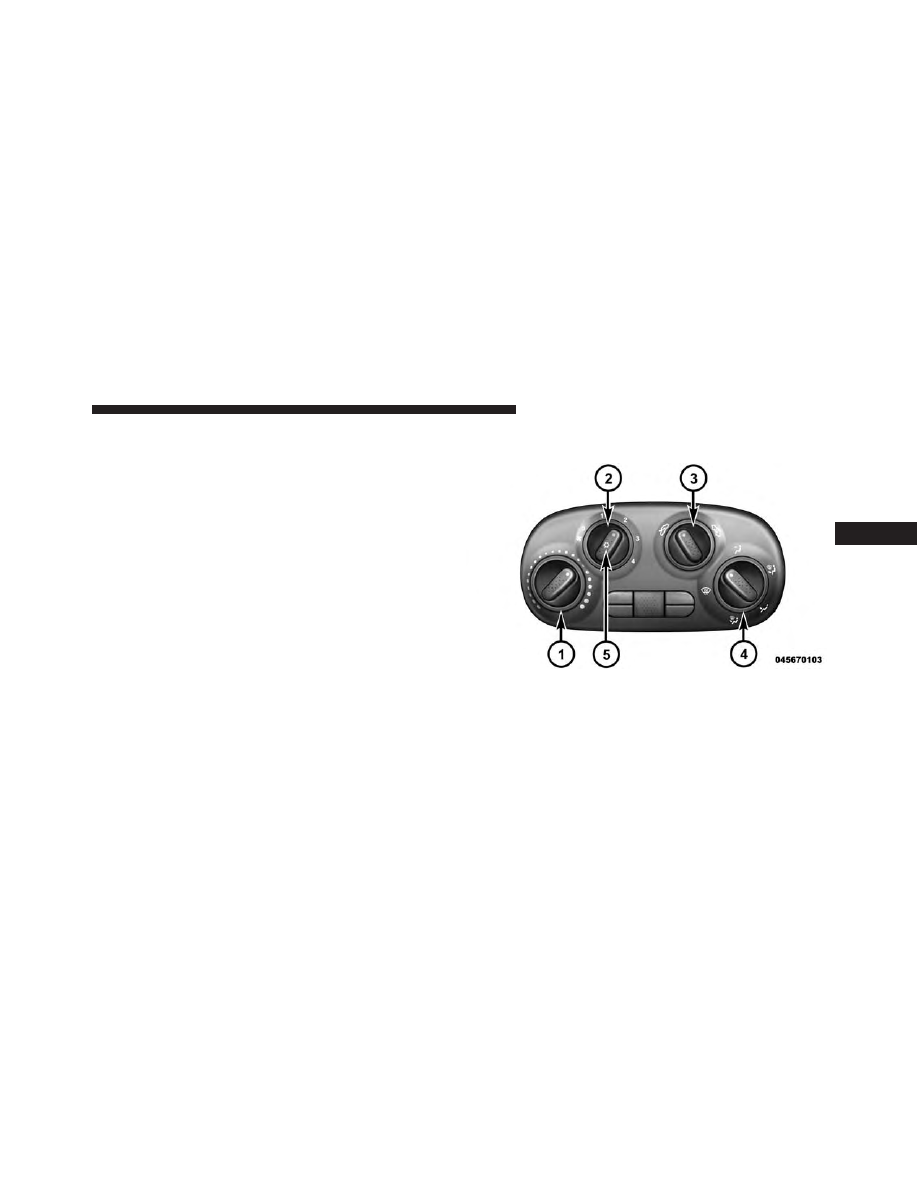

Instruction Temperature Control (MTC)

UNDERSTANDING YOUR INSTRUMENT PANEL

213

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Temperature Control

Rotate this control to regulate the temperature of the air
inside the passenger compartment. Rotating the dial to
the left into the blue area of the scale indicates cooler
temperatures, while rotating to the right into the red area
indicates warmer temperatures.

2. Blower Control

Rotate this control to regulate the amount of air forced
through the ventilation system in any mode. The blower
speed increases as you move the control to the right from
the “0” (OFF) position. There are four blower speeds.

3. Recirculation Control

Rotate this control to change the system between recir-
culation mode and outside air mode. Recirculation can be
used when outside conditions such as smoke, odors,
dust, or high humidity are present.

NOTE:

• Continuous use of the Recirculation mode may make

the inside air stuffy and window fogging may occur.
Extended use of this mode is not recommended.

• The use of the Recirculation mode in cold or damp

weather could cause windows to fog on the inside,
because of moisture buildup inside the vehicle. Se-
lect the outside air position for maximum defogging.

• Recirculation can be used in all modes except for

Defrost.

• The A/C can be deselected instructionly without dis-

turbing the mode control selection.

4. Mode Control

Rotate this control to change the system between Modes
(Panel, Bi-Level, Floor, Mix, Defrost).

214

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Panel

Air is directed through the outlets in the
instrument panel. These outlets can be ad-
justed to direct airflow.

NOTE:

The center instrument panel outlets can be aimed

so that they are directed toward the rear seat passengers
for maximum airflow to the rear.

• Bi-Level

Air is directed through the panel and floor
outlets.

• Floor

Air is directed through the floor outlets with a
small amount flowing through the defrost and
side window demister outlets.

• Mix

Air is directed through the floor, defrost, and
side window demister outlets. This setting
works best in cold or snowy conditions that

require extra heat to the windshield. This setting is
good for maintaining comfort while reducing mois-
ture on the windshield.
• Defrost

Air is directed through the windshield and
side window demister outlets. Use this mode

with maximum blower and temperature settings for
best windshield and side window defrosting.

NOTE:

The air conditioning compressor operates in Mix

or Defrost, even if the Air Conditioning (A/C) button is
not pushed. This dehumidifies the air to help dry the
windshield. To improve fuel economy, use these modes
only when necessary.

5. A/C Button

Push this button to engage the Air Conditioning. A light
will illuminate when the Air Conditioning system is
engaged.

UNDERSTANDING YOUR INSTRUMENT PANEL

215

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAX A/C

For maximum cooling, use the A/C and recirculation
modes at the same time.

ECONOMY MODE

If economy mode is desired, push the A/C button to turn
OFF the indicator light and the A/C compressor. Then,
move the temperature control to the desired temperature.

Automatic Temperature Control (ATC)

• The Automatic Temperature Control (ATC) allows the

occupant to select a comfort settings.

• The system provides set-and-forget operation for op-

timum comfort and convenience.

• The system can be controlled instructionly, if desired.
The ATC system automatically maintains the interior
comfort level desired by the occupant.

1. AUTO Temperature Control (ATC) Button

Controls airflow, temperature, distribution, and air recir-
culation automatically. Push and release to select. Per-
forming this function will cause the ATC to switch
between instruction mode and automatic modes. Refer to
“Automatic Operation” for more information.

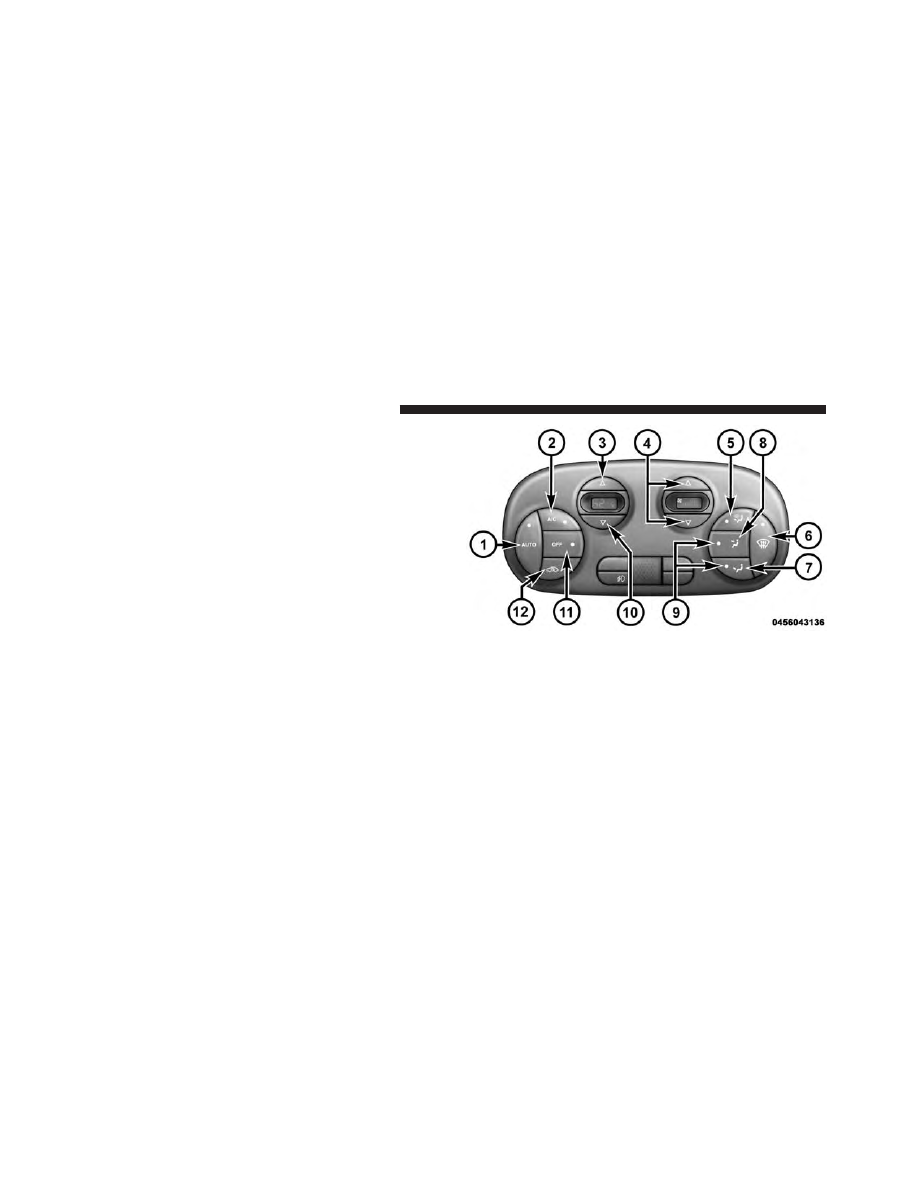

Automatic Temperature Controls

216

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. A/C Button

Push and release to change the current Air Conditioning
(A/C) setting. Performing this function will cause the
ATC to switch into instruction mode.

3. Temperature Control Up Button

Provides temperature up control. Push the button for
warmer temperature settings.

4. Blower Control Up/Down Buttons

There are 12 fixed blower speeds. The blower control
up/down buttons regulate the amount of air forced
through the system in any mode you select. The blower
speed increases as you push, or hold, the blower control
up button and decreases when you push, or hold, the
blower control down button.

The blower fan speed may be set to any fixed speed by
pushing the blower control up or down buttons. The fan
will now operate at a fixed speed until additional speeds

are selected. This allows the front occupants to control
the volume of air circulated in the vehicle and cancel the
AUTO mode.

The operator can also select the direction of the airflow
by selecting one of the following positions.

5. Mix Mode

Air is directed through the floor, defrost, and side
window demister outlets. This setting works best

in cold or snowy conditions that require extra heat to the
windshield. This setting is good for maintaining comfort
while reducing moisture on the windshield. Performing
this function will cause the ATC to switch into instruction
mode.

6. Front Defrost

Push and release to change the current airflow
setting to Defrost mode. The indicator illuminates

when this feature is ON. Air comes from the windshield

UNDERSTANDING YOUR INSTRUMENT PANEL

217

-------------------------------------------------------------------------------------------------------------------------------------------------------------

and side window demist outlets. When the defrost but-
ton is selected, the blower level will increase. Use Defrost
mode with maximum temperature settings for best wind-
shield and side window defrosting and defogging. Per-
forming this function will cause the ATC to switch into
instruction mode. If the front defrost mode is turned off the
climate system will return the previous setting.

7. Floor Mode

Air is directed through the floor outlets with a
small amount flowing through the defrost and

side window demister outlets. Performing this function
will cause the ATC to switch into instruction mode.

8. Panel Mode

Air is directed through the outlets in the instru-
ment panel. These outlets can be adjusted to direct

airflow. Performing this function will cause the ATC to
switch into instruction mode.

NOTE:

The center instrument panel outlets can be aimed

so that they are directed toward the rear seat passengers
for maximum airflow to the rear.

9. Bi-Level

Air is directed through the panel and floor outlets.
Press and release the Panel mode button and Floor

mode button to enter Bi-Level mode, the indicators
illuminate when ON. Performing this function will cause
the ATC to switch into instruction mode.

10. Temperature Control Down Button

Provides temperature down control. Push the button for
cooler temperature settings.

NOTE:

If the temperature is lowered until

⬙LO⬙ is dis-

played, all high voltage Heating, Ventilation, and Air
Conditioning (HVAC) systems are deactivated and am-
bient air is circulated according to the Heating, Ventila-
tion, and Air Conditioning (HVAC) control settings.

218

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

11. Climate Control ON/OFF Button

Push and release to turn the Climate Control ON or OFF.

12. Recirculation Control Button

Push and release to change the current setting. The
indicator illuminates when ON.

NOTE:

When in Defrost mode, the Recirculation button

will flash if pushed. This indicates that you can not
proceed to this mode due to fogging risk.

Climate Control Functions

Air Conditioning (A/C)

The Air Conditioning (A/C) button allows the operator
to instructionly activate or deactivate the air conditioning
system. When in A/C mode with the ATC set to a cool
temperature, dehumidified air flows through the air

outlets. If Economy mode is desired, push the A/C
button to turn off the A/C mode in the ATC display and
deactivate the A/C system.

NOTE:

• If the system is in Mix or Defrost Mode, the A/C can

be turned off, but the A/C system shall remain active
to prevent fogging of the windows.

• If fog or mist appears on the windshield or side glass,

select Defrost mode and adjust blower speed if
needed.

Recirculation Control

When outside air contains smoke, odors, or high humid-
ity, or if rapid cooling is desired, you may wish to
recirculate interior air by pushing the RECIRCULATION
control button. Recirculation mode should only be used
temporarily. The recirculation LED will illuminate when

UNDERSTANDING YOUR INSTRUMENT PANEL

219

-------------------------------------------------------------------------------------------------------------------------------------------------------------

this button is selected. Push the button a second time to
turn off the Recirculation mode LED and allow outside
air into the vehicle.

NOTE:

In cold weather, use of Recirculation mode may

lead to excessive window fogging. The recirculation
feature may be unavailable (indicator light shall blink) if
conditions exist that could create fogging on the inside of
the windshield. On systems with Instruction Climate Con-
trols, the Recirculation mode is not allowed in Defrost
mode to improve window clearing operation. Recircula-
tion will be disabled automatically if this mode is se-
lected. Attempting to use Recirculation while in this
mode will cause the LED in the control button to blink
and then turn off.

Automatic Operation

1. Push the AUTO button on the Automatic Temperature

Control (ATC) Panel, the indicator will illuminate
when on.

2. Next, adjust the temperature you would like the

system to maintain by adjusting the temperature con-
trol buttons. Once the desired temperature is dis-
played, the system will achieve and automatically
maintain that comfort level.

3. When the system is set up for your comfort level, it is

not necessary to change the settings. You will experi-
ence the greatest efficiency by simply allowing the
system to function automatically.

NOTE:

• It is not necessary to move the temperature settings for

cold or hot vehicles. The system automatically adjusts
the temperature, mode and fan speed to provide
comfort as quickly as possible.

• The temperature can be displayed in U.S. or Metric

units by selecting the US/M customer-programmable

220

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

feature. Refer to the “Electronic Vehicle Information
Center (EVIC) — Customer-Programmable Features”
in this section of the instruction.

Instruction Operation

The system allows for instruction selection of blower speed,
air distribution mode, A/C status and recirculation con-
trol.

The blower fan speed can be set to any fixed speed by
adjusting the blower control. The fan will now operate at
a fixed speed until additional speeds are selected. This
allows the front occupants to control the volume of air
circulated in the vehicle and cancel the Auto mode.

The operator can also select the direction of the airflow
by selecting one of the available mode settings. A/C
operation and Recirculation control can also be instructionly
selected in Instruction operation.

Operating Tips

NOTE:

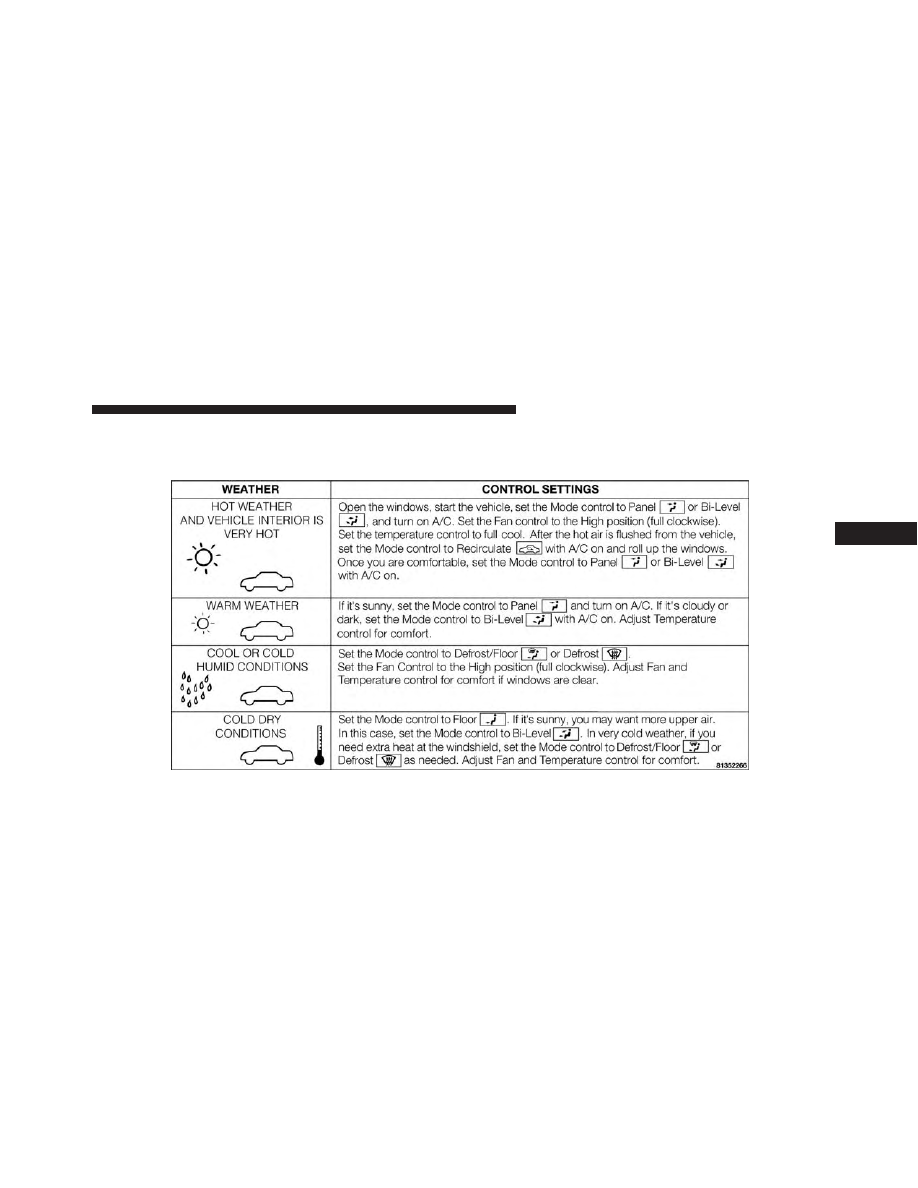

Refer to the chart at the end of this section for

suggested control settings for various weather condi-
tions.

Window Fogging

Windows will fog on the inside when the humidity inside
the vehicle is high. This often occurs in mild or cool
temperatures when it’s rainy or humid. In most cases,
turning the air conditioning (pressing the A/C button) on
will clear the fog. Adjust the temperature control, air
direction, and blower speed to maintain comfort.

As the temperature gets colder, it may be necessary to
direct air onto the windshield. Adjust the temperature
control and blower speed to maintain comfort. Higher
blower speeds will reduce fogging. Interior fogging on
the windshield can be quickly removed by selecting the
Defrost mode.

UNDERSTANDING YOUR INSTRUMENT PANEL

221

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Regular cleaning of the inside of the windows with a
non-filming cleaning solution (vinegar and water works
very well) will help prevent contaminates (cigarette
smoke, perfumes, etc.) from sticking to the windows.
Contaminates increase the rate of window fogging.

NOTE:

Automatic Temperature Controls (ATC) will au-

tomatically adjust the climate control settings to reduce
or eliminate window fogging on the front windshield.
When this occurs, recirculation will be unavailable.

Summer Operation

Your air conditioning system is also equipped with an
automatic recirculation system. When the system senses
a heavy load or high heat conditions, it may use Recir-
culation A/C mode to provide additional comfort while
in automatic mode.

Winter Operation

When operating the system during the winter months,
make sure the air intake, located directly in front of the
windshield, is free of ice, slush, snow, or other obstruc-
tions.

Vacation Storage

Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air using the high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the air conditioning system
is started again.

222

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fiat 500 Abarth (2016 year). Instruction - part 14
