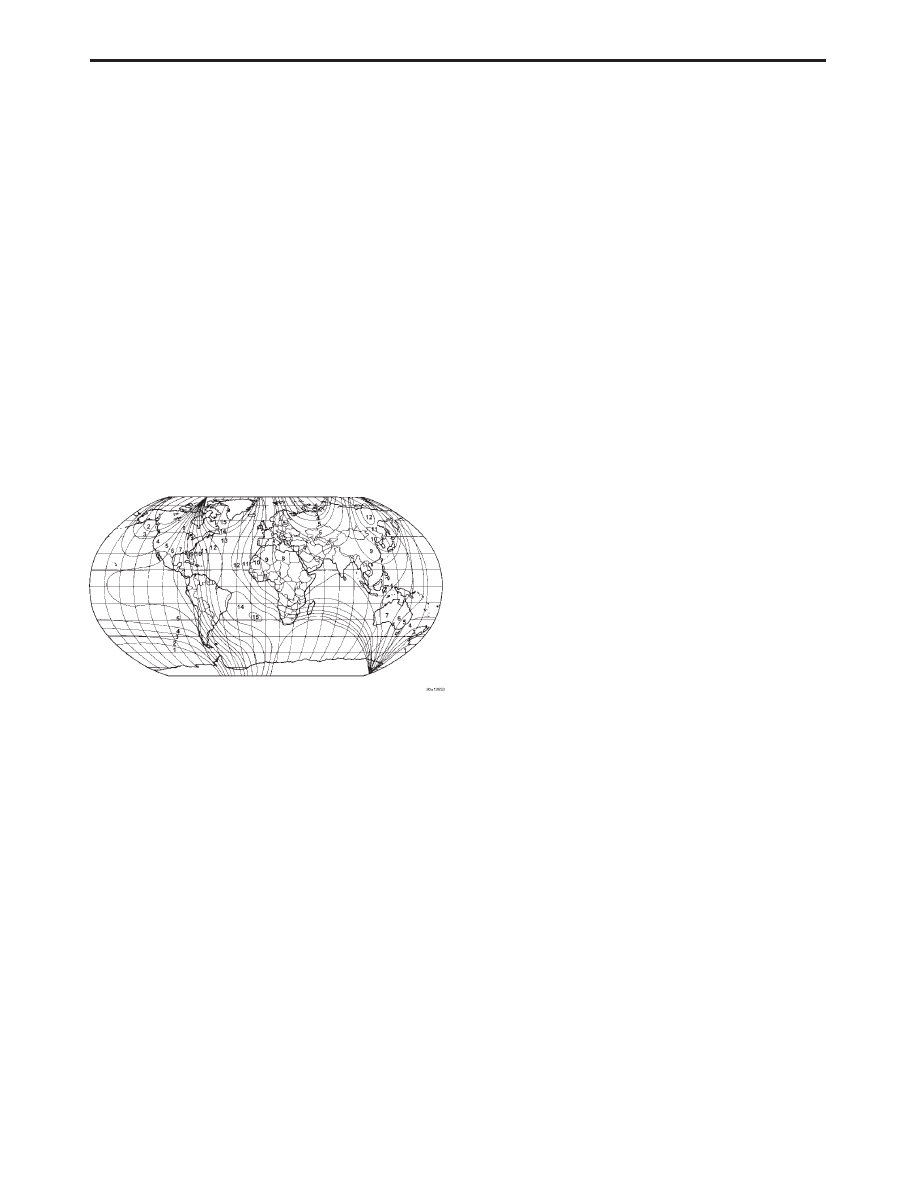

and EVIC use a vacuum fluorescent (VF) display to The difference between a CMTC and an EVIC is that only the EVIC provides additional memory, features when the vehicle is equipped with certain features. If equipped, the EVIC is also available with an integrated Universal Garage Door Opener (UGDO) t. Also if equipped, the EVIC is available with a Tire Pressure Monitoring (TPM) The CT function buttons are labeled C/T and US/M. The CMTC function buttons are labeled The BCM supplies most of the information dis- played by the CMTC/EVIC. Display information, 3.14.1 VEHICLE INFORMATION DISPLAY The CMTC/EVIC provides the following func- tions: • Compass direction • Outside temperature • Elapsed ignition on time • Distance to empty • Average fuel economy • Instantaneous fuel economy • Trip odometer • Distance to service The EVIC will also display the following driver alert messages: • TURN SIGNAL ON (with vehicle graphic) • PERFORM SERVICE • DOOR OPEN (individual or multiple doors, with • LOW or HIGH TIRE(S) PRESSURE (when • ADJUSTABLE PEDAL DISABLED CRUISE • ADJUSTABLE PEDAL DISABLED VEHICLE An audible chime or chimes will accompany any displayed warning messages. Chime requests with The CT/CMTC/EVIC will not display information for any of the screens for which it did not receive the The CMTC/EVIC receives the following messages from the Body Control Module (BCM): • Verification of US/Metric status • VF display dimming brightness and exterior • Elapsed Ignition On Time data • Fuel Economy (Average and Instantaneous) • Distance to Empty • Distance to service • Driver warning messages The CT/CMTC/EVIC receives the following mes- sages from the Front Control Module (FCM): • Outside Temperature The CMTC/EVIC receives the following messages from the Powertrain Control Module (PCM): • Trip Odometer data • Vehicle Speed The EVIC receives the following messages from the Adjustable Pedal System Module (APS): • APS status warnings The CMTC/EVIC transmits the following mes- sages to the BCM: • Status Request: Beep, Reset, US/M Toggle • Current Display STEP BUTTON The STEP Button can be used in one of the following three ways: 1. To sequentially select one of seven displays or blank display in the following order: • Average Fuel Economy 27 GENERAL INFORMATION |
