Citroen Jumper (2016 year). Manual - part 10





 143

Discharged battery

QUICK HELP

8

jumper_en_Chap08_Aide-rapide_ed01-2015

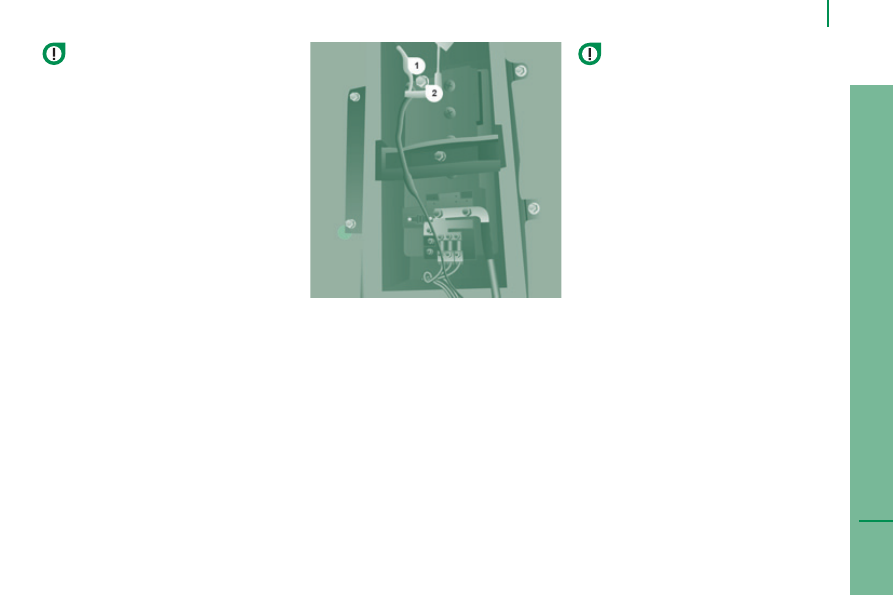

Access to the battery

Unscrew the 6 access cover retaining
screws.

Lift off or remove completely the access
cover.

Press lever 1 downwards to spread the
clamp.

remove the terminal 2 from the negative (-)
post.

The batteries contain harmful
substances such as sulphuric acid and

lead. They must be discarded in accordance
with the provisions of the law and must not,
in any circumstances, be discarded with
household waste.

Take used batteries to a special collection
point.

The charging operation must be carried
out in a ventilated area away from

naked flames or any possible sources of
sparks to eliminate the risk of explosion and
fire.
Do not attempt to charge a frozen battery: it
must first be thawed to eliminate the risks of
explosion. if the battery has frozen, before
charging it have it checked by a specialist
who will check that the internal components
have not been damaged and that the
container is not cracked, which could mean
that there is a risk of a leak of toxic and
corrosive acid.

Proceed with a slow charge charge at low
current for a maximum pf about 24 hours to
avoid damaging the battery.

Before disconnecting the battery, you must
wait for 2 minutes after switching off the
ignition.

never disconnect a terminal when the
engine is running.

never charge a battery without first
disconnecting the terminals.

Close the windows and doors before
disconnecting the battery.

After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. if slight difficulties
are experienced after this, please contact a
CiTroën dealer or a qualified workshop.

 144

Discharged battery

jumper_en_Chap08_Aide-rapide_ed01-2015

The presence of this label, in particular
with the Stop & Start system, indicates

the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a CiTroën dealer or
a qualified workshop is essential when
replacing or disconnecting the battery.

After refitting the battery by a
CiTroën dealer or a qualified

workshop, the Stop & Start system will
only be active after a continuous period of
immobilisation of the vehicle, a period which
depends on the climatic conditions and the
state of charge of the battery (up to about
8 hours).

 it is advisable to disconnect the
negative (-) terminal of the battery if the
vehicle is not to be used for a period of
more than one month.

The description of the battery charging
procedure is given as an indication only.

if the battery has been disconnected
for some time, it may be necessary to
reinitialise the following functions:

the display parameters (date, time,
language, distance unit and temperature
unit),

the radio stations,

the central locking.

Some settings are cleared and must be
reprogrammed, consult a CiTroën.

if your vehicle is fitted with a tachograph or
an alarm, disconnection of the negative (-)
terminal of the battery (located under the
floor on the left-hand side, in the cab) is
recommended if the vehicle is not to be used
for a period of more than 5 days.

Failed fuse

 145

QUICK HELP

8

jumper_en_Chap08_Aide-rapide_ed01-2015

The three fuseboxes are located in the
dashboard on the left-hand side, in the
right-hand side pillar and in the engine
compartment.

The descriptions provided cover only the
fuses that can be replaced by the user. For
any other replacement, go to a CiTroën
dealer or a qualified workshop.

removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.

Always replace a faulty fuse with a fuse
of the same rating.

cHAnGInG A FuSE

CiTroën does not accept any
responsibility for expenses incurred

by repairs to your vehicle or for any
malfunctions resulting from the installation
of additional accessories which are not
supplied or recommended by CiTroën
and which are not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes.

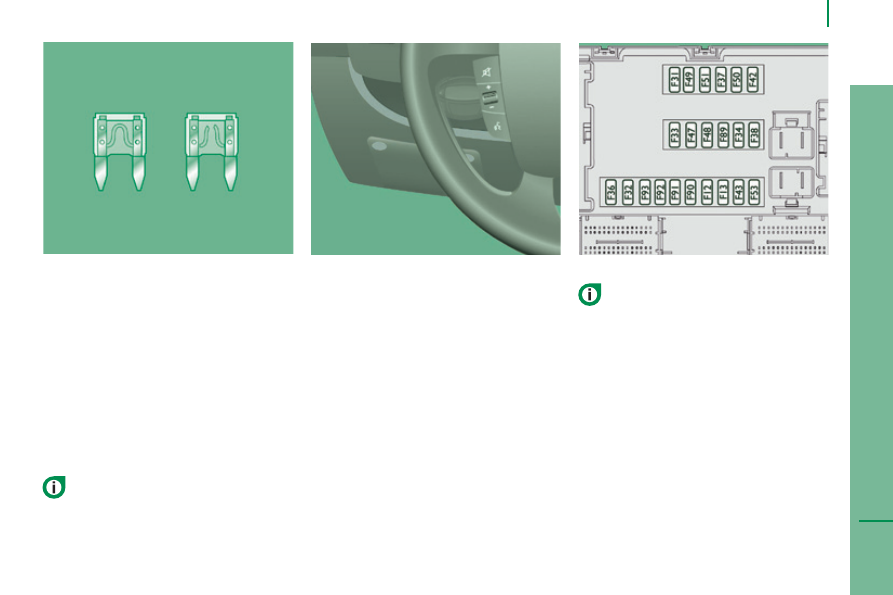

Good

Failed

Information for technicians: for
complete information on the fuses and

relays, refer to the wiring diagrams in the
workshop procedures via the CiTroën
dealer network.

dashboard, left-hand side,
fuses

remove the bolts and tilt the box to access
the fuses.

Failed fuse

 146

jumper_en_Chap08_Aide-rapide_ed01-2015

Fuses

A (amps)

Allocation

12

7.5

right-hand dipped headlamp

13

7.5

Left-hand dipped headlamp

31

5

Engine compartment control unit relay - Dashboard control unit relay (ignition switch +)

32

7.5

Cabin lighting (battery +)

33

7.5

Battery check sensor on Stop & Start version (battery +)

34

7.5

Minibus interior lighting - Hazard warning lamps

36

10

Audio system - Air conditioning controls - Alarm - Tachograph - Battery cut-off control unit - Additional
heating programmer (battery +)

37

7.5

Brake lamp switch - Third brake lamp - instrument panel (ignition +)

38

20

Central door locking (battery +)

42

5

ABS control unit and sensor - ASr sensor - DSC sensor - Brake lamp switch

43

20

Windscreen wiper motor (ignition switch +)

47

20

Driver's electric window motor

48

20

Passenger's electric window motor

49

5

Parking sensors control unit - Audio system - Steering mounted controls - Centre and side switch panels -
Auxiliary switch panel - Battery cut-off control unit (ignition switch +)

50

7.5

Airbags and pre-tensioners control unit

51

5

Tachograph - Power steering control unit - Air conditioning - reversing lamps - Water in Diesel sensor -
Air flow sensor (ignition switch +)

53

7.5

instrument panel (battery +)

89

-

not used

90

7.5

Left-hand main beam

91

7.5

right-hand main beam

92

7.5

Left-hand front foglamp

93

7.5

right-hand front foglamp

Failed fuse

 147

QUICK HELP

8

jumper_en_Chap08_Aide-rapide_ed01-2015

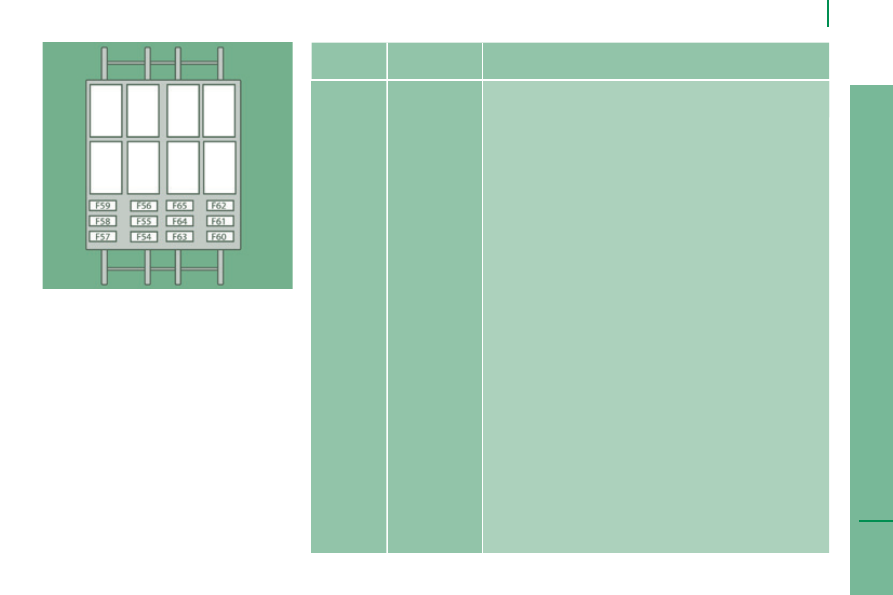

door pillar, right-hand side,
fuses

Unclip the cover

When you have finished, close the cover
carefully.

Fuses

A (amps)

Allocation

54

-

not used

55

15

Heated seats

56

15

rear passenger 12 V socket

57

10

Under seat additional heating

58

15

Heated rear screen, left-hand

59

15

Heated rear screen, right-hand

60

-

not used

61

-

not used

62

-

not used

63

10

rear passenger additional control

64

-

not used

65

30

rear passenger additional heating fan

Failed fuse

 148

jumper_en_Chap08_Aide-rapide_ed01-2015

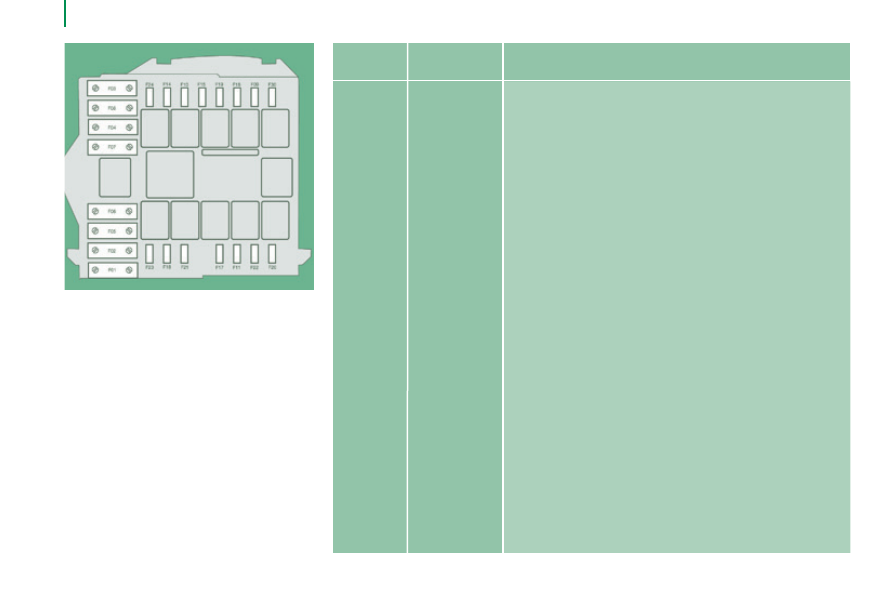

Fuses in the engine
compartment

remove the nuts and tilt the box to access
the fuses.

refit the cover carefully after checking or
replacing fuses.

Fuses

A (amps)

Allocation

1

40

ABS pump supply

2

50

Diesel pre-heat unit

3

30

ignition switch - Starter motor

4

40

Fuel heater

5

20/50

Cabin ventilation with additional programmable heating
(battery +)

6

40/60

Cabin fan maximum speed (battery +)

7

40/50/60

Cabin fan minimum speed (battery +)

8

40

Cabin fan assembly (ignition switch +)

9

15

rear 12 V socket (battery +)

10

15

Horn

11

-

not used

14

15

Front 12 V socket (battery +)

15

15

Cigarette lighter (battery +)

16

-

not used

17

-

not used

18

7.5

Engine management control unit (battery +)

19

7.5

Air conditioning compressor

20

30

Screenwash/headlamp wash pump

21

15

Fuel pump supply

22

-

not used

23

30

ABS electrovalves

24

7.5

Auxiliary switch panel - Door mirror controls and folding
(ignition switch +)

30

15

Door mirror heating

Failed bulb or lamp

 149

QUICK HELP

8

jumper_en_Chap08_Aide-rapide_ed01-2015

When using a high pressure washer
on stubborn dirt, do not persist on

the headlamps, the lamps and their edges
to avoid damaging their lacquer finish and
seals.

cHAnGInG A BuLB

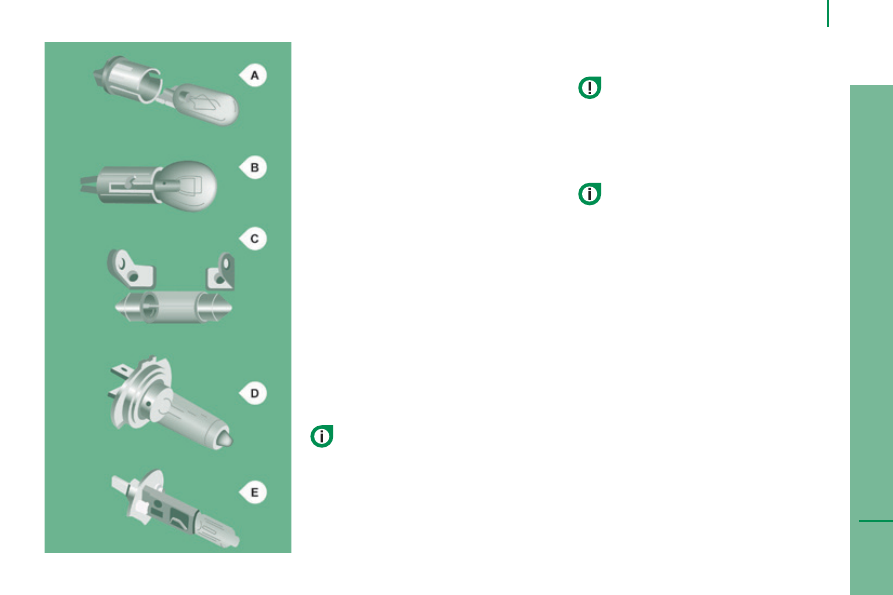

types of bulb

Various types of bulb are used on your
vehicle.
To remove them:
type A   Entirely glass bulb: pull gently

as it is fitted by pressure.

type B   Bayonet bulb: press on the bulb

then turn it anticlockwise.

type c   cylindrical bulb: move aside the

contacts.

For removing and refitting the screws,
use the screwdriver stowed in the tool

box under the front passenger's seat.

Carry out the operations in reverse order to
refit each bulb.

type d - E

 Halogen bulb: release the
retaining spring from its
housing.

 Always replace a failed bulb with
a new bulb of the same type and
specification.

Failed bulb or lamp

 150

jumper_en_Chap08_Aide-rapide_ed01-2015

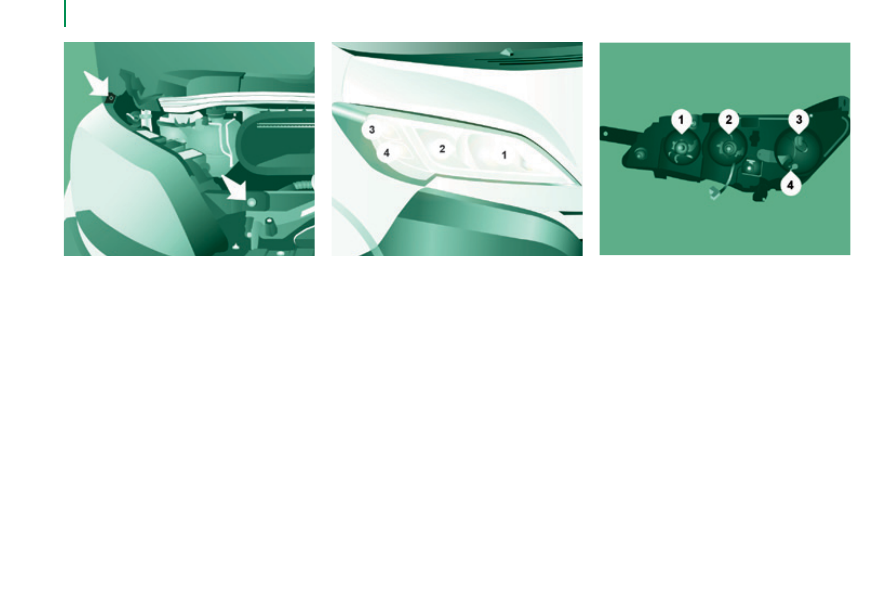

1 - Main beam headlamps

type d, H7 - 55 W

remove the cover by pulling on the
rubber tongue.

Disconnect the electrical connector.

release the retaining spring by pressing
on the central clip.

Change the bulb taking care to align the
metal part with the groove on the lamp.

2 - dipped beam headlamps

type d, H7 - 55 W

remove the cover by pulling on the
rubber tongue.

Disconnect the electrical connector.

release the retaining spring by pressing
on the central clip.

Change the bulb taking care to align the
metal part with the grooves on the lamp.

Front lamps

3 - direction indicators

type A, WY 21 W - 21 W

remove the cover by pulling on the
rubber tongue.

Turn the bulb holder a quarter turn
anticlockwise.

Change the bulb.

open and secure the bonnet with the stay.

To access the bulbs, reach behind the
headlamp unit.
If necessary you can remove the headlamp:

Depending on the country of sale,
remove the very low temperature
protection padding by sliding it towards
the outside of the vehicle.

Disconnect the electrical connector by
removing its locking ring.

remove the two headlamp fixing
screws.

Move the headlamp towards the centre
of the vehicle to extract it from its
sliders.

on the left hand side, take care not to
dislodge the bonnet stay.

Failed bulb or lamp

 151

QUICK HELP

8

jumper_en_Chap08_Aide-rapide_ed01-2015

Halogen bulbs must be changed after
the headlamp has been off for several

minutes (risk of serious burns). Do not touch
the bulb directly with your fingers, use a
lint-free cloth.

When each operation has been completed,
check the operation of the lamps.

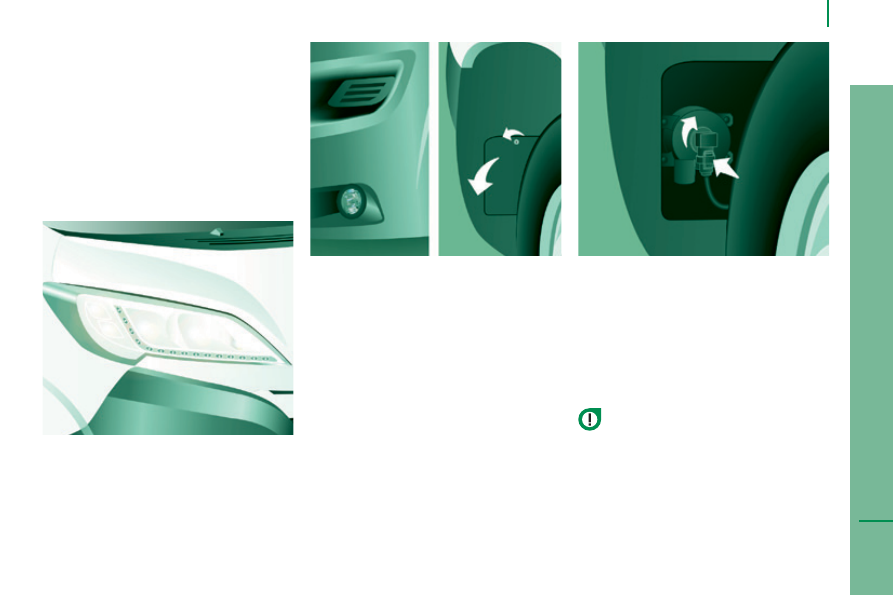

5 - Front foglamps

type E, H11 - 55 W

Turn the steering so that the wheel on the
side in question is turned fully inwards.

remove the screw located in the wheel
arch.

remove the protective cover.

LEd daytime running lamps

These light-emitting diode (LED) lamps
serve as both daytime running lamps and
sidelamps.

if your vehicle is fitted with LED daytime
running lamps, contact a CiTroën dealer.

4 - Sidelamps / daytime running lamps

type A

, W21/5W - 21W and 5W

remove the cover by pulling on the
rubber tongue.

Turn the bulb holder a quarter of a turn
anti-clockwise.

Change the bulb.

remove the fixing clip and disconnect
the electrical connector.

Turn and disengage the bulb holder

Change the bulb taking care to align the
metal part with the grooves on the lamp.

Failed bulb or lamp

 152

jumper_en_Chap08_Aide-rapide_ed01-2015

courtesy lamps

type c, 12 V 10 W - 10 W

Press at the points indicated by the
arrows, then remove the courtesy lamp.

open the protective flap.

Change the bulb moving aside the two
contacts.

Ensure that the new bulbs are secured
correctly between the two contacts.

Close the protective flap.

Fix the courtesy lamp in its housing and
ensure that it is secured correctly.

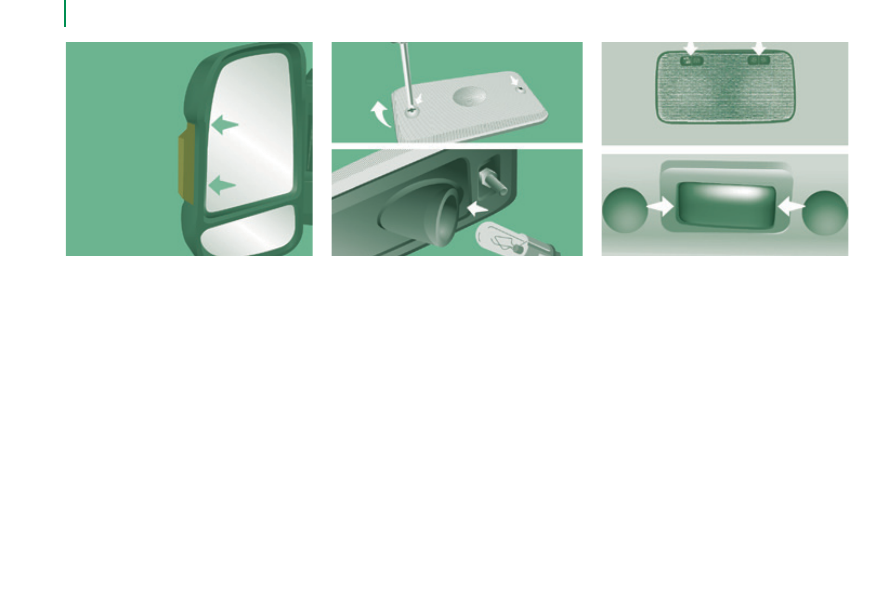

Side marker lamps

type A, W5W - 5W

if your vehicle is fitted with these lamps
(L4 body), remove the two fixing screws.

Pull the bulb holder to release it from the
lugs.

Pull the bulb out and change it.

direction indicator side
repeaters

type A, W 16 W F - 16 W

Move the mirror glass to access the
screws.

remove the two fixing screws.

Pull the bulb holder to release it from the
lugs.

Pull the bulb out and change it.

Front / rear

Failed bulb or lamp

 153

QUICK HELP

8

jumper_en_Chap08_Aide-rapide_ed01-2015

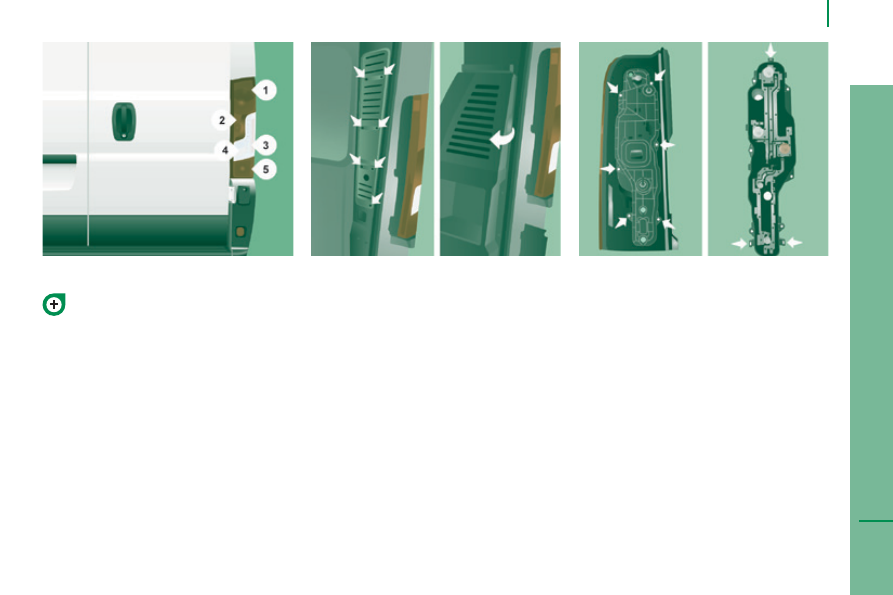

rear lamps

Carry out these operations in reverse order
to fit the new bulb.

1.  Brake lamps



type B, P21W - 21W

2.  Brake/sidelamps



type B,

 P21/5W - 21W and 5W

3.  direction indicators



type B, PY 21W - 21W

4.  reversing lamps



type A, W16W - 16W

5.  Foglamp



type A, W16W - 16W

identify the failed bulb then open the
rear doors.

remove the corresponding access cover
by removing the seven fixing screws
(van)

 or



remove the corresponding access cover
by pulling on its grip to unclip it (combi).

Disconnect the electrical connector by
pressing on its central tongue.

remove the two fixing nuts of the lens.

Pull the lens from the outside.

remove the six bulb holder fixing
screws.

Spread the three retaining tongues and
remove the bulb holder from its housing.

Change the bulb.

For more information on the bulbs,
refer to the table "Types of bulb or
lamp".

Failed bulb or lamp

 154

jumper_en_Chap08_Aide-rapide_ed01-2015

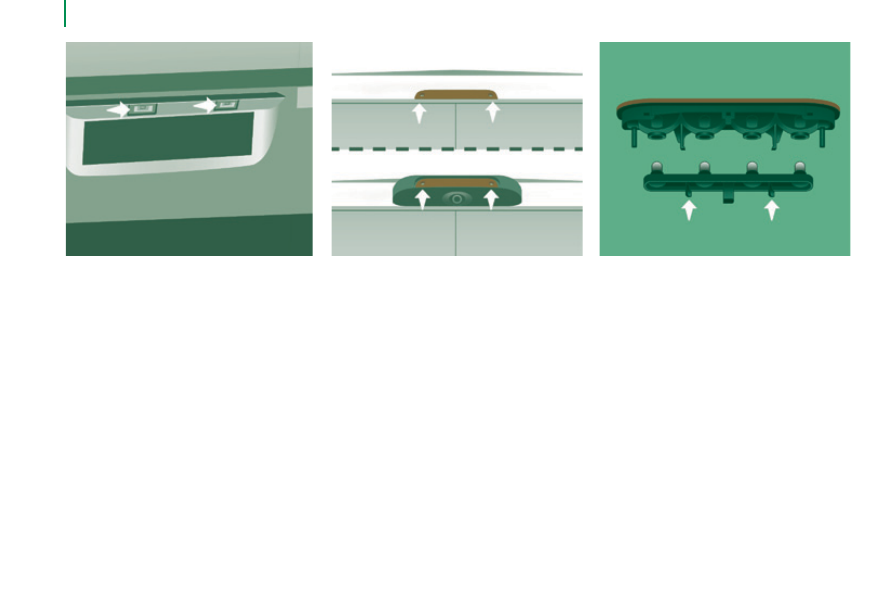

third brake lamp

type A, W5W - 5W (x 4)

remove the two lamp fixing screws.

remove the lamp by pulling it towards
you.

number plate lamps

type c, C5W - 5W

Press the point, indicated by the arrow,
then remove the plastic lens.

remove the failed bulb by moving aside
the two contacts.

With the new bulb in place, ensure that
it is secured correctly between the two
contacts.

replace the plastic lens and press on it
to lock it in place.

remove the bulb holder by squeezing
the two tabs.

remove the failed bulb by pulling it out.

Change the bulb.

Worn wiper blade

 155

QUICK HELP

8

jumper_en_Chap08_Aide-rapide_ed01-2015

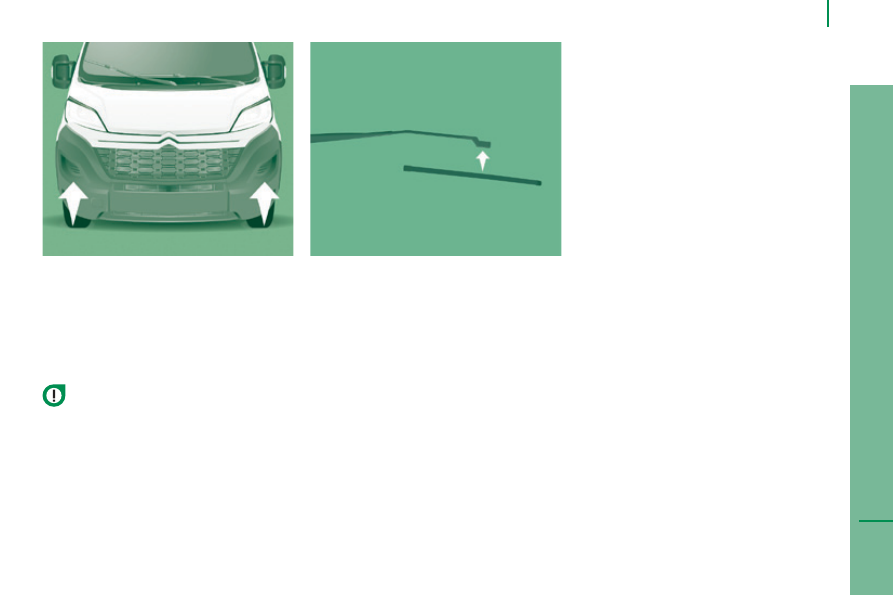

cHAnGInG A WIPEr BLAdE

The steps, located in the front bumper,
enable you to reach the blades and the
screenwash jets.

changing a front wiper blade

raise the wiper arm.

Unclip the blade by pressing the button and
remove it by pulling it outwards.

Fit the new blade and ensure that it is
secured correctly.

return the wiper arm to the normal position.

Check that the screenwash or
headlamp wash jets are not blocked.

Puncture

 156

jumper_en_Chap08_Aide-rapide_ed01-2015

Parking the vehicle

Where possible, park the vehicle on level,
stable and non-slippery ground.

Apply the parking brake, switch off the
ignition and engage first gear.

Wear a high visibility vest and position the
warning triangle on the road.

You must ensure that the occupants get out
of the vehicle and wait in a safe location.

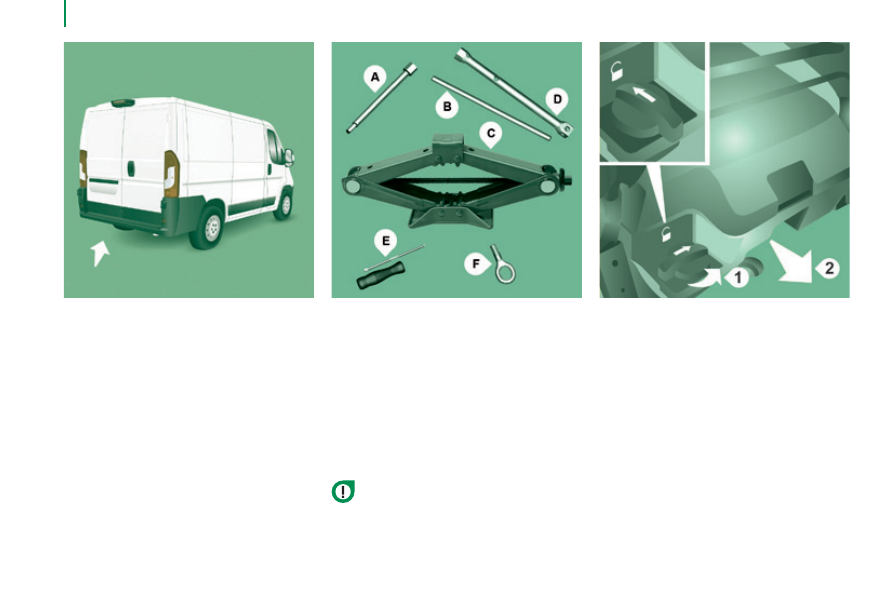

tools

These are stowed in a box located under the
front passenger seat.

Turn the button a quarter of a turn then
pull the box.

After use, press the button then turn it a
quarter of a turn to secure the box.

A.  Long socket.

B. Bar.

c. Jack.

d. Wheelbrace.

E.  Screwdriver (handle and bits).

F.  removable towing eye.

cHAnGInG A WHEEL

Pneumatic suspension

if you vehicle is fitted with this system, you
must first activate vehicle lifting mode.

Press the two controls simultaneously for at
least 5 seconds; their indicator lamps come
on.

This mode is deactivated automatically after
changing a wheel, once the speed of the
vehicle has exceeded 3 mph (5 km/h).

 The jack and the tool kit are specific to
your vehicle. Do not use them for other
purposes.

never go underneath a vehicle supported
only by a jack (use an axle stand).

Puncture

 157

QUICK HELP

8

jumper_en_Chap08_Aide-rapide_ed01-2015

●  For versions with alloy wheels, remove

the three fixing screws I from the
strap j.

●  Remove the assembly from inside the

alloy wheel.

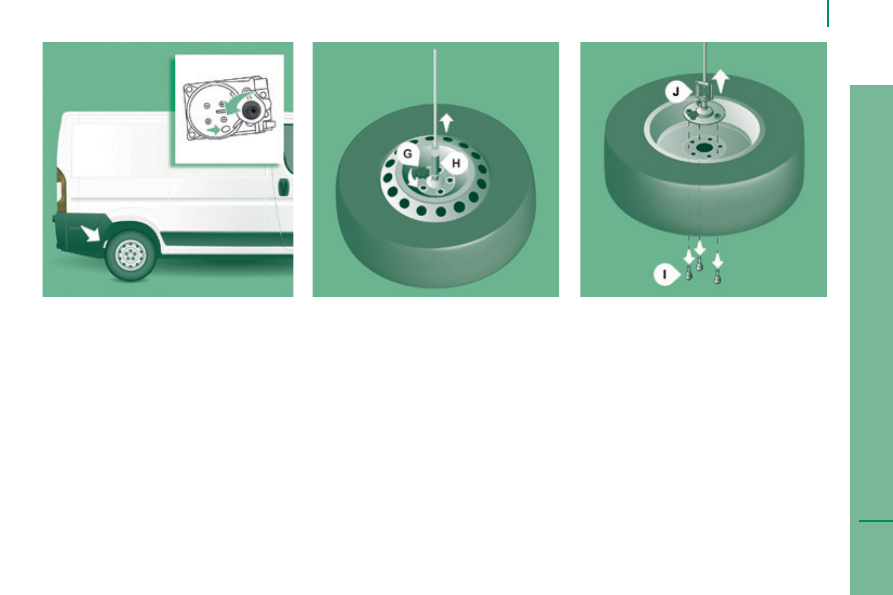

Spare wheel

The spare wheel retaining bolt is located
below the bumper on the right.

install the long socket A, the
wheelbrace d and the bar B on the
retaining bolt.

Turn the assembly anti-clockwise to
lower the wheel.

Turn to the full extent, indicated by an
increase in the force required.

Having fully unwound the cable, take out
the spare wheel under the vehicle.

●  For versions with steel wheels, unscrew

the grip G.

●  Remove the carrier H from the outer part

of the steel wheel.

release the spare wheel and place it
near the wheel to be changed.

if possible, place a chock against the
wheel diagonally opposed to the wheel
to be changed.

Puncture

 158

jumper_en_Chap08_Aide-rapide_ed01-2015

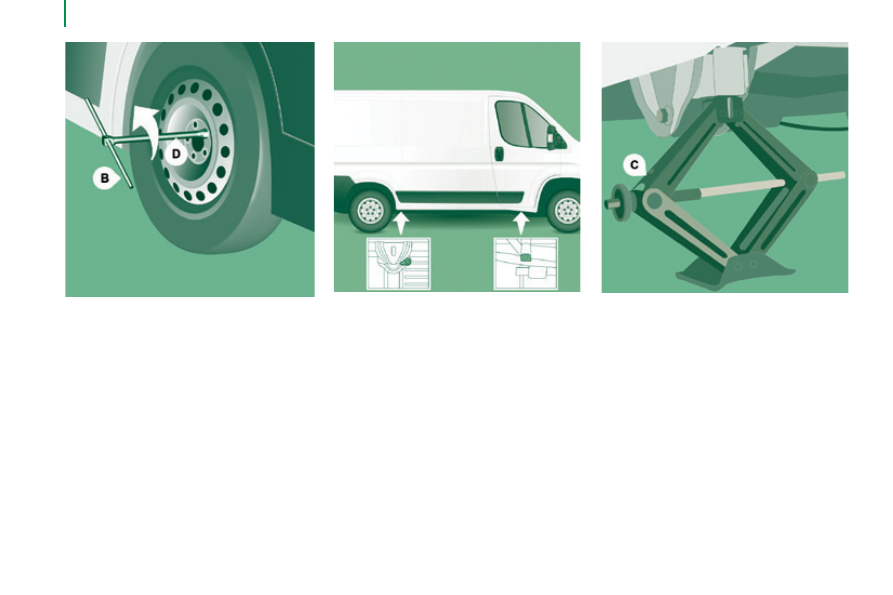

Extend the jack using the wheelbrace d
and trhe bar B until the wheel is a
few centimetres off the ground.

Unscrew the bolts fully and remove the
wheel to be repaired.

Position the jack c at one of the four
locations provided on the underbody
near the wheels.

if your vehicle has a folding foot board, the
jack must be positioned at 45°.

removing the wheel to be repaired

remove the trim (depending on version)
using the screwdriver E as a lever.

release the bolts using the
wheelbrace d and the bar B.















Content   ..  8  9  10  11   ..
