Citroen DS4 (2017 year). Manual

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Monochrome screen C

This displays the following information:
-  time,
-  date,
-  ambient temperature (this flashes if there is

a risk of ice),

-  parking sensor information,
-  current audio source,
-  telephone or Bluetooth system information,
-  trip computer,
-  alert messages,
-  settings menus for the screen and the

vehicle equipment.

Displays in the screen

From the control panel of your audio system,
you can press:
F button

to chooses between the display

of audio information in full screen or the
shared display of audio and trip computer
information,

F the

"MENU" button for access to the main

menu,

F the "5" or "6

" buttons to scroll through the

items on the screen,

F the "7" or "8

" buttons to change a setting

value,

F the

"OK"

button to confirm,

or
F the

"Back"

button to abandon the

operation in progress.

Controls

F Press the "MENU" button for access to the

main menu

-  "Multimedia",
-  "Telephone",
-  "Trip computer",
-  "Bluetooth connection",
-  "Personalisation-configuration",

F Press the "7" or "8" button to select the

menu required, then confirm by pressing
the "OK"

button.

Main menu

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(RDS, DAB / FM auto tracking, RadioText
(TXT) display) or to choose the media play
mode (Normal, Random, Random all, Repeat).
For more information on the "Multimedia"
menu, refer to the Audio and telematics
section.

"Multimedia" menu

"Trip computer" menu

This menu allows you to view information on
the status of the vehicle.

Warning log

This summarises the status and warning
messages for systems (active, not active or
faulty), displaying them in succession in the
multifunction screen.
F Press the "MENU" button for access to the

main menu.

F Press the arrows, then the "OK" button to

select the "Trip computer

" menu.

F In the "Trip computer

" menu, select the

"Warning log" line and confirm.

"Telephone" menu

With the audio system switched on, this menu
allows you to make a call or view the various
telephone directories.
For more information on the "Telephone" menu,
refer to the Audio and telematics

section.

"Bluetooth connection"

With the audio system on, this menu allows
a Bluetooth device (telephone, media player)
to be connected or disconnected and the
connection mode to be defined (hands-free,
playing audio files).
For more information on the "Bluetooth
connection" menu, refer to the Audio and
telematics

section.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Define the vehicle parameters

- "Driving assistance":

● "Parking brake automatic" (Automatic

electric parking brake),

● "Rear wipe in reverse gear" (Rear wiper

coupled to reverse gear),

● "Speeds memorised" (Memorising

speeds).

- "Vehicle lighting":

● "Directional headlamps" (Main /

additional directional lighting),

- "Interior lighting":

● "Follow-me-home headlamps"

(Automatic operation of headlamps after
switching off the ignition),

● "Welcome lighting" (Exterior and interior

welcome lighting).

For example: setting of the duration of the
"follow-me-home" lighting
F Press the "7" or "8" buttons, to select the

"Define the vehicle parameters" menu,
then the "OK

" button.

F Press the "5" or "6" buttons to select

the "Interior lighting" line, then the
"OK"

button; then follow the same

procedure to select the "Follow-me-home
headlamps" line.

This menu allows you to activate or deactivate
the following equipment, classified in different
categories:
For more information on any of this equipment,
refer to the corresponding section.
- "Access to the vehicle":

● "Plip action" (Selective unlocking of the

driver's door),

● "Unlocking boot only" (Selective

unlocking of the boot).

"Personalisation-configuration" menu

This menu gives access to the following
functions:
-  "Define the vehicle parameters",
-  "Choice of language",
-  "Display configuration",

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

F Press the "7" or "8" buttons to set the

value required (15, 30 or 60 seconds), then
press the "OK"

button to confirm.

Choice of language

Once this menu has been selected, you can
choose the language used by the display from
a pre-defined list.

Display configuration

This menu gives access to the following
settings:
-

"Choice of units",

-  "Date and time adjustment",
-  "Display parameters",
-  "Brightness".

F Press the "5" or "6" buttons, then the

"OK" button to select the "OK"

box and

confirm or press the "Back" button to
cancel.

As a safety measure, configuration of
the multifunction screen by the driver
must only be done when stationary.

Adjusting the date and time
F Press the "7" or "8

" button to display the

"Display configuration" menu, then press
"OK"

F Press the "5" or "6" button to select the

"Date and time adjustment" button, then
press "OK"

F Press the "7" or "8" button to select the

setting to modify. Confirm by pressing
"OK"

, then modify the setting and confirm

again to save the modification.

Adjust the settings one by one, confirming

with the "OK"

button.

F Press the "5" or "6" button, then the "OK"

button to select the "OK"

box and confirm

or the "Back"

button to cancel.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Touch screen tablet

This system gives access to:
- menus for adjusting settings for vehicle

functions and systems,

- audio and display settings menus,
- audio system and telephone controls and

the display of associated information.

- the display of the ambient temperature

(a blue snowflake appears if there is a risk
of ice),

- the display of the trip computer.

Recommendations

It is necessary to press firmly, particularly for
"flick" gestures (scrolling through lists, moving
the map...). A light wipe is not enough.
The screen does not recognise pressing with
more than one finger.
This technology allows use at all temperatures
and when wearing gloves.
Do not use pointed objects on the touch screen
tablet.
Do not touch the touch screen tablet with wet
hands.
Uses a soft clean cloth to clean the touch
screen tablet.

General operation

Principles

Press the virtual buttons in the touch screen
tablet.
Each menu is displayed over one or two pages
(primary page and secondary page).

As a safety measure, the driver
should only carry out operations
that require close attention, with the
vehicle stationary.
Some functions are not accessible
when driving.

And, depending on equipment, it also allows:
- the display of visual parking sensors

information,

- access to the controls for the navigation

system and Internet services, and the
display of associated information.

After a few moments with no action on
the secondary page, the primary page
is displayed automatically.

Use the "Options" button to go to the
secondary page.

Use this button for access to
additional information and to the
settings for certain functions.

Use this button to confirm.

Use this button to quit or to return to
the primary page.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Menus

Navigation

Telephone

Radio Media

Driving
Gives access to the trip computer
and, depending on version, allows
settings to be adjusted for certain
functions.

Settings
Allows configuration of the display
and the system.

Connected services
The connected services are
accessible via Bluetooth, Wi-
Fi, CarPlay™ or MirrorLink™
connections.

Press one of the buttons on the control panel
for direct access to a particular menu.

Volume / mute.

For more information on the touch screen
tablet, refer to the Audio and telematics
section.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

"Driving" menu

The systems with settings that can be adjusted are detailed in the table below.
For more information on one of these functions, refer to the corresponding section.

Button

Corresponding function

Comments

Speed settings

Memorisation of speeds for use with the speed limiter or cruise control.

Vehicle settings

Access to other functions with settings that can be adjusted. The functions are grouped
together under three tabs:
- "[Driving assistance]"

- "[Automatic parking brake]": activation/deactivation of the electric parking brake

automatic mode,

- "[Automatic rear wiper in reverse]": activation/deactivation of rear wiper coupled to

reverse gear.

- "[Lighting]"

- "[Guide-me-home lighting]": activation/deactivation and configuration of the duration of

the automatic guide me home lighting,

- "[Welcome lighting]": activation/deactivation of the exterior welcome lighting,
- "[Adaptive lighting]": activation/deactivation of the directional lighting or of the static

intersection lighting,

- "[Vehicle access]"

- "[Driver plip action]": activation/deactivation of the selective unlocking of the driver's

door,

- Unlock boot only": activation/deactivation of the selective unlocking of the boot.

Select or deselect the tabs at the bottom of the screen to filter the functions required.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

"Settings" menu

The functions available through this menu are detailed in the table below.

Button

Corresponding function

Comments

Audio settings

Adjustment of volume, balance...

Color schemes

Choice of colour scheme.

Turn off screen

Turns off the display in the the touch screen tablet (black screen).
Pressing the black screen restores the display.

System Settings

Choice of units:
- temperature (°Celsius or °Fahrenheit)
- distance and fuel consumption (l/100 km, mpg or km/l).

Time/Date

Setting the date and time.

Languages

Choice of language used: French, English, Italian, Spanish, German, Dutch, Portuguese,
Polish, Turkish, Russian, Serb, Croat, Hungarian.

Screen settings

Adjustment of the display settings (scrolling of text, animations...)

Calculator

Display the calculator.

Calendar

Display the calendar.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Setting the date and time

F Select the "Settings

" menu.

In the secondary page, press on "Time/

Date

F Select "Adjust time" or "Adjust date

Modify the settings using the number

keypad, then confirm.

F Press "Confirm

" to save and quit.

When setting the time, you can select
"Satellite synchronisation", so that
the time is adjusted automatically by
satellite reception.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

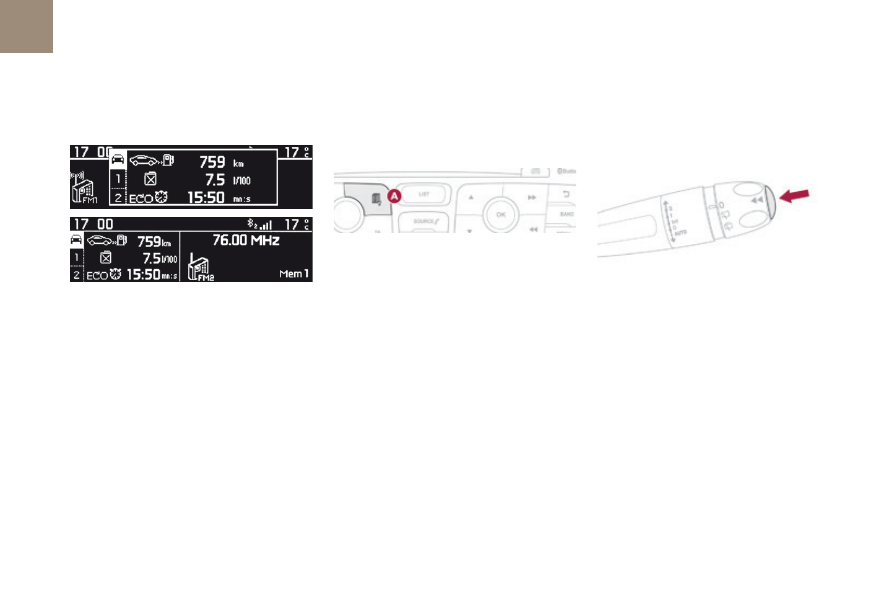

Trip computer

Monochrome screen C

You can choose between two types of display
by pressing button A:
- the trip computer information appears

temporarily above the audio information,
displayed permanently in full screen,

or
- the trip computer and audio information

both appear permanently in a shared
screen.

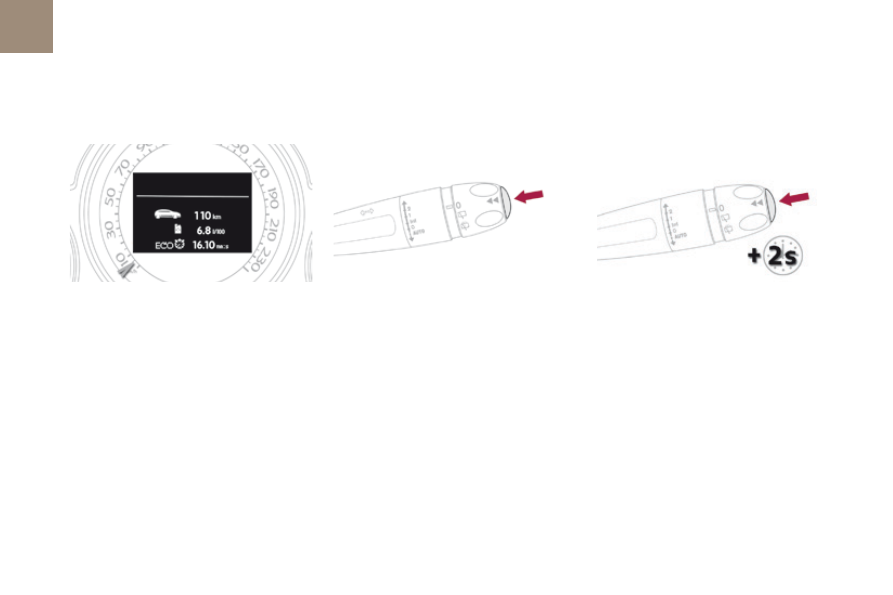

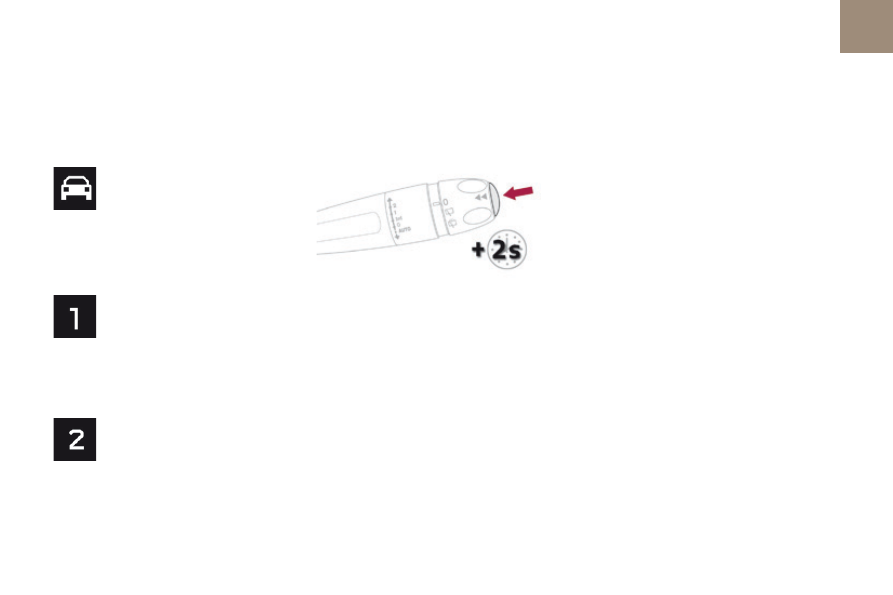

Press the button, located at the end of

the wiper stalk

, to display the various trip

computer tabs in succession.

System that gives you information on the current journey (range, fuel consumption…).

Information displays

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

- the current information tab with:

●  the range,
●  the current fuel consumption,
●  the Stop & Start time counter.

the trip "1"

tab with:

●  the distance travelled,
●  the average fuel consumption,
●  the average speed,
  for the first trip.

the trip "2"

tab with:

●  the distance travelled,
●  the average fuel consumption,
●  the average speed,
   for the second trip.

When the trip required is displayed, press

the button on the end of the wiper stalk for
more than two seconds.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

Trip zero reset

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Type 2 instrument panel central screen

Information displays

- Display of instantaneous information with:

●  the range,
●  the current fuel consumption,
●  Stop & Start time counter,

Display of trip "1"

with:

●  the distance travelled,
●  the average fuel consumption,
●  the average speed,
  for the first trip.

Display of trip "2"

with:

●  the distance travelled,
●  the average fuel consumption,
●  the average speed,
  for the second trip.

Press the button, located on the end of

the wiper stalk

to display the following

information in turn:
●  reminder of the speed,
●  instantaneous information,
●  trip "1",
●  trip "2",
●  information on the current audio source,
●  black screen,
●  navigation instructions.

Trip zero reset

When the required trip is displayed, press

the button on the end of the wiper stalk for
more than two seconds.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures and trip "2" for monthly figures.

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Touch screen tablet

Display of information

Permanent display:

Temporary display in a new window:
F

Press the end of the wiper control stalk for

access to the information and display the
different tabs.

The current instantaneous fuel consumption tab with:
-  the range,
-  the current fuel consumption,
-  the Stop & Start time counter.

The trip "1" tab with:
-  the distance travelled.
-  the average fuel consumption,
-  the average speed,

for the first trip.

The trip "2" tab with:
-  the distance travelled.
-  the average fuel consumption,
-  the average speed,

for the second trip.

Trip reset

F Select the "Driving

" menu.

The trip computer information is displayed in
the primary page of the menu.
F

Press one of the buttons to display the

desired tab.

When the desired trip is

displayed, press the reset button
or press and hold the end of the
wiper control stalk.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

1. "Instantaneous

2. "Trip 1

3. "Trip 2

4. "00.0 / Reset

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

A few definitions…

This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.

If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop.

This function is only displayed from
20 mph (30 km/h).

Range

(miles or km)

When the range falls below 20 miles (30 km),
dashes are displayed.
After filling with at least 5 litres of fuel, the
range is recalculated and is displayed if it
exceeds 60 miles (100 km).

Current fuel consumption

(mpg or l/100 km or km/l)

Average fuel consumption

(mpg or l/100 km or km/l)

Average speed

(mph or km/h)

Stop & Start time counter
(minutes / seconds or hours /
minutes)

Calculated since the last trip computer reset.

Calculated over the last few seconds.

The distance which can still be travelled with
the fuel remaining in the tank (at the average
fuel consumption seen over the last few miles
(kilometres) travelled).

Calculated since the last trip computer reset.

Distance travelled

(miles or km)

Calculated since the last trip computer reset.

A time counter calculates the time spent in
STOP mode during a journey.
It resets to zero every time the ignition is
switched on.

Citroen DS4 (2017 year). Manual - part 4
