Contents

DS4_en_Chap00a_sommaire_ed01-2016

This handbook has been designed to help

you to make the most of your vehicle in all

circumstances and in complete safety.

We thank you for choosing a DS 4.

The descriptions and illustrations are given as
indications only.
The manufacturer, represented by Automobiles
CITROËN reserves the right to modify the technical
characteristics, equipment and accessories without
having to update this edition of the handbook.

This document forms an integral part of your
vehicle. Remember to pass it on to the new owner
in the event of the sale of the vehicle.

Please take the time to read through it.

Happy motoring!

This handbook covers all of the variations in
equipment available across the whole DS 4 range.
Your vehicle will be fitted with only some of the
equipment described in this document, depending
on its trim level, version and the specification for
the country in which it was sold.

Key

safety warning
additional information
contributes to the protection of the environment

Contents

DS4_en_Chap00a_sommaire_ed01-2016

Access

Safety

Remote control key

"Keyless Entry and Starting"

Steering wheel adjustment

100 Mirrors

104

Manual air conditioning

106

Dual-zone digital air conditioning

110

Front demist - defrost

111

Rear screen demist - defrost

115 Centre consoles

Automatic illumination of headlamps

133

Welcome lighting

134

Headlamp beam height adjustment

135

Directional lighting

137 Wiper control

138

Automatic rain sensitive wipers

142

Courtesy lamps

143

Interior mood lighting

Lighting and visibility

Ease of use and comfort

Instrument panels

16 Rev counter

Indicator and warning lamps

Indicators

43 Manual test

Customising the instrument panel colours

General safety recommendations

Emergency or assistance

154

Braking assistance systems

155

Trajectory control systems

157 Front seat belts

Deactivating the passenger's front airbag

Contents

DS4_en_Chap00a_sommaire_ed01-2016

In the event of a breakdown

184

Driving recommendations

186

Starting / Switching off the engine with

the key

189

Starting / Switching off the engine with

Keyless Entry and Starting

192

Manual parking brake

193

Electric parking brake

202 Hill start assist

203

Gear efficiency indicator

204

Tyre under-inflation detection

206 Stop & Start

209

Lane departure warning system

210

Blind spot monitoring system

218 Cruise control

229 Misfuel prevention (Diesel)

231 Snow chains

232

Very cold climate screen

233

Towbar with quickly detachable towball

Changing a wiper blade

242

Bonnet

243

Petrol underbonnet layout

244

Diesel under the bonnet

Temporary puncture repair kit

Running out of fuel (Diesel)

Identification markings

313 7-inch touch screen tablet

Practical information

Audio and telematics

Alphabetical index

406

Overview

DS4_en_Chap00b_vue-ensemble_ed01-2016

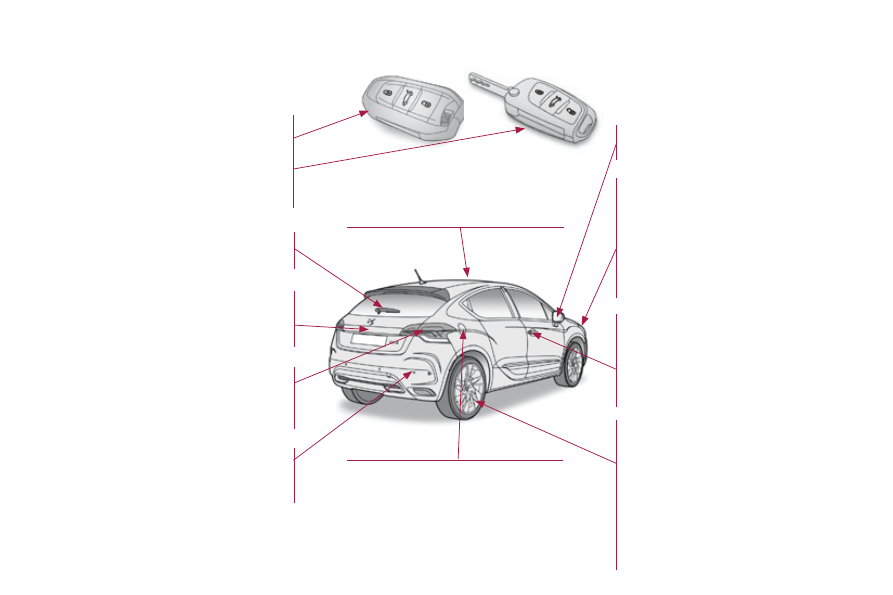

Exterior

Keyless Entry and Starting

70-77

Remote control

64-6 9, 77

- opening / closing

- back-up control
- battery

Alarm

83-86

Lighting control

128-132

Headlamp adjustment

134

Guide-me-home lighting

131 , 132

Welcome lighting

133

Directional lighting systems

135-136

Changing bulbs

279-284

- front lamps

- front foglamps

- side repeaters

Wiper control

137-141

Changing a wiper blade

Door mirrors

Blind spot sensors

Doors

Keyless Entry and Starting

70-77

- opening / closing

- back-up control

Manual child lock

Electric windows

Fuel tank

Misfuel prevention

Roof bars

Braking assistance

Trajectory control

Tyre under-inflation detection

204-205

Tyre pressures

204 , 266 , 270 , 308

Snow chains

231

Temporary puncture repair kit

260-270

Changing a wheel

271-278

- tools

- removing / refitting

Boot

Reversing camera

AdBlue, topping up

Changing bulbs

- rear lamps

- 3rd brake lamp

- number plate lamp

Parking sensors

221-222

Towbar

185 , 238

Quickly detachable towball

233-237

Towing

296-297

Overview

DS4_en_Chap00b_vue-ensemble_ed01-2016

Interior

Boot fittings

122-124

rear parcel shelf

- hooks

- 12 V socket
- torch

- lashing eyes

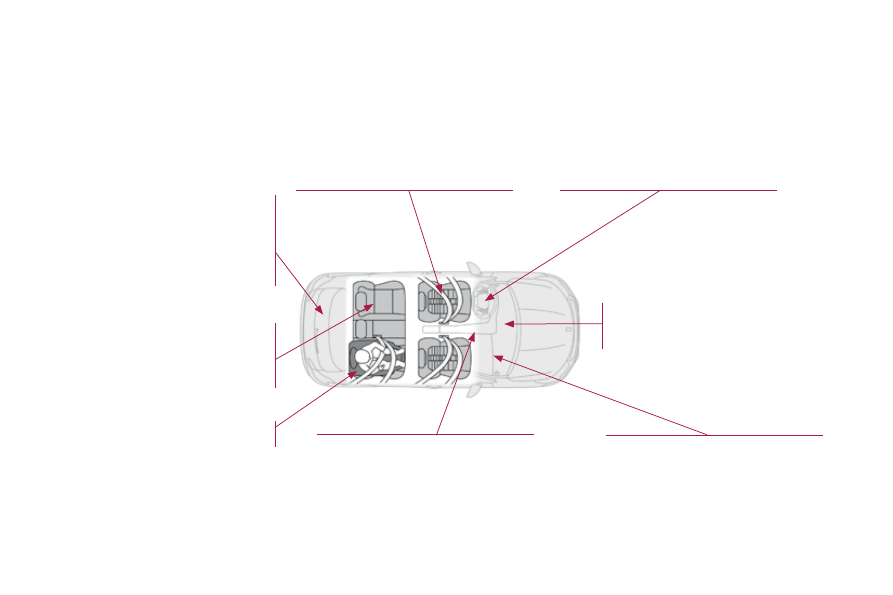

Rear seats

98-99

Rear fittings

121

- 12 V socket

- rear armrest

- ski flap

Child seats

ISOFIX mountings

Front seats

Seat belts

Airbags

Glove box

Deactivating the passenger's front

airbag

163 , 168-170

Front fittings

112-113 , 115-120

- auxiliary socket / USB port

- 12 V socket

- front armrest

- 230 V / 50 Hz socket

- mats

- storage drawers

Panoramic windscreen

114

- blinds
-

sun visor

Overview

DS4_en_Chap00b_vue-ensemble_ed01-2016

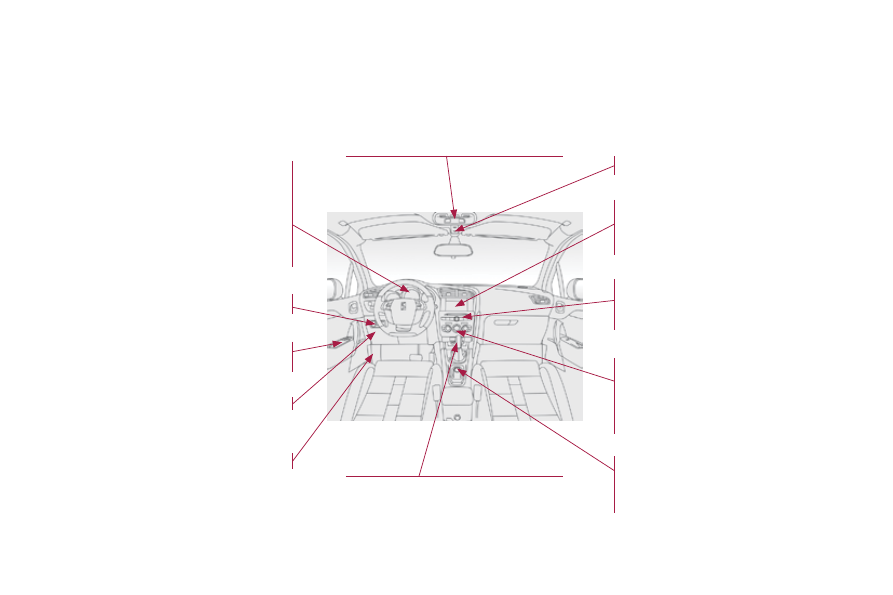

Instruments and controls

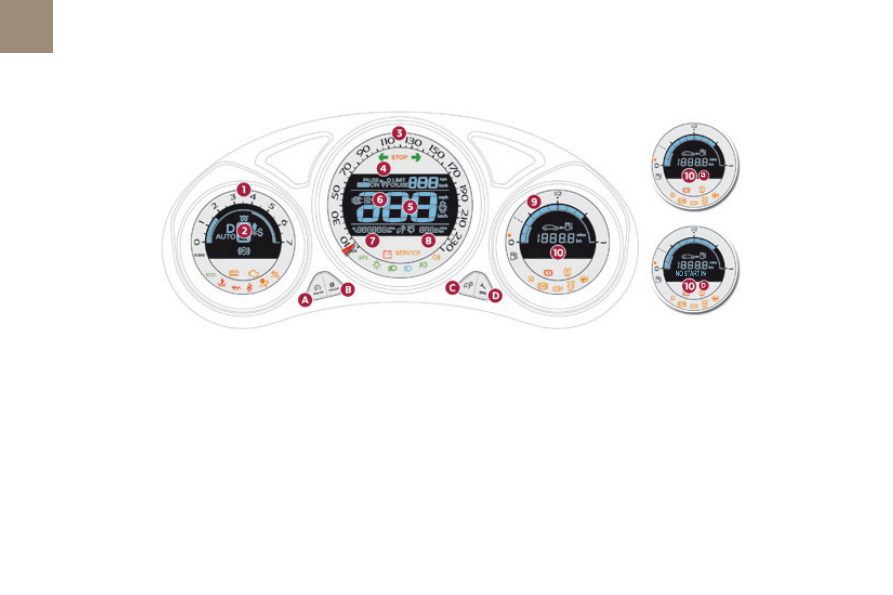

Instrument panels

14-16

Warning lamps

17-32

Indicators

33-42

Manual test

Setting buttons

44-46

- trip distance recorder

- dashboard lighting dimmer / black panel

- customisation of dials and screens

Adjusting headlamps

Door mirrors

Electric windows

Dashboard fuses

Opening the bonnet

Monochrome screen

Seat belt / front passenger airbag

warning lamp display

Reversing camera

Manual gearbox

Automatic gearbox

Parking brake

Electric parking brake

Rear view mirror

Courtesy lamps

Ventilation

Manual air conditioning

104-105

Digital air conditioning

106-109

Front Demisting / Defrosting

110

Demisting / Defrosting the

rear screen

111

Audio system

377-404

Setting the date / time

Touch screen tablet

51-54 , 313-376

Setting the date / time

Interior mood lighting

143

Ignition switch / Steering lock / Starting

with the key

186-188

Steering lock / Starting with the START/

STOP button

186 , 189-191

Overview

DS4_en_Chap00b_vue-ensemble_ed01-2016

Instruments and controls

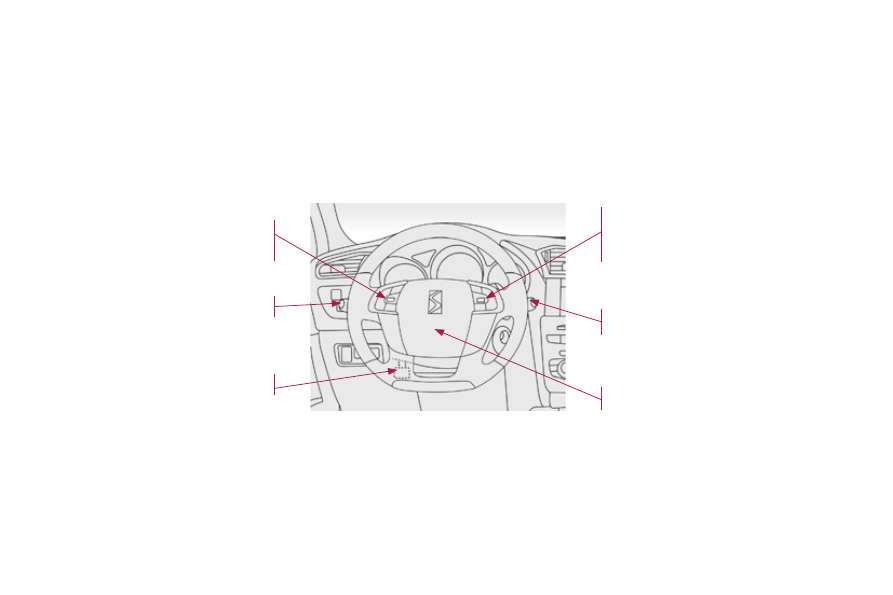

Multifunction steering wheel

Speed limiter

Cruise control

Memorising speeds

Lighting controls

Adjusting the steering wheel

Audio and telephone controls for the

Audio system

379

Audio and telephone controls for

the touch screen tablet

Wiper controls

Trip computer

Horn

Overview

DS4_en_Chap00b_vue-ensemble_ed01-2016

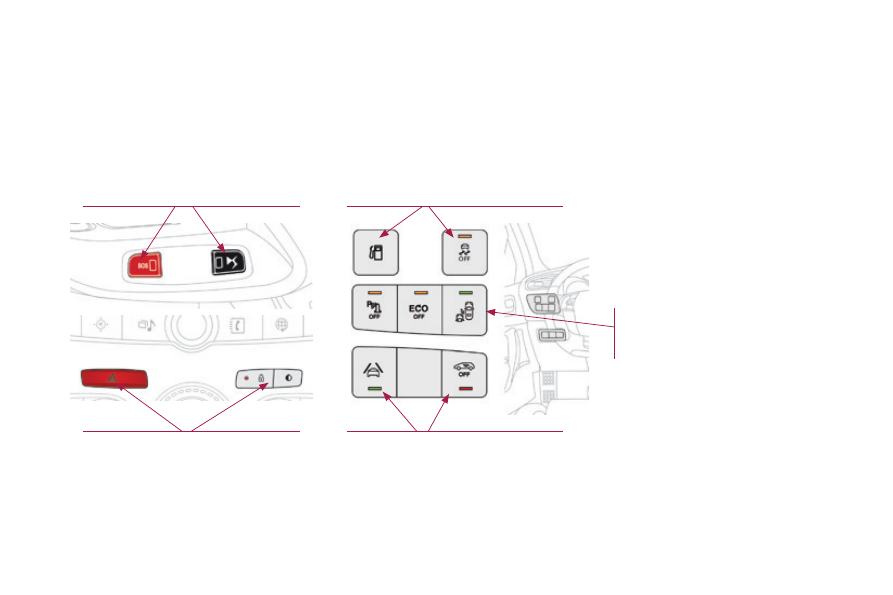

Emergency call

Assistance call

Fuel filler flap

DSC/ASR system

Hazard warning lamps

Central locking

Black panel

(comfortable night-driving display)

Lane departure warning system

209

Alarm volumetric monitoring

83-86

Electric child lock

181

Side switch panels

Central switch panels

Instruments and controls

Parking sensors

221-222

Stop & Start

206-208

Blind spot sensors

210-212

Overview

DS4_en_Chap00b_vue-ensemble_ed01-2016

Technical data - Maintenance

Running out of Diesel fuel

298

Checking levels

245-249

- oil

- brake fluid
- coolant

- power steering fluid

- screenwash / headlamp wash fluid

- additive (Diesel with particle filter)

AdBlue

253-256

Changing bulbs

279-287

- front
- rear

Petrol engines

302-304

Diesel engines

302, 3 05-306

Dimensions

307

Identification markings

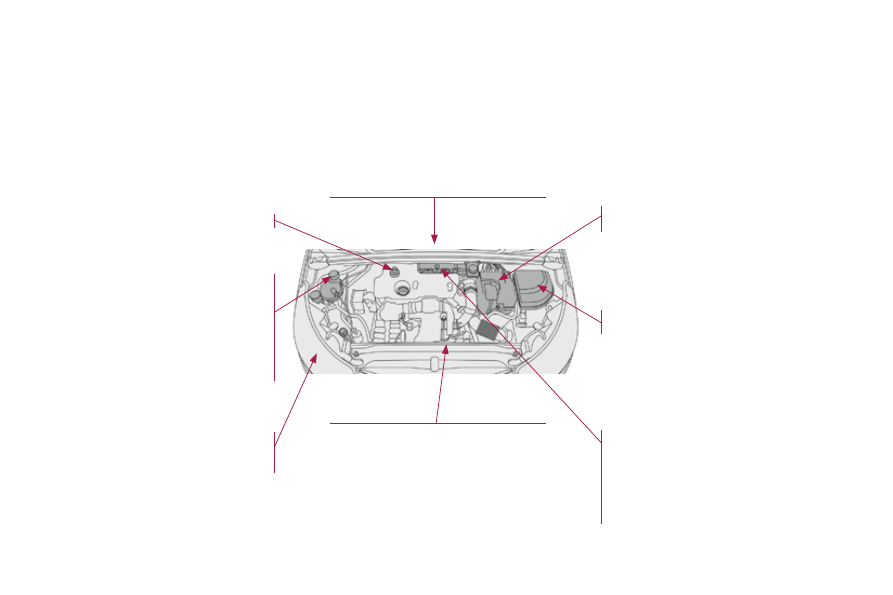

Bonnet

Petrol underbonnet

Diesel underbonnet

Checking components

- battery

- air filter / passenger compartment filter
-

oil filter

particle filter (Diesel)

- brake pads / discs

Battery

292-295

Energy economy mode

239

Engine compartment

fuses

288-28 9, 291

Eco-driving

As a passenger, if you avoid connecting
your multimedia devices (film, music, video
game...), you will contribute towards limiting
the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before
leaving the vehicle.

Eco-driving

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Optimise the use of your

gearbox

With a manual gearbox, move off gently and
change up without waiting. During acceleration
change up early.

With an automatic gearbox, give preference
to automatic mode and avoid pressing the
accelerator pedal heavily or suddenly.

The gear efficiency indicator invites you to
engage the most suitable gear: as soon as the
indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an automatic gearbox,
this indicator appears only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles,
use engine braking rather than the brake
pedal, and press the accelerator progressively.
These practices contribute towards a reduction
in fuel consumption and CO

emissions and

also help reduce the background traffic noise.

If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.

Control the use of your

electrical equipment

Before moving off, if the passenger compartment
is too warm, ventilate it by opening the windows
and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and
leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in the
passenger compartment down (sunroof and
window blinds...).

Switch off the headlamps and front foglamps
when the ambient light level does not require
their use.

Avoid running the engine before moving off,
particularly in winter; your vehicle will warm up
much faster while driving.

Switch off the air conditioning, unless it has
automatic regulation, as soon as the desired
temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as possible.

Eco-driving

DS4_en_Chap00c_eco-conduite_ed01-2016

Limit the causes of excess

consumption

Spread loads throughout the vehicle; place the
heaviest items in the bottom of the boot, as
close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and
refit your summer tyres.

Observe the recommendations

on maintenance

Check the tyre pressures regularly, when cold,
referring to the label in the door aperture,
driver's side.
Carry out this check in particular:
-  before a long journey,
-  at each change of season,
-  after a long period out of use.
Don't forget the spare wheel and the tyres on
any trailer or caravan.

Have your vehicle serviced regularly (engine
oil, oil filter, air filter, passenger compartment
filter...) and observe the schedule of operations
recommended in the manufacturer's service
schedule.

With a BlueHDi Diesel engine, if the SCR
system is faulty your vehicle becomes
polluting; go to a CITROËN dealer or a
qualified workshop without delay to have the
emissions of nitrogen oxides brought back to
the legal level.

When refuelling, do not continue after the third
cut-off of the nozzle to avoid any overflow.

At the wheel of your new vehicle, it is only after
the first 1 800 miles (3 000 kilometres) that you
will see the fuel consumption settle down to a
consistent average.

DS4_en_Chap01_instruments-de-bord_ed01-2016

ON-BOARD INSTRUMENTS

DS4_en_Chap01_instruments-de-bord_ed01-2016

Instruments

DS4_en_Chap01_instruments-de-bord_ed01-2016

Customisable colour instrument panel - Type 1

Rev counter (x 1 000 rpm or tr/min).

Gear efficiency indicator or gear lever

position and gear for an automatic
gearbox.

Analogue speedometer (mph or km/h).

Cruise control or speed limiter setting.

Digital speedometer (mph or km/h).

Engine oil level indicator*.

Dials and screens

Control buttons

Service indicator

(miles or km) then,

total mileage recorder.

These two functions are displayed
successively on switching on the ignition.

Lighting dimmer setting (when making an
adjustment).

Trip mileage recorder (miles or km).

Fuel gauge and associated low fuel

warning lamp.

10.

Range (miles or km) for the fuel (a) or the

AdBlue additive and SCR system (b).

Dial COLOUR: customisation of the

background colour of the dials.

Screen COLOUR: customisation of the

background colour of the screens.

Lighting dimmer (available in night mode).

Reset the service indicator or the trip

mileage recorder.

* Depending on version.

Content .. 1 2 ..
