It is imperative not to exceed a speed of 80 km/h (50 mph) on

the spare wheel.
The wheel bolts are specifi c to the type of wheel.
When replacing wheels, check with a CITROËN dealer or a

qualifi ed workshop that the wheel bolts are compatible with

the new wheels.
Note: take care to note down the code number engraved on the

head of the anti-theft bolt socket. This will enable you to obtain

replacement anti-theft bolt sockets from a dealership.

WHEEL FOR TEMPORARY USE

If your vehicle is equipped with a

spare wheel for temporary use

only, when fi tting it it is normal to

observe that the wheel bolts do not

come to bear on the wheel rim.

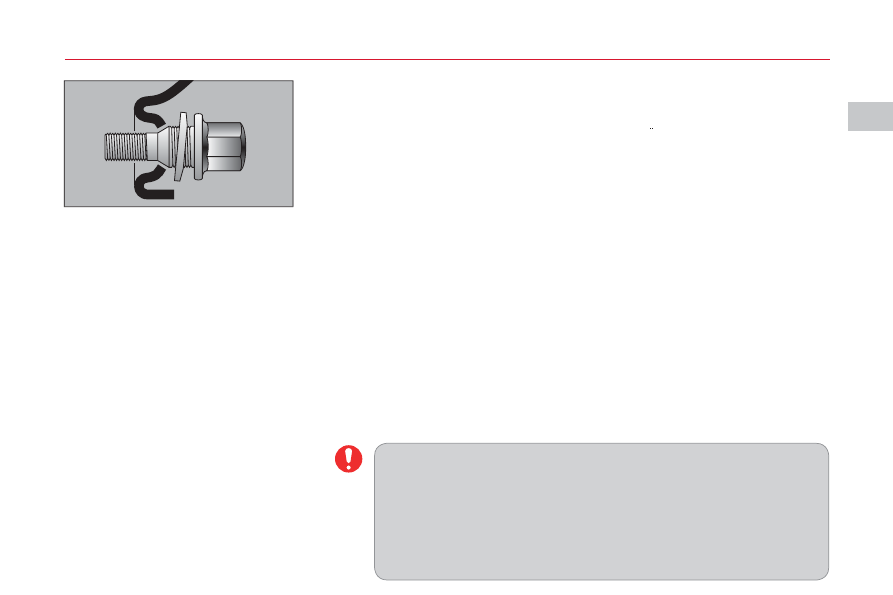

The spare wheel is secured by the

conical tapering of the wheel bolt’s

shaft. See illustration.
When refi tting the original wheel,

ensure that the wheel bolt contact

surfaces are clean and in good

condition.

REFITTING A WHEEL

1. Fit the wheel on the hub,

using the centring guide. Make

sure that the contact surface

between the hub and the wheel

is clean.

2. Screw in the bolts but do not

fully tighten them.

3. Lower the jack and remove it.
4. Tighten the wheel bolts, using

the wheelbrace.

5. Refi t the embellisher.
6. Return the ground clearance

to the normal position. See

"Ground clearance adjustment".

7. Ensure the tyre pressure

is correct (see "Vehicle

identifi cation") and have the

balancing checked.

WHEEL EQUIPPED WITH DEFLATION

DETECTION SENSOR

Such wheels have tyre pressure

sensors. Have it repaired by a

CITROËN dealer or a qualifi ed

workshop.

ANTI-THEFT BOLTS

Each wheel is equipped with one

anti-theft bolt.
To remove it

1. Remove the protector that is

covering it by means of the

tool 4 for "removing anti-theft

protectors".

2. Use the anti-theft socket with

the handle.

C H A N G I N G A W H E E L

144

TOWING WITH WHEELS ON THE GROUND

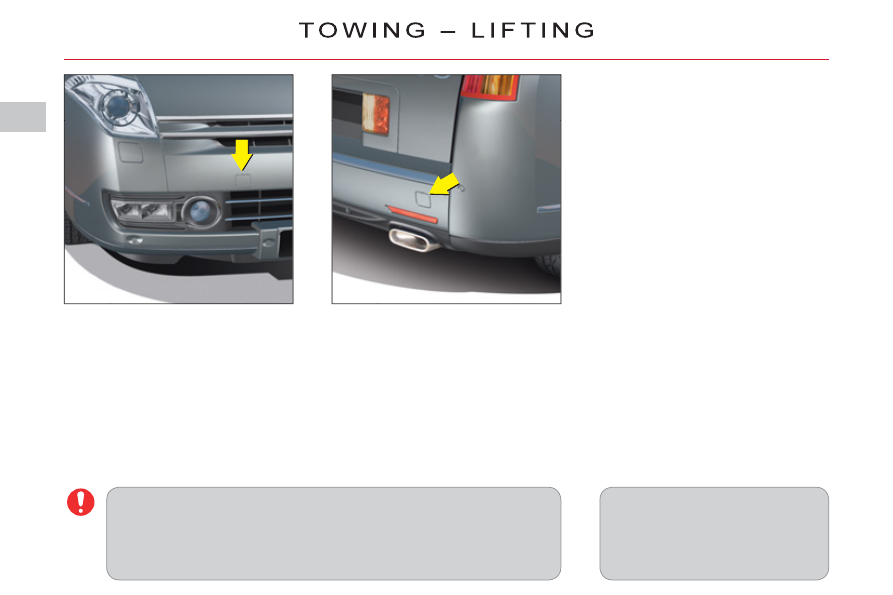

Towing eyes can be used at the front and at the rear of the vehicle.
Detach the cover:

For the front cover, lever with a screwdriver at the top of the cover.
For the rear cover, press on the right hand side.

The ignition key must be in position M to retain steering.
Use a bar with attachments to the towing eyes as above.
The towing eye is removable, to be stowed in the jack protection box inside

the spare wheel.

•
•

ADVICE

Towing at low speed over a very

short distance is authorised in

exceptional cases depending on

the regulations in force.
Otherwise, it is necessary to

have your vehicle transported

on a recovery truck.
It is essential to check that the

electric parking brake is released.

REQUIREMENT - TOWING

WITH AUTOMATIC GEARBOX

Place the selector on position N

(neutral).

When the engine is not running, the steering and the braking

are no longer assisted.
If you are towing another vehicle, the latter must be free-

wheeling (gearbox in neutral).

Towing with "front or rear lifted"

or in the "minimum height"

position is prohibited.

145

ENGINE TYPE

V6 HDi

Gearbox

Automatic

Fuel tank capacity (in litres)

Approx. 72 l

Fuels to be used

Diesel

French fi scal rating

Turning circle between walls (in metres)

12.70

Calculated maximum speed in km/h (mph)

Weights (kg)

Unladen weight

1 873

Gross vehicle weight

2 320

Maximum weight on rear axle

1 050

Gross train weight (MTRA)*

3 720

Gross trailer weight (within the Gross Train Weight limit) (1)

On a 10 % or 12 % gradient

1 400

Braked trailer with load transfer within the MTRA

(Gross Train Weight) limit

1 620

Gross trailer weight (without brakes)

750

Trailer nose weight

Maximum roof rack load

Dimensions of chainable tyres

G E N E R A L

MTRA: Gross train weight.

Weights: Refer to the manu-

facturer's plate.
* For a vehicle that is towing,

the speed must not exceed

100 km/h (approx. 62 mph).

Gross trailer weight (with

brakes) can be increased

up to:

(1) 1 700 kg.

Provided you reduce the

vehicle weight so as not to

exceed gross train weight.

Observe your vehicle's

towing limits. It is essen-

tial to comply with the max.

Gross Trailer Weights and

speed limits as specifi ed by

legislation in each country.

Dimensions of chainable

tyres:
All the tyres shown can be

fi tted with chains.

For Belgium and Switzerland
See the type approval docu-

ment or single vehicle type

approval

•

146

D I M E N S I O N S

( I N M E T R E S )

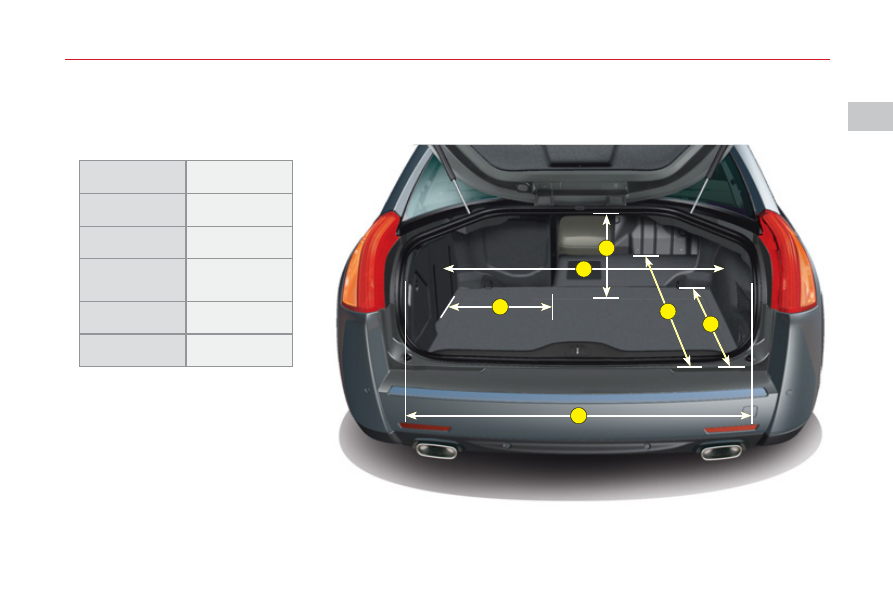

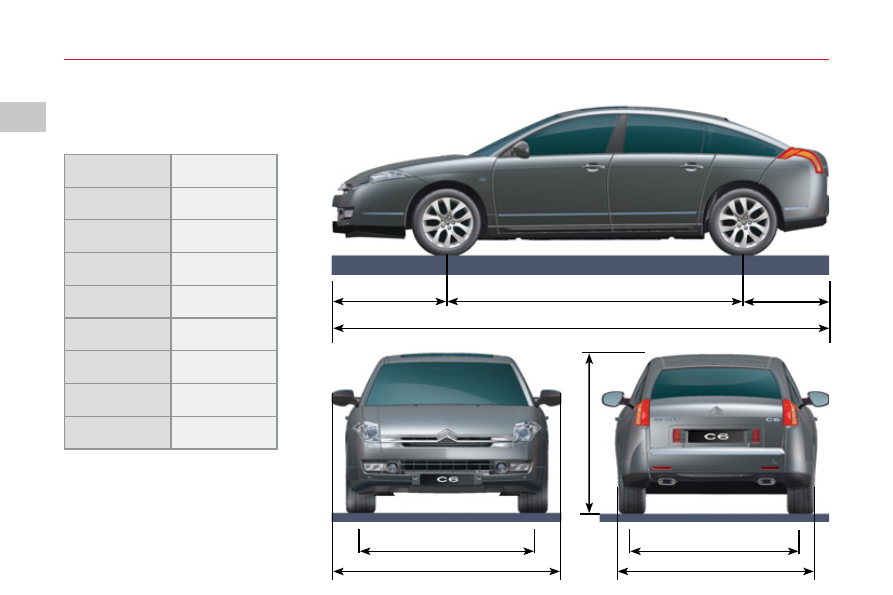

2.900

1.124

0.884

4.908

1.586

2.115

1.558

1.860

1.464

* Without roof bars.

147

D I M E N S I O N S

( I N M E T R E S )

1.115

0.904/0.974

1.150

If a benchseat

1.663

0.378

0.449

1
2
3

148

V E H I C L E I D E N T I F I C AT I O N

A Chassis

number

plate

On the left hand door centre

pillar.
1. EU type approval number.
2. Vehicle identifi cation No.

(VIN).

3. Gross vehicle weight.
4. Gross train weight.
5. Maximum weight on front

axle.

6. Maximum weight on rear

axle.

B Body serial number
C Serial number on dashboard
D Paint colour code

Tyre reference

Tyre pressures
On front pillar.

The vehicle type and the identifi cation number are also indicated on the registration document.

All CITROËN original replacement parts are available exclusively within the dealer network.

For your safety and in order to remain within the terms of the guarantee, you are advised to use only CITROËN replacement parts.

7.1

NaviDrive

MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE

JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)

The NaviDrive is coded in such a way that it will only

operate in your vehicle, contact a CITROËN dealer for

confi guration of the system.

For safety reasons, it is imperative that the driver carries

out operations which require prolonged attention while

the vehicle is stationary.

When the engine is switched off and to prevent

discharging of the battery, the NaviDrive switches off

after a few minutes.

CONTENTS

● 01 First steps

pg. 7.2

● 02 Display and general menu pg. 7.3
● 03 GPS

pg. 7.6

● 04 Traffi c information

pg. 7.15

● 05 Audio/Video pg. 7.17
● 06 Telephone

pg. 7.24

● 07 Trip computer

pg. 7.29

● 08 Control short-cuts

pg. 7.31

● 09 Confi guration pg. 7.33
● 10 Display fl ow charts

pg. 7.34

● Frequently asked questions pg. 7.38

7.2

199

166

100

122

155

144

177

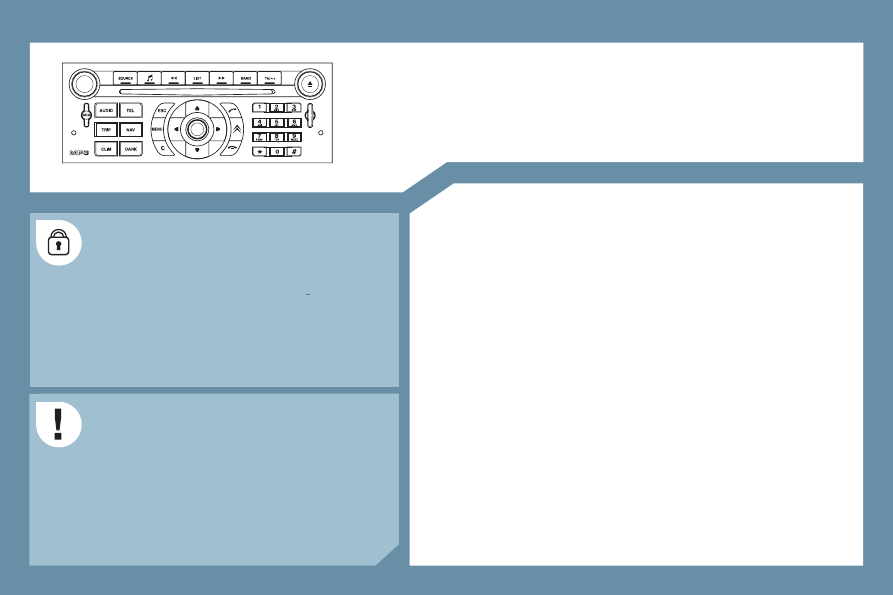

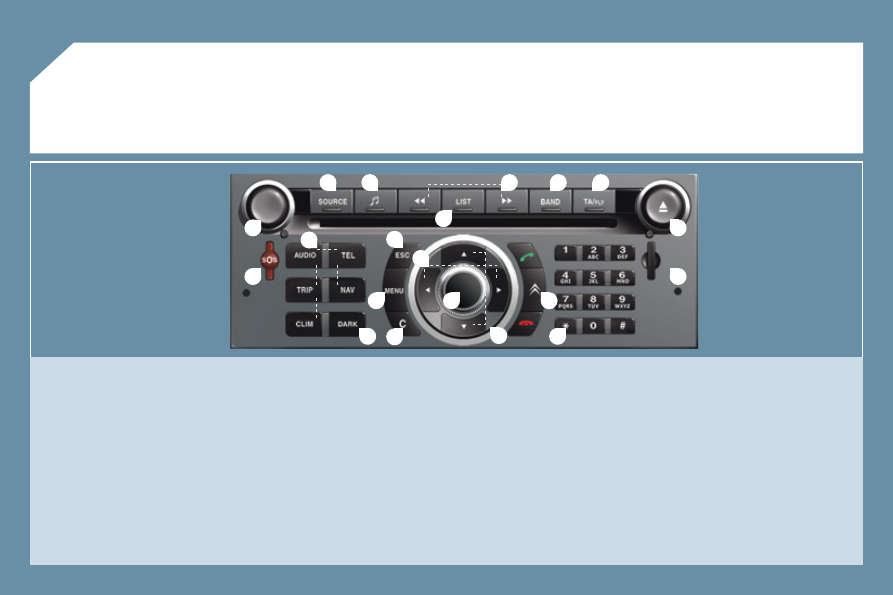

On/Off and Volume adjustment.

Selection of the source: radio, Jukebox, CD/DVD,

CD changer and auxiliary (AUX, if activated on

the Confi guration menu).

Long press: CD copy to hard disc.

Audio option adjustments: front/rear, left/right balance,

loudness, sound ambiences.

4. Displaying of the list of local radio stations, of the tracks on

the CD/DVD or of the MP3/USB/Jukebox directories.

Long press: updating of the local radio stations.

Automatic search for a lower/higher frequency. Selection of

the previous/next CD/DVD, MP3, USB or Jukebox track.

Long press: fast forward and backward play.

Selection of the wavebands FM1, FM2, FMast, AM.

7. TA

(Traffi c Announcement) function on/off.

Long press: access to the PTY

(radio Programme TYpes) mode.

Ejection of the CD/DVD.

SIM card slot.

10. Keypad for entering descriptions by successive presses.

11. Access to the "CITROËN" services menu.

12. Selection and confi rmation.

13. Selection of the previous/next CD/DVD. Selection of the

previous/next MP3/USB/Jukebox directory.

14. Selection of a lower/higher frequency.

15. Cancellation of the current operation.

Long press: return to the current application.

16. Displaying of the general menu.

17. Deletion of the last character entered or of the entire line.

18. Modifi cation of the screen display.

Long press: reinitialisation of the NaviDrive system.

19. Selection of the display on the screen from the modes:

TRIP, TEL, CLIM, NAV and AUDIO.

20. Long press on the SOS button: emergency call.

FIRST STEPS

7.3

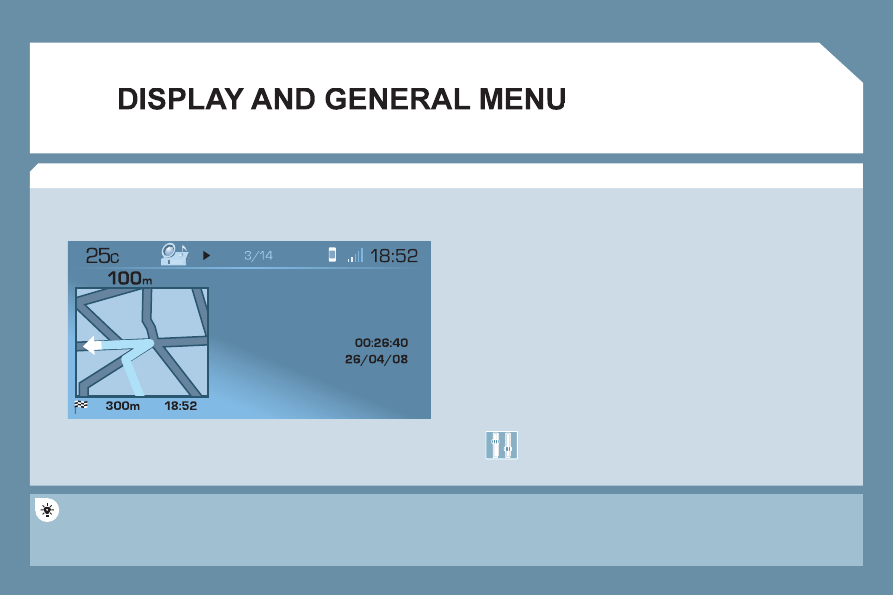

> COLOUR SCREEN

This displays the following information, via the audio control panel:

- time,

- date,

- ambient temperature (if there is a risk of ice, you are warned by a

message),

- audio source displays (radio, CD, jukebox, ...),

- telematic system displays (telephone, services, ...),

- check of openings (doors, boot, ...),

- warning messages (e.g.: "Fuel level low") and vehicle function status

messages (e.g.: "Auto lighting activated") displayed temporarily,

- trip computer information,

- GPS (Europe) satellite navigation system information.

New

The system uses the complete and detailed NAVTEQ maps installed directly on the equipment's hard disc. There is no need to keep a mapping

CD in the CD player. Updates of the maps of France and of the other European countries, offered by our partner NAVTEQ, will be available from

the CITROËN network.

Screen confi guration: refer to the section - Display fl ow

charts.

Telephone

Orange

Time:

Date:

7.4

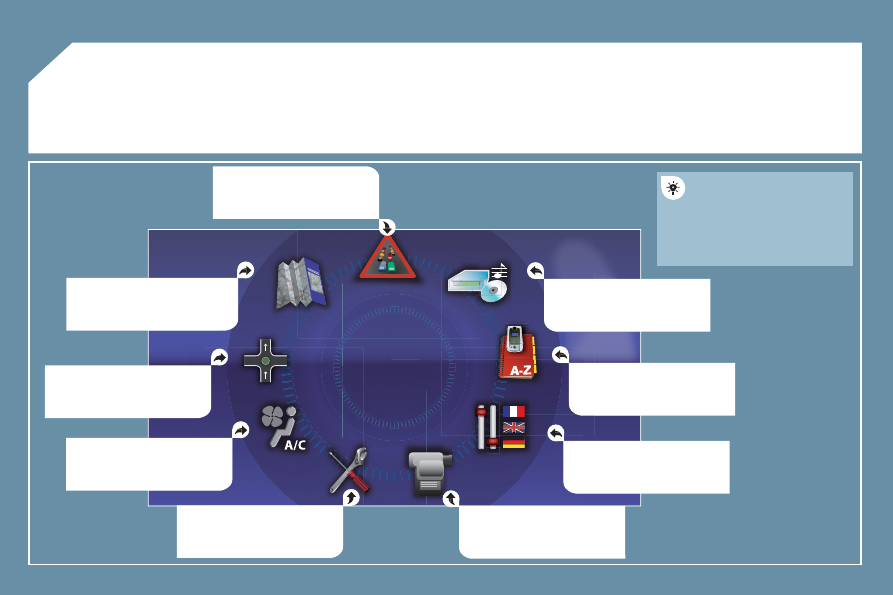

02 GENERAL MENU

MAP:

orientation, details, display.

AUDIO FUNCTIONS:

radio, CD, Jukebox, options.

For maintenance of the

display, the use of a

soft, non-abrasive cloth

(spectacles cloth) is

recommended without any

additional product.

TELEMATIC:

telephone, directory, SMS.

CONFIGURATION:

vehicle, display, time,

languages, voice, auxiliary

socket (AUX) parameters.

(

) p

VIDEO:

activation, parameters.

VEHICLE DIAGNOSTICS:

warnings log.

NAVIGATION GUIDANCE:

GPS, stages, options.

TRAFFIC INFORMATION:

TMC information, messages.

AIR CONDITIONING:

on/off and dual zone control

(according to equipment).

7.5

SCREEN AND GENERAL MENU

Press the OK dial to access short-cut

menus according to the display on

the screen.

INTERNAL TELEPHONE:

call list

dial

phone book

voice mail

NAVIGATION (IF NAVIGATION IS IN PROGRESS):

resume/stop guidance

divert route

route type

consult traffi c info

zoom/scroll map

TRIP COMPUTER:

alert log

status of functions

BLUETOOTH TELEPHONE:

call list

call

phone book

private mode/hands-free mode

place call on hold/resume call

CD (MP3 OR AUDIO):

copy CD to JBX/stop copy

activate/deactivate Introscan

activate/deactivate random play

activate/deactivate repeat

RADIO:

enter a frequency

activate/deactivate RDS

activate/deactivate REG mode

hide/display "Radio Text"

JUKEBOX:

select playlist

activate/deactivate Introscan

activate/deactivate random play

activate/deactivate repeat

USB:

copy USB to JBX/stop copy

eject USB

activate/deactivate Introscan

activate/deactivate random play

activate/deactivate repeat

DISPLAY ACCORDING TO THE CONTEXT

IN "ZOOM/SCROLL" MODE:

position info

select as destination

select as stage

store this position

exit map mode

guidance option

AIR CONDITIONING:

activate/deactivate air conditioning

activate/deactivate L/R control

7.6

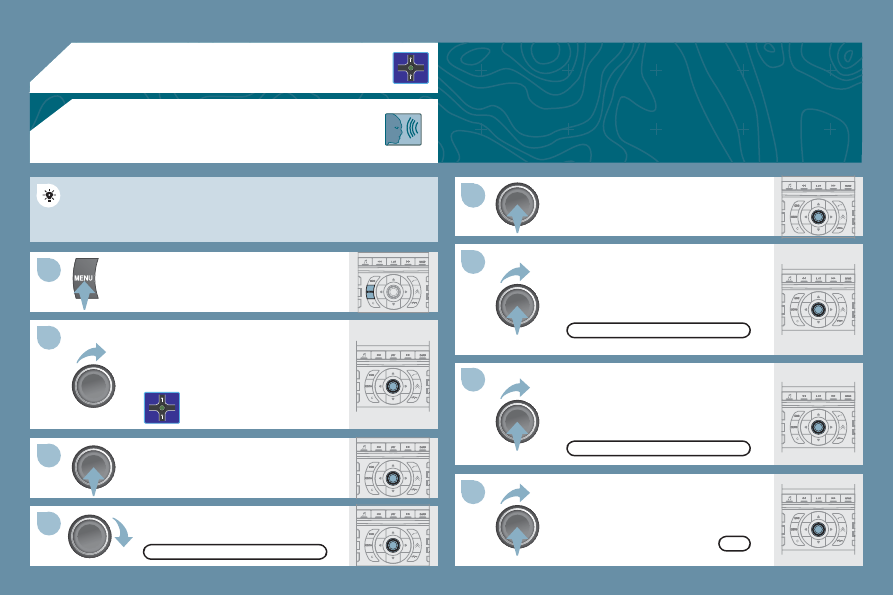

SELECTING A DESTINATION

Tip: for a detailed global view of the menus available, refer to the "Display fl ow charts" part of this
section.

Press the MENU button.

Turn the dial and select the

NAVIGATION GUIDANCE function.

Press the dial to confi rm the selection.

Turn the dial and select the

DESTINATION CHOICE function.

Press the dial to confi rm the selection.

Turn the dial and select the ENTER

AN ADDRESS function.

When the country has been selected,

turn the dial and select the TOWN

function.

TOWN

DESTINATION CHOICE

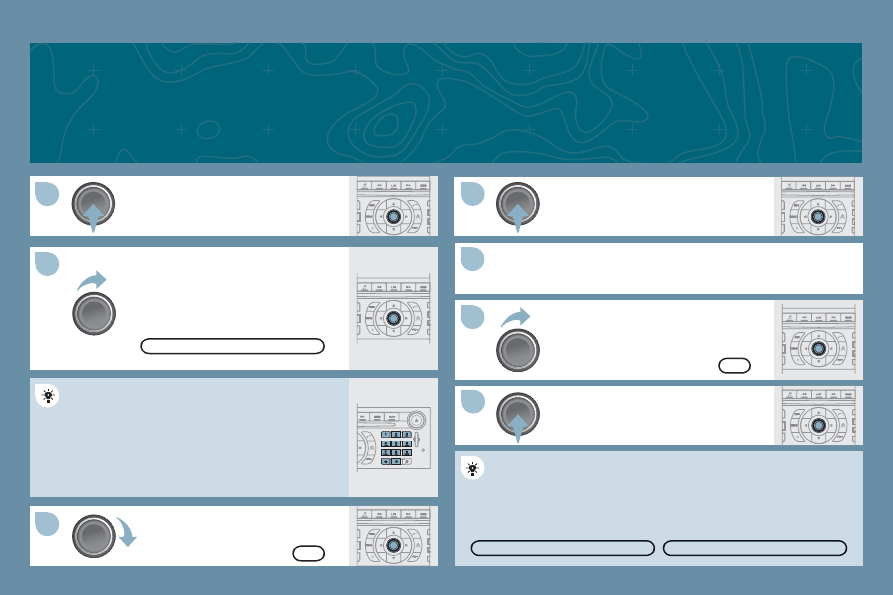

ENTER AN ADDRESS

GPS

7.7

Press the dial to confi rm the selection.

Turn the dial and select the letters of

the town one by one confi rming each

time by pressing the dial.

Turn the dial and select OK.

Press the dial to confi rm the selection.

To speed up the process, the POST CODE can be

entered instead of the name of the town.

Use the alphanumeric keypad to enter the letters and

digits and "*" to correct.

Press the dial to confi rm the selection.

Select OK on the ENTER AN

ADDRESS page.

Repeat steps 8 to 12 for the ROAD and N° functions.

Select the STORE function to record the address entered in a

directory record and press the dial to confi rm the selection.

The points of interest (POI) indicate all of the service locations in the

vicinity (hotels, various businesses, airports, ...).

STORE

PARIS

POI

7.8

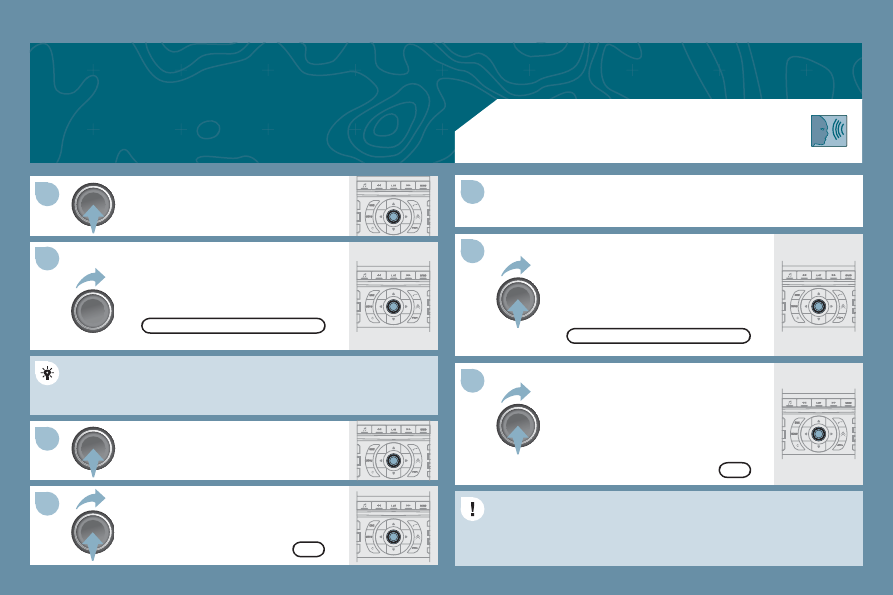

GUIDANCE OPTIONS

GPS

The route presented depends directly on the guidance options.
Changing these options may completely change the route.

Press the MENU button.

Turn the dial and select the

NAVIGATION GUIDANCE function.

Press the dial to confi rm the selection.

Turn the dial and select the

GUIDANCE OPTIONS function.

Turn the dial and select the DEFINE

CALCULATION CRITERIA function.

Press the dial to confi rm the selection.

GUIDANCE OPTIONS

DEFINE CALCULATION CRITERIA

DISTANCE/TIME

Turn the dial and select, for example,

the DISTANCE/TIME function.

7.9

Turn the dial and select the TRAFFIC

INFO function if you wish to receive

the TRAFFIC INFO announcements.

Press the dial to confi rm the selection.

Select OK and press the dial to

confi rm.

TRAFFIC INFO

Press the dial to confi rm the selection.

Tick this box for optimum operation of the traffi c information,

diversions will be suggested.

SETTING HAZARDOUS AREAS
ALERT PARAMETERS

Turn the dial and select the

SET HAZARDOUS AREAS

PARAMETERS function, then press

the dial to confi rm the warning

message. Press the dial to confi rm

the selection.

Select:

- visual warnings,

- audible warnings with an

announcement duration

(in seconds),

- warn during guidance only, then select

OK and press the dial to confi rm.

These functions are only available if the hazardous areas have

been downloaded and installed on the system.

The hazardous areas are, in general, fi xed speed cameras, level

crossings, dangerous uphill and downhill gradients.

They may change on a regular basis.

Repeat steps 1 to 5 of the guidance option.

SET HAZARDOUS AREAS PARAMETERS

7.10

GPS

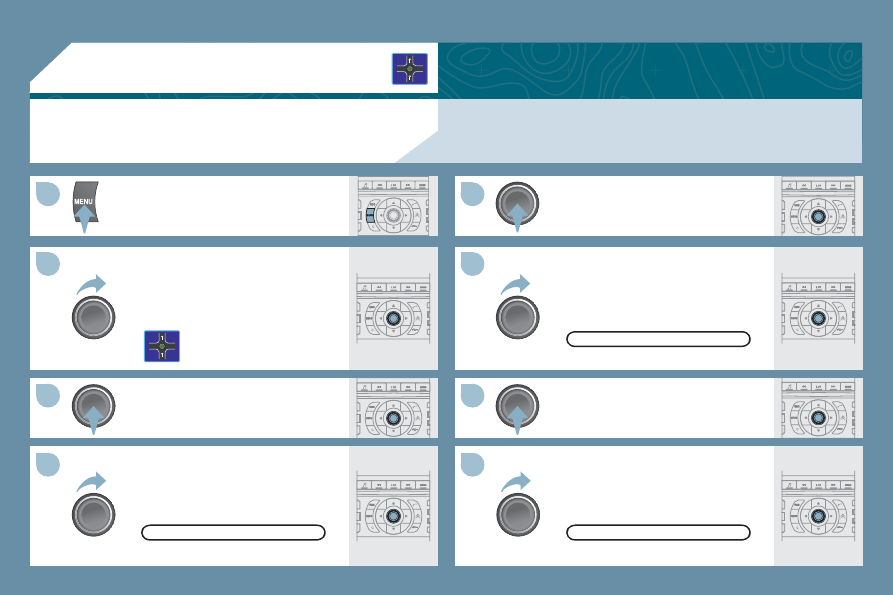

GUIDANCE SPEECH SYNTHESIS

Press the dial to confi rm the selection.

During announcements, the volume of each speech synthesis

function (guidance, traffi c information...) can be adjusted directly

using the volume button.

Select the ADJUST SPEECH

SYNTHESIS function and press the

dial to confi rm.

Press the dial then adjust the volume

of the speech synthesis or select the

DEACTIVATE function and press the

dial to confi rm.

Select OK and press the dial to

confi rm.

Press the MENU button.

Turn the dial and select the

NAVIGATION GUIDANCE function.

Press the dial to confi rm the selection.

Turn the dial and select the

GUIDANCE OPTIONS function.

GUIDANCE OPTIONS

ADJUST SPEECH SYNTHESIS

DEACTIVATE

Content .. 8 9 10 11 ..
