 FREQUENTLY ASKED QUESTIONS

   QUESTION

   ANSWER

   SOLUTION

 The CD is ejected

automatically or is not

played by the player.

 The CD is inserted upside down, is unplayable, does not contain any

audio data or contains an audio format which the player cannot play.
 The CD is protected by an anti-pirating protection system which is not

recognised by the audio equipment.

   -

Check that the CD is inserted in the player the

right way up.

  -

Check the condition of the CD: the CD cannot

be played if it is too damaged.

  -

Check the content in the case of a recorded

CD: consult the advice in the "Audio" section.

  -

The audio equipment's CD player does not

play DVDs.

  -

Due to their quality level, certain writeable

CDs will not be played by the audio system.

 The CD player sound is

poor.

 The CD used is scratched or of poor quality.

 Insert good quality CDs and store them in suitable

conditions.

 The audio settings (bass, treble, ambience) are unsuitable.

 Set the treble or bass level to 0, without selecting

an ambience.

 I am unable to connect

my Bluetooth telephone.

 It is possible that Bluetooth is switched off on the telephone or that the

telephone has not been made not visible.

   -

Check that your telephone has Bluetooth

switched on.

  -

Check in the telephone's settings that it is

"Visible to all".

 The Bluetooth telephone is not compatible with the system.

 You can check the compatibility of your telephone

on www.citroen.co.uk (services) .

 The Bluetooth connection

is cut.

 The battery of the peripheral may not be suffi ciently charged.

 Recharge the battery of the peripheral device.

320

 FREQUENTLY ASKED QUESTIONS

   QUESTION

   ANSWER

   SOLUTION

 The message "USB

device error" is displayed

on the screen.

 The USB memory stick is not recognised.
 The memory stick may be corrupt.

 Reformat the memory stick (FAT 32).

 A telephone connects

automatically,

disconnecting another

telephone.

 Automatic connection overrides manual connection.

 Modify the telephone settings to remove automatic

connection.

 The Apple

®

  player is

not recognised when

connecting to the USB

port.

 The Apple

®

  player is of a generation that is not compatible with the USB.

 Connect the Apple

®

  player to the AUX Jack socket

using a suitable cable (not supplied).

 When I connect my

Apple

®

  player or my

BlackBerry

®

  to the

USB port, I have alert

messages on the current

consumption by the USB

port.

 When charging, the current consumption of these smartphones is greater

than the rating of the USB port, which is 500 mA.

 The hard disk or device

is not recognised when

connecting to the USB

port.

 Some hard disks and devices need a power supply greater than is

provided by the audio system.

 Connect the device to the 230 V socket, the 12 V

socket or an external power supply.
  Caution : ensure that the device does not transmit

a voltage greater than 5 V (risk of destruction of

the system).

 When streaming, the

sound cuts momentarily.

 Some telephones prioritise connection of the "hands-free" profi le.

 Delete the "hands-free" connection profi le to

improve streaming.

321

 FREQUENTLY ASKED QUESTIONS

   QUESTION

   ANSWER

   SOLUTION

 In "Random all" play,

not all of the tracks are

played.

 In "Random all" play, the system can only take into account up to

999 tracks.

 With the engine off, the

audio system switches

off after a few minutes

of use.

 When the engine is switched off, the audio system operating time

depends on the battery charge.
 The switch-off is normal: the audio system switches to economy mode

and switches off to prevent discharging the vehicle's battery.

 Start the vehicle's engine to increase the battery

charge.

 The message "the audio

system is overheated"

appears on the display.

 In order to protect the installation if the surrounding temperature is too

high, the audio system switches to an automatic thermal protection mode

leading to a reduction of the volume or stopping of the playing of the CD.

 Switch the audio system off for a few minutes to

allow the system to cool.

322

323

V I S U A L   S E A R C H

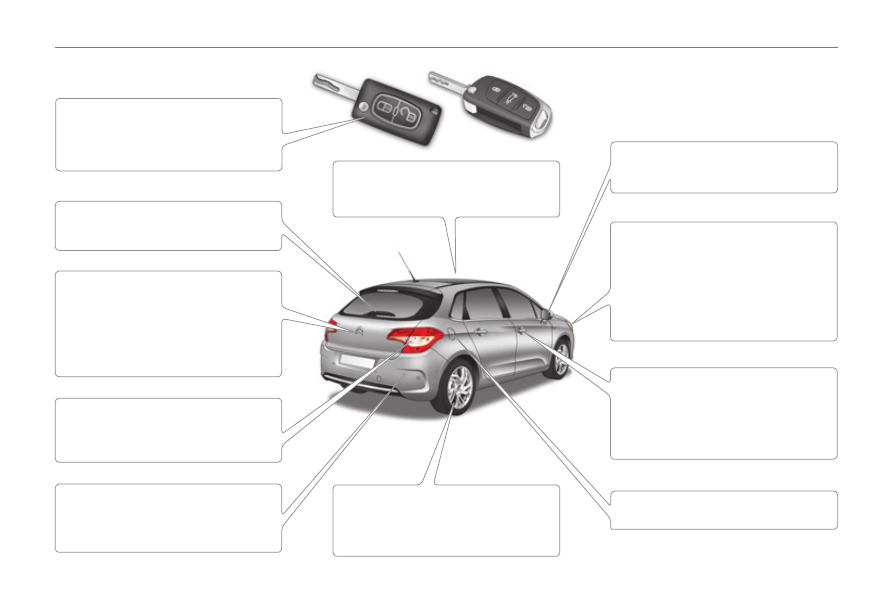

 EXTERIOR

  Remote control ........................... 79-85
   -   opening / closing
  -  antitheft

protection

  -  starting
  -  battery



  Wiper controls......................... 107-109
 Changing a wiper

blade .............................................. 216

  Door mirrors ................................ 76-77
 Blind spot sensors .................. 172-174

  Boot ........................................... 80,  91
 Temporary puncture

repair kit .................................. 193-197
 Changing a wheel ................... 198-201
   -  tools
  -   removing / refi tting
 Snow chains .................................. 202

  Changing bulbs....................... 207-208
   -  rear

lamps

  -   3rd brake lamp
  -   number plate lamp

  Parking sensors ...................... 182-183
 Parking space sensors ........... 180-181
 Towbar ........................................... 220
 Towing .................................... 218-219

  Accessories ............................ 222-223
 Roof bars ....................................... 217
 Panoramic sunroof .......................... 94

  Braking assistance ........................ 140
 Trajectory control .................... 141-142
 Tyre under-infl ation detection ... 166-167
 Tyre pressures ....................... 197, 231

  Lighting controls ....................... 98-102
 Headlamp adjustment.................... 104
 Welcome lighting ........................... 103
 Directional lighting systems .... 105-106
 Changing bulbs....................... 203-206
   -  front

lamps

  -  front

foglamps

  -  side

repeaters



  Doors ......................................... 86,  90
   -   opening / closing
  -  emergency

control



 Child lock ....................................... 138
 Electric windows ......................... 92-93
 Alarm .......................................... 88-89

  Fuel tank ..................................... 95-96
 Misfuel prevention ........................... 97

324

V I S U A L   S E A R C H

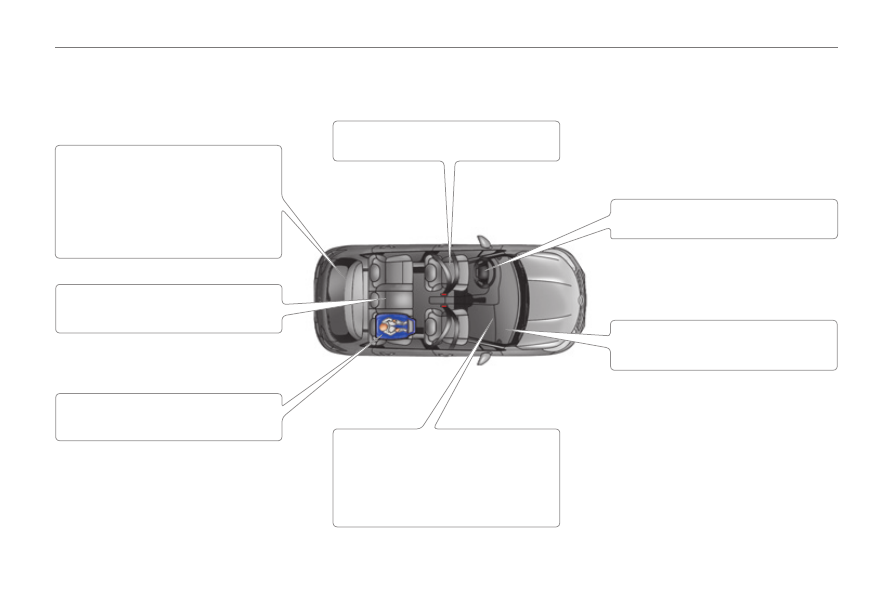

 INTERIOR

  Boot fi ttings ............................. 121-123
   -   rear parcel shelf
  -  hooks
  -   12 V socket
  -  torch
  -  lashing

eyes

  -  storage

compartment



 Luggage cover (C4 enterprise) ...... 124

  Rear seats ....................................... 75
 Rear armrest / Ski fl ap ................... 120

  Child seats .............................. 125-133
 ISOFIX mountings .................. 134-136

  Front seats.................................. 70-74
 Seat belts................................ 143-145

  Airbags ................................... 146-149

  Interior fi ttings ..........................112-120
   -   auxiliary socket / USB port
  -   12 V socket
  -  front

armrest

  -   230 V / 50 Hz socket
  -  mats



  Glove box .......................................113
 Deactivating the passenger's

airbag............................................. 147

325

V I S U A L   S E A R C H

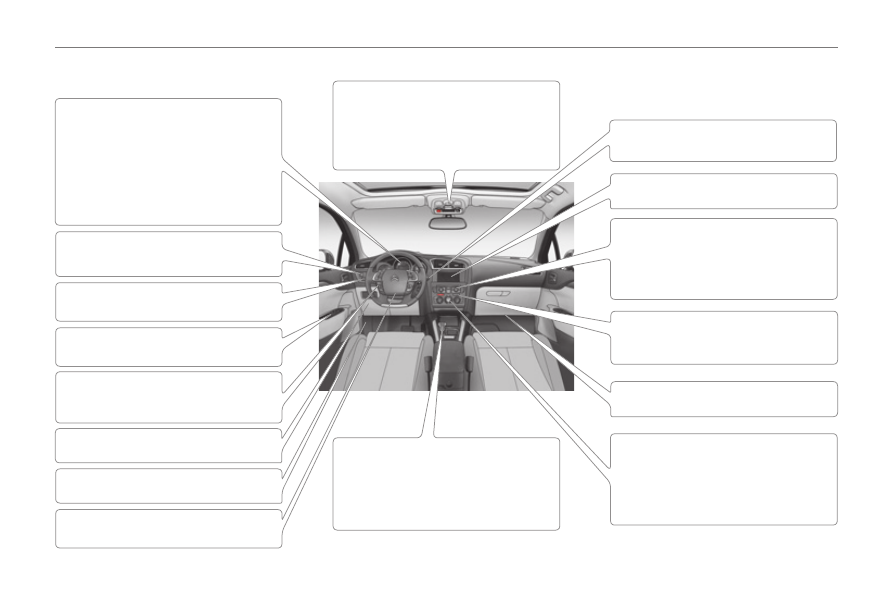

 INSTRUMENTS AND CONTROLS

  Instrument panels ....................... 28-31
 Warning lamps ............................ 32-42
 Indicators .................................... 43-45
 Setting buttons............................ 46-48
   -   trip distance recorder
  -   dashboard lighting dimmer / black

panel

  -   customisation of dials and screens

  Lighting controls ....................... 98-102
 Adjusting headlamps ..................... 104

  Stop & Start ............................ 168-170
 Lane departure

warning system.............................. 171

  Door mirrors ................................ 76-77
 Electric windows ......................... 92-93

  Dashboard fuses .................... 209-211

  Opening the bonnet ....................... 185

  Adjusting the steering wheel............ 78
 Horn ............................................... 139

  Audio system .......................... 289-321
 Setting the date / time................ 50, 54
 eMyWay satellite

navigation system ................... 235-288
 Setting the date / time...................... 56

  Manual gearbox ............................. 157
 Electronic gearbox .................. 158-160
 Automatic gearbox.................. 161-163
 Parking brake ................. 150-156, 157

  Wiper controls......................... 107-109
 Trip computer ............................. 57-60

  Rear view mirror .............................. 78
 Emergency or

assistance call ......................... 142, 233
 Seat belt and front passenger airbag

warning display screen ........... 143-145
 Courtesy lamps...............................110

  Interior mood lighting ...................... 111

  Hazard warning lamps ................... 139
 Central locking ............................ 86-87
 Black panel ...................................... 47

  Multifunction screens .................. 49-56

  Ventilation ................................... 61-62
 Manual air conditioning......... 63-64, 69
 Digital

air conditioning ..................... 65-68, 69
 Demisting / Defrosting

the rear screen ................................ 69

  Memorising speeds ....................... 175
 Speed limiter........................... 176-177
 Cruise control ......................... 178-179

326

V I S U A L   S E A R C H

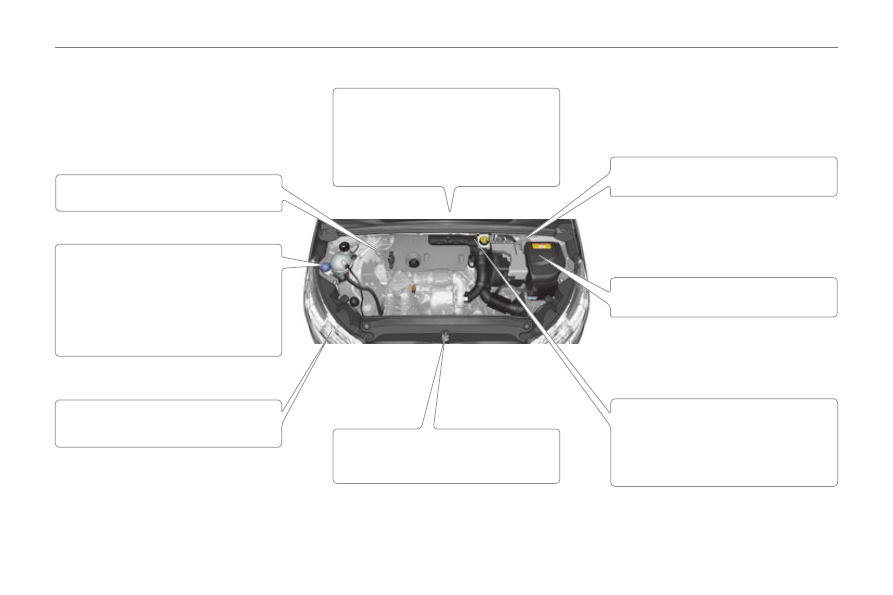

 TECHNICAL DATA - MAINTENANCE

  Running out of Diesel fuel ............. 186

  Checking levels ...................... 189-190
   -  oil
  -  brake

fl uid

  -  coolant
  -  power

steering

fl uid

  -   screenwash / headlamp wash fl uid
  -   additive (Diesel with particle

emissions fi lter)

  Changing bulbs....................... 203-208
   -  front
  -  rear



  Petrol engines......................... 224-225
 Diesel engines ........................ 226-229
 Dimensions .................................... 230
 Identifi cation markings ................... 231

  Bonnet ........................................... 185
 Petrol underbonnet ........................ 187
 Diesel underbonnet ....................... 188

  Checking components ............ 191-192
   -  battery
  -  air

fi lter / passenger compartment

fi lter

  -  oil

fi lter

  -  particle

emissions

fi lter (Diesel)

  -   brake pads / discs

  Battery .................................... 213-215
 Energy economy mode.................. 216

  Engine compartment fuses .... 209, 212

327

A L P H A B E T I C A L   I N D E X

A ABS and EBFD systems............ 140

Accessories ............................... 222
Accessory socket,

12V .................. 114, 115, 118, 122

Adjusting headlamps ................. 104
Adjusting head restraints ............. 72
Adjusting seat belt height ... 143, 144
Adjusting the

steering wheel .......................... 78

Airbags, curtain.................. 148, 149
Airbags, front ..................... 146, 149
Airbags, lateral................... 148, 149
Air conditioning ............................ 26
Air conditioning, digital........... 62, 65
Air conditioning, manual ........ 62, 63
Air fi lter ...................................... 191
Air fl ow ......................................... 61
Air vents....................................... 61
Alarm ........................................... 88
Anti-lock braking system

(ABS) ...................................... 140

Anti-pinch............................... 92, 94
Anti-theft ...................................... 82
Armrest, front ...................... 116, 117
Armrest, rear .............................. 120
Assistance call ........... 142, 233, 234
Audible warning ......................... 139
Audio streaming

(Bluetooth) .............. 275, 303, 305

Audio system ................. 49, 51, 289
Automatic illumination

of headlamps .................... 99, 102

Automatic operation

of hazard warning lamps ........ 139

Automatic rain sensitive

windscreen wipers .......... 107, 108

Auxiliary socket...........114, 276, 302

Children .............. 125-138, 145, 147
Child seats ........................... 125-137
Child seats, conventional........... 131
CITROËN Localised

Assistance Call ....................... 234

CITROËN Localised

Emergency Call ...................... 234

Clock.......................... 46, 50, 54, 56
Closing the boot..................... 81, 91
Closing the doors................... 81, 90
Cold climate screen ................... 217
Colour screen .............................. 55
Connectors, audio .... 114, 276, 300, 302
Coolant level .............................. 189
Courtesy lamps...................103, 110
Courtesy mirror ...........................113
Cruise control .................... 175, 178
Cup holder ..................................115

DAB (Digital Audio

Broadcasting) ................. 270, 296

Date (setting) ............. 46, 50, 54, 56
Daytime running

lamps ........................ 99, 203, 205

Deactivating

the passenger airbag .............. 147

Defrosting .................................... 69
Diesel additive level ................... 190
Dimensions ................................ 230
Dipped beam ............... 98, 203, 205
Dipstick ................................ 43,  189
Directional lighting ............. 105, 106
Direction indicators ........... 101, 139,

203, 204, 206, 207

Doors ........................................... 90
Doors emergency control ............ 87

Capacity, fuel tank ....................... 95
CD ..................................... 272, 297
CD MP3 ............................. 272, 298
Central locking ....................... 81, 86
Centre console ...........................115
Changing a bulb ................. 203-208
Changing a fuse ................. 209-212
Changing a wheel ............... 198-201
Changing a wiper blade ..... 109, 216
Changing the date ..... 46, 50, 54, 56
Changing the remote control

battery................................. 83, 84

Changing the time ..... 46, 50, 54, 56
Checking levels ................. 189, 190
Checking the engine

oil level.............................. 43, 189

Checking tyre pressures

(using the kit) .......................... 197

Checks................................ 185-192
Child lock ................................... 138

Battery ........................ 191,  213-215
Battery, charging ........................ 215
Battery, remote control ........... 83-85
Black panel .................................. 47
Blind spot sensors ..................... 172
Bluetooth (hands-free) ....... 258, 304
Bluetooth (telephone) ........ 258, 304
Bonnet ....................................... 185
Bonnet stay................................ 185
Boot ............................................. 91
Boot lamp ........................... 111, 123
Brake discs ................................ 192
Brake lamps............................... 207
Brake pads ................................ 192
Braking assistance system ........ 140

B

D

C

328

A L P H A B E T I C A L   I N D E X

Door pockets ..............................112
Driving economically ................... 26
Driving positions (storing) ............ 74
Dynamic emergency braking ..... 153

EBA (Emergency braking

assistance) ............................. 140

Eco-driving .................................. 26
Economy mode.......................... 216
Electric window controls .............. 92
Electronic brake force distribution

(EBFD) .................................... 140

Electronic engine

immobiliser ......................... 82, 85

Electronic gearbox  .... 158, 168, 192
Electronic stability control

(ESC) ...................................... 141

Emergency boot release.............. 91
Emergency braking system ....... 140
Emergency call .......... 142, 233, 234
Emergency starting.................... 213
Emergency warning lamps ........ 139
eMyWay ............................... 55,  235
Energy economy mode.............. 216
Engine compartment ......... 187, 188
Engine compartment

fusebox ................................... 212

Engine, Diesel ..... 96, 186, 188, 226
Engine oil level indicator ...... 43, 189
Engine, petrol .............. 96, 187, 224
Engines.............................. 224, 226
Environment ............. 26, 62, 69, 85,

163, 166, 190

Equipment settings .......... 50, 52, 56
ESC/ASR ................................... 141
ESP ........................................... 141

Headlamps,

directional ............... 104, 105, 203

Headlamp wash ......................... 108
Head restraints, front ................... 72
Head restraints, rear .................... 75
Heated seats ............................... 72
Heating .................................. 63,  65
Height and reach adjustment,

steering wheel .......................... 78

Hill start assist ........................... 164
Hooks ........................................ 122

E

Filling with fuel ........................ 95-97
Fitting a wheel ........................... 201
Fitting roof bars.......................... 217
Fittings, boot ...................... 121, 124
Fitting speakers ......................... 221
Flashing indicators............ 101, 139,

204, 206, 207

Foglamps, front .... 100, 106, 203, 206
Foglamps, rear .................. 100, 207
Front seats....................... 70, 71, 74
Fuel........................................ 26, 96
Fuel consumption ........................ 26
Fuel fi ller fl ap ......................... 95, 97
Fuel gauge............................. 28, 95
Fuel tank ................................ 95, 97
Fusebox, dashboard .................. 210
Fuses ......................................... 209

Gearbox, automatic ... 161, 192, 215
Gearbox, electronic ... 158, 192, 215
Gearbox, manual ....... 157, 168, 192
Gear effi ciency indicator ............ 165
Gear lever, automatic gearbox .... 161
Gear lever,

electronic gearbox .................. 158

Gear lever, manual gearbox ...... 157
Glove box ...................................113
G.P.S. ........................................ 241
Grab handles ..............................112
Guidance ................................... 241

Halogen headlamps................... 203
Hands-free kit .................... 258, 304
Hazard warning lamps ............... 139
Headlamp adjustment................ 104

Jack ........................................... 198
JACK socket ...............114, 276, 302

F

G

H

J

I

Ignition ......................................... 82
Indicator lamps, status............ 32-42
Indicators, direction ........... 139, 204
Infl ating accessories

(using the kit) .......................... 197

Infl ating tyres ....................... 26, 230
Inputs for audio

system .....................114, 276, 302

Installing speakers ..................... 221
Instrument panel

lighting ...................................... 47

Instrument panels ............. 28-30, 48
Instrument panel

screen .......................... 28-30,  165

Intelligent Traction Control ......... 141
Interior fi ttings ..................... 112, 113
Interior mood lighting .................. 111
ISOFIX ....................................... 134
ISOFIX child seats .............. 134-136
ISOFIX mountings ..................... 134

329

A L P H A B E T I C A L   I N D E X

K

Massage function  ....................... 73
Mat..............................................119
Menu, main ................................ 292
Mini fuel level ............................... 95
Mirror, rear view ........................... 78
Mirrors, door .................. 76, 77, 172
Misfuel prevention ....................... 97
Mountings

for ISOFIX seats ..................... 134

MP3 CD ............................. 272, 298
Music media players .................. 271

Parking space sensor  ............... 180
Particle emission fi lter......... 190-191
Passenger

compartment fi lter ................... 191

Personalisation ............................ 48
Player, CD MP3 ................. 272, 298
Port, USB............................114, 300
Priming the fuel system ............. 186
Protecting children .............. 125-138,

145, 147

Puncture .................................... 193

Keeping children

safe .................. 125-138, 145, 147

Key in ignition warning................. 82
Key with remote

control ..................... 79, 81, 82, 85

L Labels, identifi cation .................. 231

Lamps, warning

and indicator ................. 32, 39, 42

Lane Departure Warning System

(LDWS) ................................... 171

Level, brake fl uid ....................... 189
Level, power steering fl uid ......... 189
Levels and checks .............. 185-192
Lighting bulbs

(replacement) .................. 203-208

Lighting control stalk ............ 98, 101
Lighting dimmer ................ 28-30, 47
Lighting,

guide-me home............... 101, 102

Lighting, interior .................. 110, 111
Loading ................................ 26,  217
Load reduction mode ................. 216
Load space cover ...................... 124
Locating your vehicle ................... 81
Locking from the inside................ 86
Locking the boot .......................... 91
Long objects, transporting ......... 120
Luggage retaining strap ............. 121

M Main beam ................... 98, 203, 205

Maintenance ................................ 26
Map reading lamps .....................110
Markings,

identifi cation............................ 231

Navigation.................................. 241
Number plate lamps .................. 208

Oil fi lter ...................................... 191
Oil level ................................ 43, 189
Opening the bonnet ................... 185
Opening the boot ......................... 91
Opening the doors ....................... 90
Opening the panoramic

sunroof blind ............................. 94

Operation indicator

lamps ................................... 32-42

Paint colour code ....................... 231
Panoramic

glass sunroof ............................ 94

Parcel shelf, rear ............... 122, 124
Parking brake .................... 157, 192
Parking brake, electric ....... 150, 192
Parking lamps ............................ 101
Parking sensors, front................ 183
Parking sensors, rear ................ 182

N

O

P

R Radio ................................. 267,  293

Radio pre-equipment ................. 221
RCA sockets ...............114, 276, 302
Rear screen (demisting) .............. 69
Recharging the battery .............. 215
Reduction of electrical load ....... 216
Regeneration of the particle

emissions fi lter ........................ 191

Reinitialising

the electric windows ................. 92

Reinitialising the remote

control ................................. 83,  84

Remote control ....................... 79-85
Removable screen

(snow shield) .......................... 217

Removing a wheel ..................... 200
Removing the mat ......................119
Repair kit, puncture ................... 193
Replacing bulbs .................. 203-208
Replacing fuses .................. 209-212
Replacing the air fi lter ................ 191
Replacing the oil fi lter ................ 191
Replacing the passenger

compartment fi lter ................... 191

330

A L P H A B E T I C A L   I N D E X

Vehicle confi guration .....50, 52, 56, 67
Ventilation ........................ 61, 62, 64

V

Replacing wiper blades ..... 109, 216
Resetting the service indicator .... 45
Resetting the trip recorder ........... 46
Rev counter ............................ 28-31
Reversing lamps ........................ 207
Risk areas (update) ................... 246
Roof bars ................................... 217
Roof blind .................................... 94
Routine checks .................. 191, 192
Running out of fuel (Diesel) ....... 186

Safety for children ...125-138, 145, 147
Satellite navigation system .... 55, 241
Screen, colour

and mapping ....... 56, 59, 239, 279

Screen menu map ...... 279, 314-316
Screen, monochrome .... 49, 51, 314
Screen, multifunction (with audio

equipment)............ 49, 51, 55, 292

Screenwash, front...................... 108
Seat adjustment..................... 70, 71
Seat belts............................ 143-145
Seat, rear bench .......................... 75
Seats, electric .............................. 71
Seats, rear ................................... 75
Selector lever,

electronic gearbox .................. 158

Serial number, vehicle ............... 231
Service indicator .......................... 44
Servicing ...................................... 26
Setting the clock ........ 46, 50, 54, 56
Short-cut menus ........................ 240
Sidelamps .... 98, 101, 203, 205, 207
Side repeater ............................. 206
Ski fl ap ....................................... 120
Snow chains .............................. 202

Spare wheel............................... 198
Speakers (fi tting) ....................... 221
Speed limiter...................... 175, 176
Speedometer .......................... 28-30
Spotlamps, side ................. 103, 206
Starting using another battery ... 213
Starting the vehicle ...... 82, 158, 161
Steering mounted controls ... 238,  291
Stopping the vehicle .... 82, 158, 161
Stop & Start .............. 60, 66, 69, 95,

 168, 185, 191, 213

Storage ........ 112, 113, 115-117, 121
Storage compartments ...............115
Storage drawer ...........................119
Storage net ................................ 121
Storing driving positions .............. 74
Stowing rings ............................. 121
Sun visor.....................................113
Synchronising

the remote control............... 83, 84

Synthesiser, voice...................... 252
System, navigation .................... 241

S

T

U

Table of weights ................. 225, 227
Tables of engines............... 224, 226
Tables of fuses........................... 209
Tank, fuel ..................................... 97
Technical data.................... 224, 231
Telephone .......................... 258,  304
Temperature control

for heated seats ........................ 72

Temporary tyre repair kit ............ 193
Three fl ashes function

(direction indicators) ............... 139

Ticket holder ...............................112
TMC (Traffi c info) ....................... 255

Under fl oor storage .................... 123
Under-infl ation (detection) ......... 166
Unlocking from the inside ............ 86
Unlocking the boot ........... 79, 80, 91
Unlocking the doors ............... 79, 80
Update risk areas ...................... 246
Updating the time ...... 46, 50, 54, 56
USB port  ....................................114

Tools .......................................... 198
Torch .......................................... 123
Total distance recorder ................ 46
Towbar ....................................... 220
Towed loads....................... 225, 227
Towing another vehicle .............. 219
Traction control (ASR) ............... 141
Traffi c information

(TA) ................................. 256,  294

Traffi c information

(TMC) ............................. 255, 256

Trailer ........................................ 220
Trajectory control systems ......... 141
Trip computer ......................... 57-60
Trip distance recorder .................. 46
Tyre pressures ........................... 231
Tyres ............................................ 26
Tyre under-infl ation detection .... 166

331

A L P H A B E T I C A L   I N D E X

Warning lamps ........................ 32-42
Wash-wipe, rear ........................ 109
Weights .............................. 225, 227
Welcome lighting ....................... 103
Window controls .......................... 92
Wiper control stalk .............. 107-109
Wiper, rear ................................. 109
Wipers ......................... 41, 107, 108

W

Xenon headlamps...................... 203

X

332

333

334
