Citroen Berlingo Multispace (2017 year). Manual - part 2

ECO-DRIVING

Motoring & the Environment

Berlingo2VP_en_Chap02_eco-conduite_ed02-2016

ENVIRONMENT

With you, CITROËN acts to protect the

environment.
We invite you to visit the
www.citroen.co.uk

website.

As the driver, you also can contribute
to protecting the environment in the

following way:
-

drive smoothly, without frequent
and harsh acceleration,

observe the service intervals;
we recommend that services are
carried out by a CITROËN dealer,
authorised to collect used batteries

and fluids,

in order to preserve the reliability
of the engine and emission control
systems, do not use engine oil

additives.

Refer to information on eco-driving

at the end of this section.

Motoring & the Environment

Berlingo2VP_en_Chap02_eco-conduite_ed02-2016

Eco-driving is a range of everyday
practices that allow the motorist to
optimise their fuel consumption and
CO

emissions.

Eco-driving

Optimise the use of your
gearbox

With a manual gearbox, move off

gently and change up without waiting.

During acceleration change up early.

With an automatic or electronic
gearbox, give preference to automatic
mode and avoid pressing the

accelerator pedal heavily or suddenly.

The gear efficiency indicator invites

you to engage the most suitable gear:

as soon as the indication is displayed
in the instrument panel, follow it

straight away.

For vehicles fitted with an electronic

or automatic gearbox, this indicator

appears only in manual mode.

Drive smoothly

Maintain a safe distance between

vehicles, use engine braking rather

than the brake pedal, and press the

accelerator progressively. These

practices contribute towards a
reduction in fuel consumption and
CO

emissions and also help to reduce

the background traffic noise.

If your vehicle has cruise control, make

use of the system at speeds above

25 mph (40 km/h) when the traffic is

flowing well.

Control the use of your
electrical equipment

Switch off the demisting and

defrosting controls, if not automatic.
Switch off the heated seat as soon as

possible.

Switch off the headlamps and front
foglamps when the level of light does

not require their use.

Avoid running the engine before
moving off, particularly in winter; your
vehicle will warm up much faster

while driving.

As a passenger, if you avoid
connecting your multimedia devices

(film, music, video game...), you

will contribute towards limiting the
consumption of electrical energy, and

so of fuel.
Disconnect your portable devices

before leaving the vehicle.

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents

before using the air conditioning.

Above 30 mph (50 km/h), close the

windows and leave the air vents open.

Remember to make use of equipment

that can help keep the temperature

in the passenger compartment down

(sunroof and window blinds...).
Switch off the air conditioning, unless
it has automatic regulation, as soon as

the desired temperature is attained.

ECO-DRIVING

Motoring & the Environment

Berlingo2VP_en_Chap02_eco-conduite_ed02-2016

Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to

the rear seats.
Limit the loads carried in the
vehicle and reduce wind resistance

(roof bars, roof rack, bicycle

carrier, trailer...). Use a roof box in

preference.

Remove roof bars and roof racks

after use.

At the end of winter, remove snow

tyres and refit your summer tyres.

Observe the recommendations
on maintenance

Check the tyre pressures regularly,

when cold, referring to the label in the

door aperture, driver's side.

Carry out this check in particular:

- before a long journey,
-

at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the

tyres on any trailer or caravan.

Have your vehicle serviced regularly

(engine oil, oil filter, air filter, passenger

compartment filter...) and observe the

schedule of operations recommended

in the manufacturer's service schedule.

With a BlueHDi Diesel engine, if the
SCR system is faulty your vehicle
becomes polluting; go to a CITROËN

dealer or a qualified workshop without

delay to have the emissions of nitrogen

oxides brought back to the legal level.

When refuelling, do not continue after
the third cut-off of the nozzle to avoid

any overflow.

At the wheel of your new vehicle,

it is only after the first 1 800 miles

(3 000 kilometres) that you will see

the fuel consumption settle down to a

consistent average.

Access

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

This locks and unlocks the vehicle's

doors, opens and closes the fuel filler

cap, as well as starting and stopping

the engine.

KEY

REMOTE CONTROL

Unlocking

Locking

Press this button to lock all of

your vehicle's doors.

The direction indicators flash once.
If one of the doors is open or is not

closed correctly, the central locking will

not work.

Deadlocking

A second press on the closed

padlock on the remote control within

five seconds after locking changes the

locking to deadlocking.

This is confirmed by fixed lighting

of the direction indicators for

approximately two seconds.

Deadlocking renders the exterior

and interior door opening handles

inoperative: do not leave anyone inside

the vehicle when it is deadlocked.

If deadlocking is activated from inside

the vehicle using the remote control, it

will change to normal locking when the

vehicle is started.

Press this button to unlock all

of your vehicle's doors.

The direction indicators flash twice.

Access

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Good practice

Take care not to allow the remote

control to come into contact with
grease, dust, rain or a damp

environment.

A heavy object attached to the key

(key ring, ...) weighing on the shaft

of the key in the switch, may cause a

malfunction.

REMOTE CONTROL

Reinitialising the remote
control

Following changing of the remote
control battery or disconnection of the
vehicle battery, the remote control may

have to be reinitialised.
Wait at least one minute before using

the remote control.

Insert the key in the ignition switch with

the buttons (padlocks) of the remote

control facing you.

Switch on the ignition.

Press the locking padlock for at

least five seconds within the next

ten seconds.

Switch off the ignition.
Wait at least one minute before using

the remote control.

The remote control is now working

again.

Use only identical batteries or
batteries of an equivalent type to
those recommended by CITROËN

dealers.

Do not discard the remote control
batteries, they contain metals which

are harmful to the environment.
Deposit them at a CITROËN
dealership, or at an authorised

collection point.

Unfolding / folding

Changing the battery

Battery ref.: CR1620 / 3 volts.

The "battery flat" information is given

by an audible signal, accompanied by

a message in the screen.
To replace the battery, unclip the

casing using a coin at the ring.

If the remote control does not work

after the battery has been changed,

reinitialise the remote control.

There is a risk of damage if the

replacement battery is not the correct

type.

If you do not press the button,

you may damage the key's

folding mechanism.

Access

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Don't forget
When leaving the vehicle, check that

the lighting is off and nothing of value

is visible.
As a safety precaution (with children

on board), remove the key from the

ignition when leaving the vehicle, even

for a short time.

Good practice

Do not make any modifications to the

electronic immobiliser system.
Operating the remote control, even

when it is in your pocket, may result in

involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the

remote control temporarily.
The remote control does not operate

while the key is in the ignition, even if

the ignition is off.

ELECTRONIC
IMMOBILISER

If you lose your keys
Visit a CITROËN dealer with the

vehicle's V5 registration certificate and

your identification document.
A CITROËN dealer will be able

to retrieve the key code and

the transponder code so that a

replacement key can be ordered.

When purchasing a second-hand
vehicle

, have the keys memorised by

a CITROËN dealer, so as to be sure

that the keys in your possession are

the only ones that can be used to start

the vehicle.

ALARM

If fitted on your vehicle, this provides

two types of protection:

- exterior protection: it sounds if a

front/rear door or the bonnet is

opened.

- interior protection: it sounds if

the volume inside the passenger

compartment changes (breaking of

a window or a movement inside the

vehicle).

If your vehicle is fitted with a separation

partition, the interior protection is not

active in the load space.

Locking the vehicle with
complete alarm
Setting the alarm

Switch off the ignition and get out of

the vehicle.

- Set the alarm within five minutes of

getting out of the vehicle, by locking

or deadlocking using the remote

control. The red LED, located in the

button, flashes once per second.

All of the keys contain an electronic

immobiliser device.

This device locks the engine supply

system. It is activated automatically

when the key is removed from the

ignition.
After the ignition is switched on, a

dialogue is established between the key

and the electronic immobiliser system.

The metal part of the key must be

unfolded correctly for correct dialogue

to take place.

Access

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

FRONT DOORS

From the inside

Use the door opening control to unlock

and open the door concerned.

From the outside

Use the remote control to lock/unlock

the vehicle.

Insert the metal part of the key in the

lock on the driver's side if the remote

control does not work.

Disarming

- Unlock the vehicle with the remote

control or switch on the ignition, the

red LED goes off.

Locking the vehicle with
exterior protection only

If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you

should choose exterior protection only.

- Switch off the ignition.

In the next ten seconds,
press the button until the

red LED is on continuously.

- Get out of the vehicle.

- Within the next five minutes, set

the alarm by locking or deadlocking

using the remote control (the red

LED flashes once a second).

Triggering

The siren sounds, the direction indicators

flash for approximately 30 seconds and

the red LED flashes rapidly.
-

To switch it off, insert the key and

switch on the ignition.

When the alarm has been triggered ten
times in succession (when triggered for the

eleventh time) it is deactivated. Repeat the

procedure for setting the alarm.

Locking the vehicle without
alarm

- Insert the key in the lock on the

driver's door and lock it.

Do not set the alarm when washing

your vehicle.

Failure of the remote control

When the alarm is set but the remote

control does not operate:
-

Unlock the doors with the key and

open the door. The alarm is triggered.

Switch on the ignition in the

next ten seconds. The alarm is

disarmed.

Incorrect operation

When the ignition is switched on, if the
red LED remains on for ten seconds,

there is a fault in the siren connection.
Contact a CITROËN dealer to have the

system checked.

Automatic setting of the alarm

Depending on the country in which
the vehicle is sold, the alarm is set
automatically approximately 2 minutes

after the last door is closed.
To prevent triggering of the alarm when
a door is opened, you have to press

the remote control unlocking button

again.

Do not make any modifications

to the alarm system as this could

cause faults.

Access

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

SLIDING SIDE DOORS

From the outside

Pull the handle towards you then
towards the rear and open the side
door guiding the rearward sliding to
beyond the point of resistance to hold

it open.
A mechanical system prevents opening
of the left-hand side door when the fuel

filler flap is open.

From the inside

Unlock the side door using this handle

and open it, guiding the rearward

sliding to the point of resistance. Pass

this point to hold the door open.

Close the side door using the handle
to start the sliding and pass the point

of resistance. Then, use the shaped

recess at the top of the door pillar to

guide the door until it locks.
Do not use the grab handle to slide the

door.

Good practice

Take care not to block the guide space

on the floor to allow the door to slide

correctly.

If your vehicle is parked on a slope,

guide the sliding of the side door. In

fact, the door could open or close more
rapidly due to the slope of the ground

and could cause injury.
For safety and operation reasons, do
not drive with the sliding side doors

open.

Access

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Operation in the event
of a battery failure

Front and side passenger doors
In the event of a battery or of the

central locking fault, use the lock to

lock the doors mechanically.
-

To open the door and get out of the

vehicle, pull the interior control.

- To lock the door, insert the key in

the lock, located on the edge of the

door, then turn it one eighth of a
turn

Driver's door
- Insert the key in the lock, then turn

it to the right to lock or to the left to

unlock.

TAILGATE

From inside
(emergency control)
In the event of a central unlocking

operating fault, this permits unlocking

of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the tailgate and the

floor. To unlock the lock, move the

catch to the left then push the tailgate.

Opening

From outside
Locking/unlocking is by means of the

remote control.
To open, press the control below the

trim then raise the tailgate.
A pull strap is available to close the

tailgate from the high position.
Guide the closing of the tailgate to the
balance point of its travel then push on

the tailgate to close it fully.

Access

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

HINGED REAR DOORS

From outside

To open, pull the handle towards you.

Pull the lever to open the right-hand

door.
To close, start with the right-hand door

then close the left-hand door.

With the roof rear flap, the rear bumper

has been reinforced to serve as a

footrest when entering the vehicle.

The hinged rear doors are

asymmetrical (2/3 - 1/3), with the

smaller door on the right.

They are fitted with a central lock.

Tailgate screen

The opening rear screen allows you to
access the rear of the vehicle directly,

without having to open the tailgate.

Opening
After unlocking the vehicle using the

remote control or the key, press the

control and raise the rear screen to

open it.

Closing
Close the rear screen by pressing
the centre of the glass until it is fully

closed.

The tailgate and tailgate screen
cannot both be open at the
same time, to prevent damage to

the screen.

Access

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

In practice

It is possible to drive with the right-

hand door open to make it easier to

carry long loads. The left-hand door is

kept closed by the distinctive "yellow"

lock, positioned at the base of the door.

This closed door must not be used as

a load retainer.
Driving with the right-hand door open

is a special dispensation. Comply with

the usual safety indications to warn

other drivers.

From inside

When present on the vehicle, pulling
this handle towards you opens the left-

hand door.

Opening to approximately 180°

A check strap system permits extension

of the opening from approximately 90°

to approximately 180°.
Pull the yellow control when the door is

open.

The check strap will engage again

automatically on closing.

When parked with the

rear doors open to 90°,

the doors mask the rear

lamps. To signal your

position to other road
users driving in the same
direction who may not
have seen your vehicle,
use a warning triangle
or other device required
by the legislation in your

country.

Access

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

REAR ROOF FLAP

Support bar

A support bar is provided for
transporting long loads, after opening

the rear roof flap.

Fold back the support bar by lifting the

lever.

Guide it to the door pillar.
Support the long loads to be
transported, lift them and reposition the

support bar with one hand.
Ensure that it is secured correctly by
pressing the handle downwards past
the point of resistance and secure the

loads firmly.

The rear bumper has been
reinforced to serve as a footrest

when entering the vehicle.

The rear doors only lock when the

support bar is installed.

When the rear roof flap is open, take

care when driving where height is

restricted.
Never rest loads directly on the rear

doors.
Comply with the usual indications, to

warn other drivers.

Reserve the use of the rear roof flap

for short journeys.

The side supports can be used as

hooking points.

- lower the black paddle to secure

the rear roof flap.

Securing the rear roof flap places it on

the seal correctly and ensures sealing

without noise.

This rear roof flap is only compatible

with side-hinged rear doors.

To open the rear roof flap:

- raise the black paddle of the toggle,
-

relieve the toggle by pressing the

rear roof flap (downwards) then

release the hook,

- lift the rear roof flap,
-

pass the point of resistance to

secure the rear roof flap using the

support stays.

Never drive without the stays in place.

To close the rear roof flap:

- check that the support bar is

secured correctly,

- lower the rear roof flap,

- while pressing the rear roof flap

(downwards), take hold of the

two loops of the spring then place

the hook in its housing,

Never attach any load to the rear roof

flap.

Never drive without the support bar in

place.

Access

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

CENTRAL LOCKING

An initial press permits

central locking of the vehicle,

when all of the doors are

closed.

Door open warning lamp

The control switch LED:

- flashes when the doors are locked

with the vehicle stationary and the
engine off,

comes on when the doors are

locked and from the time the

ignition is switched on.

Anti-intrusion security

If this warning lamp comes

on, check that all of your

vehicle's doors are closed

correctly.

Locking while driving
When the vehicle moves off, as soon
as you reach approximately 6 mph

(10 km/h), the system locks the doors.

The characteristic central locking noise

is heard. The LED in the switch on the

dashboard central switch panel comes on.

During the journey, opening a door

results in complete unlocking of the

vehicle.

Activating / deactivating the
function

With the ignition on, press
and hold this switch to
activate or deactivate the

function.

Driving with the doors locked may

make access to the interior more

difficult in an emergency.

A second press permits central

unlocking of the vehicle.
The control is inactive when the vehicle

has been locked using the remote

control or the key from the outside.
The doors can still be opened from the

inside.

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

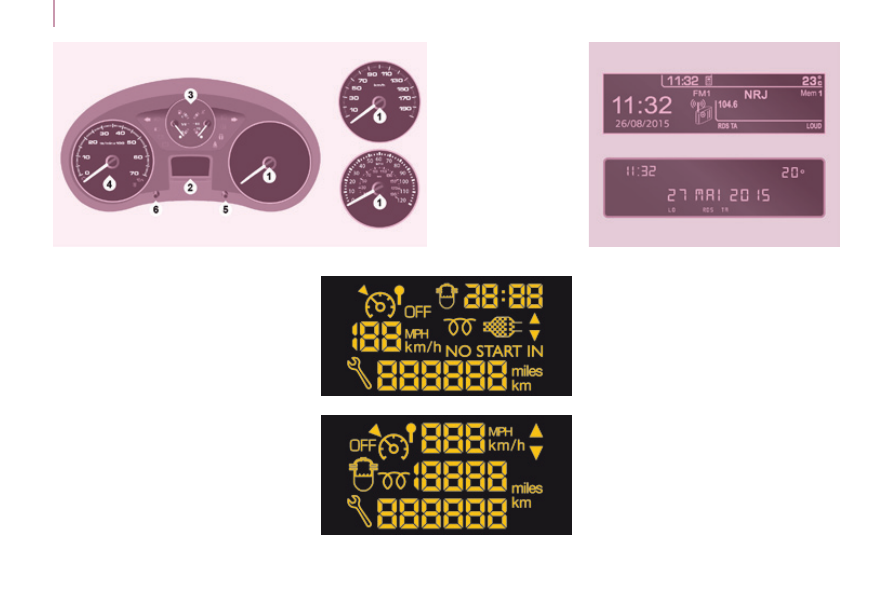

Dials

Distance recorder in kilometres /

miles.

Display screen.

3. Fuel gauge, coolant temperature

gauge.

Rev counter.

Trip distance recorder / service

indicator reset.

Instrument panel lighting dimmer.

Level 1

INSTRUMENT PANEL

Display screens

Screens

The format of the information
presented in the screen depends on

the vehicle's equipment level.

Level 2
with the touch screen tablet

READY

O GO

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Centre console with screen

Instrument panel without screen

- Turn to the left: 24H or 12H is

displayed.

Turn to the right to select 24H

or 12H.

Turn to the left to complete the time

adjustment.

After approximately 30 seconds
without any action, the screen returns

to the normal display.

DATE AND TIME

Centre console without screen

The display - time sequence

is linked according to model

(version). The access to

the "Date" adjustment is

only active when the model

version offers a date in words.

To adjust the time, use the

left-hand button on the

instrument panel:

- Turn to the left: the minutes flash.
-

Turn to the right to increase the
minutes (hold the button to the right

for rapid scrolling).

- Turn to the left: the hours flash.
-

Turn to the right to increase the
hours (hold the button to the right

for rapid scrolling).

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Instruments and controls

Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016

Screen C

Press the MENU

button.

Using the arrows, select
PERSONALISATION
CONFIGURATION

Press to confirm the

selection.

Using the arrows, select
DISPLAY CONFIGURATION

Press to confirm the

selection.

Using the arrows, select
ADJUST DATE AND TIME

Press to confirm the

selection.

Adjust the settings one by

one confirming by pressing

the OK

button.

Then select the OK tab in the

screen and confirm.

Content .. 1 2 3 ..
