Chevrolet Silverado / GMC Sierra. Service manual - part 2959

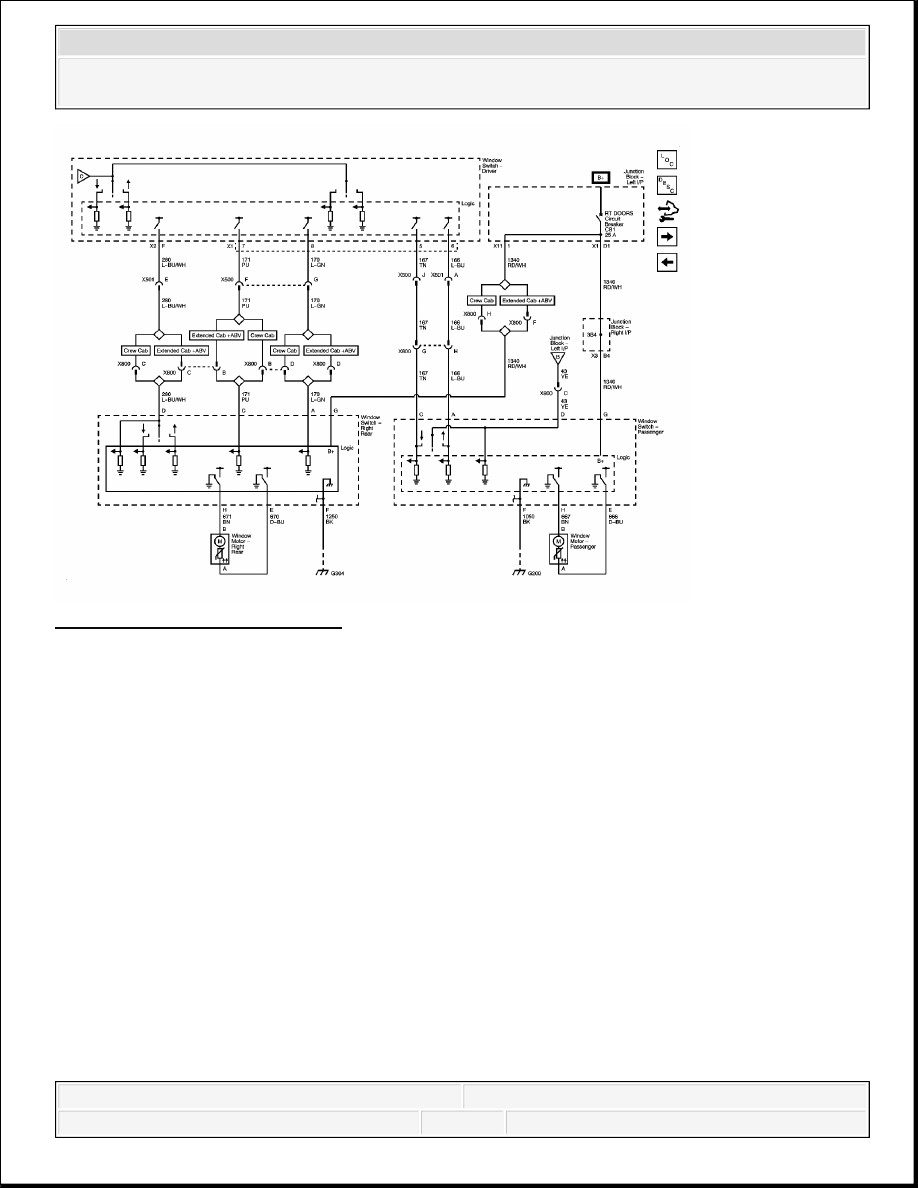

Fig. 3: Left Doors (-AN3/DL3)
Courtesy of GENERAL MOTORS CORP.

2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

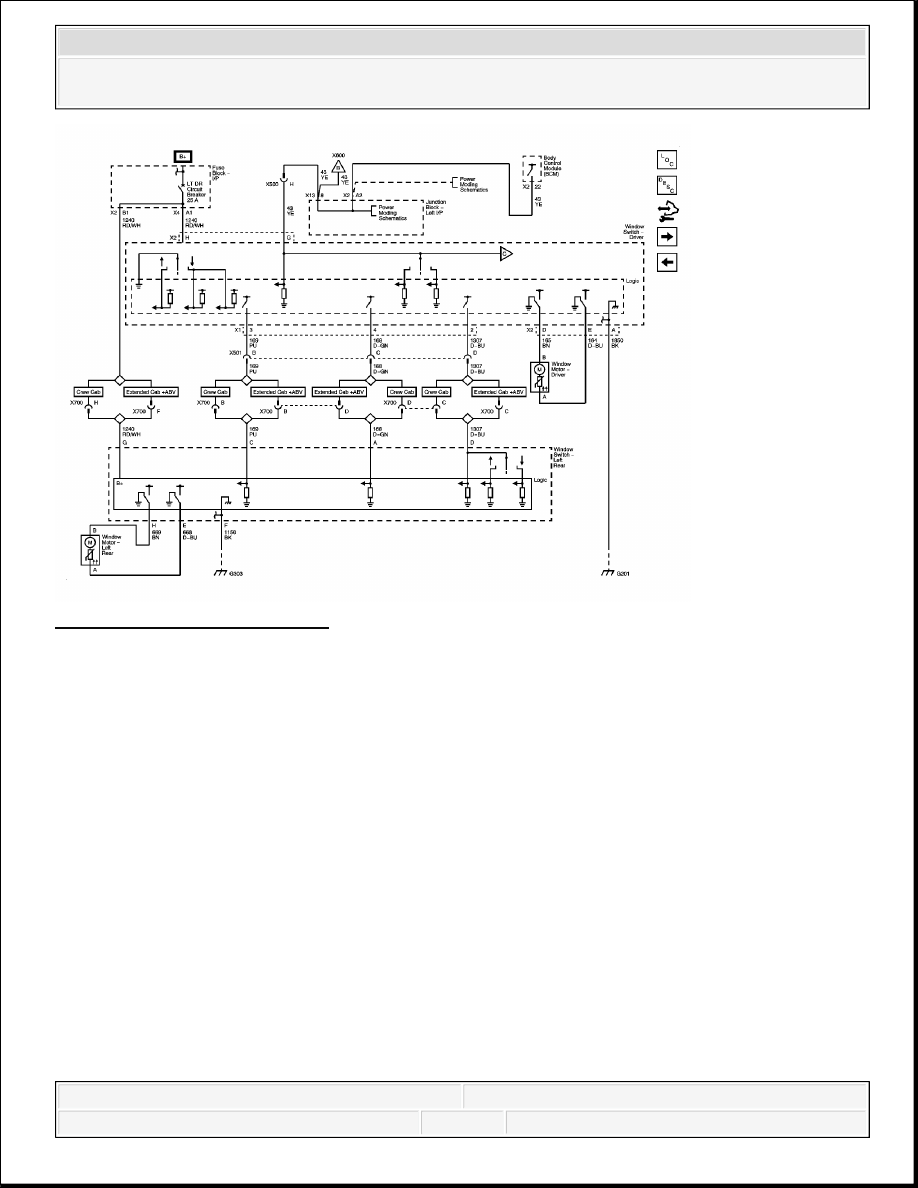

Fig. 4: Right Doors (-AN3/DL3)
Courtesy of GENERAL MOTORS CORP.

2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

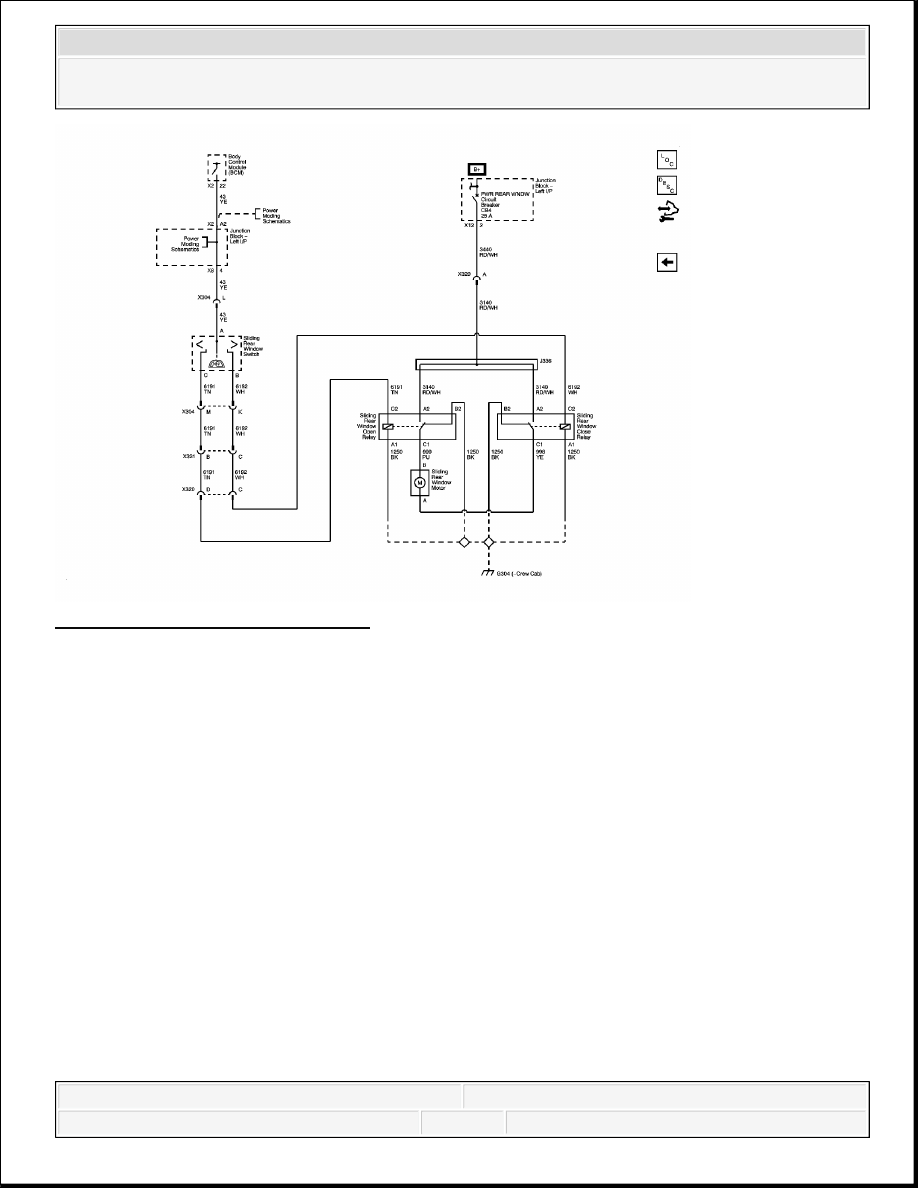

Fig. 5: Sliding Rear Window (A48)
Courtesy of GENERAL MOTORS CORP.

DEFOGGER SCHEMATICS

2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado

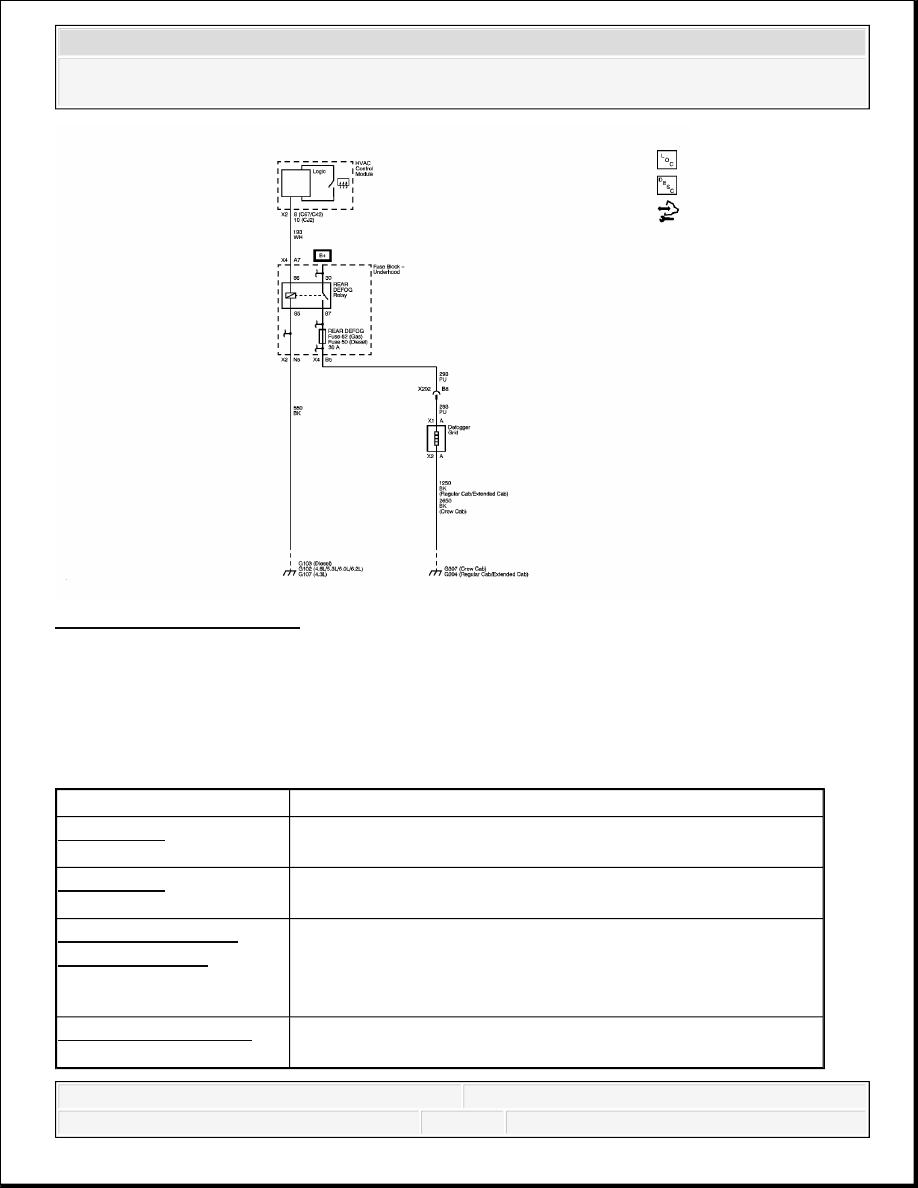

Fig. 6: Defogger Schematic
Courtesy of GENERAL MOTORS CORP.

DIAGNOSTIC INFORMATION AND PROCEDURES

DIAGNOSTIC CODE INDEX

DTC

Description

DTC B0283

B0283 06: Electric Rear Defrost Circuit Short To Ground or

Open

DTC B3205

B3205 00: Window Inactive Over Current Fault

B3205 0B: Window Motor Fast Over Current Fault

DTC B3819, B3820,
B3822, or B3823

B3819 00: Left Rear Window Up Control Circuit

B3820 00: Left Rear Window Down Control Circuit

B3822 00: Right Rear Window Up Control Circuit

B3823 00: Right Rear Window Down Control Circuit

DTC B3821 or B3824

B3821 00: Left Rear Window Relay Power Circuit

B3824 00: Right Rear Window Relay Power Circuit

2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Fixed and Moveable Windows - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado
