Chevrolet Silverado / GMC Sierra. Service manual - part 2949

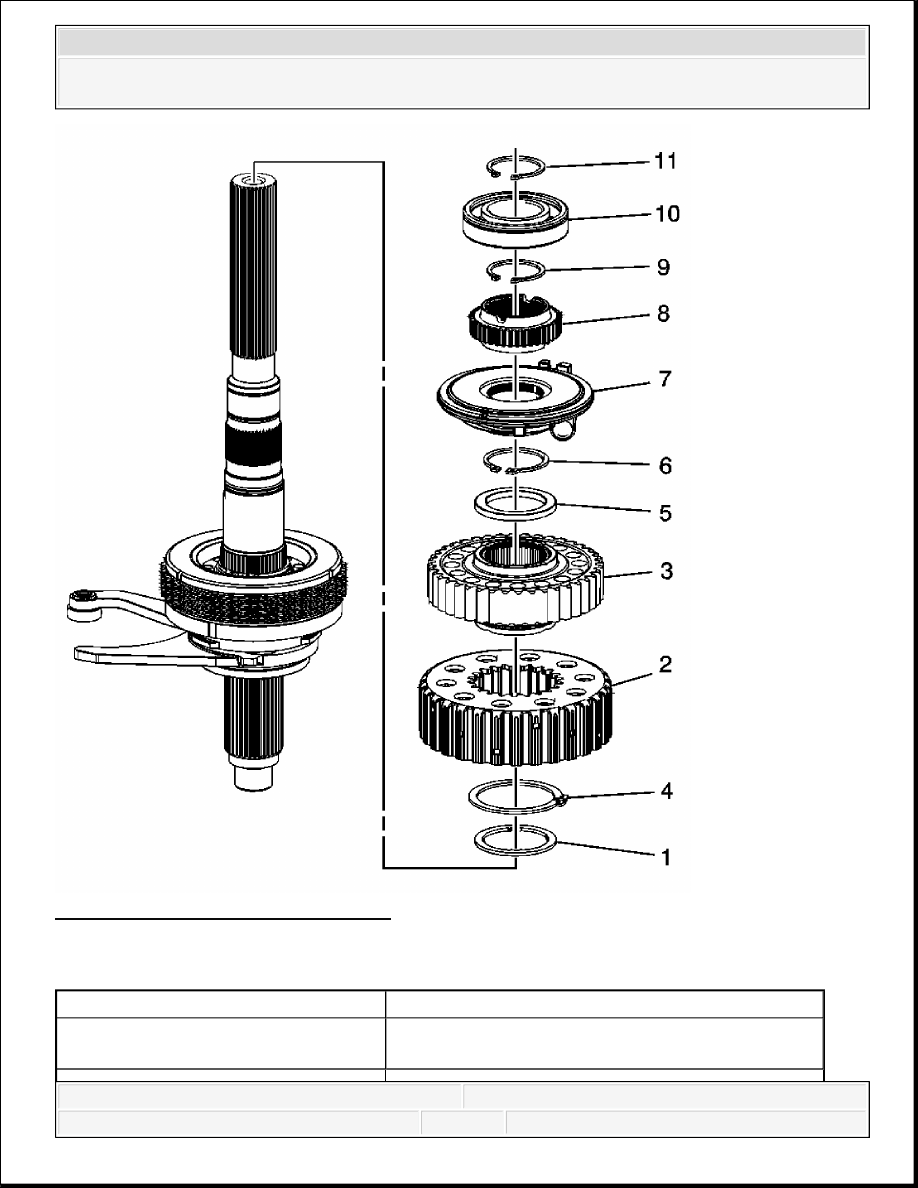

Fig. 49: Measuring/Adjusting Clutch Assembly Height
Courtesy of GENERAL MOTORS CORP.
Measuring/Adjusting Clutch Assembly Height

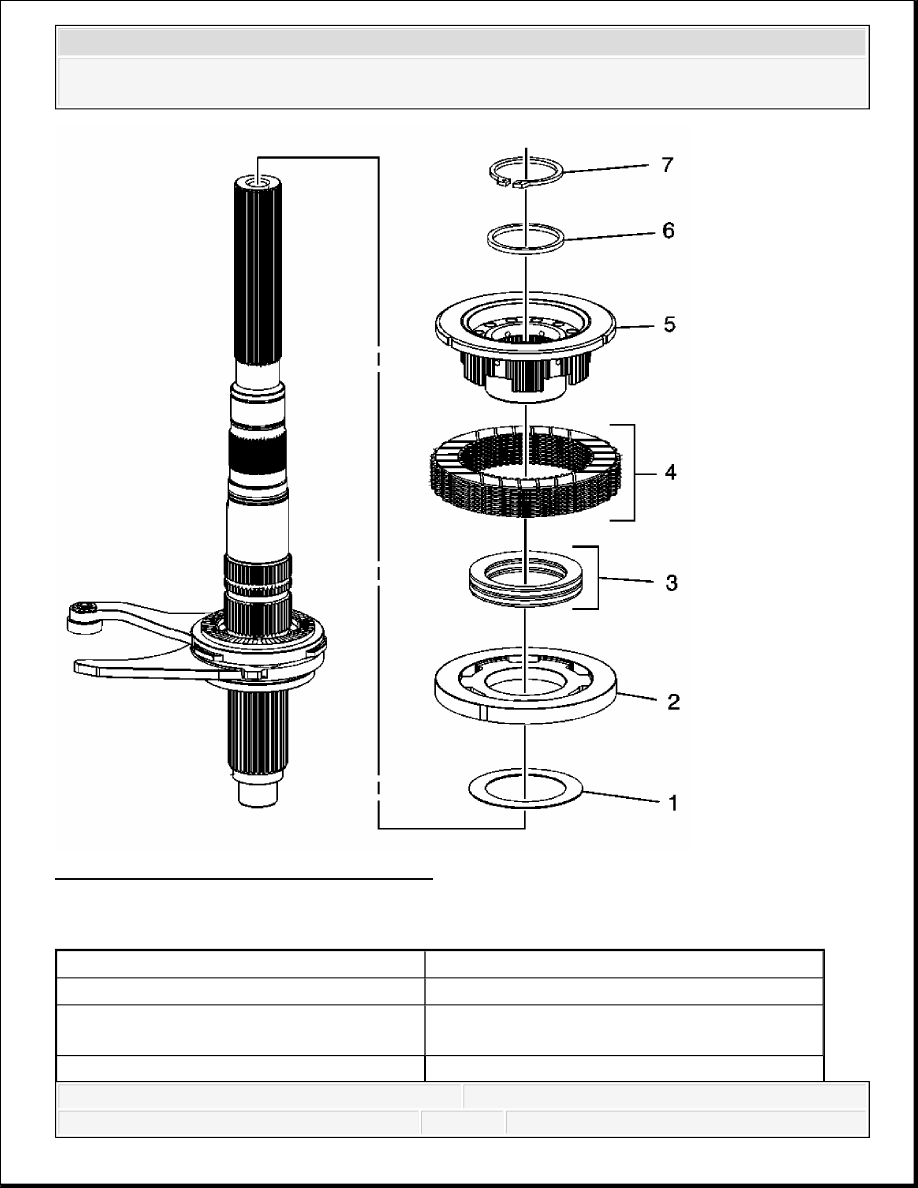

Clutch Pressure Plate Installation
Callout
Component Name
Tip:
A variety of shims are available to properly adjust the clearance height of the clutch
assembly.
An inside micrometer may also be used to measure the clutch assembly height.
1
Clutch Assembly
Procedure:
1. Using an inside caliper, measure the height of the
clutch assembly in the location shown and record
the results.
2. Repeat the process in 2 additional locations, 120
degrees from each other.
3. The average of the 3 measurements is the clutch
assembly height.
4. A 3.1 mm (0.122 in) clearance +/- 0.1 mm (0.004
in) is necessary between the clutch pack height and
the assembly height. It may be necessary to replace
the clutch shim with a thicker shim or a thinner
shim, to achieve the proper clearance in the clutch.
5. Subtract the clutch pack height from the clutch
assembly height. The difference should be between
3.0 mm (0.118 in) and 3.2 mm (0.126 in)
clearance.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - MP 3023/3024-NQH - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
