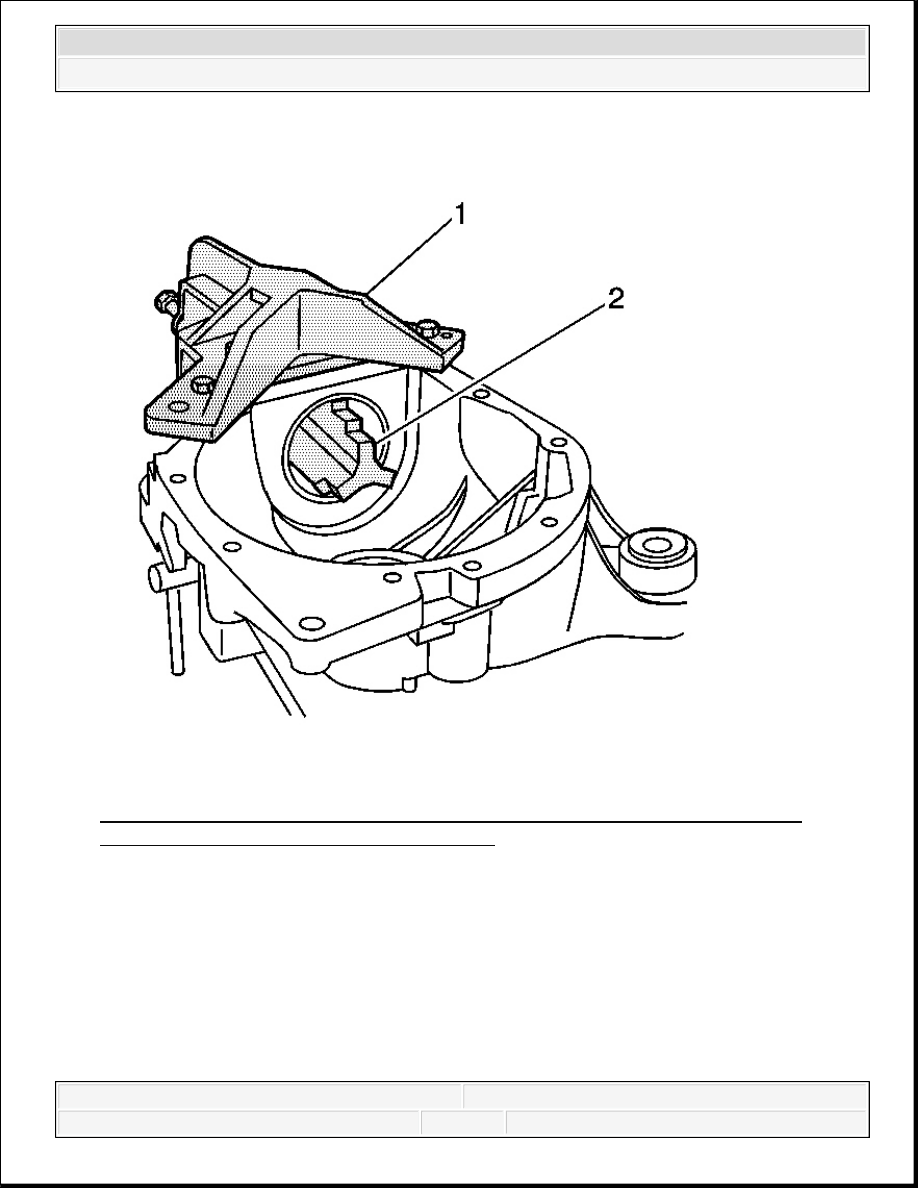

Fig. 197: Installing Inner Pinion Bearing Cup Into Differential Carrier Case J 11. Place the J 36598-3, 8.25 inch axle, or the J 36598-4, 9.25 inch axle (2), over the inner pinion bearing cup. 12. Extend the forcing screw of the J 36598 (1) through the J 36598-15 and thread it into the J 36598-3 or the J 36598-4 (2) until fully seated. 13. Rotate the J 36598-3 or the J 36598-4 several times in order to ensure the inner pinion bearing cup is evenly seated and not mis-aligned in the bore. 14. Install the inner pinion bearing cup into the differential carrier case half by holding the
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
|
