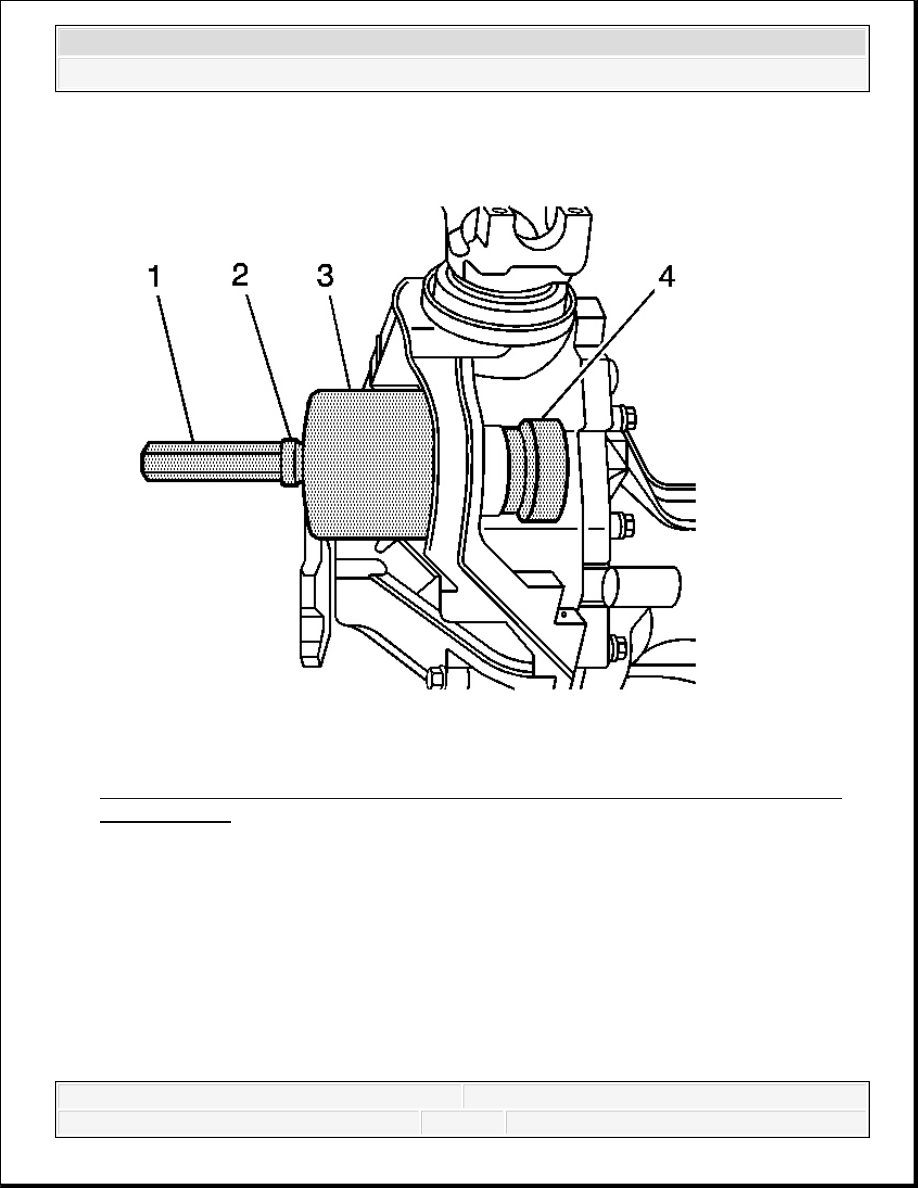

Fig. 139: View Of Special Tools 21474-18, Thrust Bearing, J 33791-1, J 36616-2, & 2. Remove the lower differential carrier assembly bushing by performing the following steps: 1. Install the J 21474-18 (1), the thrust bearing (2), the J 33791-1 (3), the J 36616-2 (4), and the forcing screw as shown. 2. Remove the lower differential carrier assembly bushing by holding the forcing screw and tightening the J 21474-18.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
|
