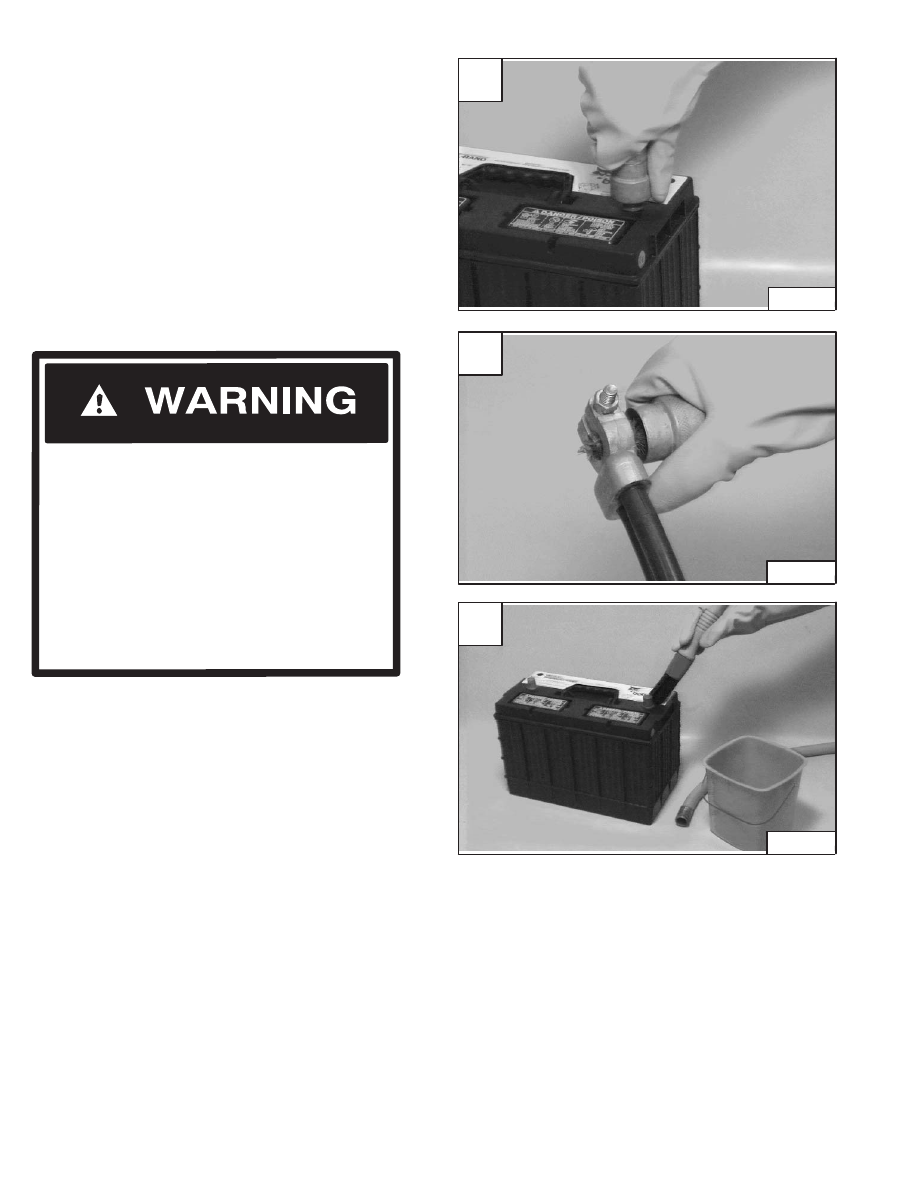

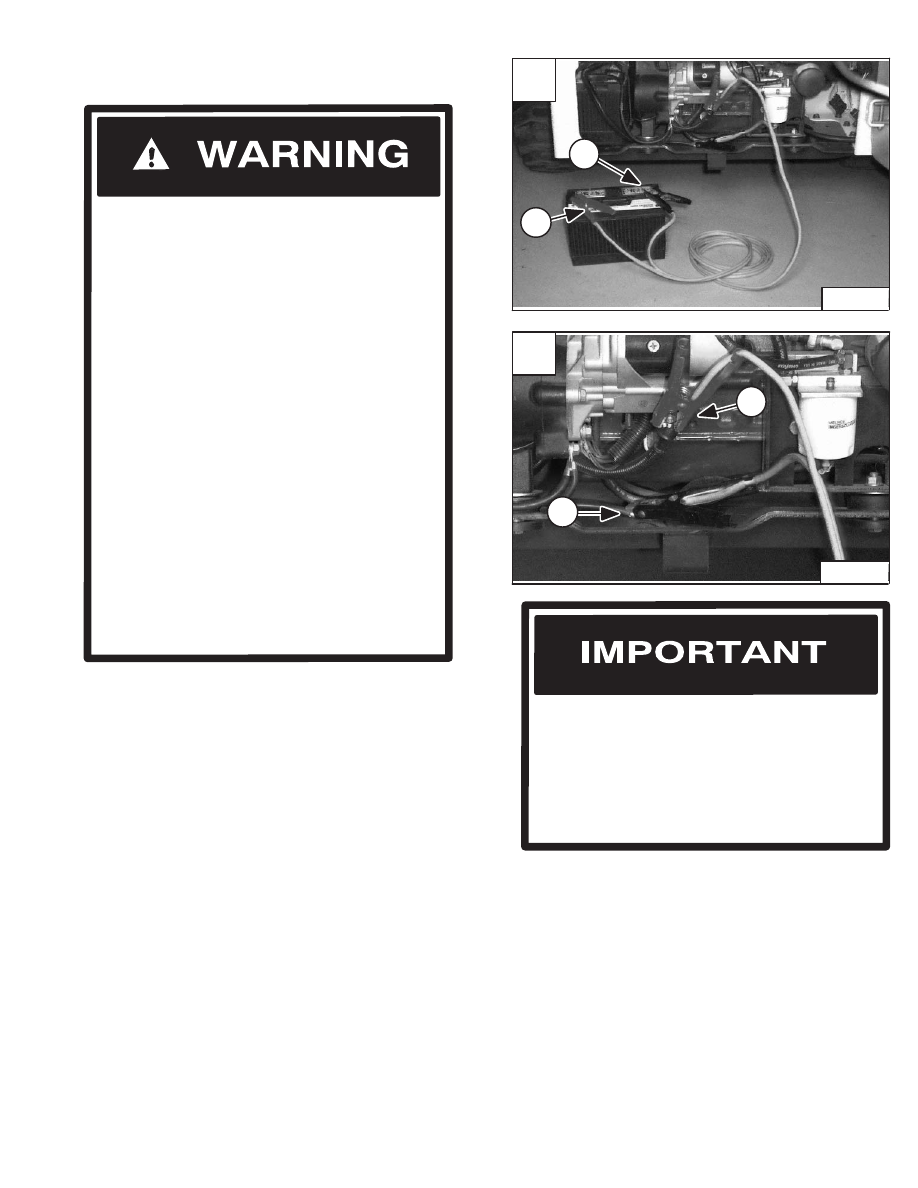

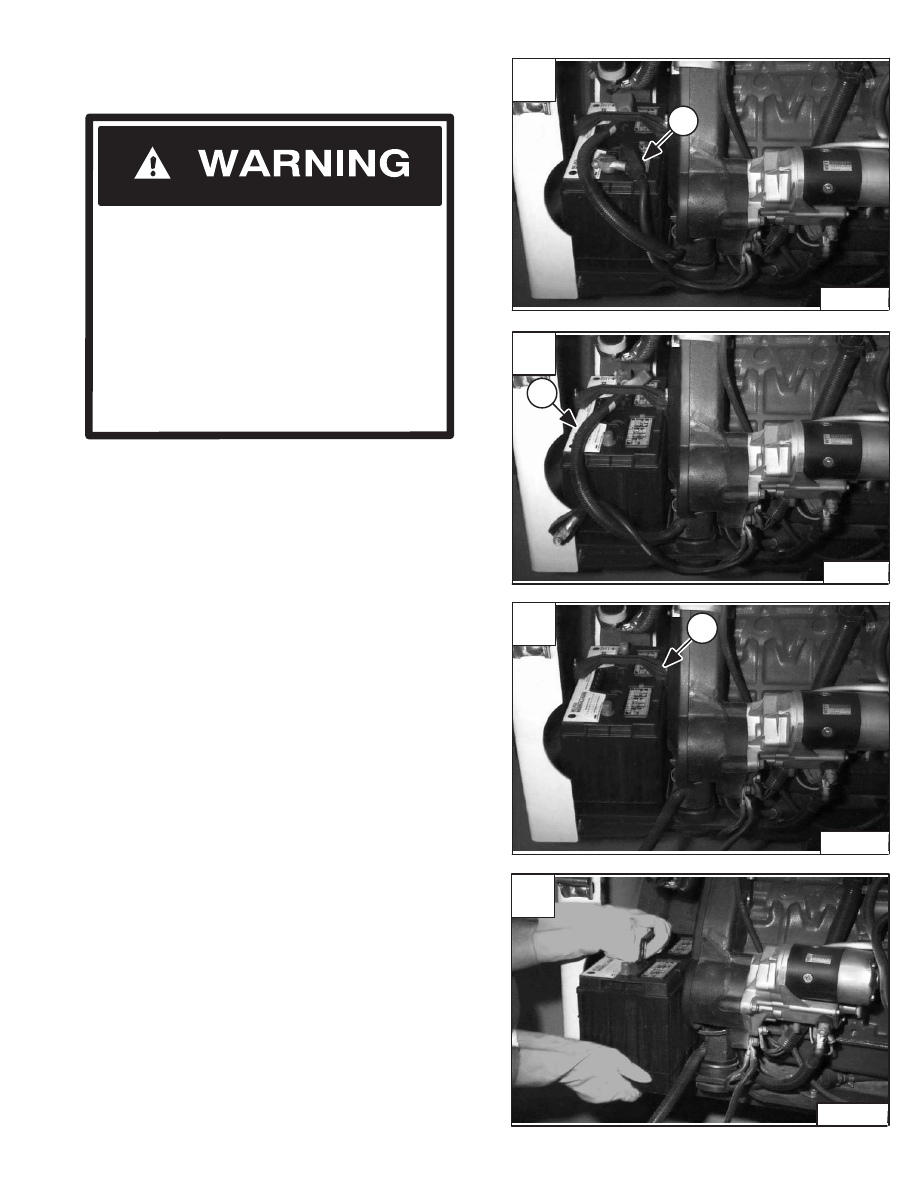

ELECTRICAL SYSTEM INFORMATION
Description
The loader has a 12 volt, negative ground alternator
charging system. The electrical system is protected by
fuses (Item 1) [A] located in the engine compartment. The
fuses will protect the electrical system when there is an
electrical overload. The reason for the overload must be
found before starting the engine again.

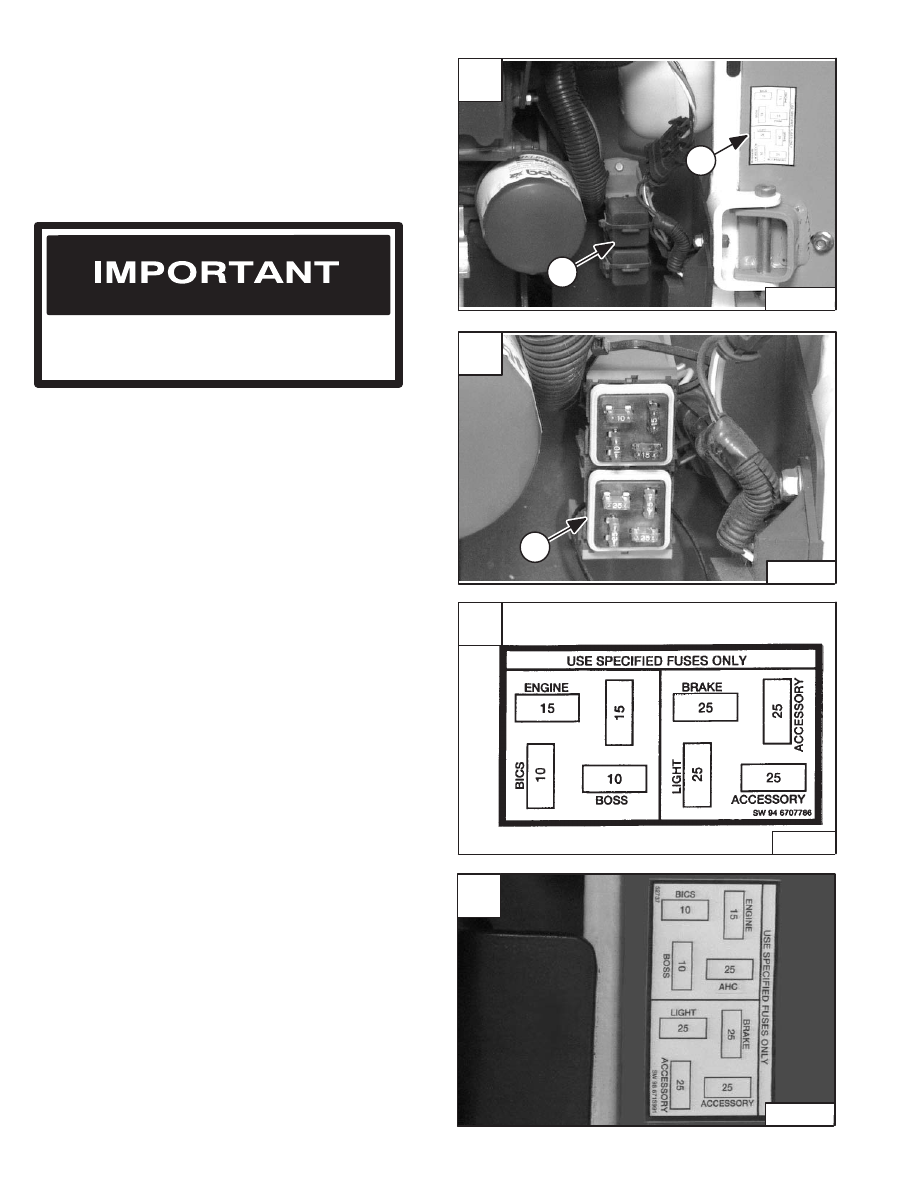

Fuse Location
The electrical system for loaders is protected by eight
fuses located in the fuse block (Item 1) [B]. Remove the
fuse block cover to access the fuses.
The decal (Item 2 ) [A] inside the rear door specifies the
fuse sizes used in various loader circuits [C] & [D].
Do Not use silicone base sprays and/or
sealants on harness connectors or
components.
