BYD G3 AUTO Owner’s Instruction





142



Note

  Make  sure  engine  and  all

auxiliary devices are turned off
before  maintenance  of  the
battery.

  Before  check  battery,  remove

grounding  wire  on  negative
terminal  (with  “-”  mark)  first;
after  completion  of  service,
connect it at the last step.

  Do  not  cause  short  circuit

when using tools.

  When  cleaning  the  battery,

prevent

any

liquid

from

entering it.





Check Internal Status of Battery

Check  the  internal  status of  the  battery
according  to  instructions  on  the  outer
shell and status indicators of the battery.


Note

  Charging  the  battery  without

disconnecting  the  wires  on  it
may seriously damage ECU and
other  electrical  devices  on  the
car.    Remove the battery wires
first  before  connecting  the
battery to charger.


  When  engine  is  not  running,

using  electrical  devices  for  a
long  time  may  cause  over
discharge of the battery, which
may  lead  to  difficulty  to  start
the  car  or  even  permanent
damage to the battery.


 Do not use battery consuming

devices, such as audio system,
light  system,  for  a  long  time
when the engine is not running.

  Before  leaving  the  car,  make

sure  the  doors  are  closed  and
all  electric  appliances,  such as
lights, are turned off.









Tips

When  electrolyte  runs  low  in  the
battery, replace it with a new one
and  do  not  add  electrolyte  by
yourself.




















-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





143

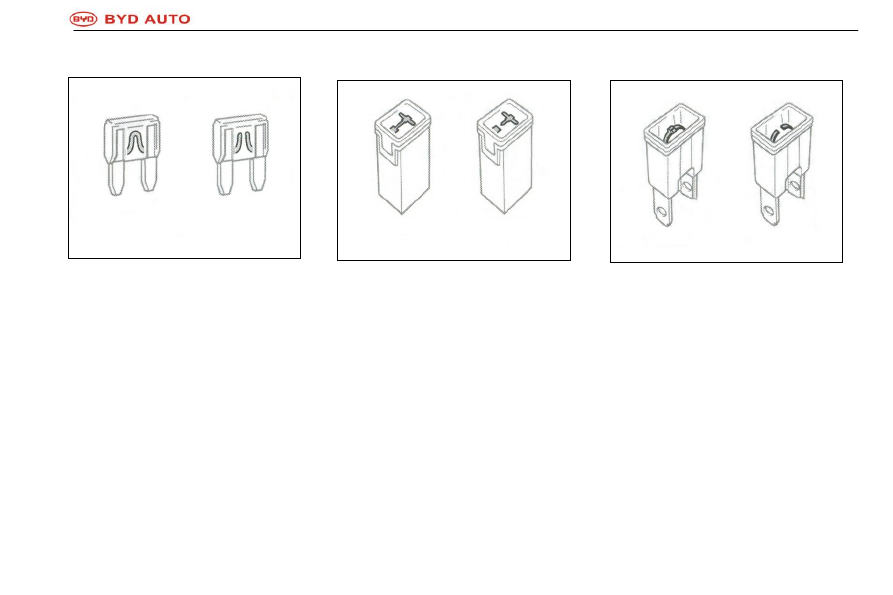

Check and Replace Fuses





A Type














B Type














C Type











Fine

Burned

Fine

Burned

Fine

Burned

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





144

If headlight or other electric devices
do not work, please check the fuses.
When necessary, replace the fuses.

For information on location of fuses, see
Section 7-

1 ―Location of Fuses‖.


Turn  off  ignition  switch  and  other
malfunctioning  devices.  Pull  out  the
fuses  with  potential  malfunction
vertically and check them.

Find out  which fuse has trouble. Circuit
name of each fuse is indicated on cover
of  the  fuse  box.  See  Chapter  8  for
control function of each circuit.
Pull  out  A  type  fuse  with  a  puller.  The
puller is at location 19 in figure ―Engine
Compartment‖ in Chapter 8.
If  you  are  not  sure  whether  the  fuse  is
burnt out, replace it with a good one.

If  the fuse is  burnt  out, insert  a new
fuse into the fuse socket.
Only  install  a  fuse  with  amperage
specified on the fuse box.
If  there  is  no  spare  fuse  in  emergency
situation,  you  can  pull  out  ―29.  Indoor
Light‖  fuse,  which  is  not  essential  in
driving,  and  substitute  it  for a fuse  with
the same amperage.

If there is no fuse of the same amperage,
you  should  choose  a  fuse  with  lower
amperage; and do try to get a fuse with
the  amperage  as  close  to  the  rated
amperage as possible. If you use a fuse
with  lower amperage, it  may be burned
out again, but this doesn’t mean the car
has  problem.  You  shall  install  a  proper
fuse as soon as possible, and put  back
the substitute fuse in place.
It  is  recommended  to  keep  a  set  of
spare  fuses  on  the  car  for  emergency
use.
If  a  new  replaced  fuse  is  burnt  out
immediately,  the  electrical  system  may
have  problem.  Contact  BYD  service
station for a check as soon as possible.


Tips

Never  use  a  fuse  with  higher
amperage

than

the

rating

amperage  or  use  any  other
objects  to  replace  the  fuse,
otherwise  it  may  cause  serious
damage and may lead to fire.




Add Cleanser





If  the  cleaner  does  not  work,  the
cleanser tank may have been empty.
Check  the  cleanser  level  on  the
content  gauge.  If  the  level  is  below
“LOW” mark, you shall add cleanser.





-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





145

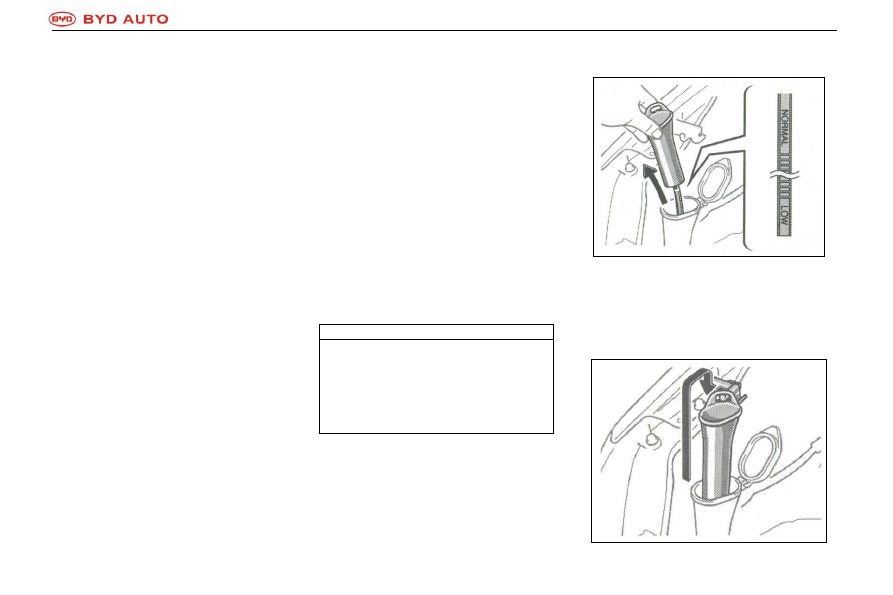

Before Adding Cleanser
Pull  out  cleanser  funnel  and  hang  it
on the brake of engine hood support.
Water  can  be  used  as  cleanser.  But  in
cold  region  where  the  temperature  is
below  zero  degree,  you  shall  use
cleanser  with  ant  freezing  agent.  It  is
available  in  BYD  service  stations  and
most auto part stores. For mixing ratio of
water  and  anti-freezing  agent,  please
refer to manufacturer’s instructions.
Make sure put back the funnel in place
after filling full the cleanser tank.


Note

Don’t  use  engine  antifreeze  or
other  substitutes,  as  they  will
damage the vehicle paint.




Replace Bulb
The following figures shows the method
to take off the bulbs. Make sure the
ignition switch and light switches are
turned off when replacing bulbs. Use
bulbs with rated power shown in the
table below:
Parking  light  and  rear  parking  light
consists of a group of luminous  diodes.
When the number of burnt out luminous

diodes affects the car’s compliance with
local  laws,  please send  the  car  to  BYD
service station for replacing bulbs.



Tips

●  Do not  replace  bulb when  it  is

hot to avoid burning.

●  The  halogen  bulb is  filled with

pressurized  gas,  please  be
particularly  careful.  If  the  bulb
is scratched or falls to ground,
it  may  explode  or  crack.  Only
hold  the  bulb  on  its  plastic  or
metal  part.  Do  not  touch  glass
part  of  the  bulb  with  bare
hands.



When traveling in rain or when the light
shade is wet after washing, the inside of
lamp  shade  of  external  light  such  as
headlight  will  temporarily  fog.  As  with
fog on the  windshield in rainy  days, the
fog  inside  the  light  shade  is  due  to  the
temperature  difference  between  the
inside  and  the  outside  of  light  shade,
and isn’t a trouble. But if there is water
droplet  or  water  pool  in  the  lightshade,
please contact BYD service station.



Bulb

Type

Headlight

(low

beam)

55

H7

Headlight

(high

beam)

60

HB3

Front fog light

55

H11

Front turn signal light

21

PY21W

Side turn signal light

LED

Rear turn signal light

21

PY21W

Backup light

21

P21W

Rear fog light

21

W21W

High  mount  brake
light

16

W16W

Name plate light

W5W

Door light

W5W

Front interior light

R5W

Rear interior light

10

C10W

Trunk light

W5W

Front parking light

LED

Rear parking light

0.5

LED





-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





146

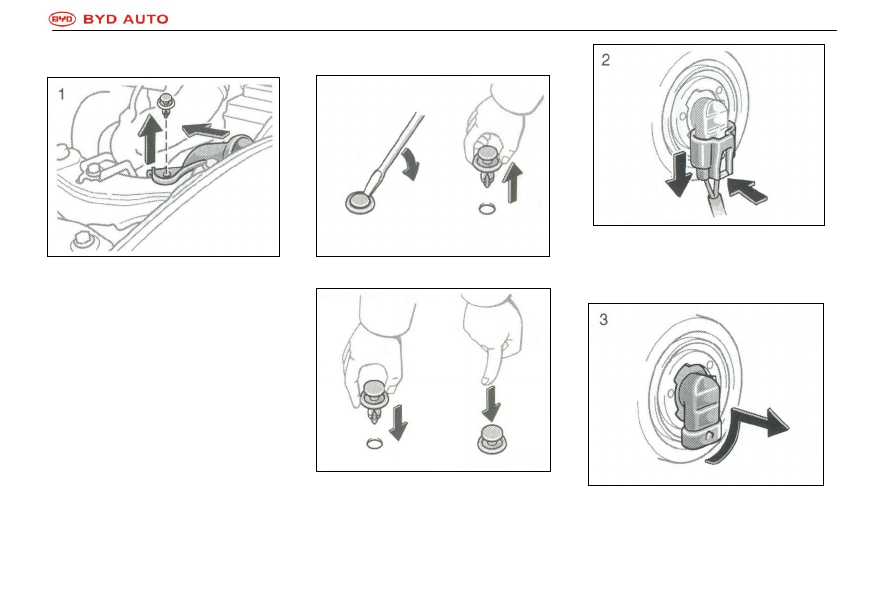

Headlight






1.  Left  Headlight:  remove  clamp  and
take away the tube of air filter.

The  removal  and  installation  of  the
cover  lamp  is  shown  in  the  figures
below.













Remove Clamp




Install Clamp





2. Pull off the connector while
pressing down the buckle.
If the connector is too tight, shake it first.





3. Rotate the bulb anticlockwise to
remove it.



-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





147







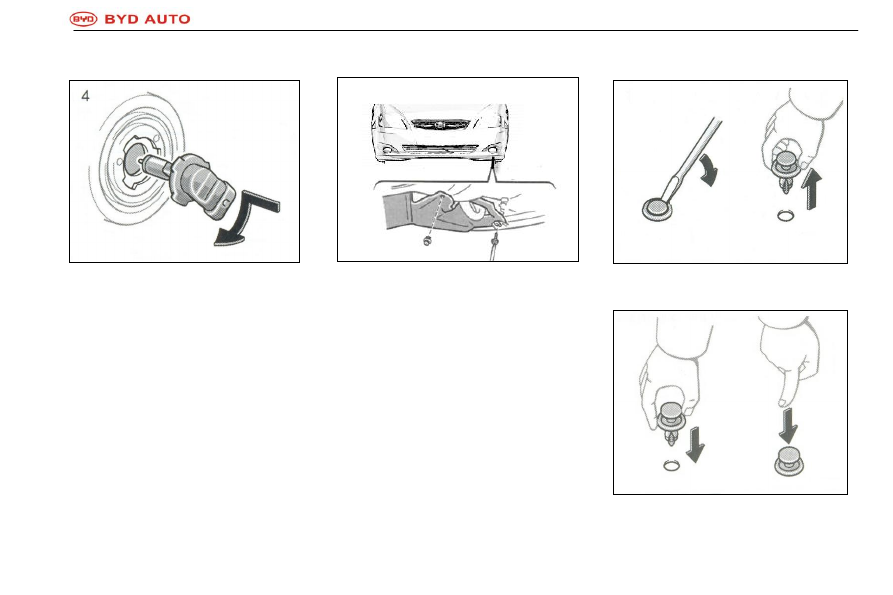

4.  Install  the  new  bulb  in  the
mounting hole by rotating clockwise.
You  need  not  to  adjust  the  headlight
after replacing the bulb. In case that you
need  to  adjust  the  headlight,  please
contact BYD service station.









Front Fog Light (optional)






1. Remove the screw and clamp with
cross screwdriver.
The removal and installation of the cover
clamp is shown in the figures below.











Remove Cover Clamp





Install Cover Clamp

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





148




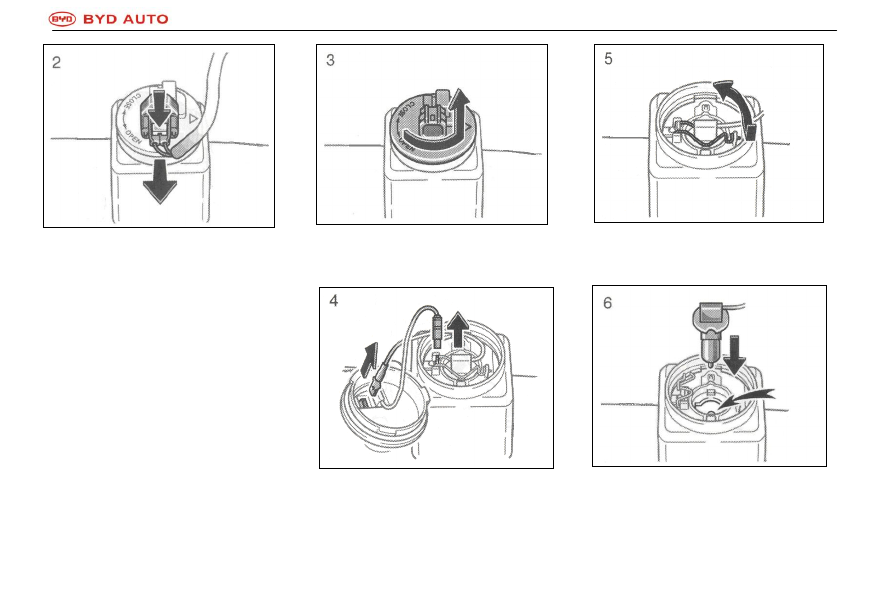

2.  Pull  off  the  connector  while
pressing down the buckle.
If the connector is too tight, shake it first.





3.  Rotate  the  cover  anticlockwise  to
remove it.





4. Remove the connecting wire.






5.  Release  the  fixing  spring  of  the
bulb.





6. Install new bulb.
When installing new bulb, align the seat
to the round notch on the bulb.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





149

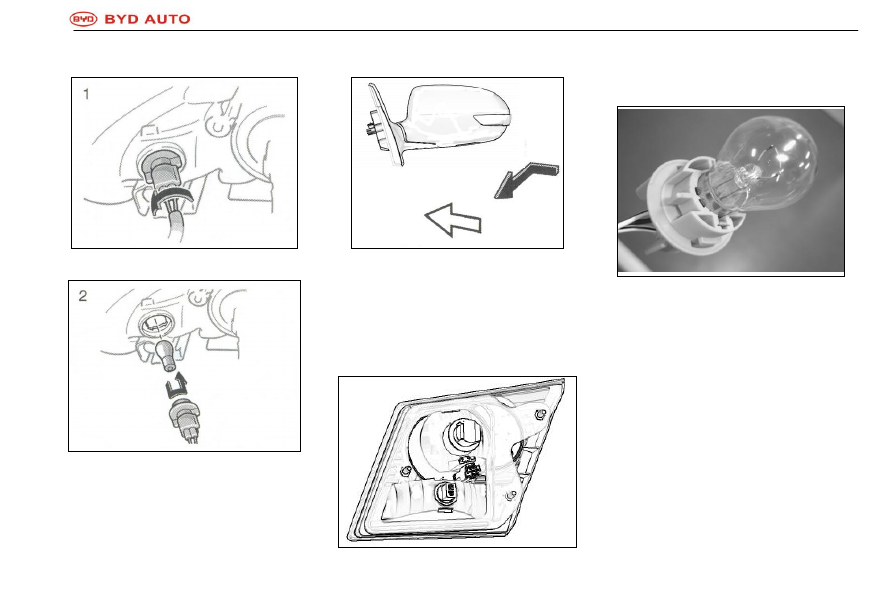

Front turn signal light






1. Rotate anticlockwise to remove it.




2.  Rotate  the  bulb  clockwise  to
remove it.
The  steps  of  installation  is  opposite  to
disassembly

Side turn signal light







Side  turn  signal  light  is  integrated  on
external  rear-view  mirror  assembly.  If
replacement

is

necessary,

please

contact BYD service station.



Backup Light, Rear Fog Light





Rotate the light seat anticlockwise
instructionly and pull it outwards to
remove the light seat and bulb.





Rotate the bulb anticlockwise and
pull it outwards to remove the bulb.
The steps of installation is opposite to
disassembly.



The front of
car

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





150

Rear turn signal light
The steps to replace the bulb of rear turn
signal light are the same with fog light.

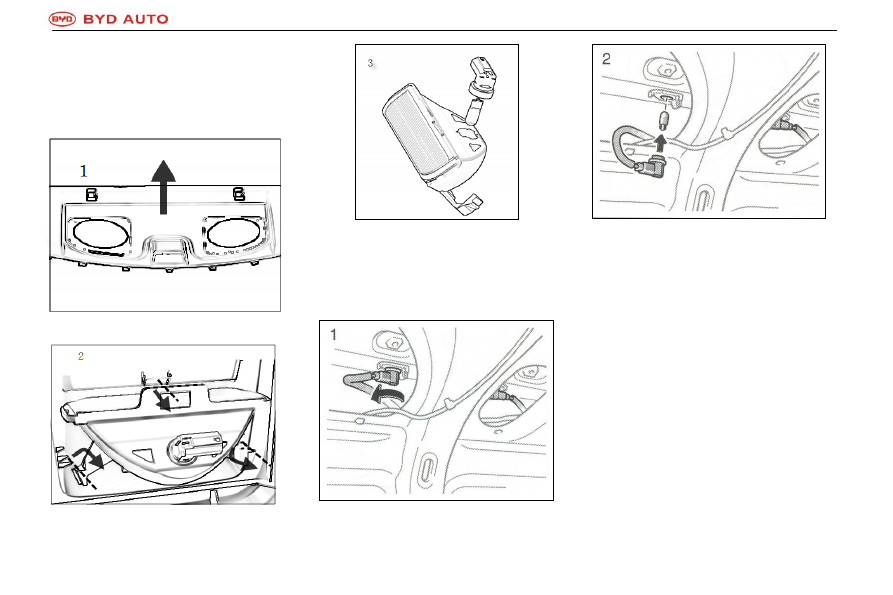

High Mount Brake Light (optional)




1. Remove rear shelf of interior trim.




2.  Remove  high  mount  brake  light
assembly.




3.  Rotate  the  light  seat  anticlockwise
and pull the bulb outwards to remove it.
The  steps  of  installation  is  opposite  to
disassembly


Name plate light






1. Rotate the light seat anticlockwise
to remove it.




2. Remove the bulb.


The  steps  of  installation  is  opposite  to
disassembly




-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





151

Chapter 8

Part Specifications



Maintenance Specifications ............................................................................. 152
Fuse and Relay ................................................................................................ 153




-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





152

Maintenance Specifications

Lubrication of Engine

Engine Oil Grade for Gasoline Engine:
  SAE 5W

—30                above -30℃

    SAE 15W

—40                above -15℃



API Grade    SG or above
Amount: 3L (liter)

Specification of Gear Oil for Instruction Transmission

75W

—90







North region in winter

80W

—90







North region in summer

80W

—90 or 80W—140

South  region  all  around  the
year

API Grade    GL-4 or above

Amount: 2.1L (liter)


CVT shall always use ESSO EZL 799A (CVT fluid)

Amount: 4.1 L (liter)




Cooling System
Amount: L (liter)

6.8L

Tire dimension:

195/60 R15

Tire pressure, KPa (kilogram/cm

2

210(2.1)

Wheel nut torque, N·

m (kilogram force·

m)

103(10.5)








-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





153

Fuse and Relay

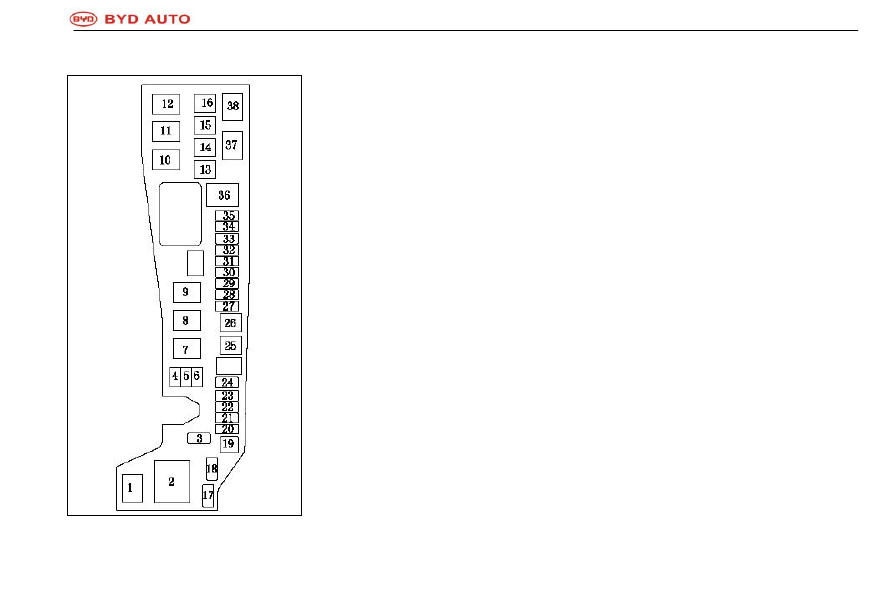

Engine Compartment

Relay:
1. A/C relay magnet clutch
2. Front headlight
7. No. 3 fan
8. Reserved
9. Electric horn
10. No. 2 fan
11. Reserved
12. No. 1 fan
37. Reserved
38. Electric fuel Injection main relay

Fuse:
3. Spare fuse (10A)
4. Spare fuse (15A)
5. Spare fuse (20A)
6. Spare fuse (25A)

13. Reserved
14. Electronic fan (30A)
15. Reserved
16. ABS (60A)
17. Spare fuse (30A)
18. Spare fuse (7.5A)
19. Puller
20. Left high beam (10A)

21. Right high beam (10A)
22. Right low beam (10A)
23. Left low beam (10A)
24. Reserved
25. Reserved
26. Headlight fuse (40A)
27. Reserved
28.  EFI  (15A)  -MT20U/2  or  (30A)
-M7.9.7.1
29. Interior light (15A)
30.  Ignition  switch  No.  2  power  supply
(30A)
31. Reserved
32. Electric horn (10A)
33. Warning light (10A)
34. Reserved
35. Reserved
36. Main power supply (100A)




-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





154

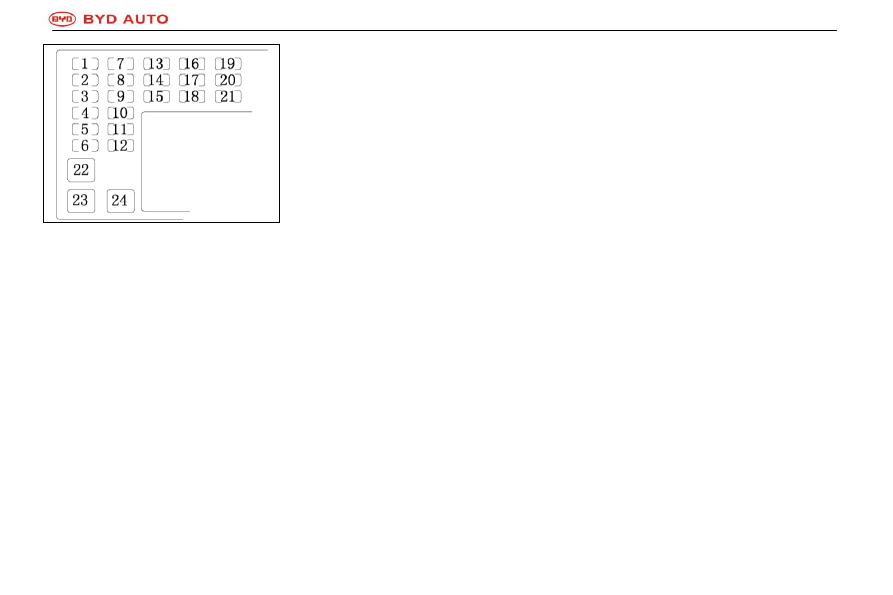

Instrument Panel
Fuse:
1. Reserved
2. ECU (10A)
3. Instrument (10A)
4. Power seat fuse (25A)
5. Reserved
6. Reserved
7. On-vehicle diagnosis system (7.5A)
8. Wiper (20A)


9. Small light (15A)
10. Brake light (15A)
11. Door (25A)
12. No.2 door and window power supply
(30A)
13.  No.1  ignition  switch  power  supply
(25A)
14. Front fog light (15A)
15. Rear fog light (10A)
16. Starting power supply (7.5A)
17. Air conditioner (10A)
18. No.2 ignition switch (15A)
19. Defrosting compensation (10A)
20. Headlight control system (5A)
21. Lighter (15A)
22. Warm wind (40A)
23. Rear window defroster (30A)
24. No.1 door and window power supply
(30A)


-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     8      9      10
