BYD G3. Service Instruction - part 1





BYD G3 AUTO Owner’s Instruction





IV

Overall Unit Parameters of BYD G3


(* actual fuel consumption depends on factors such as car and road conditions, driver’s habit, etc. )

Product Model

QCJ7152A

QCJ7152A3

QCJ7182A3

QCJ7182A4

Dimensions

Length        ㎜

4600

Width        ㎜

1705

Height        ㎜

1490

Wheelbase                                                                              ㎜

2610

Track

Front        ㎜

1480

Rear          ㎜

1460

Curb Weight                                                                            ㎏

1180

1200

Gross Weight                                                                          ㎏

1555

1575

Tire Size

195/60 R15 88H

Approach Angel                                                                        °

17

Departure Angel                                                                      °

18

Front Overhang                                                                      ㎜

975

Rear Overhang                                                                      ㎜

1015

Seating Capacity

Maximum speed                                                                km/h

170

Engine Model

4G15S

BYD473QB

BYD483QA

Type

In-line 4-cylinder, 16-vavle,

water-cooled, natural air inflow

In-line 4-cylinder, water-cooled,

DOHC

Displacement                                                                        L

1.488

1.839

Engine Rated Power                                                          kw

78

79

90

Maximum Gradeability                                                          ﹪

≥30

≥35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





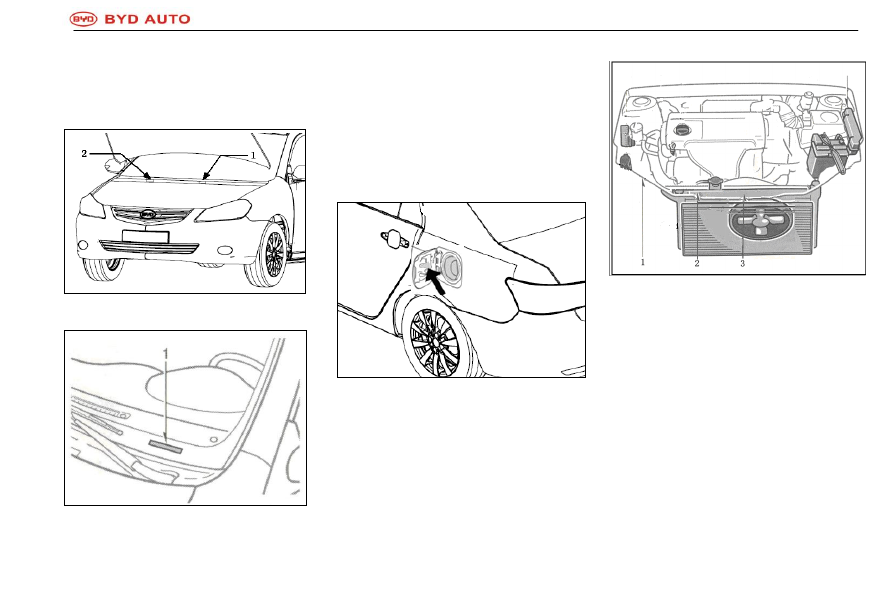

Vehicle  Identification  of
BYD G3

Vehicle Identification Number








Two vehicle identification number labels
are  posted  respectively  in  the  engine
compartment and on the  left upper side
of the instrument panel as shown in the
above  figure.  The  vehicle  identification
number,  which  is  used  for  user
registration,  is  also  marked  on  the
manufactory nameplate 2.







Figure  above  shows  the  fuel  grade
indication  sign,  which  is  posted  on  the
inner side of the fuel lid.















1.

Indication sign of engine coolant



2.

Warning sign of the air conditioning
system



3.

Warning sign of cooling fan





-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





VI







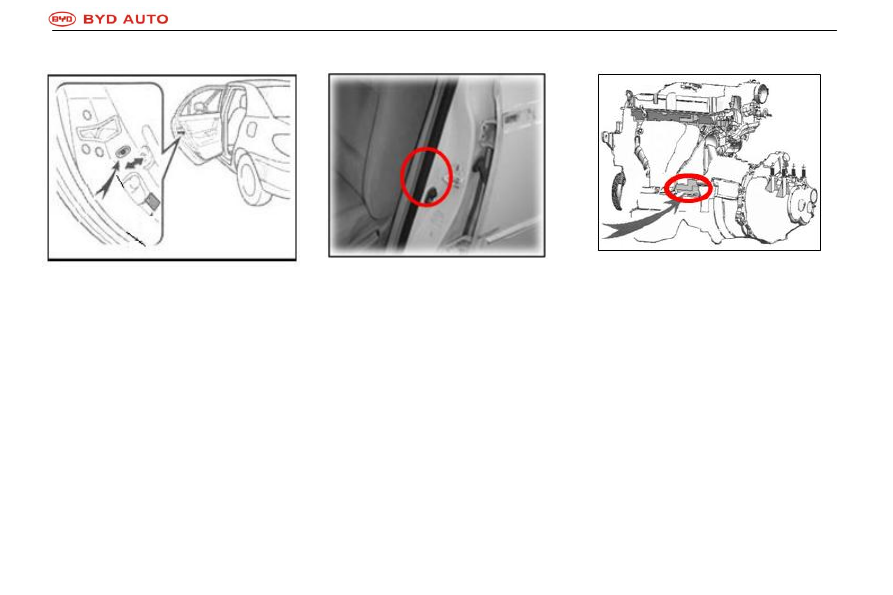

Figure  above shows  the  indication  sign
of  the  child  protection  device,  which  is
posted below the child protection lock on
the back of the rear vehicle door.








Figure  above shows  the  indication  sign
of  tire  pressure,  which  is  posted  below
lock ring of the left front door.















Engine Number
The  engine  number  is  marked  on  the
engine cylinder body as the figure above
shows.








-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





Chapter 1

Section 1



Operation of Instruments and Controllers



Instrument Panel Appearance



Instrument Panel Appearance ............................................................................ 2
Combination Instrument Appearance................................................................. 4
Indication Signs on the Combination Instrument ............................................... 5






-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction

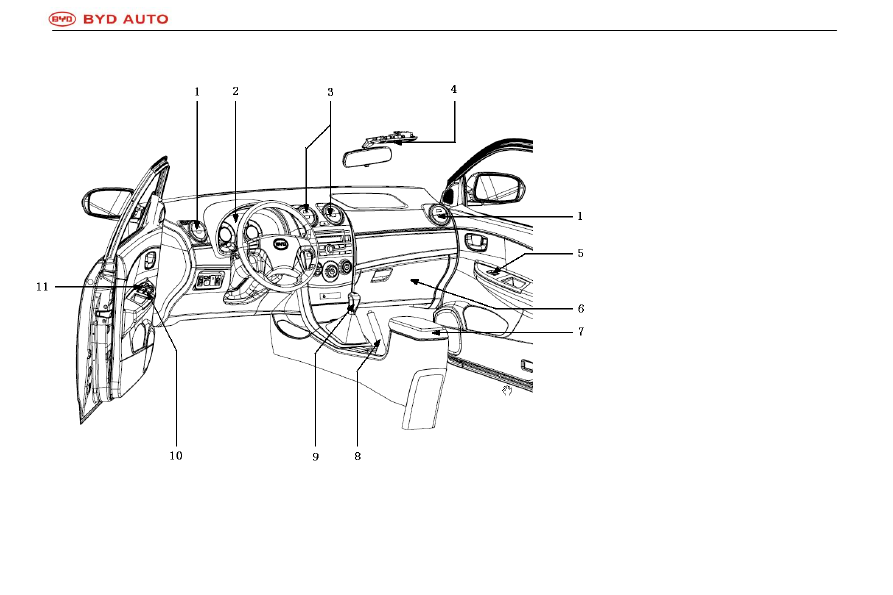

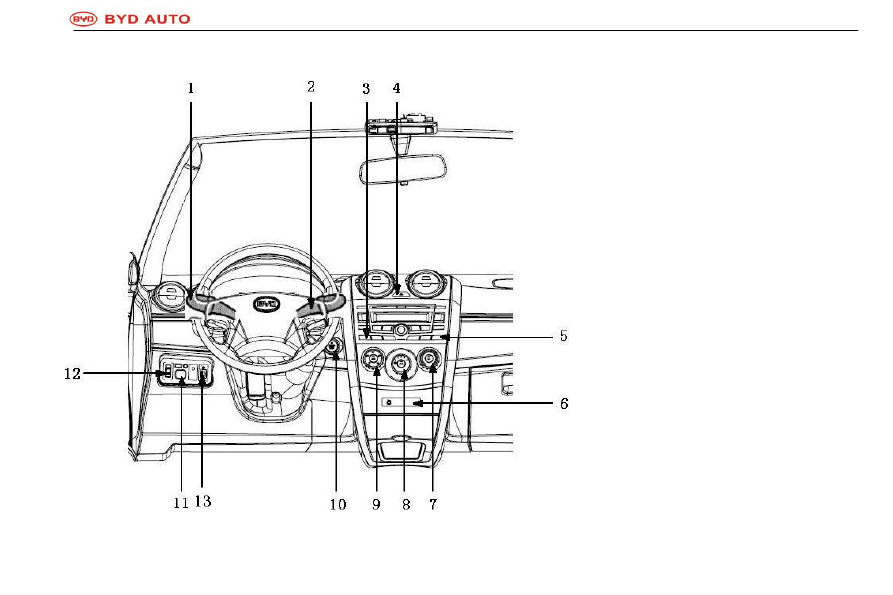

Instrument Panel Appearance






1.Side duct
2.Combination Instrument Assembly
3.Central Air Outlet
4.Front Interior Light and Switch
Assemly (optional)
5.Power Window Switch (optional)
6.Right Glove Box
7.Central Glove Box
8.Parking Brake Hand grip Assembly
9.Gear Shift Handle (MT)
10.Window and Door Lock Switch
11.Central Door Lock Switch












-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





Interior Switch Buttons




1.Left Combination Switch
2.Right Combination Switch
3.Number Button 1, 2, 3
4.Emergency Warning Light Switch
5.Number Button 4, 5, 6
6.1# Switch Group
7.Temperature Knob (with rear defrosting
button)
8.Fan Speed Control Button (with wind input
mode selection button)
9.Wind Output Knob (with A/C button)
10.Starting Button
11.Power Exterior Rear-view Mirror Switch
12.Rear Fog Light Switch
13.Front Headlight Adjustment Switch















-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction

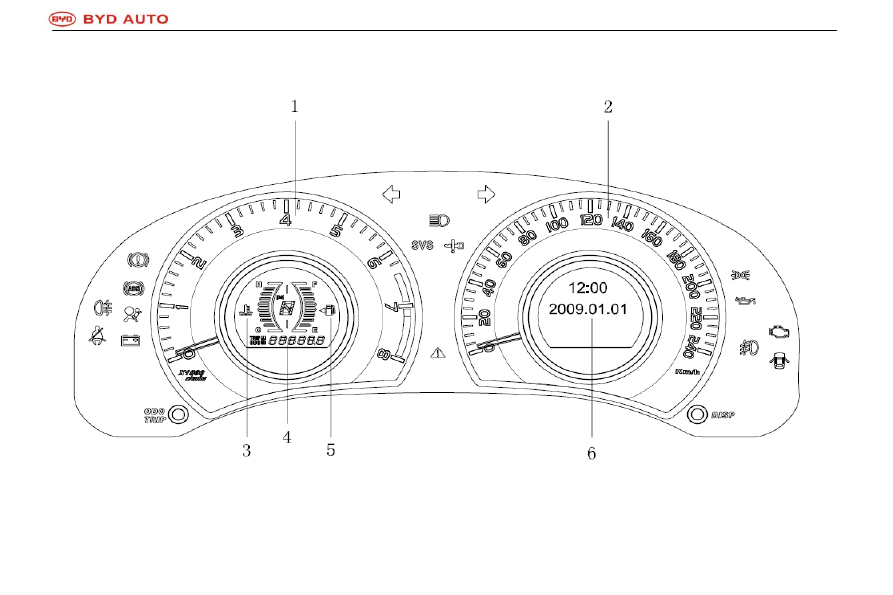

Combination Instrument Appearance





1.Tachometer                                        2.Speedometer                                          3.Water Thermometer
4.Odometer                                          5.Fuel Gauge                                              6.Information Display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





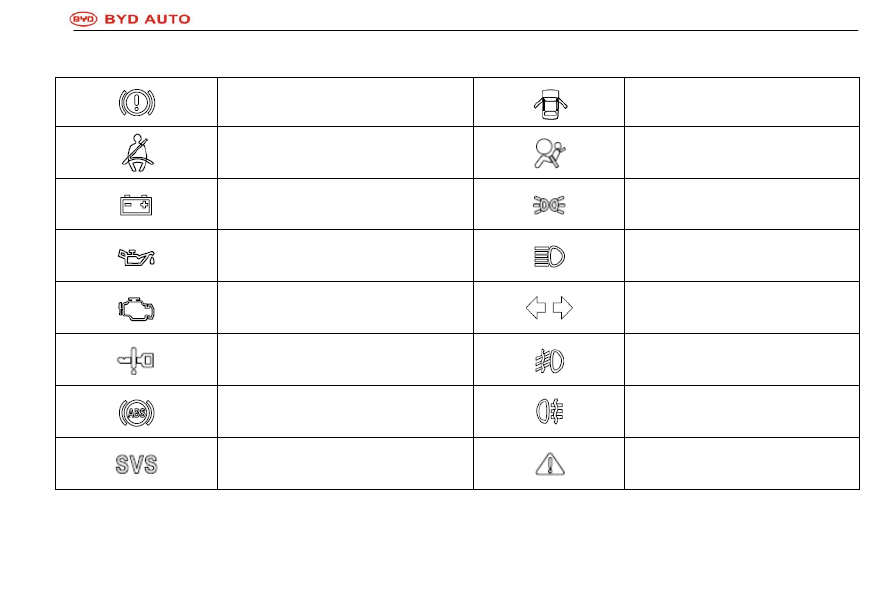

Indication Signs on the Combination Instrument





Braking System Warning Light *



Door Open Warning Indicator*



Seat Belt Indicator*



SRS Warning Indicator*



Battery Discharging Indicator*



Width-indicating Light Indicator



Low Engine Oil Pressure Indicator *



High Beam Headlight Indicator



Engine Fault Indicator*



Turn Signal Light Indicator



Smart  yey  System  Key  Position
Indicator*



Front Fog Light Indicator



ABS System Indicator *



Rear Fog Light Indicator



Service Indicator*



Main Warning Light*


Items marked with ―*‖ are maintenance indicators. Refer to ―Maintenance indicators and warning buzzers‖ in Section 1-5 for details.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





Chapter 1

Section 2



Operation of Instruments and Controllers



Keys and car door



Keys ...................................................................................................................... 7

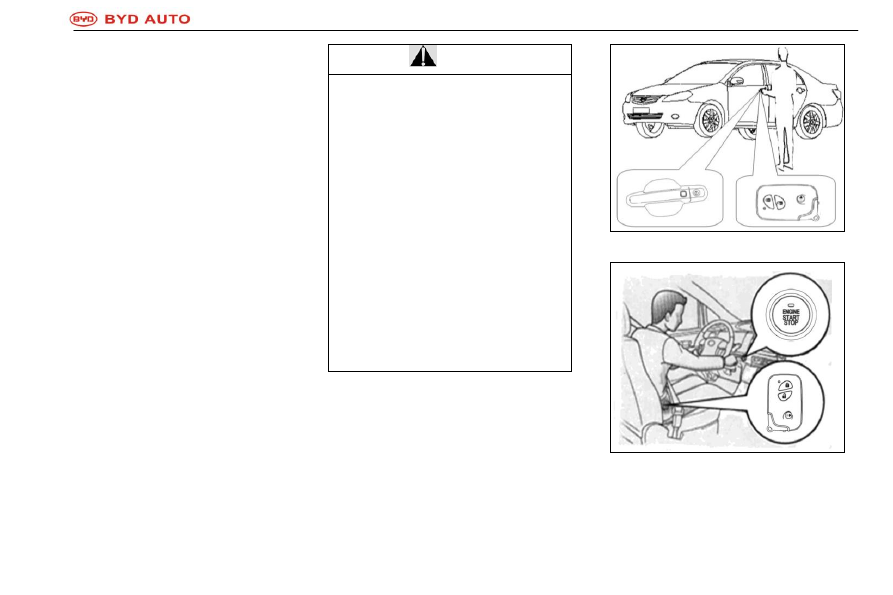

Intelligent Access and Starting System ............................................................ 13
Front Door .......................................................................................................... 17
Anti-theft System ................................................................................................ 18
Start Engine ........................................................................................................ 19




-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





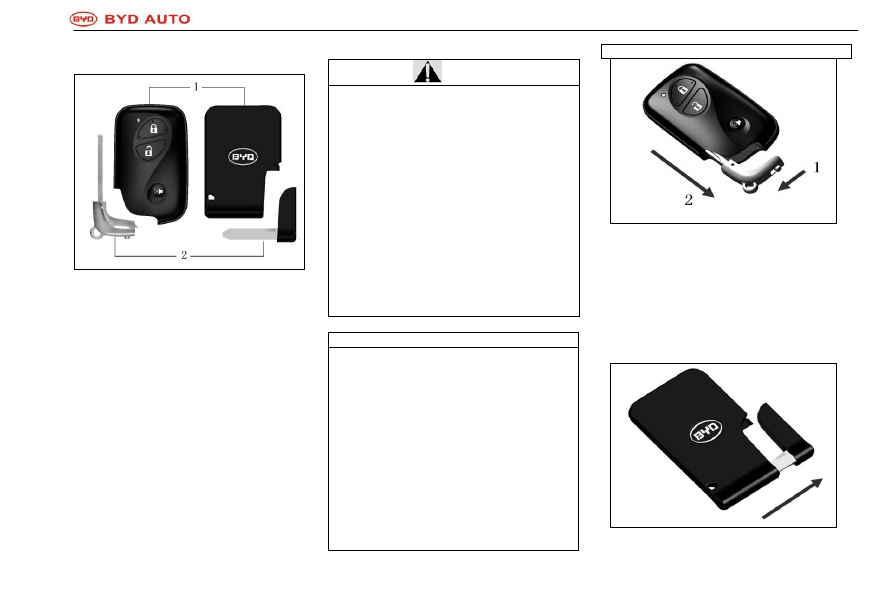

Keys






Intelligent Keys and Mechanical Keys

1. Intelligent Key

– used to open/lock all

doors  and  available  in  two  types:
electronic

intelligent

key

and

card-type  intelligent  key.  Electronic
intelligent  key  can  be  used  to
open/lock  doors,  make  emergency
alarm  and  search  for  car  at  distant
place.


2.

Mechanical

key

(in

electronic

intelligent key and car-type intelligent
key)

– is used to open/lock doors and

trunk.





Warning

●People  with  heart  pacemaker  and
defibrillator shall be kept away from
antenna  of  intelligent  access  and
starting  system,  as  electromagnetic
wave may affect normal use of these
devices. For information on position
of  the  antenna,  please  refer  to

Antenna Position” in this chapter.

●Drivers  with  heart  pacemaker  and
defibrillator  and  people using  other
medical  electronic  devices  shall
inquire

manufacturer

about

interference

posed

by

electromagnetic  wave

to  these

device.  Electromagnetic  wave  may
cause  unexpected  results  to  these
devices.




Note

  Pay  attention  to  the  following
items when using intelligent keys:

  Do not attach any object which
may  block  electromagnetic  wave
(such as metal container) to the key.

  Do  not  knock  the  key  forcibly
on other projects.

  Do not place the intelligent key
in high  temperature, direct  sunlight
or on engine hood for long time.

  Do not clean the key in water or
ultrasonic washer.

 Do not put the intelligent key near
any  device  which  may  produce
electromagnetic  wave,  such  as  a

cell phone.




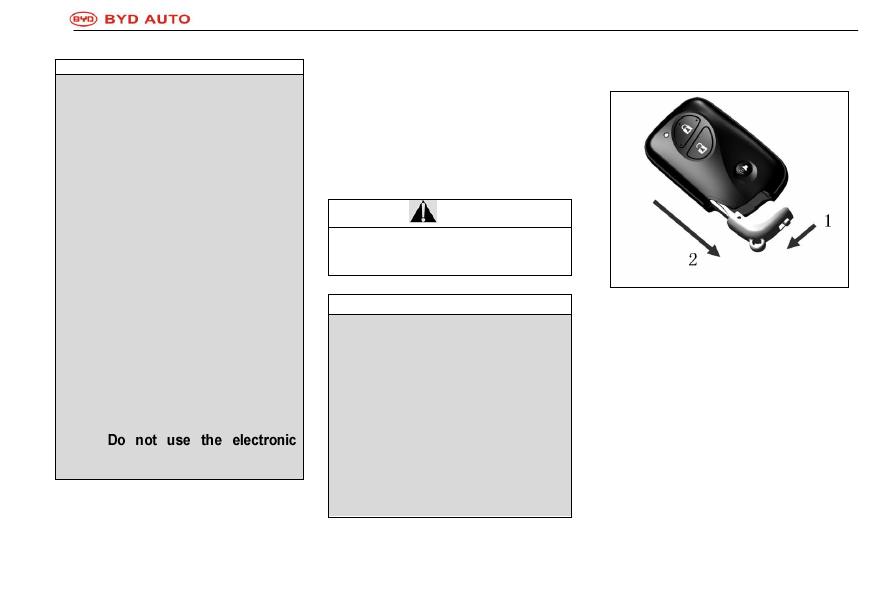

Using  Mechanical  Key  in  Electronic
Intelligent Key

To  use  mechanical  key  in  electronic
intelligent  key,  pull  down  the  switch  to
release  the  key  as shown  in  the  figure.
Make  sure  to  put  back  the  mechanical
key after use.




-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





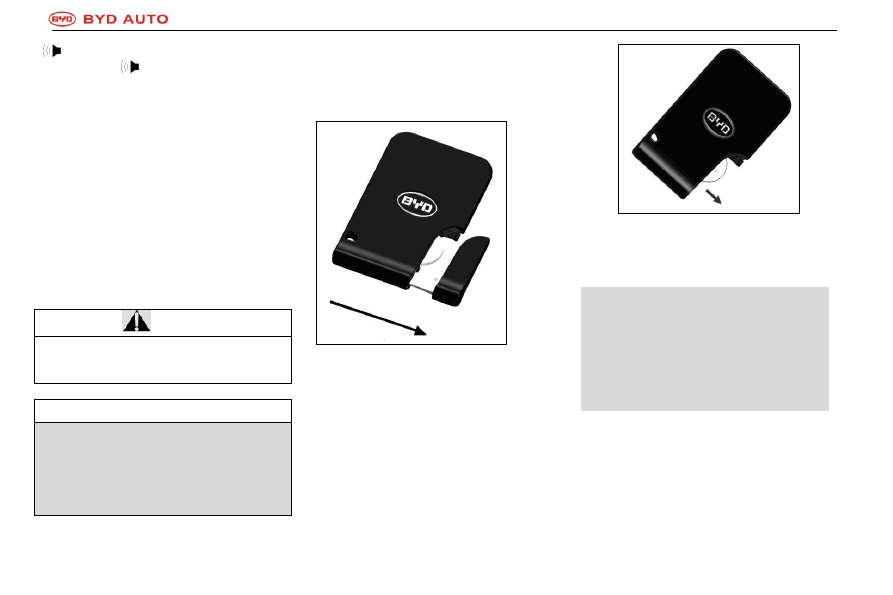

Using  Mechanical  Key  in  Card-type
Intelligent Key

To  use  mechanical  key  in  card-type
intelligent key, pull out the key as shown
in the figure. Make sure to put back the
mechanical key after use.





Key Number Plate

The  key  number  is  indicated  on  the
number  plate,  which  shall  be  kept
separately at a safe place.
If the key is lost or you need to make a
spare  key,  BYD  service  station  can
reproduce  a  key  according  to  the  key
number.
It  is  recommended  to  take  note  of  the
key number and keep it at a safe place.

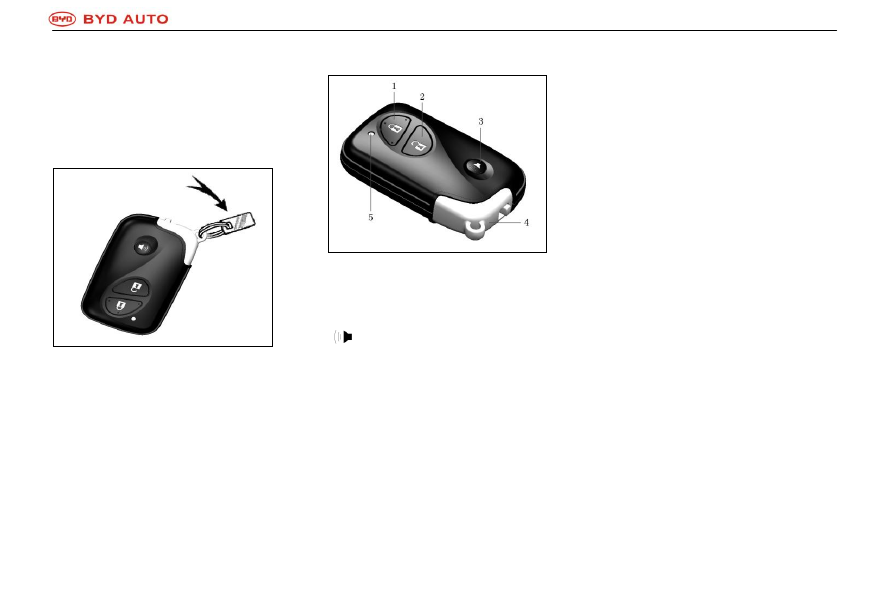

Wireless Remote Control





Electronic Intelligent Key




1. Lock UP Switch
2. Unlock Switch
3.

  switch

4. Mechanical key
5. Indicator

Wireless  remote  control  system  is
designed to open/lock  all  side  doors
at a distance of some 1m from the car
together

with

some

additional

functions.  It  is  available  only  on
electronic intelligent key.


When  operating,  please  press  the
switch slowly and firmly.
Electronic

intelligent

key

includes

electronic  components.  Please  follow
the  following  instructions  to  avoid  any
damage to the key.


Do  not  place  the  key  in  high

temperature,  such  as  on  the
instrument panel.



Do not disassemble it.



Do  not  knock  the  key  forcibly  and

drop it to ground.



Do not submerge the key in water.

You can register spare keys for the car.
For  more  detailed  information,  please
contact BYD service station.
If the electronic key cannot function well
in  normal  operation  range,  or  when  the
indicator on the key is dim or off:


Check  whether  there  is  radio

station or transmitter nearby which
may interfere with the key.



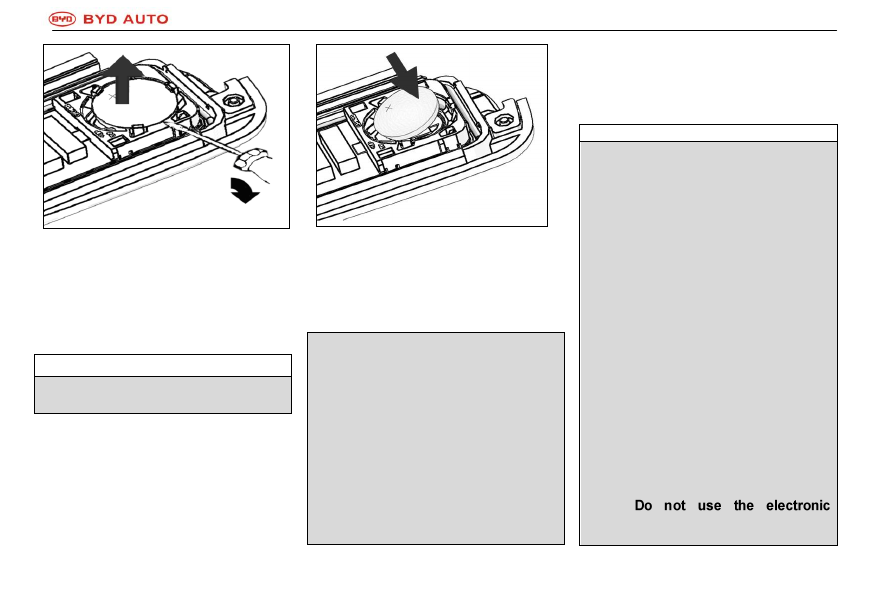

Battery may have depleted. Check

the  battery  in  the  key.  To  replace
the  battery,  please  see  ―Replace
Battery  of  Electronic  Intelligent
Key‖.

If you lose the electronic intelligent  key,
please  contact  BYD  service  station  as
soon as possible to prevent the car from
stealing.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction









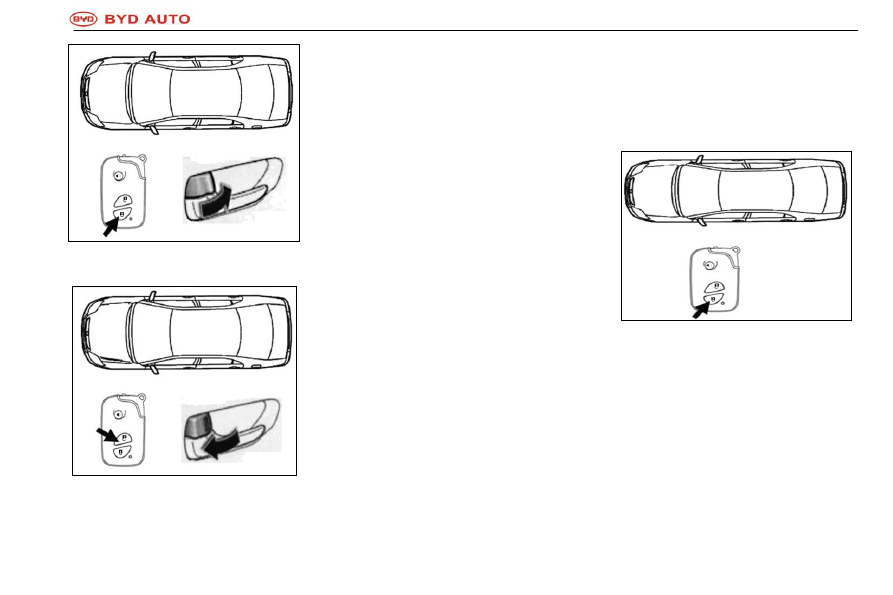

Locking Operation







Unlocking Operation


To lock/unlock all doors at the same time,
press down the switch on the key slowly
and firmly.

Lock: press down locking switch to  lock
up  all  doors.  The  turn  signal  lights  will
flash once.

Check  whether  all  doors  have  been
locked up firmly.

If  any  door  is  still  open,  use  lock-up
switch  to  unlock  all  door  locks.  When
unlocking,  the  turn  signal  lights  will  not
flash  but  the  warning  buzzer  beeps
once.

Unlock: press down unlocking switch to
unlock  all  doors.  The  turn  signal  lights
will flash twice.

If  power  supply  is  at  ACC  or  ON,  the
doors  cannot  be  opened/locked  by  the
key.

When unlocking all doors with electronic
intelligent key, even if the doors are not
opened, the interior lights  will be turned
on and remain on for 15 seconds before
going out.

When  using  electronic  intelligent  key  to
unlock  doors,  please  pull  open  a  door

instructionly  in  30  seconds.  Otherwise  all
doors will be locked up automatically.
If

you

press

and

hold

the

locking/unlocking switch, the key will not
function  repeatedly.  You  must  release
the switch first for repeated operation.





Finding Car Operation

When  the  car  is  under  anti-theft  state,
press  down  locking  switch  and  the  car
will  give  out  a  long  sound  with  the
turning  signal  lights  flashing  for  15
seconds.  When  you  can  not  find  your
car, this function is useful to locate it.

Under searching state, press the locking
switch again to enter the search state for
the second time.

Lock

Unlock

Finding car

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





10

Switch

Long  press

  switch  for  2  seconds,

the car will give out intermittent warning
sound  with  turn  signal  lights  flashing.
The warning sound will last for some 30
seconds,  if  you  want  to  stop  warning
earlier,  press  unlocking  switch  once  or
long  press  the  switch  again.  (Do  not
press this switch in driving.)

Replace  Card-type  Intelligent  Key
Battery
The  replacement  of  card-type  key
battery  is  simple  and  you  can  do  it  by
yourself.  You  shall  use  CR2025  lithium
battery or equivalent for replacement.


Warning

Pay  close  attention  to  prevent  the
battery  from  being  swallowed  by
children.



Note



Only

use

batteries

recommended  by  BYD  service
station  or  their  equivalent  for
replacement.



Dispose

depleted

battery

according to local laws.





Replace  the  card-type  intelligent  key
battery in the following steps.
1.  Pull  out  the  mechanical  key  in  the

arrow direction.







2. Take out battery.




3.  Inset  the  new  battery  into  the
intelligent  key,  and

then  put  back  the

mechanical key.


Note



Make sure the poles of battery
are installed properly.



Do not operate battery with wet
hands,

which

may

cause

rusting.



The  card-type  key  is  not
waterproof;  do  not  let  water
enter it.



After

battery

replacement,

check

whether the card-type intelligent key can
work  normally.  If  it  still  cannot  work,
please contact BYD service station.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





11



Note



Without  permission,  do  not
alter  the  emission  frequency,
increase  the  emission  power
(including  but  not  limited  to
adding

emission

frequency

amplifiers),

equip

external

antenna  or use  other emission
antennas.



Use of the electronic intelligent
key  should  not  produce  any
harmful  interference  to  any
legal  wireless  communication
services;

stop

use

of

it

immediately if any interference
is found and do not use it until
the  interference  has  been
eliminated.



When  using  a  micropower
radio

device,

it

must

withstandby

interference

of

radio  services  and  radiation
interference  from  industrial,
scientific and medical devices.



intelligent  key  near aircrafts  or
airports.



Replace  Electronic  Intelligent  Key
Battery

Replacement  of  the  battery  may
damage  the  key.  It  is  recommended  to
have  BYD  service  station  replace  the
battery.  If  you  have  to  replace  it  by
yourself, please use flat screwdriver and
CR1632 lithium battery or equivalents.


Warning

Pay  close  attention  to  prevent  the
battery  or  components  from  being
swallowed by children.




Note



Do  not  touch  the  circuit  with
hands,  otherwise  the  static
produced  may  damage  the
key.



Do

not

leave

out

any

components  when  replacing
the key battery.



Only

use

batteries

recommended by BYD service
station  or  their  equivalent  for
replacement.



Dispose

depleted

battery

according to local laws.




Replace  the  electronic  intelligent  key
battery in the following steps.





1. Pull down release switch and take out
mechanical key.
2. Open electronic key cover with a flat
screwdriver or similar tools.


-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Instruction





12





3.  Remove  the  depleted  electronic
intelligent  key  with  a  flat  screwdriver  or
similar  tools.  Insert  the  tool  into  guide
groove  and  apply  force  in  the  direction
as shown in the figure above to remove
the battery.


Note

Do  not  amend  the  battery  cover  to
avoid fault.










4.  Put  the  battery  with  positive  terminal
(+) on the top into the battery box, then
firmly install the key cover and insert the
mechanical  key  into  the  electronic
intelligent key.





Make  sure  the  poles  of  battery
are installed properly.



Do not  operate  battery  with wet
hands,

which

may

cause

rusting.



Do  not  touch  or  move  any
component  or  part  inside  the
electronic  key,  other  its  normal
function may be affected.



Pay attention to not bending the
terminals  when  inserting  the
battery. The battery box shall be
free of dust or oil taint.



Reinstall the key cover firmly.

After

battery

replacement,

check

whether  the  electronic  intelligent  key
can work normally. If it still cannot work,
please contact BYD service station.


Note



Without permission, do not alter
the

emission

frequency,

increase  the  emission  power
(including  but  not  limited  to
adding

emission

frequency

amplifiers),

equip

external

antenna  or  use  other  emission
antennas.



Use  of  the  electronic  intelligent
key  should  not  produce  any
harmful interference to any legal
wireless

communication

services;

stop

use

of

it

immediately  if  any  interference
is  found and  do not use  it until
the

interference

has

been

eliminated.



When using a micropower radio
device,  it  must  withstandby
interference  of  radio  services
and  radiation  interference  from
industrial, scientific and medical
devices.



intelligent  key  near  aircrafts  or
airports.


-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual





13

Intelligent

Access

and

Starting

System

This system has the following function:

● Wireless remote control function (See

Wireless  Remote  Control‖  in  this
Chapter for details.)

●  Access  function  and  starting  function

(see  ―Access  Function  and  Starting
Function

‖ in this Chapter)



●  Steering  lock  function  (refer  to

Steering Lock Fuction‖ in this Chapter.

●  Button  Starting  fuction  (for  details,
please see

How to Start Engine‖ in this

Chapter).















Warning

● People with heart pacemaker and

defibrillator  shall  be  kept  away
from

antenna

of

intelligent

access  and  starting  system,  as
electromagnetic wave may affect
normal use of these devices. For
information  on  position  of  the
antenna, please refer to “Antenna
Position

” in this chapter.

● Drivers with heart pacemaker and

defibrillator  and  people  using
other  medical  electronic  devices
shall inquire  manufacturer about
interference

posed

by

electromagnetic  wave  to  these
device.

Electromagnetic  wave  may  cause
unexpected

results

to

these

devices.



Access Function





Starting Function



-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..       1      2     ..
