BYD AUTO F6 OWNER’S MANUAL

Audio system
AM／FM
The  audio  system  can  receive  the  AM  and
FM  radio.  You  can  expediently  choose  the
favorite  broadcasting  station  through  the
preset bar.

Radio operation
You  can  operate  the  radio  only  when  the
ignition switch is on the ACCESSORY (Ⅰ)
or ON (Ⅱ) position. Turn the system on by
pressing the    (PWR／VOL) knob or AM／
FM button, rotate the    (PWR／VOL) knob
to adjust the volume.

The bands and frequency that was last tuned
will  be  displayed.  To  change  the  bands,
press the AM／FM button. Press the button
every time, the band will cycle from the M1
to  FM2,  FM3,  AM1,  AM2  mode.  On  the
FM  band,  ST  will  be  displayed  at  stereo
station. The ST will flash if the car is in the
area  with  weak  signal.  Stereo  radio  on  AM
is not available.

Channel selection
You  can  use  any  of  five  methods  to  find
radio  station  on  the  selected  band:  TUNE,
SEEK,  SCAN,  AUTO  SELECT  &  SAVE
(long press SCAN) and the preset bar.

TUNE—  Use  the  TUNE  bar  to  tune  the

radio to the desired frequency. Press

side of TUNE bar to tune to a higher

frequency, press

side of the TUNE

bar  to  tune  to  a  lower  frequency.  When
tuning,  the  frequency  reading  will  quickly
change.  Loose  the  bar  when  the  desired
frequency  is  displayed.  To  micro-adjusting
the frequency, press the TUNE bar.

SEEK—The  seek  function  searches  for  a
station with strong signal across a  band. To
activate it, press the

side of

the  SEEK  bar,  and  then  release  it.  The
system  will  scan  up  or  down  from  the
current  frequency  according  to  the  pressed
side.  It  will  stop  to  search  when  finding  a
station with strong signal.

SCAN—The  scan  function  give  sample
play  of  all  saved  stations  on  the  selected
band.  To  activate  it,  press  the  scan  button,
and  then  release  it.  The  SCAN  will  be
displayed. The  system  will  play  each  saved
stations  for  5  seconds.  If  you  don‘t  make
any  operation,  the  next  station  will  be
played;  when  the  station  desired  is  played,
you can press the scan button again to listen
to it.

Preset—You  can  save  frequency  of
preferred stations on theses three preset bars.
Each  end  of  bar  (1-6)  can  save  two  AM
frequencies  (AM1,  AM2),  and  three  FM
frequencies (FM1, FM2, FM3).

Save frequency in following steps：
1．Select the desired band (AM or FM).
2．Use the TUNE, SEEK or SCAN function
to tune the radio to a desired station.
3．Pick  the  preset  number  (1～6)  for  that
station. Press the left or right side of the bar
for several seconds, the station can be stored
to the related number.
4．Repeat  the  steps  1  through  3,  you  can
save  a  total  of  12  AM  stations  and  18  FM
stations.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Once the station is stored, you can press the
left or right side of preset bar to listen to it.

The frequency will be lost if the battery is
discharged or disconnected, or the radio
fuse is taken out.

AUTO

SELECT

SAVE

(Hold

SCAN)—Press  SCAN  for  2  seconds,  the
system will search the station and store it on
FM1, FM2, FM3 or AM1, AM2. To activate
it,  long  press  the  SCAN  button.  Then  the
SCAN  is  displayed  in  flashing.  The  preset
bar (1～6) can store 12 stations on AM and
18  stations  on  FM,  then  you  can  use  the
preset  bar  (1 ～ 6)  to  choose  the  preset
station.

If  you  don‘t  like  the  frequency  AUTO
SELECT & SAVE has stored, you can store
other  frequency  on  the  preset  bars.  Use  the
TUNE,  SEEK  or  SCAN  function  to  search
desired frequency and store the frequency to
preset bars as described above.

Audio adjustment

The  BAS,  TRE,  BAL  and  FAD  can  be
adjusted.
Press  AUDIO,  choose  the  desired  mode.
Press  the  AUDIO  repeatedly,  the  mode  can
change in the order of BAS to TRE to BAL
to  FAD.  When  changing  the  mode,  the
related mode name will be displayed.

Volume  balance  (L-R/F-R)  —  these  two
modes  adjust  the  strength  of  the  sound
coming  from  each  speaker.  BALANCE
adjusts  the  left  to  right  strength  while  the
FADER  adjusts  the  front  to  rear  strength.
Press  AUDIO,  to  choose  BALANCE  OR
FADER mode. Rotate the volume knob, the
BALANCE  OR  FADER  can  be  adjusted  to
desired degree. The displayed number is the
current  setting.  It  will  display‖0‖  when  the
volume reaches the center of range.

Alt/Bass—Use  these  modes  to  choose  the
desired tone. Press AUDIO, to choose TRE
or  BAS  mode.  Rotate  volume  knob  to
desired  mode.  The  displayed  number  is  the
current set.

It  will  display  the  ―0‖  when  tune  level
reaches the center of range. Several seconds
after  you  stop  to  operate  the  volume  knob,
the  system  will  automatically  return  to  and
display the chosen mode.

Electronic clock
The screen of audio system usually displays
time  when  the  ignition  switch  is  on  the
ACCESSORY or ON.

o set up time, press AUDIO (CLOCK) for

2  second,  after  hearing  reminding  sound,  it
enters  clock  adjusting  mode.  Then    hold
the  H  (preset  4)  of  the  bar  until  the  hour
number increases to the desired hour；hold
M  (presetting  5)  until  the  minute  number
increases to desired minute.
Use the R (presetting 6), of the bar to set the
time to the starting point of the nearest hour
quickly.  At  the  clock  adjusting  mode,  press
the  R.  If  the  time  is  the  former  half  hour,
press  R  to  enact  the  time  always  to  former
one hour... If the time is rear half hour, press
R  to  enact  the        time  to  the  beginning  of
next hour.
For example：
1:06 will be enacted to 1:00

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

1:30 will be enacted to 2:00
1:52 will be enacted to 2:00
Before  don‘t  set  the  time  or  battery  is
disconnected,  or  anew  charge  after  power
exhausted,  the  display  of  time  will  always
twinkle to remind to set the time.

USB/AUX input operation
The  system  can  play  music  of  MP3  format
in  U  disk  through  USB  interface  and  play
music  through  speaker-on  board,  and  the
music is from the input audio signal through
AUX interface.

When  inserting  the  connective  device  of
USB,  the  system  will  automatic  shift  into
USB  mode,  meanwhile  play  the  music  of
MP3  format  in  the  storage  device.  Like  the
CD  music,  you  can  make  the  operation
PLAY/PAUSE, and so on.
When  the  earphone  jack  and  AUX  faucet
which can connect the MP3 by data wire on
board  is  shifted  to  AUX  mode,  the  MP3
player will play music which can be heard.

Notice：

1. Suggest using the data wire on board to
connect the U disk to avoid causing possible

damage；

2.  USB  interface  don‘t  support  a  part  of
mobile hart disk whose compatibility is bad
and the capacity of U disk exceed 1GB;
3. USB interface only supports music file of
the FAT file system MP3 format;
4.  USB  interface  mayn‘t  support  the  USM
store device whose compatibility is bad.

CD disc play
To  play  the  laser  disc,  must  turn  the  laser
disc to ACCESSORY (Ⅰ) or ON (Ⅱ).

The  operation  of  laser  phonograph  is  same
with  the  radio.  To  choose  the  laser
phonograph,  press  the  CD  button.  The
screen  will  display  the  ―CD‖  &  program
number  which  is  being  played.  The  system
will play the disc until you change the mode.
Insert  the  laser  disc  into  player.  The  driver
will play the music. When finish the music,
the system will anew play it.

Notice：

The CD player only can play the normal CD
format, can‘t play record disc compressed
such as MP3 and WMA.

Don‘t use the disc which has the sticky
label.
The label possibly makes the disc locked in
the device

Don‘t  play  the  8  cm  (3  inch)  disc.  Only
allow  to  play  the  round  standard  disc.  The
abnormal  disc  may  be  locked  in  the  driver
or cause the malfunction.

To get the best effect of CD-R, only use the
advanced disc which has the label ―be used
in  sound  system‖,  when  transcribing  the
CD-R  disc,  the  transcribing  should  be
totally  close,  only  this,  the  disc  can  be
played  in  the  laser  phonograph.  The  device
can‘t play the CD-RW disc.

When  playing  the  disc,  press  AM ／ FM
button,  and  can  shift  to  radio  mode.  Press
the  CD  button  again,  and  can  return  to  CD
play  mode,  and  the  disc  will  begin  to  play
from the last position.

When  playing,  using  the    (PWR／VOL)
knob  or  closing  the  system  by  closing
ignition  switch,  the  disc  will  stay  in  driver.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Open

the

system

once

more,

the

phonograph will play from the last position.
Press the quit button, take out the disc from
the driver.

If the disc has been quit, don‘t take out the
disc  at  once,  after  10  seconds,  the  system
will  introduce  the  disc  automatically.  To
play the disc, press the CD button.

When  playing,  use  the    (SEEK ／ SKIP)
stripkey to choose the track and change the
program.  To  quickly  move  the  disc  in  the
same  program,  press  and  hold  the  (SEEK  /
SKIP). Hold the

to rapidly move and

hold the

to rapidly move back. When

getting to the desired position, you only
need loose the stripkey.

Press the

, the system will play the

next track on the disc. Press the

, the

system will replay the track in play. Press it
again, the system will play the last track.
When playing the disc, use the function
such as (REPEAT), (RANDAM PLAY)
or (SCAN) and so on.

SCAN—  when  activating  the  function,
sample all the tracks on the selected disc in
the  order  they  are  recorded.  To  activate  the
function,  press  the  (SCAN)  button,  choose
scan  mode.    The  screen  will  display  the
―SCAN‖.  The  system  will  play  the  first
track  for  10  seconds.  If  don‘t  do  any
operation,  the  system  will  continuously
sample  the  each  selected  track  for  10
seconds.  When  search  out  of  the  track  you
want to enjoy, press the SCAN button again.

REPEAT—to  activate  the  function,  press
the (RPT) button. You will see the ―RPT‖ in
the  display  to  remind  you.  The  system  will
continuously  replay  the  current  program.
Press  the  button  again  to  get  out  of  the
function.

RANDOMPLAY—

after activate the

function,  the  system  will  play  not  the
recorded  order  on  the  disc  but  the  random
order.  To  play  randomplay  function,  press
the (RDM) button. You will see the ―RDM‖
in the display.    And the system will choose
the  random  track.  Keep  the  operation  until
you  press  the  randomplay  button  again  and
quit the randomplay mode.

The maintenance of laser disc

Hold  its  edge,  and  don‘t  touch  its  up  and
down surface. Don‘t add the stable ring and
paste the  label  on  the  disc.  Don‘t  leave  the
fingerprint  and  ink  on  the  disc,  or  will  not
normally  play  the  disc  or  the  disc  will  be
locked in the driver.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

When don‘t use the laser disc, put it into
box to avoid being polluted. To prevent
distortion, should avoid the overheating and
the sun directly shining.

When cleaning the disc, use the clean
dishcloth from the center to edge.

The  inner  and  outer  edge  of  the  new  laser
disc  is  possibly  some  rough.  The  chipping
of  coarse  edge  will  flake,  if  the  chipping
drop on the recorded face of disc will cause
the  skip  or  other  malfunction.  Use  the  side
of pencil or pen rub the inner and outer edge
to remove the chipping.

Don‘t insert eyewinker into the laser
phonograph

Remote

control

audio

system

(optional)

There are three buttons to set the radio
system on the left side of steering wheel hub.
These buttons can make you operate the
radio system and your hands don‘t leave the
steering wheel.

Volume  button  ‖+‖,  ‖－‖  can  adjust  the
volume.  Hold  the  button  ‖+‖,  ‖－‖  and
loose  it  until  the  volume  get  to  the  desired
extent.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

The  (MODE)  button  can  change  the  mode.
Repeat  to  press  the  button,  the  system  will
circulate  between  the  FM1,  AM1  or  disc
playing  (if  have  had  the  disc)  or

MP3

/WMV

music playing (if the USB interface

has been connected with the U disk) or the
radio playing (if AUX interface has
connected the player).

Channel  button  ―∨‖―∧‖  has  the  same
function  with  ―SEEK/SKIP‖  strip  key.  If
you  are  listening  to  the  radio,  use  the  ―∧‖
button and can automatically search the next
strong  signal  station;  the  ―∨‖  button  can
automatically  search  the  last  strong  signal
station.

If  you  are  playing  a  record  or  contents  of
USB,  short  press  the  channel  button  ―∨‖
one  time,  and  then  the  audio  system  will
skip to the next track.
Once  short  press  the  channel  button
― ∧ ‖,the  audio  system  will  skip  to  the
current  track.  Short  press  again,  it  skips  to
the  last  track.

And you will see the disc

number and the track number in the display.

If it is playing the MP3 of USB, press
the―∧‖ to play the last track, press ―∨‖ to

play the next track.
If it is the AUX, the button has no effect.

Safety system

The  safety  system  can  protect  your  vehicle
and  valuables  from  theft.  When  someone
tries  to  enter  into  the  vehicle,  the  buzzer
will  buzz,  at  the  same  time  all  buzzers  will
twinkle together, the buzzer will buzz for 30
seconds,  and  stop  for  5  seconds,  then  buzz
again.  The  longest  time  is  5  minutes.  To
anew  set  the  warning  system  within  30
seconds,  can  use  the  remote  control  or  key
to open the side door of driver.

When  locking  all  doors,  engine  hood  and
trunk  after  15  seconds,  the  safety  system
will  automatically  set.  Need  use  the  key,
lock  bolt  lock  switch  or  remote  control  to
start  the  safety  system  from  the  outer.
Meanwhile  the  indicator  light  of  safety
system on the instrument panel will twinkle
to show the safety system is self-setting.

Indicator light of safety system

Once  set  the  safety  system,  open  any  door
(no use the remote control), engine hood or
trunk,  the  safety  system  will  send  out  the
warning.
Even  if  the  system  has  been  set,  you  can
still use the remote control to open the trunk,
and it can‘t activate the warning. If the lock
of  trunk  is  unclenched  or  opened  with  the
opening handle, the warning will sound.

When  the  engine  hood,  trunk  or  any  door
has not been closed, it will not be able to set
the  safety  system.  Before  you  leaving  the
vehicle, ensure the trunk, engine hood or all
doors have been closed tightly.
Don‘t try to change the system or add other
devices

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Cruise control system

Cruise  control  system  can  keep  the  setting
speed over 40 km/h and it isn‘t necessary to
step the acceleration pedal. When driving on
the  erect  and  unblocked  highway,  you  can
use  the  function.  Don‘t  suggest  using  the
function  on  the  sinuous  road,  wet  and
slippery  road,  and  rain  day  or  at  the
condition of other bad climate as well as in
the  downtown.  When  encountering  the
condition,  you  should  self-operate  the
vehicle.

Friendly tips

Improperly  using  the  cruise  control
system  will  be  able  to  cause  the
accident.

Only  use  the  cruise  control  system  in
the  fine  climate  and  on  the  unblocked
highway.

Start cruise control

1 ． Press the cruise control main button
(ON/OFF), the indicator light of cruise
control system will be on.

2．Lift the speed to the desired speed (over
40 km/h).

3．Press the (-/SET) button, to start the
cruise control system.

When you are going up and down a hill, the
cruise control system can‘t hold the setting

speed. When the speed increase going down
a hill. Use the brakes to slow down, this will
cancel the cruise control. If need use the
setting speed, press the (+/RES) button to
automatically accelerate to set speed.

When you are going up a steep hill,
automatic transmission will lower the gear
to keep the setting speed.

Change speed setting

Can  increase  the  setting  cruising  speed  in
any of following ways：
1．Hold  the  (+/RES)  button,  vehicle  will
continuously  accelerate,  when  reaching  the
desired speed, release the button.
2．Push the accelerator pedal, accelerate to
the desired speed, press the (-/SET) button.
3 ． To  increase  the  speed  in  very  small
amounts,  repeat  tap  the  (+/RES)  button.
Each  time  you  do  this,  the  vehicle  will
speed up about 1.6km/h.

Cruise control main

button

Cancel button

Deceleration/ set button

Acceleration/RESbutton

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

You can decrease the setting cruising speed
in any of following ways.
1．

Hold the (-/SET) button, the speed will be

decreased.  When  reaching  desired  speed,
release the button.

2．Push  the  braking  pedal  lightly,  when
reaching to the desired speed (over 40km/h),
press  the  (-/SET)  button.  The  vehicle  will
keep the desired speed.

3．To decrease the speed in a small amounts,
repeat tap the (-/SET) button. Each time you
do this. Your vehicle will speed down about
1.6 km/h.

Even if the cruise control turned on, still use
the accelerator pedal to speed up for passing.
After passing, release the accelerator pedal,
and the speed return to set cruising speed.

Resting your foot on the braking pedal will
cancel the cruise control.

Cancel cruise control

You  can  cancel  the  cruise  control  in  any  of
following ways：
1．Push the braking pedal.
2 ． Press  the  (CANCEL)  button  on  the
steering wheel.
3．Press  the  cruise  control  master  button
(ON/OFF).
4．Shift the gear to N gear.

When  press  the  (CANCEL)  button  or  push
braking  pedal  or  clutch  pedal,  the  vehicle
will  cancel  the  cruise  control  and  begin  to
speed  down.  This  time,  you  can  use  the
accelerator pedal to control speed according
to usual operation.
The  system  can  store  the  setting  cruising
speed.
To  return  to  the  speed,  firstly  speed  up  to
40km/h  and  tap  the  (+/RES)  button,  the
vehicle will speed up to set cruising speed.
Pressing  the  cruise  control  master  button
(ON/OFF) will totally close the system, and
cancel the  setting cursing speed. To use the
system  once  more,  please  refer  to  the
section of cruise control turning on.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Before driving

Before  you  begin  driving  the  vehicle,  you
should  know  what  gasoline  to  use  and  how
to check the levels of important fluids. You
also  need  to  know  how  to  properly  store
luggage  or  packages.  The  information  in
this  section  will  help  you  solve  these
problems.  If  you  plan  to  add  accessories  to
your vehicle, please read the information in
this section first.

Running in period ........................... 74
Gasoline .......................................... 74
Operation in petrol station ............... 74
Open engine hood ........................... 75
Check engine oil ............................. 76
Check engine coolant ...................... 77
Fuel saving ...................................... 78

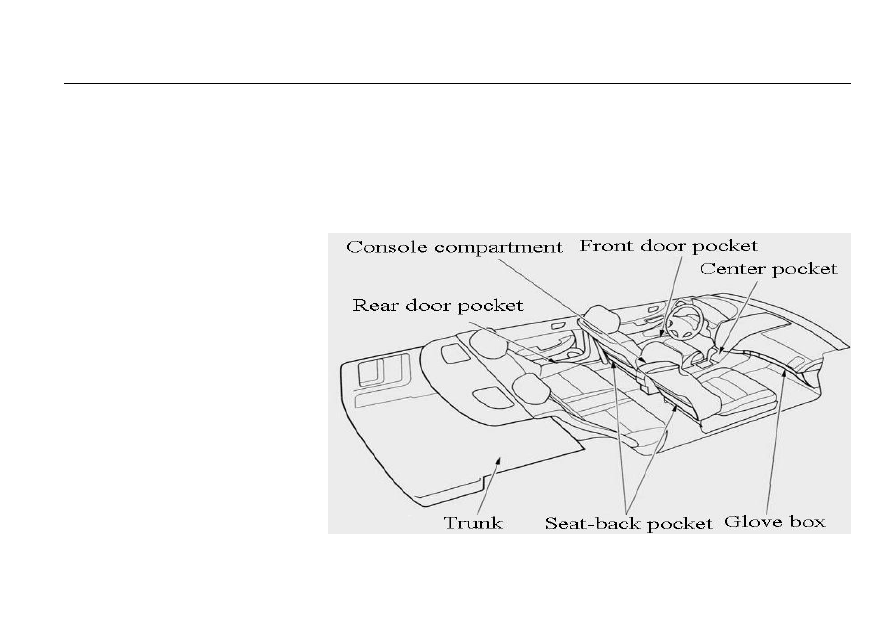

Luggage carrying ............................ 78

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Running in period

During  the  first  1,000  kilometers,  you
should  especially  notice  the  method  of
driving.  It‘s  helpful  to  ensure  the  vehicle‘s
future reliability and performance.

Notice  the  following  proceedings  during
this period:
1.  Avoid  full-throttle  starts  and  rapid
acceleration.
2. Avoid hard braking. New braking system
need running-in through properly use in the
first 300 kilometers.
3.  Do  not  change  the  oil  until  the  schedule
maintenance time or the driving mileage.
You

should

also

these

recommendations  with  an  overhauled  or
exchanged  engine,  or  when  the  brakes  are
replaced.

Gasoline

Suggest using 93# or higher unleaded
gasoline.

Using leaded gasoline will damage emission
control device of vehicle and engine. At the
same time it will also prick up air pollution.

Operation in petrol station

Fuel tank filling

1. Because the fuel cap is located on the left
side of car, please park with the left side
closest to the gas pump.
2. To open the fuel cap, push down on the
lever located to the left of the driver‘s seat.

Gasoline is highly flammable and explosive.
When  handling  fuel,  notice  the  following
proceedings:
1)  Stop  the  engine,  keep  heat,  sparks  and
flames away;

2) Suggest handling fuel only outdoors;

3) Wipe up spills immediately.

3. Remove the fuel fill cap slowly. You may
hear  a  hissing  sound  as  pressure  inside  the
tank escapes.

Friendly tips

When

handling

fuel,

notice

the

following proceedings:
1)Stop the engine, keep heat, sparks and
flames away;
2) Suggest to handle fuel only outdoors;
3) Wipe up spills immediately.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

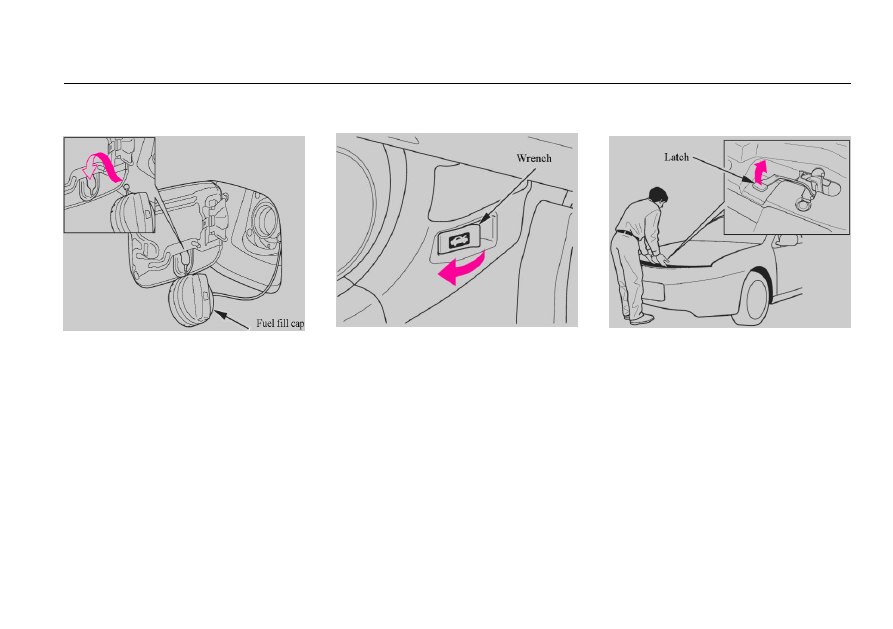

To  avoid  losing  the  fuel  fill  cap  carelessly,
the fuel fill cap is attached to the  fuel filler
with  a  tether.  When  handling  fuel,  put  the
fuel fill cap on the bracket of fuel fill door.

4．Stop filling fuel to the tank after the fuel
nozzle automatically clicks off. Don‘t try to
―top off‖ the tank. Leave some room for
fuel to expand with temperature changes.

5．Screw the fuel cap back on until it clicks
at least twice.
6．Push the fuel cap closed until it latches.

Open engine hood

1.  Shift  to  Park  or  Neutral,  and  set  the
parking  brake.  Pull the  hood  release  handle
located  under  the  lower  left  corner  of  the
dashboard. The hood will pop up slightly.

2.  Stand  in  front  of  the  vehicle.  Put  your
fingers  under  the  front  edge  of  the  hood
near  the  center.  Slide  your  hand  to  the  left
until  you  feel  the  hood  latch  handle.  Push
this handle up to release it. Lift up the hood.

3．Lift  the  hood  up  most  of  the  way.  The
hydraulic  supports  will  lift  it  up  the  rest  of
the way and hold it up.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

When  closing  the  hood,  lower  the  hood  to
about  30cm  above  the  fender,  and  then
firmly  press  down  on  the  front  edge  of  the
hood.  After  closing  the  hood,  you  should
inspect  the  latch  whether  it  is  securely
latched.

If you can open the hood without lifting the
latch, or the hood latch handle moves stiffly
or do not return back, the mechanism should
be cleaned and lubricated (Please refer to
115

page ).

Check engine oil

Engine oil is the consumable which can
ensure the engine in normal working.
Therefore, the oil level should be checked
regularly, for example when handling fuel.
You should also check the engine oil before
every long-distance travel.

Engine oil consumption depends on driving
status, weather condition and road condition.
Engine oil consumption can reach
max.1.0L/1,000km. Engine oil consumption
of new engine may be higher.

Ensure the engine preheating and park on
the level ground. Wait three minutes after
turning the engine off, and then check the
oil level.

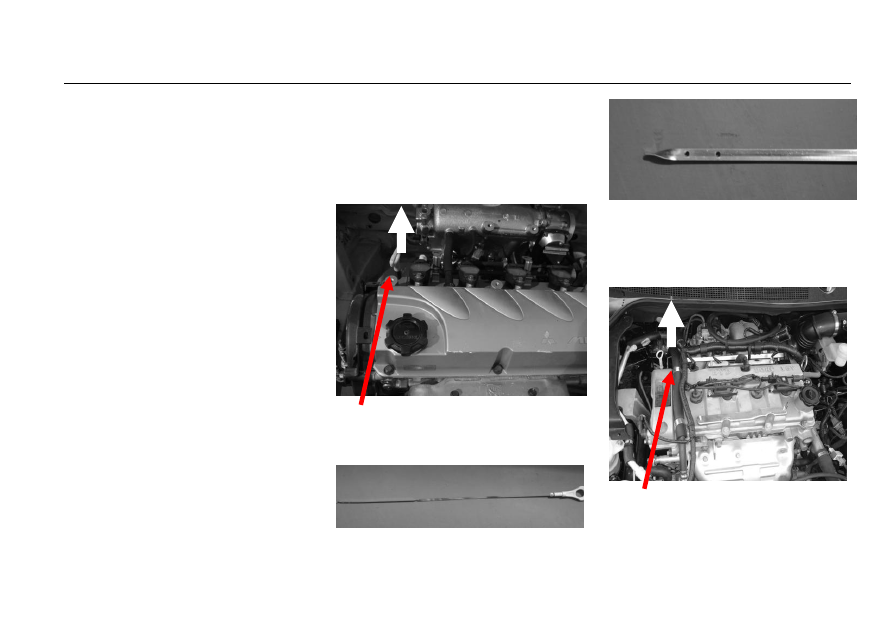

1． Pull out the dipstick.

Mitsubishi 4G69S4M Engine dipstick
(White ring)

Mitsubishi 4G69S4M Engine dipstick has
two holes at the upper and lower marks. The
oil level should locate between two holes.

BYD483QB Engine dipstick (Yellow ring)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

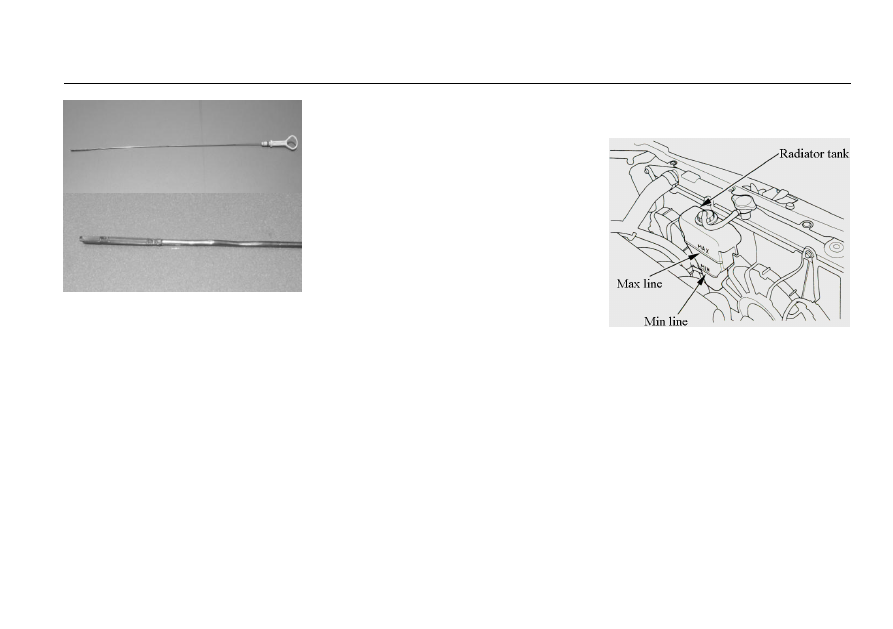

BYD483QB  the  upper  and  lower  marks  of
dipstick  are  two  convex  lines,  and  mark
―F‖‖L‖. The oil level should locate between
the upper and lower.

2．Wipe the dipstick with a clean cloth or
paper towel.

3．Insert it all the way back in its hole

4．Remove the dipstick again, and check the
level. It should be between the upper and
lower marks.

If it is near or below the lower mark, refer
to 103

page on adding oil.

Check engine coolant

Check  the  coolant  level  in  the  radiator
reserve  tank.  Make  sure  it  is  between  the
Max  and  Min  lines  refer  to  108th  page  on
Adding  Engine  Coolant  for  information  on
adding the proper coolant.

Refer  to  Owner‘s  Maintenance  and  check
on  96th  page  for  information  about
checking other items on your vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Fuel saving

Driving custom
Moderate  driving  is  helpful  to  save  fuel.
Rapid  acceleration,  abrupt  cornering  and
hard braking use more fuel.

Always drive in the highest gear possible, it
can  make  the  engine  run  and  accelerate
more stably.

According to the traffic status, try to keep a
constant  speed.  Every  time  you  slow  down
and  speed  up,  you  vehicle  uses  extra  fuel.
Using  cruise  control  (limit  to  some  vehicle
type)  can  save  more  fuel  under  appropriate
driving condition.

Cool engine uses more fuel than hot engine,
but it is not necessary to make it run in idle
speed  for  a  long  time  to  preheating.  NO
matter how cold outdoor, you can drive the
vehicle away after one minute that you start
the  engine.  In  this  way,  engine  will  rise
temperature  more  quickly,  and  save  more
fuel. To reduce times of ―cool starting‖, you
should  arrange  short  mileage  driving
together.

The  air  condition  puts  an  extra  loading  on
the  engine  which  makes  it  use  more  fuel.
Close  the  air  condition  to  reduce  fuel
consumption.  Use  the  fresh-air  ventilation
when  air  temperature  out  of  vehicle  is
proper.

Luggage carrying

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

This vehicle has several convenient storage
areas, it makes you carry the luggage safely.

Glove box, door pockets, seat-back pockets
is designed for storing small and light cargo,
and trunk is used to carry big and heavy
cargo.

In addition, trunk channel port makes you
carry long cargo in vehicle.

However,  carrying  too  much  cargo  or
improperly  storing,  it  can  affect  your
vehicle‘s  handling,  stability  and  normal
running,  and  reduce  vehicle‘s  safety.  So
before carrying any type of cargo is sure to
read the following pages.

Load limit
When  loading  luggage,  the  total  weight  of
vehicle,  all  occupants  and  luggage  don‘t
permit  to  exceed  the  Gross  Vehicle  Weight
Rating.  Refer  to  170

page on maximum

Friendly tips

Overloading  or  improper  loading  can
affect  vehicle‘s  handling  and  stability,
and  cause  a  crash  in  which  you  can  be
hurt or killed.
Follow  all  loading  limits  and  other
loading guide lines in this instruction.

Carrying

cargo

the

passenger

compartment:
1.  Store  or  secure  all  items  that  could  be
thrown  around  and  hurt  someone  during  a
crash.
2.  Don‘t  put  any  items  on  top  of  the  rear
shelf.  Otherwise,  they  can  block  you  view
and  be  thrown  around  the  vehicle  during  a
crash.
3. Be sure items placed on the floor behind
the  front  seats  can  not  roll  under  the  seats
and  interfere  with  the  driver‘s  ability  to
operate the pedals or the seat.
Don‘t  push  the  cargo  over  the  front
seat-back.
4. Keep the glove box closed while driving.
If  it  is  open,  it  maybe  hurt  the  passenger‘s
knees in a crash or a sudden stop.
Carrying cargo in the trunk or on a roof rack

1. Distribute cargo evenly on the floor of the
trunk, place the heaviest items on the
bottom and as far forward as possible.

2. Tie down items with rope or chain, make
them  not  to  move  while  driving.  Do  not
make  the  cumulate  items  higher  than  the
front seat-back.

3.  If you  carry large  items  that prevent you
from  closing  the  trunk  lid,  exhaust  gas  can
enter  the  passenger  area.  To  avoid  the
possibility  of  carbon  monoxide  poisoning,
follow the instruction on 19

page.

4.  If  you  carry  the  items  on  a  roof  rack,  be
sure  the  total  weight  of  the  luggage  and
items does not exceed the maximum loading.
Please  connect  with  BYD  authorized
service station to get more detailed data.

Please  connect  with  BYD  authorized
service  station  about  all  the  things  of
packing  items  and  fixing  device  for  sale  in
the market.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Driving

This  section  gives  you  tips  on  starting  the
engine under various conditions, and how to
operate  the  instruction  transmission  and  the
automatic  transmission.  It  also  includes
important  information  on  parking  your
vehicle,  the  braking  system  and  the
vehicle‘s ABS.

Driving preparation ......................... 81
Start engine ..................................... 81
Start in high altitude (>2400m) cold
weather ............................................ 82
Instruction transmission ....................... 82
Max. permissible speed ................... 83
Automatic transmission................... 83
Shift lever position indicator ........... 83
Position of shift lever ...................... 84
Parking notice ................................. 85
CVT Transmission .......................... 85
Brake system ................................... 88
Brake system design ....................... 88
ABS ................................................. 89
ABS indicator .................................. 90

Driving in atrocious weather ........... 90
Trailer .............................................. 91

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD F6. Service Instruction - part 5
