In  any  of  the  above  circumstances,  the
airbags  and  seat  belt  tensioners  may  not
work  properly  when  they  are  needed.  You
shall  ask  for  help  from  the  BYD  AUTO
dealer as soon as possible.

Friendly tips

Ignoring the SRS indicator can result in
serious  injury  or  death  if  the  airbag
systems  or  tensioners  do  not  work
properly.

Have  your  vehicle  checked  by  a  BYD
AUTO dealer as soon as possible if the
SRS  indicator  alerts  you  to  a  possible
problem.

Airbag Maintenance
Your  airbag  systems  including  front  airbag
and  side  airbag  (optional)  are  virtually
maintenance free, and there are no parts you
can safely service. However, you must have
your vehicle serviced if:

1.  An  airbag  ever  inflates.  Any  airbag  that
has  deployed  must  be  replaced  along  with
the control unit, seat belt tensioner and other

related  parts.  Do  not  try  to  remove  or
replace any airbag by yourself. This must be
done by BYD AUTO dealer.

2. The SRS indicator alerts you to a problem.
Take your vehicle to an authorized dealer as
soon  as  possible.  If  you  ignore  this
indication,  your  airbags  may  not  operate
properly.

Only  trained  personnel  can  do  it.  Prohibit
removing  airbag  modules  and  seat  belts
tensioner  from  the  vehicle.  If  the  failure  of
engine  flameout  occurred  or  air  bags
inflated  or  seat  belt  tensioner  worked,  you
shall  go  to  a  BYD  AUTO  dealer  for
repairing or troubleshooting.

Supplementary safety notice
1. Do not attempt to deactivate your airbags.
Together, airbags  and  seat  belts provide  the
best protection.
2. Do not tamper with airbag components or
wiring  for  any  reason.  Tampering  could
cause  the  airbags  and  seat  belt  to  deploy,
possibly causing very serious injury.
For Cars with Side Airbags
1.  Do  not  expose  the  front  passenger‘s
seat-back  to  liquid.  If  water  or  spraying

liquid soaks into the seatback, it can prevent
the  side  airbag  system  from  working
properly.

2.  Do  not  cover  or  replace  front  seatback
covers  without  consulting  your  dealer.
Improperly  replacing  or  covering  front
seat-back  covers  can  prevent  your  side
airbags from inflating during a side impact.

For more information and notice on airbags

please refer to page 7.

Avoiding Toxic of Carbon Monoxide
Your  vehicle‘s  exhaust  contains  carbon
monoxide gas. You should have no problem
with  carbon  monoxide  entering  the  vehicle
in  normal  driving  if  you  maintain  your
vehicle properly.

Have the exhaust system inspected for leaks
whenever:
1． The vehicle is lifted for lubricant
change.
2．You notice a change in the sound of the
exhaust.
3．The vehicle was in an accident that may
have damaged its underside.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Friendly tips

Carbon monoxide gas is toxic. Breathing
it  can  cause  unconsciousness  and  even
death.
Avoid  any  enclosed  conditions  or
activities  that  expose  you  to  carbon
monoxide.
High  levels  of  carbon  monoxide  can
concentrate  rapidly  in  enclosed  areas,
such  as  a  garage.  Do  not  run  the  engine
with  the  garage  door  closed.  Even  with
the  door  open,  run  the  engine  only  long
enough  to  move  the  vehicle  out  of  the
garage.

With  the  trunk  open,  airflow  can  pull
exhaust  gas  into  your  vehicle  interior  and
create  a  hazardous  condition.  If  you  must
drive  with  the  trunk  open,  open  all  the
windows and set the climate control system
as shown below.

If  you  must  sit  in  your  parked  vehicle  with
the  engine  running,  even  in  an  unconfined
area,  adjust  the  climate  control  system  as
follows:

1．Please choose Fresh Air mode。

2．Please choose

mode.

3．Turn the fan on High Speed.

4 ． Set the temperature control to a
comfortable setting.

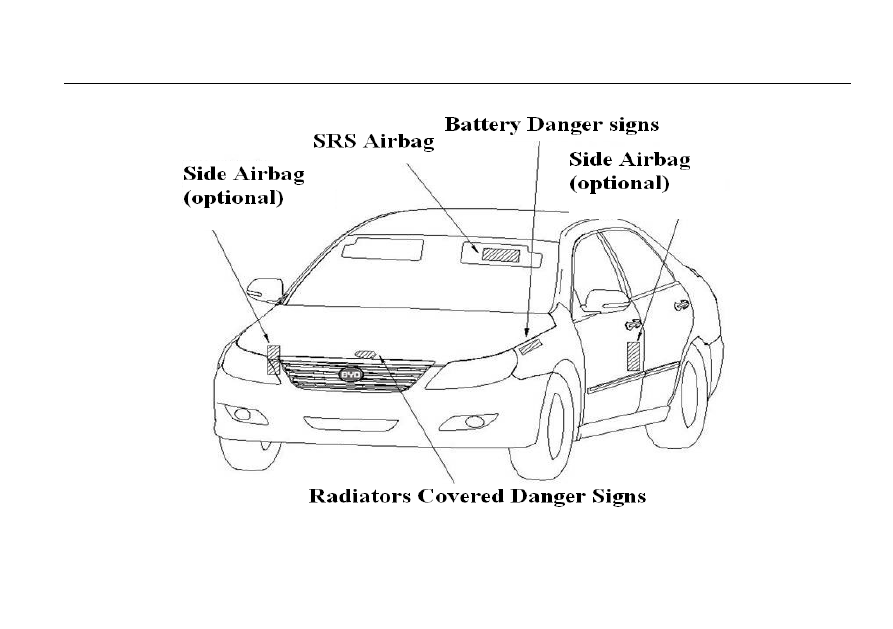

Safety label

These  labels  are  in  the  locations  shown  in
the right figure. They warn you of potential
hazards  that  could  cause  serious  injury.
Read  these  labels  carefully.  If  a  label  falls
off  or  becomes  hard  to  read,  contact  your
dealer for a replacement

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Instruments and Controls

This  chapter  gives  information  about  the
controls  and  displays  used  in  the  daily
operation  of  your  vehicle.  All  the  essential
controls are within easy reach.

Position of control switches .............................................. 21
Indicators .......................................................................... 22
Speedometer ...................................................................... 26
Tachometer ........................................................................ 26
Odometer .......................................................................... 26
Hodometer......................................................................... 27
Coolant temperature gauge ............................................... 27
Fuel level gauge ................................................................ 27
Control buttons around steering
wheel ................................................................................. 28
Headlight ........................................................................... 29
Sunlight illumination sensor ............................................. 30
Front/rear fog lamp ........................................................... 31
Turning signal ................................................................... 31
Combination instrument illumination ............................... 32
Windshield wiper .............................................................. 32

Danger Warning ................................................................ 33
Rear windshield defroster ................................................. 34
Steering wheel adjustment ................................................ 34
Adjustment: ....................................................................... 34
Key .................................................................................... 35
Remote control .................................................................. 35
Ignition switch ................................................................... 35
Childproof Lock ................................................................ 39
Trunk ................................................................................. 40
Glove box .......................................................................... 40
Seat Adjustment ................................................................ 40
Instruction Adjustment of Driver Seat
Height ................................................................................ 41
Power Adjustment of Driver Seat
(optional) ......................................... 41
Driver Waist Support (optional) ........................................ 43
Head rest ........................................................................... 44
Rear seat armrest ............................................................... 44
Seat Heating Device (optional) ......................................... 45
Power window ................................................................... 45

Power Sunroof (optional) .................................. 46
Backing Radar (optional) .................................. 47
Interior Power Rearview

Mirror ................................................................ 48
Parking brake .................................................... 51
Front Seat Armrest ............................................ 51
Sunglass box ...................................................... 52
CD Box .............................................................. 52
Central Storage Box .......................................... 52
Accessory Power Socket ................................... 53
Cup Holder ........................................................ 53
Bill Box ............................................................. 54
Sun Visor ........................................................... 54
Vanity Mirror(opotinal) ..................................... 55
Cigarette Lighter ............................................... 55
Front Ashtray ..................................................... 55
Door light .......................................................... 57
Interior Air Control System ............................... 57
Central Air Outlet .............................................. 58
Audio system (optional) .................................... 64
Audio adjustment .............................................. 66
Safety system .................................................... 70
Cruise control system ........................................ 71

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

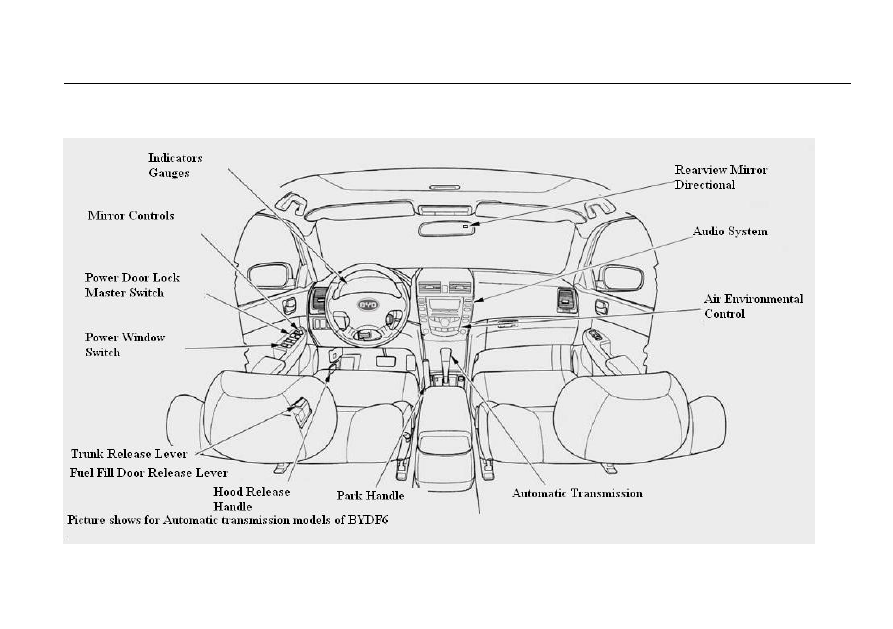

Position of control switches

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Indicators

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

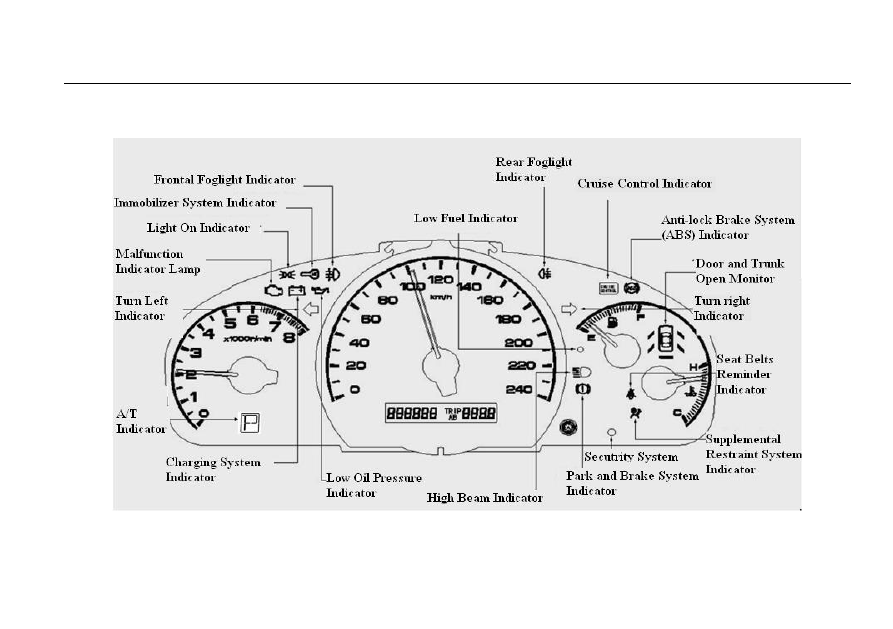

The instrument panel has many indicators to
give you important information about your
vehicle.

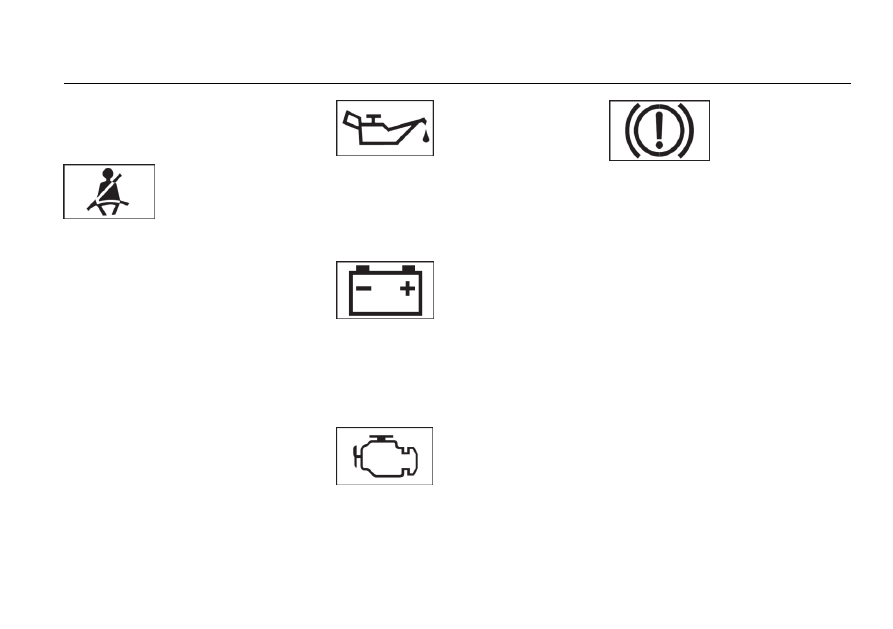

Seat Belt Reminder Indicator

When turning the ignition switch to the ON
(II)  position,  it  reminds  you  and  your
passengers  to  fasten  your  seat  belts.  A
buzzer also sounds if you have not fastened
your seat belt.

If you turn the ignition switch to the ON (II)
position  before  fastening your  seat  belt,  the
buzzer  sounds  and  the  indicator  flashes.  If
you  do  not  fasten  your  seat  belt  before  the
buzzer stops, the indicator stops flashing but
remains on.

If  you  continue  driving  without  fastening
your  seat  belt,  the  buzzer  sounds  and  the
indicator flashes at regular intervals.

Low Oil Pressure Indicator

The engine can be severely damaged if this
indicator flashes or stays on when the
engine is running. For more information,
refer to

182

page.

Charging System Indicator

If this indicator comes on when the engine
is running, the battery is not being charged.
For more information, refer to

183

page.

Malfunction Indicator Lamp
Refer to153

page.

Parking Brake and Brake System
Indicator
This indicator has two functions:

1.  It  comes  on  when  you  turn  the  ignition
switch  to  the  ON  (II)  position.  It  is  a
reminder  to  check  the  parking  brake.  A
buzzer  sounds  if  you  try  to  drive  with  the
parking  brake  not  fully  released.  Driving
with  the  parking  brake  being  not  fully
released can damage the brakes and tires.

2. If it remains on after you fully release the
parking  brake  while  the  engine  is  running,
or if  it comes on while driving, there could
be  a  problem  with  the  brake  system.  For
more information, refer to

185

page.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

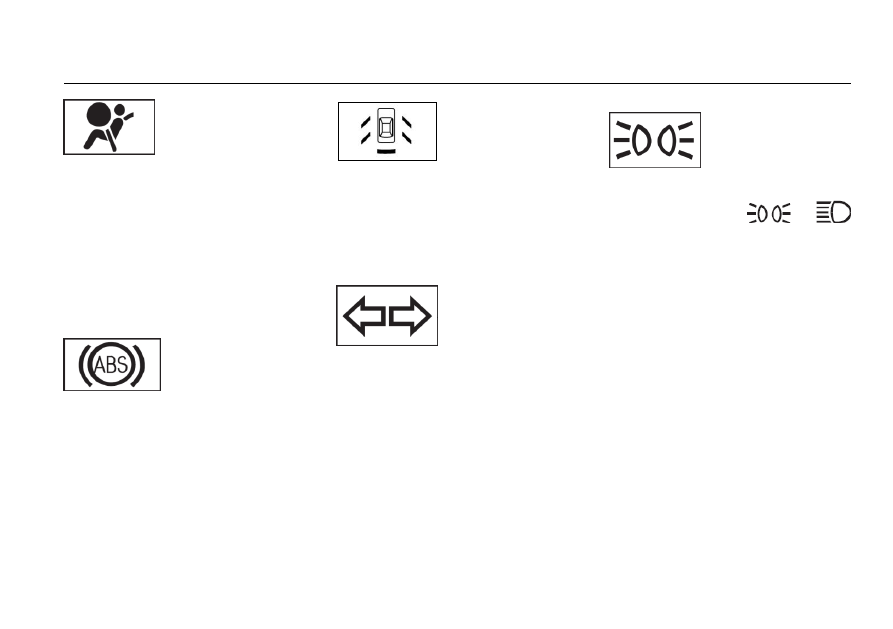

Supplemental  Restraint  System  (SRS)
Indicator
This  indicator  comes  on  briefly  when  you
turn  the  ignition  switch  to  the  ON  (II)
position. If it comes on at any other time, it
indicates  a  potential  problem  with  your
front  airbags  or  automatic  seat  belt
tensioners. This indicator will also alert you
to  a  potential  problem  with  your  side
airbags.  For  more  information,  refer  to

page.

Anti-lock Brake System

(ABS) Indicator
This indicator normally comes on for a few
seconds  when  you  turn  the  ignition  switch
to the ON (II) position. If it comes on at any
other time, there is a problem with the ABS.
If  this  happens,  have  your  vehicle  checked
at  a  dealer.  With  this  on,  your  vehicle  still
has  normal  braking  ability  but  no  anti-lock
brakes.  For  more  information,  refer  to  92

page.

Door and Trunk Open Monitor
If the trunk or any door is not tightly closed,
the  monitor  reminds  you  to  close  the  open
trunk or door(s) before you start driving.
All  the  indicators  in  the  monitor  come  on
for  a  few  seconds  when  you  turn  the
ignition switch to the ON (II) position.

Turn Signal and Hazard

Warning Indicators
The left or right turn signal indicator blinks
when you signal a lane change or turn. If the
indicators do not blink, or if they blink
rapidly, it usually means one of the turn
signal bulbs is burned out (refer to 27

page

and 133

page). Replace the bulb as soon as

possible, since other drivers cannot see that
you are signaling.
When  you  press  down  the  hazard  warning
button, both turn signal indicators blink and
all  turn  signals  lights  on  the  outside  of  the
vehicle flash at the same time.

Light-on Indicator

This indicator reminds you that the exterior
lights are on. It comes on when the light

switch is in either the

position.  If  you  turn  the  ignition  switch  to
the ACCESSORY (I) or LOCK (0) position
without  turning  off  the  light  switch,  this
indicator  will  stay  on.  A  reminder  chime
also sounds when you open driver‘s door.

The  vehicle  is  on  the  alarm  state  after
removing  the  key  from  ignition  switch,
automatic  lighting  off  feature  will  turn  off
the  front  headlight,  front  lamp,  then  the
light-on indicator will also turn off.
If  you  remove  the  key  from  the  ignition
switch with the headlight switch on, but not
open  the  door  and  get  out,  the  lights  will
turn  off  after  several  minutes.  The  lights
will turn on again when you unlock or open
the driver‘s door; if you unlock the door, but
do not open it, the lights will go off.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

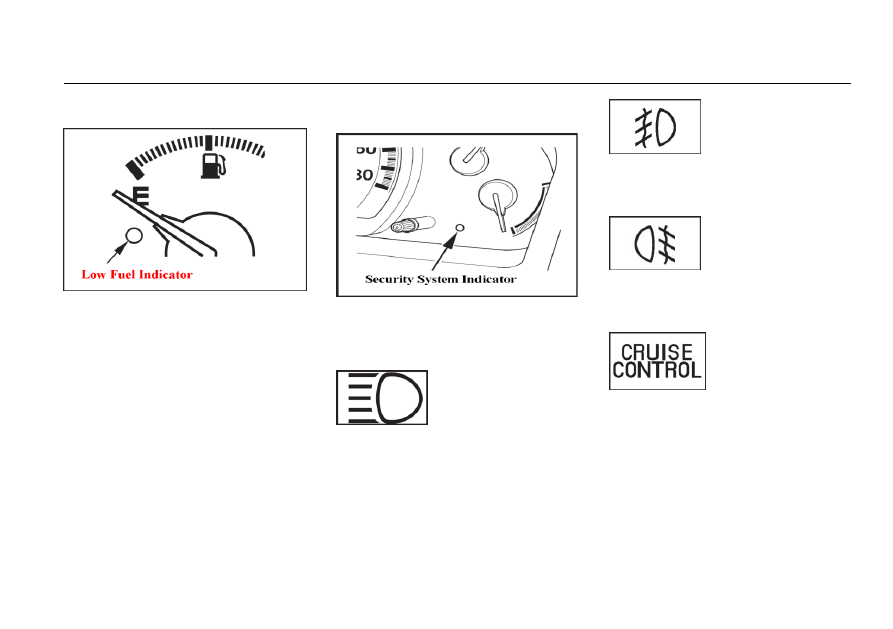

Low Fuel Indicator

This indicator is located on fuel gauge.
This indicator comes on as a reminder that
you must refuel soon for the fuel is less than
8 liters in the tank.

Security System Indicator

This indicator comes on when security
system is set. Refer to 81

page for more

information on the security system.

High Beam Indicator

This indicator comes on when you turn on
the high beam headlights. For more
information about head lights control device,
(refer to 23

page).

Front Fog lamp Indicator

This indicator comes on with the front Fog
lamp. Refer to 23

page on operating the

front Fog lamp.

Rear Fog lamp Indicator

This indicator comes on with the rear fog
lamp. Refer to

page for more

information on operating rear fog lamp.

Cruise Control Main

Indicator (optional)
This indicator comes on when you turn on
the cruise control main button (refer to 74

page).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

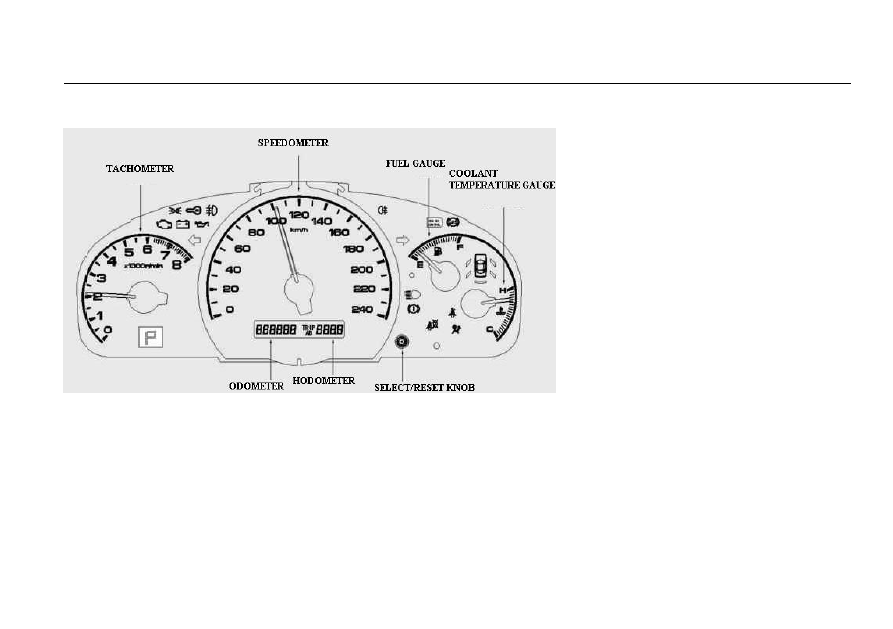

Combination instrument

Speedometer

The speedometer shows the vehicle speed in kilometer per hour (km/h).

Tachometer

The tachometer shows the engine speed in rpm.To prevent damage to the engine; do not drive when tachometer finger is on the red area.

Odometer

The odometer shows the total distance your vehicle has run.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Hodometer

This meter shows the number of kilometers
driven since you last reset it.

There are two  hodometers:  Trip A and  Trip
B.  Switch  between  these  displays  by
pressing  the  Select/Reset  knob  repeatedly.
Each  hodometer  works  independently,  so
you  can  keep  track  of  two  different
distances.

When  you  turn  the  ignition  switch  to  the
ON  (II)  position,  what  you  last  selected  is
displayed.

To  reset  a  trip  meter,  display  it,  and  then
press  and  hold  the  Select/Reset  knob  until
the number resets to ―0.0‘‘.

Coolant temperature gauge

This  shows  the  temperature  of  the  engine‘s
coolant.  During  normal  operation,  the
reading should be in the middle of the gauge.
In  severe  driving  conditions,  such  as  very
hot  weather  or  a  long  period  of  uphill
driving,  the  reading  may reach  near  the  red
mark. If it reaches the red (Hot) mark, park
safely to the side of the road. Refer to 108

page for instructions and precautions on
checking the engine‘s cooling system.

Fuel level gauge

This  shows  how  much  fuel  you  have.  It  is
most  accurate  when  driving  on  flat  road;  it
may  show  slightly  more  or  less  than  the
actual  amount  when  driving  on  winding
road or rugged road.

The  needle  returns  to  the  bottom  after  you
turn  off  the  ignition.  The  needle  show  the
fuel  reading  when  you  turn  the  ignition
switch to ON (Ⅱ)

Friendly tips

Avoid  driving  with  an  extremely  low
fuel  level.  Running  out  of  fuel  could
cause  the  engine  to  misfire,  damaging
the catalytic converter.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Information Display Screen

(optional)

Driver side temperature information
It is used for displaying the set

temperature (℃) in the position of driver.
2.

DVD/FM information
Display related information about

DVD and radio
3.

Clock information

Passenger side/outside termperature
information
Display the passenger side/outside

temperature (℃)

Control

buttons

around

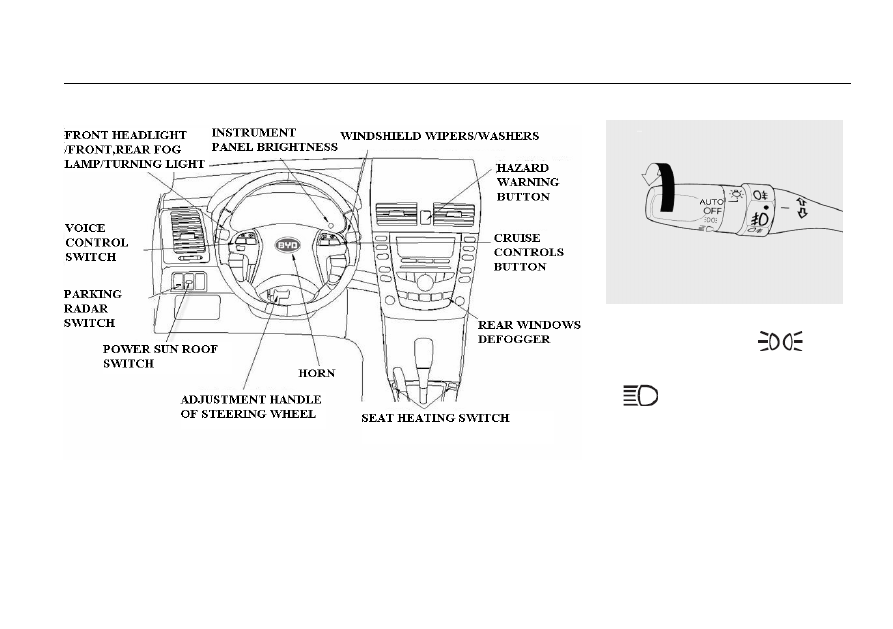

steering wheel

Two  operating  lever  on  the  steering  wheel
include  most  commonly  used  control
buttons. The left operating lever controls the
turning  signal  lights,  front  headlights  and
fog  lamps;  the  right  operating  lever  control
windshield wipers and washers.

The control buttons of the moonroof and the
parking radar are under the left vents.

You  can  use  the  lever  under  the  steering
column  to  adjust  the  steering  wheel‘s
gradient and flex rate.

1. If you want to use the horn, press the pad
around the ―BYD‖ logo.

2. Available on certain vehicle types.

1. Driver side
Temperature
Information

2. DVD/FM Information

3. Clock Information

4. Passenger

side/outside

Temperature

Information

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Headlight

Rotary switch on operating lever control the

lights. Turn the switch to

position

to turn on the parking lights, rear license
plate lights and the indicator. Turn this switch

position to turn on the headlight.

Turn the switch to AUTO position, headlight
will turn on or off automatically according to
the  ambient  illumination  intensity  from  the
sunlight illumination sensor.
When  the  light  switch  is  in  either  of  these
positions,  the  indicator  is  on  as  a  reminder.
(Refer to 27

page).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

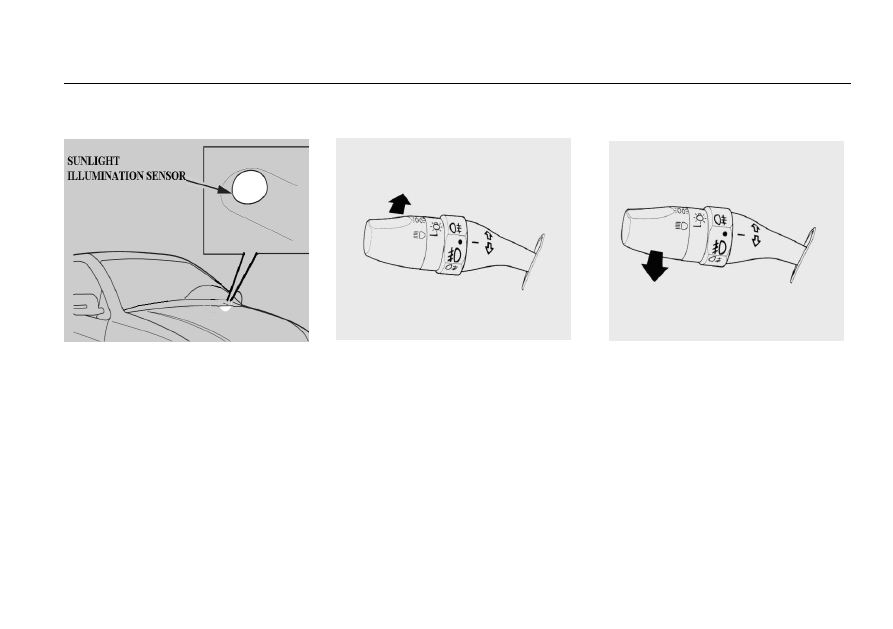

Sunlight illumination sensor

Sunlight  illumination  sensor  is  located  on
the  top  of  instrument  panel  and  beside  left
front  treble  loudspeaker.  Do  not  cover  the
sensor or spatter any liquid.
If  you  remove  the  key  from  the  ignition
switch with lights turned on, you will hear a
reminder  chime  for  turning  off  the  lights
when you open the driver‘s door.

To switch dipped lights to high beams, push
the lever forward until you hear a click. The
high beam indicator will be on
To switch back to dipped lights, pull the
lever back.

To  flash  the  high  beams,  pull  the  lever
slightly  back,  and  then  release  it.  The  high
beams will turn on then go out.

The  high  beams  will  always  remains  on  if
you  pull  the  turning  signal  rod  and  do  not
release it, no matter which position the front
headlight switch is in.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

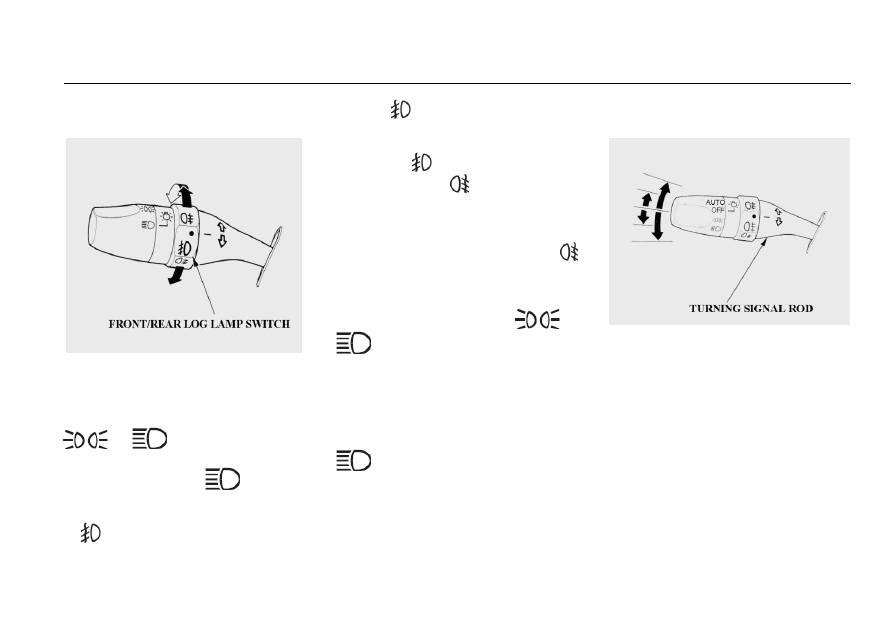

Front/rear fog lamp

Front/rear  fog  lamp  switch  is  at  the  side  of
lights control switch, you can turn the front
fog  lamp  on  by  using  this  switch  when  the
lights  control  switch  is  in  the  either

position. You also turn

the rear fog lamp on using this switch when

the lights switch is in the

position or

the fog lamp has been on.
Revolving the switch upward from OFF (·

)

to turn the front fog lamp, then the

indicator

is on for reminding. To turn

on or off the rear fog lamp with the front
lamp lighting, turn upward the switch one

frame from

position and release it.

Then the indicator

on the instrument

panel is on or off for a warning.

If only turn the rear fog lamp on, turn the

switch downward from OFF (·

) to

position and release it.

The front fog lamp will comes on when you

turn the lights control switch to

position. To turn off the fog lamp

completely, turn the fog lamp switch
downward to OFF (·

) position.

  If  you  want  to  turn  the  rear  fog  lamp  on
again,  you  should  turn  the  fog  lamp  switch
when  the  lights  control  switch  is  on  the

position.

The front/rear fog lamp will come off when
you turn the light control to OFF position to
close the headlights.

Turning signal

Using  this  operation  rod  can  send  turning
signal or lane change signal. Push down on
the  left  lever  to  signal  a  left  turn  and  up  to
signal a right turn. If you push the rod to the
top or the bottom, even you loose hands, the
turning  signal  lights  will  continuous  flash,
and  it  will  come  off  with  a  turning
completed.

To signal a lane change, push lightly on the
lever in the proper direction and hold it. The
lever will return to center when you release
it or complete a turn.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD AUTO F6 OWNER’S MANUAL

Combination

instrument

illumination

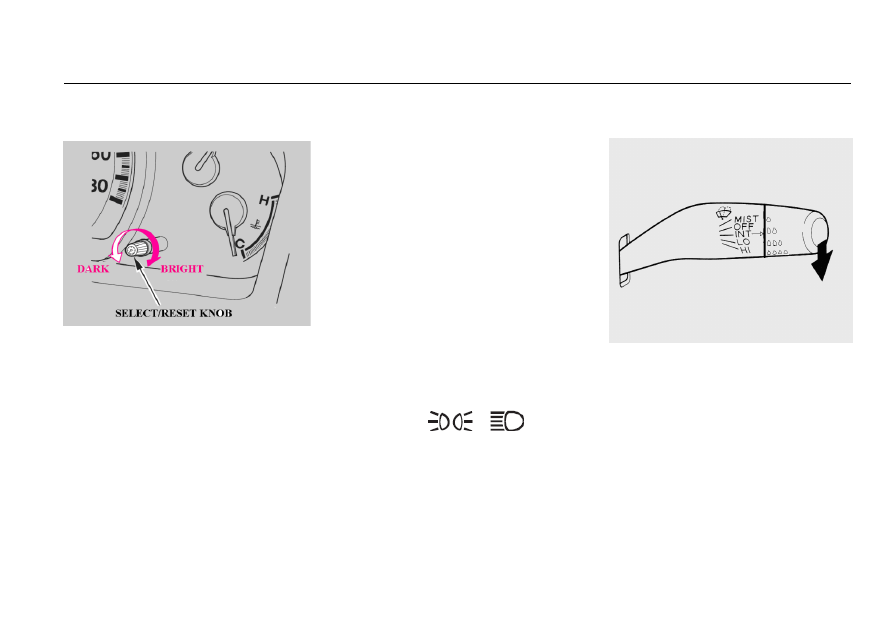

The  Select/Reset  knob  on  the  instrument
panel  controls  the  brightness  of  the
instrument  panel  lights  and  the  operation
buttons  of  central  control  board.  Turn  the
knob

adjust

the

brightness.

Counterclockwise

rotation

decreases

brightness  and  clockwise  rotation  increases
brightness,  the  brightness  is  the  most  dark
or bright when you hear a click. This button
can  rotate  illimitably,  to  protect  the  button,
please stop rotating when you hear a click

The  instrument  panel  will  illuminate  with
dim  brightness  when  you  open  the  driver‘s
door.  The  brightness  will  increase  slightly
when  you  insert  the  key  in  the  ignition
switch,  then  go  to  normal  brightness  when
you  turn  the  ignition  switch  to  the  ON  (II)
position.

If  you  do  not  insert  the  key  in  the  ignition
switch  after  opening  the  driver‘s  door,  the
illumination  will  be  off  scores  of

seconds

after you close the door.

If  you  insert  the  key  but  do  not  turn  the
ignition  switch  to  the  ON  (II)  position,  the
illumination  will  be  off  after  several
seconds.

To  reduce  glare  at  night,  the  instrument
panel  illumination  dims  when  you  turn  the

light switch to

. Turning

the Select/Reset knob fully to the right until
you hear a click will cancel the reduced
brightness setting.

Windshield wiper

This  control  lever  controls  the  windshield
wiper and washers. It has 5 shifts:
MIST：MIST
OFF：Stop
INT(AUTO)：Intermittent
LO：Low speed
HI：High speed

Push the right lever up or down to select a
position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Content .. 1 2 3 ..
