Touch the button to direct airflow
to the instrument panel air vents.

Touch the button to direct airflow
to the footwell air vents.

You can direct air through any combination
of these air vents.

Setting the Blower Motor Speed

Touch up or down to increase or
decrease the volume of air that
circulates in your vehicle.

Setting the Temperature

Touch up or down on the left-hand
temperature control to set the left-hand
temperature.

Note: This control also adjusts the right-hand
side temperature when you switch off dual
zone mode.

Touch up or down on the right-hand
temperature control to set the right-hand
temperature.

Switching Auto Mode On and Off

Touch the button to switch on
automatic operation, then set the
temperature.

The system adjusts the blower motor speed,
air distribution, air conditioning operation,
and outside or recirculated air to reach and
maintain the temperature you have set.

Switching the Air Conditioning On and
Off

A pop-up appears on the screen
to display the air conditioning
options.

MAX A/C:  Touch the button to activate and
maximize cooling. The driver and passenger
temperatures are set to LO, recirculated air
flows through the instrument panel vents, air
conditioning automatically turns on and the
fan automatically adjusts to the highest
speed.

A/C: Touch to switch the air conditioning on
or off. Use A/C with recirculated air to
improve cooling performance and efficiency.

Note: In certain conditions, such as
maximum defrost, the air conditioning
compressor may continue to operate even
though you switch off the air conditioning.

Switching the Climate Control On and
Off

Touch the button.

Switching the Climate Controlled Seats
On and Off

E265282

Touch the button to cycle through
the various climate controlled seat
settings and off.

Switching Dual Zone Mode On and Off

E265280

Touch the button to switch on
temperature control for the
right-hand side of the vehicle.

473

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

Switching the Heated Exterior Mirrors
On and Off

E266189

Touch the button.

Switching the Heated Windshield On
and Off

Touch the button to clear the
windshield of thin ice and fog. The
heated windshield turns off after a

short period of time.

Switching the Heated Rear Window On
and Off

E184884

Touch the button to clear the rear
window of thin ice and fog.

Switching the Heated Seats On and Off

Touch the button to cycle through
the various heat settings and off.

Switching the Heated Steering Wheel
On and Off

Touch the button.

Switching Maximum Air Conditioning
On and Off

Touch the button for maximum
cooling.

Recirculated air flows through the instrument
panel air vents, air conditioning turns on and
the blower motor adjusts to the highest
speed.

Switching Maximum Defrost On and
Off

Touch the button for maximum
defrosting.

Air flows through the windshield air vents,
and the blower motor adjusts to the highest
speed.

You can also use this setting to defog and
clear the windshield of a thin covering of ice.

Note: To prevent window fogging, you
cannot select recirculated air when
maximum defrost is on.

Note: The heated rear window also turns on
when you select maximum defrost.

Switching Recirculated Air On and Off

Touch the button to switch
between outside air and
recirculated air.

The air currently in the passenger
compartment recirculates. This may reduce
the time needed to cool the interior, when
used with A/C, and reduce unwanted odors
from entering your vehicle.

Note: Recirculated air may turn off, or
prevent you from switching on, in all air flow
modes except MAX A/C to reduce the risk
of fogging. Recirculation may also turn on
and off in various air distribution control
combinations during hot weather to improve
cooling efficiency.

474

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

Switching the Ventilated Seats On and
Off

E268558

Touch the button to cycle through
the various ventilated seat settings
and off.

Accessing Rear Climate Controls

E270447

Touch the button to access
additional controls for the rear
climate system.

Rear Climate Control Lock Indicator

E265289

Touch the button.

When on, you can only operate the
rear passenger settings through

the front controls.

Switching Rear Auto Mode On and Off

Touch the button to switch on rear
automatic operation, then set the
temperature.

Switching the Rear Climate Controlled
Seats On and Off

E265282

Touch the button to cycle through
the various climate controlled seat
settings and off.

Switching the Rear Heated Seats On
and Off

Touch the button to cycle through
the various heat settings and off.

Switching the Rear Ventilated Seats
On and Off

E268558

Touch the button to cycle through
the various ventilated seat settings
and off.

PHONE

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Check the compatibility of your device on
the regional website.

Pairing Your Cell Phone for the First
Time

Go to the settings menu on your cell phone
and switch Bluetooth on.

Select the phone option on the
feature bar.

475

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

1. Select Add Phone.

Note: A prompt alerts you to search for your
vehicle on your cell phone.

2. Select your vehicle on your cell phone.

Note: A number appears on your cell phone
and on the touchscreen.

3. Confirm that the number on your cell

phone matches the number on the
touchscreen.

Note: The touchscreen indicates that you
have successfully paired your cell phone.

4. Download the phonebook from your cell

phone when you are prompted.

Note: If you pair more than one cell phone,
use the phone settings to specify the primary
phone. You can change this setting at any
time.

Using Your Cell Phone

Recent Call List

Display and select an entry from a list of
previous calls.

Contacts

Display a smart search form to look up your
contacts. Use the List button to alphabetically
sort your contacts.

Change Device

Display the list of paired or connected
devices that you can select.

Phone Settings

Change ring tones, alerts or pair another
phone.

Do Not Disturb

Reject incoming calls and switch ring tones
and alerts off.

Phone Keypad

Directly dial a number.

Mute

Mute the microphone.

Text Messaging

Setting Text Message Notification

iOS

1. Go to the settings menu on your cell

phone.

2. Select Bluetooth.

3. Select the information icon to the right of

your vehicle.

4. Switch text message notification on.

Android

1. Go to the settings menu on your cell

phone.

2. Select Bluetooth.

3. Select the profiles option.

4. Select the phone profile.

5. Switch text message notification on.

476

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

Using Text Messaging

Description

Menu Item

Hear the text message.

Hear It

View the text message.

View

Call the sender.

Call

Reply to the text message with a standard text message.

Reply

Apple CarPlay

 (If Equipped)

1. Connect your device to a USB port.

2. Follow the instructions on the

touchscreen.

Note: Certain features of the system are not
available when you are using Apple CarPlay.

Switching Apple CarPlay Off

Select the settings option on the
feature bar.

1. Select Apple CarPlay Preferences.

2. Switch Apple CarPlay off.

Android Auto

 (If Equipped)

1. Connect your device to a USB port.

2. Follow the instructions on the

touchscreen.

Note: You might need to enable Android
Auto from the settings menu.

Note: Certain features of the system are not
available when you are using Android Auto.

Switching Android Auto Off

Select the settings option on the
feature bar.

1. Select Android Auto.

2. Switch Android Auto off.

NAVIGATION

Note: For more information, refer to our
website.

Select the navigation option on the
feature bar.

477

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

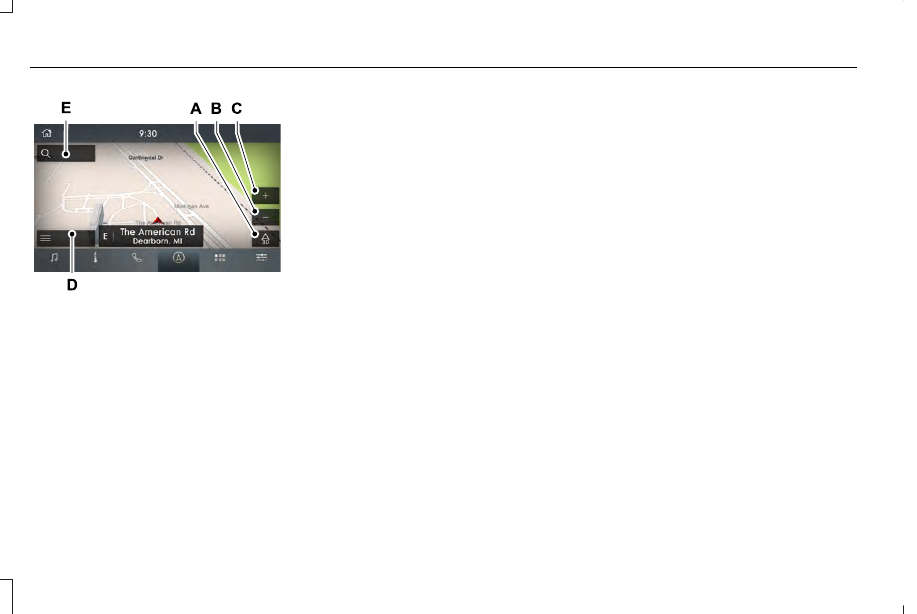

E297846

Map view menu.

A

Zoom out.

B

Zoom in.

C

Route guidance menu.

D

Destination entry menu.

E

478

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

Setting a Destination

Destination Entry Menu

Description

Item

Enter a destination address.

Search

Display and select from a list of previous destinations.

Previous Destinations

Set your saved home address as your destination

Home

Set your saved place of work as your destination.

Work

Display and select from a list of favorite destinations.

Favorites

479

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

Setting a Destination Using the Text Entry
Screen

E297857

Text entry field.

A

Automatic suggestions based on
the text you enter.

B

Information icon.

C

Search.

D

Keyboard settings.

E

Note: Select one of the suggestions to
copy the detail to the text entry field.

You can search by entering all or part of
the destination, such as the Address, POI
Category or Name, Intersection, City,
Latitude/Longitude, etc. Tips: If you do not
specify a location, the system will use the
current vehicle location. You can specify a
location by address, city, state or zip code.
For additional search support, please visit:
owner.lincoln.com.

Note: Press the button in the top right-hand
corner of the main map to display estimated
time of arrival, remaining travel time or
distance to destination.

Setting a Destination Using the Map Screen

E297858

Re-center the map.

A

Selected location.

B

3D map rotation. Swipe left or right.

C

Destination name.

D

Start route guidance.

E

Select the location on the map.

Select Start to begin route guidance.

480

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

Changing the Format of the Map

Display the map in one of the following
formats:
•

A two-dimensional map with the direction
you are traveling toward the top of the
screen.

•

A two-dimensional map with north toward
the top of the screen.

•

A three-dimensional map with the
direction you are traveling toward the
front.

Zoom

Display more or less detail on the map.

Note: You can use pinch gestures to zoom
in and out. Place two fingers on the screen
and move them apart to zoom in. Place two
fingers on the screen and bring them
together to zoom out.

Route Guidance

E297859

Turn indicator. Select to hear the
last voice prompt.

A

Point of interest.

B

Estimated time of arrival, distance
to destination or time to
destination.

C

Current road.

D

Mute guidance prompts.

E

Note: To change guidance prompt volume,
turn the volume control when a guidance
prompt plays.

481

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

Route Guidance Menu

Description

Menu Item

Adjust your map preferences for when route guidance is active.

Screen View

View a full screen map when route guidance is active.

Full Map

View highway exit information for your current route.

Highway Exit Info

View the turn list for your current route. Select a road to avoid it.

Turn List

You can find the SiriusXM Traffic and Travel Link information by pressing this button. This information
requires an active subscription to SiriusXM Traffic and Travel Link. When a route is not active, a list
of nearby traffic incidents displays. When a route is active, you can choose to display a list of traffic
nearby or on the route.

Traffic List

Adjust navigation settings.  See Settings (page 488).

Navigation Settings

View information about your current location.

Where Am I?

Cancel route guidance.

Cancel Route

View the entire current route on the map.

View Route

View an alternative route compared to your current one.

Detour

Change the order or remove waypoints.

Edit Waypoints

The system determines the order of waypoints for you.

Optimize Order

Go to the next screen and start the new route.

Go

482

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

Adjusting the Guidance Prompt Volume

Turn the volume control when a guidance
prompt plays to adjust the volume.

Note: If you have inadvertently adjusted the
volume to zero, press the turn indicator
button to play the last voice prompt and then
adjust the volume to the desired level.

Muting Guidance Prompts

Select the mute option on the
screen to mute guidance prompts.

Note: The system mutes the next and all
future guidance prompts.

Adding Waypoints

You can add a waypoint to a navigation route
as a destination along your route. You can
add up to five waypoints.

1. Select the search option on the map.

2. Set a destination.

3. Select Add Waypoint.

4. Select Go.

Canceling Route Guidance

Select the route guidance menu
option on the active guidance
screen.

Select Cancel Route.

E297860

Note: The route guidance menu option is
always in the bottom right-hand corner of
the main map.

cityseeker

 (If Equipped)

Note: cityseeker point of interest (POI)
information is limited to approximately 1,110
cities (1,049 in the United States, 36 in
Canada and 15 in Mexico).

E225487

cityseeker, when available, is a service that
provides more information about certain
points of interest such as restaurants, hotels
and attractions.

When you have selected a point of interest,
the location and information appear, such as
address, phone number and a star rating.

Press More Information to see a photo, a
review, a list of services and facilities, the
average room or meal price and the web
address. This screen displays the point of
interest icons.

483

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

For restaurants, cityseeker can provide
information such as star rating, average cost,
review, handicap access, hours of operation,
and website address.

For hotels, cityseeker can provide
information such as star rating, price
category, review, check-in and checkout
times, hotel service icons and website
address. Hotel service icons include:

•

Restaurant

•

Business center

•

Handicap facilities

•

Laundry

•

Refrigerator

•

24 hour room service

•

Fitness center

•

Internet access

•

Pool

•

Wi-Fi

Attractions include nearby landmarks,
amusement parks, historic buildings and
more. cityseeker can provide information
such as star rating, reviews, hour of operation
and admission price.

SiriusXM Traffic and Travel Link

 (If

Equipped)

SiriusXM Traffic and Travel Link is available
on vehicles equipped with navigation and
only in select markets. You must activate and
subscribe to receive SiriusXM Traffic and
Travel Link information. It helps you locate
the best gas prices, find movie listings, get
current traffic alerts, view the weather map,
get accurate ski conditions and see current
sports scores.

The system calculates a reasonable efficient
route based on available speed limits, traffic,
and road conditions. You may know a local
short cut that is more efficient at a given time
than the route provided by SYNC 3, but you
should expect a slight difference in minutes
or miles with the SYNC 3 route.

Michelin Travel Guide

 (If Equipped)

The Michelin travel guide is a service which
provides additional information about certain
places of interest, for example restaurants,
hotels and tourist sites. Points of interest that
have Michelin travel guide information
display a button to show you more
information. Push the button to see the
additional information. If you have paired
your phone with the system, you can press
the phone button to directly establish a call
with the selected point of interest.

Navigation Map Accuracy and Updates

HERE is the digital map provider for the
navigation application. If you find map data
errors, you may report them directly to HERE
by going to www.here.com. HERE evaluates
all reported map errors and responds with
the result of their investigation by e-mail.

484

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

The navigation system map data may contain
inaccurate or incomplete information due to
the passage of time, changing
circumstances, sources used and the nature
of collecting comprehensive geographic
data, any of which may lead to incorrect
results. Inaccurate speed limit information,
turn restrictions and other road attributes
may affect the determined route and
associated guidance

Annual navigation map updates are available
for purchase through your dealership.
Depending on your purchase agreement,
you might be eligible for free Map update.
You can choose to download the Map data
update onto a USB, order a USB, or use Wi-Fi
to deliver automatic updates. To update your
Map data over Wi-Fi, your vehicle must be
connected to a Wi-Fi access point. Map Data
files are large, so it is highly recommended
to perform the update when free Wi-Fi is
available otherwise high data rates may
apply. For USB updates, free map update
eligibility, and other details, contact dealers
at 1-866-462-8837 in the United States and
Canada or 01-800-557-5539 in Mexico or
visit our local website for more information.

APPS

The system allows you interact with select
mobile apps while keeping your eyes on the
road. Voice commands, your steering wheel
buttons, or a quick tap on your touchscreen
give you advanced control of compatible
mobile apps. You can also stream your
favorite music or podcasts, share your time
of arrival with friends, and keep connected
safely.

When you start an app through the system
for the first time, you could be asked to grant
certain permissions. You can review and
change the permissions that you have
granted at any time when your vehicle is not
moving. We recommend that you check your
data plan before using your apps through
the system. Using them could result in
additional charges. We also recommend that
you check the app provider's terms and
conditions and privacy policy before using

their app. Make sure that you have an active
account for apps that you want to use
through the system. Some apps will work
with no setup. Others require you to
configure some personal settings before you
can use them.

Note: For more information about available
apps, visit catalog.ford.com.

Using Apps on an iOS Device

Select the apps option on the
feature bar.

1. If your device is connected via USB,

switch Apple CarPlay off.  See Phone
(page 475).

2. Connect your device to a USB port or

pair and connect using Bluetooth.

3. If prompted to enable CarPlay, select

Disable.

4. Start the apps on your device that you

want to use through SYNC.

Note: If you close the apps on your device,
you will not be able to use them through the
system.

485

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

5. Select the app that you want to use on

the touchscreen.

Note: Connect your device to a USB port if
you want to use a navigation app. When
using a navigation app, keep your device
unlocked and the app open.

Using Apps on an Android Device

Select the apps option on the
feature bar.

1. If your device is connected via USB,

switch Android Auto off.  See Phone
(page 475).

2. Pair your device.  See Phone (page 475).

3. Start the apps on your device that you

want to use through SYNC.

Note: If you close the apps on your device,
you will not be able to use them through the
system.

4. Select Find Mobile Apps.

Note: The system searches and connects to
compatible apps that are running on your
device.

5. Select the app that you want to use on

the touchscreen.

Note: Mobile Apps on your device use the
USB port to establish a connection with
SYNC. Some devices may lose the ability to
play music over USB when Mobile Apps are
enabled.

Using Mobile Navigation on an Android
Device

1. Connect your device to a USB port.

2. Switch Android Auto off.  See Phone

(page 475).

3. Switch on Enable Mobile Apps via USB

in the Mobile Apps Settings tile.

4. Select the apps option on the feature bar.

5. Select the navigation app that you want

to use on the touchscreen.

Note: When using a navigation app, keep
your device unlocked and the app open.

SiriusXM Traffic and Travel Link

 (If

Equipped)

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Note: SiriusXM Traffic and Travel Link may
not be available in all markets.

Note: In order to use SiriusXM Traffic and
Travel Link, your vehicle must have
navigation.

Note: A paid subscription is required to
access and use these features. Go to
www.siriusxm.com/travellink for more
information.

486

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

Note: Visit www.siriusxm.com/traffic and click
on Coverage map and details for a complete
listing of all traffic areas covered by SiriusXM
Traffic and Travel Link.

Note: Neither Sirius nor Ford is responsible
for any errors or inaccuracies in the SiriusXM
Traffic and Travel Link services or its use in
vehicles.

When you subscribe to SiriusXM Traffic and
Travel Link, it can help you locate the best
gas prices, find movie listings, get current
traffic alerts, view the current weather map,
get accurate ski conditions and see scores
to current sports games.

Action and Description

Menu Item

Touch these buttons to identify traffic incidents on your route, near your vehicle’s current location
or near any of your favorite places, if programmed.

Traffic on Route

Traffic Nearby

Touch this button to view fuel prices at stations close to your vehicle’s location or on an active
navigation route.

Fuel Prices

Touch this button to view nearby movie theaters and their show times, if available.

Movie Listings

Touch this button to view the nearby weather, current weather, or the five-day forecast for the
chosen area.

Weather

Select to see the weather map, which can show storms,
radar information, charts and winds.

Map

Select to choose from a listing of weather locations.

Area

Touch this button to view scores and schedules from a variety of sports. You can also save up to
10 favorite teams for easier access. The score automatically refreshes when a game is in progress.

Sports Info

Touch this button to view ski conditions for a specific area.

Ski Conditions

487

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3

SETTINGS

E280315

Press the button to enter the
settings menu.

E268570

Once you select a tile, press the
button next to a menu item to view
an explanation of the feature or

setting.

Sound

Select this tile to adjust the sound settings.

Clock

Select this tile to adjust the clock settings.

Bluetooth

Select this tile to switch Bluetooth on and off
and adjust settings.

Phone

Select this tile to connect, disconnect, and
manage the connected device settings.

Audio

Select this tile to adjust the audio settings.

Driver Assist

 (If Equipped)

Select this tile to adjust Driver Assist features
like Parking Aids, Lane Keeping system,
Pedestrian Detection, and Auto-Start-Stop.

Vehicle

Select this tile to adjust vehicle settings like
windows, alarm, lighting, backup starting
passcode, and MyKey settings.

Lincoln Way

Select this tile to adjust the Lincoln Way
settings.

General

Select this tile to adjust settings like
language, measurement units, or to reset the
system.

911 Assist

 (If Equipped)

Select this tile to switch 911 Assist on and off.

Automatic Updates

Select this tile to adjust automatic update
settings.

Mobile Apps

Select this tile to adjust permissions, enable,
disable, and update mobile apps.

Display

Select this tile to adjust display settings like
brightness and auto dim.

Charge Settings

 (If Equipped)

Select this tile to adjust the electric vehicle
charge setting.

Voice Control

Select this tile to adjust voice control settings
like command confirmations and displayed
lists.

Navigation

 (If Equipped)

Select this tile to adjust navigation settings
like map preferences and route guidance.

488

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

SYNC™ 3
