TECHNICAL SPECIFICATIONS

Wheel Lug Nut Torque Specifications

WARNING: When you install a wheel, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the

wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners that attach
the rotor to the hub so they do not interfere with the mounting surfaces of the wheel. Installing wheels without correct metal-to-metal contact
at the wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle is in motion, resulting in
loss of vehicle control, personal injury or death.

 lb.ft (Nm)

*

Bolt size

150 lb.ft (204 Nm)

M14 x 1.5

*

Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners.

Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any wheel disturbance (such as tire rotation, changing a
flat tire, wheel removal).

409

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Wheels and Tires

E145950

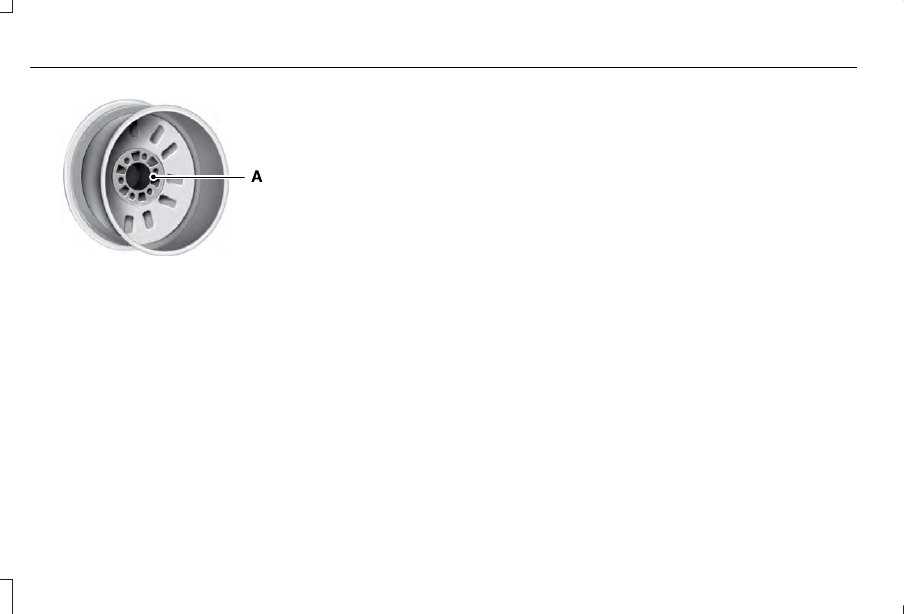

Wheel pilot bore

A

Inspect the wheel pilot bore and mounting
surface prior to installation. Remove any
visible corrosion or loose particles.

410

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Wheels and Tires

ENGINE SPECIFICATIONS

3.0L

Engine

180 in³ (2,956 cm³)

Displacement.

Minimum 87 octane

Fuel type.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

0.028–0.031 in (0.7–0.8 mm)

Spark plug gap.

9.5:1

Compression ratio.

411

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

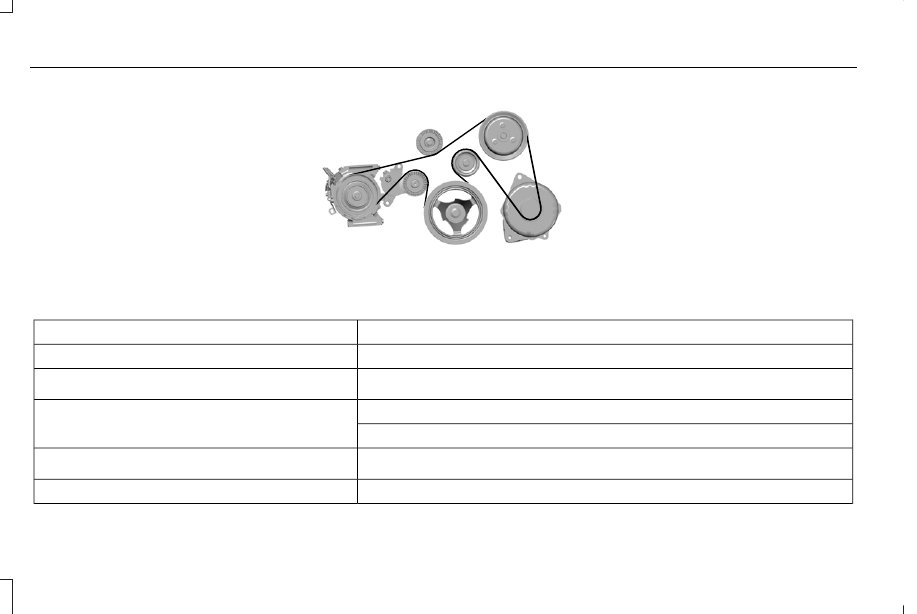

Drivebelt Routing

E297178

MOTORCRAFT PARTS

Part Number

Component

FA-1884

Air filter.

FL-2062

Oil filter.

1

BAGM-94RH7-800

Battery.

2

BAGM-49H8-850

SP-578

Spark plugs.

3

FP-89

Cabin air filter.

412

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

Part Number

Component

WW-2617-NH (non-heated driver side)

Windshield wiper blade.

WW-2618-H (heated driver side)

WW-2619-R (refill driver side)

WW-2114-NH (non-heated passenger side)

WW-2115-H (heated passenger side)

WW-2116-R (refill passenger side)

WW-1111

Rear window wiper blade.

1

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

2

See your authorized dealer for correct replacement.

3

For spark plug replacement, contact your authorized dealer.  Replace the spark plugs at the appropriate intervals.   See Scheduled

Maintenance (page 512).

We recommend Motorcraft replacement parts available at your authorized dealer or at fordparts.com for scheduled maintenance. These parts
engineered for your vehicle meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability.
Your warranty could be void for any damage related to use of other parts.

413

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is located
on the left-hand side of the instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

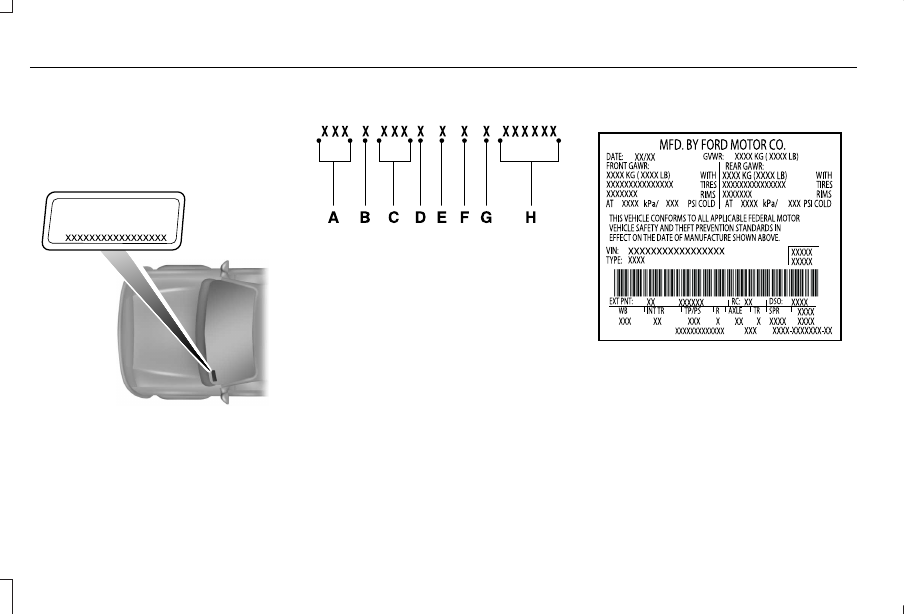

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where the
Safety Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post, or
the edge of the door near the door latch,
next to the driver's seating position.

414

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

TRANSMISSION CODE
DESIGNATION

E167814

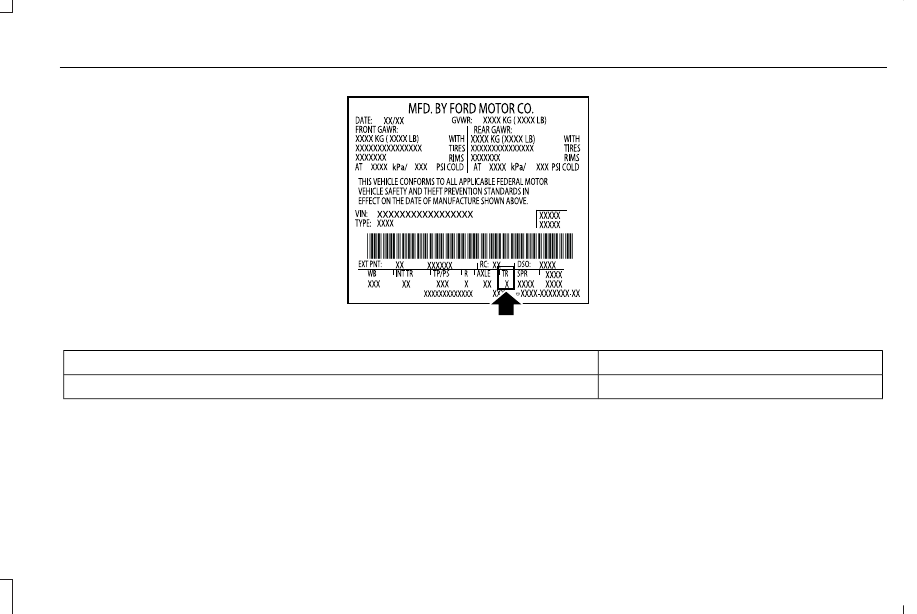

The transmission code is on the Safety
Compliance Certification Label.  The
following table shows the transmission code
along with the transmission description.

Code

Description

T

Ten-speed automatic transmission (10R60).

415

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

CAPACITIES AND SPECIFICATIONS

Use oil and fluid that meets the defined
specification and viscosity grade.

If you do not use oil and fluid that meets the
defined specification and viscosity grade, it
could result in:
•

Component damage not covered by the
vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

Air Conditioning System

WARNING: The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.

Capacities

Refrigerant Oil

Refrigerant

Variant

5.92 fl oz (175 ml)

35 oz (0.99 kg)

All.

416

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant (U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf (Canada)
YN-33-A (U.S.)
HS7Z-19B519-BA (Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil (U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf
Motorcraft® (Canada)
YN-35 (U.S. & Canada)

Automatic Transmission

Note:  Automatic transmissions that require
MERCON® ULV transmission fluid should
only use MERCON® ULV transmission fluid.
The use of any other fluid may cause
transmission damage.

417

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

Capacities

Quantity

Variant

12.6 qt (11.9 L)

1

All.

1

Approximate dry fill capacity.  Actual amount may vary during fluid changes.

Materials

Specification

Name

WSS-M2C949-AMERCON® ULV

Motorcraft® MERCON® ULV Automatic Transmission Fluid (U.S.)
Motorcraft® MERCON® ULV Automatic Transmission Fluid / MERCON® ULV huile
pour boîtes automatique Motorcraft® (Canada)
XT-12-QULV (U.S. & Canada)

Engine Coolant

Capacities

Quantity

Variant

18.0 qt (17 L)

All.

418

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/Coolant (U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement
prédilué jaune Motorcraft® (Canada)
VC-13DL-G (U.S.)
CVC-13DL-G (Canada)

Engine Oil

E142732

E276075

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not available,
use motor oils of the recommended viscosity
grade that meet API SN PLUS requirements
and display the API Certification Mark for
gasoline engines.

419

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C946-B1

Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil (U.S.)
Engine Oil - SAE 5W-30 - Super Premium Motor Oil / Huile moteur de très haute
qualité SAE 5W-30 Motorcraft® (Canada)
XO-5W30-Q1SP (U.S.)
CXO-5W30-LSP6 (Canada)

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

420

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

Materials

Specification

Name

WSS-M2C953-B1

Engine Oil - SAE 0W-30

E240523

421

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

Fuel Tank

Capacities

Quantity

Variant

20.2 gal (76.5 L)

All.

Grease

Materials

Specification

Name

ESA-M1C75-B

Motorcraft® Premium Long-Life Grease (U.S.)
Motorcraft® Premium Long-Life Grease / Graisse longue durée de qualité première
Motorcraft® (Canada)
XG-1-E1 (U.S. & Canada)

ESB-M1C93-B

Motorcraft® Multi-Purpose Grease Spray (U.S.)
Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en aérosol Motorcraft®
(Canada)
XL-5-A (U.S. & Canada)

Hydraulic Brake System

422

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid (U.S.)
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de
frein automobile haute performance DOT 4 LV Motorcraft® (Canada)
PM-20 (U.S. & Canada)

Note: We recommend using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause reduced brake performance
and not meet our performance standards.
Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials may result in
brake system damage and possible failure.

Locks

Materials

Specification

Name

-

Motorcraft® Penetrating and Lock Lubricant (U.S.)
Motorcraft® Penetrating Fluid / Liquide dégrippant Motorcraft® (Canada)
XL-1 (U.S.)
CXC-51-A (Canada)

423

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Capacities and Specifications

Transfer Case

Capacities

Quantity

Variant

1.1 qt (1 L)

All.

Materials

Specification

Name

MERCON® LV WSS-M2C938-A

Motorcraft® MERCON® LV Automatic Transmission Fluid (U.S.)
Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boîte auto-
matique MERCON® LV Motorcraft® (Canada)
XT-10-QLVC (U.S.)
CXT-10-LV6 (Canada)

Front Axle

Capacities

Quantity

Variant

0.6 qt (0.6 L)

All wheel drive.

424

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing
