DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES

The following tire grading categories were established
by the National Highway Traffic Safety Administration.
The specific grade rating assigned by the tire’s manu-
facturer in each category is shown on the sidewall of the
tires on your vehicle.

All passenger vehicle tires must conform to Federal
safety requirements in addition to these grades.

Treadwear

The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.

Traction Grades

The Traction grades, from highest to lowest, are AA, A,
B, and C. These grades represent the tire’s ability to stop
on wet pavement, as measured under controlled condi-
tions on specified government test surfaces of asphalt
and concrete. A tire marked C may have poor traction
performance.

WARNING!

The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not

(Continued)

Tire Rotation

SERVICING AND MAINTENANCE

445

WARNING! (Continued)

include acceleration, cornering, hydroplaning, or
peak traction characteristics.

Temperature Grades

The Temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of
heat and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel.

Sustained high temperature can cause the material of
the tire to degenerate and reduce tire life, and excessive
temperature can lead to sudden tire failure. The grade C
corresponds to a level of performance, which all pas-
senger vehicle tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A
represent higher levels of performance on the laboratory
test wheel, than the minimum required by law.

WARNING!

The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.

(Continued)

WARNING! (Continued)

Excessive speed, under-inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.

STORING THE VEHICLE

If the vehicle should remain stationary for more than a
month, observe the following precautions:
• Park your vehicle in a covered, dry and possibly airy

location the windows open slightly.

• Check that the Electric Park Brake is not engaged.
• Disconnect the negative (-) terminal from the battery

post and be sure that the battery is fully charged. During
storage check battery charge quarterly.

• If you do not disconnect the battery from the electrical

system, be sure to check the battery charge every 30
days. Also, it is recommended that you use storage
mode. For more information refer to “Instrument Clus-
ter Display Menu Items” in “Getting To Know Your
Instrument Panel”.

• Clean and protect the painted parts by applying protec-

tive waxes.

446

SERVICING AND MAINTENANCE

• Clean and protect polished metal parts by applying

protective waxes.

• Apply talcum powder to the front and rear wiper blades

and leave raised from the glass.

• Cover the vehicle with an appropriate cover taking care

not to damage the painted surface by dragging across
dirty surfaces. Do not use plastic sheeting which will not
allow the evaporation of moisture present on the surface
of the vehicle.

• Inflate the tires at a pressure of +7.25 psi (+0.5 bar)

higher than recommended on the tire placard and check
it periodically.

• Do not drain the engine cooling system.
• Whenever you leave the vehicle is stationary for two

weeks or more, run idle the engine for approximately
five minutes, with the air conditioning system on and
high fan speed. This will ensure a proper lubrication of
the system, thus minimizing the possibility of damage to
the compressor when the vehicle is put back into opera-
tion.

CAUTION!

Before removal of the positive and negative terminals
to the battery, wait at least a minute with ignition
switch in the OFF position and close the driver’s door.
When reconnecting the positive and negative terminals
to the battery be sure the ignition switch is in the OFF
position and the driver’s door is closed.

Battery Storage Mode

With the ignition in the ON position, engine not running,
navigate to the battery gauge page on the instrument
cluster display, then press and hold the OK button. The
vehicle will be put into battery storage mode, which will
greatly increase the amount of time the vehicle can sit and
restart without needing to disconnect the battery. Going
into battery storage mode will increase the amount of time
between starts to about 60 days.

NOTE:

The key fob buttons will not work while the

vehicle is in battery storage mode, pulling the door handle
will wake the vehicle and allow it to recognize the key fob
to unlock the door.

SERVICING AND MAINTENANCE

447

BODYWORK

Protection From Atmospheric Agents

Vehicle body care requirements vary according to geo-
graphic locations and usage. Chemicals that make roads
passable in snow and ice and those that are sprayed on
trees and road surfaces during other seasons are highly
corrosive to the metal in your vehicle. Outside parking,
which exposes your vehicle to airborne contaminants, road
surfaces on which the vehicle is operated, extreme hot or
cold weather and other extreme conditions will have an
adverse effect on paint, metal trim, and underbody protec-
tion.

The following maintenance recommendations will enable
you to obtain maximum benefit from the corrosion resis-
tance built into your vehicle.

What Causes Corrosion?

Corrosion is the result of deterioration or removal of paint
and protective coatings from your vehicle.

The most common causes are:
• Road salt, dirt and moisture accumulation.
• Stone and gravel impact.
• Insects, tree sap and tar.

• Salt in the air near seacoast localities.
• Atmospheric fallout/industrial pollutants.

Body And Underbody Maintenance

Cleaning Headlights

Your vehicle is equipped with plastic headlights and fog
lights that are lighter and less susceptible to stone breakage
than glass headlights.

Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution followed
by rinsing.

Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.

Preserving The Bodywork

Washing
• Wash your vehicle regularly. Always wash your vehicle

in the shade using Mopar Car Wash, or a mild car wash
soap, and rinse the panels completely with clear water.

448

SERVICING AND MAINTENANCE

• If insects, tar, or other similar deposits have accumulated

on your vehicle, use Mopar Super Kleen Bug and Tar
Remover to remove.

• Use a high quality cleaner wax, such as Mopar Cleaner

Wax to remove road film, stains and to protect your
paint finish. Take care never to scratch the paint.

• Avoid using abrasive compounds and power buffing that

may diminish the gloss or thin out the paint finish.

CAUTION!

• Do not use abrasive or strong cleaning materials such

as steel wool or scouring powder that will scratch
metal and painted surfaces.

• Use of power washers exceeding 1,200 psi (8,274 kPa)

can result in damage or removal of paint and decals.

Special Care
• If you drive on salted or dusty roads or if you drive near

the ocean, hose off the undercarriage at least once a
month.

• It is important that the drain holes in the lower edges of

the doors, rocker panels, and trunk be kept clear and
open.

• If you detect any stone chips or scratches in the paint,

touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.

• If your vehicle is damaged due to a collision or similar

cause that destroys the paint and protective coating,
have your vehicle repaired as soon as possible. The cost
of such repairs is considered the responsibility of the
owner.

• If you carry special cargo such as chemicals, fertilizers,

de-icer salt, etc., be sure that such materials are well
packaged and sealed.

• If a lot of driving is done on gravel roads, consider mud

or stone shields behind each wheel.

• Use Mopar Touch Up Paint on scratches as soon as

possible. An authorized dealer has touch up paint to
match the color of your vehicle.

SERVICING AND MAINTENANCE

449

INTERIORS

Seats And Fabric Parts

Use Mopar Total Clean to clean fabric upholstery and
carpeting.

WARNING!

Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in closed
areas they may cause respiratory harm.

Seat Belt Maintenance

Do not bleach, dye or clean the belts with chemical solvents
or abrasive cleaners. This will weaken the fabric. Sun
damage can also weaken the fabric.

If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the vehicle
to wash them. Dry with a soft cloth.

Replace the belts if they appear frayed or worn or if the
buckles do not work properly.

WARNING!

A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do not
disassemble or modify the system. Seat belt assemblies
must be replaced after a collision if they have been
damaged (i.e., bent retractor, torn webbing, etc.).

Plastic And Coated Parts

Use Mopar Total Clean to clean vinyl upholstery.

CAUTION!

• Direct contact of air fresheners, insect repellents,

suntan lotions, or hand sanitizers to the plastic,
painted, or decorated surfaces of the interior may
cause permanent damage. Wipe away immediately.

• Damage caused by these type of products may not be

covered by your New Vehicle Limited Warranty.

450

SERVICING AND MAINTENANCE

Cleaning Plastic Instrument Cluster Lenses

The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.

1. Clean with a wet soft cloth. A mild soap solution may be

used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
cloth.

2. Dry with a soft cloth.

Leather Parts

Mopar Total Clean is specifically recommended for leather
upholstery.

Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt can
act as an abrasive and damage the leather upholstery and
should be removed promptly with a damp cloth. Stubborn
soils can be removed easily with a soft cloth and Mopar
Total Clean. Care should be taken to avoid soaking your
leather upholstery with any liquid. Please do not use
polishes, oils, cleaning fluids, solvents, detergents, or
ammonia-based cleaners to clean your leather upholstery.
Application of a leather conditioner is not required to
maintain the original condition.

NOTE:

If equipped with light colored leather, it tends to

show any foreign material, dirt, and fabric dye transfer
more so than darker colors. The leather is designed for easy
cleaning, and FCA recommends Mopar total care leather
cleaner applied on a cloth to clean the leather seats as
needed.

CAUTION!

Do not use Alcohol and Alcohol-based and/or Ketone
based cleaning products to clean leather upholstery, as
damage to the upholstery may result.

Glass Surfaces

All glass surfaces should be cleaned on a regular basis with
Mopar Glass Cleaner, or any commercial household-type
glass cleaner. Never use an abrasive type cleaner. Use
caution when cleaning the inside rear window equipped
with electric defrosters or windows equipped with radio
antennas. Do not use scrapers or other sharp instruments
that may scratch the elements.

When cleaning the rear view mirror, spray cleaner on the
towel or cloth that you are using. Do not spray cleaner
directly on the mirror.

SERVICING AND MAINTENANCE

451

IDENTIFICATION DATA

Vehicle Identification Number

The Vehicle Identification Number (VIN) is found on a
label located on the left front corner of the instrument panel
pad, visible from outside of the vehicle through the wind-
shield. This number also is stamped on the right front floor,
behind the right front seat. Move the right front seat
forward to allow better viewing of the stamped VIN. This
number also appears on the Automobile Information Dis-
closure Label affixed to a window on your vehicle. Save
this label for a convenient record of your vehicle identifi-
cation number and optional equipment.

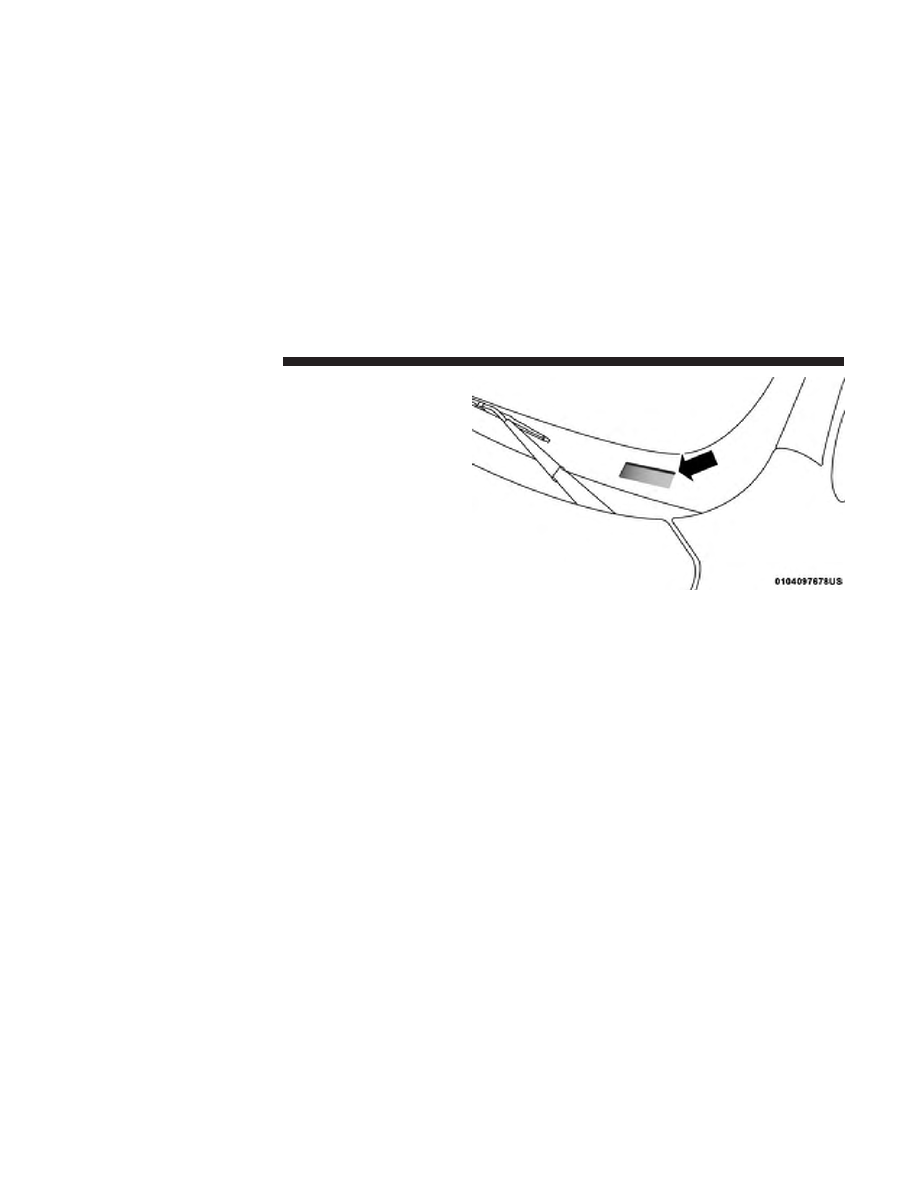

Windshield VIN Label Location

454

TECHNICAL SPECIFICATIONS

NOTE:

It is illegal to remove or alter the VIN.

BRAKE SYSTEM

Your vehicle is equipped with dual hydraulic brake sys-
tems. If either of the two hydraulic systems loses normal
capability, the remaining system will still function. How-
ever, there will be some loss of overall braking effective-
ness. You may notice increased pedal travel during appli-
cation, greater pedal force required to slow or stop, and
potential activation of the Brake Warning Light.

In the event power assist is lost for any reason (i.e.,
repeated brake applications with the engine OFF) the
brakes will still function. However, the effort required to
brake the vehicle will be much greater than that required
with the power system operating.

NOTE:

Due to the performance nature of our brake sys-

tems, some noise is to be expected.

WHEEL AND TIRE TORQUE SPECIFICATIONS

Proper lug nut/bolt torque is very important to ensure that
the wheel is properly mounted to the vehicle. Any time a
wheel has been removed and reinstalled on the vehicle, the
lug nuts/bolts should be torqued using a properly cali-
brated torque wrench using a high quality six sided (hex)
deep wall socket.

Torque Specifications

Lug Nut/Bolt

Torque

**Lug Nut/Bolt

Size

Lug Nut/Bolt

Socket Size

110 Ft-Lbs

(149 N·m)

M14 x 1.50

22 mm

**Use only your authorized dealer recommended lug nuts/
bolts and clean or remove any dirt or oil before tightening.

Right Front Body VIN Location

TECHNICAL SPECIFICATIONS

455

Inspect the wheel mounting surface prior to mounting the
tire and remove any corrosion or loose particles.

Tighten the lug nuts/bolts in a star pattern until each
nut/bolt has been tightened twice. Ensure that the socket is
fully engaged on the lug nut/bolt (do not insert it half
way).

NOTE:

If in doubt about the correct tightness, have them

checked with a torque wrench by your authorized dealer or
service station.

After 25 miles (40 km), check the lug nut/bolt torque to be
sure that all the lug nuts/bolts are properly seated against
the wheel.

WARNING!

To avoid the risk of forcing the vehicle off the jack, do
not tighten the lug nuts/bolts fully until the vehicle has
been lowered. Failure to follow this warning may
result in personal injury.

Wheel Mounting Surface

Torque Patterns

456

TECHNICAL SPECIFICATIONS

FUEL REQUIREMENTS

6.4L Engine

Do not use E-85 flex fuel or ethanol blends greater than
15% in this engine.

This engine is designed to meet all emis-
sion regulations, provide optimal fuel
economy and performance when using
high-quality unleaded “Premium” gaso-
line having a posted octane number of
91 as specified by the (R+M)/2 method.
The use of 91 or higher octane “Pre-

mium” gasoline is required for in this engine.

While operating on gasoline with the required octane
number, hearing a light knocking sound from the engine is
not a cause for concern. However, if the engine is heard
making a heavy knocking sound, see your dealer immedi-
ately. Use of gasoline with a lower than recommended
octane number can cause engine failure and may void or
not be covered by the New Vehicle Limited Warranty.

Poor quality gasoline can cause problems such as hard
starting, stalling, and hesitations. If you experience these
symptoms, try another brand of gasoline before consider-
ing service for the vehicle.

Reformulated Gasoline

Many areas of the country require the use of cleaner
burning gasoline referred to as “Reformulated Gasoline”.
Reformulated gasoline contains oxygenates and are specifi-
cally blended to reduce vehicle emissions and improve air
quality.

The use of reformulated gasoline is recommended. Prop-
erly blended reformulated gasoline will provide improved
performance and durability of engine and fuel system
components.

Materials Added To Fuel

Besides using unleaded gasoline with the proper octane
rating, gasolines that contain detergents, corrosion and
stability additives are recommended. Using gasolines that
have these additives will help improve fuel economy,
reduce emissions, and maintain vehicle performance.

Designated TOP TIER Detergent Gaso-
line contains a higher level of detergents
to further aide in minimizing engine
and fuel system deposits. When avail-
able, the usage of TOP TIER Detergent

TECHNICAL SPECIFICATIONS

457

gasoline is recommended. Visit www.toptiergas.com for a
list of TOP TIER Detergent Gasoline Retailers.

Indiscriminate use of fuel system cleaning agents should be
avoided. Many of these materials intended for gum and
varnish removal may contain active solvents or similar
ingredients. These can harm fuel system gasket and dia-
phragm materials.

Gasoline/Oxygenate Blends

Some fuel suppliers blend unleaded gasoline with oxygen-
ates such as ethanol.

CAUTION!

DO NOT use E-85, gasoline containing methanol, or
gasoline containing more than 15% ethanol (E-15). Use
of these blends may result in starting and drivability
problems, damage critical fuel system components,
cause emissions to exceed the applicable standard,
and/or cause the Malfunction Indicator Light to illu-
minate. Please observe pump labels as they should
clearly communicate if a fuel contains greater than 15%
ethanol (E-15).

Problems that result from using gasoline containing more
than 15% ethanol (E-15) or gasoline containing methanol
are not the responsibility of the manufacturer and may
void or not be covered under New Vehicle Limited War-
ranty.

Do Not Use E-85 In Non-Flex Fuel Vehicles

Non-Flex Fuel Vehicles (FFV) are compatible with gasoline
containing up to 15% ethanol (E-15). Use of gasoline with
higher ethanol content may void the New Vehicle Limited
Warranty.

If a Non-FFV vehicle is inadvertently fueled with E-85 fuel,
the engine will have some or all of these symptoms:
• Operate in a lean mode.
• OBD II Malfunction Indicator Light on.
• Poor engine performance.
• Poor cold start and cold drivability.
• Increased risk for fuel system component corrosion.

458

TECHNICAL SPECIFICATIONS

CNG And LP Fuel System Modifications

Modifications that allow the engine to run on Compressed
Natural Gas (CNG) or Liquid Propane (LP) may result in
damage to the engine, emissions, and fuel system compo-
nents. Problems that result from running CNG or LP are
not the responsibility of the manufacturer and may void or
not be covered under the New Vehicle Limited Warranty.

MMT In Gasoline

Methylcyclopentadienyl Manganese Tricarbonyl (MMT) is
a manganese-containing metallic additive that is blended
into some gasoline to increase octane. Gasoline blended
with MMT provides no performance advantage beyond
gasoline of the same octane number without MMT. Gaso-
line blended with MMT reduces spark plug life and
reduces emissions system performance in some vehicles.
The manufacturer recommends that gasoline without
MMT be used in your vehicle. The MMT content of
gasoline may not be indicated on the gasoline pump;
therefore, you should ask your gasoline retailer whether
the gasoline contains MMT. MMT is prohibited in Federal
and California reformulated gasoline.

Fuel System Cautions

CAUTION!

Follow these guidelines to maintain your vehicle’s
performance:
• The use of leaded gasoline is prohibited by Federal

law. Using leaded gasoline can impair engine perfor-
mance and damage the emissions control system.

• An out-of-tune engine or certain fuel or ignition

malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune or
malfunctioning and may require immediate service.
Contact an authorized dealer for service assistance.

• The use of fuel additives, which are now being sold

as octane enhancers, is not recommended. Most of
these products contain high concentrations of metha-
nol. Fuel system damage or vehicle performance
problems resulting from the use of such fuels or
additives is not the responsibility of the manufac-
turer and may void or not be covered under the New
Vehicle Limited Warranty.

TECHNICAL SPECIFICATIONS

459

NOTE:

Intentional tampering with the emissions control

system can result in civil penalties being assessed against
you.

Carbon Monoxide Warnings

WARNING!

Carbon monoxide (CO) in exhaust gases is deadly.
Follow the precautions below to prevent carbon mon-
oxide poisoning:
• Do not inhale exhaust gases. They contain carbon

monoxide, a colorless and odorless gas, which can

(Continued)

WARNING! (Continued)

kill. Never run the engine in a closed area, such as a
garage, and never sit in a parked vehicle with the
engine running for an extended period. If the vehicle
is stopped in an open area with the engine running
for more than a short period, adjust the ventilation
system to force fresh, outside air into the vehicle.

• Guard against carbon monoxide with proper main-

tenance. Have the exhaust system inspected every
time the vehicle is raised. Have any abnormal condi-
tions repaired promptly. Until repaired, drive with
all side windows fully open.

FLUID CAPACITIES

U.S.

Metric

Fuel (Approximate)

24.6 Gallons

93.0 Liters

Engine Oil With Filter
6.4 Liter Engine (SAE 0W-40, Synthetic API Certified, MS-12633)

7 Quarts

6.6 Liters

Cooling System*
6.4 Liter Engine (Mopar Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula
that meets the requirements of FCA Material Standard MS.90032.

16 Quarts

15.5 Liters

* Includes heater and coolant recovery bottle filled to MAX level.

460

TECHNICAL SPECIFICATIONS

Dodge Durango SRT (2019 year). Instruction - part 28
