• Press the “Add Device” button on the touchscreen.
• Search for available devices on your Bluetooth en-

abled mobile phone. When prompted on the phone,
enter the name and PIN shown on the Uconnect
screen.

• See step 4 to complete the process.

4. Uconnect Phone will display an in progress screen

while the system is connecting.

5. When the pairing process has successfully completed,

the system will prompt you to choose whether or not
this is your favorite phone. Selecting “Yes” will make
this phone the highest priority. This phone will take
precedence over other paired phones within range.

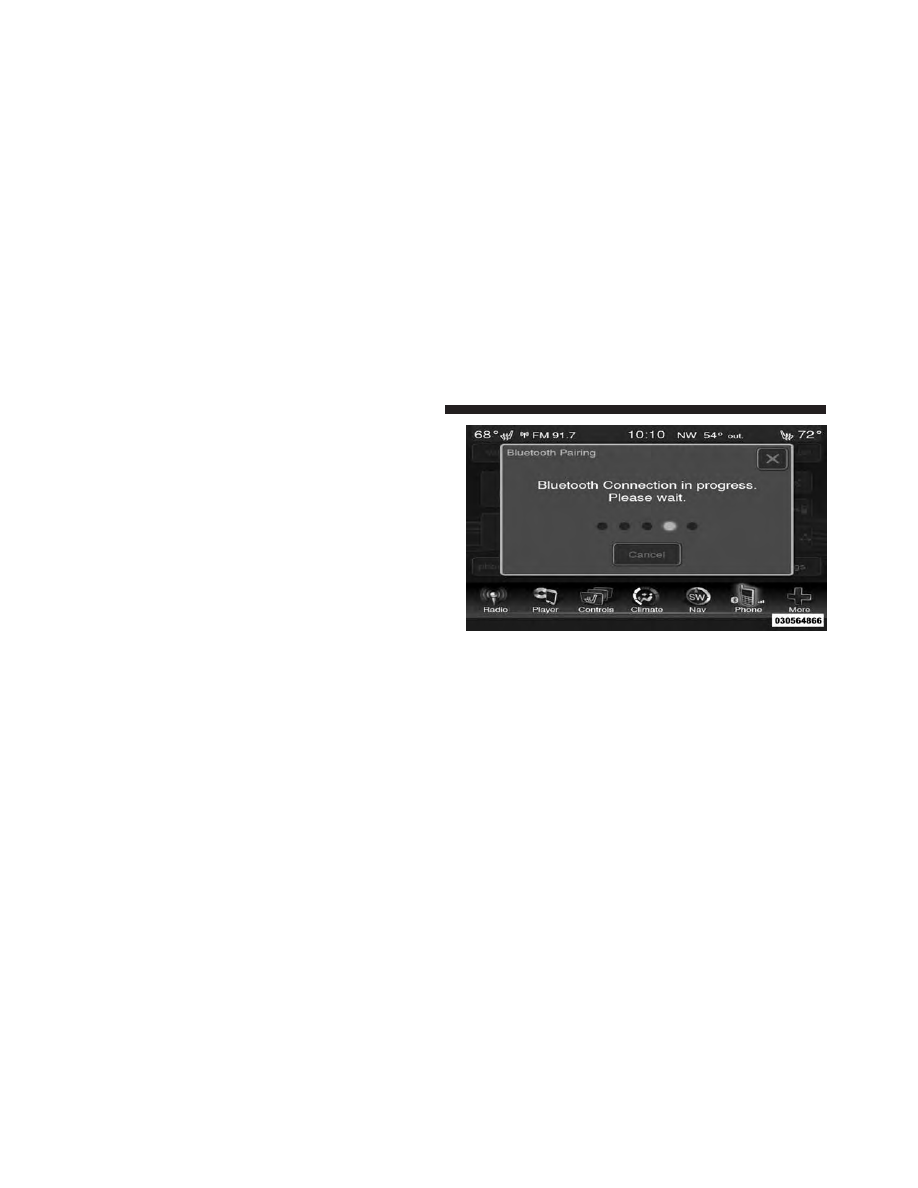

Mobile Phone Pairing Progress

172

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Pair Additional Mobile Phones

1. Press the “Settings” button from the Phone main

screen.

2. Press the “Add Device” button on the touchscreen.

3. Search for available devices on your Bluetooth enabled

mobile phone. When prompted on the phone, enter
the name and PIN shown on the Uconnect screen.

4. Uconnect Phone will display an in process screen

while the system is connecting.

5. When the pairing process has successfully completed,

NOTE:

For phones which are not made a favorite, the

phone priority is determined by the order in which it was
paired. The latest phone paired will have the higher
priority.

You can also use the following VR commands to bring up
the Paired Phone screen from any screen on the radio:

• “Show Paired Phones”
• “Connect My Phone”

Pair A Bluetooth Streaming Audio Device

1. Press the “Player” button on the touchscreen to begin.

2. Change the Source to Bluetooth.

3. Press the “Bluetooth” button on the touchscreen to

display the Paired Audio Devices screen.

4. Press the “Add Device” button on the touchscreen.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

173

NOTE:

If there is no device currently connected with the

system, a pop-up will appear.

5. Search for available devices on your Bluetooth enabled

audio device. When prompted on the device, enter the
PIN shown on the Uconnect screen.

6. Uconnect Phone will display an in process screen

while the system is connecting.

7. When the pairing process has successfully completed,

the system will prompt you to choose whether or not
this is your favorite device. Selecting “Yes” will make
this device the highest priority. This device will take
precedence over other paired devices within range.

NOTE:

For devices which are not made a favorite, the

device priority is determined by the order in which it was
paired. The latest device paired will have the higher
priority.

You can also use the following VR command to bring up
a list of paired audio devices:

• “Show Paired Phones”
• “Connect My Phone”

Connecting To A Particular Mobile Phone Or
Audio Device After Pairing

Uconnect Phone will automatically connect to the highest
priority paired phone and/or Audio Device within
range. If you need to choose a particular phone or Audio
Device follow these steps:

1. Press the “Settings” button on the touchscreen.

2. Press the “Paired Phones” or “Paired Audio Sources”

button on the touchscreen.

3. Press to select the particular Phone or the particular

Audio Device.

174

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4. Press the “X” to exit out of the Settings screen.

Disconnecting A Phone Or Audio Device

1. Press the “Settings” button on the touchscreen.

2. Press the “Paired Phones” or “Paired Audio Devices”

button on the touchscreen.

3. Press the settings icon button located to the right of the

device name.

4. The options pop-up will be displayed.

5. Press the “Disconnect Device” button on the touch-

screen.

6. Press the “X” to exit out of the Settings screen.

Deleting A Phone Or Audio Device

1. Press the “Settings” button on the touchscreen.

2. Press the “Pair Phones” or “Paired Audio Devices”

button on the touchscreen.

3. Press the settings icon button located to the right of the

device name for a different Phone or Audio Device
than the currently connected device.

4. The options pop-up will be displayed.

5. Press the “Delete Device” button on the touchscreen.

6. Press the “X” to exit out of the Settings screen.

Making A Phone Or Audio Device A Favorite

1. Press the “Settings” button on the touchscreen.

2. Press the “Paired Phones” or “Paired Audio Devices”

button on the touchscreen.

3. Press the settings icon button located to the right of the

device name.

4. The options pop-up will be displayed.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

175

5. Press the “Make Favorite” button on the touchscreen;

you will see the chosen device move to the top of the
list.

6. Press the “X” to exit out of the Settings screen.

Phonebook Download (Automatic Phonebook
Transfer From Mobile Phone) — If Equipped

If equipped and specifically supported by your phone,
Uconnect Phone automatically downloads names (text
names) and number entries from the mobile phone’s
phonebook. Specific Bluetooth Phones with Phone Book
Access Profile may support this feature. See Uconnect
website, UconnectPhone.com, for supported phones.

• To call a name from a downloaded mobile phone book,

follow the procedure in the Voice Recognition Quick
Reference section.

• Automatic download and update of a phone book, if

supported, begins as soon as the Bluetooth wireless
phone connection is made to the Uconnect Phone, for
example, after you start the vehicle.

• A maximum of 2,000 entries per phone will be down-

loaded and updated every time a phone is connected
to the Uconnect Phone.

• Depending on the maximum number of entries down-

loaded, there may be a short delay before the latest
downloaded names can be used. Until then, if avail-
able, the previously downloaded phonebook is avail-
able for use.

• Only the phonebook of the currently connected mobile

phone is accessible.

• This downloaded phonebook cannot be edited or

deleted on the Uconnect Phone. These can only be

176

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

edited on the mobile phone. The changes are trans-
ferred and updated to Uconnect Phone on the next
phone connection.

Managing Your Favorite Phonebook

There are three ways you can add an entry to your
Favorite Phonebook.

1. During an active call of a number to make a favorite,

press and hold a favorite button on the top of the
phone main screen.

2. After loading the mobile phonebook, select Phone-

book from the Phone main screen, then select the
appropriate number. Press the “+” next to the selected
number to display the options pop-up. In the pop-up
select “Add to Favorites.”

NOTE:

If the Favorites list is full, you will be asked to

remove an existing favorite.

3. From the Phone main screen, select Phonebook. From

the Phonebook screen, select the “Favorites” button on
the touchscreen and then select the “+” button on the
touchscreen located to the right of the phonebook

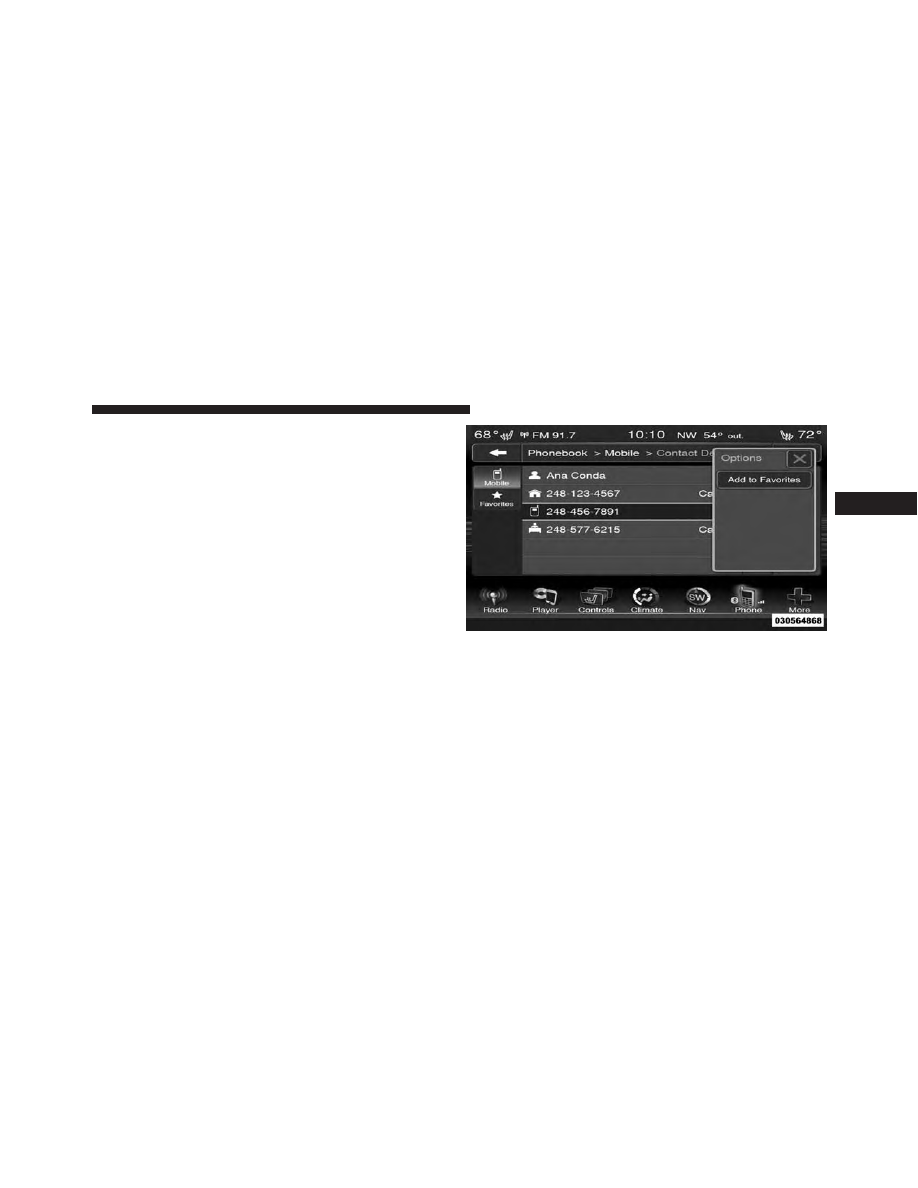

Phonebook Favorites

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

177

record. Select an empty entry and press the “+” on that
selected entry. When the Options pop-up appears,
press “Add from Mobile.” You will then be asked
which contact and number to choose from your mo-
bile phonebook. When complete the new favorite will
be shown.

To Remove A Favorite

1. To remove a Favorite, select phonebook from the

Phone main screen.

2. Next select Favorites on the left side of the screen and

then press the “+” Options button on the touchscreen.

3. Press the “+” next to the Favorite you would like to

remove.

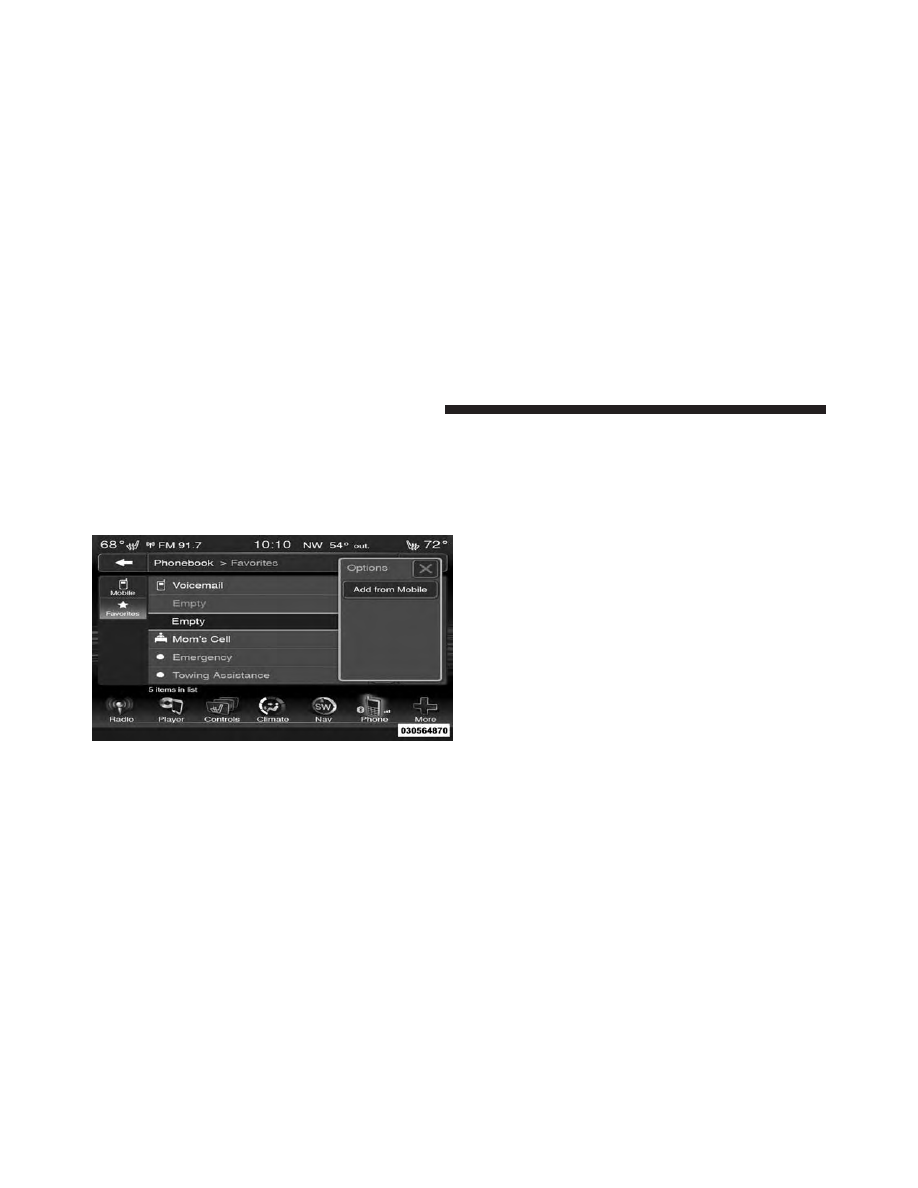

Add From Mobile

178

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4. The Options pop-up will display, press “Remove from

Favs.”

Emergency And Towing Assistance

The Emergency and Towing Assistance Favorite numbers
can only be altered. These cannot be deleted and the
names cannot be changed.

To change the Emergency or Towing Assistance numbers
follow these steps.

1. Press the “Phonebook” button from the Phone main

screen.

2. Press the “Favorites” button on the touchscreen. Scroll

to the bottom of the list to locate the Emergency and
Towing Assistance Favorites.

3. Press the “+” Options button on the touchscreen.

4. Press the “+” next to appropriate Favorite that is to be

altered.

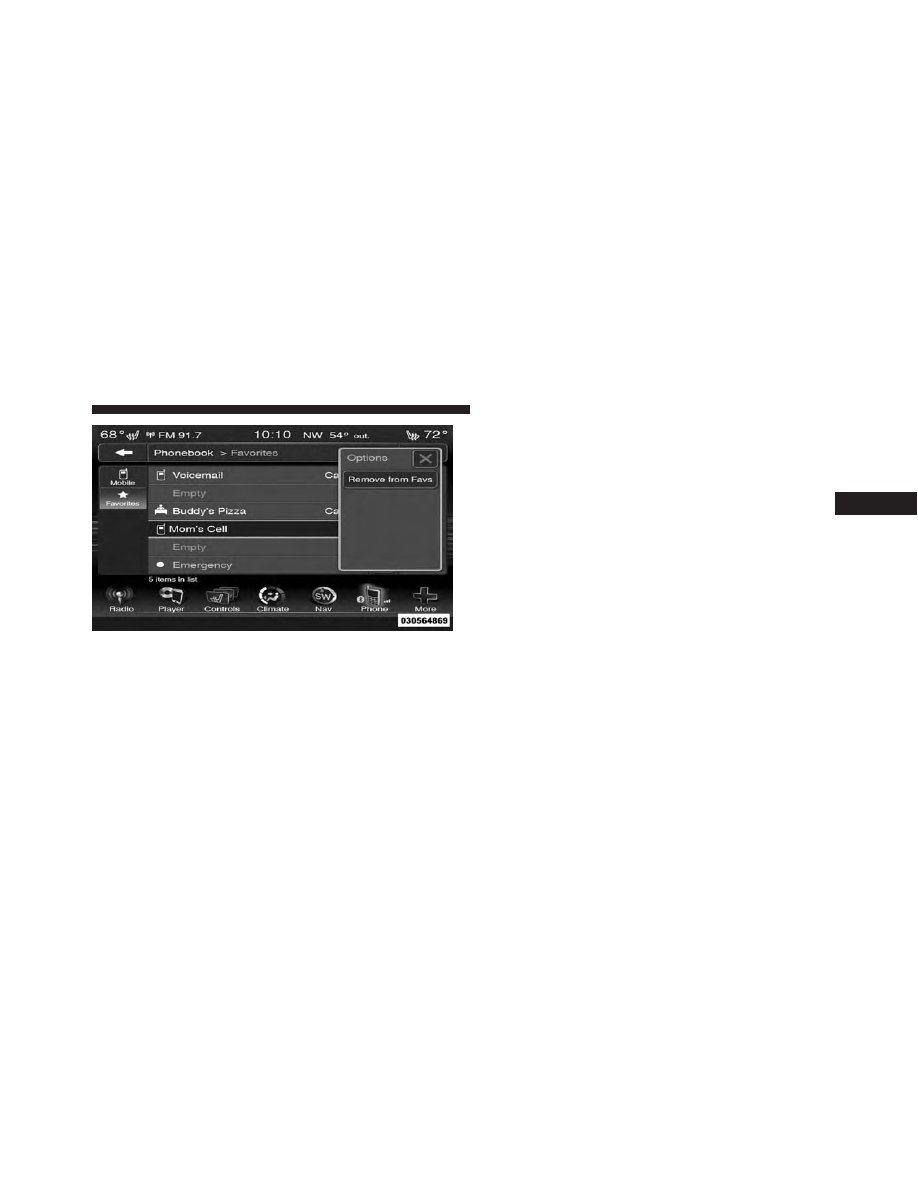

Remove From Favorites

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

179

5. The Options pop-up will appear and you can choose

between Editing the number or resetting the number
to default.

Phone Call Features

The following features can be accessed through the
Uconnect Phone if the feature(s) are available and sup-
ported by Bluetooth on your mobile service plan. For
example, if your mobile service plan provides three-way
calling, this feature can be accessed through the Uconnect
Phone. Check with your mobile service provider for the
features that you have.

Ways To Initiate A Phone Call

Listed below are all the ways you can initiate a phone call
with Uconnect Phone.

• Redial
• Dial by pressing in the number
• Voice Commands (Dial by Saying a Name, Call by

Saying a Phonebook Name, Redial or Call Back)

• Favorites

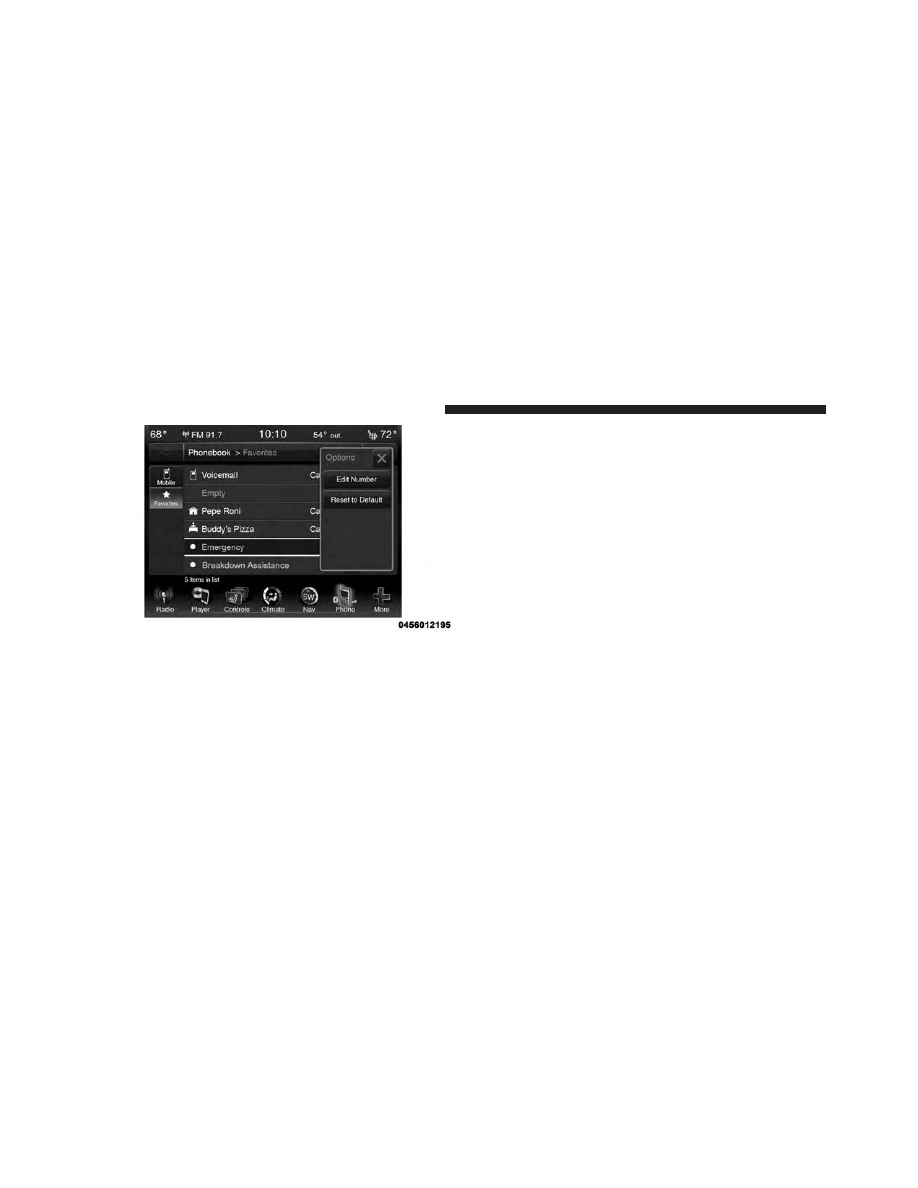

Emergency And Breakdown Assistance

180

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• Mobile Phonebook
• Recent Call Log
• SMS Message Viewer

Dial By Saying A Number

1. Push the Phone

button to begin,

2. After the “Listening” prompt and the following beep,

say “Dial 151 1234 5555,”

3. The Uconnect Phone will dial the number 151-1234-5555.

Call By Saying A Phonebook Name

1. Push the Phone

button on your steering wheel to

begin.

2. After the “Listening” prompt and the following beep,

say “Call John Doe Mobile.”

3. The Uconnect Phone will dial the number associated

with John Doe, or if there are multiple numbers it will
ask which number you want to call for John Doe.

Call Controls

The touchscreen allows you to control the following call
features:

• Answer
• End
• Ignore
• Hold/unhold
• Mute/unmute
• Transfer the call to/from the phone
• Swap two active calls
• Join two active calls together

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

181

Touch-Tone Number Entry

1. Press the “Phone” button on the touchscreen.

2. Press the “Dial” button on the touchscreen.

3. The Touch-Tone screen will be displayed.

4. Use the numbered buttons on the touchscreens to

enter the number and press “Call.”

To send a touch-tone using Voice Recognition (VR), push
the Voice Command

button on your steering wheel

while in a call and say “Send 1234#” or you can say
“Send Voicemail Password” if Voicemail password is
stored in your mobile phonebook.

Recent Calls

You may browse up to 34 of the most recent of each of the
following call types:

• Incoming Calls
• Outgoing Calls
• Missed Calls
• All Calls

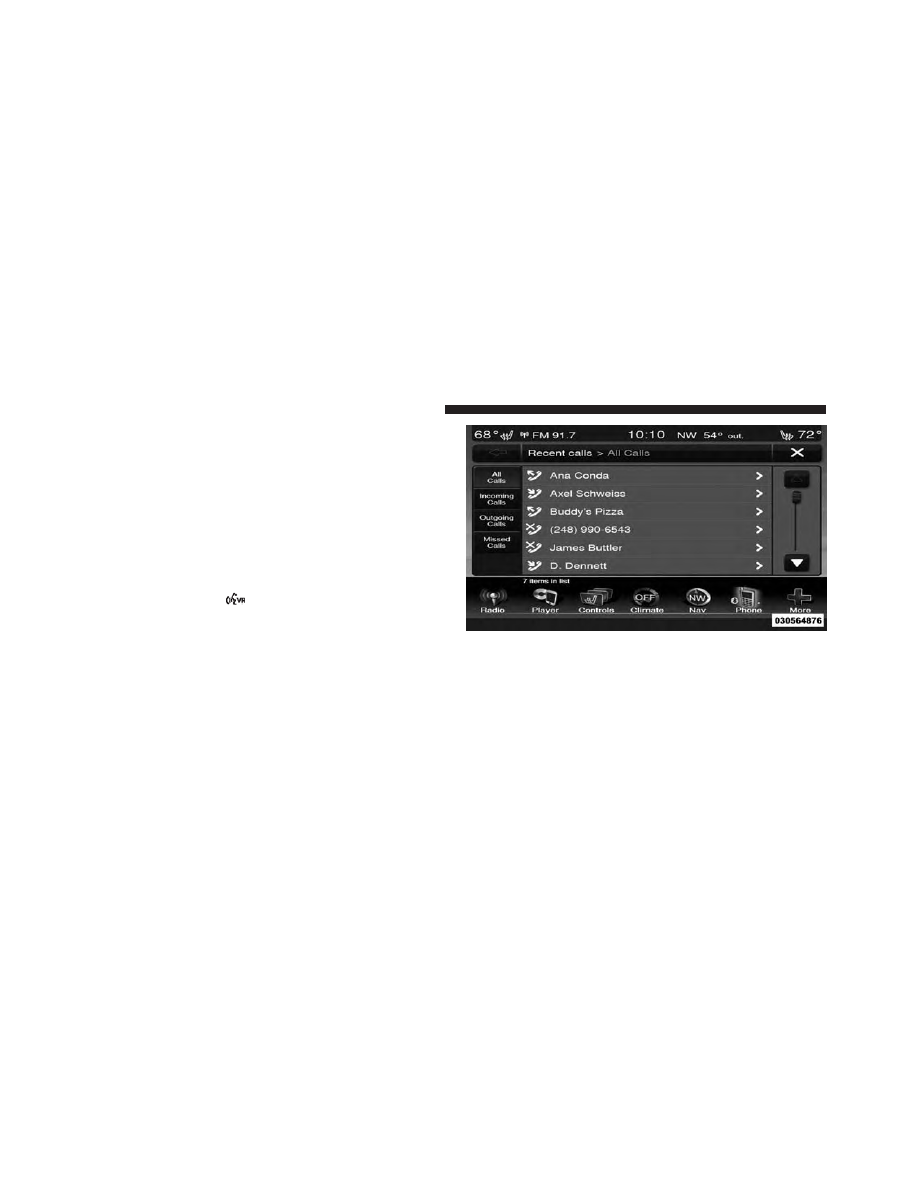

Recent Calls

182

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

These can be accessed by pressing the “recent calls”
button on the touchscreen on the Phone main screen.

You can also push the Phone

button and say “Show

my incoming calls” from any screen and the Incoming
calls will be displayed.

You can also push the Phone

button and say “Show

my recent calls” from any screen and the All calls
screen will be displayed.

NOTE:

Incoming can also be replaced with “Outgoing,”

“Recent” or “Missed.”

Answer Or Ignore An Incoming Call — No Call
Currently In Progress

When you receive a call on your mobile phone, the
Uconnect Phone will interrupt the vehicle audio system.
Push the Phone

button on the steering wheel to

accept the call. You can also press the “answer” button
on the touchscreen or press the caller ID box.

Answer Or Ignore An Incoming Call — Call
Currently In Progress

If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your
mobile phone. Push the Phone

button on the steering

wheel, or press the “answer” button on the touch-
screen, or caller ID box, to place the current call on
hold and answer the incoming call.

NOTE:

The Uconnect Phone compatible phones in the

market today do not support rejecting an incoming call
when another call is in progress. Therefore, the user can
only answer an incoming call or ignore it.

Making A Second Call While Current Call Is In
Progress

You can place a call on hold by pressing the “Hold”
button on the Phone main screen, then dial a number

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

183

from the dialpad, recent calls, SMS Inbox or from the
phonebooks. To go back to the first call, refer to “Toggling
Between Calls” in this section. To combine two calls, refer
to “Join Calls” in this section.

Place/Retrieve A Call From Hold

During an active call, press the “Hold” button on the
Phone main screen.

Toggling Between Calls

If two calls are in progress (one active and one on hold),
press the “Swap” button on the Phone main screen. Only
one call can be placed on hold at a time.

You can also push the Phone

button to toggle be-

tween the active and held phone call.

Join Calls

When two calls are in progress (one active and one on
hold), press the “Join Calls” button on the Phone main
screen to combine all calls into a Conference Call.

Call Termination

To end a call in progress, momentarily push the Phone

button or press the “end” button on the touch-

screen. Only the active call(s) will be terminated and if
there is a call on hold, it will become the new active
call.

Redial

Press the “Redial” button on the touchscreen, or push the
Phone

button and after the “Listening” prompt and

the following beep, say “Redial.”

The Uconnect Phone will call the last number that was
dialed from your mobile phone.

184

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Call Continuation

Call continuation is the progression of a phone call on the
Uconnect Phone after the vehicle ignition key has been
switched to OFF.

NOTE:

The call will remain within the vehicle audio

system until the phone becomes out of range for the
Bluetooth connection. It is recommended to press the
“transfer” button on the touchscreen when leaving the
vehicle.

Uconnect Phone Features

Emergency Assistance

If you are in an emergency and the mobile phone is
reachable:

• Pick up the phone and instructionly dial the emergency

number for your area.

If the phone is not reachable and the Uconnect Phone is
operational, you may reach the emergency number as
follows:

1. Push the Phone

button to begin.

2. After the “Listening” prompt and the following beep,

say “Dial Emergency” and the Uconnect Phone will
instruct the paired mobile phone to call the emergency
number. This feature is supported in the U.S., Canada,
and Mexico.

NOTE:

• The Emergency call may also be initiated by using the

touchscreen.

• The emergency number dialed is based on the country

where the vehicle is purchased (911 for the U.S. and
Canada and 060 for Mexico). The number dialed may
not be applicable with the available mobile service and
area.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

185

• The Uconnect Phone does slightly lower your chances

of successfully making a phone call as to that for the
mobile phone directly.

WARNING!

Your phone must be turned on and connected to the
Uconnect Phone to allow use of this vehicle feature
in emergency situations, when the mobile phone has
network coverage and stays connected to the
Uconnect Phone.

Roadside Assistance/Towing Assistance

If you need roadside/towing assistance:

1. Push the Phone

button to begin.

2. After the “Listening” prompt and the following beep,

say “Roadside Assistance” or say “Towing Assis-
tance.”

NOTE:

The roadside/towing assistance number dialed is

based on the country where the vehicle is purchased
(1-800-521-2779 for the U.S./Canada, 55-14-3454 for
Mexico City and 1-800-712-3040 for outside Mexico City
in Mexico). Please refer to the FCA US LLC 24-Hour
“Roadside Assistance” coverage details in the Warranty
Information Booklet and in the Owner’s Information
Instruction on the DVD under “Other References.”

Voice Mail Calling

To learn how to access your voice mail, refer to “Working
with Automated Systems.”

Working With Automated Systems

This method is used in instances where one generally has
to push numbers on the mobile phone keypad while
navigating through an automated telephone system.

You can use your Uconnect Phone to access a voice mail
system or an automated service, such as a paging service

186

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

or automated customer service line. Some services re-
quire immediate response selection. In some instances,
that may be too quick for use of the Uconnect Phone.

When calling a number with your Uconnect Phone that
normally requires you to enter in a touch-tone sequence
on your mobile phone keypad, you can utilize the
touchscreen or push the Voice Command

button and

say the word “Send” then the sequence you wish to
enter. For example, if required to enter your PIN
followed with a pound, (3 7 4 6 #), you can push the
Voice Command

button and say, “Send 3 7 4 6 #.”

Saying “Send” followed by a number, or sequence of
numbers, is also to be used for navigating through an
automated customer service center menu structure,
and to leave a number on a pager.

You can also send stored mobile phonebook entries as
tones for fast and easy access to voice mail and pager

entries. For example, if you previously created a Phone-
book entry with First and/or Last Name as “Voicemail
Password”, then if you push the Voice Command

but-

ton and say “Send Voicemail Password” the Uconnect
Phone will then send the corresponding phone num-
ber associated with the phonebook entry, as tones over
the phone.

NOTE:

• The first number encountered for that contact will be

sent. All other numbers entered for that contact will be
ignored.

• You may not hear all of the tones due to mobile phone

network configurations. This is normal.

• Some paging and voice mail systems have system time

out settings that are too short and may not allow the
use of this feature.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

187

Dodge Dart (2016 year). Instruction - part 11
