Dodge Chassis Cab (2012 year). Instruction - part 2

• Remote Start Aborted — Hood Ajar
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — System Fault
• Remote Start Disabled — Start Vehicle to Reset

The EVIC message stays active until the ignition is turned
to the ON/RUN position.

To Enter Remote Start Mode

Press and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Once the

vehicle has started, the engine will run for 15 minutes.

NOTE:

• If your power door locks were unlocked, Remote Start

will automatically lock the doors.

• If an engine fault is present or fuel level is low, the

vehicle will start and then shut down in 10 seconds.

• The park lamps will turn on and remain on during

Remote Start mode.

• For security, power window and power sunroof op-

eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.

• The engine can be started two consecutive times (two

15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON/RUN
position before you can repeat the start sequence for a
third cycle.

To Exit Remote Start Mode Without Driving The
Vehicle
Press and release the REMOTE START button one time or
allow the engine to run for the entire 15-minute cycle.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

To avoid unintentional shut downs, the system

will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.

To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm System
(if equipped). Insert the Key Fob into the ignition switch
and turn the switch to the ON/RUN position.

NOTE:

• The ignition switch must be in the ON/RUN position

in order to drive the vehicle.

• For vehicles equipped with the Electronic Vehicle

Information Center (EVIC), the message “Insert Key/
Turn To On” will flash in the EVIC until you insert the
Key Fob into the ignition switch. Once inserted, the

message “Turn To On” will flash in the EVIC until you
turn the ignition switch to the ON/RUN position.

• “Remote Start Active — Key To Run” will display in

the EVIC until you insert and turn the key to ON/
RUN position. Refer to “Electronic Vehicle Information
Center (EVIC)” for further information.

Remote Start Comfort Systems — If Equipped
When remote start is activated, the heated steering
wheel, and driver heated seat features will automatically
turn on in cold weather. In warm weather, the driver
vented seat feature will automatically turn on when the
remote start is activated. These features will stay on
through the duration of remote start or until the ignition
switch is turned to the ON/RUN position.

The Remote Start Comfort System can be activated and
deactivated through the Electronic Vehicle Information
Center (EVIC). For more information on Remote Start
Comfort System operation refer to “Electronic Vehicle

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Information Center (EVIC)/Customer-Programmable
Features (System Setup)” in “Understanding Your Instru-
ment Panel”.

DOOR LOCKS

Instruction Door Locks

Front and rear doors may be locked by moving the lock
knob down or unlocked by moving the lock knob up.

Front doors may be opened with the inside door handle
without lifting the lock knob.

Doors locked before closing will remain locked when
closed.

The emergency key will unlock the driver door lock on
your vehicle.

WARNING!

• Do not leave children or animals inside parked

vehicles in hot weather. Interior heat build-up may
cause serious injury or death.

• For personal security and safety in the event of an

accident, lock the vehicle doors as you drive as
well as when you park and leave the vehicle.

• Before exiting a vehicle, always apply the parking

brake, shift the transmission into PARK, and re-
move the key fob from the ignition. When leaving
the vehicle, always lock your vehicle.

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle.

(Continued)

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)

• Allowing children to be in a vehicle unattended is

dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.

• Do not leave the key fob in or near the vehicle, and

do not leave the ignition in the ACC or ON/RUN
position. A child could operate power windows,
other controls, or move the vehicle.

Power Door Locks — If Equipped

A power door LOCK switch is on each front door trim
panel. Use this switch to lock or unlock the doors.

Power Door Lock Switch Location

1 - Unlock

2 - Lock

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

If you press the power door LOCK switch while the Key
Fob is in the ignition, and any front door is open, the
power locks will not operate. This prevents you from
accidentally locking your Key Fob in the vehicle. Remov-
ing the Key Fob or closing the door will allow the locks to
operate. A chime will sound if the Key Fob is in the
ignition switch and a door is open, as a reminder to
remove the Key Fob.

Automatic Door Locks — If Equipped
The auto door lock feature default condition is disabled.
When enabled, the door locks will lock automatically
when the vehicle’s speed exceeds 15 mph (24 km/h). The
auto door lock feature can be enabled or disabled by your
authorized dealer per written request of the customer.
Please see your authorized dealer for service.

Auto Unlock Doors — If Equipped
This feature unlocks all of the doors of the vehicle when
either front door is opened. This will occur only after the
vehicle has been shifted into the PARK position after the
vehicle has been driven (shifted out of PARK and all
doors closed).

Auto Unlock Doors Programming — If Equipped
The Auto Unlock Doors feature can be enabled or dis-
abled as follows:

For vehicles equipped with the EVIC, refer to “Electronic
Vehicle Information Center (EVIC)/Personal Settings
(System Setup)” in “Understanding Your Instrument
Panel” for further information.

NOTE:

Use the Auto Unlock Doors feature in accor-

dance with local laws.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Child-Protection Door Lock

To provide a safer environment for children riding in the
rear seat, the rear doors (if equipped) of your vehicle
have the Child-Protection Door Lock system.

To use the system, open each rear door, use a flat blade
screwdriver (or emergency key) and rotate the dial to
engage and disengage the Child-Protection locks. When
the system on a door is engaged, that door can only be
opened by using the outside door handle even if the
inside door lock is in the unlocked position.

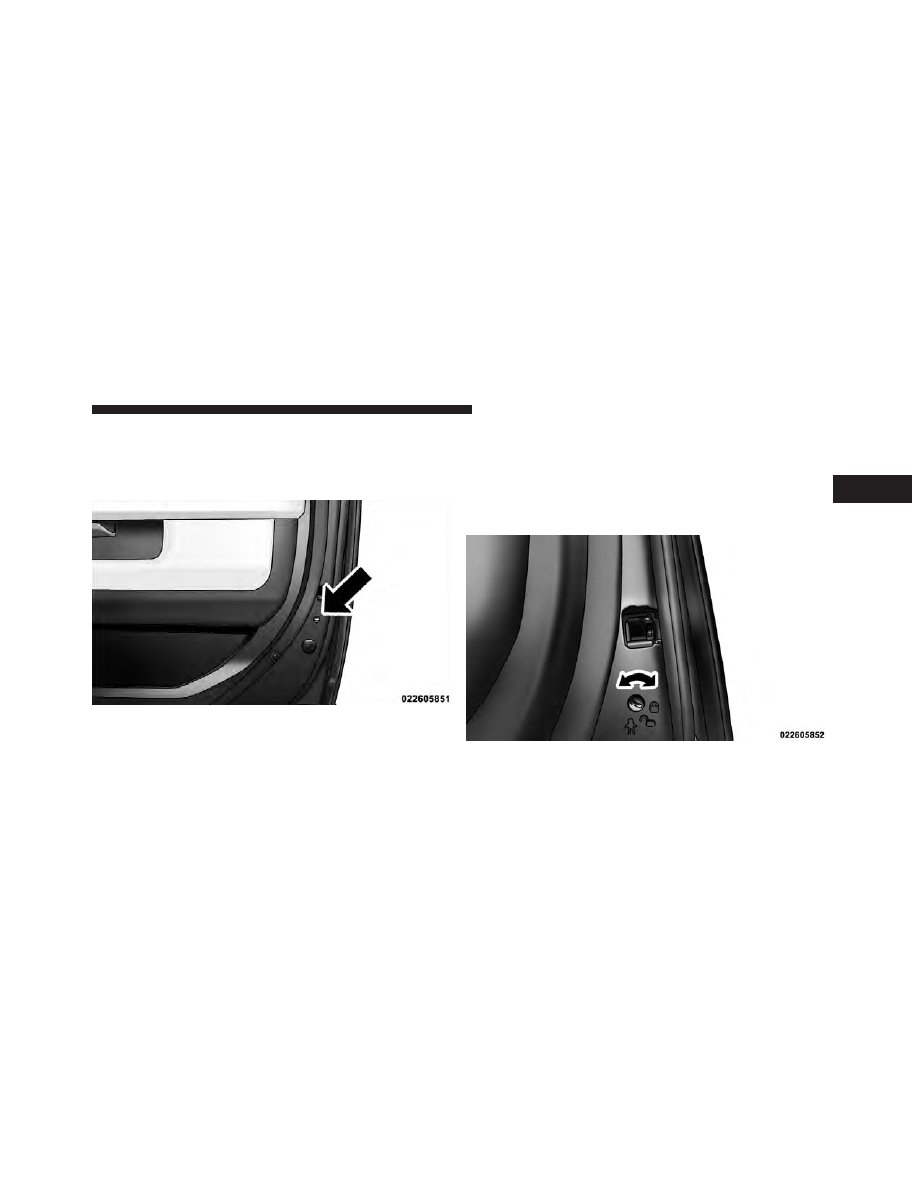

Child-Protection Door Lock Location

Child Lock Control

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child-Protection locks are
engaged.

NOTE:

• After setting the Child-Protection Door Lock system,

always test the door from the inside to make certain it
is in the desired position.

• For emergency exit with the system engaged, move

the door lock switch to the UNLOCK position, roll
down the window and open the door with the outside
door handle.

WINDOWS

Power Windows – If Equipped

Power Window Switches

1 – Left Front

3 – Right Rear

2 – Right Front

4 – Left Rear

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The control on the left front door panel has UP-DOWN
switches that give you fingertip control of all power
windows. There is a single opening and closing switch on
the front passenger door for passenger window control
and on the rear doors of the Crew Cab models. The
windows will operate when the ignition switch is turned
to the ON/RUN or ACC position, and for up to 10 min-
utes after the ignition is turned OFF or until a front door
is opened.

NOTE:

The Key Off Power Delay feature will allow the

power windows to operate for up to 10 minutes after the
ignition is turned OFF. This feature is cancelled when
either front door is opened.

WARNING!

Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.

Auto-Down
Both the driver and front passenger window switch have
an Auto-Down feature. Press the window switch past the
first detent, release, and the window will go down
automatically. To cancel the Auto-Down movement, op-
erate the switch in either the up or down direction and
release the switch.

To stop the window from going all the way down during
the Auto-Down operation, pull up on the switch briefly.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To open the window part way, press to the first detent
and release it when you want the window to stop.

Auto-Up Feature With Anti-Pinch Protection
(4-Door Models Driver And Front Passenger Door
Only) — If Equipped
Lift the window switch fully upward to the second
detent, release, and the window will go up automatically.

To stop the window from going all the way up during the
Auto Up operation, push down on the switch briefly.

To close the window part way, lift the window switch to
the first detent and release when you want the window to
stop.

NOTE:

If the window runs into any obstacle during the

auto-closure, it will reverse direction and then go back
down. Remove the obstacle and use the window switch
again to close the window. Any impact due to rough road

conditions may trigger the auto reverse function unex-
pectedly during auto closure. If this happens, pull the
switch lightly to the first detent and hold to close the
window instructionly.

WARNING!

There is no anti-pinch protection when the window
is almost closed. Be sure to clear all objects from the
window before closing.

Auto-Up Reset
It may be necessary at some point in time to reactivate the
Auto-up/Auto-down feature. To do so, perform the
following steps:

1. Pull the window switch up to close the window
completely and continue to hold the switch up for an
additional two seconds after the window is closed.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Push the window switch down firmly to the second
detent to open the window completely and continue to
hold the switch down for an additional two seconds after
the window is fully open.

Window LOCKOUT Switch (4–Door Models Only)
The window LOCKOUT switch on the driver’s door
allows you to disable the window control on the rear
passenger doors. To disable the window controls on the
rear passenger doors, press the window LOCK button
into the latched or down position. To enable the window
controls, press the window LOCK button again and
return the switch to the released or up position.

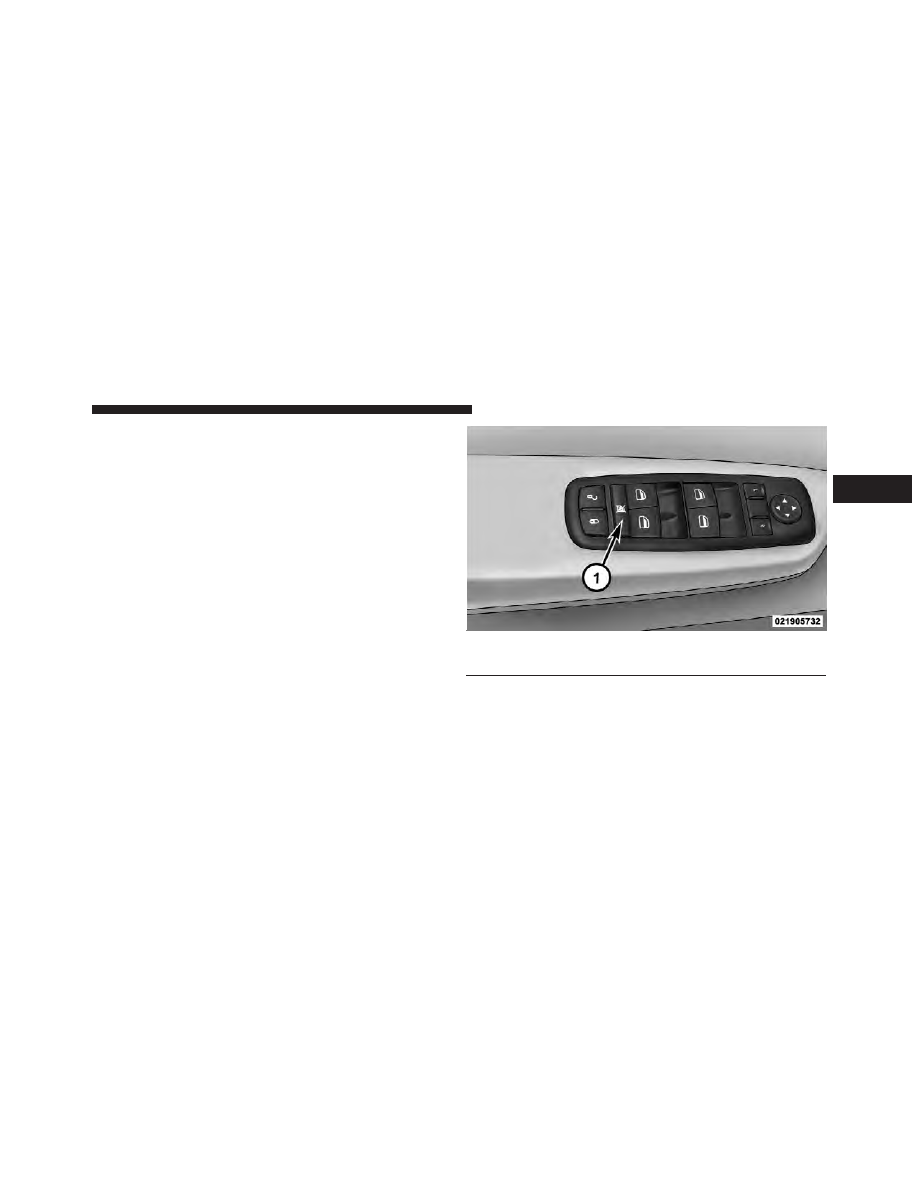

Window Lockout Switch

1 – Window Lockout Switch

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Wind Buffeting

Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down or in partially open positions. This is a
normal occurrence and can be minimized. If the rear
windows are open and buffeting occurs, open the front
and rear windows together to minimize the buffeting.

OCCUPANT RESTRAINTS

Some of the most important safety features in your
vehicle are the restraint systems:

• Three-point lap and shoulder belts for the driver and

all passengers

• Advanced Front Air Bags for driver and front passen-

ger — if equipped

• An energy-absorbing steering column and steering

wheel

• Knee bolsters/blockers for front seat occupants
• All seat belt systems (except driver’s regular/Crew

Cab

威, first and second row center position for Crew

Cab

威 only) include Automatic Locking Retractors

(ALR)

If you will be carrying children too small for adult-sized
seat belts, the seat belts or the Lower Anchors and Tether
for CHildren (LATCH) feature also can be used to hold
infant and child restraint systems. For further informa-
tion, refer to “Lower Anchors and Tether for CHildren
(LATCH)”.

NOTE:

The Advanced Front Air Bags have a multistage

inflator design. This allows the air bag to have different
rates of inflation based on the severity and type of
collision.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Please pay close attention to the information in this
section. It tells you how to use your restraint system
properly, to keep you and your passengers as safe as
possible.

WARNING!

In an accident, you and your passengers can suffer
much greater injuries if you are not properly buckled
up. You can strike the interior of your vehicle or other
passengers, or you can be thrown out of the vehicle.
Always be sure you and others in your vehicle are
buckled up properly.

Buckle up even though you are an excellent driver, even
on short trips. Someone on the road may be a poor driver
and cause an accident that includes you. This can happen
far away from home or on your own street.

Research has shown that seat belts save lives, and they
can reduce the seriousness of injuries in an accident.
Some of the worst injuries happen when people are
thrown from the vehicle. Seat belts reduce the possibility
of ejection and the risk of injury caused by striking the
inside of the vehicle. Everyone in a motor vehicle should
be belted at all times.

Lap/Shoulder Belts

All seating positions except the Crew Cab front center
seating position have combination lap/shoulder belts.
The belt webbing retractor is designed to lock during
very sudden stops or accidents. This feature allows the
shoulder part of the belt to move freely with you under
normal conditions. However, in an accident the belt will
lock and reduce the risk of you striking the inside of the
vehicle or being thrown out.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• It is dangerous to ride in a cargo area, inside or

outside of a vehicle. In an accident, people riding
in these areas are more likely to be seriously
injured or killed.

• Do not allow people to ride in any area of your

vehicle that is not equipped with seats and seat
belts.

• Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

(Continued)

WARNING! (Continued)

• Wearing a seat belt incorrectly is dangerous. Seat

belts are designed to go around the large bones of
your body. These are the strongest parts of your
body and can take the forces of an accident best.
Wearing your belt in the wrong place could make
your injuries in an accident much worse. You
might suffer internal injuries, or you could even
slide out of part of the belt. Follow these instruc-
tions to wear your seat belt safely and to keep your
passengers safe, too.

• Two people should never be belted into a single

seat belt. People belted together can crash into one
another in an accident, hurting one another badly.
Never use a lap/shoulder belt or a lap belt for more
than one person, no matter what their size.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Lap/Shoulder Belt Operating Instructions

1. Enter the vehicle and close the door. Sit back and
adjust the seat.

2. The seat belt latch plate is above the back of the front
seat, next to your arm in the rear seat. Grasp the latch
plate and pull out the belt. Slide the latch plate up the
webbing as far as necessary to allow the belt to go around
your lap.

Pulling Out Latch Plate And Webbing

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3. When the belt is long enough to fit, insert the latch
plate into the buckle until you hear a “click.”

WARNING!

• A belt buckled into the wrong buckle will not

protect you properly. The lap portion could ride
too high on your body, possibly causing internal
injuries. Always buckle your belt into the buckle
nearest you.

• A belt that is too loose will not protect you

properly. In a sudden stop you could move too far
forward, increasing the possibility of injury. Wear
your seat belt snugly.

(Continued)

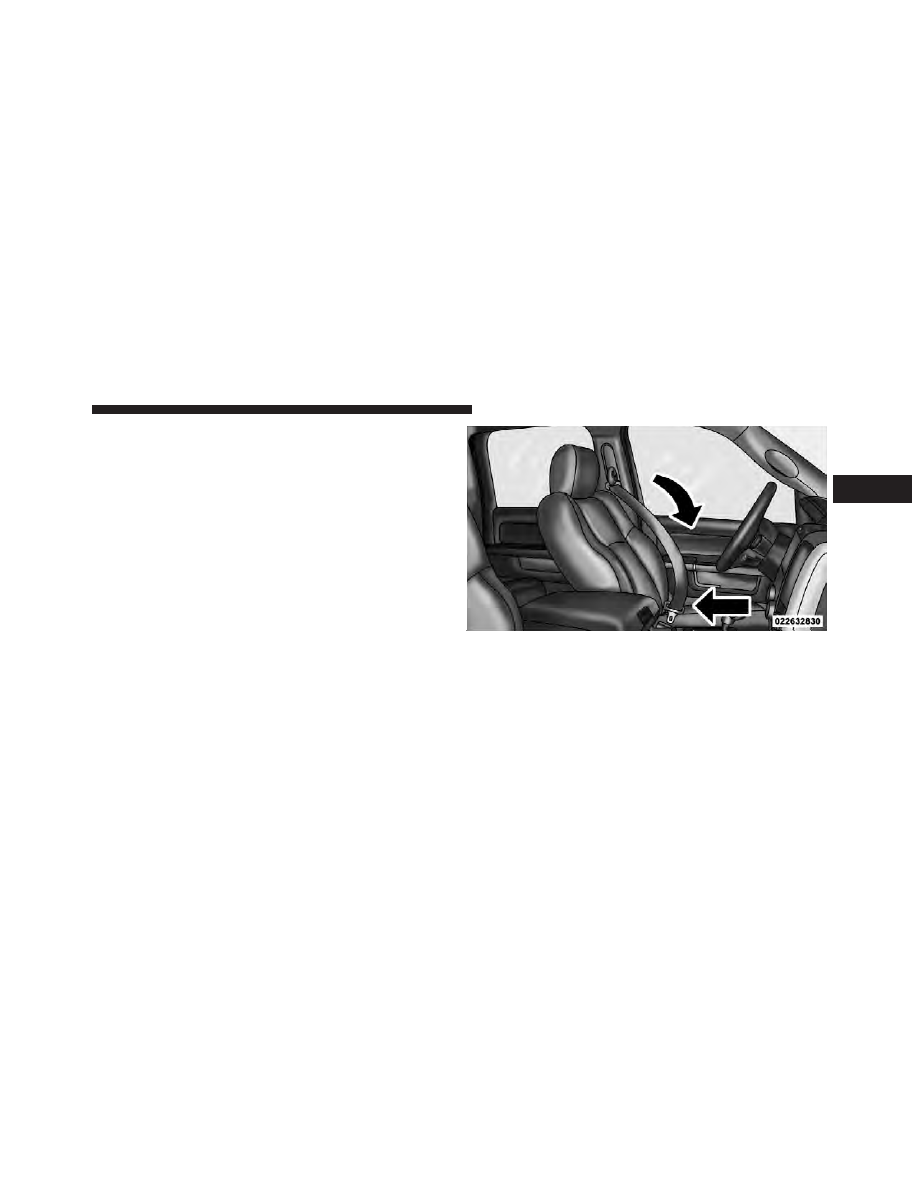

Latch Plate To Buckle

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING! (Continued)

• A belt that is worn under your arm is dangerous.

Your body could strike the inside surfaces of the
vehicle in an accident, increasing head and neck
injury. A belt worn under the arm can cause
internal injuries. Ribs aren’t as strong as shoulder
bones. Wear the belt over your shoulder so that
your strongest bones will take the force in a
collision.

• A shoulder belt placed behind you will not protect

you from injury during an accident. You are more
likely to hit your head in a collision if you do not
wear your shoulder belt. The lap and shoulder belt
are meant to be used together.

4. Position the lap belt across your thighs, below your
abdomen. To remove slack in the lap belt portion, pull up
on the shoulder belt. To loosen the lap belt if it is too tight,
tilt the latch plate and pull on the lap belt. A snug belt
reduces the risk of sliding under the belt in an accident.

Removing Slack From Belt

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Content .. 1 2 3 ..
