Dodge Charger SRT8 (2010 year). Instruction

To restore the Voice Command system to factory default
settings, enter the Voice Training session via the above
procedure and follow the prompts.

Voice Command

• For best performance, adjust the rearview mirror to

provide at least

⁄

in (1 cm) gap between the overhead

console (if equipped) and the mirror.

• Always wait for the beep before speaking.
• Speak normally, without pausing, just as you would

speak to a person sitting a few feet/meters away from
you.

• Make sure that no one other than you is speaking

during a Voice Command period.

• Performance is maximized under:

• low-to-medium blower setting,

• low-to-medium vehicle speed,
• low road noise,
• smooth road surface,
• fully closed windows,
• dry weather condition.

• Even though the system is designed for users speaking

in North American English, French, and Spanish ac-
cents, the system may not always work for some.

• When navigating through an automated system such

as voice mail, or when sending a page, at the end of
speaking the digit string, make sure to say

⬙Send.⬙

• Storing names in the phonebook when the vehicle is

not in motion is recommended.

• It is not recommended to store similar sounding

names in the Uconnect™ Phonebook.

108

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

• Phonebook (Downloaded and Uconnect™ Phone Lo-

cal) name recognition rate is optimized when the
entries are not similar.

• Numbers must be spoken in single digits. “800” must

be spoken “eight-zero-zero” not “eight hundred”.

• You can say ⬙O⬙ (letter ⬙O⬙) for ⬙0⬙ (zero).
• Even though international dialing for most number

combinations is supported, some shortcut dialing
number combinations may not be supported.

• In a convertible vehicle, system performance may be

compromised with the convertible top down.

Phone Far End Audio Performance

• Audio quality is maximized under:

• low-to-medium blower setting,
• low-to-medium vehicle speed,

• low road noise,
• smooth road surface,
• fully closed windows,
• dry weather conditions, and
• operation from the driver’s seat.

• Performance, such as audio clarity, echo, and loudness

to a large degree rely on the phone and network, and
not the Uconnect™ Phone.

• Echo at the phone far end can sometimes be reduced

by lowering the in-vehicle audio volume.

• In a convertible vehicle, system performance may be

compromised with the convertible top down.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

109

Bluetooth

威 Communication Link

Cellular phones have been found to lose connection to
the Uconnect™ Phone. When this happens, the connec-
tion can generally be reestablished by switching the
phone off/on. Your cellular phone is recommended to
remain in Bluetooth

威 ON mode.

Power-Up
After switching the ignition key from OFF to either the
ON or ACC position, or after a language change, you
must wait at least five seconds prior to using the system.

110

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

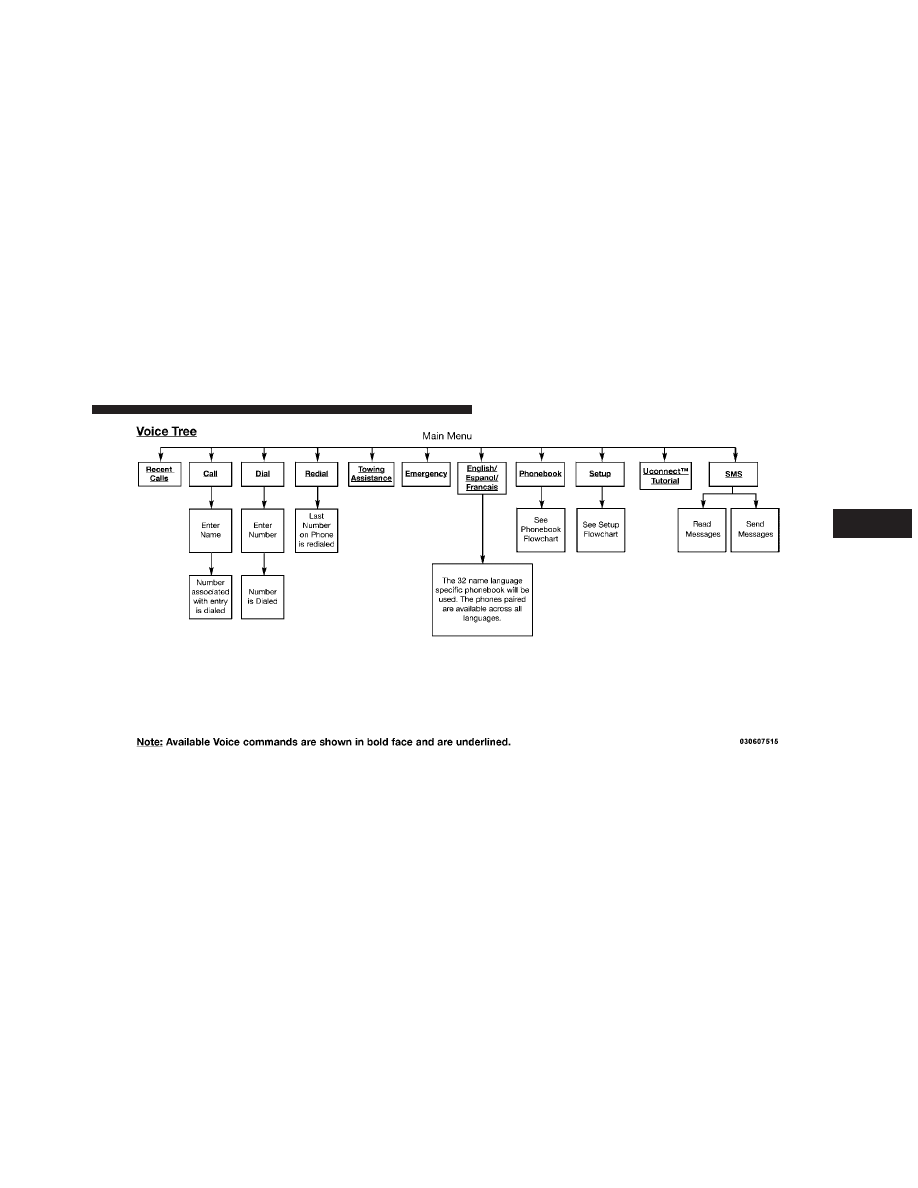

Voice Commands

Primary

Alternate(s)

zero
one
two
three
four
five
six
seven
eight
nine
star (*)
plus (+)
pound (#)
add location
all

Voice Commands

Primary

Alternate(s)

call
cancel
confirmation prompts
continue
delete
dial
download
edit
emergency
English
erase all
Espanol
Francais
help
home

114

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Voice Commands

Primary

Alternate(s)

language
list names
list phones
mobile
mute
mute off
new entry
no
pager
pair a phone
phone pairing

pairing

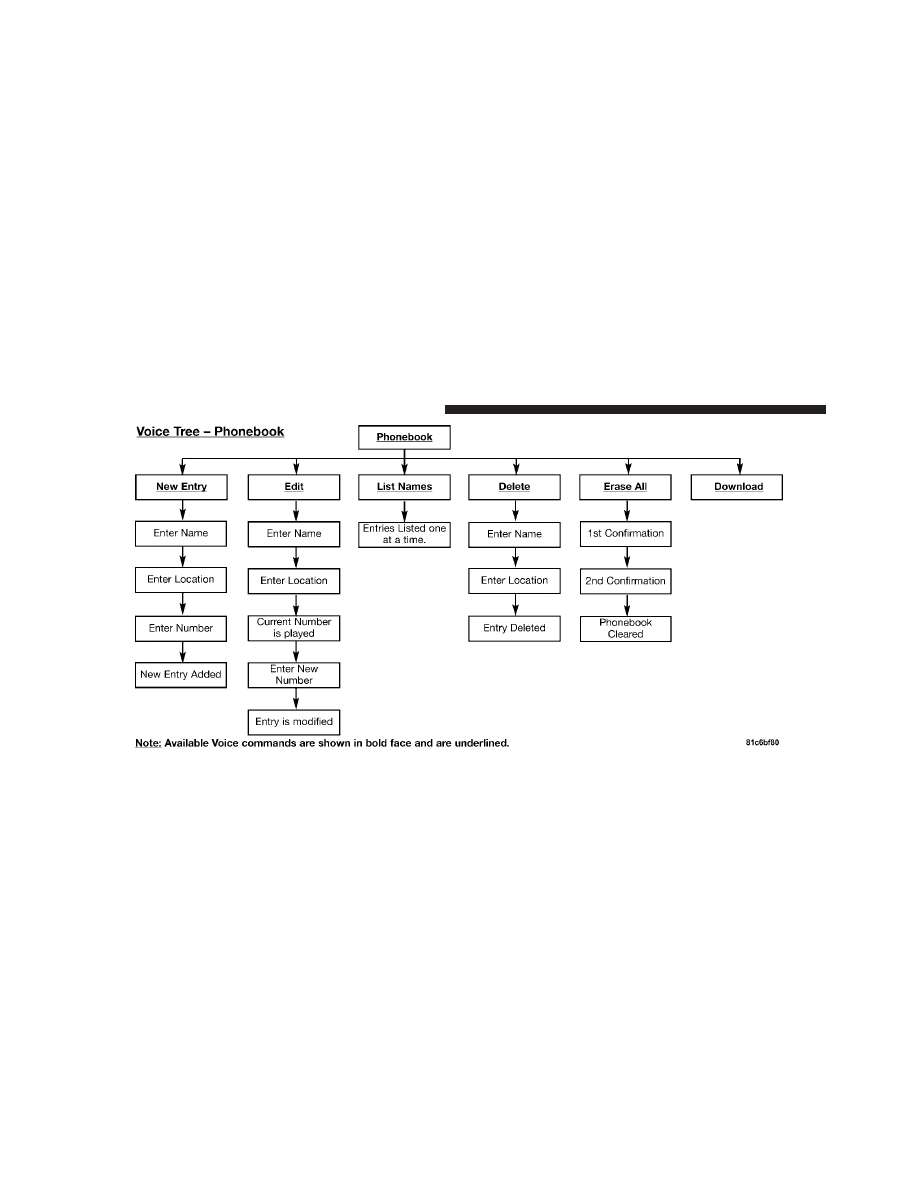

phonebook

phone book

previous
record again
redial

Voice Commands

Primary

Alternate(s)

return to main menu

return or main menu

select phone

select

send

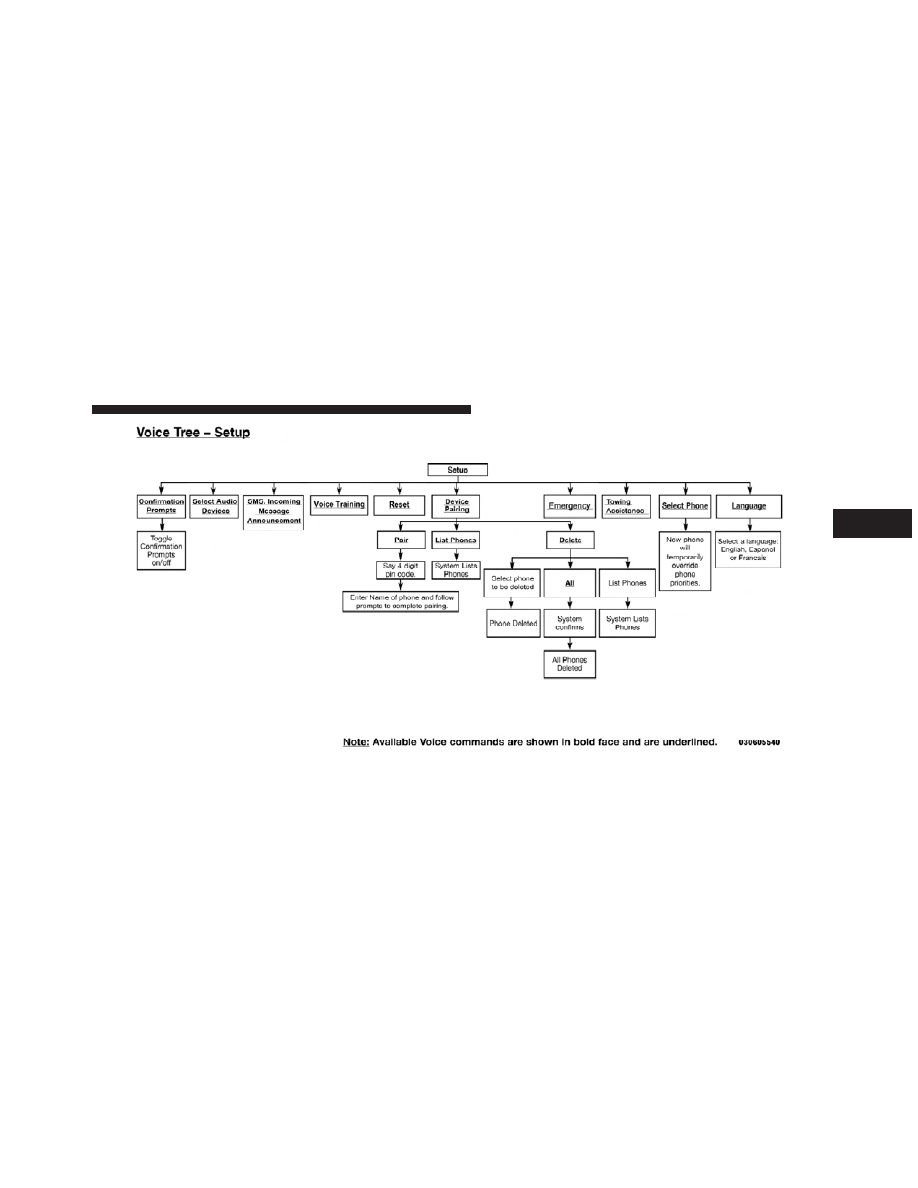

set up

phone settings or phone
set up

towing assistance
transfer call
Uconnect™ Tutorial
try again
voice training
work
yes

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

115

General Information

This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:

• Changes or modifications not expressly approved by

the party responsible for compliance could void the
user’s authority to operate the equipment.

• This device may not cause harmful interference.
• This device must accept any interference received,

including interference that may cause undesired
operation.

VOICE COMMAND — IF EQUIPPED

Voice Command System Operation

This Voice Command system allows you to
control your AM, FM radio, satellite radio, disc
player, and a memo recorder.

NOTE:

Take care to speak into the Voice Interface

System as calmly and normally as possible. The ability of
the Voice Interface System to recognize user voice com-
mands may be negatively affected by rapid speaking or a
raised voice level.

WARNING!

Any voice commanded system should be used only
in safe driving conditions following local laws and
phone use. All attention should be kept on the
roadway ahead. Failure to do so may result in an
accident causing serious injury or death.

When you press the Voice Command

button, you

will hear a beep. The beep is your signal to give a
command.

116

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

If you do not say a command within a few

seconds, the system will present you with a list of
options.

If you ever wish to interrupt the system while it lists
options, press the Voice Command

button, listen

for the beep, and say your command.

Pressing the Voice Command

button while the

system is speaking is known as “barging in.” The system
will be interrupted, and after the beep, you can add or
change commands. This will become helpful once you
start to learn the options.

NOTE:

At any time, you can say the words “Cancel”,

“Help” or “Main Menu”.

These commands are universal and can be used from any
menu. All other commands can be used depending upon
the active application.

For example, if you are in the disc menu and you are
listening to FM radio, you can speak commands from the
disc menu or from the FM radio menu.

When using this system, you should speak clearly and at
a normal speaking volume.

The system will best recognize your speech if the win-
dows are closed, and the heater/air conditioning fan is
set to low.

At any point, if the system does not recognize one of your
commands, you will be prompted to repeat it.

To hear the first available Menu, press the Voice
Command

button and say “Help” or “Main

Menu”.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

117

Commands

The Voice Command system understands two types of
commands. Universal commands are available at all
times. Local commands are available if the supported
radio mode is active.

Changing the Volume

1. Start a dialogue by pressing the Voice Command

button.

2. Say a command (e.g., “Help”).

3. Use the ON/OFF VOLUME rotary knob to adjust the
volume to a comfortable level while the Voice Command
system is speaking. Please note the volume setting for
Voice Command is different than the audio system.

Main Menu
Start a dialogue by pressing the Voice Command
button. You may say “Main Menu” to switch to the main
menu.

In this mode, you can say the following commands:

• “Radio” (to switch to the radio mode)
• “Disc” (to switch to the disc mode)
• “Memo” (to switch to the memo recorder)
• “System Setup” (to switch to system setup)

Radio AM (or Radio Long Wave or Radio Medium
Wave — If Equipped)
To switch to the AM band, say “AM” or “Radio AM”. In
this mode, you may say the following commands:

• “Frequency” (to change the frequency)
• “Next Station” (to select the next station)
• “Previous Station” (to select the previous station)
• “Radio Menu” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu)

118

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Radio FM
To switch to the FM band, say “FM” or “Radio FM”. In
this mode, you may say the following commands:

Satellite Radio
To switch to satellite radio mode, say “Sat” or “Satellite
Radio”. In this mode, you may say the following com-
mands:

• “Channel Number” (to change the channel by its

spoken number)

• “Next Channel” (to select the next channel)

• “Previous Channel” (to select the previous channel)
• “List Channel” (to hear a list of available channels)
• “Select Name” (to say the name of a channel)
• “Radio Menu” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu)

Disc
To switch to the disc mode, say “Disc”. In this mode, you
may say the following commands:

• “Track” (#) (to change the track)
• “Next Track” (to play the next track)
• “Previous Track” (to play the previous track)
• “Main Menu” (to switch to the main menu)

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

119

Memo
To switch to the voice recorder mode, say “Memo”. In
this mode, you may say the following commands:

• “New Memo” (to record a new memo) — During the

recording, you may press the Voice Command
button to stop recording. You proceed by saying one of
the following commands:

− “Save” (to save the memo)

− “Continue” (to continue recording)

− “Delete” (to delete the recording)

• “Play Memos” (to play previously recorded memos)

— During the playback you may press the Voice
Command

button to stop playing memos. You

proceed by saying one of the following commands:

− “Repeat” (to repeat a memo)

− “Next” (to play the next memo)

− “Previous” (to play the previous memo)

− “Delete” (to delete a memo)

• “Delete All” (to delete all memos)

System Setup
To switch to system setup, say “Setup”. In this mode, you
may say the following commands:

• “Language German”
• “Language Dutch”
• “Language Italian”
• “Language English”
• “Language French”
• “Language Spanish”
• “Tutorial”
• “Voice Training”

120

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

Keep in mind that you have to press the Voice

Command

button first and wait for the beep

before speaking the “Barge In” commands.

Voice Training

For users experiencing difficulty with the system recog-
nizing their voice commands or numbers the Uconnect™
Voice “Voice Training” feature may be used.

1. Press the Voice Command

button, say “System

Setup” and once you are in that menu then say “Voice
Training.” This will train your own voice to the system
and will improve recognition.

2. Repeat the words and phrases when prompted by
Uconnect™ Voice. For best results, the “Voice Training”
session should be completed when the vehicle is parked,
engine running, all windows closed, and the blower fan
switched off. This procedure may be repeated with a new
user. The system will adapt to the last trained voice only.

SEATS

Seats are a primary part of the Occupant Restraint System
of the vehicle. They need to be used properly for safe
operation of the vehicle.

WARNING!

• DO NOT allow people to ride in any area of your

vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.

• Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

121

Power Seats

The power seat switch is on the outboard side of the seat
near the floor. Use this switch to move the driver’s seat
up or down, forward or rearward, or to recline the
seatback. The passenger’s seat will move up or down,
forward or rearward.

WARNING!

Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
the seat only while the vehicle is parked.

CAUTION!

DO NOT place any article under a power seat or
impede its ability to move as it may cause damage to
the seat controls. Seat travel may become limited if
movement is stopped by an obstruction in the seat’s
path.

Power Seat Switch

122

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Power Reclining Seats

The recliner control is located on the outboard side of the
seat.

WARNING!

Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.

Power Seat Recline Switch

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

123

Dodge Charger SRT8 (2010 year). Instruction - part 7
