Far End Audio Performance

• Audio quality is maximized under:

• low-to-medium blower setting,
• low-to-medium vehicle speed,
• low road noise,
• smooth road surface,
• fully closed windows,
• dry weather conditions, and
• operation from the driver’s seat.

• Performance, such as audio clarity, echo, and loudness

to a large degree rely on the phone and network, and
not the uconnect

威 phone.

• Echo at the far end can sometimes be reduced by

lowering the in-vehicle audio volume.

• In a convertible vehicle, system performance may be

compromised with the convertible top down.

Bluetooth

威 Communication Link

Cellular phones have been found to lose connection to
the uconnect

威 phone. When this happens, the connection

can generally be reestablished by switching the phone
off/on. Your cellular phone is recommended to remain in
Bluetooth

威 ON mode.

Power-Up
After switching the ignition key from OFF to either the
ON or ACC position, or after a language change, you
must wait at least five seconds prior to using the system.

108

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

109

110

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

111

Voice Commands

Primary

Alternate(s)

zero
one
two
three
four
five
six
seven
eight
nine
star (*)
plus (+)
pound (#)
add location
all

Voice Commands

Primary

Alternate(s)

call
cancel
confirmation prompts
continue
delete
dial
download
edit
emergency
English
erase all
Espanol
Francais
help
home

112

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Voice Commands

Primary

Alternate(s)

language
list names
list phones
mobile
mute
mute off
new entry
no
pager
pair a phone
phone pairing

pairing

phonebook

phone book

previous
record again
redial

Voice Commands

Primary

Alternate(s)

return to main menu

return or main menu

select phone

select

send
set up

phone settings or phone
set up

towing assistance
transfer call
uconnect

威 Tutorial

try again
voice training
work
yes

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

113

General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:

• Changes or modifications not expressly approved by

the party responsible for compliance could void the
user’s authority to operate the equipment.

• This device may not cause harmful interference.
• This device must accept any interference received,

including interference that may cause undesired
operation.

VOICE RECOGNITION (VR) SYSTEM — IF
EQUIPPED

Voice Recognition (VR) System Operation

This Voice Recognition system allows you to
control your AM, FM radio, satellite radio, disc
player, and a memo recorder.

NOTE:

Take care to speak into the Voice Interface

System as calmly and normally as possible. The ability of
the Voice Interface System to recognize user voice com-
mands may be negatively affected by rapid speaking or a
raised voice level.

WARNING!

Any voice commanded system should be used only
in safe driving conditions and all attention should be
kept on the roadway ahead. Failure to do so may
result in an accident causing serious injury or death.

114

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

When you press the VR button, you will hear a beep. The
beep is your signal to give a command.

NOTE:

If you do not say a command within a few

seconds, the system will present you with a list of
options.

If you ever wish to interrupt the system while it lists
options, press the VR button, listen for the beep, and say
your command.

Pressing the VR button while the system is speaking is
known as “barging in.” The system will be interrupted,
and after the beep, you can add or change commands.
This will become helpful once you start to learn the
options.

NOTE:

At any time, you can say the words “Cancel”,

“Help”, or “Main Menu”.

These commands are universal and can be used from any
menu. All other commands can be used depending upon
the active application.

For example, if you are in the disc menu and you are
listening to FM radio, you can speak commands from the
disc menu or from the FM radio menu.

When using this system, you should speak clearly and at
a normal speaking volume.

The system will best recognize your speech if the win-
dows are closed, and the heater/air conditioning fan is
set to low.

At any point, if the system does not recognize one of your
commands, you will be prompted to repeat it.

To hear the first available Menu, press the VR button and
say “Help” or “Main Menu”.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

115

Commands
The Voice Recognition (VR) system understands two
types of commands. Universal commands are available at
all times. Local commands are available if the supported
radio mode is active.

Changing the Volume

1. Start a dialogue by pressing the VR button.

2. Say a command (e.g., “Help”).

3. Use the ON/OFF VOLUME rotary knob to adjust the
volume to a comfortable level while the Voice Recogni-
tion (VR) system is speaking. Please note the volume
setting for VR is different than the audio system.

Main Menu
Start a dialogue by pressing the VR button. You may say
“Main Menu” to switch to the main menu.

In this mode, you can say the following commands:

• “Radio” (to switch to the radio mode)
• “Disc” (to switch to the disc mode)
• “Memo” (to switch to the memo recorder)
• “System Setup” (to switch to system setup)

Radio AM (or Radio Long Wave or Radio Medium
Wave — If Equipped)
To switch to the AM band, say “AM” or “Radio AM”. In
this mode, you may say the following commands:

• “Frequency” (to change the frequency)
• “Next Station” (to select the next station)
• “Previous Station” (to select the previous station)
• “Radio Menu” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu)

116

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Radio FM
To switch to the FM band, say “FM” or “Radio FM”. In
this mode, you may say the following commands:

Satellite Radio
To switch to satellite radio mode, say “Sat” or “Satellite
Radio”. In this mode, you may say the following com-
mands:

• “Channel Number” (to change the channel by its

spoken number)

• “Next Channel” (to select the next channel)

• “Previous Channel” (to select the previous channel)
• “List Channel” (to hear a list of available channels)
• “Select Name” (to say the name of a channel)
• “Radio Menu” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu)

Disc
To switch to the disc mode, say “Disc”. In this mode, you
may say the following commands:

• “Track” (#) (to change the track)
• “Next Track” (to play the next track)
• “Previous Track” (to play the previous track)
• “Main Menu” (to switch to the main menu)

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

117

Memo
To switch to the voice recorder mode, say “Memo”. In
this mode, you may say the following commands:

• “New Memo” (to record a new memo) — During the

recording, you may press the VR button to stop
recording. You proceed by saying one of the following
commands:

− “Save” (to save the memo)

− “Continue” (to continue recording)

− “Delete” (to delete the recording)

• “Play Memos” (to play previously recorded memos)

— During the playback you may press the VR button
to stop playing memos. You proceed by saying one of
the following commands:

− “Repeat” (to repeat a memo)

− “Next” (to play the next memo)

− “Previous” (to play the previous memo)

− “Delete” (to delete a memo)

• “Delete All” (to delete all memos)

System Setup
To switch to system setup, say “Setup”. In this mode, you
may say the following commands:

• “Language German”
• “Language Dutch”
• “Language Italian”
• “Language English”
• “Language French”
• “Language Spanish”
• “Tutorial”
• “Voice Training”

118

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:

Keep in mind that you have to press the VR

button first and wait for the beep before speaking the
“Barge In” commands.

Voice Training
For users experiencing difficulty with the system recog-
nizing their voice commands or numbers, uconnect

威

phone Voice Training feature may be used.

1. Press the VR button, say “System Setup” and once you
are in that menu then say “Voice Training.” This will train
your own voice to the system and will improve recogni-
tion.

2. Repeat the words and phrases when prompted by
uconnect

威 phone. For best results, the Voice Training

session should be completed when the vehicle is parked,
engine running, all windows closed, and the blower fan
switched off. This procedure may be repeated with a new
user. The system will adapt to the last trained voice only.

SEATS
Seats are a primary part of the Occupant Restraint System
of the vehicle. Proper use of the seats is needed for safe
operation of the vehicle.

WARNING!

• It is extremely dangerous to ride in a cargo area,

inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.

• Do not allow people to ride in any area of your

vehicle that is not equipped with seats and seat
belts.

• Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

119

Instruction Seat Adjuster — If Equipped
The front seats are adjustable, forward or rearward. The
adjustment handle is located at the front edge of each seat
cushion. Pull upward on the handle and slide the seat,
forward or rearward, to the desired position. Using body
pressure, move forward and rearward on the seat to be
sure the seat is locked into position.

WARNING!

Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Only
adjust a seat while the vehicle is parked.

Instruction Seat Adjuster

120

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Reclining Seats (Quad Cab

姞 Models)

The recliner handle is located on the outside of the seat
cushion. Pull upward on the handle to release the seat-
back, lean forward or rearward to the desired position.

WARNING!

You can be seriously, even fatally, injured riding in a
seat with the seatback reclined. Do not ride with the
seatback reclined so that the shoulder belt is no
longer resting against your chest. If you ride in this
position, the shoulder harness will no longer be
restraining you. In a collision you could slide under
the seat belt and receive serious or fatal injuries.
Only recline in a seat when the vehicle is parked.

Seat Recliner Handle

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

121

Reclining Seats (2500/3500 Models)
The recliner handle is located on the outside of the seat
cushion. Pull upward on the handle to release the seat-
back, lean forward or rearward to the desired position.

WARNING!

Seat Recliner Handle

122

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Adjustable Head Restraints
Head restraints can reduce the risk of neck injury in the
event of a rear impact. To adjust, pull upward on the
head restraints so that the upper edge is as high as
practical, at least to the level of the ears. To lower the
head restraint, push inward on the button and push
down on the head restraint.

Instruction Lumbar Support — If Equipped
The lumbar control knobs are located on the left-side of
the driver’s seatback and the right-side of the passenger’s
seatback. Rotate the lumbar control knobs to increases or
decreases the lumbar support.

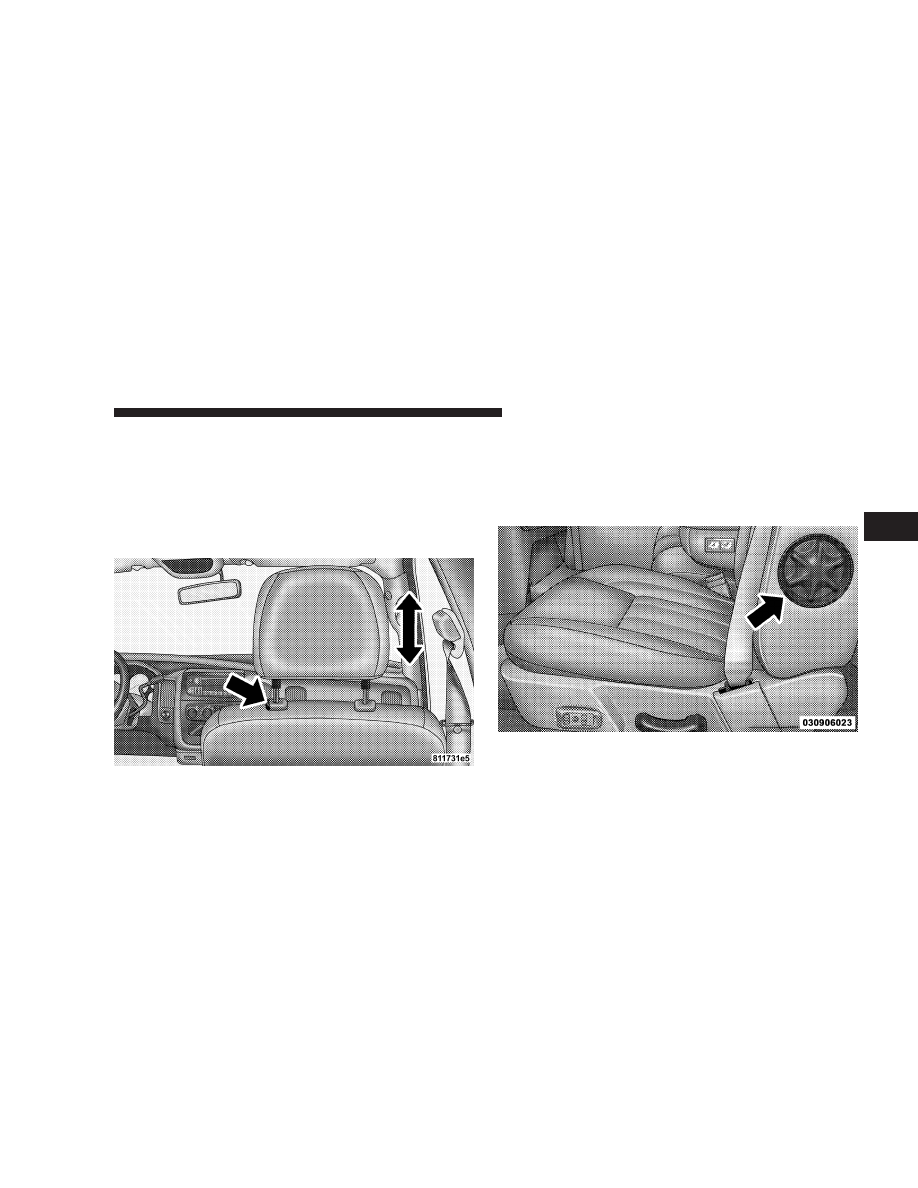

Head Restraints

Instruction Lumbar Adjustment

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

123

Content .. 5 6 7 8 ..
