seam in the seat’s trim cover and opens into the space
between the occupant and the door. The airbag inflates
at a very high speed and with enough force to injure
you if you are not belted and seated properly, or if
items are positioned in the area where the front-seat-
mounted side airbag inflates. This especially applies to
children.

The following requirements must be strictly adhered to:

• Do not make any modifications to the front seat

components, assembly, or to the seat cover in any
way.

• Do not use prior or future model year seat covers

not designated for the specific model being re-
paired. Always use the correct seat cover specified
for the vehicle.

• Do not replace the seat cover with an aftermarket

seat cover.

• Do not add a secondary seat cover other than those

approved by DaimlerChrysler/Mopar.

• At no time should any supplemental restraint sys-

tem (SRS) component or SRS related component or
fastener be modified or replaced with any part
except

those

which

are

approved

DaimlerChrysler/Mopar.

WARNING!

Unapproved modifications or service procedures to
the front seat assembly, its related components, or
seat cover may inadvertently change the airbag de-
ployment in case of a frontal crash. This could result
in death or serious injury to the driver or front seat
passenger if the vehicle is involved in an accident. A
modified vehicle may not comply with required
Federal Motor Vehicle Safety Standards (FMVSS).

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

If A Deployment Occurs
The airbag system is designed to deploy when the ORC
detects a moderate-to-severe collision, to help restrain the
driver and front passenger, and then to immediately
deflate.

NOTE:

A frontal collision that is not severe enough to

need airbag protection will not activate the system. This
does not mean something is wrong with the airbag
system.

If you do have a collision, which deploys the airbags, any
or all of the following may occur:

• The nylon airbag material may sometimes cause abra-

sions and/or skin reddening to the driver and front
passenger as the airbags deploy and unfold. The
abrasions are similar to friction rope burns or those
you might get sliding along a carpet or gymnasium
floor. They are not caused by contact with chemicals.
They are not permanent and normally heal quickly.

However, if you haven’t healed significantly within a
few days, or if you have any blistering, see your doctor
immediately.

• As the airbags deflate, you may see some smoke-like

particles. The particles are a normal by-product of the
process that generates the nontoxic gas used for airbag
inflation. These airborne particles may irritate the skin,
eyes, nose, or throat. If you have skin or eye irritation,
rinse the area with cool water. For nose or throat
irritation, move to fresh air. If the irritation continues,
see your doctor. If these particles settle on your
clothing, follow the garment manufacturer’s instruc-
tions for cleaning.

• It is not advisable to drive your vehicle after the

airbags have been deployed. If you are involved in
another collision, the airbags will not be in place to
protect you.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Deployed airbags can’t protect you in another colli-
sion. Have the airbags replaced by an authorized
dealer as soon as possible.

Enhanced Accident Response System
In the event of an impact that causes airbag deployment,
with the vehicle stopped, and the vehicle communication
network intact, and the power intact, the Enhanced
Accident Response System performs the following func-
tions:

• Cuts off fuel to the engine.
• Flashes hazard lights.
• Turns on the interior lights, which remain on as long as

the battery has power or until the ignition key is
removed.

• Unlocks the doors automatically.

NOTE:

The interior lights can only be deactivated if the

key is removed from the ignition switch or the vehicle is
driven.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Maintaining Your Airbag System

WARNING!

• Modifications to any part of the airbag system

could cause it to fail when you need it. You could
be injured because the airbags are not there to
protect you. Do not modify the components or
wiring, including adding any kind of badges or
stickers to the steering wheel hub trim cover or
the upper passenger side of the instrument
panel. Do not modify the front bumper, vehicle
body structure, or frame.

• You need proper knee impact protection in a

collision. Do not mount or locate any aftermar-
ket equipment on or behind the knee impact
bolster.

• It is dangerous to try to repair any part of the

airbag system yourself. Be sure to tell anyone
who works on your vehicle that it has airbags.

NOTE:

Perchlorate Material — special handling may

apply.

See

www.dtsc.ca.gov/hazardouswaste/

perchlorate.

Airbag Warning Light

You will want to have the airbags ready to
inflate for your protection in an impact. While
the airbag system is designed to be mainte-
nance free, if any of the following occurs, have

an authorized dealer service the system promptly:

• The Airbag Warning Light does not come on or flickers

during the 6 to 8 seconds when the ignition switch is
first turned on.

• The light remains on or flickers after the 6 to 8 second

interval.

• The light flickers or comes on and remains on while

driving.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Event Data Recorder (EDR)

In the event of an accident, your vehicle is designed to
record up to 5 seconds of specific vehicle data parameters
(see the following list) in an event data recorder prior to
the moment of airbag deployment, or near deployment,
and up to a quarter second of high-speed deceleration
data during and/or after airbag deployment. EDR data
are ONLY recorded if an airbag deploys, or nearly
deploys, and are otherwise unavailable.

NOTE:
1. A near-deployment event occurs when the airbag
sensor detects severe vehicle deceleration usually indica-
tive of a crash, but not severe enough to warrant airbag
deployment.

2. Under certain circumstances, EDR data may not be
recorded (e.g., loss of battery power).

In conjunction with other data gathered during a com-
plete accident investigation, the electronic data may be

used by DaimlerChrysler Corporation and others to learn
more about the possible causes of crashes and associated
injuries in order to assess and improve vehicle perfor-
mance. In addition to crash investigations initiated by
DaimlerChrysler Corporation, such investigations may
be requested by customers, insurance carriers, govern-
ment officials, and professional crash researchers, such as
those associated with universities, and with hospital and
insurance organizations.

In the event that an investigation is undertaken by
DaimlerChrysler Corporation (regardless of initiative),
the company or its designated representative will first
obtain permission of the appropriate custodial entity for
the vehicle (usually the vehicle owner or lessee) before
accessing the electronic data stored, unless ordered to
download data by a court with legal jurisdiction (i.e.,
pursuant to a warrant). A copy of the data will be
provided to the custodial entity upon request. General
data that does not identify particular vehicles or crashes

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

may be released for incorporation in aggregate crash
databases, such as those maintained by the US govern-
ment and various states. Data of a potentially sensitive
nature, such as would identify a particular driver, ve-
hicle, or crash, will be treated confidentially. Confidential
data will not be disclosed by DaimlerChrysler Corpora-
tion to any third party except when:

1. Used for research purposes, such as to match data
with a particular crash record in an aggregate database,
provided confidentiality of personal data is thereafter
preserved

2. Used

defense

litigation

involving

DaimlerChrysler Corporation product

3. Requested by police under a legal warrant

4. Otherwise required by law

Data Parameters that May Be Recorded:

• Diagnostic trouble code(s) and warning lamp status

for electronically-controlled safety systems, including
the airbag system

• Airbag disable lamp status (if equipped)
• 9Time9 of airbag deployment (in terms of ignition

cycles and vehicle mileage)

• Airbag deployment level (if applicable)
• Impact acceleration and angle
• Seat belt status
• Brake status (service and parking brakes)
• Accelerator status (including vehicle speed)
• Engine control status (including engine speed)
• Transmission gear selection
• Cruise control status

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

• Traction/stability control status
• Tire pressure monitoring system status (if equipped)

Child Restraint

Everyone in your vehicle needs to be buckled up all the
time — babies and children, too. Every state in the United
States and all Canadian provinces require that small
children ride in proper restraint systems. This is the law,
and you can be prosecuted for ignoring it.

Children 12 years and under should ride properly buck-
led up in a rear seat, if available. According to crash
statistics, children are safer when properly restrained in
the rear seats rather than in the front.

WARNING!

In a collision, an unrestrained child, even a tiny baby,
can become a missile inside the vehicle. The force
required to hold even an infant on your lap could
become so great that you could not hold the child, no
matter how strong you are. The child and others
could be badly injured. Any child riding in your
vehicle should be in a proper restraint for the child’s
size.

There are different sizes and types of restraints for
children from newborn size to the child almost large
enough for an adult safety belt. Always check the child
seat Owner’s Instruction to ensure you have the correct seat
for your child. Use the restraint that is correct for your
child:

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Infants and Child Restraints

• Safety experts recommend that children ride

rearward-facing in the vehicle until they are at least
one year old and weigh at least 20 lbs (9 kg). Two types
of child restraints can be used rearward-facing: infant
carriers and “convertible” child seats.

• The infant carrier is only used rearward-facing in the

vehicle. It is recommended for children who weigh up
to about 20 lbs (9 kg). “Convertible” child seats can be
used either rearward-facing or forward-facing in the
vehicle. Convertible child seats often have a higher
weight limit in the rearward-facing direction than
infant carriers do, so they can be used rearward-facing
by children who weigh more than 20 lbs (9 kg) but are
less than one year old. Both types of child restraints are
held in the vehicle by the lap/shoulder belt or the
LATCH child restraint anchorage system. Refer to

“LATCH — Child Seat Anchorage System (Lower
Anchors and Tether for CHildren)” in this section.

• Rearward-facing child seats must NEVER be used in

the front seat of a vehicle with the front passenger
airbag unless the airbag is turned off. An airbag
deployment could cause severe injury or death to
infants in this position.

Older Children and Child Restraints
Children who weigh more than 20 lbs (9 kg) and who are
older than one year can ride forward-facing in the
vehicle. Forward-facing child seats and convertible child
seats used in the forward-facing direction are for children
who weigh 20 to 40 lbs (9 to 18 kg) and who are older
than one year. These child seats are also held in the
vehicle by the lap/shoulder belt or the LATCH child
restraint anchorage system. Refer to “LATCH — Child
Seat Anchorage System (Lower Anchors and Tether for
CHildren)” in this section.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

The belt-positioning booster seat is for children weighing
more than 40 lbs (18 kg), but who are still too small to fit
the vehicle’s seat belts properly. If the child cannot sit
with knees bent over the vehicle’s seat cushion while the
child’s back is against the seat back, they should use a
belt-positioning booster seat. The child and belt-
positioning booster seat are held in the vehicle by the
lap/shoulder belt.

Children Too Large For Booster Seats
Children who are large enough to wear the shoulder belt
comfortably, and whose legs are long enough to bend
over the front of the seat when their back is against the
seat back, should use the lap/shoulder belt in a rear seat.

• Make sure that the child is upright in the seat.
• The lap portion should be low on the hips and as snug

as possible.

• Check belt fit periodically. A child’s squirming or

slouching can move the belt out of position.

• If the shoulder belt contacts the face or neck, move the

child closer to the center of the vehicle. Never allow a
child to put the shoulder belt under an arm or behind
their back.

NOTE:

For

additional

information,

refer

www.seatcheck.org or call 1–866–SEATCHECK.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

• Improper installation can lead to failure of an

infant or child restraint. It could come loose in a
collision. The child could be badly injured or
killed. Follow the manufacturer’s directions ex-
actly when installing an infant or child restraint.

• A rearward facing child restraint should only be

used in a rear seat. A rearward facing child re-
straint in the front seat may be struck by a deploy-
ing passenger airbag, which may cause severe or
fatal injury to the infant.

Here are some tips on getting the most out of your child
restraint:

• Before buying any restraint system, make sure that it

has a label certifying that it meets all applicable Safety

Standards. We also recommend that you make sure
that you can install the child restraint in the vehicle
where you will use it before you buy it.

• The restraint must be appropriate for your child’s

weight and height. Check the label on the restraint for
weight and height limits.

• Carefully follow the instructions that come with the

restraint. If you install the restraint improperly, it may
not work when you need it.

• Buckle the child into the seat according to the child

restraint manufacturer’s directions.

• When your child restraint is not in use, secure it in the

vehicle with the seat belt or remove it from the vehicle.
Do not leave it loose in the vehicle. In a sudden stop or
collision, it could strike the occupants or seat backs
and cause serious personal injury.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

LATCH — Child Seat Anchorage System (Lower
Anchors and Tether for CHildren)
Your vehicle’s rear seat is equipped with the child
restraint anchorage system called LATCH. The LATCH
system provides for the installation of the child restraint
without using the vehicle’s seat belts, instead securing
the child restraint using lower anchorages and upper
tether straps from the child restraint to the vehicle
structure.

LATCH-compatible child restraint systems are now avail-
able. However, because the lower anchorages are to be
introduced over a period of years, child restraint systems
having attachments for those anchorages will continue to
have features for installation using the vehicle’s seat
belts. Child restraints having tether straps and hooks for
connection to the top tether anchorages have been avail-
able for some time. For some older child restraints, many
child restraint manufacturers offer add-on tether strap

kits or retro-fit kits. You are urged to take advantage of all
the available attachments provided with your child re-
straint in any vehicle.

All three rear-seating positions have lower anchorages
that are capable of accommodating LATCH-compatible
child seats. You should NEVER install LATCH-
compatible child seats such that two seats share a com-
mon lower anchorage. If installing child seats in adjacent
rear-seating positions, or if your child restraints are not
LATCH-compatible, install the restraints using the vehi-
cle’s seat belts.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Installing the LATCH-Compatible Child Restraint
System
We urge that you carefully follow the directions of the
manufacturer when installing your child restraint. Not all
child restraint systems will be installed as described here.

Again, carefully follow the installation instructions that
were provided with the child restraint system.

The rear seat lower anchorages are round bars,
located at the rear of the seat cushion where it
meets the seat back, and are just visible when
you lean into the rear seat to install the child

restraint. You will easily feel them if you run your finger
along the intersection of the seatback and seat cushion
surfaces.

In addition, there are tether strap anchorages located
behind each rear seat back.

Many, but not all restraint systems will be equipped with
separate straps on each side, with each having a hook or
connector for attachment to the lower anchorage and a
means of adjusting the tension in the strap. Forward-
facing toddler restraints and some rear-facing infant
restraints will also be equipped with a tether strap, a

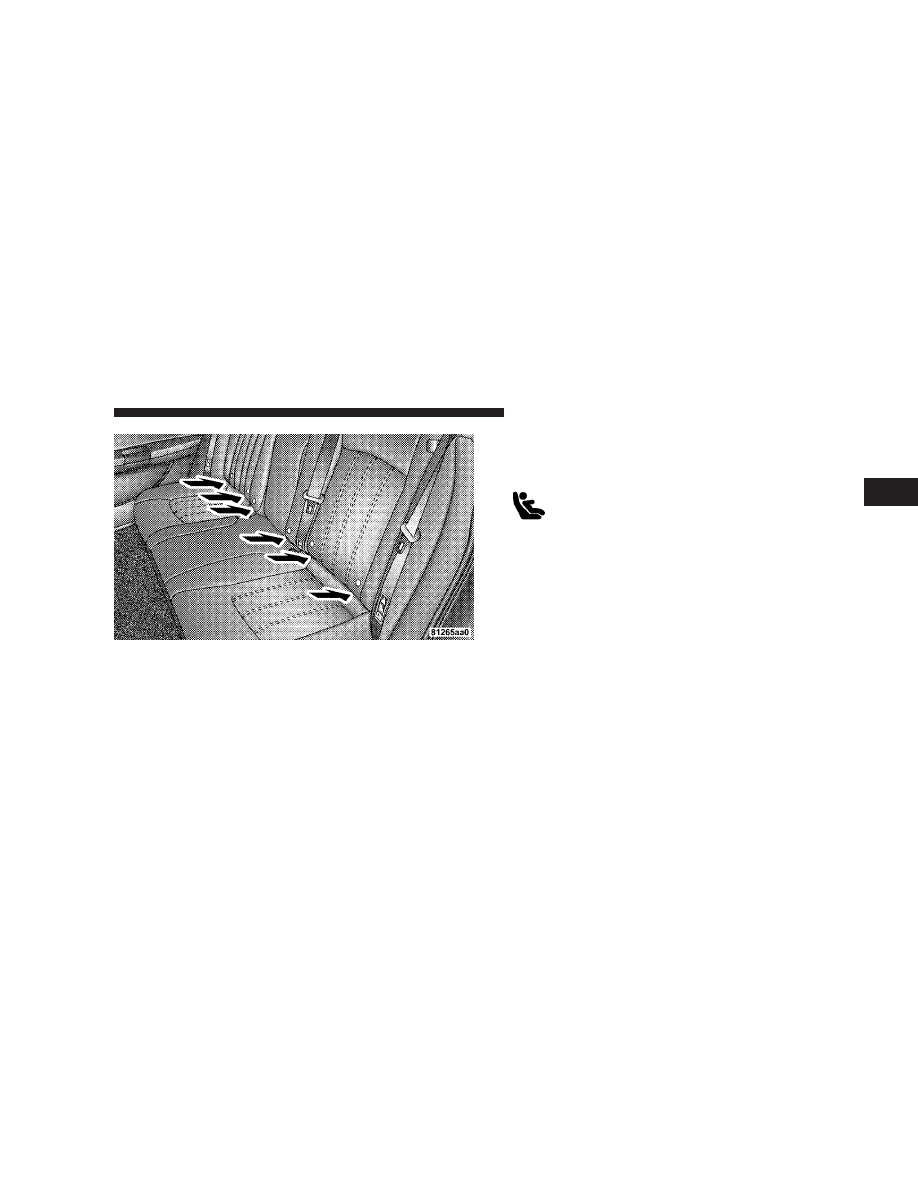

LATCH Anchorages

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

hook for attachment to the tether strap anchorage and a
means of adjusting the tension of the strap.

You will first loosen the adjusters on the lower straps and
on the tether strap so that you can more easily attach the
hooks or connectors to the vehicle anchorages. Next,
attach the lower hooks or connectors over the top of the
seat cover material. Then rotate the tether anchorage
cover directly behind the seat where you are placing the
child restraint and attach the tether strap to the anchor-
age, being careful to route the tether strap to provide the
most direct path between the anchor and the child
restraint. Finally, tighten all three straps as you push the
child restraint rearward and downward into the seat,
removing slack in the straps according to the child
restraint manufacturer’s instructions.

NOTE:

• Ensure that the tether strap does not slip into the

opening between the seat backs as you remove slack in
the strap.

• When using the LATCH attaching system to install a

child restraint, please ensure that all seat belts not
being used for occupant restraints are stowed and out
of reach of children. It is recommended that before
installing the child restraint, buckle the seat belt so the
seat belt is tucked behind the child restraint and out of
reach. If the buckled seat belt interferes with the child
restraint installation, instead of tucking the seat belt
behind the child restraint, route the seat belt through
the child restraint belt path and then buckle it. This
should stow the seat belt out of the reach of an
inquisitive child. Remind all children in the vehicle
that the seat belts are not toys and should not be
played with, and never leave your child unattended in
the vehicle.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!

Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.

Installing Child Restraints Using the Vehicle Seat
belt
The passenger seat belts are equipped with either cinch-
ing latch plates or automatic locking retractors, which are
designed to keep the lap portion tight around the child
restraint so that it is not necessary to use a locking clip.
Pulling up on the shoulder portion of the lap/shoulder
belt will tighten the belt. The cinching latch plate will

keep the belt tight; however, any seat belt system will
loosen with time, so check the belt occasionally, and pull
it tight if necessary.

Seat belts with an automatic locking retractor have a
distinctive label on the seat belt webbing. The seat belt
must be in the automatic locking mode in order to enable
a child restraint to be tightly installed. Refer to “Auto-
matic Locking Mode” in this section for details. A locking
clip should not be necessary once the automatic locking
feature is enabled. Position the shoulder and lap belt on
the child restraint. The automatic locking retractor is
activated by first attaching the child seat, then pulling all
of the webbing out of the retractor, then allowing back in.
Tighten webbing. To release, simply unbuckle the seat
belt by depressing the button, allowing the webbing to
retract into the retractor.

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

In the rear seat, you may have trouble tightening the
lap/shoulder belt on the child restraint because the
buckle or latch plate is too close to the belt path opening
on the restraint. Disconnect the latch plate from the
buckle and twist the short buckle-end belt several times
to shorten it. Insert the latch plate into the buckle with the
release button facing out.

If the belt still can’t be tightened, or if by pulling and
pushing on the restraint loosens the belt, you may need
to do something more. Disconnect the latch plate from
the buckle, turn the buckle around, and insert the latch
plate into the buckle again. If you still can’t make the
child restraint secure, try a different seating position.

To attach a child restraint tether strap:

1. Route the tether strap to provide the most direct path
for the strap between the anchor and the child seat.

2. Attach the tether strap hook of the child restraint to the
tether anchor and remove slack in the tether strap
according to the child restraint manufacturer’s instruc-
tions.

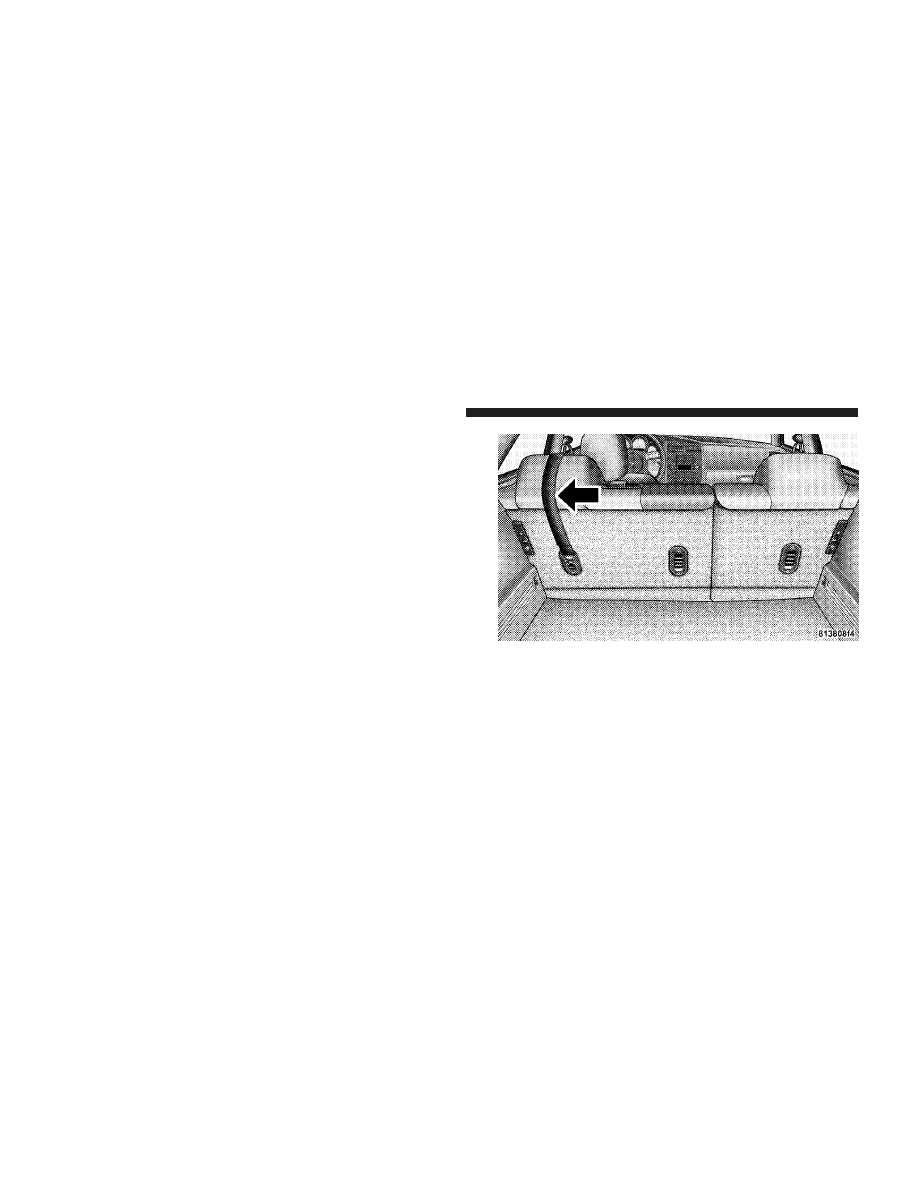

Tether Strap Mounting

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

NOTE:

Ensure that the tether strap does not slip into the

opening between the seat backs as you remove slack in
the strap.

WARNING!

An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor positions directly behind
the child seat to secure a child restraint top tether
strap.

Transporting Pets
Airbags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision.

Pets should be restrained in the rear seat in pet harnesses
or pet carriers that are secured by seat belts.

ENGINE BREAK-IN RECOMMENDATIONS

A long break-in period is not required for the engine in
your new vehicle.

Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or 55
mph (80 or 90 km/h) are desirable.

While cruising, brief full-throttle acceleration, within the
limits of local traffic laws, contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.

The engine oil installed in the engine at the factory is a
high quality energy conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur.
The recommended viscosity and quality grades are

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Dodge Magnum (2008 year). Instruction - part 4
