Dodge Magnum SRT (2008 year). Instruction - part 27

License Light

1. Remove the screws securing the light to the rear fascia.

2. Remove the bulb and socket assembly.

3. Disconnect the bulb from the socket assembly and
install the replacement bulb.

4. Reinstall the bulb and socket assembly.

5. Reattach the light to the rear fascia, and then install the
screws.

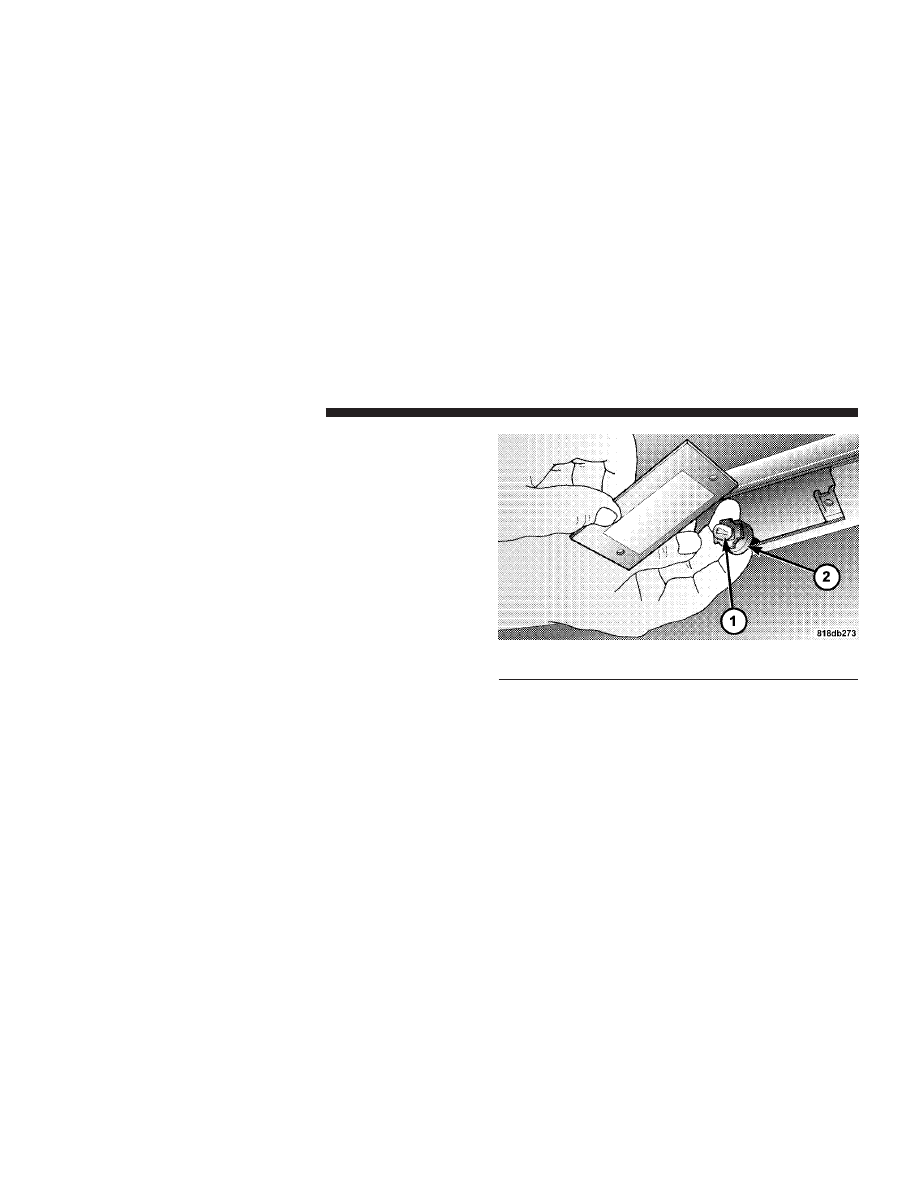

1 — License Light Bulb
2 — Socket

428

MAINTAINING YOUR VEHICLE

FLUIDS AND CAPACITIES

U.S.

Metric

Fuel (approximate)
6.1 Liter Engine

19 gal

72 l

Engine Oil with Filter

6.1 Liter Engine (SAE 0W-40)

7 qts

6.6 liters

Cooling System *

6.1 Liter Engine (Mopar

威

Antifreeze/Coolant 5 Year/

100,000 Mile Formula) or

equivalent

15.2 qts

14.4 l

* Includes heater and coolant recovery bottle filled to
MAX level.

MAINTAINING YOUR VEHICLE

429

FLUIDS, LUBRICANTS, AND GENUINE PARTS

Engine

Component

Fluids, Lubricants, and Genuine Parts

Engine Coolant

Mopar

威 Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Or-

ganic Additive Technology) or equivalent

Engine Oil (6.1L)

For best performance and maximum protection under all types of operating
conditions, the manufacturer only recommends full synthetic engine oils that
meet the American Petroleum Institute (API) categories of SM or SM/CF, and
meet the requirements of DaimlerChrysler Material Standard MS-10725. The
manufacturer recommends the use of a full synthetic engine oil, such as Mo-
bil 1

威 SAE 0W-40 or equivalent. For additional information, refer to the “En-

gine Oil Selection” and “Engine Oil Viscosity (SAE Grade)” in the “Mainte-
nance Procedures” section of this instruction.

Oil Filter (6.1L)

Mopar

威 05281090 or equivalent

Spark Plugs (6.1L)

PLZTR5A-13 (Gap.050 in [1.27 mm])

Fuel Selection (6.1L)

Premium Unleaded 91 Octane Only or higher

430

MAINTAINING YOUR VEHICLE

Chassis

Component

Fluids, Lubricants, and Genuine Parts

Automatic Transmission

Mopar

威 ATF+4 Automatic Transmission Fluid

Brake Master Cylinder

Mopar

威 DOT 3, SAE J1703 should be used. If DOT 3, SAE J1703 brake

fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids.

Power Steering Reservoir

Mopar

威 Power Steering Fluid + 4, Mopar威 ATF+4 Automatic Transmission

Fluid

Rear Axle

API GL-5 SAE 75W140 Synthetic Gear Lubricant or equivalent

MAINTAINING YOUR VEHICLE

431

MAINTENANCE SCHEDULES

CONTENTS

䡵 Emissions Control System Maintenance . . . . . . . 434
䡵 Maintenance Schedule . . . . . . . . . . . . . . . . . . . 434

▫ Severe Duty . . . . . . . . . . . . . . . . . . . . . . . . . 436
▫ Required Maintenance Intervals . . . . . . . . . . . 437

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services, listed in bold type
, must be done at the times or mileages specified to
ensure the continued proper functioning of the emission
control system. These, and all other maintenance services
included in this instruction, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.

Inspection and service should also be done any time a
malfunction is suspected.

NOTE:

Maintenance, replacement, or repair of the emis-

sion control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or, in the State of Califor-
nia, California Air Resources Board regulations.

MAINTENANCE SCHEDULE
To help you have the best driving experience possible,
the manufacturer has identified the specific vehicle main-
tenance service intervals that are required to keep your
vehicle operating properly and safely.

Chrysler recommends that these maintenance intervals
be performed at your selling dealer. The technicians at
your dealership know your vehicle best, and have access
to factory-trained information, genuine Mopar

威 parts,

and specially designed electronic and mechanical tools
that can help prevent future costly repairs.

The maintenance intervals shown should be performed
as indicated in this section.

NOTE:

Under no circumstances should oil change in-

tervals exceed 6,000 mi (10,000 km) or six months,
whichever comes first.

434

MAINTENANCE SCHEDULES

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

At Each Stop for Fuel

• Check the engine oil level. Refer to “Engine Oil” under

“Maintenance Procedures” in Section 7.

• Check the windshield washer solvent and add if

required.

Once a Month

• Check tire pressure and look for unusual wear or

damage.

• Inspect the battery, and clean and tighten the terminals

as required.

• Check the fluid levels of coolant reservoir and brake

master cylinder, and add as needed.

• Check all lights and other electrical items for correct

operation.

At Each Oil Change

• Change the engine oil filter.
• Inspect the brake hoses and lines.

CAUTION!

Failure to perform the required maintenance items
may result in damage to the vehicle.

MAINTENANCE SCHEDULES

435

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

Severe Duty
If your vehicle is operated under the Severe Duty condi-
tions listed below change your engine oil and filter every
3,000 mi (5 000 km) or three months as indicated in the
Maintenance Schedule.

• Stop and go driving.
• Driving in dusty conditions.

• Short trips of less than 10 mi (16 km).
• Trailer towing.
• Taxi, police, or delivery service (commercial service).
• Off-road or desert operation.

436

MAINTENANCE SCHEDULES

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

Required Maintenance Intervals

Perform Maintenance Every

(Where time and mileage

are listed, follow the interval that occurs first.)

Maintenance Items

Miles

Kilometers

or Months

Change the engine oil and engine oil filter if using
your vehicle under any of these severe duty condi-
tions: Short trips, stop and go driving, dusty or off-
road conditions, police, taxi, fleet, or frequent trailer
towing.

3,000

5 000

Change the engine oil and engine oil filter if your ve-
hicle is NOT operated under any of the conditions
listed under Severe Duty.

6,000

10 000

Rotate the tires.

6,000

10 000

If using your vehicle in dusty or off-road conditions,
inspect the engine air cleaner filter, and replace if nec-
essary.

12,000

20 000

Inspect the brake linings, and replace if necessary.

12,000

20 000

MAINTENANCE SCHEDULES

437

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

Perform Maintenance Every

(Where time and mileage

are listed, follow the interval that occurs first.)

Maintenance Items

Miles

Kilometers

or Months

Replace the air conditioning filter (if equipped).

12,000

20 000

Inspect the rear axle fluid.

18,000

30 000

Inspect the CV joints. Perform the first inspection at
12,000 mi (20 000 km) or 12 months.

24,000

40 000

Inspect the exhaust system. Perform the first inspec-
tion at 12,000 mi (20 000 km) or 12 months.

24,000

40 000

Inspect the front suspension, tie rod ends and boot
seals, and replace if necessary.

24,000

40 000

Replace the engine air cleaner filter.

30,000

50 000

Change the rear axle fluid if using your vehicle for
any of the following: police, taxi, fleet, off-road, or fre-
quent trailer towing.

48,000

80 000

Change the automatic transmission fluid and filter if
using your vehicle for any of the following: police,
taxi, fleet, or frequent trailer towing.

60,000

100 000

438

MAINTENANCE SCHEDULES

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S

Perform Maintenance Every

(Where time and mileage

are listed, follow the interval that occurs first.)

Maintenance Items

Miles

Kilometers

or Months

Inspect and replace PCV valve if necessary.

90,000

150 000

Flush and replace the engine coolant.

102,000

170 000

Replace the spark plugs.

102,000

170 000

102

Change the automatic transmission fluid and filter.

120,000

200 000

120

WARNING!

You can be badly injured working on or around a
motor vehicle. Do only that service work for which
you have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent
mechanic.

MAINTENANCE SCHEDULES

439

T
E

N
A
N
C

S
C
H
E
D
U
L
E
S
