RAM 3500 (2019 year). Instruction - part 40





MULTIMEDIA

637

Audio

After pressing the “Audio” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Balance/Fade

Front

Right

Back

Left

NOTE:

The “Balance/Fade” feature allows you to adjust the Balance and Fade settings. Press and drag the speaker icon or use the

arrows to adjust, tap the “C” icon to readjust to the center.
Equalizer

+

NOTE:

When in the “Equalizer” display you may adjust the Bass, Mid and Treble settings.
Speed

Adjusted

Volume

Off

1

2

3

NOTE:

The “Speed Adjusted Volume” feature increases or decreases volume relative to vehicle speed.
Surround  Sound  —  If

Equipped

On

Off

NOTE:

The “Surround Sound” feature provides simulated surround sound mode.

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

638 MULTIMEDIA

Bluetooth

After pressing the “Bluetooth” button on the touchscreen, the following settings will be available:

AUX  Volume  Offset

— If Equipped

On

Off

NOTE:

The “AUX Volume Offset” feature provides the ability to tune the audio level for portable devices connected through the

AUX input.
Auto Play

On

Off

Setting Name

Selectable Options

Setting Name

Selectable Options

Phone Pop-Ups Displayed in

Cluster

On

Off

Do Not Disturb

List of Settings

NOTE:

Press “Do Not Disturb” to access the available settings. The following settings are: Auto Reply (both, text, call), Auto Reply

Message (custom, default) and Custom Auto Reply Message (create message).

Paired Phones and Audio

Devices

List Of Paired Phones and Audio Sources

NOTE:

The “Paired Phones and Audio Sources” feature shows which phones and audio sources are paired to the Phone and Audio

Sources Settings system. For further information, refer to the Uconnect Owner’s Instruction Supplement.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

639

SiriusXM Setup — If Equipped

After pressing the “SiriusXM Setup” button on the touchscreen, the following settings will be available:

Smartphone Device

Mirroring

On

Off

Enable CarPlay Projections

On

Off

Automatically Display

Pop-Ups in Cluster

On

Off

Set as Default Device



On

Off

Projection Manager

Smartphone Device Mirroring On

Smartphone Device Mirroring

Off

Setting Name

Selectable Options

Setting Name

Selectable Options

Sirius All Access

Choose a Subscription Package

Add Listener

Add up to five profiles

NOTE:

The “Add Listener” feature allows you to add up to five different profiles for customizing personal music or satellite radio

choices.

Listener Items

Listening History

List Of Options

Tune Start

On

Off

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

640 MULTIMEDIA

NOTE:

The “Tune Start” feature begins playing the current song from the beginning when you tune to a music channel using one

of the twelve presets, so you can enjoy the complete song. This feature occurs the first time the preset is selected during that

current song. Tune Start works in the background, so you will not even realize it's on, except that you will miss the experience

of joining your favorite song with only a few seconds left to play.

Channel Skip

List of Channels

NOTE:

SiriusXM can be programmed to designate a group of channels that are the most desirable to listen to or to exclude undesir-

able channels while scanning. This feature allows you to select the channels you would like to skip.

Subscription Info

Sirius ID

NOTE:

New vehicle purchasers or lessees will receive a free limited time subscription to SiriusXM Satellite Radio with your radio.

Following the expiration of the free services, it will be necessary to access the information on the Subscription Information

screen to re-subscribe.
1. Press the “Subscription Info” button on the touchscreen to access the Subscription Information screen.
2. Write down the Sirius ID numbers for your receiver. To reactivate your service, either call the number listed on the screen

or visit the provider online.

SiriusXM Travel Link is a separate subscription.

Setting Name

Selectable Options

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

641

Reset

After pressing the “Reset” button on the touchscreen, the following settings will be available:

System Information

After pressing the “System Information” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Reset App Drawer

Yes

Cancel

Restore Settings

Yes

Cancel

NOTE:

When the “Restore Settings” feature is selected it resets all settings to their default settings.

Clear Personal Data

Yes

Cancel

NOTE:

When the “Clear Personal Data” feature is selected it removes all personal data including Bluetooth devices and presets.

Clear Sirius XM Data

Yes

Cancel

Setting Name

Selectable Options

System Information

System Software Information Screen

NOTE:

When the “System Information” feature is selected, a “System Software Information” screen will appear, displaying the

system software version.

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

642 MULTIMEDIA

STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED

The remote sound system controls are located on the back

surface  of  the  steering  wheel.  Reach  behind  the  wheel  to

access the switches.

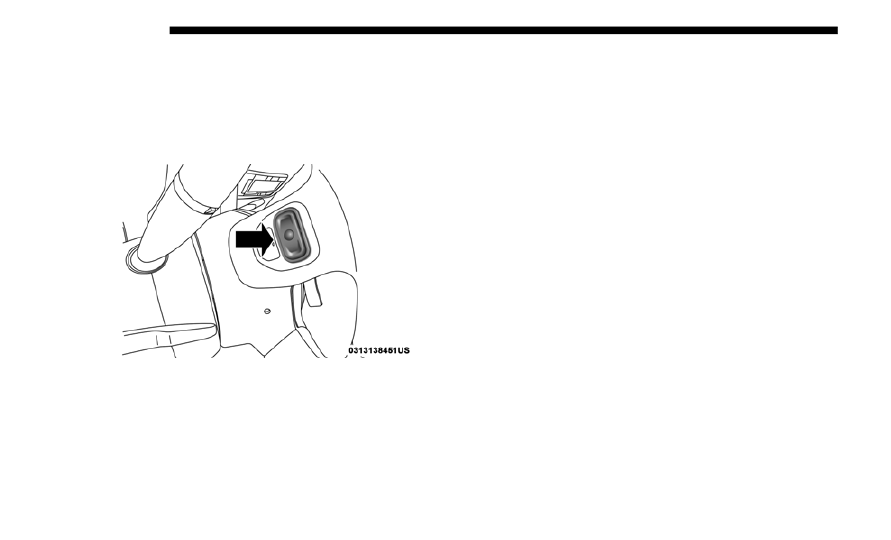

Steering Wheel Audio Controls (Rearview Of Steering

Wheel)

The  right  hand  control  is  a  rocker  type  switch  with  a

push-button in the center. Pushing the top of the switch will

increase the volume, and pushing the bottom of the switch

will decrease the volume.

Pushing the center button will make the radio switch between the

various modes available (AM/FM/SXM or Media etc.).
The  left  hand  control  is  a  rocker  type  switch  with  a

push-button  in  the  center.  The  function  of  the  left  hand

control is different depending on which mode you are in.
The  following  describes  the  left hand  control  operation in

each mode.

Radio Operation

Pushing  the  top  of  the  switch  will  SEEK  up  for  the  next

listenable station and pushing the bottom of the switch will

SEEK down for the next listenable station.
The button located in the center of the left-hand control will

tune to the next preset station that you have programmed in

the radio preset button.

Media Mode

Pushing the top of the switch once will go to the next track

on the selected media (AUX/USB/Bluetooth/CD). Pushing

the bottom of the switch once goes to the beginning of the

current track, or to the beginning of the previous track if it is

within eight seconds after the current track begins to play.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

643

IPOD/USB/MP3 CONTROL — IF EQUIPPED

Located on the center stack, just below the instrument panel,

is the main media hub. There are four total USB Ports : Two

Mini-USBs (Type C) and two Standard USBs (Type A). There

is also an AUX Port located in the middle of the USB Ports.

All four of the USB Ports include a USB Trident and a numer-

ical value one through three, which indicates that the vehicle

can support three fully-functioning USB Ports at a time. Each

USB Port will support media and charging simultaneously.
NOTE:
• The Type C USB port is the primary media port for the

radio. Two devices can be plugged in at the same time and

both ports provide charging capabilities, but only one port

can transfer data to the head unit at a time.

• Both ports share a single data connection. However, the

user cannot switch between Type A or Type C.

For example, if a device is plugged into the Type A USB port

and another device is plugged into the Type C port, connec-

tion to the Type A port will be lost. Alternatively, if a device

is  plugged  into  the  Type  C  port  and  another  device  is

plugged into the Type A port, the Type C device maintains

primary connection.

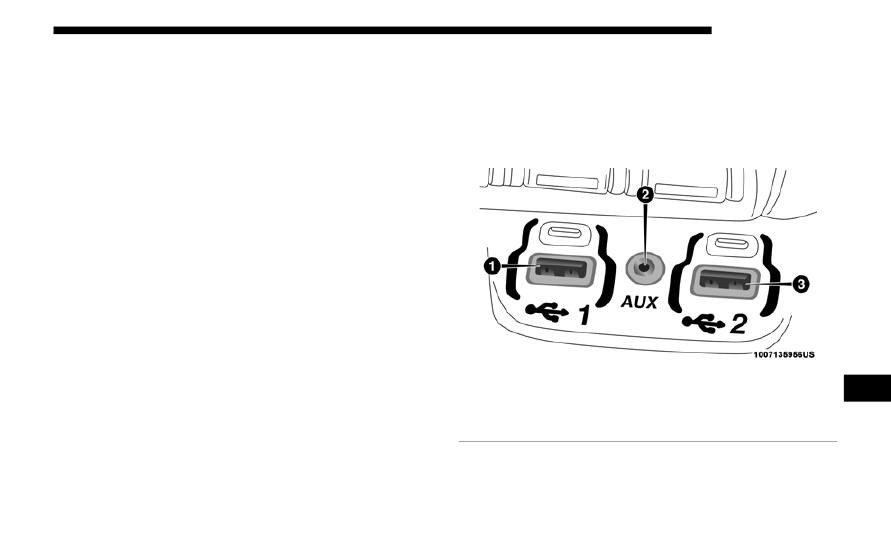

Center Stack USB/AUX Media Hub

1 — Standard USB Type A Port #1

2 — AUX Port

3 — Standard USB Type A Port #2

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

644 MULTIMEDIA

A third and fourth USB Ports are located behind the center

console, above the Power Inverter. One is a charge only port,

and can only charge USB devices. The other USB Port allows

you to play music from iPod/MP3 players or USB devices

through your vehicle’s sound system.

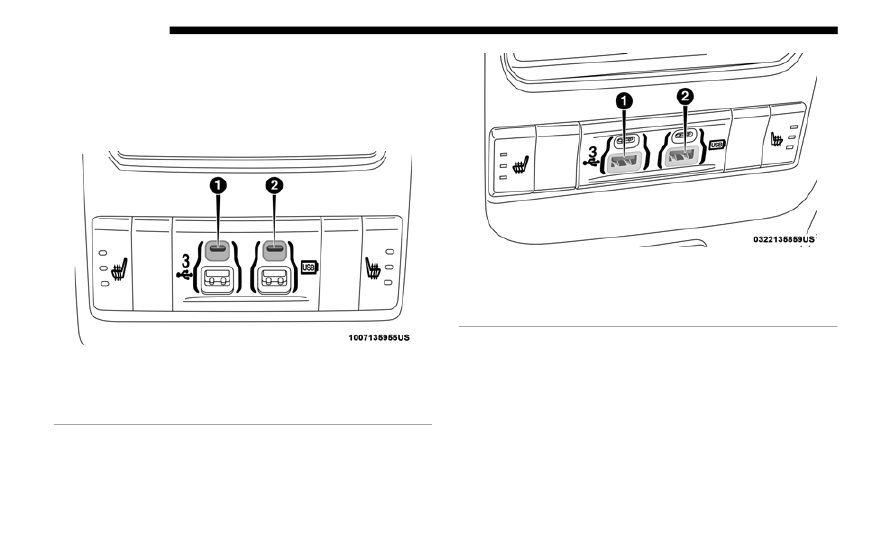

Rear Center Console Mini-USB (Type C) USB Ports

Rear Center Console Standard (Type A) USB Ports

1 — Mini-USB Type C Port #1

2 — Mini-USB Type C Port #2

1 — Standard USB Type A Port #1

2 — Standard USB Type A Port #2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

645

Applicable  to  only  Uconnect  4/4 NAV  With  8.4–inch

Display, and Uconnect 4 NAV With 12–inch Display radios,

different  scenarios  are  shown  below  when  a  non-phone

device is plugged into the smaller and larger USB Ports, and

when a phone device is plugged into the smaller and larger

USB Ports:

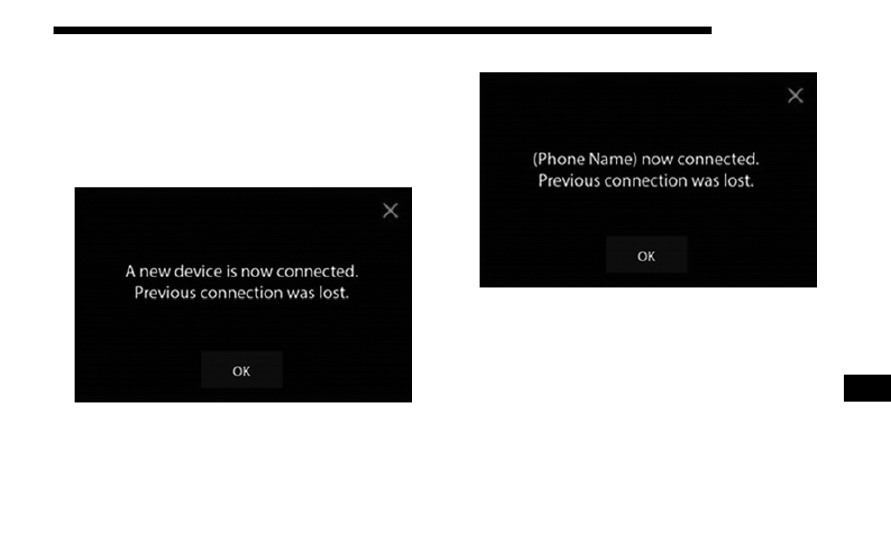

Device Plugged In Message Screen

Phone Plugged In Message Screen

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

646 MULTIMEDIA

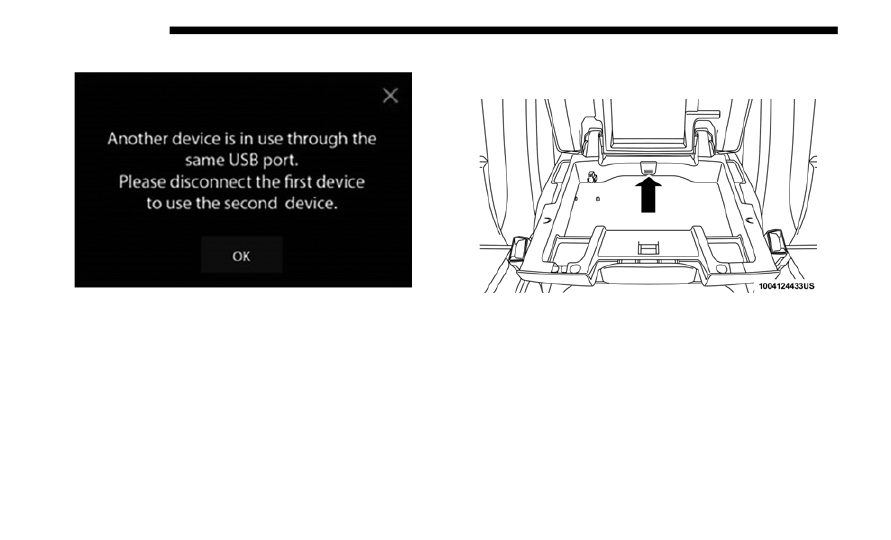

Phone Or USB Plugged In Message Screen

Plugging in a phone or another USB device may cause the

connection to a previous device to be lost.

If  equipped,  your  vehicle  may  also  contain  a  USB  Port

located on the top tray of the vehicles center console.

Center Console USB Port

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

647

If  equipped,  two  Mini-USB  Ports  (Type  C),  two  Standard

USB Ports (Type A), and one AUX Port may be located to the

left of the center stack, just below the climate controls.

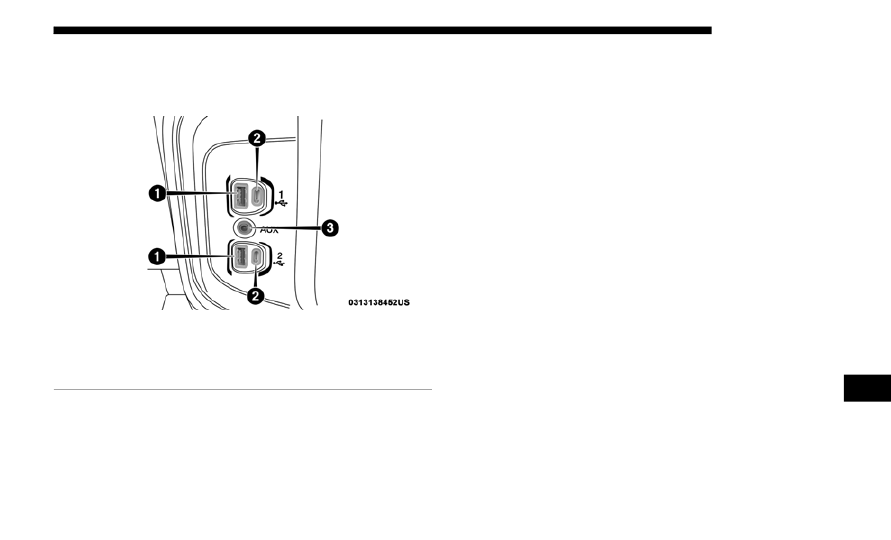

Center Console USB/AUX Media Hub

Some USB ports support media and charging. You can use

features,  such  as  Apple  CarPlay,  Android  Auto,  Pandora

and others while charging your phone.

NOTE:

Plugging in a phone or another USB device may cause the

connection to a previous device to be lost.
For  further  information,  refer  to  the  Uconnect  Owner’s

Instruction Supplement or visit

UconnectPhone.com

.

RADIO OPERATION AND MOBILE PHONES

Under certain conditions, the mobile phone being on in your

vehicle  can  cause  erratic  or  noisy  performance  from  your

radio. This condition may be lessened or eliminated by relo-

cating  the  mobile  phone  antenna.  This  condition  is  not

harmful  to  the  radio.  If  your  radio  performance  does  not

satisfactorily “clear” by the repositioning of the antenna, it is

recommended that the radio volume be turned down or off

during mobile phone operation when not using Uconnect (if

equipped).

1 — Standard USB Type A Ports

2 — Mini-USB Type C Ports

3 — AUX Port

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

648 MULTIMEDIA

Regulatory And Safety Information

USA/CANADA
Exposure to Radio Frequency Radiation
The radiated output power of the internal wireless radio is

far below the FCC and IC radio frequency exposure limits.

Nevertheless,  the  wireless  radio  will  be  used  in  such  a

manner  that  the  radio  is  8 in  (20  cm)  or  further  from  the

human body.
The internal wireless radio operates within guidelines found

in radio frequency safety standards and recommendations,

which reflect the consensus of the scientific community.
The radio manufacturer believes the internal wireless radio

is safe for use by consumers. The level of energy emitted is

far less than the electromagnetic energy emitted by wireless

devices such as mobile phones. However, the use of wireless

radios may be restricted in some situations or environments,

such as aboard airplanes. If you are unsure of restrictions,

you are encouraged to ask for authorization before turning

on the wireless radio.
The  following  regulatory  statement  applies  to  all  Radio

Frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and with

Industry Canada license-exempt RSS standard(s). Operation

is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This  device  must  accept  any  interference  received,

including interference that may cause undesired opera-

tion.

NOTE:

Changes  or  modifications  not  expressly  approved  by  the

party  responsible  for  compliance  could  void  the  user’s

authority to operate the equipment.
NOTE:
• This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of  the  FCC  Rules.  These  limits  are  designed  to  provide

reasonable  protection  against  harmful  interference  in  a

residential  installation.  This  equipment  generates,  uses

and  can  radiate  radio  frequency  energy  and,  if  not

installed  and  used  in  accordance  with  the  instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

649

• If this equipment does cause harmful interference to radio

or  television  reception,  which  can  be  determined  by

turning the equipment off and on, the user is encouraged

to  try  to  correct  the  interference  by  one  or  more  of  the

following measures:
1. Increase the separation between the equipment and

receiver.

2. Consult an authorized dealer or an experienced radio

technician for help.

VOICE COMMANDS

Introducing Uconnect

Start using Uconnect Voice Recognition with these helpful

quick tips. It provides the key Voice Commands and tips you

need to know to control your Uconnect system.
If you see the NAV icon on the bottom bar, or in the Apps

menus, of your touchscreen, you have the Uconnect 4C NAV

With  8.4–inch  Display  or  the  Uconnect  4C  NAV  With

12–inch Display system. If not, you have a Uconnect 4C With

8.4–inch Display system.

Get Started

All  you  need  to  control  your  Uconnect  system  with  your

voice are the buttons on your steering wheel.
1. Visit

UconnectPhone.com

  to  check  mobile  device  and

feature compatibility and to find phone pairing instruc-

tions.

2. Reduce  background  noise.  Wind  noise  and  passenger

conversations  are  examples  of  noise  that  may  impact

recognition.

3. Speak clearly at a normal pace and volume while facing

straight  ahead.  The microphone is  located  in  the  head-

liner and aimed at the driver.

4. Each  time  you  give  a  Voice  Command,  you  must  first

push either the VR or Phone button, wait until after the

beep, then say your Voice Command.

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

650 MULTIMEDIA

5. You can interrupt the help message or system prompts by

pushing  the  VR  or  Phone  button  and  saying  a  Voice

Command from current category.

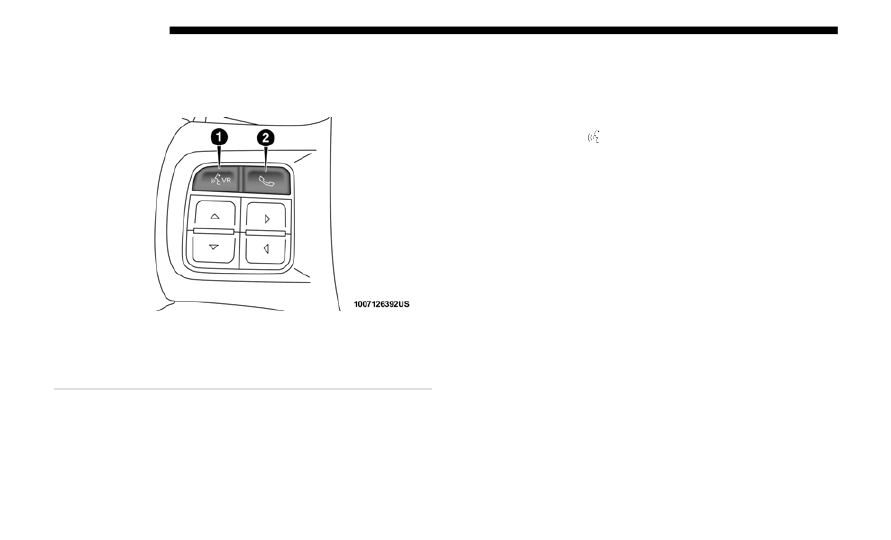

Uconnect Voice Command Buttons

Basic Voice Commands

The basic Voice Commands below can be given at any point

while using your Uconnect system.
Push the VR button  . After the beep, say:
• “Cancel” to stop a current voice session
• “Help” to hear a list of suggested Voice Commands
• “Repeat” to listen to the system prompts again

1 — Push To Begin Radio Or Media Functions

2 — Push To Initiate, Answer, End A Phone Call, Or Send/Receive A

Text

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

651

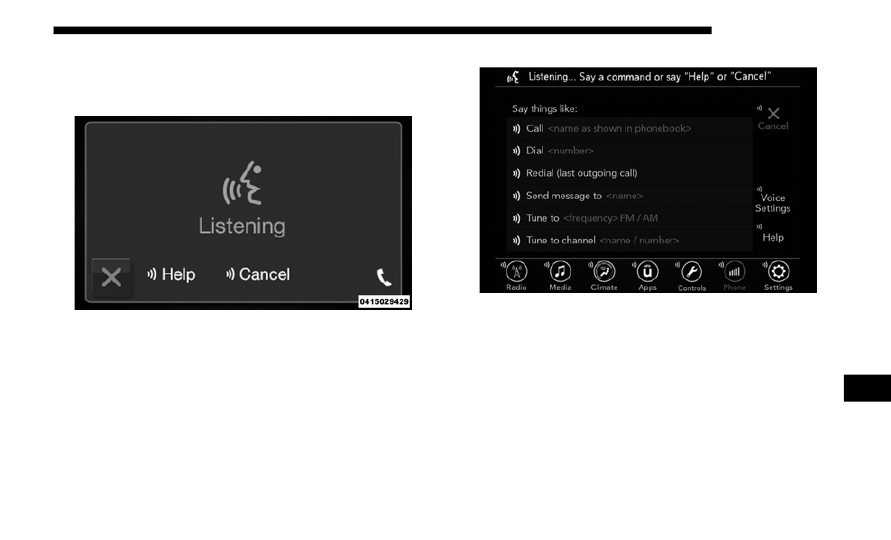

Notice the visual cues that inform you of your voice recogni-

tion system’s status. Cues appear on the top of the touch-

screen.

Uconnect 3 With 5–inch Display

Uconnect 4/4C/4C NAV With 8.4–inch Display

9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

652 MULTIMEDIA

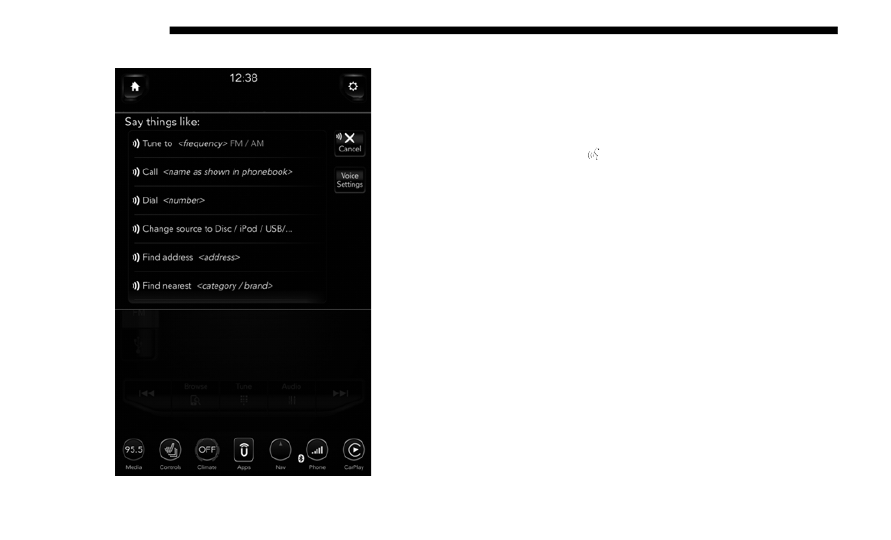

Uconnect 4C NAV With 12–inch Display

Radio

Use your voice to quickly get to the AM, FM or SiriusXM

Satellite Radio stations you would like to hear. (Subscription

or included SiriusXM Satellite Radio trial required.)
Push the VR button  . After the beep, say:
• “Tune to ninety-five-point-five FM”
• “Tune to Satellite Channel Hits 1”

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     38      39      40      41     ..
