IN CASE OF EMERGENCY

477

(Continued)

Jacking Instructions

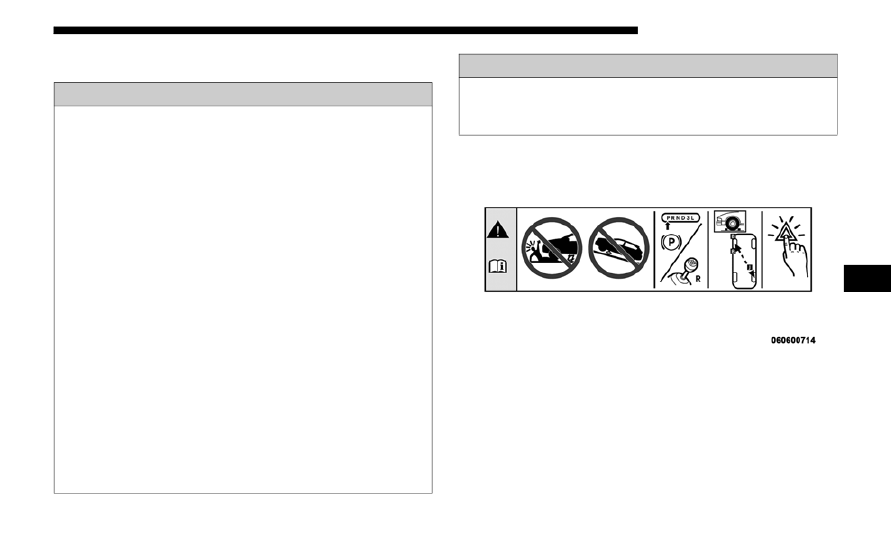

Jack Warning Label

WARNING!

Carefully  follow  these  tire  changing  warnings  to  help

prevent personal injury or damage to your vehicle:
• Always  park  on  a  firm,  level  surface  as  far  from  the

edge  of  the  roadway  as  possible  before  raising  the

vehicle.

• Turn on the Hazard Warning flasher.
• Block the  wheel  diagonally opposite  the wheel to be

raised.

• Apply the parking brake firmly and set the transmis-

sion in PARK.

• Never start or run the engine with the vehicle on a jack.
• Do not let anyone sit in the vehicle when it is on a jack.
• Do not get under the vehicle when it is on a jack. If you

need to get under a raised vehicle, take it to a service

center where it can be raised on a lift.

• Only  use  the  jack  in  the  positions  indicated  and  for

lifting this vehicle during a tire change.

• If working on or near a roadway, be extremely careful

of motor traffic.

• To assure that spare tires, flat or inflated, are securely

stowed,  spares  must  be  stowed  with  the  valve  stem

facing the ground.

WARNING! (Continued)

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

478 IN CASE OF EMERGENCY

Lug Wrench Adaptor Shown In Jack And Tools Assembly

1. Remove the spare wheel, jack, and tools from storage.
2. Using  the  lug  wrench,  loosen,  but  do  not  remove,  the

wheel nuts by turning them counterclockwise one turn

while the wheel is still on the ground. Changing a dually

tire requires the lug wrench adapter.

NOTE:

If your vehicle is equipped with hub caps/wheel covers they

must be removed before raising the vehicle off the ground.

Refer to ”Hub Caps/Wheel Covers — If Equipped” in this

section.

Lug Wrench Adapter

CAUTION!

Do  not  attempt  to  raise  the  vehicle  by  jacking  on

locations  other  than  those  indicated  in  the  Jacking

Instructions for this vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IN CASE OF EMERGENCY

479

Lug Wrench Adapter And Wrench

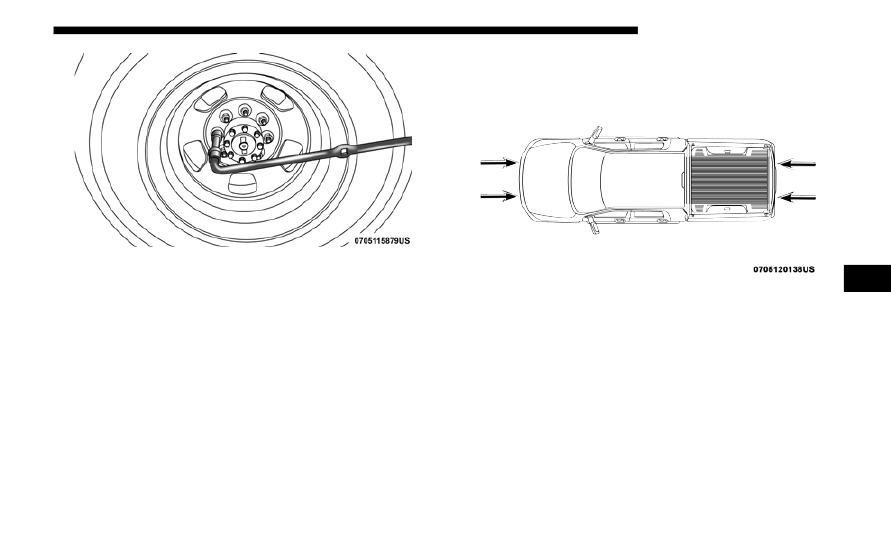

3. Placement of the jack is critical:

Jack / Extensions Placement

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

480 IN CASE OF EMERGENCY

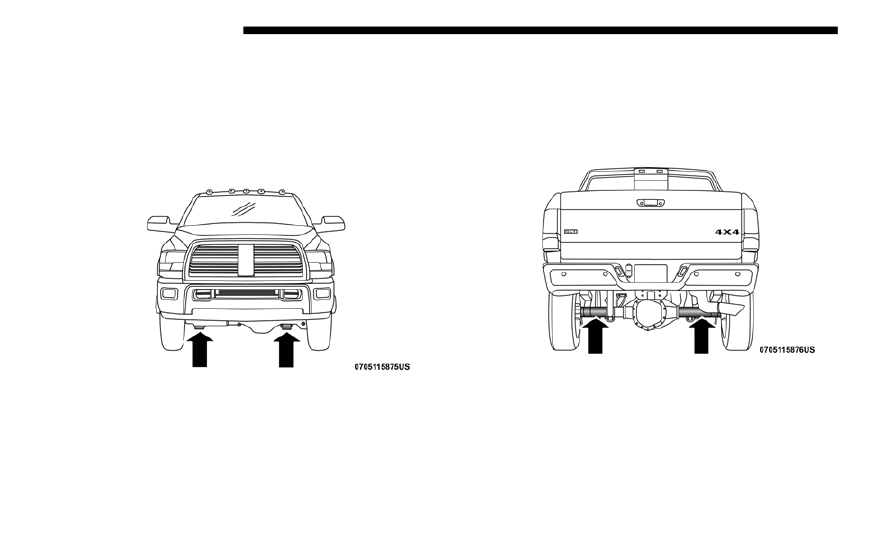

Front Jacking Location
When changing the front wheel, assemble the jack driver

to the jack and connect the jack driver to the extension

tubes. Place the jack under the axle as close to the tire as

possible with the drive tubes extending to the front. Con-

nect the extension tubes and lug wrench.

Front Jacking Location

Rear Jacking Location
When changing a rear wheel, assemble the jack driver to the

jack and connect the jack driver to the extension tubes. Place

the jack under the axle between the spring and the shock ab-

sorber with the extension tubes extending to the rear.

Rear Jacking Location

Connect the extension tubes and lug wrench.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IN CASE OF EMERGENCY

481

NOTE:

If the bottle jack will not lower by turning the dial (thumb-

wheel) by hand, it may be necessary to use the jack driver in

order to lower the jack.
4. By  rotating the  lug wrench  clockwise,  raise  the vehicle

until the wheel just clears the surface.

5. Remove the lug nuts and pull the wheel off. On single

rear-wheel (SRW) trucks, install the spare wheel and lug

nuts with the cone shaped end of the wheel nuts toward

the  wheel.  On  3500  dual  rear-wheel  models  (DRW)

trucks, if the outer tire is being replaced then leave the

inner  wheel  on  the  vehicle.  If  the  inner  wheel  is  being

replaced remove the outer wheel and replace the inner

wheel. The wheel nuts are a two-piece assembly with a

flat face. Lightly tighten the lug nuts. To avoid the risk of

forcing the vehicle off the jack, do not fully tighten the lug

nuts until the vehicle has been lowered.

Rear Inner Wheel Proper Placement

(Dual Rear Wheel Equipped)

CAUTION!

Before raising the wheel off the ground, make sure that

the  jack  will  not  damage  surrounding  truck  parts  and

adjust the jack position as required.

WARNING!

Raising the vehicle higher than necessary can make the

vehicle  less  stable.  It  could  slip  off  the  jack  and  hurt

someone  near  it.  Raise  the  vehicle  only  enough  to

remove the tire.

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

482 IN CASE OF EMERGENCY

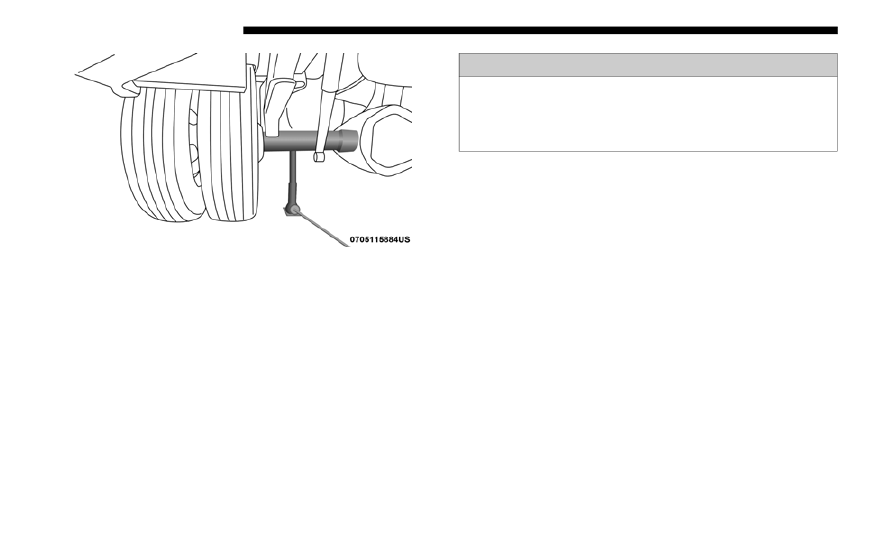

Dual Rear Wheel Jack Placement

6. Finish  tightening  the  lug  nuts.  Push  down  on  the  lug

wrench  while  at  the  end  of  the  handle  for  increased

leverage. Tighten the lug nuts in a star pattern until each

nut  has  been  tightened  twice.  For  the  correct  lug  nut

torque  refer  to  “Torque  Specifications”  in  “Technical

Specifications”.  If  in  doubt  about  the  correct  tightness,

have them checked with a torque wrench by an autho-

rized dealer or service station.

7. Install the wheel center cap and remove the wheel blocks.

Do not install chrome or aluminum wheel center caps on

the spare wheel. This may result in cap damage.

8. Lower  the  jack  to  its  fully  closed  position.  Stow  the

replaced tire, jack, and tools as previously described.

NOTE:

The bottle jack will not lower by turning the dial (thumb-

wheel) by hand, it may be necessary to use the jack driver in

order to lower the jack
9. Adjust the tire pressure when possible.
NOTE:

Do not oil wheel studs. For chrome wheels, do not substitute

with chrome plated lug nuts.

WARNING!

A loose tire or jack thrown forward in a collision or hard

stop,  could  endanger  the  occupants  of  the  vehicle.

Always  stow  the  jack  parts  and  the  spare  tire  in  the

places provided.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IN CASE OF EMERGENCY

483

To Stow The Flat Or Spare

NOTE:

Have the flat tire repaired or replaced immediately.

1. Turn the wheel so that the valve stem is facing the ground

and  toward  the  rear  of  the  vehicle  for  convenience  in

checking the spare tire inflation. Slide the wheel retainer

through the center of the wheel.

Reinstalling The Retainer

WARNING!

A loose tire or jack thrown forward in a collision or hard

stop  could  endanger  the  occupants  of  the  vehicle.

Always  stow  the  jack  parts  and  the  spare  tire  in  the

places provided. Have the deflated (flat) tire repaired or

replaced immediately.

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

484 IN CASE OF EMERGENCY

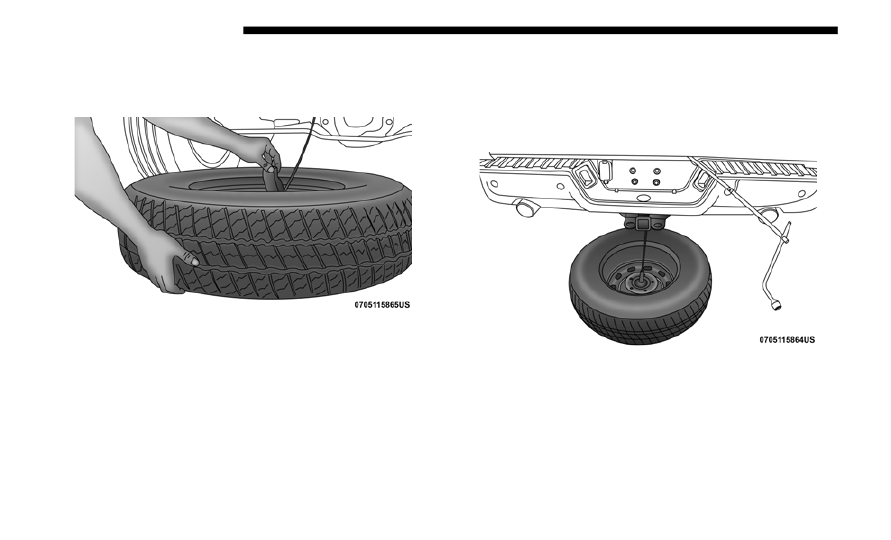

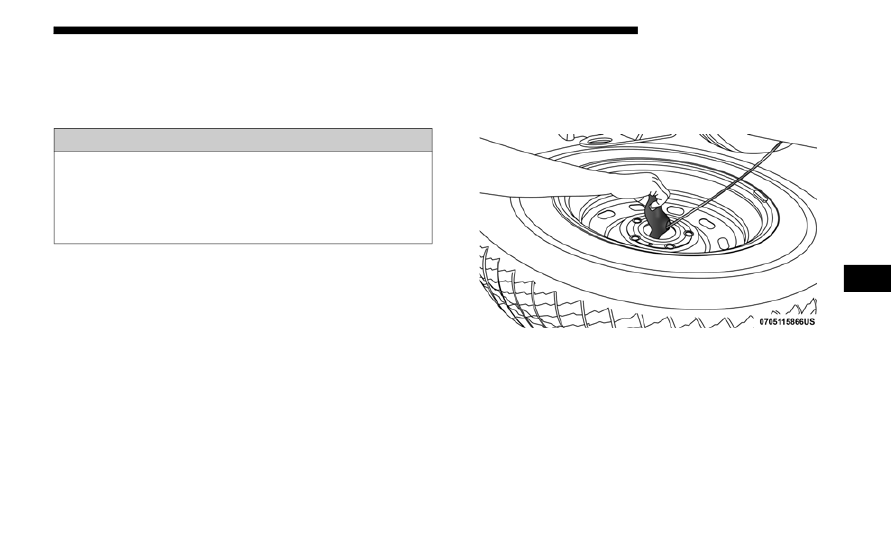

2. Lift the spare tire with one hand to give clearance to tilt

the retainer at the end of the cable and position it properly

across the wheel opening.

Pushing The Retainer Through The Center Of The Wheel

And Positioning It

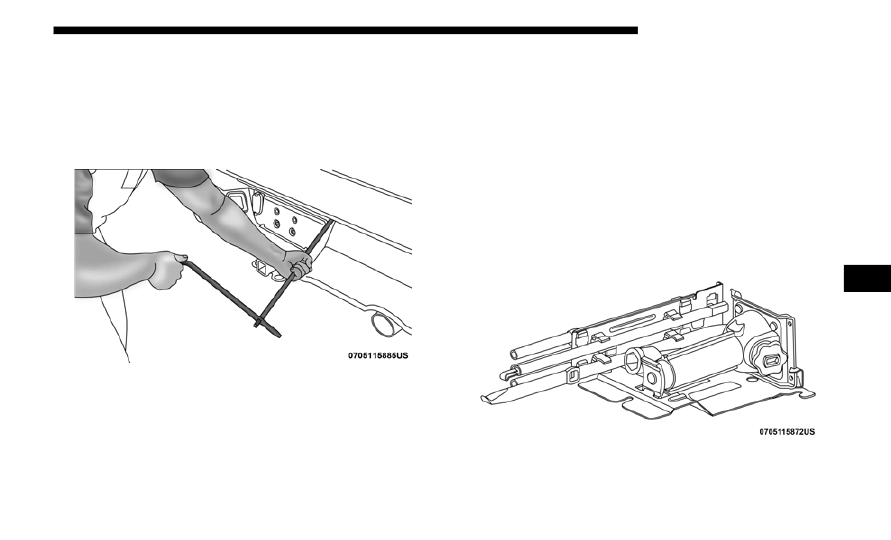

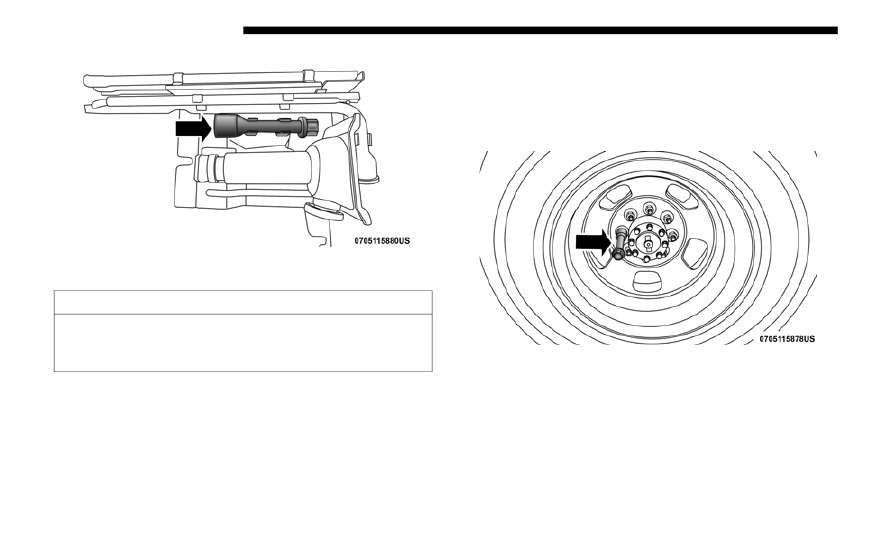

3. Attach  the  lug  wrench  to  the  extension  tubes  with  the

curved  angle  facing  away  from  the  vehicle.  Insert  the

extensions through the access hole between the lower tail-

gate and the top of the bumper and into the winch mech-

anism tube.

Lug Wrench And Extension Tubes Assembled And In

Position

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IN CASE OF EMERGENCY

485

4. Rotate the lug wrench handle clockwise until the wheel is

drawn  into  place  against  the  underside  of  the  vehicle.

Continue to rotate until you feel the winch mechanism

slip, or click three or four times. It cannot be overtight-

ened. Push against the tire several times to ensure it is

firmly in place.

Rotating The Lug Wrench Handle

NOTE:

The  winch  mechanism  is  designed  for  use  with  the  jack

extension tube only. Use of an air  wrench or  other power

tools is not recommended and can damage the winch.

Reinstalling The Jack And Tools

1. Tighten  the  jack  all  the  way  down  by  turning  the  jack

turn-screw counterclockwise until the jack is snug.

2. Position the jack and tools into bracket assembly. Make

sure  the  lug  wrench  is  under  the  jack  near  the  jack

turn-screw. Snap tools into bracket assembly clips. Install

the  jack  into  bracket  assembly  and  turn  the

jack-turn-screw clockwise until jack is snug into bracket

assembly.

Jack And Tools Bracket Assembly

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

486 IN CASE OF EMERGENCY

3. Place the jack  and  tool bracket assembly  in the storage

position holding the jack by the jack turn-screw, slip the

jack  and  tools  under  the  seat  so  that  the  bottom  slot

engages into the fastener on the floor.

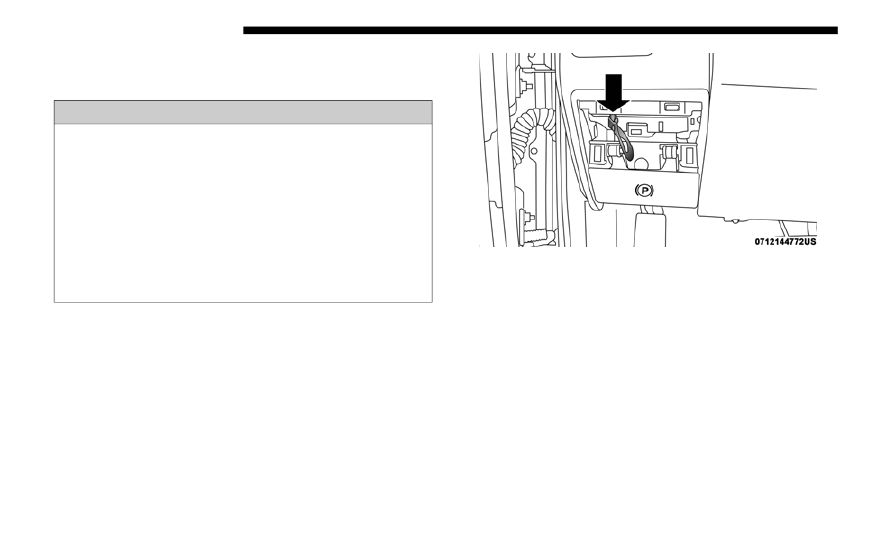

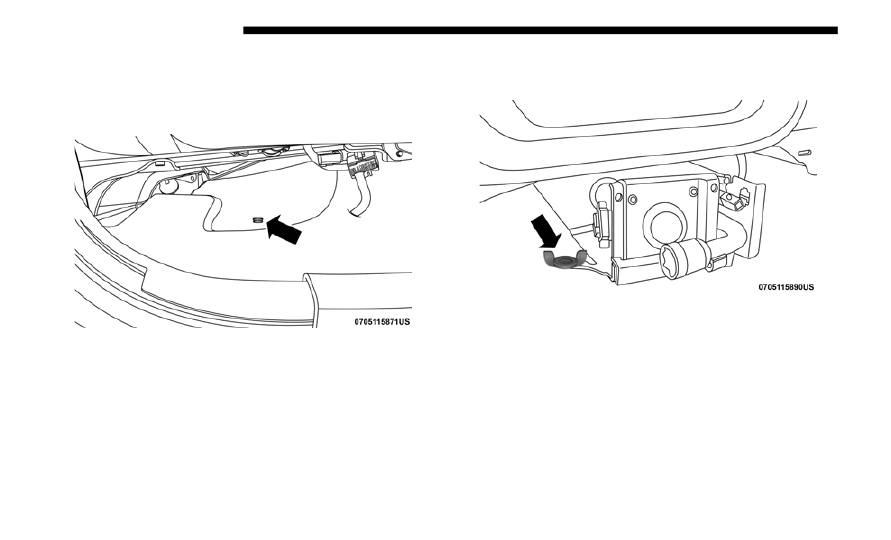

Jack Hold Down Fastener

NOTE:

Ensure that the jack and tool bracket assembly slides into the

front hold down location.

4. Turn the wing bolt clockwise to secure to the floor pan.

Reinstall the plastic cover.

Wing Bolt/Jack And Tools

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IN CASE OF EMERGENCY

487

Hub Caps/Wheel Covers — If Equipped

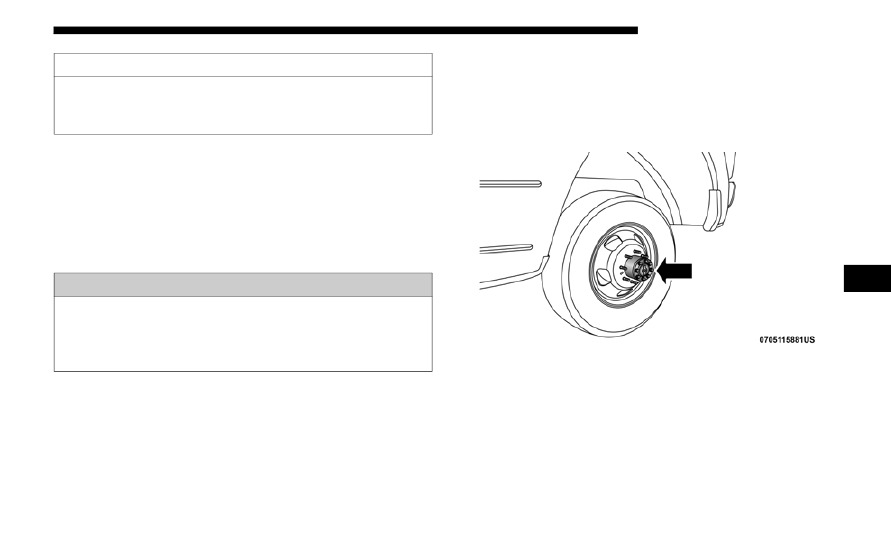

The hub caps must be removed before raising the vehicle off

the ground.

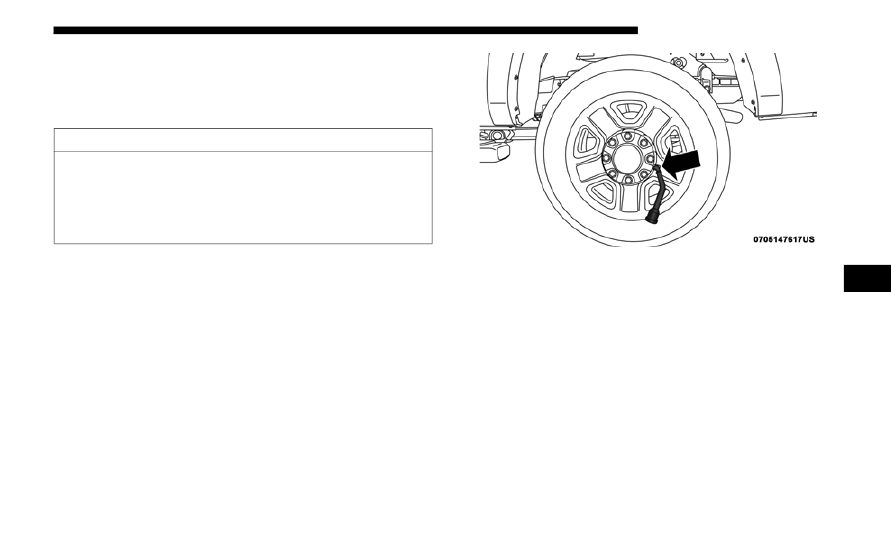

For 2500/3500 single rear wheel (SRW) models, use the flat

end of the lug wrench to hook and pull off the hub cap. Find

the opening in the hub cap, insert the lug wrench, and pull

off the cap. If you need to pry against the wheel, protect the

wheel surface.

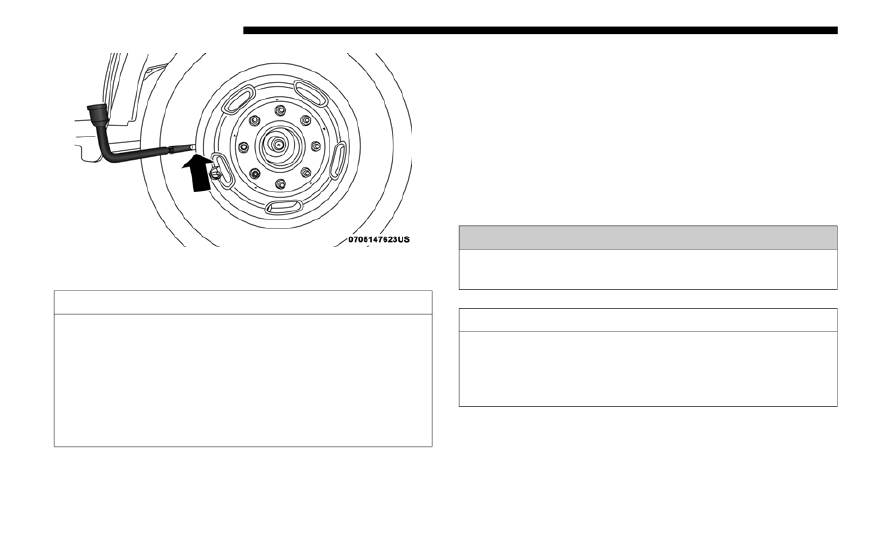

Lug Wrench Insertion Location — Hub Cap

On 3500 models with dual rear wheels (DRW), you must first

remove the hub caps—use the procedure noted for the single

rear wheel. For the wheel covers (wheel skins), insert the flat

end of the lug wrench between the outer edge of the wheel

cover and the wheel. Pry against the wheel to remove the

wheel cover. Repeat this procedure around the wheel until

the cover pops off.

CAUTION!

 Use extreme caution when removing the front and rear

wheel covers. Damage can occur to the center cap and/or

the wheel if screwdriver type tools are used. A pulling

motion, not a pry off motion, is recommended to remove

the caps.

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

488 IN CASE OF EMERGENCY

Lug Wrench Insertion Location — Wheel Cover

Replace the wheel covers using a rubber mallet to ease the

installation. Align the wheel cover vent holes to the wheel

vent holes. Tap on the wheel cover as needed to firmly seat it

evenly around the wheel.

JUMP STARTING

If  your  vehicle  has  a  discharged  battery,  it  can  be  jump

started using a set of jumper cables and a battery in another

vehicle, or by using a portable battery booster pack. Jump

starting  can  be  dangerous  if  done  improperly,  so  please

follow the procedures in this section carefully.

NOTE:

When  using  a  portable  battery  booster  pack,  follow  the

manufacturer's operating instructions and precautions.

CAUTION!

• Use a pulling motion to remove the hub cap. Do not use

a twisting motion when removing the hub cap, damage

to the hub cap; finish may occur.

• The rear hub caps on the dual rear wheel has two pull

off notches. Make sure that the hook of the jack handle

driver  is  located  squarely  in  the  cap  notch  before

attempting to pull off.

WARNING!

Do not attempt jump starting if the battery is frozen. It

could rupture or explode and cause personal injury.

CAUTION!

Do  not  use  a  portable  battery  booster  pack  or  any  other

booster source with a system voltage greater than 12 Volts

or  damage  to  the  battery,  starter  motor,  alternator  or

electrical system may occur.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IN CASE OF EMERGENCY

489

Preparations For Jump Start

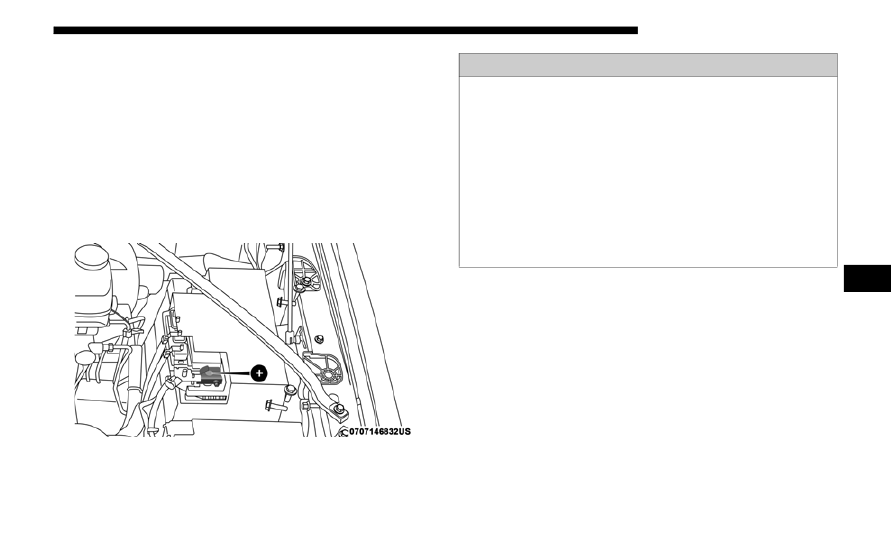

The  battery  in  your  vehicle  is  located  in  the  front  of  the

engine compartment, behind the left headlight assembly.
NOTE:

The positive battery post may be covered with a protective

cap if equipped. Lift up on the cap to gain access to the posi-

tive battery post. Do not jump off fuses. Only jump directly

off  positive  post  which  has  a  positive  (+)  symbol  on  or

around the post.

Positive Battery Post

1. Apply  the  parking  brake, shift the  automatic transmis-

sion into PARK and turn the ignition OFF.

2. Turn off the heater, radio, and all unnecessary electrical

accessories.

WARNING!

• Take care to avoid the radiator cooling fan whenever

the  hood  is  raised.  It  can  start  anytime  the  ignition

switch is ON. You can be injured by moving fan blades.

• Remove any metal jewelry such as rings, watch bands

and bracelets that could make an inadvertent electrical

contact. You could be seriously injured.

• Batteries contain sulfuric acid that can burn your skin

or eyes and generate hydrogen gas which is flammable

and explosive. Keep open flames or sparks away from

the battery.

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

490 IN CASE OF EMERGENCY

3. If using another vehicle to jump start the battery, park the

vehicle  within  the  jumper  cables’  reach,  apply  the

parking brake and make sure the ignition is OFF.

Jump Starting Procedure

Connecting The Jumper Cables
1. Connect the positive (+) end of the jumper cable to the

positive (+) post of the discharged vehicle.

NOTE:

Do  not  jump  off  fuses.  Only  jump  directly  off  positive

post.
2. Connect the opposite end of the positive (+) jumper cable

to the positive (+) post of the booster battery.

3. Connect the negative (-) end of the jumper cable to the

negative (-) post of the booster battery.

4. Connect the opposite end of the negative (-) jumper cable

to  a  good  engine  ground  (exposed  metal  part  of  the

discharged vehicle’s engine) away from the battery and

the fuel injection system.

WARNING!

Do not allow vehicles to touch each other as this could

establish a ground connection and personal injury could

result.

WARNING!

Failure  to  follow  this  jump  starting  procedure  could

result  in  personal  injury  or  property  damage  due  to

battery explosion.

CAUTION!

Failure  to  follow  these  procedures  could  result  in

damage to the charging system of the booster vehicle or

the discharged vehicle.

WARNING!

Do not connect the jumper cable to the negative (-) post

of the discharged battery. The resulting electrical spark

could  cause  the  battery  to  explode  and  could  result  in

personal injury. Only use the specific ground point, do

not use any other exposed metal parts.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

491

5. Start the engine in the vehicle that has the booster battery,

let  the  engine  idle  a  few  minutes,  and  then  start  the

engine in the vehicle with the discharged battery.

6. Once the engine is started, remove the jumper cables in

the reverse sequence:

Disconnecting The Jumper Cables
1. Disconnect the negative (-) end of the jumper cable from

the  engine  ground  of  the  vehicle  with  the  discharged

battery.

2. Disconnect  the opposite end of the  negative (-) jumper

cable from the negative (-) post of the booster battery.

3. Disconnect the positive (+) end of the jumper cable from

the positive (+) post of the booster battery.

4. Disconnect  the opposite end  of  the positive  (+)  jumper

cable  from the positive (+) post of the vehicle  with the

discharged battery.

If frequent jump starting is required to start your vehicle you

should have the battery and charging system inspected at an

authorized dealer.

CAUTION!

 Do not connect jumper cable to any of the fuses on the

positive battery terminal. The resulting electrical current

will blow the fuse.

CAUTION!

Accessories plugged into the vehicle power outlets draw

power from the vehicle’s battery, even when not in use

(i.e., cellular devices, etc.). Eventually, if plugged in long

enough  without  engine  operation,  the  vehicle’s  battery

will discharge sufficiently to degrade battery life and/or

prevent the engine from starting.

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

492 IN CASE OF EMERGENCY

MANUAL PARK RELEASE — 8–SPEED
TRANSMISSION

In order to push or tow the vehicle in cases where the trans-

mission will not shift out of PARK (such as a dead battery), a

Instruction Park Release is available.

Instruction Park Release Pull Strap

Follow these steps to activate the Instruction Park Release:
1. Firmly apply the parking brake.
2. Using  a  small  screwdriver  or  similar  tool,  remove  the

Instruction Park Release access cover, which is just above the

parking brake release handle, below and to the left of the

steering column.

3. Press and maintain firm pressure on the brake pedal.

WARNING!

Always  secure  your  vehicle  by  fully  applying  the

parking  brake  before  activating  the  Instruction  Park

Release. In addition, you should be seated in the driver’s

seat  with  your  foot  firmly  on  the  brake  pedal  when

activating  the  Instruction  Park  Release.  Activating  the

Instruction Park Release will allow your vehicle to roll away

if  it  is  not  secured  by  the  parking  brake,  or  by  proper

connection to a tow vehicle. Activating the Instruction Park

Release  on  an  unsecured  vehicle  could  lead  to  serious

injury or death for those in or around the vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     28      29      30      31     ..
