RAM 3500 (2019 year). Instruction - part 6





GETTING TO KNOW YOUR VEHICLE

93

Outside Air Intake

Make sure the air intake, located directly in front of the wind-

shield, is free of obstructions, such as leaves. Leaves collected

in the air intake may reduce airflow, and if they enter the

plenum, they could plug the water drains. In Winter months,

make sure the air intake is clear of ice, slush, and snow.
Cabin Air Filter

The climate control system filters out dust and pollen from

the air. Contact an authorized dealer to service your cabin air

filter, and to have it replaced when needed.

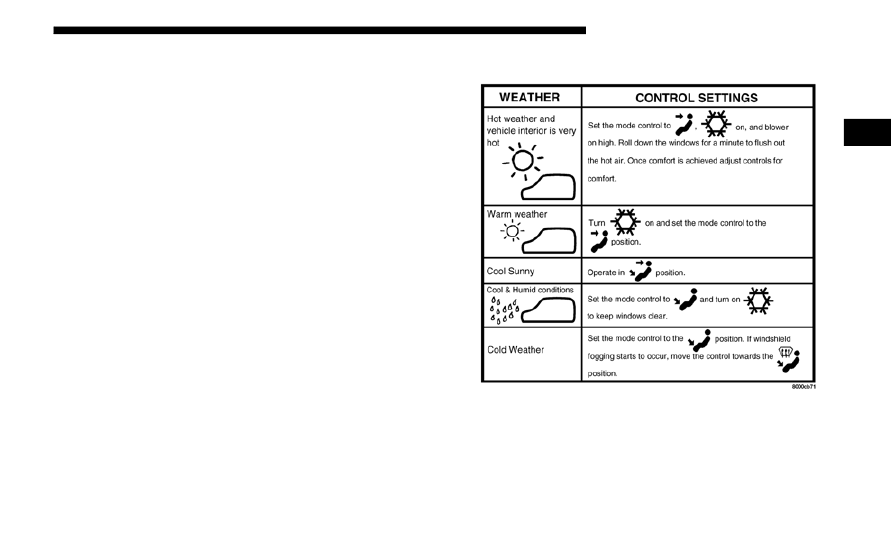

Operating Tips Chart

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

94 GETTING TO KNOW YOUR VEHICLE

WINDOWS

Power Windows

Power Window Controls

Power Window Switches

The power window controls located on the driver's door trim

panel have up-down switches that give you fingertip control

of all power windows. There is a single opening and closing

switch on the front passenger door for passenger window

control and on the rear doors for rear window control. The

windows will operate when the ignition switch is turned to

the  ON/RUN  or  ACC  position,  and  for  up  to  10 minutes

after  the  ignition  is  turned  OFF  or  until  a  front  door  is

opened.
NOTE:

The  Key  Off  Power  Delay  feature  will  allow  the  power

windows to operate for up to 10 minutes after the ignition is

turned OFF. This feature is cancelled when either front door

is opened.

WARNING!

Never  leave  children  unattended  in  a  vehicle.  Do  not

leave the key fob in or near the vehicle or in a location

accessible to children, and do not leave the ignition of a

vehicle equipped with Keyless Enter-N-Go in the ACC

or  ON/RUN  mode.  Occupants,  particularly  unattended

children, can become entrapped  by the windows while

operating the power window switches. Such entrapment

may result in serious injury or death.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

95

Auto-Down

Both the driver and front passenger window switch have an

Auto-Down feature. Push the window switch past the first

detent, release, and the window will go down automatically.

To cancel the Auto-Down movement, operate the switch in

either the up or down direction and release the switch.
To stop the window from going all the way down during the

Auto-Down operation, pull up on the switch briefly.
To open the window part way, push to the switch to the first

detent and release it when you want the window to stop.
Auto-Up Feature With Anti-Pinch Protection — If
Equipped

Pull the window switch fully upward to the second detent,

release, and the window will go up automatically.
To stop the window from going all the way up during the

Auto-Up operation, push down on the switch briefly.
To close the window part way, lift the window switch to the

first detent and release when you want the window to stop.
NOTE:

If the window runs into any obstacle during the Auto-Closure,

it will reverse direction and then go back down. Remove the

obstacle and use the window switch again to close the window.

Any impact due to rough road conditions may trigger the auto

reverse  function  unexpectedly  during  auto  closure.  If  this

happens, pull the switch lightly to the first detent and hold to

close the window instructionly.

Reset Auto-Up

Should the Auto-Up feature stop working, the window may

need to be reset. To reset Auto-Up:
1. Make sure the door is fully closed.
2. Pull  the  window  switch  up  to  close  the  window

completely  and  continue  to  hold  the  switch  up  for  an

additional two seconds after the window is closed.

3. Push  the  window  switch  down  firmly  to  the  second

detent to open the window completely and continue to

hold the switch down for an additional two seconds after

the window is fully open.

WARNING!

There  is  no  anti-pinch  protection  when  the  window  is

almost  closed.  Be  sure  to  clear  all  objects  from  the

window before closing.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

96 GETTING TO KNOW YOUR VEHICLE

Window Lockout Switch

The window lockout switch on the driver's door allows you

to disable the window control on the rear passenger doors.

To disable the window controls on the rear passenger doors,

push the window lock switch into the latched or down posi-

tion. To enable the window controls, push the window lock

switch again and return the switch to the released or up posi-

tion.

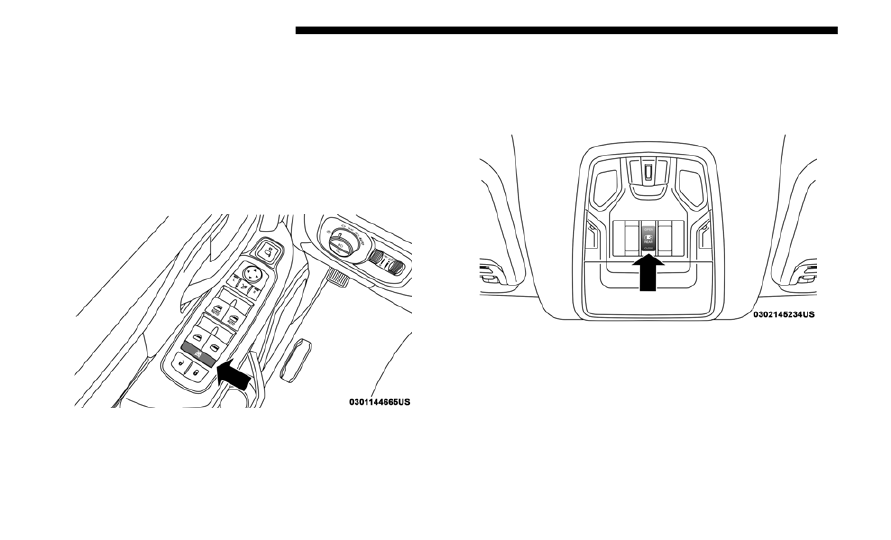

Window Lockout Switch

Power Sliding Rear Window — If Equipped

The switch for the power sliding rear window is located on

the overhead console.

Power Sliding Rear Window Switch

Push the switch rearward to open the glass. Pull the switch

forward to close the glass.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

97

Instruction Sliding Rear Window — If Equipped

A  locking  device  in  the  center  of  the  window  helps  to

prevent entry from the rear of the vehicle. Squeeze the lock

to release the window.

Wind Buffeting

Wind buffeting can be described as the perception of pres-

sure on the ears or a helicopter-type sound in the ears. Your

vehicle may exhibit wind buffeting with the windows down,

or the sunroof (if equipped) in certain open or partially open

positions. This is a normal occurrence and can be minimized.

If the buffeting occurs with the rear windows open, open the

front and rear windows together to minimize the buffeting.

If  the  buffeting  occurs  with  the  sunroof  open,  adjust  the

sunroof  opening  to  minimize  the  buffeting  or  open  any

window.

POWER SUNROOF — IF EQUIPPED

Single Pane Power Sunroof — If Equipped

The  power  sunroof  switches  are  located  on  the  overhead

console between the courtesy/reading lights.

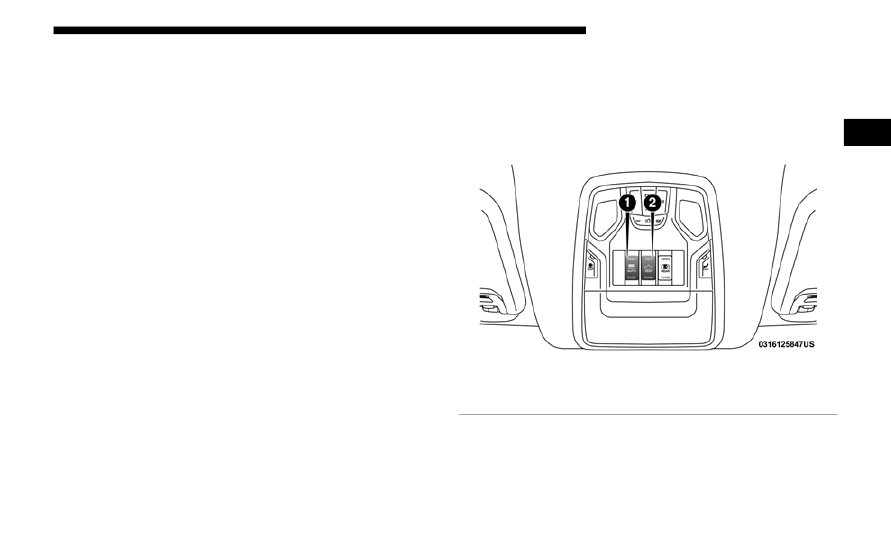

Power Sunroof Switches

1 — Opening/Closing Sunroof

2 — Venting Sunroof

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

98 GETTING TO KNOW YOUR VEHICLE

Opening Sunroof

Express
Push  the  switch  rearward  and  release  it  within  one-half

second. The sunroof and sunshade will open automatically

and stop when the full open position is reached. This is called

“Express Open.” During Express Open operation, any other

actuation of the sunroof switch will stop the sunroof.
Instruction Mode
To open the sunroof, push and hold the switch rearward. The

sunroof will move rearward and automatically stop at full

open position. Any release of the switch will stop the move-

ment. The sunroof and sunshade will remain in a partially

opened condition until the sunroof switch is pushed again.

WARNING!

• Never leave children unattended in a vehicle, or with

access to an unlocked vehicle. Never leave the key fob

in or near the vehicle, or in a location accessible to chil-

dren. Do not leave the ignition of a vehicle equipped

with  Keyless  Enter-N-Go  in  the  ACC  or  ON/RUN

mode.  Occupants,  particularly  unattended  children,

can  become  entrapped  by  the  power  sunroof  while

operating the power sunroof switch. Such entrapment

may result in serious injury or death.

• In a collision, there is a  greater risk  of being thrown

from a vehicle with an open sunroof. You could also be

seriously injured or killed. Always fasten your seat belt

properly and make sure all passengers are also properly

secured.

• Do  not  allow  small  children  to  operate  the  sunroof.

Never  allow  your  fingers,  other  body  parts,  or  any

object, to project through the sunroof opening. Injury

may result.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

99

Closing Sunroof

Express
Push  the  switch  forward  and  release  it  within  one-half

second  and  the  sunroof  will  close  automatically  from  any

position. The sunroof will close fully and stop automatically.

This is called “Express Close.” During Express Close opera-

tion, any other actuation of the switch will stop the sunroof.
Instruction Mode
To close the sunroof, push and hold the switch forward. The

sunroof  will  move  forward  and  automatically  stop  at  full

closed position. Any release of the switch will stop the move-

ment and the sunroof will remain in a partially closed condi-

tion until the sunroof switch is pushed again.
Wind Buffeting

Wind buffeting can be described as the perception of pres-

sure on the ears or a helicopter-type sound in the ears. Your

vehicle may exhibit wind buffeting with the windows down,

or the sunroof (if equipped) in certain open or partially open

positions. This is a normal occurrence and can be minimized.

If  the  buffeting  occurs  with  the  rear  windows  open,  then

open the front and rear windows together to minimize the

buffeting.  If  the  buffeting  occurs  with  the  sunroof  open,

adjust the sunroof opening to minimize the buffeting or open

any window.
Sunshade Operation

The  sunshade  can  be  opened  instructionly.  However,  the

sunshade will open automatically as the sunroof opens.
NOTE:

The sunshade cannot be closed if the sunroof is open.
Pinch Protect Feature

This feature will detect an obstruction in the closing of the

sunroof during the Express Close operation. If an obstruction

in the path of the sunroof is detected, the sunroof will auto-

matically retract. Remove the obstruction if this occurs.
NOTE:

If  three consecutive sunroof close attempts result in Pinch

Protect reversals, Pinch Protect will disable and the sunroof

must be closed in Instruction Mode.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

100 GETTING TO KNOW YOUR VEHICLE

Venting Sunroof — Express

Push and release the Vent button within one half second and

the  sunroof  will  open  to  the  vent  position.  This  is  called

“Express Vent”, and it will occur regardless of sunroof posi-

tion. During Express Vent operation, any other actuation of

the switch will stop the sunroof.
Sunroof Maintenance

Use only a non-abrasive cleaner and a soft cloth to clean the

glass panel.
Ignition Off Operation

The  power  sunroof  switch  will  remain  active  for  up  to

approximately 10 minutes after the ignition switch is turned

to the OFF/LOCK position. Opening either front door will

cancel this feature.
NOTE:

Ignition  Off  time  is  programmable  through  the  Uconnect

System.  Refer  to  “Uconnect  Settings”  in  “Multimedia”  for

further information.

Relearn Procedure

For  vehicles  equipped  with  a  sunroof,  there  is  a  relearn

procedure that allows you to calibrate the sunroof when the

“Express  Operation”  feature  stops  working.  To  reset  the

sunroof, follow these steps:
1. Set the ignition to the ACC or the ON/RUN position.
2. Ensure that the sunroof is in the fully closed position.
3. Push and hold the close switch. The sunroof will hit the

hard stop and move to the vent position after ten seconds.

4. Release the close switch.
5. Push and hold the close switch again within five seconds

to begin the teaching process. The sunroof will complete

one full cycle and return to the fully closed position.

NOTE:

If the close switch is released anytime during the teach cycle,

the procedure will need to be repeated starting from the first

step.
6. Once the sunroof has stopped in the fully closed position,

release  the  close  switch.  The  sunroof  is  now  reset  and

ready to use.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

101

HOOD

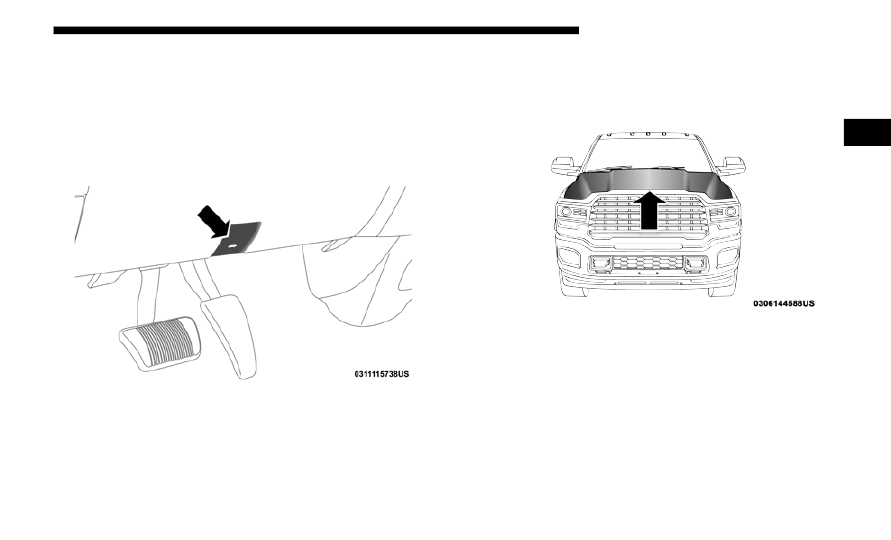

To Open The Hood

To open the hood, two latches must be released.
1. Pull  the  hood  release  lever  located  below  the  steering

wheel at the base of the instrument panel.

Hood Release

2. Reach into  the opening  beneath  the center  of  the  hood

and  push  the  safety  latch  lever  to  the  left  to  release  it,

before raising the hood.

Safety Latch Location

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

102 GETTING TO KNOW YOUR VEHICLE

To Close The Hood

Lower the hood to approximately 12 inches (30 cm) from the

engine compartment and drop it. Make sure that the hood is

completely closed.

TAILGATE

Opening

The power tailgate may be opened by pushing the tailgate

release pad located on the tailgate door.
The tailgate damper strut will lower the tailgate to the open

position (if equipped).
Electronic Tailgate Release — If Equipped

The  key  fob  may  be  equipped  with  an  electronic

release feature for the tailgate, allowing hands-free

tailgate opening. To activate, push and release the

Tailgate  Release  button  on  the  key  fob  twice  within  five

seconds.  The  tailgate  door  will  unlatch,  and  slowly  lower

into the open position.
If equipped, a button on the center overhead console inside

the vehicle can be used to release the tailgate.
NOTE:

The Tri-Fold Tonneau Cover (if equipped) may prevent Elec-

tronic Tailgate Release if installed. The Tonneau Cover must

be removed or folded up before releasing the tailgate. Refer

to “Tri-Fold Tonneau Cover — If Equipped” in “Getting To

Know Your Vehicle” for further information.

WARNING!

Be  sure  the  hood  is  fully  latched  before  driving  your

vehicle.  If  the  hood  is  not  fully  latched,  it  could  open

when  the  vehicle  is  in  motion  and  block  your  vision.

Failure  to  follow  this  warning  could  result  in  serious

injury or death.

CAUTION!

  To  prevent  possible  damage,  do  not  slam  the  hood  to

close it. Use a firm downward push at the front center of

the hood to ensure that both latches engage.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

103

Closing

To  close  the  tailgate,  push  it  upward  until  both  sides  are

latched.
NOTE:

Pull back on the tailgate firmly after closing to ensure it is

securely latched.

Bed Step — If Equipped

Your vehicle may be equipped with an extendable bed step

on the driver’s side of the tailgate to provide easier entry and

exit into the truck bed.

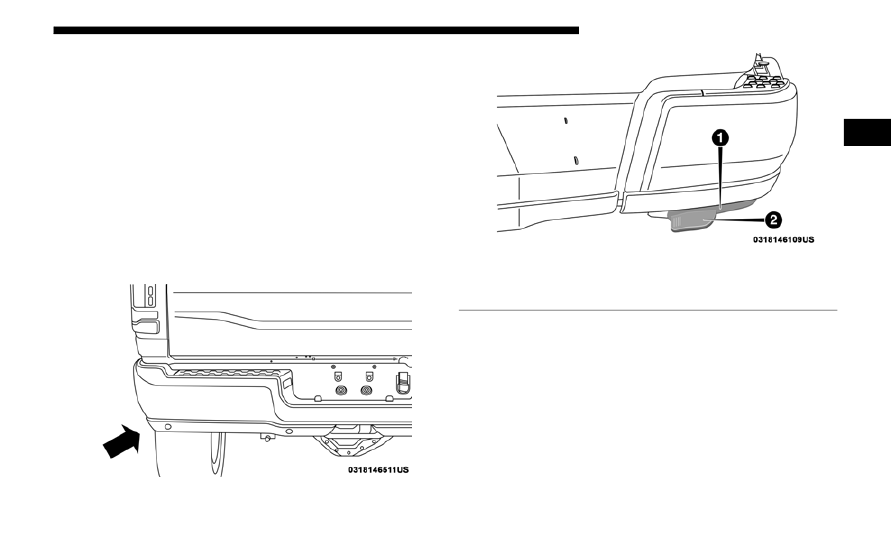

Bed Step Location

Bed Step Components

To extend the bed step, place your foot on the protruding

foot tab located on the left edge of the bed step, and push

rearward.  A  small  amount of  force  will  release  the spring

load, and extend the bed step out and away from the tailgate.
NOTE:

Once the spring load is overcome, the bed step will extend

out quickly, so be sure to stand in a position that will avoid

coming into contact with the step as it extends.

1 — Bed Step

2 — Foot Tab

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

104 GETTING TO KNOW YOUR VEHICLE

Bed Step (Extended)

To stow the bed step back under the tailgate, push the bed

step forward with your foot until the bed step is retracted by

the spring load.

GARAGE DOOR OPENER — IF EQUIPPED

HomeLink replaces up to three hand-held transmitters that

operate  devices  such  as  garage  door  openers,  motorized

gates, lighting or home security systems. The HomeLink unit

is powered by your vehicles 12 Volt battery.
The  HomeLink  buttons  that  are  located  on  the  sun  visor

designate the three different HomeLink channels.

HomeLink Buttons

NOTE:

HomeLink is disabled when the Vehicle Security Alarm is

active.

WARNING!

Do  not  attempt  to  stow  the  bed  step  with  your  hands.

The low  clearance  space  between  the  bed  step and  the

rear  bumper  as  the  bed  step  returns  to  the  stowed

position could result in injury to your hands or fingers.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

105

NOTE:

Only use this transceiver with a garage door opener that has

a “stop  and  reverse”  feature  as required  by federal safety

standards. This  includes  most garage  door  opener models

manufactured after 1982. Do not use a garage door opener

without these safety features. Call toll-free 1-800-355-3515 or,

on the Internet at

HomeLink.com

 for safety information or

assistance.

Before You Begin Programming HomeLink

Be  sure  that  your  vehicle  is  parked  outside  of  the  garage

before you begin programming.
For more efficient programming and accurate transmission

of the radio-frequency signal it is recommended that a new

battery be placed in the hand-held transmitter of the device

that is being programmed to the HomeLink system.
To  erase  the  channels,  place  the  ignition  in  the  ON/RUN

position,  and  push  and  hold  the  two  outside  HomeLink

buttons (I and III) for up to 20 seconds or until the orange

indicator flashes.
NOTE:
• Erasing  all  channels  should  only  be  performed  when

programming HomeLink for the first time. Do not erase

channels when programming additional buttons.

• If you have any problems, or require assistance, please call

toll-free  1-800-355-3515  or,  on  the  Internet  at

Home-

Link.com

 for information or assistance.

WARNING!

• Your motorized door or gate will open and close while

you are programming the universal transceiver. Do not

program the transceiver if people, pets or other objects

are in the path of the door or gate. Only use this trans-

ceiver with a garage door opener that has a “stop and

reverse”  feature  as  required  by  Federal  safety  stan-

dards. This includes most garage door opener models

manufactured  after  1982.  Do  not  use  a  garage  door

opener without these safety features.

• Vehicle  exhaust  contains  carbon  monoxide,  a

dangerous gas. Do not run your vehicle in the garage

while  programming  the  transceiver.  Exhaust  gas  can

cause serious injury or death.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

106 GETTING TO KNOW YOUR VEHICLE

Programming A Rolling Code

For programming garage door openers that were manufac-

tured after 1995. These garage door openers can be identified

by  the  “LEARN”  or  “TRAIN”  button  located  where  the

hanging antenna is attached to the garage door opener.
NOTE:

It is NOT the button that is normally used to open and close

the  door.  The  name  and  color  of  the  button  may  vary  by

manufacturer.

Training The Garage Door Opener

1. Place the ignition in the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program

while keeping the HomeLink indicator light in view.

3. Push  and  hold  the  HomeLink  button  you  want  to

program while you push and hold the hand-held trans-

mitter button.

4. Continue to hold both buttons and observe the indicator

light. The HomeLink indicator will flash slowly and then

rapidly after HomeLink has received the frequency signal

from  the  hand-held  transmitter.  Release  both  buttons

after the indicator light changes from slow to rapid.

5. At the garage door opener motor (in the garage), locate

the “LEARN” or “TRAINING” button. This can usually

be found where the hanging antenna wire is attached to

the garage door opener/device motor. Firmly push and

release the “LEARN” or “TRAINING” button. On some

garage door  openers/devices there  may be a  light that

blinks  when  the  garage  door  opener/device  is  in  the

LEARN/TRAIN mode.

NOTE:

You have 30 seconds in which to initiate the next step after

the LEARN button has been pushed.

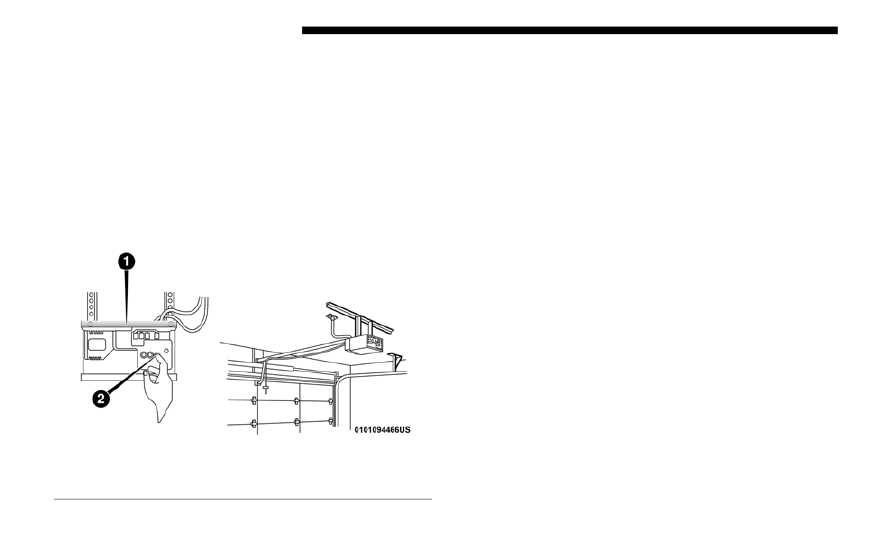

1 — Door Opener

2 — Training Button

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

107

6. Return to the vehicle and push the programmed Home-

Link  button  twice  (holding the  button  for  two  seconds

each  time).  If  the garage  door  opener/device activates,

programming is complete.

NOTE:

If the garage door opener/device does not activate, push the

button  a  third  time  (for  two  seconds)  to  complete  the

training.

To  program  the  remaining  two  HomeLink  buttons,  re-

peat each step for each remaining button. DO NOT erase

the channels.

Reprogramming  A  Single  HomeLink  Button  (Rolling

Code)
To reprogram  a channel  that  has  been  previously  trained,

follow these steps:
1. Cycle the ignition to the ON/RUN position.
2. Push  and  hold  the  desired  HomeLink  button  until  the

indicator  light  begins  to  flash  after  20  seconds.  Do  not

release the button.

3. Without  releasing  the  button  proceed  with  “Program-

ming  A  Rolling Code” step  2 and follow  all  remaining

steps."

Programming A Non-Rolling Code

For  programming  Garage  Door  Openers  manufactured

before 1995.
1. Cycle the ignition to the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program

while keeping the HomeLink indicator light in view.

3. Press  and  hold  the  HomeLink  button  you  want  to

program while you press and hold the hand-held trans-

mitter button.

4. Continue to hold both buttons and observe the indicator

light. The HomeLink indicator will flash slowly and then

rapidly after HomeLink has received the frequency signal

from  the  hand-held  transmitter.  Release  both  buttons

after the indicator light changes from slow to rapid.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

108 GETTING TO KNOW YOUR VEHICLE

5. Press and hold the programmed HomeLink button and

observe the indicator light.
•If the indicator light stays on constantly, programming

is  complete  and  the  garage  door/device  should  acti-

vate when the HomeLink button is pressed.

• To  program  the  two  remaining  HomeLink  buttons,

repeat each step for each remaining button. DO NOT

erase the channels.

Reprogramming A Single HomeLink Button (Non-Rolling

Code)
To reprogram  a channel  that  has  been  previously  trained,

follow these steps:
1. Cycle the ignition to the ON/RUN position.
2. Press  and  hold  the  desired  HomeLink  button  until  the

indicator  light  begins  to  flash  after  20  seconds.  Do  not

release the button.

3. Without  releasing  the  button,  proceed  with  “Program-

ming  A  Non-Rolling  Code”  step  2  and  follow  all

remaining steps.

Canadian/Gate Operator Programming

For programming transmitters in Canada/United States that

require  the  transmitter  signals  to  “time-out”  after  several

seconds of transmission.
Canadian radio frequency laws require transmitter signals to

time-out  (or  quit)  after  several  seconds  of  transmission  –

which may not be long enough for HomeLink to pick up the

signal during programming. Similar to this Canadian law,

some  U.S.  gate  operators  are  designed  to  time-out  in  the

same manner.
It may be helpful to unplug the device during the cycling

process to prevent possible overheating of the garage door or

gate motor.
1. Cycle the ignition to the ON/RUN position.
2. Place the hand-held transmitter 1 to 3 inches (3 to 8 cm)

away from the HomeLink button you wish to program

while keeping the HomeLink indicator light in view.

3. Continue to press and hold the HomeLink button, while

you  press  and  release  (“cycle”)  your  hand-held  trans-

mitter every  two  seconds  until HomeLink  has  success-

fully  accepted  the frequency  signal.  The  indicator  light

will flash slowly and then rapidly when fully trained.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
