RAM 1500 (2019 year). Instruction - part 40





Suspension — If Equipped

After pressing the “Suspension” button on the touchscreen,

the following settings will be available:

Setting Name

Selectable Options

Sound Horn With Lower

On

Off

NOTE:
When the “Sound Horn With Lower” feature is selected, a short horn sound will occur when the key fob remote

lower button is pushed.

Flash Lights With Lower

On

Off

NOTE:
When the “Flash Lights With Lower” feature is selected, the front and rear turn signals will flash when the key fob

remote lower button is pressed twice. This feature may be selected with or without the Sound Horn on Lower feature

selected.

Display Suspension Mes-

sages

All

Warning Only

Aero Mode

On

Off

NOTE:
When the “Automatic Aero Mode” feature is selected, the Ride Height will automatically be adjusted depending on

the vehicle speed.

632

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Setting Name

Selectable Options

Tire Jack Mode

On

Off

NOTE:
When the “Tire Jack Mode” feature is selected, the air suspension system is disabled to assist with changing a spare

tire.

Transport Mode

On

Off

NOTE:
When the “Transport Mode” feature is selected, the air suspension system lowers and then disables to assist with flat

bed towing.

Wheel Alignment Mode

On

Off

NOTE:
Before performing a wheel alignment, the “Wheel Alignment Mode” must be enabled. Refer to an authorized dealer

for further information.

Four Corner Air Suspen-

sion Modes — If

Equipped

Tire Jack Mode

Transport Mode

Wheel Alignment Mode

NOTE:
There are four air suspension modes designed to protect the system in unique situations. Tire Jack Mode is selected to

assist in changing a spare tire. Transport Mode is selected to assist when the vehicle is being flat bed towed. Wheel

Alignment Mode is selected before performing a wheel alignment, refer to an authorized dealer for information.

10

MULTIMEDIA

633

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Trailer Brake

After pressing the “Trailer Brake” button on the touch-

screen, the following settings will be available:

Setting Name

Selectable Options

Trailer Select

Trailer 1

Trailer 2

Trailer 3

Trailer 4

NOTE:

Once a Trailer is selected, press the “Use This Trailer” on the touchscreen to set this trailer as the one in cur-

rent use. In each Trailer setting, the following settings appear:

Braking

Light Electric

Heavy Electric

Light Electric over

Hydraulic

Heavy Electric over

Hydraulic

Trailer Name

List of Trailer Names Available

NOTE:
You can select and personalize your trailer name depending on the type of trailer you are hauling. Select the trailer

name from the following list: trailer, boat, car, cargo, dump, equipment, flatbed, gooseneck, horse, livestock, motor-

cycle, snowmobile, travel, utility, and fifth wheel.

634

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Audio

After pressing the “Audio” button on the touchscreen, the

following settings will be available:

Setting Name

Selectable Options

Balance/Fade

Front

Right

Back

Left

NOTE:
The “Balance/Fade” feature allows you to adjust the Balance and Fade settings. Press and drag the speaker icon or

use the arrows to adjust, tap the “C” icon to readjust to the center.

Equalizer

+

NOTE:
When in the “Equalizer” display you may adjust the Bass, Mid and Treble settings.

Speed Adjusted Vol-

ume

Off

1

2

3

NOTE:
The “Speed Adjusted Volume” feature increases or decreases volume relative to vehicle speed.

Surround Sound —

If Equipped

On

Off

NOTE:
The “Surround Sound” feature provides simulated surround sound mode.

10

MULTIMEDIA

635

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Setting Name

Selectable Options

AUX Volume Offset

— If Equipped

On

Off

NOTE:
The “AUX Volume Offset” feature provides the ability to tune the audio level for portable devices connected through

the AUX input.

Auto Play

On

Off

Bluetooth

After pressing the “Bluetooth” button on the touchscreen,

the following settings will be available:

Setting Name

Selectable Options

Phone Pop-Ups Displayed in Clus-

ter

On

Off

Do Not Disturb

List of Settings

NOTE:
Press “Do Not Disturb” to access the available settings. The following settings are: Auto Reply (both, text, call), Auto

Reply Message (custom, default) and Custom Auto Reply Message (create message).

636

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Setting Name

Selectable Options

Paired Phones and Audio Devices

List Of Paired Phones and Audio Sources

NOTE:
The “Paired Phones and Audio Sources” feature shows which phones and audio sources are paired to the Phone and

Audio Sources Settings system. For further information, refer to the Uconnect Owner’s Instruction Supplement.

Smartphone Device Mirroring

On

Off

Enable CarPlay Projections

On

Off

Automatically Display Pop-Ups in

Cluster

On

Off

Set as Default Device

On

Off

Projection Manager

Smartphone Device Mirroring On

Smartphone Device Mirroring Off

SiriusXM Setup — If Equipped

After pressing the “SiriusXM Setup” button on the touch-

screen, the following settings will be available:

Setting Name

Selectable Options

Sirius All Access

Choose a Subscription Package

Add Listener

Add up to five profiles

NOTE:
The “Add Listener” feature allows you to add up to five different profiles for customizing personal music or satellite

radio choices.

10

MULTIMEDIA

637

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Setting Name

Selectable Options

Listener Items

Listening History

List Of Options

Tune Start

On

Off

NOTE:
The “Tune Start” feature begins playing the current song from the beginning when you tune to a music channel using

one of the twelve presets, so you can enjoy the complete song. This feature occurs the first time the preset is selected

during that current song. Tune Start works in the background, so you will not even realize it’s on, except that you

will miss the experience of joining your favorite song with only a few seconds left to play.

Channel Skip

List of Channels

NOTE:
SiriusXM can be programmed to designate a group of channels that are the most desirable to listen to or to exclude

undesirable channels while scanning. This feature allows you to select the channels you would like to skip.

Subscription Info

Sirius ID

NOTE:
New vehicle purchasers or lessees will receive a free limited time subscription to SiriusXM Satellite Radio with your

radio. Following the expiration of the free services, it will be necessary to access the information on the Subscription

Information screen to re-subscribe.
1. Press the “Subscription Info” button on the touchscreen to access the Subscription Information screen.
2. Write down the Sirius ID numbers for your receiver. To reactivate your service, either call the number listed on the

screen or visit the provider online.

SiriusXM Travel Link is a separate subscription.

638

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Reset

After pressing the “Reset” button on the touchscreen, the

following settings will be available:

Setting Name

Selectable Options

Reset App Drawer

Yes

Cancel

Restore Settings

Yes

Cancel

NOTE:
When the “Restore Settings” feature is selected it resets all settings to their default settings.

Clear Personal Data

Yes

Cancel

NOTE:
When the “Clear Personal Data” feature is selected it removes all personal data including Bluetooth devices and pre-

sets.

Setting Name

Selectable Options

Clear Sirius XM Data

Yes

Cancel

10

MULTIMEDIA

639

-------------------------------------------------------------------------------------------------------------------------------------------------------------

System Information

After pressing the “System Information” button on the

touchscreen, the following settings will be available:

Setting Name

Selectable Options

System Information

System Software Information Screen

NOTE:
When the “System Information” feature is selected, a “System Software Information” screen will appear, displaying

the system software version.

640

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED

The remote sound system controls are located on the back

surface of the steering wheel. Reach behind the wheel to

access the switches.

The right hand control is a rocker type switch with a

push-button in the center. Pushing the top of the switch

will increase the volume, and pushing the bottom of the

switch will decrease the volume.

Pushing the center button will make the radio switch

between the various modes available (AM/FM/SXM or

Media etc.).
The left hand control is a rocker type switch with a

push-button in the center. The function of the left hand

control is different depending on which mode you are in.
The following describes the left hand control operation in

each mode.

Radio Operation

Pushing the top of the switch will SEEK up for the next

listenable station and pushing the bottom of the switch will

SEEK down for the next listenable station.
The button located in the center of the left-hand control

will tune to the next preset station that you have pro-

grammed in the radio preset button.

Media Mode

Pushing the top of the switch once will go to the next track

on the selected media (AUX/USB/Bluetooth/CD). Push-

ing the bottom of the switch once goes to the beginning of

the current track, or to the beginning of the previous track

if it is within eight seconds after the current track begins to

play.

Steering Wheel Audio Controls (Rearview Of Steering

Wheel)

10

MULTIMEDIA

641

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IPOD/USB/MP3 CONTROL — IF EQUIPPED

Located on the center stack, just below the instrument

panel, is the main media hub. There are four total USB

Ports : Two Mini-USBs (Type C) and two Standard USBs

(Type A). There is also an AUX Port located in the middle

of the USB Ports. All four of the USB Ports include a USB

Trident and a numerical value one through three, which

indicates that the vehicle can support three fully-

functioning USB Ports at a time. Each USB Port will

support media and charging simultaneously.

NOTE:
• The Type C USB port is the primary media port for the

radio. Two devices can be plugged in at the same time

and both ports provide charging capabilities, but only

one port can transfer data to the head unit at a time.

• Both ports share a single data connection. However, the

user cannot switch between Type A or Type C.

For example, if a device is plugged into the Type A USB

port and another device is plugged into the Type C port,

connection to the Type A port will be lost. Alternatively, if

a device is plugged into the Type C port and another device

is plugged into the Type A port, the Type C device

maintains primary connection.

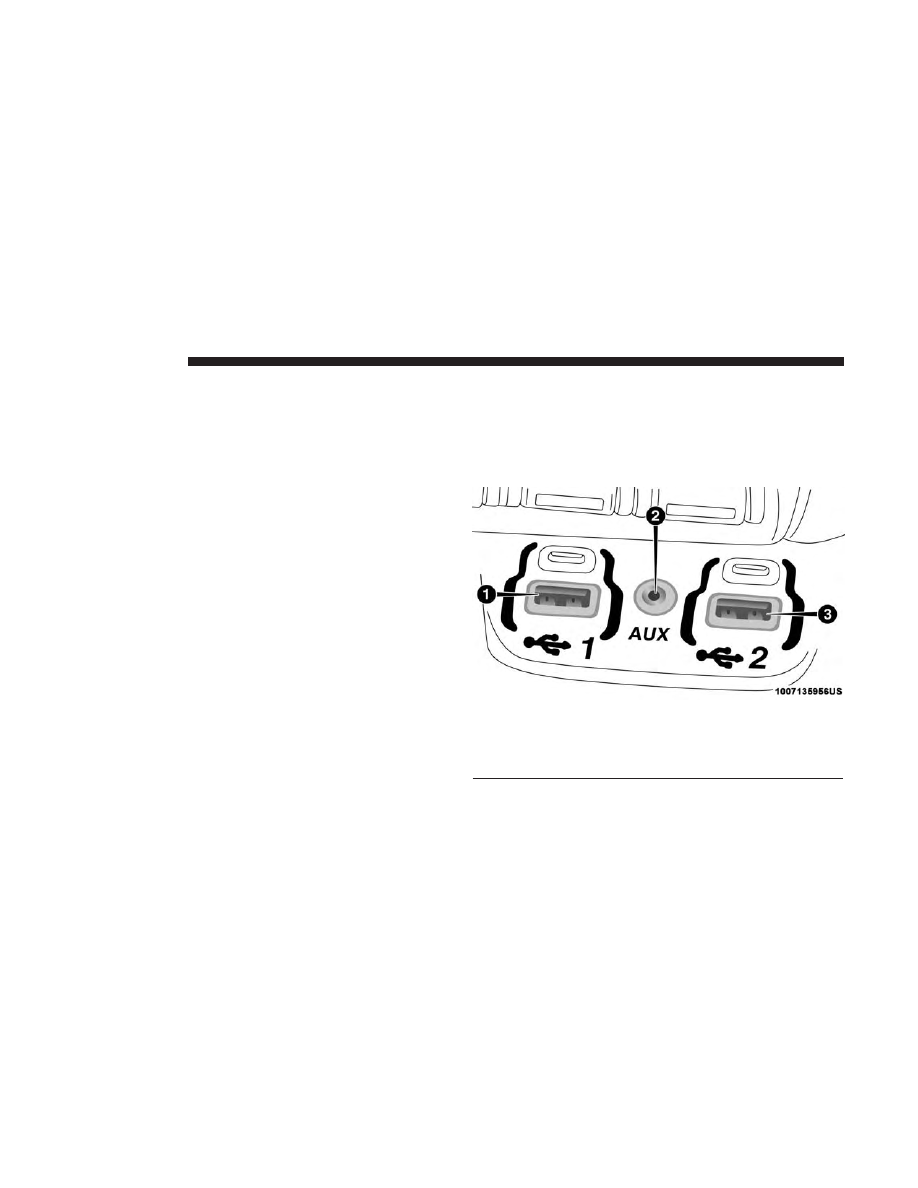

Center Stack USB/AUX Media Hub

1 — Standard USB Type A Port #1
2 — AUX Port
3 — Standard USB Type A Port #2

642

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

A third and fourth USB Ports are located behind the center

console, above the Power Inverter. One is a charge only

port, and can only charge USB devices. The other USB Port

allows you to play music from iPod/MP3 players or USB

devices through your vehicle’s sound system.

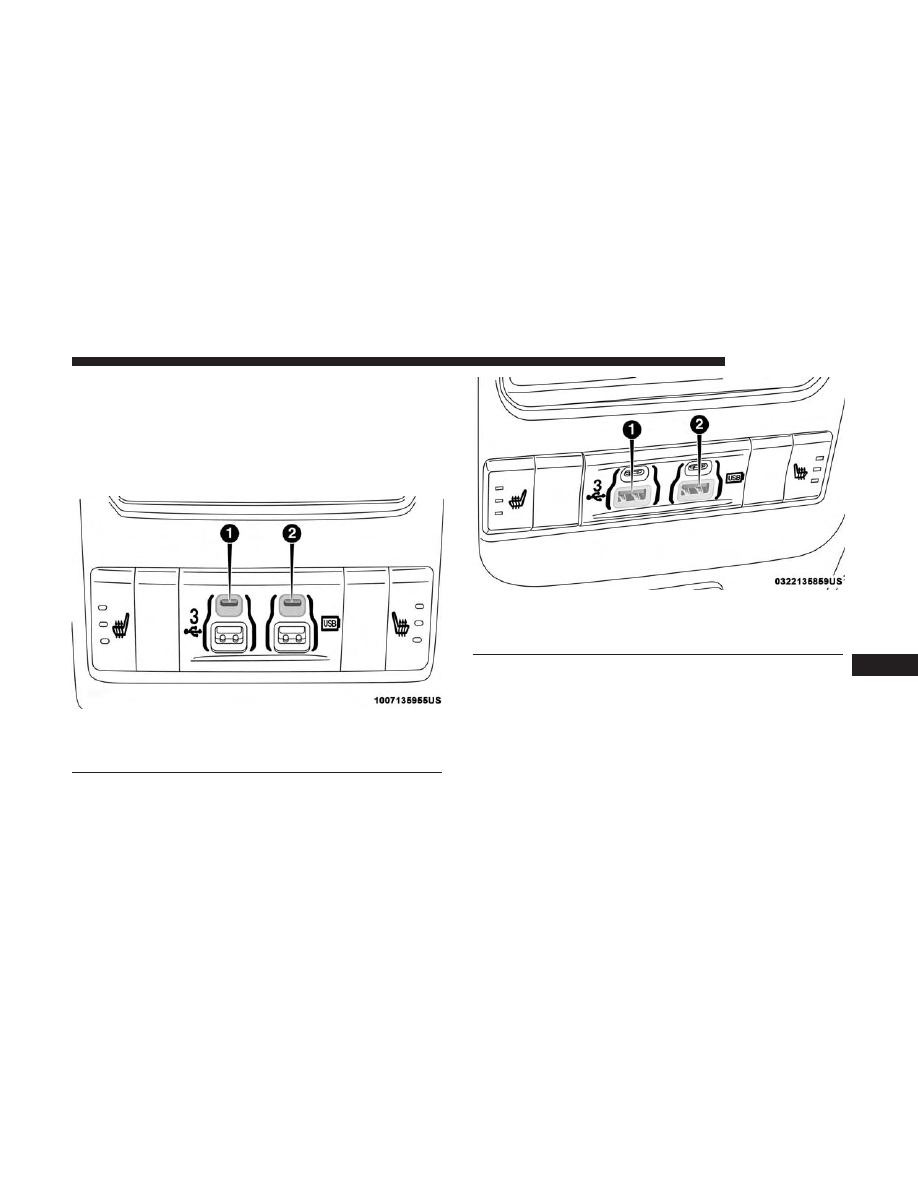

Rear Center Console Mini-USB (Type C) USB Ports

1 — Mini-USB Type C Port #1
2 — Mini-USB Type C Port #2

Rear Center Console Standard (Type A) USB Ports

1 — Standard USB Type A Port #1
2 — Standard USB Type A Port #2

10

MULTIMEDIA

643

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Different scenarios are shown below when a non-phone

device is plugged into the smaller and larger USB Ports,

and when a phone device is plugged into the smaller and

larger USB Ports:

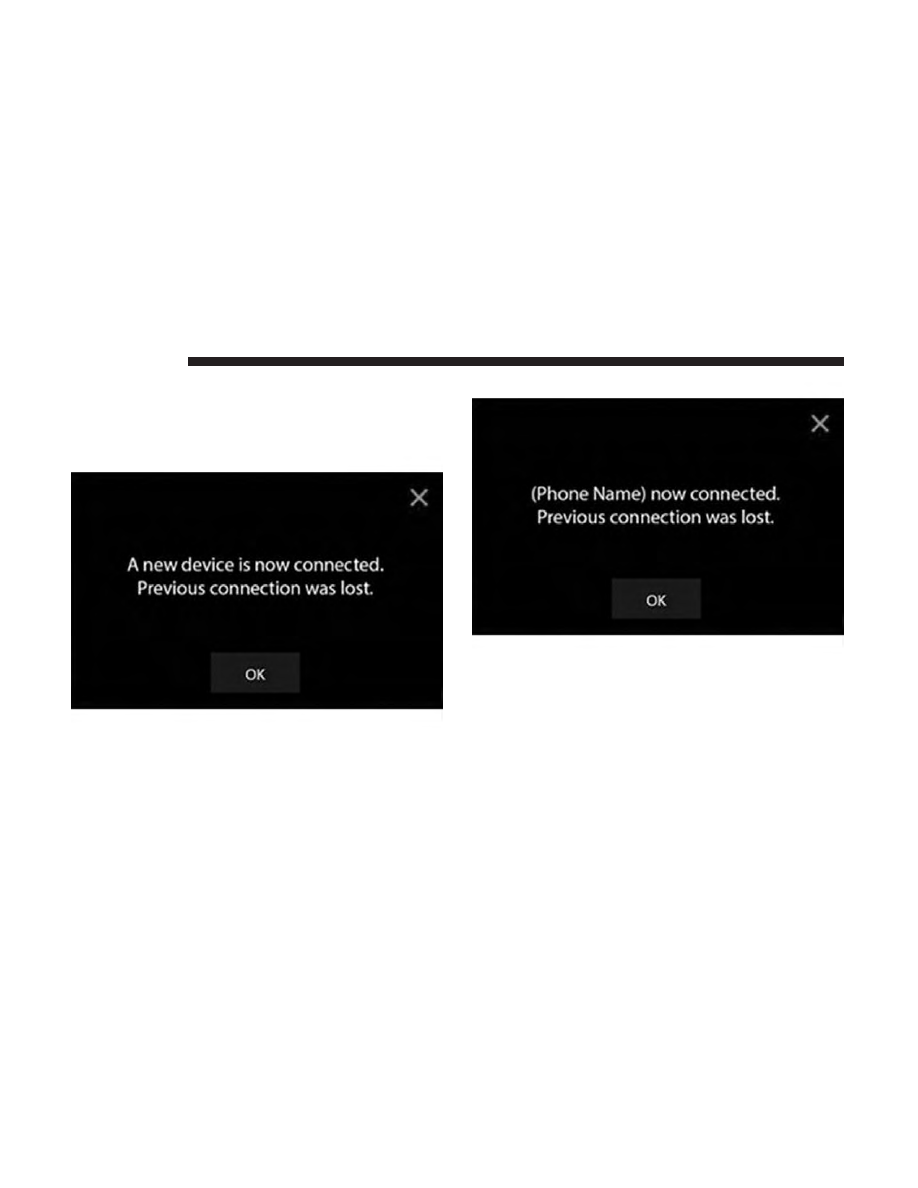

Device Plugged In Message Screen

Phone Plugged In Message Screen

644

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Plugging in a phone or another USB device may cause the

connection to a previous device to be lost.

If equipped, your vehicle may also contain a USB Port

located on the top tray of the vehicles center console.

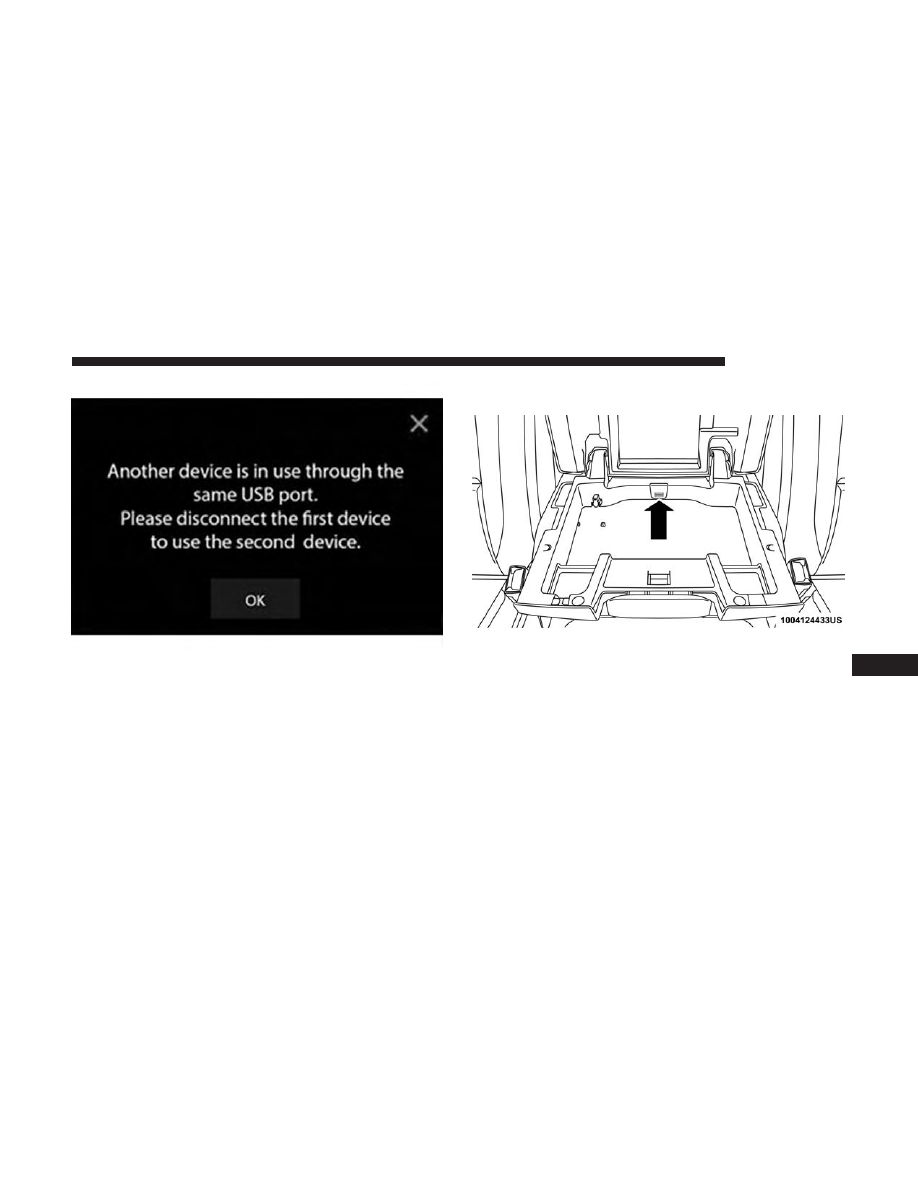

Phone Or USB Plugged In Message Screen

Center Console USB Port

10

MULTIMEDIA

645

-------------------------------------------------------------------------------------------------------------------------------------------------------------

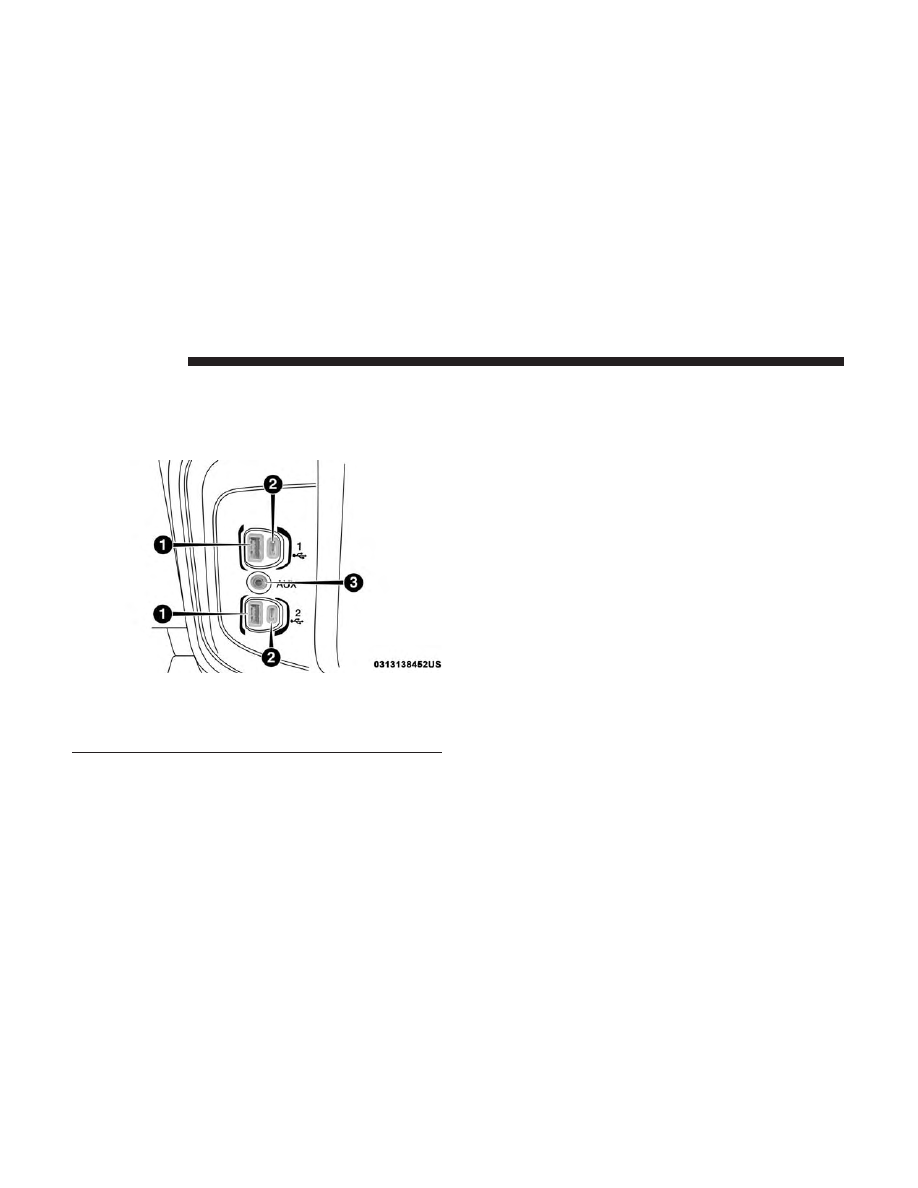

If equipped, two Mini-USB Ports (Type C), two Standard

USB Ports (Type A), and one AUX Port may be located to

the left of the center stack, just below the climate controls.

Some USB ports support media and charging. You can use

features, such as Apple CarPlay, Android Auto, Pandora

and others while charging your phone.

NOTE:

Plugging in a phone or another USB device may

cause the connection to a previous device to be lost.
For further information, refer to the Uconnect Owner’s

Instruction Supplement or visit UconnectPhone.com.

RADIO OPERATION AND MOBILE PHONES

Under certain conditions, the mobile phone being on in

your vehicle can cause erratic or noisy performance from

your radio. This condition may be lessened or eliminated

by relocating the mobile phone antenna. This condition is

not harmful to the radio. If your radio performance does

not satisfactorily “clear” by the repositioning of the an-

tenna, it is recommended that the radio volume be turned

down or off during mobile phone operation when not

using Uconnect (if equipped).

Regulatory And Safety Information

USA/CANADA

Exposure to Radio Frequency Radiation
The radiated output power of the internal wireless radio is

far below the FCC and IC radio frequency exposure limits.

Nevertheless, the wireless radio will be used in such a

manner that the radio is 20 cm or further from the human

body.

Center Console USB/AUX Media Hub

1 — Standard USB Type A Ports
2 — Mini-USB Type C Ports
3 — AUX Port

646

MULTIMEDIA

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The internal wireless radio operates within guidelines found

in radio frequency safety standards and recommendations,

which reflect the consensus of the scientific community.
The radio manufacturer believes the internal wireless radio

is safe for use by consumers. The level of energy emitted is

far less than the electromagnetic energy emitted by wire-

less devices such as mobile phones. However, the use of

wireless radios may be restricted in some situations or

environments, such as aboard airplanes. If you are unsure

of restrictions, you are encouraged to ask for authorization

before turning on the wireless radio.
The following regulatory statement applies to all Radio

Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and

with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-

tion.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the

user’s authority to operate the equipment.

NOTE:
• This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interfer-

ence in a residential installation. This equipment gener-

ates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instruc-

tions, may cause harmful interference to radio commu-

nications. However, there is no guarantee that interfer-

ence will not occur in a particular installation.

• If this equipment does cause harmful interference to

radio or television reception, which can be determined

by turning the equipment off and on, the user is encour-

aged to try to correct the interference by one or more of

the following measures:

1. Increase the separation between the equipment and

receiver.

2. Consult an authorized dealer or an experienced radio

technician for help.

10

MULTIMEDIA

647

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     38      39      40      41     ..
