POWER INVERTER — IF EQUIPPED

A 110 Volt, 150 Watt inverter outlet converts DC current
to AC current, and is located on the left rear trim panel
immediately behind the second row left passenger seat.

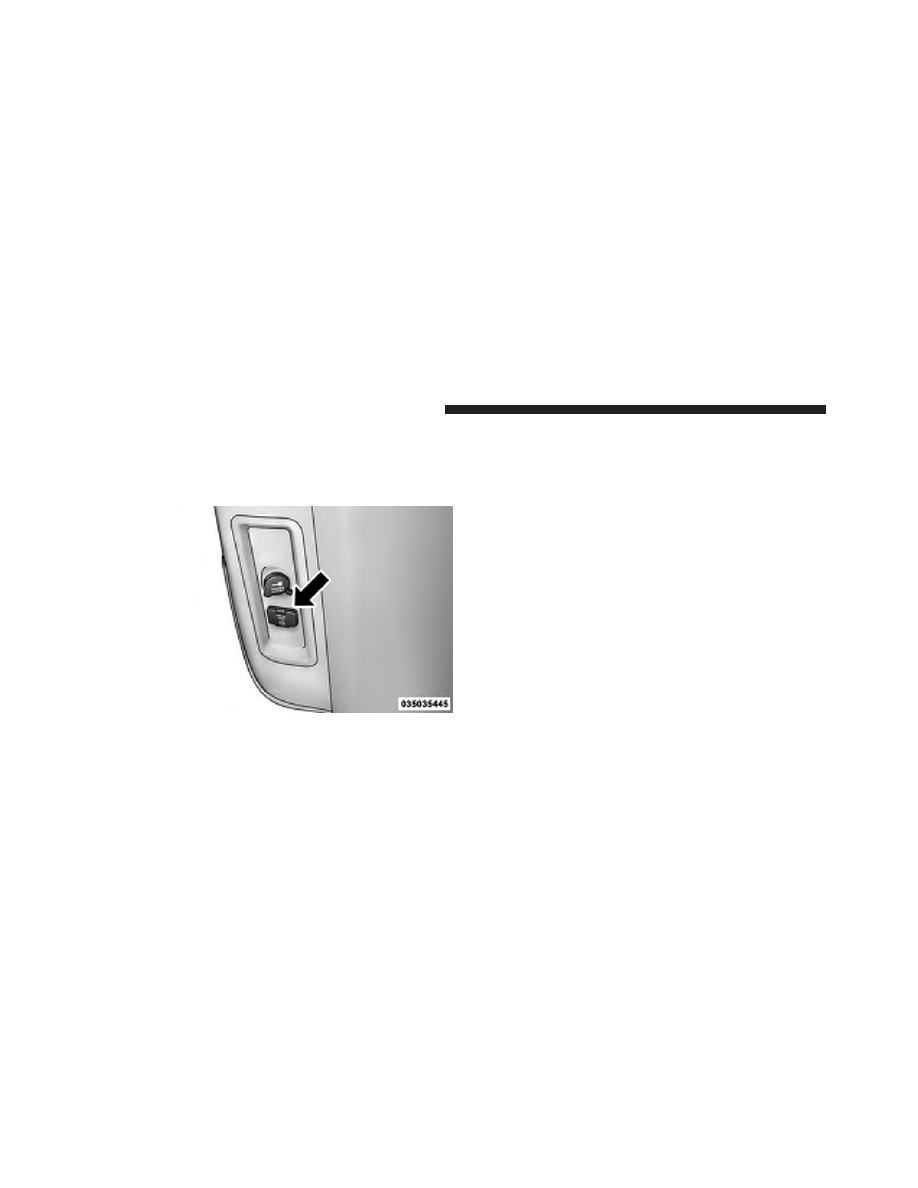

The power inverter switch is located on the instrument
panel below the climate controls.

To turn on the power outlet, push the switch once. Push
the switch a second time to turn the power outlet off.

This outlet can power cellular phones, electronics and
other low power devices requiring power up to 150
Watts. Certain high-end video games, such as Playsta-
tion3 and XBox360 will exceed this power limit, as will
most power tools.

The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet,
the inverter should automatically reset. If the power
rating exceeds approximately 170 Watts, the power in-
verter may have to be reset instructionly. To reset the
inverter instructionly push the power inverter button OFF
and ON. To avoid overloading the circuit, check the
power ratings on electrical devices prior to using the
inverter.

Power Inverter Outlet

284

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING!

To avoid serious injury or death:
• Do not insert any objects into the receptacles.

• Do not touch with wet hands.

• Close the lid when not in use.

• If this outlet is mishandled, it may cause an electric

shock and failure.

CUPHOLDERS

There are cupholders located throughout the interior. All
liners are removable for cleaning. Pull the flexible liner
from the cupholder drawer or tray starting at one edge
for easy removal. Refer to “Cleaning The Instrument
Panel Cupholders” in “Maintaining Your Vehicle” for
further information.

Instrument Panel Cupholders

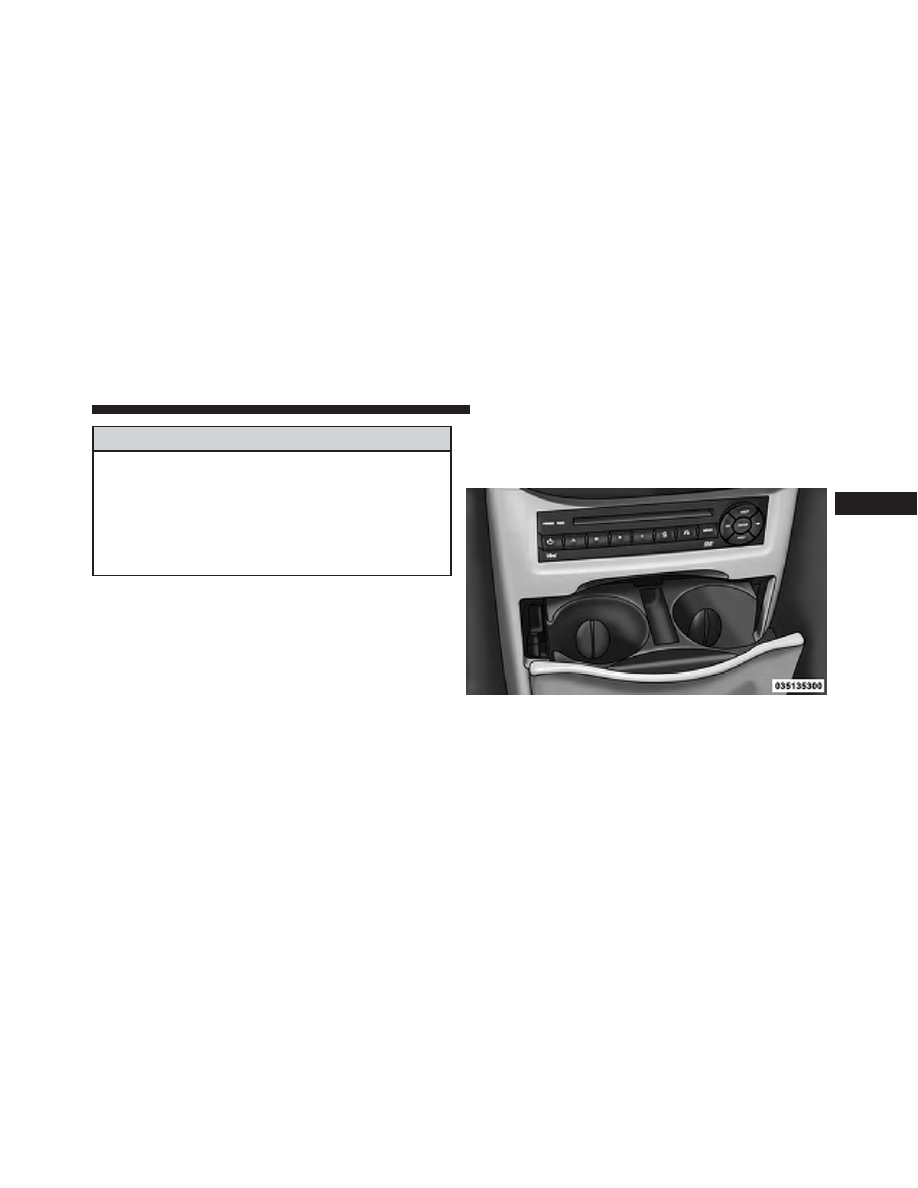

The instrument panel cupholders are located in a pull-out
drawer just above the lower storage bin.

Pull the drawer out firmly until it stops, and place the
container to be held in either one of the cupholder wells.
The cupholders are designed to accommodate a wide

Front Cupholders

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

285

-------------------------------------------------------------------------------------------------------------------------------------------------------------

variety of container types and sizes. Push down on the
container to engage the cupholder retention features.

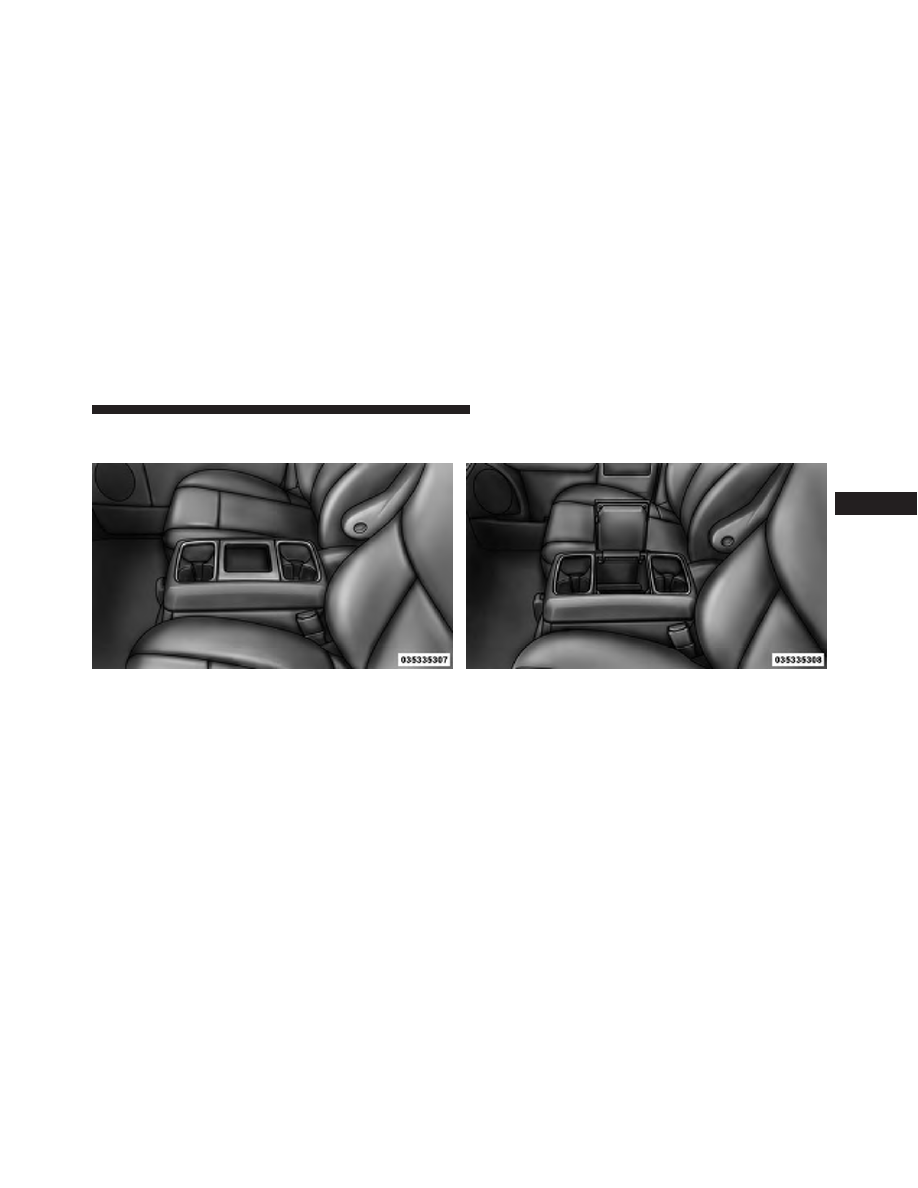

Super Console — If Equipped

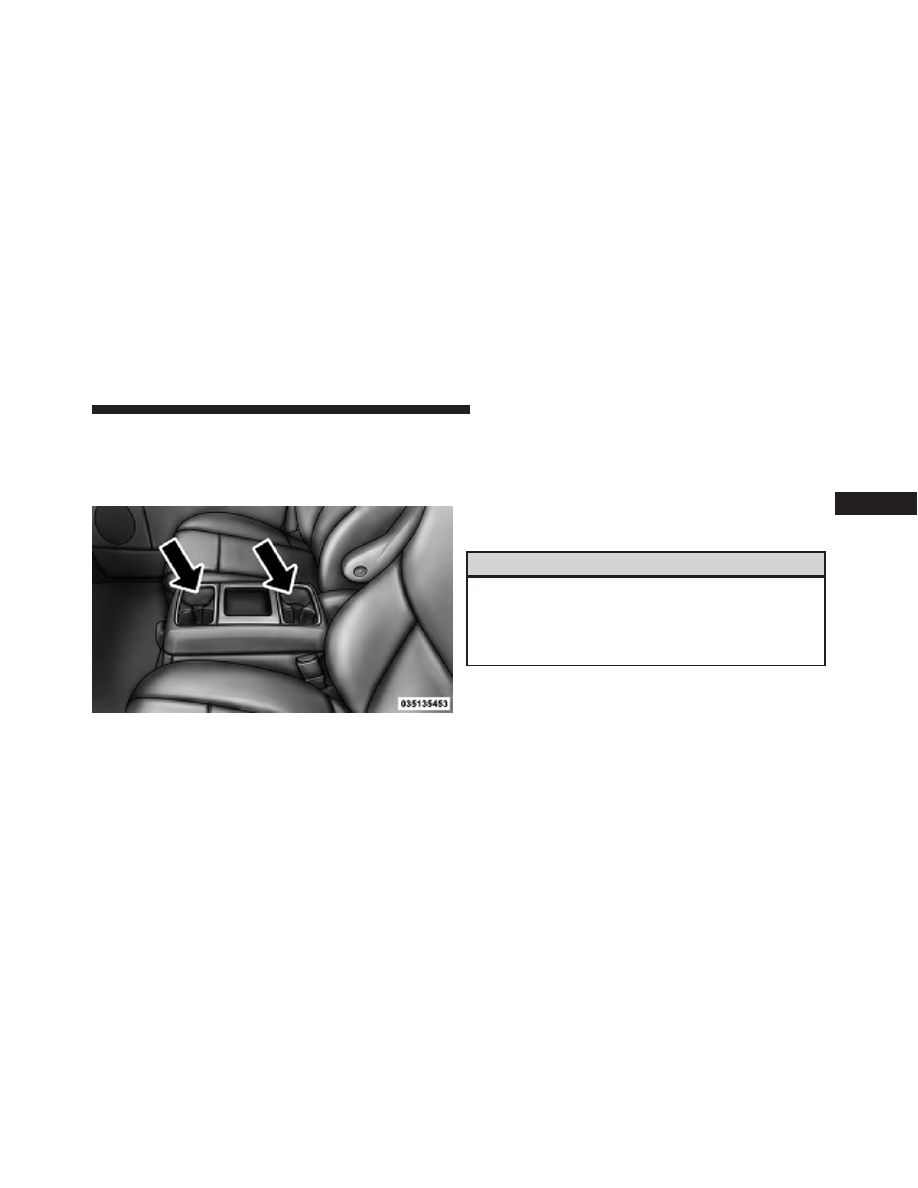

On models equipped with the Super Console, there are
two cupholders located in the center of the console.

For rear passengers two cupholders are located in the
pull-out drawer, located in the back of the Super Console.
Pull the drawer out to the first position to use the
cupholders.

Super Console Cupholders

Rear Cupholders

286

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

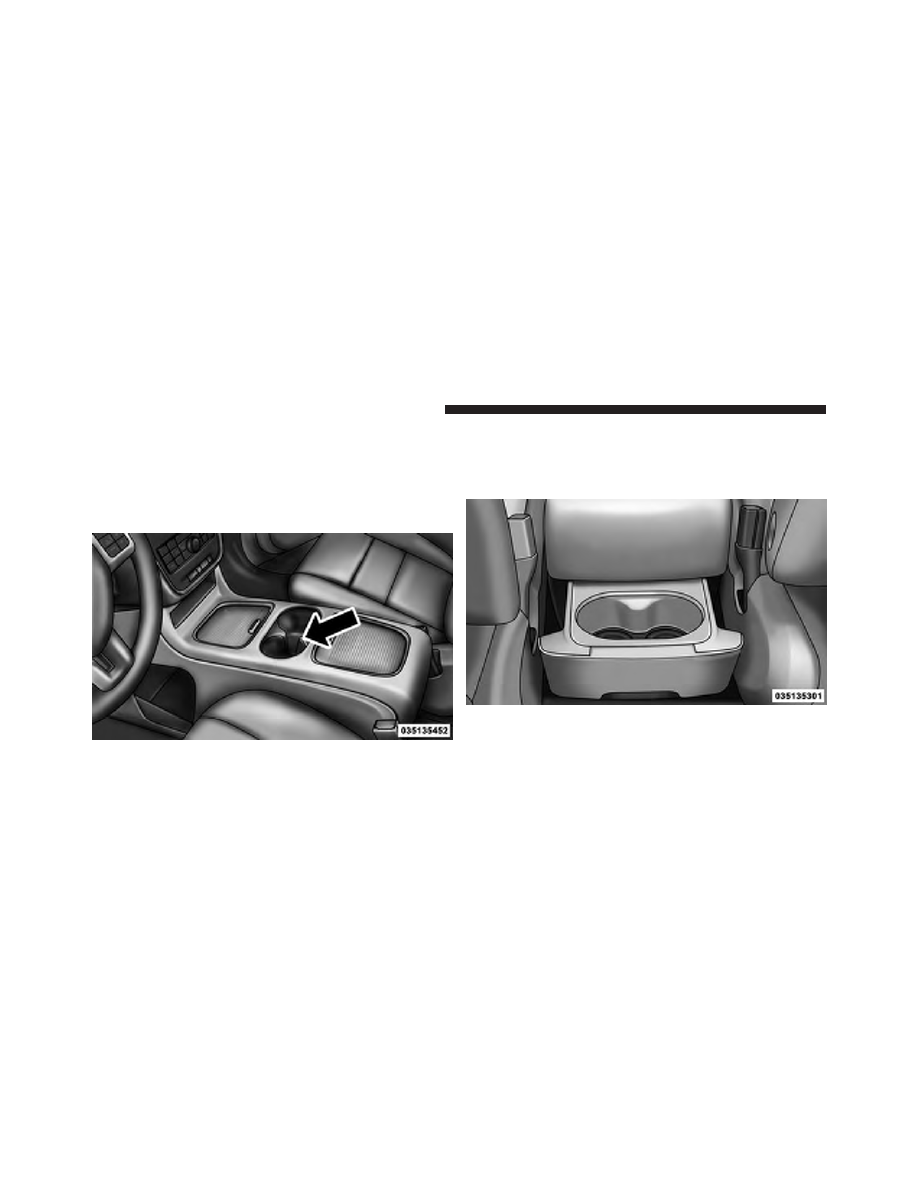

Premium Console Cupholders — If Equipped

On models equipped with premium center consoles,
there are four cupholders located on the top of the
console.

Interior Bottle Holders

There are four bottle holders located in the interior. One
bottle holder is molded into each front interior door trim
panels, and one bottle holder is molded into each side
sliding interior door trim panel. Each holder accommo-
dates up to a 20 oz (.6 L) plastic bottle.

WARNING!

If containers of hot liquid are placed in the bottle
holder, they can spill when the door is closed, burn-
ing the occupants. Be careful when closing the doors
to avoid injury.

Premium Console Cupholders

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

287

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Two outboard mesh pockets are on intermediate seating.
The mesh pockets are flexible enough to hold juice boxes,
toys, games or MP3 players, etc.

Smoker’s Package Kit — If Equipped

With the optional authorized dealer-installed Smoker’s
Package Kit, a removable ash receiver is inserted into one
of the two cupholders in the center front instrument
panel. To install the ash receiver, align the receiver so the
thumb grip on the lid is facing rearward. Push the ash
receiver into either of the cup wells to secure. Pull
upward on the ash receiver to remove for cleaning
and/or storage.

The left rear trim panel cupholder is designed to accom-
modate a second ash receiver, if desired.

Interior Bottle Holder

288

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STORAGE

Glove Compartments

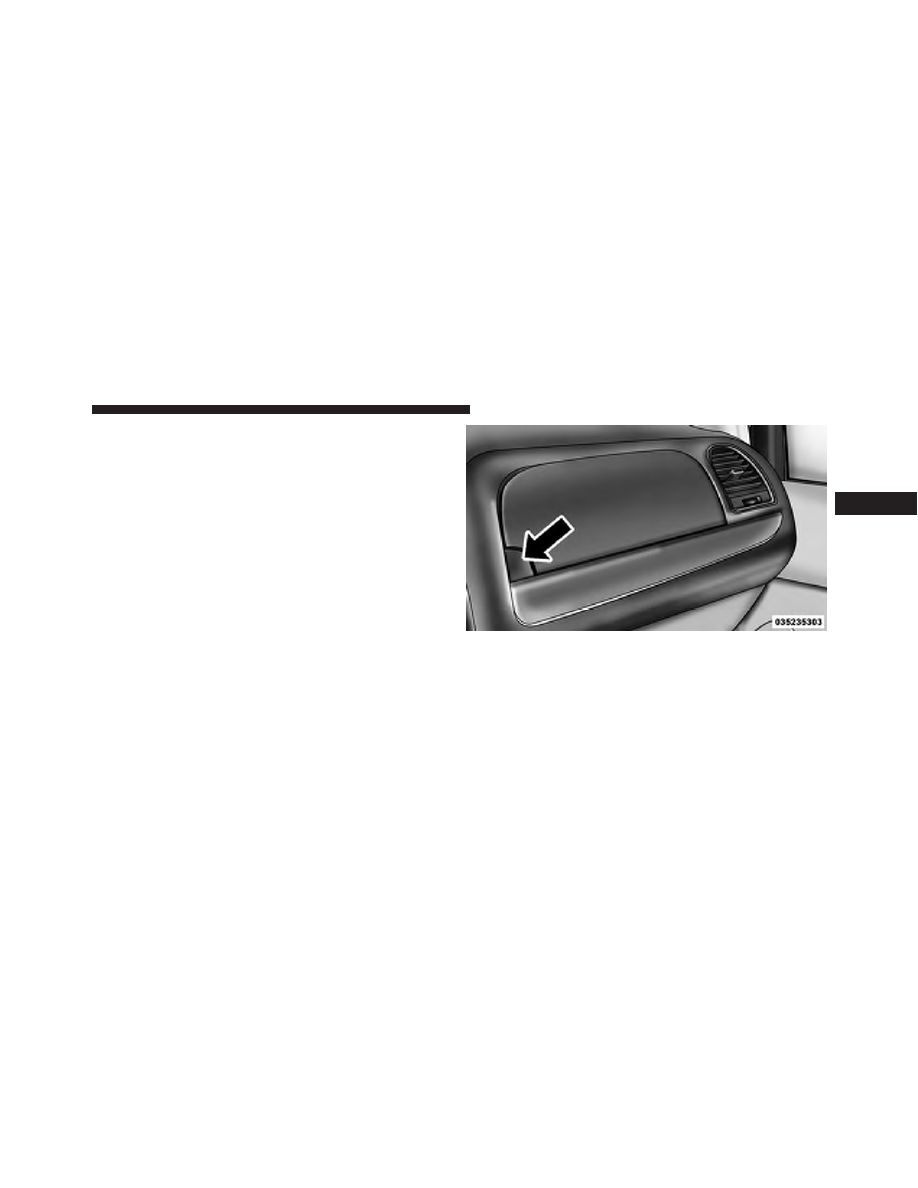

Upper and lower glove compartments are located on the
passenger side of the instrument panel.

Upper Glove Compartment

To open the upper compartment, push in on the button,
located on the left side of the upper door. The door will
automatically open.

To close the compartment door, push downward on the
door’s surface to latch the door closed.

Upper Compartment

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

289

-------------------------------------------------------------------------------------------------------------------------------------------------------------

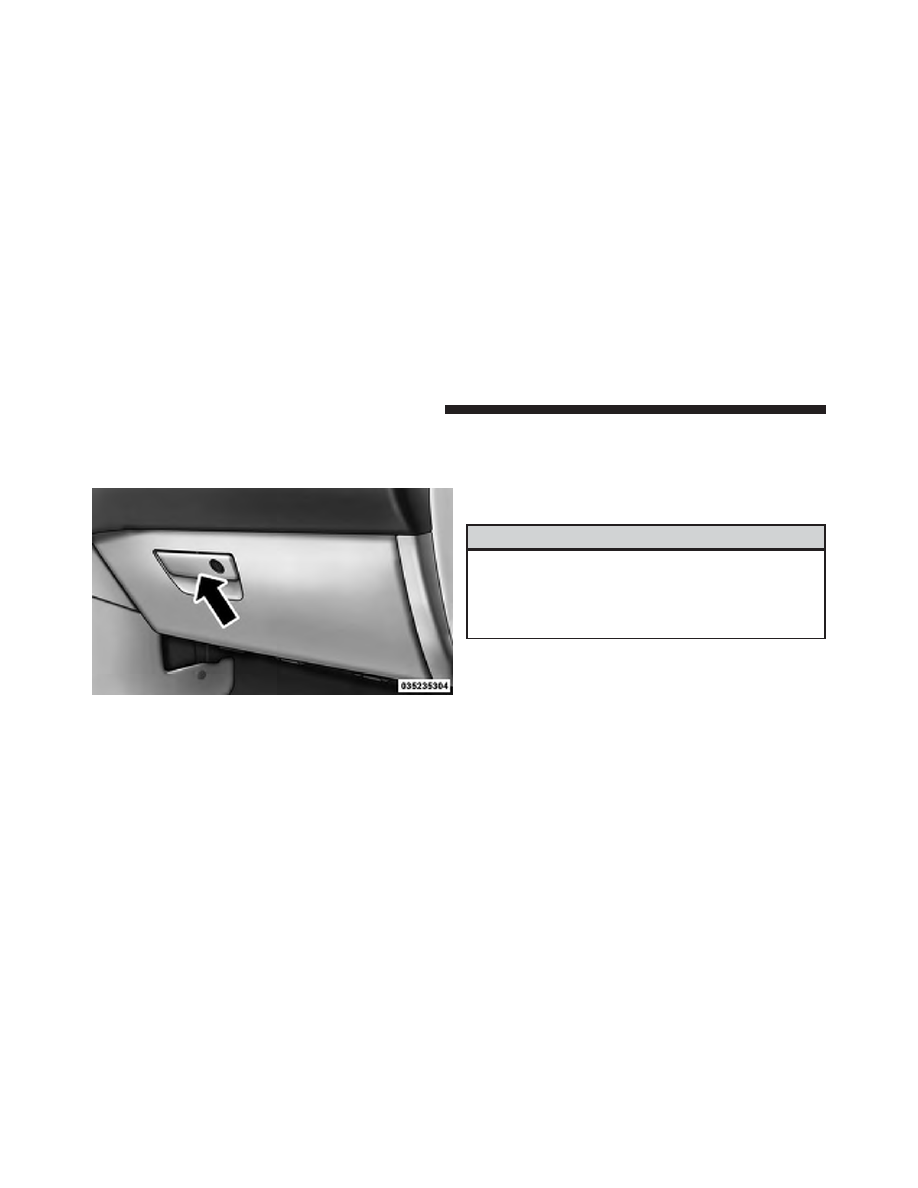

Lower Glove Compartment

To open the lower compartment pull out on the release
handle.

Door Trim Panel Storage

Front Door Storage

Both interior front door panels have multiple pockets for
storage.

WARNING!

If containers of hot liquid are placed in the bottle
holder, they can spill when the door is closed, burn-
ing the occupants. Be careful when closing the doors
to avoid injury.

Driver Seatback Storage — If Equipped

The driver’s seatback has a primary storage pocket on all
models and an optional secondary mesh pocket.

Lower Compartment

290

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Umbrella Holder

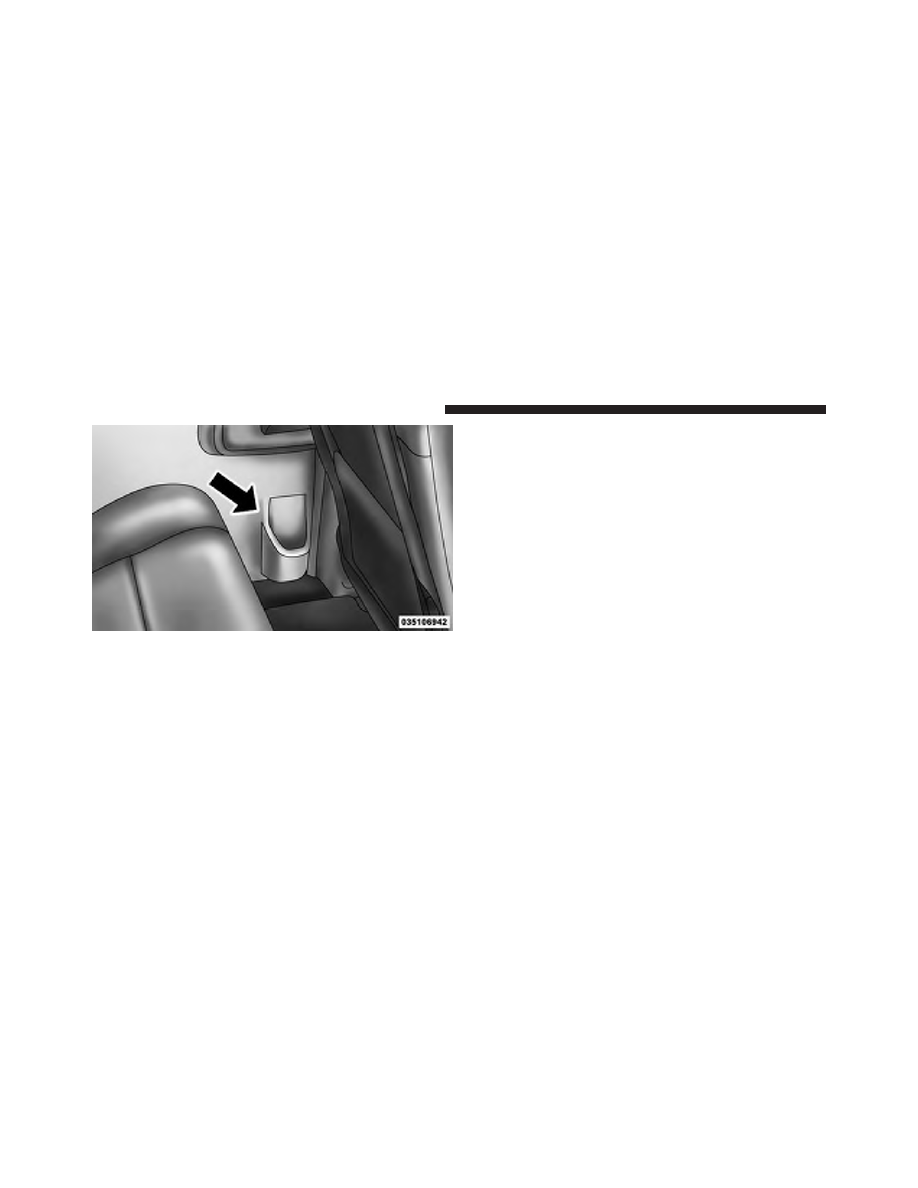

An umbrella holder has been conveniently molded into
the left front door entry scuff molding.

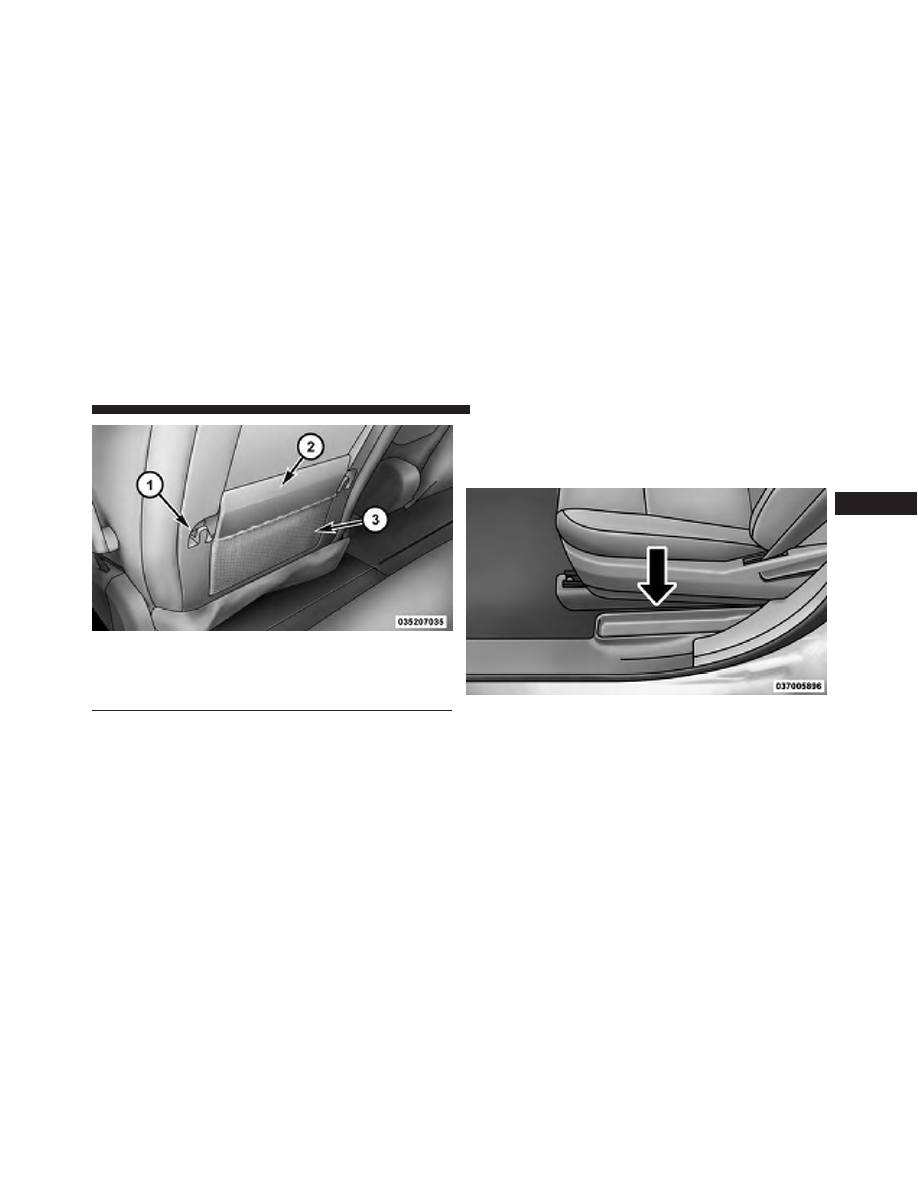

Driver’s Seatback Storage

1 — Bag Holder
2 — Standard Pocket
3 — Mesh Pocket

Umbrella Holder

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

291

-------------------------------------------------------------------------------------------------------------------------------------------------------------

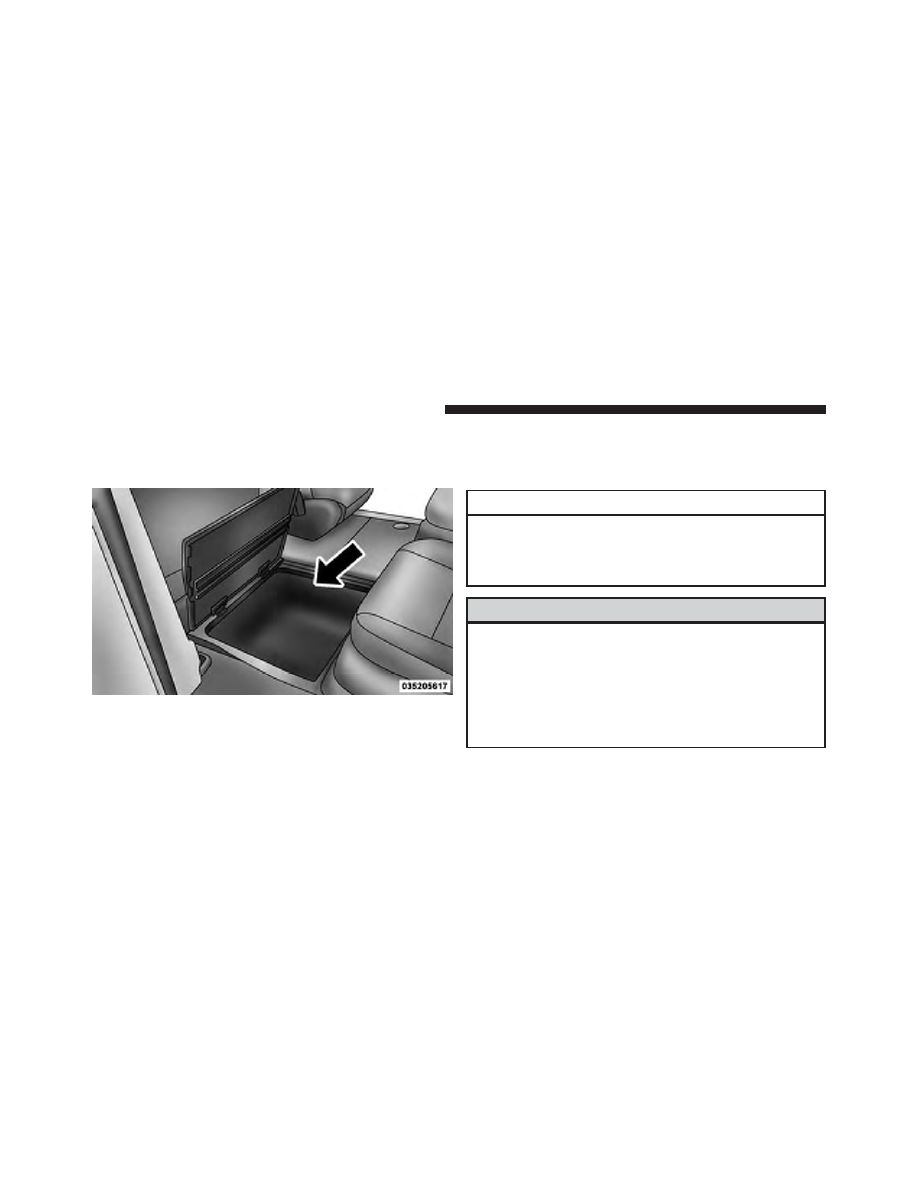

Second Row Floor Storage Bins

The area below the floor covers, located in front of the
second row seats, is available for storage.

Pull up on the storage bin latch to open the cover. Slide
the storage bin locking mechanism to the

⬙unlocked⬙

position to allow greater access to the storage bin.

CAUTION!

The storage bin cover must lay flat and be locked to
avoid damage from contact with the front seat tracks,
which have minimal clearance to the cover.

WARNING!

In a collision, serious injury could result if the seat
storage bin covers are not properly latched.
• Do not drive the vehicle with the storage bin covers

open.

• Keep the storage bin covers closed and latched

while the vehicle is in motion.

(Continued)

Storage Bin Cover Lock Release

292

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING! (Continued)

• Do not operate the storage bin covers while the

vehicle is in motion.

• Do not use a storage bin latch as a tie down.

Storage Bin Safety Warning

Carefully follow these warnings to help prevent personal
injury or damage to your vehicle:

WARNING!

• Always close the storage bin covers when your

vehicle is unattended.

• Do not allow children to have access to the second

row seat storage bins. Once in the storage bin,
young children may not be able to escape. If
trapped in the storage bin, children can die from
suffocation or heat stroke.

(Continued)

WARNING! (Continued)

• In a collision, serious injury could result if the seat

storage bin covers are not properly latched.

• Do not drive the vehicle with the storage bin covers

open. Keep the storage bin covers closed and
latched while the vehicle is in motion.

• Do not operate the storage bin covers while the

vehicle is in motion.

• Do not use a storage bin latch as a tie down.

CAUTION!

The storage bin cover must be flat and locked to
avoid damage from contact with the front seat tracks,
which have minimal clearance to the cover.

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

293

-------------------------------------------------------------------------------------------------------------------------------------------------------------

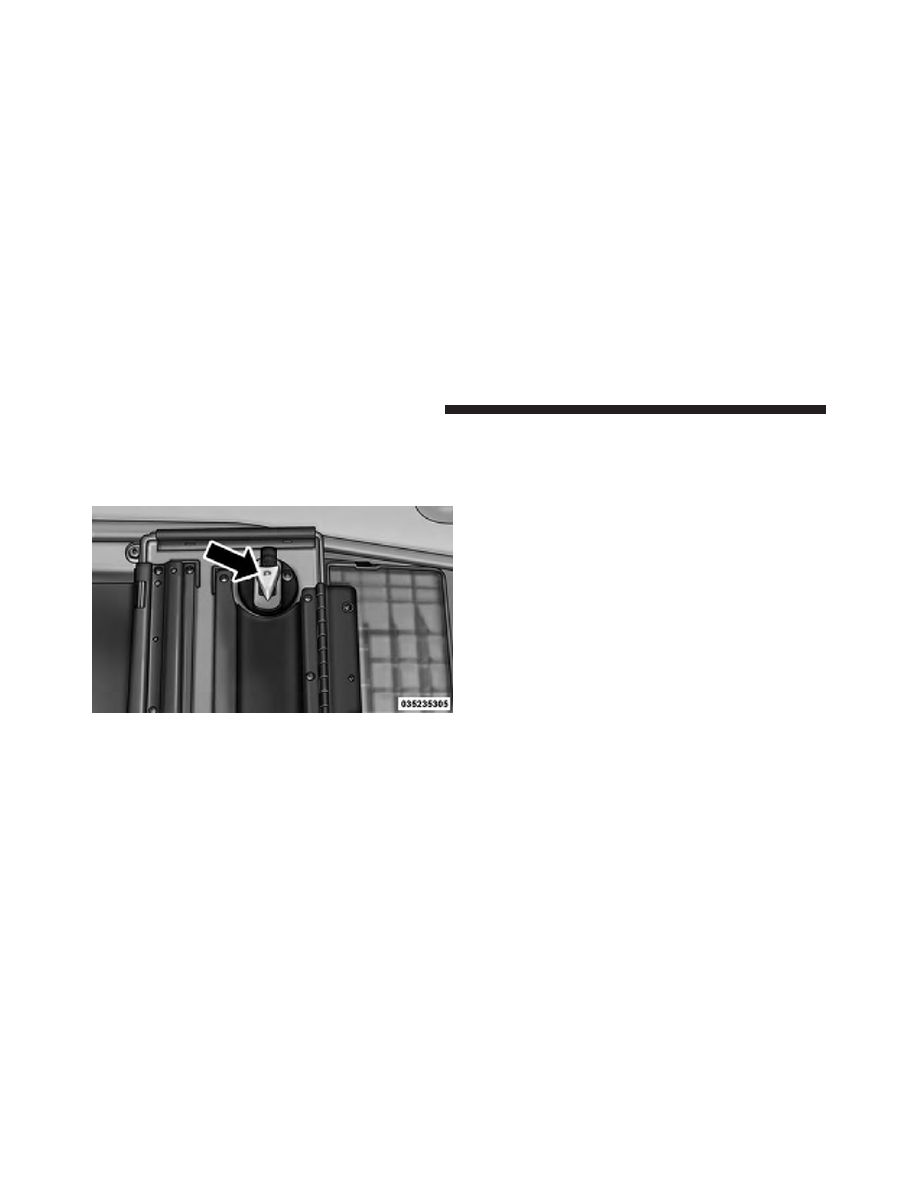

Seat Storage Bin Cover Emergency Release Lever

As a security measure, the Seat Storage Bin Cover has an
Emergency Release Lever built into the latching mecha-
nism.

NOTE:

In the event of an individual being locked inside

the storage bin, the storage bin cover can be opened from
inside of the bin by pushing on the glow-in-the-dark
lever attached to the storage bin cover latching mecha-
nism.

Center And Rear Overhead Console Storage — If
Equipped

The overhead storage system comes in several options.

Storage Bin Cover Emergency Release Lever

294

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Coat Hooks

Coat hooks are located along the headliner for the second
and third row seating positions. The coat hook load limit
is 10 lbs (4.5 kg). Exceeding the recommended load limit
can cause the coat hooks to break or disengage from the
vehicle.

Cargo Area Storage

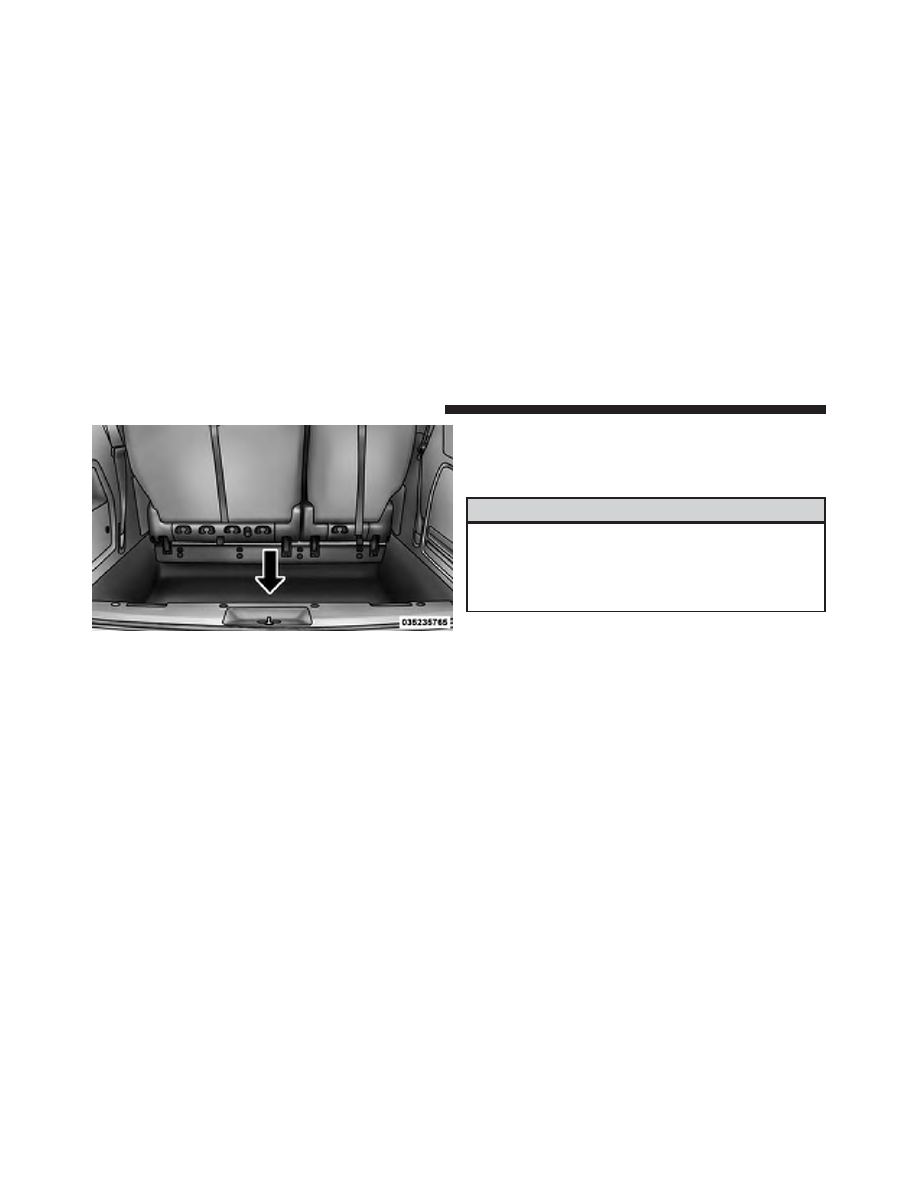

The liftgate sill plate has a raised line with the statement
“Load To This Line”. This line indicates how far rearward
cargo can be placed without interfering with liftgate
closing.

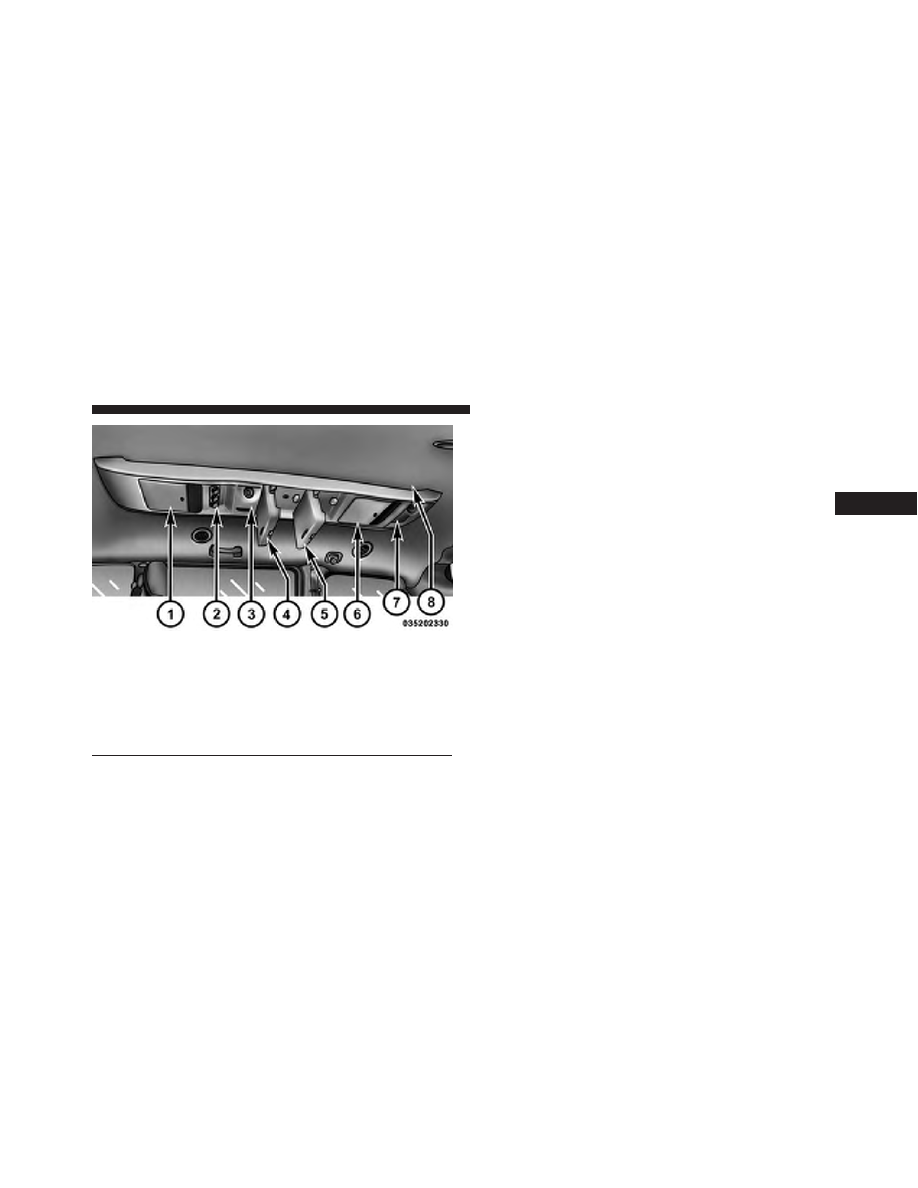

Overhead Console Features

1 — LCD Screen*

5 — Storage

2 — Rear HVAC

6 — LCD Screen*

3 — Courtesy Lights

7 — Courtesy Lights

4 — Storage

8 — Halo Lighting

* If equipped, otherwise stor-
age.

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

295

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

With all rear seats stowed or removed, 4 x 8 foot

sheets of building material will fit on the vehicle floor
with the liftgate closed. The front seats must be moved
slightly forward of the rearmost position.

CONSOLE FEATURES

There are three consoles available: Basic, Premium and
Super.

WARNING!

Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.

Basic Console

Basic Console features consist of the following:

• The basic console profile allows vehicle occupants to

easily pass through the first row to the second.

• Four cupholders accept up to extra large size beverage

cups or 20 oz (.6 L) plastic bottles. Cupholders are
dishwasher safe for cleaning.

Rear Cargo Area Loading Limit

296

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• The cupholders are removable to access a large storage

bin.

• The basic console is removable from the vehicle for

additional floor space by removing the cap and clip at
the console base.

To Remove The Basic Floor Console

1. Remove the front anchor cup plug and clip.

2. Slide the console base forward while lifting slightly to

clear the rear load floor hook.

3. Remove the console.

To Reinstall The Basic Floor Console

1. Position the console at a slight angle (front slightly

higher than the rear).

2. Slide the console rearward into the floor bracket/

hook.

3. Align the console until the front anchor cup plug hole

is centered on the winch hole.

4. Reinstall the clip first and then while pushing down-

ward on the console with slight pressure, reinstall the
cover plug.

5. Pull up on the console to be sure it is firmly latched.

WARNING!

In an accident, serious injury could result if the
removable floor console is not properly installed.
Always be sure the removable floor console is fully
latched.

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

297

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Premium Console — If Equipped

The three-compartment console with sliding storage bin,
sliding upper tray with storage and large console storage
bin offers multiple configurations.

• Four cupholders with dishwasher safe liners for clean-

ing. The cupholders can accept plastic bottles, large
cups or mugs with handles

• Top tray storage
• Upper storage bin can hold nine regular or 18 thin CDs

or other items

• Large console center storage will store headphones for

the available rear DVD entertainment system or other
items

• 12 Volt DC power outlet provides continuous power

inside the console for cell phones or other electronics

• Rear occupant accessible
• Multiple adjustments
• Removable from vehicle for additional floor space
The top and center console sections slide forward and
rearward to provide added user comfort. A one-piece cup
holder insert for both cavities can easily be removed for
cleaning. The cupholders will also accommodate large
size cups and 20 oz (.6 L) bottles.

298

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Position 1 shows the console closed with four cupholders
and a convenient storage tray.

Position 2 shows the raised storage tray revealing a large
storage area below.

Console Position 1

Console Position 2

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

299

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     16      17      18      19     ..
