RESET Button

To reset the display shown, turn the ignition switch to the
ON position, then press and hold the RESET button
located on the steering wheel.

The following displays can be reset or changed:

• Trip A
• Trip B

Trip Odometer (ODO)

This display shows the distance traveled since the last
reset. Press and release the STEP button on the instru-
ment cluster to switch from odometer, to Trip A or Trip B.

Trip A

Shows the total distance traveled for Trip A since the last
reset.

Trip B

Shows the total distance traveled for Trip B since the last
reset.

ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) — IF EQUIPPED

The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.

236

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The EVIC consists of the following:

• Compass Heading Display (N, S, E, W, NE, NW, SE,

SW)

• Mileage (Avg/MPG)

• Miles To Empty
• Low Tire Information (Tire Pressure Monitor System

(TPMS) Displays) — if equipped

• Timer
• Units
• System Warnings (Door Ajar, etc.)
• Personal Settings (Customer-Programmable Features)
• Outside Temperature Display (°F or °C)
• Audio Mode Displays – 12 preset Radio Stations or CD

Title and Track number when playing

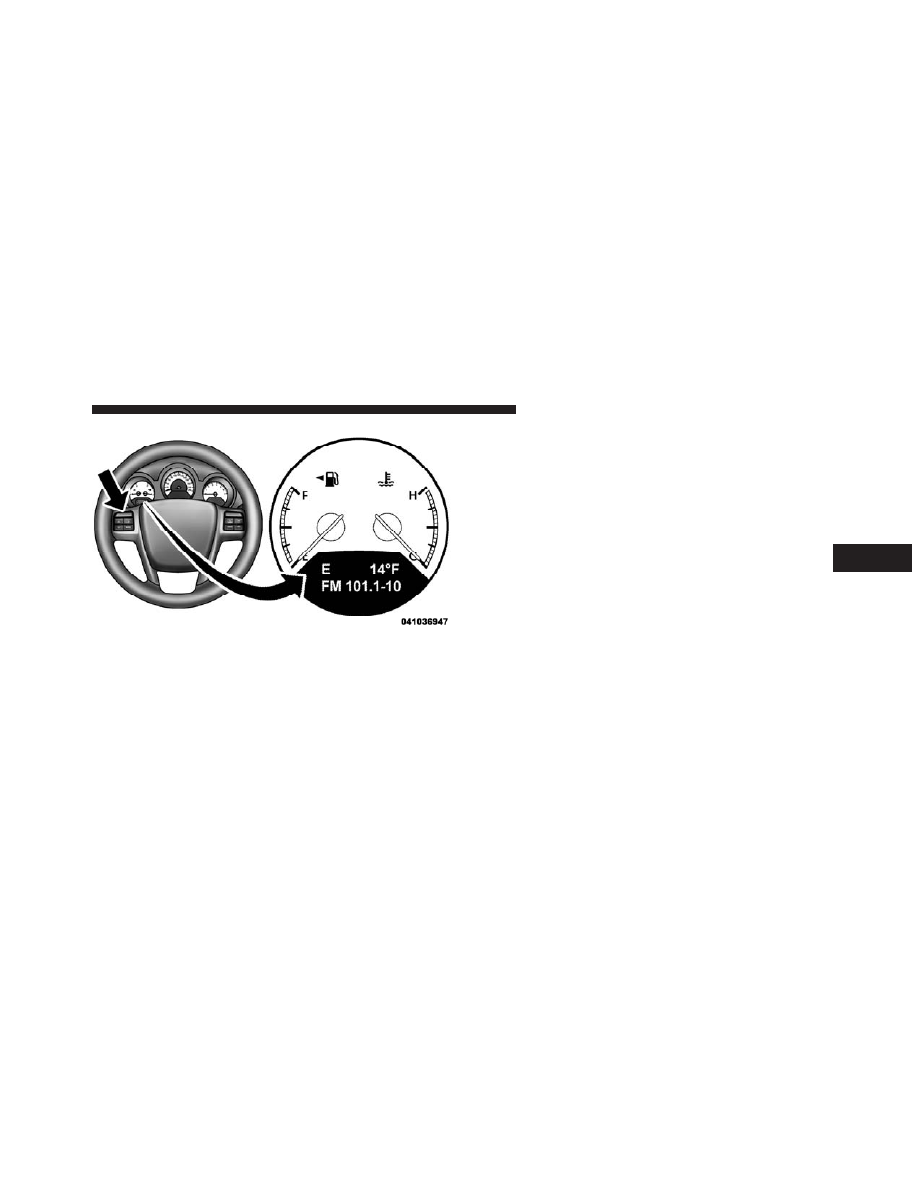

Electronic Vehicle Information Center (EVIC)

4

UNDERSTANDING YOUR INSTRUMENT PANEL

237

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The system allows the driver to select information by
pressing the following buttons mounted on the steering
wheel:

• MENU Button

Press and release the MENU button to advance
the display to each of the EVIC Main Menu
features. Upon reaching the last item in the
Main Menu the EVIC will advance to the first

item in the Main Menu with the next MENU button press
and release.
• DOWN Button

Press and release the DOWN button to advance
the display through the various Trip Functions
or Personal Settings.

• COMPASS Button

Press and release the COMPASS button to
display the compass heading, the outside tem-
perature, and Audio Info (when the radio is on)
screen when the current screen is not the

compass, outside temp, audio info screen.

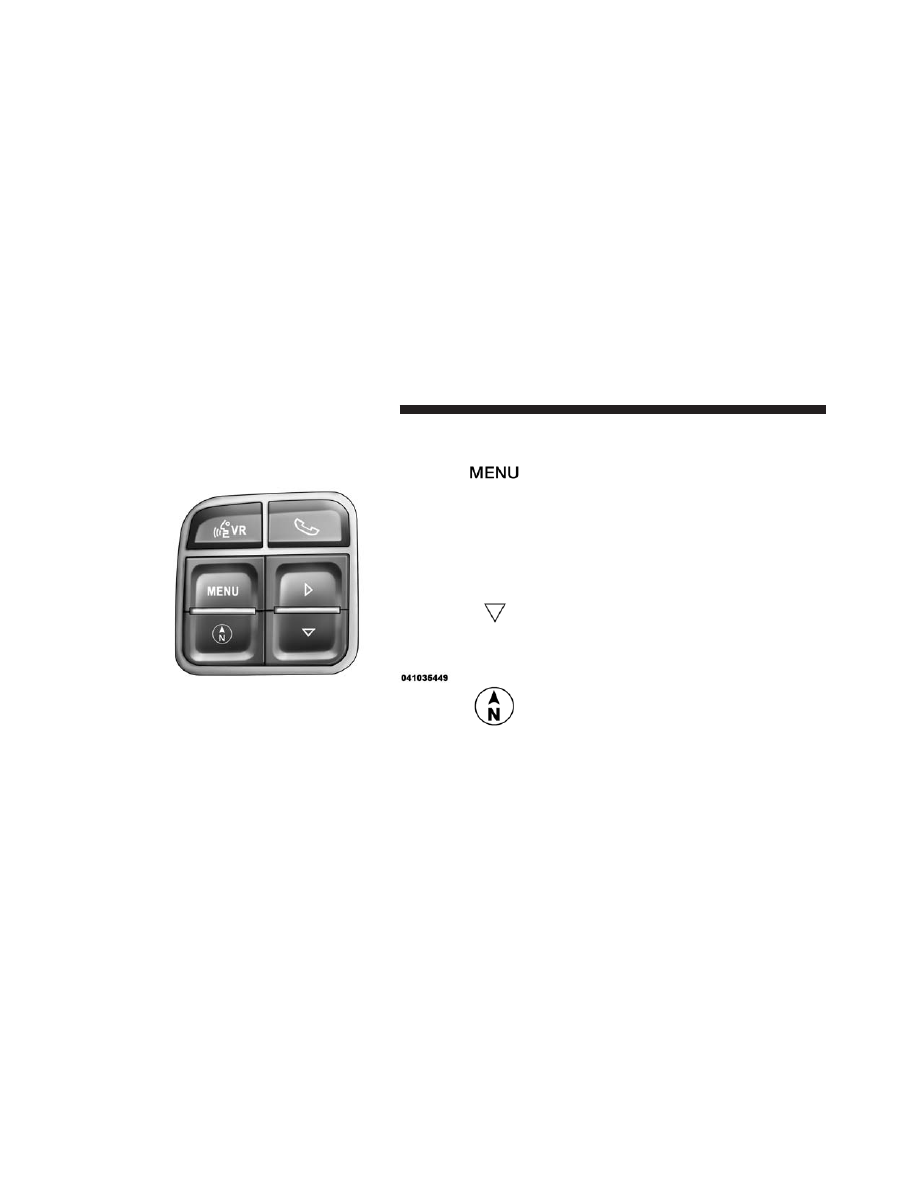

EVIC Steering Wheel Buttons

238

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• SELECT Button

Press and release the SELECT Button to accept
a selection. The SELECT Button also resets
various Trip Functions.

Electronic Vehicle Information Center (EVIC)
Displays

When the appropriate conditions exist, the EVIC displays
the following messages:

• Turn Signal On (with a continuous warning chime

after one mile traveled)

• Left Front Turn Signal Lamp Out (with a single chime)
• Left Rear Turn Signal Lamp Out (with a single chime)
• Right Front Turn Signal Lamp Out (with a single

chime)

• Right Rear Turn Signal Lamp Out (with a single chime)

• RKE (Remote Keyless Entry) Battery Low (with a

single chime)

• Personal Settings Not Avail – Vehicle Not in Park
• Personal Settings Not Avail – Vehicle in Motion
• Door Ajar (with vehicle graphic showing which door is

open. A single chime sounds if the vehicle is in
motion).

• Doors Ajar (with vehicle graphic showing which doors

are open. A single chime sounds if the vehicle is in
motion).

• Trunk Open (with vehicle graphic showing and open

trunk and A single chime )

• Lights On
• Key In Ignition
• Remote start aborted — Door ajar

4

UNDERSTANDING YOUR INSTRUMENT PANEL

239

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Remote start aborted — Hood ajar
• Remote start aborted — Trunk ajar
• Remote start aborted — Fuel low
• Remote start disabled — System fault
• Convertible Top Not Secured (with a single chime)
• Convertible Top Complete (with a single chime)
• Secure Cargo Shield (with a single chime)
• Speed Too High (with a single chime)
• Convertible Top Malfunction (with a single chime)
• Oil Change Required (with a single chime)
• Low Tire (with a graphic of the car showing which

tire(s) is/are low - with a single chime). Refer to

⬙Tire

Pressure

Monitoring

System

⬙ in ⬙Starting and

Operating

⬙.

• Check TPM System (with a single chime) Refer to ⬙Tire

Pressure Monitoring System

⬙ in ⬙Starting and Operat-

ing

⬙.

Oil Change Required — If Equipped

Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will flash in the EVIC display for approximately five
seconds after a single chime has sounded to indicate the
next scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.

Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and
release the Menu button. To reset the oil change indicator
system (after performing the scheduled maintenance),
perform the following procedure:

240

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Turn the ignition switch to the ON position (Do not

start the engine.)

2. Fully depress the accelerator pedal slowly three times

within 10 seconds.

3. Turn the ignition switch to the LOCK position.

NOTE:

If the indicator message illuminates when you

start the vehicle, the oil change indicator system did not
reset. If necessary repeat this procedure.

EVIC Main Menu

To step to each main menu feature press and release the
MENU button once for each step. A step from the last
item in the list will cause the first item in the feature list
to be displayed. The following features are in the Main
menu:

• Compass, Outside Temperature, Audio Information (if

radio is on) display

• Average Fuel Economy
• Distance to Empty
• Tire Pressure Status display
• Elapsed Time
• EVIC Units Selection
• System Status
• Personal Settings

Compass Display

COMPASS Button

The compass heading indicates the direction
the vehicle is facing. Press and release the
compass button to display one of eight com-
pass headings, the outside temperature, and

audio information (if the radio is on) if the EVIC display
is not already displaying this screen.

4

UNDERSTANDING YOUR INSTRUMENT PANEL

241

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

The system will display the last known outside

temperature when starting the vehicle and may need to
be driven several minutes before the updated tempera-
ture is displayed. Engine temperature can also affect the
displayed temperature; therefore, temperature readings
are not updated when the vehicle is not moving.

Automatic Compass Calibration

This compass is self-calibrating, which eliminates the
need to calibrate the compass instructionly. When the ve-
hicle is new, the compass may appear erratic and the
EVIC will flash the “CAL” indicator until the compass is
calibrated. You may calibrate the compass by completing
one or more 360–degree turns (in an area free from large
metal or metallic objects) until the CAL indicator in the
EVIC turns off. The compass will now function normally.

NOTE:

A good calibration requires a level surface and

an environment free from large metallic objects such as
buildings, bridges, underground cables, railroad tracks,
etc.

Instruction Compass Calibration

If the compass appears erratic or inaccurate, and the
variance has been properly set, you may wish to manu-
ally recalibrate the compass. To instructionly calibrate the
compass:

1. Start the engine. Leave the shift lever in PARK in order

to enter the EVIC Programming Menus.

2. Press and release the MENU button until “Personal

Settings” displays in the EVIC.

3. Press and release the DOWN button until “Calibrate

Compass Yes” displays in the EVIC.

242

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Press and release the SELECT button and the “CAL”

indicator will start flashing.

5. Drive the vehicle slowly (under 5 mph / 8 km/h),

completing one or more circles (in an area free from
large metal or metallic objects) until the “CAL” indi-
cator turns off. The compass will now function nor-
mally.

Compass Variance

Compass Variance is the difference between Magnetic
North and Geographic North. To compensate for the
differences, the variance should be set for the zone where
the vehicle is driven, per the zone map. Once properly
set, the compass will automatically compensate for the
differences and provide the most accurate compass head-
ing.

NOTE:

Magnetic and battery powered devices, (such as

cell phones, iPod’s, radar detectors, PDA’s and laptops)

should be kept away from the top of the instrument
panel. This is where the compass module is located and
such devices may interfere and cause false compass
readings.

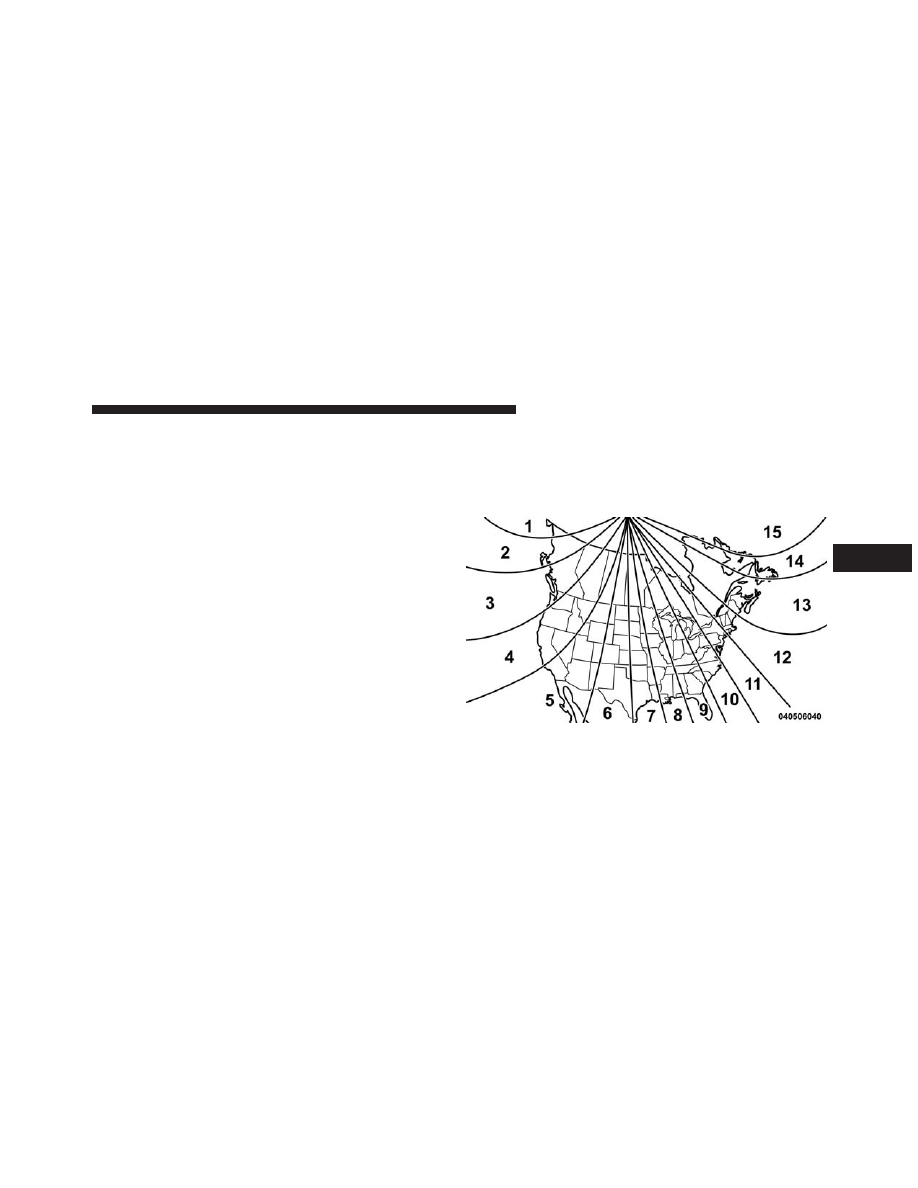

Compass Variance Map

4

UNDERSTANDING YOUR INSTRUMENT PANEL

243

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To Change Compass Variance:

1. Turn the ignition switch to the ON position. Leave the

shift lever in PARK.

2. Press and release the MENU button until “Personal

Settings” displays in the EVIC.

3. Press and release the DOWN button until “Compass

Variance” and the current Variance Value displays in
the EVIC.

4. Press and release the SELECT button to increment the

Variance Value by one, (one button press per update),
until the proper variance zone is selected according to
the map.

NOTE:

The Variance Values will wrap around from 15

back to 1. The Default Variance is Zone 8.

Average Fuel Economy

Shows the average fuel economy since the last reset.
Average Fuel Economy can be reset by pressing and
holding the SELECT button (as prompted in the EVIC
display). Upon reset, the history information will be
erased, and the averaging will continue from the last fuel
average reading before the reset.

Distance To Empty (DTE)

Shows the estimated distance that can be traveled with
the fuel remaining in the tank. This estimated distance is
determined by a weighted average of the instantaneous
and average fuel economy, according to the current fuel
tank level. DTE cannot be reset.

NOTE:

Significant changes in driving style or vehicle

loading will greatly affect the actual drivable distance of
the vehicle, regardless of the DTE display value.

244

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the DTE value is less than 30 miles (48 km)
estimated driving distance, the DTE display will change
to a text display of

⬙LOW FUEL”. This display will

continue until the vehicle runs out of fuel. Adding a
significant amount of fuel to the vehicle will turn off the
LOW FUEL text and a new DTE value will display.

Tire PSI

Press and release the MENU button until

⬙Tire PSI⬙ is

displayed.

Tire pressure information is displayed as follows:

• If tire pressure is OK for all tires, TIRE and a vehicle

graphic are displayed with tire pressure values in each
corner or the graphic.

• If one or more tires have low pressure, LOW TIRE and

a vehicle graphic are displayed with tire pressure
values in each corner of the graphic. Tire pressure
values that are too low will be flashing.

• If the Tire Pressure System requires service, ⬙Check

TPM System

⬙ is displayed. Tire PSI is an information

only function and cannot be reset.

Elapsed Time

Shows the total elapsed time of travel since the last reset.
Elapsed time will increment when the ignition switch is
in the RUN or START position.

Elapsed time is displayed as follows:

hours:minutes:seconds

Elapsed time can be reset by pressing and holding the
SELECT button (as prompted in the EVIC display). Upon
reset all digits will change to zeros and time will start
incrementing again if the ignition switch is in RUN or
START.

4

UNDERSTANDING YOUR INSTRUMENT PANEL

245

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EVIC Units Selection (UNITS IN Display)

Displays the units used for the Outside Temperature,
Average Fuel Economy, Distance to Empty and Tire
Pressure features. Press and Release the SELECT button
to toggle units between

⬙U.S.⬙ and ⬙METRIC⬙.

System Status

Displays SYSTEM OK if there are no active Warning
Messages stored. Pressing and releasing the DOWN
button when SYSTEM OK is displayed will do nothing.
Displays SYSTEM WARNINGS PRESENT if there are
active Warning Messages stored. Pressing and releasing
the DOWN button when SYSTEM WARNINGS PRES-
ENT is displayed will display each stored warning for
each button press. Press and Release the MENU button to
return to the Main Menu.

Personal Settings (Customer-Programmable
Features)

Personal Settings allows the driver to set and recall
features when the automatic transaxle is in PARK.

Press and release the MENU button until “Personal
Settings” displays in the EVIC.

Press and release the DOWN button to display the
following programmable features:

Language

When in this display you may select different languages
for all display nomenclature, including the trip functions.
Pressing the SELECT button while in this display selects
English, Spanish, French, German, Italian, or Dutch de-
pending on availability. As you continue, the displayed
information will be shown in the selected language.

246

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Auto Unlock On Exit

When ON is selected and the transaxle is in the PARK or
NEUTRAL position, all doors will unlock when the
driver’s door is opened. To make your selection, press the
SELECT button until ON or OFF appears.

RKE Unlock

When Driver Door 1st Press is selected, only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) transmitter UNLOCK button. When Driver
Door 1st Press is selected, you must press the RKE
transmitter UNLOCK button twice to unlock the passen-
ger’s doors. When All Doors 1st Press is selected, all of
the doors will unlock on the first press of the RKE
transmitter UNLOCK button. To make your selection,
press and release the SELECT button until “Driver Door
1st Press” or “All Doors 1st Press” appears.

Flash Lamp with LOCK

When ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or
without the Sound Horn with LOCK feature selected. To
make your selection, press and release the SELECT
button until ON or OFF appears.

Headlamp Off Delay

When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, press
the SELECT button until 0, 30, 60, or 90 appears.

Headlamps With Wipers (Available with Auto
Headlights Only)

When ON is selected, and the headlight switch is in the
AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. The

4

UNDERSTANDING YOUR INSTRUMENT PANEL

247

-------------------------------------------------------------------------------------------------------------------------------------------------------------

headlights will also turn off when the wipers are turned
off if they were turned on by this feature. To make your
selection, press the SELECT button until ON or OFF
appears.

NOTE:

Turning the headlights on during the daytime

causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in “Understanding The
Features Of Your Vehicle.”

Key Off Power Delay

When this feature is selected, the power window
switches, radio, Uconnect™ phone (if equipped), and
power outlets will remain active for up to 10 minutes
after the ignition switch is turned to the LOCK position.
Opening either front vehicle door will cancel this feature.
To make your selection, press the SELECT button until
OFF, 45 sec, 5 min, or 10 min appears.

Illumin. Approach

When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked with the remote keyless entry transmitter. To
make your selection, press the SELECT button until
“OFF,” “30 sec,” “60 sec,” or “90 sec” appears.

Display Units In

The EVIC and odometer can be changed between English
and Metric units of measure. To make your selection,
press and release the SELECT button until “U.S.” or
“METRIC” appears.

Compass Variance

Refer to “Compass Display” for more information.

Calibrate Compass

Refer to “Compass Display” for more information.

248

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SETTING THE ANALOG CLOCK

To set the analog clock, located at the top center of the
instrument panel, press and hold the button in until the
setting is correct. The clock will adjust slowly at first and
then quicker the longer the button is held.

MEDIA CENTER 730N/430/430N (RHR/RER/RBZ/
RHB) CD/DVD/HDD/NAV — IF EQUIPPED

NOTE:

The sales code is located on the lower right side

of the unit’s faceplate.

Refer to your Uconnect™ Multimedia RHR, RER, RBZ or
RHB user’s instruction for detailed operating instructions.

Operating Instructions (Voice Command System)
— If Equipped

Refer to “Voice Command” for further details.

Operating Instructions (Uconnect™ Phone) — If
Equipped

Refer to “Uconnect™ Phone” for further details.

Setting The Analog Clock

4

UNDERSTANDING YOUR INSTRUMENT PANEL

249

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEDIA CENTER 130 (SALES CODE RES)

NOTE:

The radio sales code is located on the lower right

side of the radio faceplate.

Operating Instructions — Radio Mode

NOTE:

The ignition switch must be in the ON or ACC

position to operate the radio.

Power Switch/Volume Control (Rotary)

Push the ON/VOLUME control knob to turn on the
radio. Push the ON/VOLUME control knob a second
time to turn off the radio.

Electronic Volume Control

The electronic volume control turns continuously (360
degrees) in either direction, without stopping. Turning
the ON/VOLUME control knob to the right increases the
volume, and to the left decreases it.

When the audio system is turned on, the sound will be
set at the same volume level as last played.

Media Center 130 (RES)

250

UNDERSTANDING YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEEK Buttons

Press and release the SEEK buttons to search for the next
listenable station in AM/FM mode. Press the right switch
to seek up and the left switch to seek down. The radio
will remain tuned to the new station until you make
another selection. Holding either button will bypass
stations without stopping, until you release it.

TIME Button

Press the TIME button to alternate display of the time
and radio frequency.

Clock Setting Procedure

1. Press and hold the TIME button until the hours blink.

2. Adjust the hours by turning the right side TUNE/

SCROLL control knob.

3. After adjusting the hours, press the right side TUNE/

SCROLL control knob to set the minutes. The minutes
will begin to blink.

4. Adjust the minutes using the right side TUNE/

SCROLL control knob. Press the TUNE/SCROLL con-
trol knob to save time change.

5. To exit, press any button/knob, or wait five seconds.

RW/FF

Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in either
AM or FM frequencies.

TUNE Control

Turn the rotary TUNE/SCROLL control knob clockwise
to increase or counterclockwise to decrease the frequency.

4

UNDERSTANDING YOUR INSTRUMENT PANEL

251

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     13      14      15      16     ..
