NOTE:

Once the release handle is rotated, the windows

will automatically go down.

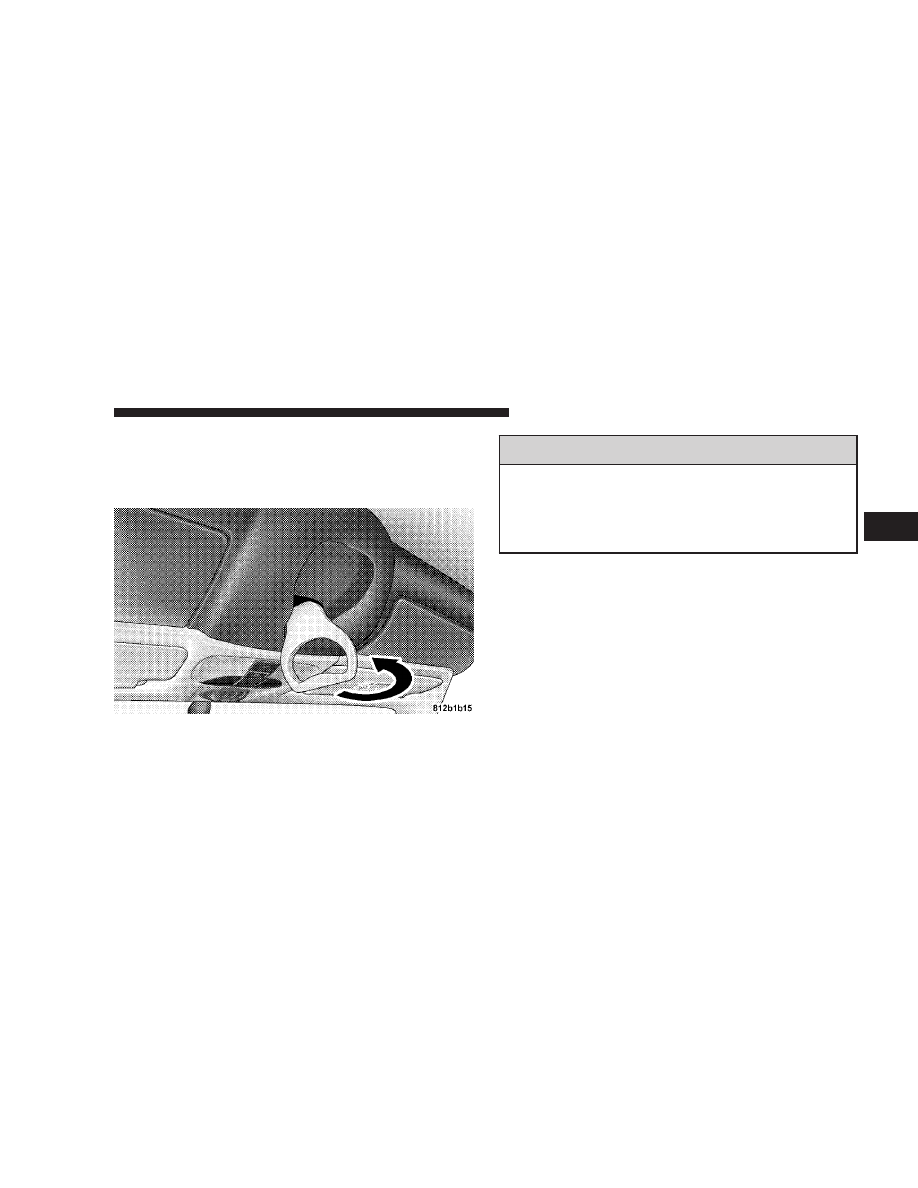

5. Push up on the convertible top latch handle to create a
gap between the header and top of approximately 8 in
(200 mm). As soon as the top is free, rotate the latch
handle counterclockwise just over one quarter turn and
push it up into the stored position.

NOTE:

Failure to perform any of these steps will

prevent the top from operating with the convertible top
switch and will cause an audible information signal to
sound.

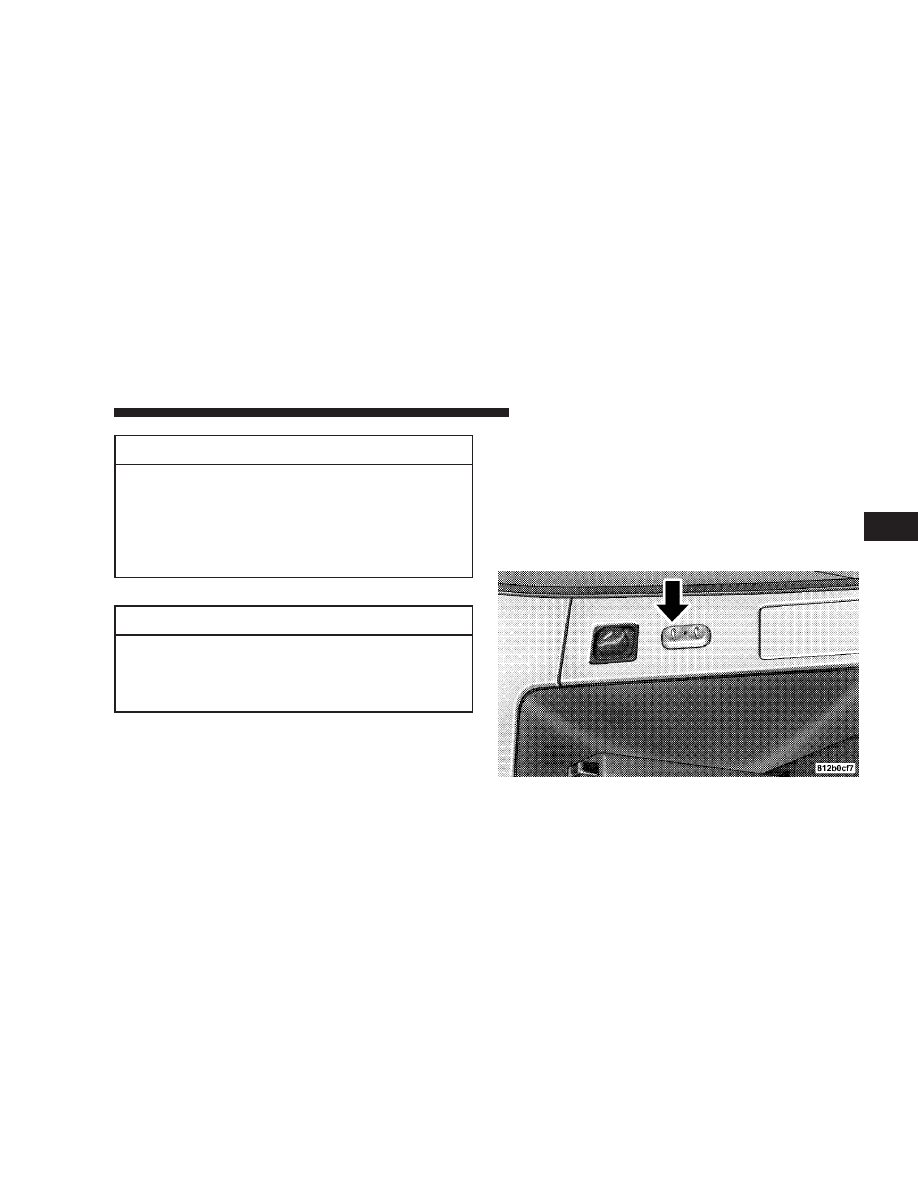

6. Push down on the rear of the convertible top switch to
begin top operation. The rear of the top will unlatch and
the tonneau cover will open before the top begins to fold.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

73

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Hold the switch down until the convertible top is com-
pletely lowered into its storage compartment and the
tonneau cover is closed and latched. A single audible
signal will sound to indicate completion of the top
opening operation.

NOTE:

Once the top is lowered and the audible signal is

heard, you can continue to push the convertible top
switch down or push it within two seconds to raise the
windows.

The windows can also be closed/opened later using the
power window switches.

74

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION!

To prevent mildew, the convertible top must be dry
before lowering it into the storage compartment.

Do not lower a frozen convertible top until thawed
and dry. Doing so may result in damage not covered
by the DaimlerChrysler Limited Warranty.

CAUTION!

Do not place anything on the tonneau cover.

The tonneau cover must never be used as a seating
area.

To Raise The Top:

1. Make sure the rear cargo compartment divider is still
secured in the vertical position.

2. Make sure the decklid is closed.

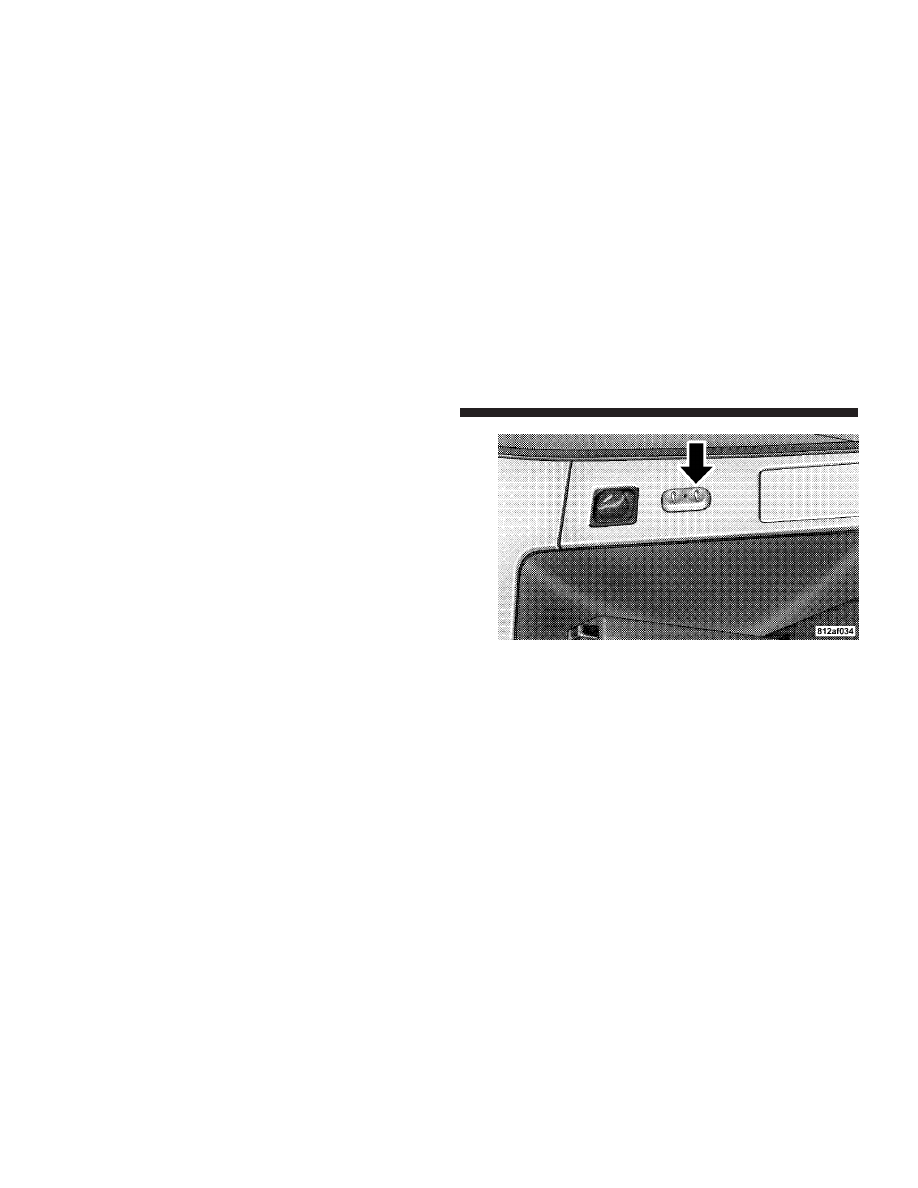

3. Turn the ignition key to the ON/RUN position and
press down on the front of the convertible top switch.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

75

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. If the windows are raised, they will lower as soon as
the convertible switch is pressed down. The tonneau
cover will open, and the top will then close until it
reaches approximately 8 in (200 mm) from the header.
The tonneau cover will then close and the rear of the top
will close and latch. At the completion of this cycle, a
single audible signal will sound.

NOTE:

If the top is latched to the windshield header

before the rear of the top is properly latched, an audible
warning will sound and the top raising operation will
stop.

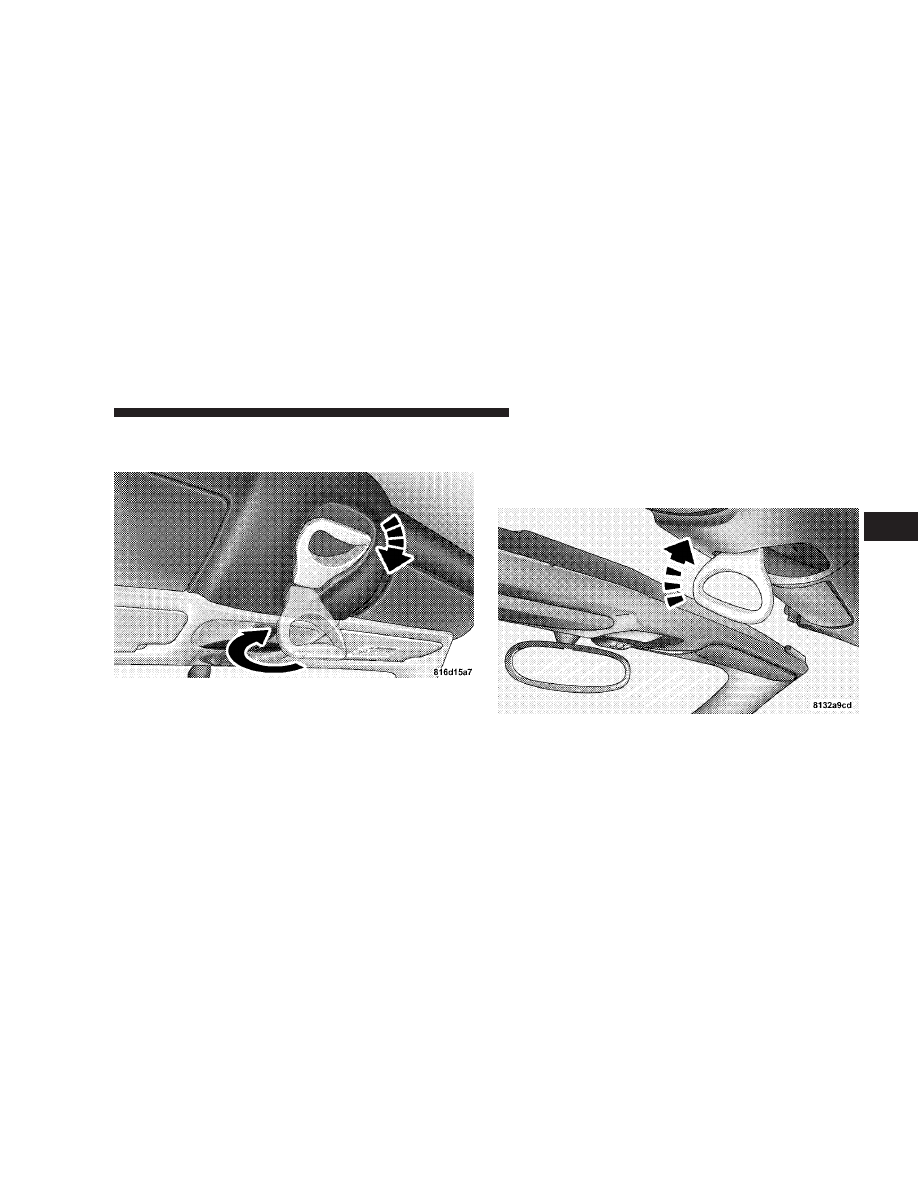

5. Pull the latch handle down from the storage position
and turn it clockwise just over one quarter turn.

6. Pull the latch handle and convertible top down to
engage the top with the header.

7. When the top engages to the header, turn the latch
handle counterclockwise just over one quarter turn to the
lock position and push the latch handle up to the stored
position. The top is now secured in the closed position.

76

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

The convertible top switch indicator will light

up and an audible warning will be heard if you start
driving the vehicle without the top fully locked in the
closed position.

WARNING!

To prevent possible accidents, drive the vehicle only
with the convertible top either completely closed and
locked,

or

fully

lowered

into

its

storage

compartment.

8. Once the top has been raised and locked, the cargo
compartment divider can be unhooked and folded for-
ward to increase the cargo compartment capacity. Follow
the steps shown on the label affixed to the decklid trim.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

77

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION!

Once the cargo compartment divider is folded for-
ward to increase the cargo compartment capacity, the
tonneau cover flaps are exposed and can be damaged
by long items being put into the cargo compartment.

78

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convertible Top Lamp and Audible Signal Chart

Below is a table containing all of the visual and audible
signals that can be seen or heard during top operation or
if a fault is present.

Visual and Au-

dible

Signals

Operation Mode or Fault

Single audible sig-

nal is heard

Roof reaches fully open position

Roof reaches fully closed position

Convertible top

switch lamp

flashes slowly and

a slow audible

beep is heard

Decklid open

Cargo compartment divider not se-

cured in vertical position
Top latched at windshield header

before top cycle complete

Top unlatched but not pushed up

from windshield header
Vehicle speed greater than 9 mph (15

km/h) while trying to initiate top

operation
Battery voltage less than 10.6 Volts

Convertible top

switch lamp

flashes quickly

and a quick au-

dible beep is

heard

Maximum hydraulic pump run-time

reached

Power window motor(s) or rear

spoiler inoperative
Vehicle speed greater than 9 mph (15

km/h) during top operation
Top operation suspended longer

than 10 minutes

Convertible top

switch lamp

flashes rapidly

General top control module fault

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

79

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

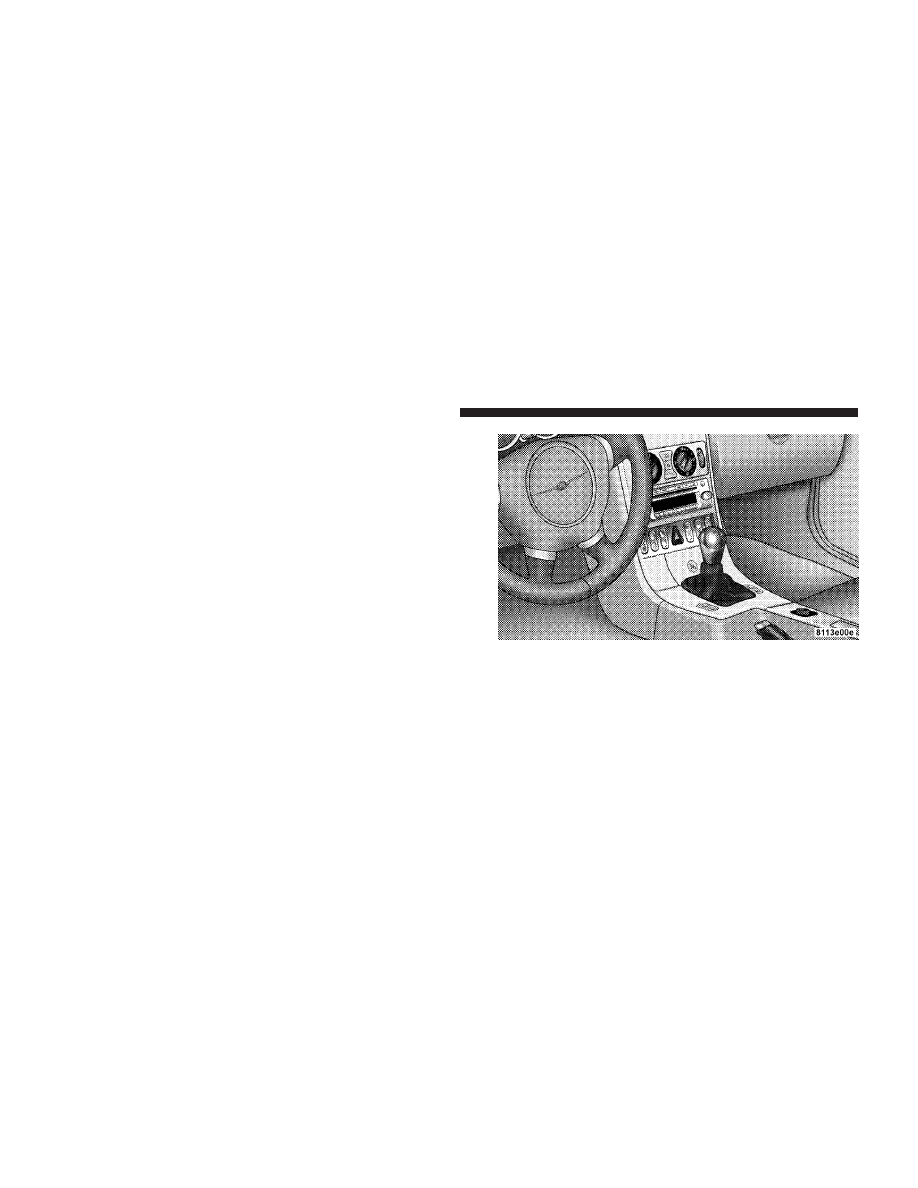

CONSOLE FEATURES

The console has a power outlet/cigar lighter, an ash tray
with a coin holder, a cupholder (if equipped), and the
passenger airbag light. In addition, there are switches to
control the heated seats (if equipped), rear spoiler, elec-
tronic stability program (ESP), hazard flashers, central
locking, rear defroster and towing alarm.

Operating controls for the heating and air conditioning
systems, power windows, power mirrors, convertible top
switch (if equipped), and the automatic transmission
program mode selector switch (if equipped) are also
located in the console.

Storage Compartments (If Equipped)

There is a storage compartment in the console. To open
the storage compartment, lift the lid with the finger
depressions on either side. To close, lower the lid until
the lock engages.

80

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

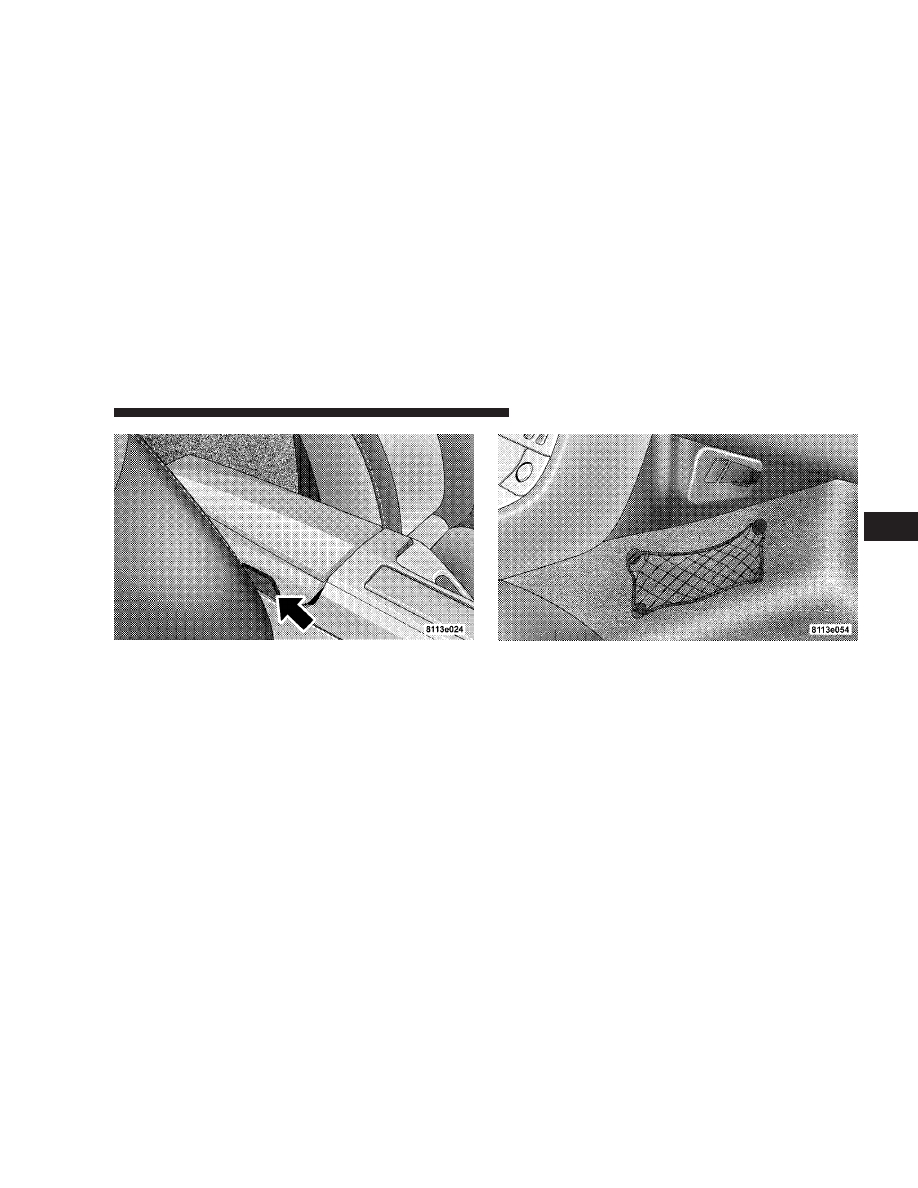

On some models, a cargo net for storage is located in the
footwell area on the passenger side.

Additionally, storage pockets are located on the wall
behind each seat and on each door panel.

A storage pouch is located on the rear wall between the
seats, and the driver’s sunvisor has a document strap.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

81

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

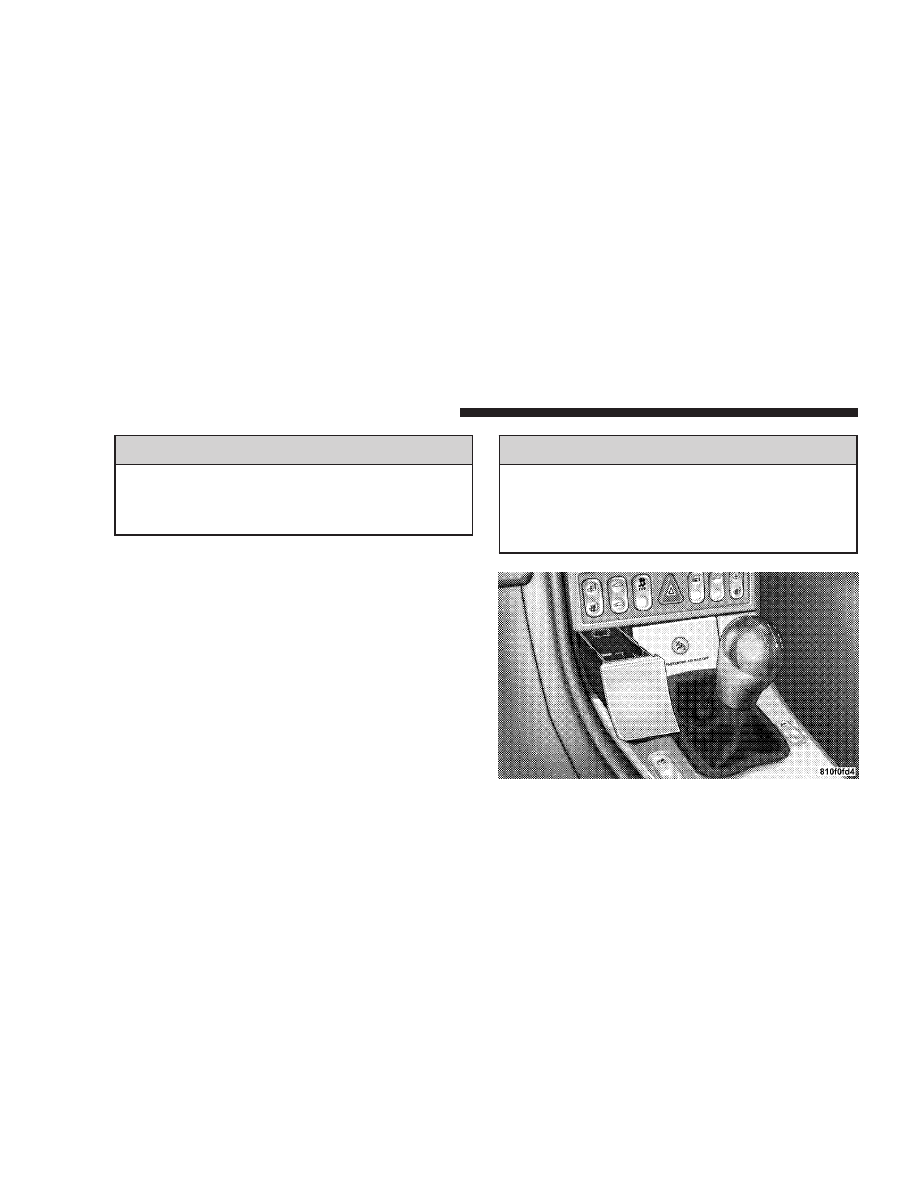

WARNING!

Keep compartment lids closed. This will help to
prevent stored objects from being thrown about and
injuring vehicle occupants during an accident.

Ashtray

Lightly touch the bottom of the ashtray cover. The
ashtray will open automatically.

To remove the ashtray insert, pull the ashtray past the
detent. Hold both sides of the insert, and pull up. To
install the ashtray, place it in the frame and push down to
engage.

WARNING!

Remove the ashtray only with the vehicle stopped
and the ignition off. Otherwise, the vehicle might
move unexpectedly as a result of unintended contact
with the shift lever.

82

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Coin Holder

With the ashtray open, folding down the cover plate
reveals the coin holder, which can accommodate nine
coins in various sizes up to a U.S. quarter. The coin slots
are shaped to retain the coins, and the cover plate ensures
that the coins remain in the coin holder.

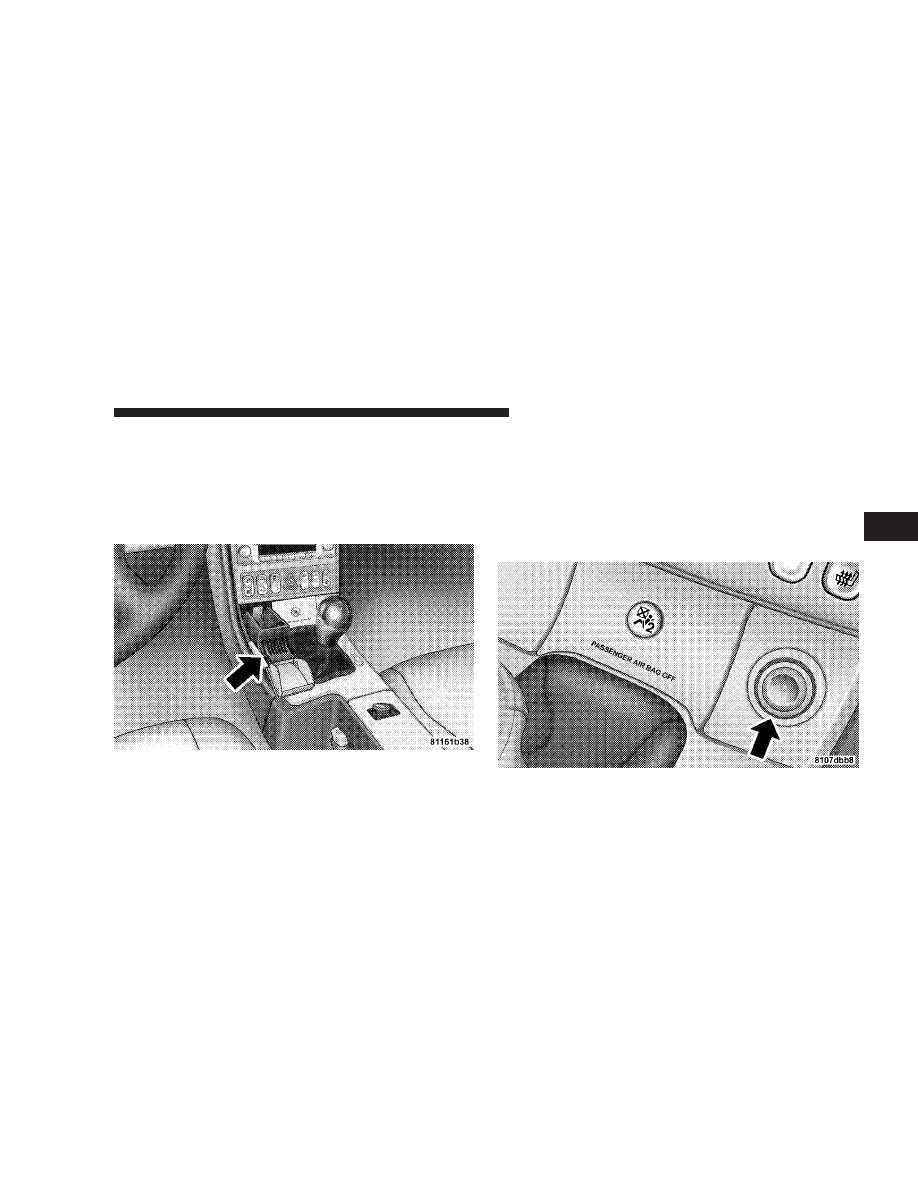

Power Outlet/Cigar Lighter

The dual-purpose power outlet is located in the console,
next to the passenger airbag off warning light. The power
outlet can accommodate a lighter or electrical accessories
up to a maximum of 15 amps. The outlet is protected by
a 15 amp fuse, located behind the fuse cover on the left
end of the instrument panel.

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

83

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The lighter will operate only when the ignition switch is
in the ON/ACC position. It heats up when pushed in and
pops out automatically when ready for use. To preserve
the heating element, do not hold the lighter in the heating
position.

Glove Compartment

To lock the glove compartment, turn the key to the right
and remove. To unlock, turn the key to the left and
remove.

Pull on the handle to open the glove compartment.

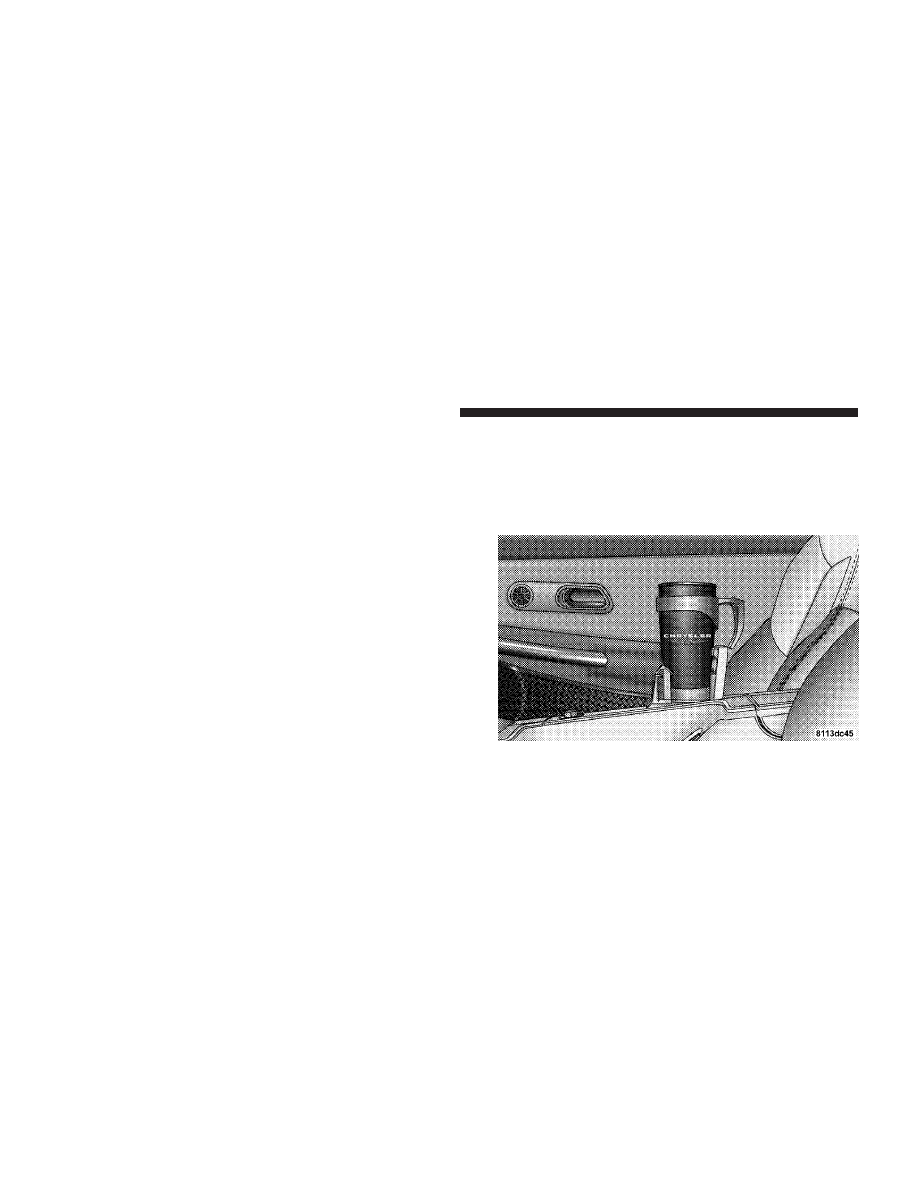

CUPHOLDER (If Equipped)

The cupholder is located in the console. To open the
cupholder, gently press downward on the front edge of
the top panel, and then release. The cupholder will open
automatically.

When the cupholder is no longer needed, push forward
on the top edge of the door and rotate it down into the
console until it engages.

The cupholder is designed to hold beverage containers
up to 20 oz. (1 L).

84

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION!

Only use containers that fit into the cupholder.
Overfilled containers could spill during vehicle
maneuvers.

MIRRORS

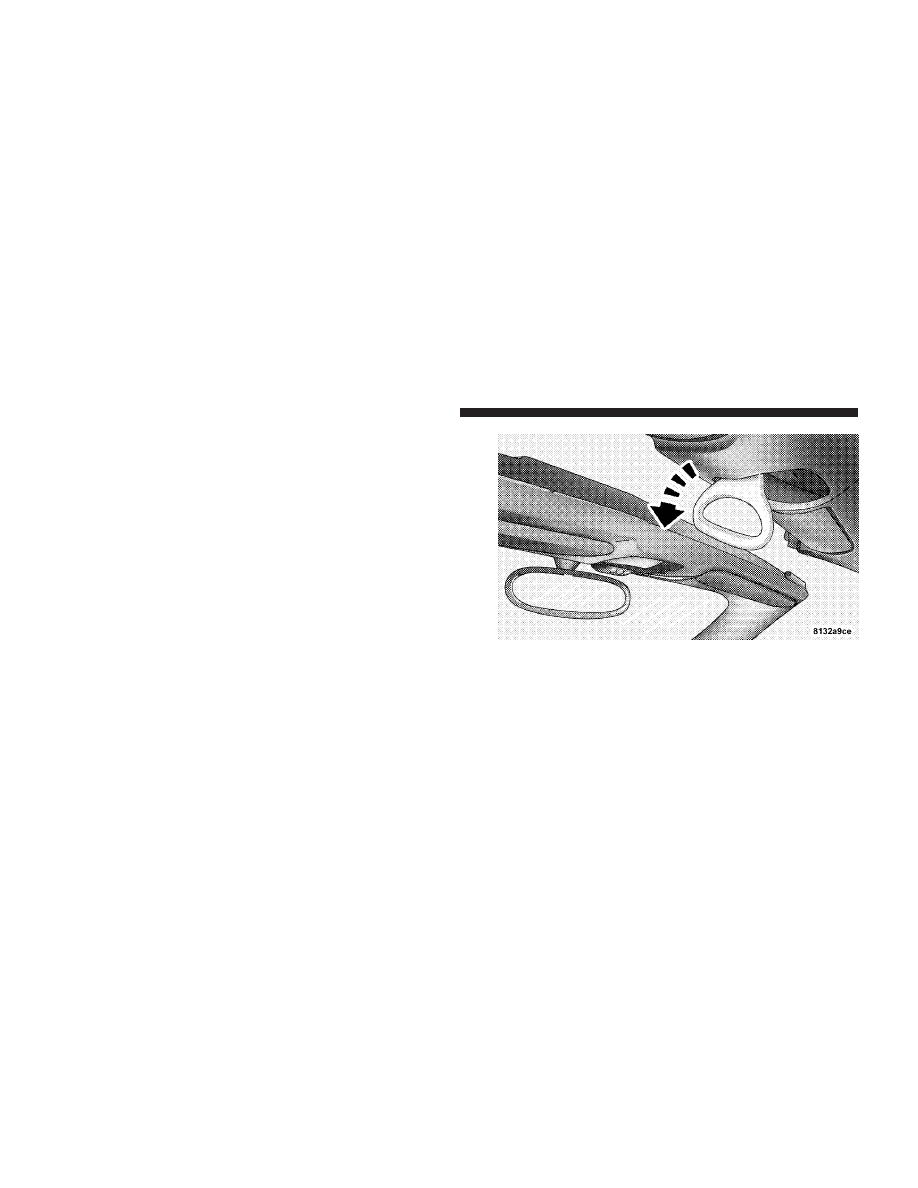

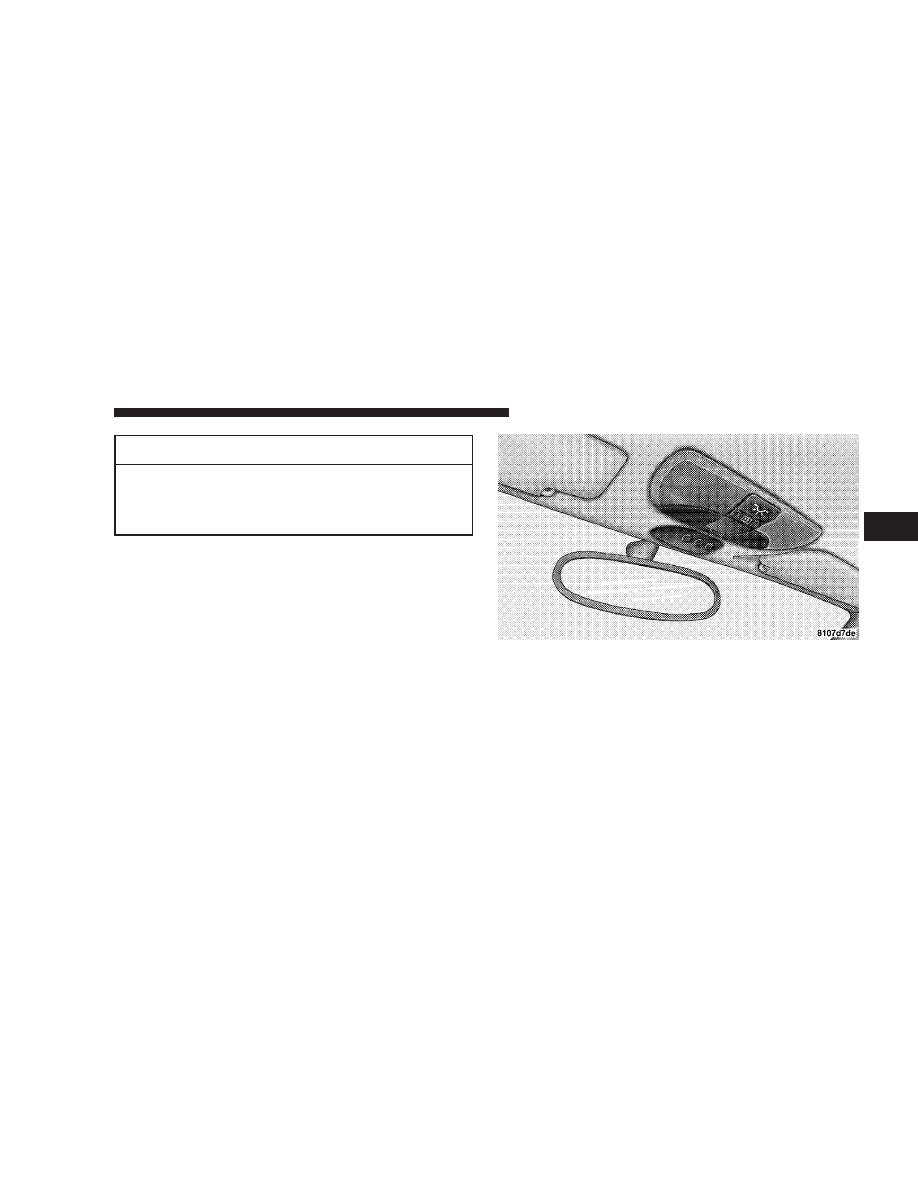

Inside Day/Night Mirror

Adjust the mirror to center on the view through the rear
window. A two-point pivot system allows for horizontal
and vertical mirror adjustment.

Annoying headlight glare can be reduced by moving the
small control under the mirror to the night position
(toward the rear of the vehicle). The mirror should be
adjusted with the glare control set in the day position
(toward the windshield).

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

85

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Exterior Mirrors Folding Feature

All exterior mirrors are hinged to move forward or
rearward to resist damage. The hinges have three detent
positions: full forward, full rearward, and normal.

Heated Remote Control Mirrors (If Equipped)

Both outside mirrors are heated to melt frost or ice when
the Rear Window Defroster switch is depressed.

Outside Mirrors

Adjust the outside mirrors to center on the adjacent lane
of traffic, with a slight overlap of the view seen in the
inside mirror.

WARNING!

Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they actually are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror to judge the size or distance of objects seen in
the convex mirror.

Power Remote Control Outside Mirrors

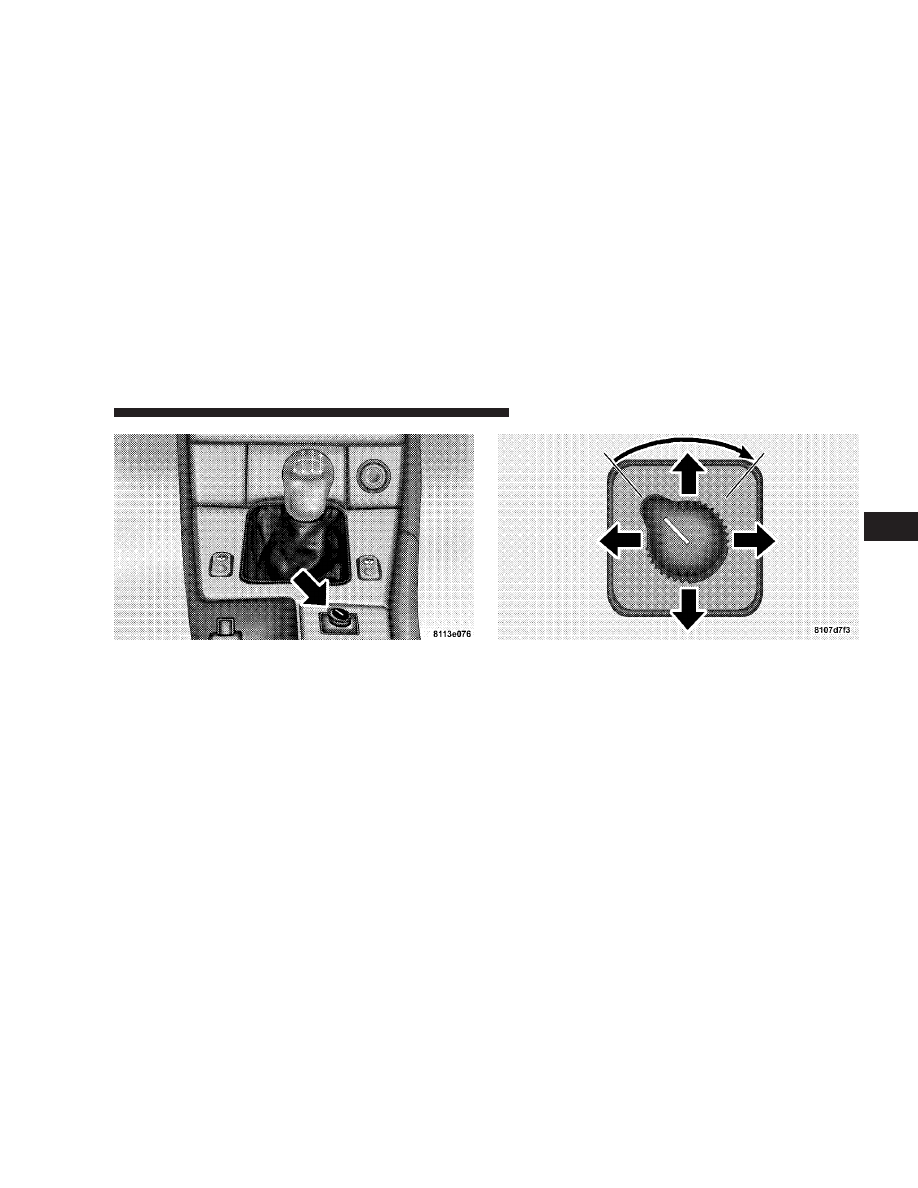

The mirrors can be adjusted by using the remote control
located in the console. Rotate the switch to the right to
select the right mirror, rotate to the left to select the left
mirror. Then use the switch to adjust the selected mirror
to the desired direction.

86

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

87

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vanity Mirrors

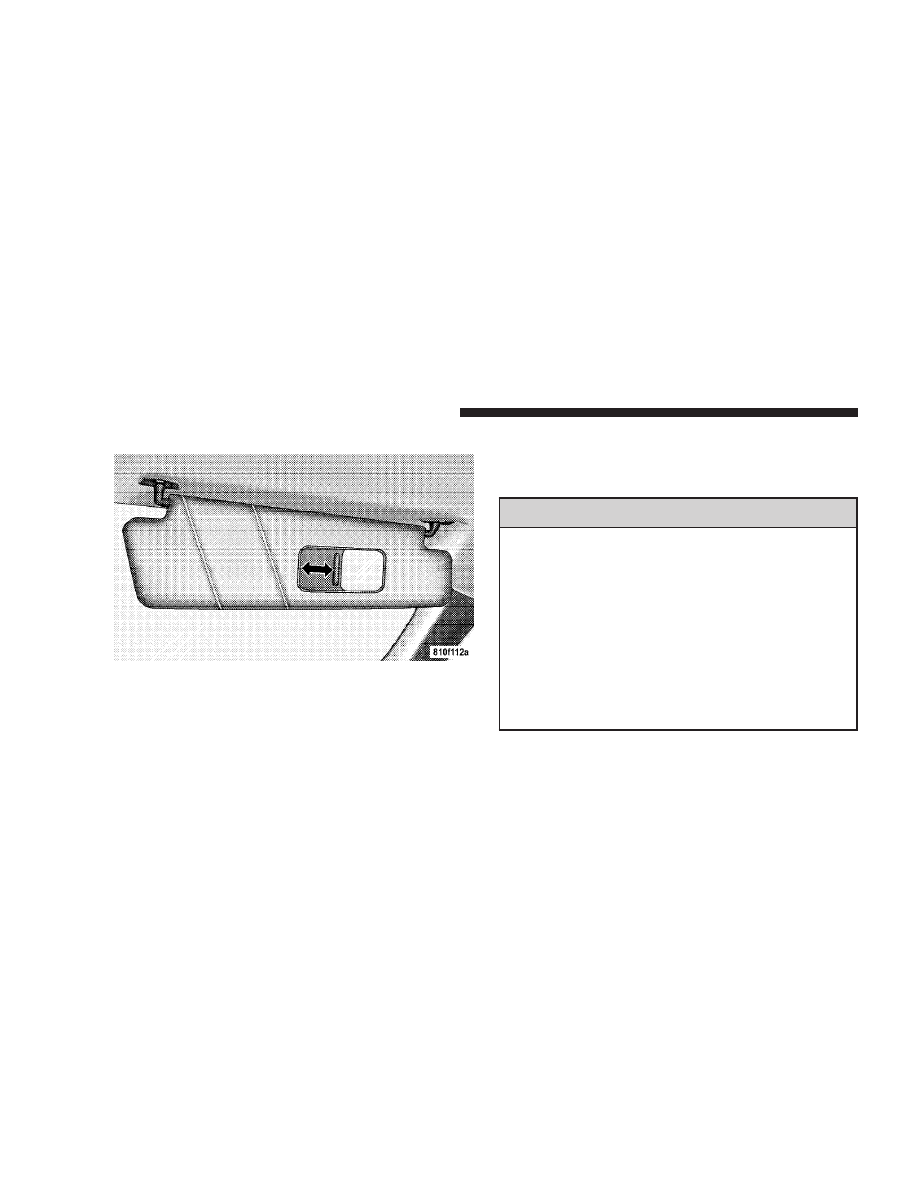

A vanity mirror is located on each sun visor. To use the
mirror, rotate the sun visor down and slide open the
mirror cover.

SEATS

Your vehicle’s seats can be adjusted either instructionly or
electrically, depending on how your vehicle is equipped.

WARNING!

• Adjusting a seat while the vehicle is moving is

dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt might
not be properly adjusted and you could be injured.
Adjust the seat only while the vehicle is parked.

• Do not ride with the seatback reclined so that the

shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.

88

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
