Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

342

Features

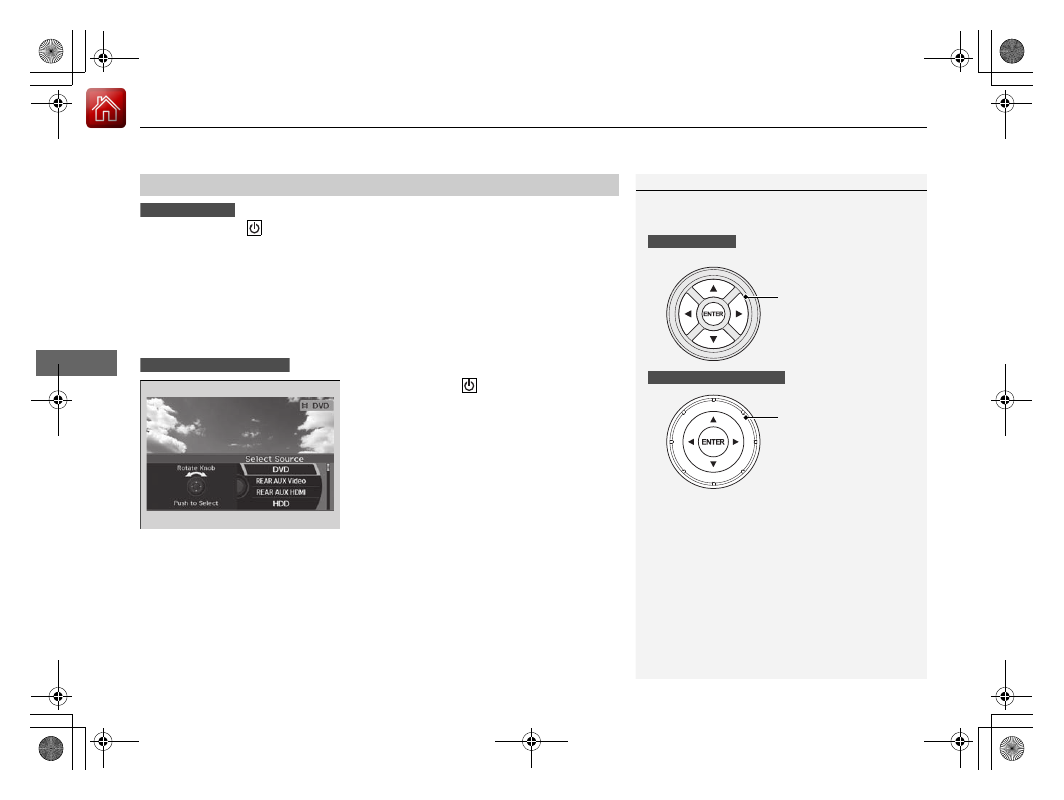

1. Press the REAR

 (power) button on the front control panel.

2. Press the audio source button on the rear control panel.

u

You can also change the audio source by the front control panel.

Front Control Panel Operation P. 352

3. Select a station, channel, track, or chapter using the CH/FOLDERTUNE/SKIP, or

CATEGORY bars.

Rear Control Panel Operation P. 340

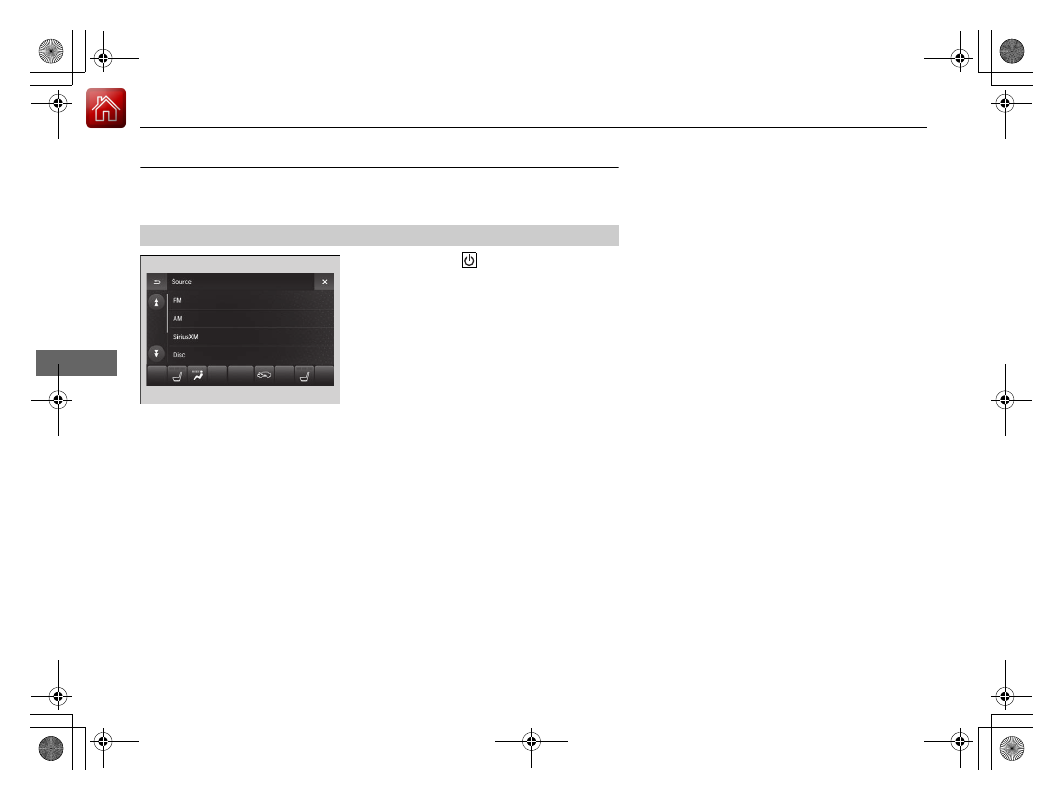

1. Press the REAR

 (power) button on the

front control panel.

2. Press the SOURCE button on the rear

control panel.

3. Select the audio source. Press the ENTER

button.

u

You can also change the audio source by
the front control panel.

Front Control Panel Operation P. 352

4. Select a station, channel, track, or chapter

using the CH/FOLDERTUNE/SKIP, or
CATEGORY bars.

Selecting the Audio Source

1

Rear Control Panel Operation

In the procedures of this section, “select” means the
following actions:

The rear control panel can be detached from the
ceiling unit and used as a remote control.

Overhead Screen P. 338

In this section, screen illustrations from the standard
RES are used for the explanation unless otherwise
noted.

The screen is displayed on the overhead screen.

Models with RES

Models with ultrawide RES

Press the cursor
buttons on the rear
control panel.

Rotate the interface
dial or press the
directional buttons on
the rear control panel.

Models with RES

Models with ultrawide RES

18 ACURA MDX-31TZ56400.book  342 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

343

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Continued

Features

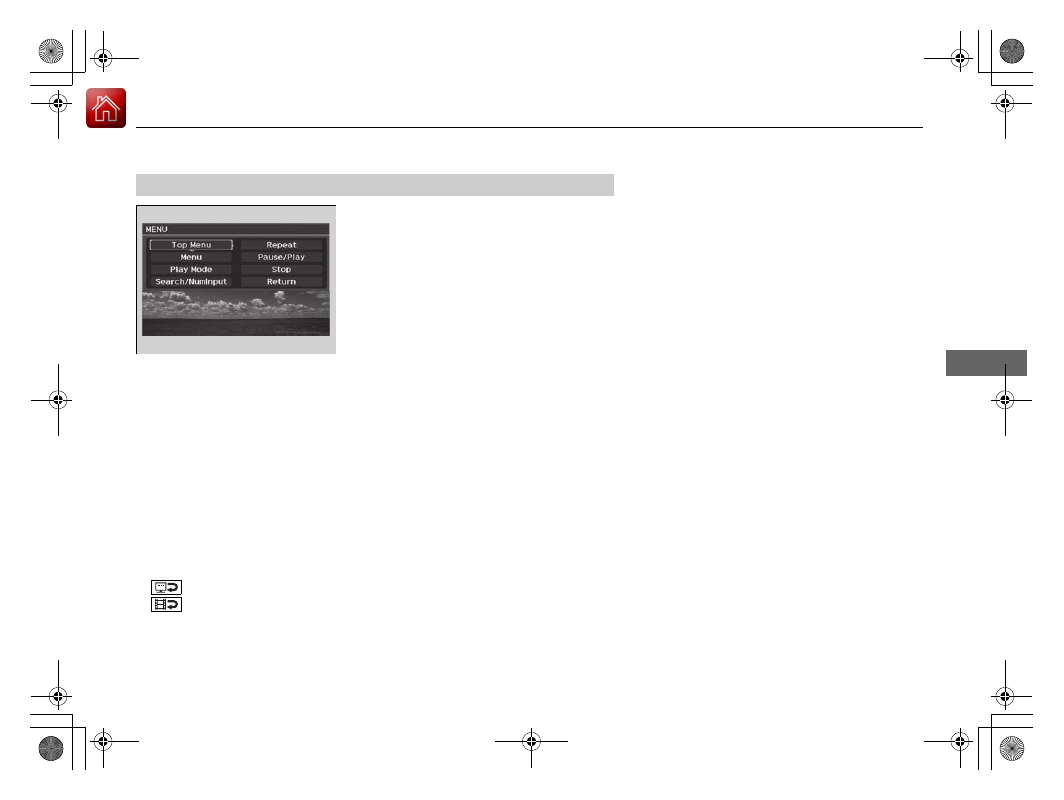

1. Press the MENU button (in DVD mode).
2. Select an item. Press the ENTER button.

The following items are available:
• Top Menu: Displays the top menu of the DVD.
• Menu: Displays the menu of the DVD.
• Play Mode: Displays while a DVD is playing and changes the DVD’s audio,

subtitle, or angle settings.

Setting the play mode P. 344

• Initial Settings

*

: Displays while a DVD is not playing and changes the DVD

preferences.

DVD Initial Settings P. 349

• Search/NumInput: Skips to a title or chapter by entering the number.

Searching a title/chapter P. 345

• Repeat:

 (title repeat): Repeats the current title.
 (chapter repeat): Repeats the current chapter.

• Pause/Play: Pause or play the playback.
• Stop: Stops the playback.
• Return: Hides the rear audio menu.

Rear DVD Menu

* Not available on all models

18 ACURA MDX-31TZ56400.book  343 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

344

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Features

Setting the play mode

1. Press the MENU button (in DVD mode).
2. Select Play Mode. Press the ENTER button.
3. Select an item. Press the ENTER button.
4. Select an option. Press the ENTER button.

The following items are available:
• Audio: Selects the language of the DVD audio.
• Subtitle: Selects the language of the DVD subtitle.
• Angle: Selects the angle of a scene shot with multiple cameras.

18 ACURA MDX-31TZ56400.book  344 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

345

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Continued

Features

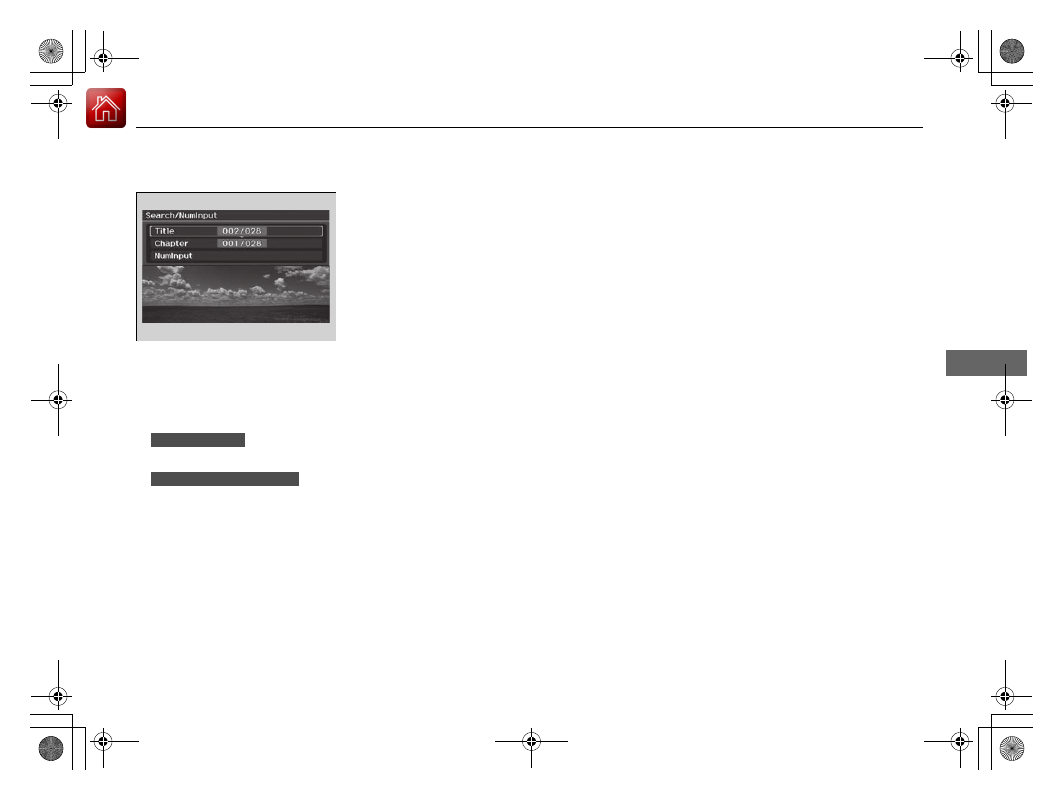

Searching a title/chapter

1. Press the MENU button (in DVD mode).
2. Select Search/NumInput. Press the ENTER

button.

3. Select an item. Press the ENTER button.
4. Select a number. Press the ENTER button.

The following items are available:
• Title: Skips to a title you specify.
• Chapter: Skips to a chapter you specify.
• NumInput: Enters a number of a title or chapter to skip.

Enter a number and select ENT. Press the ENTER button.

Enter a number and press the ENTER button. Select DONE.

Models with RES

Models with ultrawide RES

18 ACURA MDX-31TZ56400.book  345 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

346

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Features

1. Press the SETUP button (in DVD mode).
2. Select an item. Press the ENTER button.

The following items are available:
• Brightness

*

: Adjusts the screen’s brightness. Adjust the brightness using the

interface dial and press the ENTER button.

• Appearance

*

: Selects the color of the rear menu screen.

• Display Adjust: Adjusts the screen’s preferences.

Adjusting the screen P. 347

• Aspect Ratio: Selects an aspect ratio of the image.

Setting the aspect ratio P. 348

• PERSONAL SURROUND: Sets the surround of the wireless headphones. You can

choose from three options: MusicCinema, or Voice. Select Off to disable the
feature.

• Language: Sets the system language used on all screens. You can choose from

three languages: EnglishFrançais (French), or Español (Spanish).

Screen and Surround Settings

* Not available on all models

18 ACURA MDX-31TZ56400.book  346 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

347

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Continued

Features

Adjusting the screen

1. Press the SETUP button (in DVD mode).
2. Select Display Adjust. Press the ENTER

button.

3. Select an item. Press the ENTER button.
4. Make the adjustment. Press the ENTER

button.

The following items are available:
• Brightness

*

: Adjusts the screen’s brightness.

• Contrast: Adjusts the screen’s contrast.
• Black Level: Adjusts the screen’s black level.
• Color: Adjusts the screen’s color strength.
• Tint: Adjusts the screen’s hue.
• Reset: Resets all the settings to their factory default.

* Not available on all models

18 ACURA MDX-31TZ56400.book  347 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

348

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Features

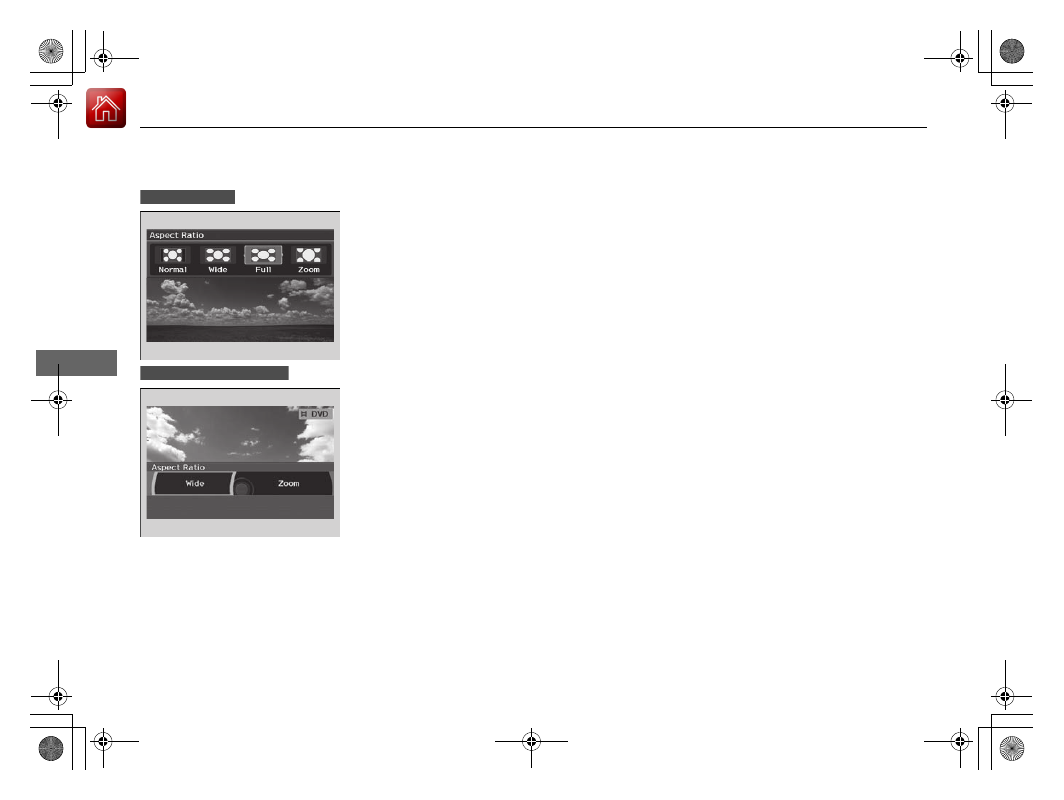

Setting the aspect ratio

1. Press the MENU button (in DVD mode).
2. Select Aspect Ratio. Press the ENTER

button.

3. Select an option. Press the ENTER button.

1. Press the MENU button (in DVD mode).
2. Select Aspect Ratio. Press the ENTER

button.

3. Select an item. Press the ENTER button.
4. Select an option. Press the ENTER button.

The following items are available:
• Wide: Selects the wide screen option (NormalFullSuper FullUltra Full).
• Zoom: Selects the zoom screen option (Super ZoomUltra Zoom).

Models with RES

Models with ultrawide RES

18 ACURA MDX-31TZ56400.book  348 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

349

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Features

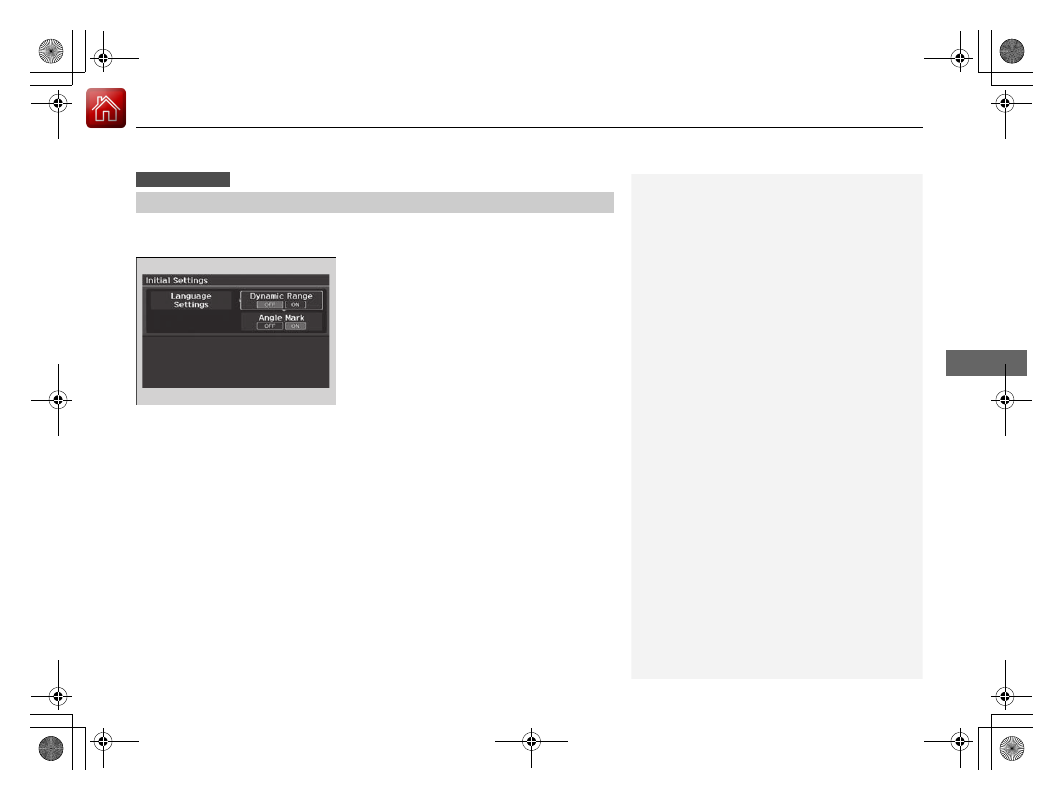

Set the DVD default settings so that you do not have to select the settings each time
you play a DVD.

1. Press the MENU button (in DVD mode).
2. Select Initial Settings. Press the ENTER

button.

3. Select an item. Press the ENTER button.
4. Select an option. Press the ENTER button.

The following items are available:
• Language Settings: Selects a menu language of the DVD (top) menu.

Selecting the DVD menu language P. 350

• Dynamic Range: Sets whether to control the range of the loud and low sounds.

On: Adjusts the dynamic range to easily hear the low sound.
Off (factory default): Disables the feature.

• Angle Mark: Sets whether to display the angle symbol.

On: Displays the angle symbol when playing the multiple angle scenes.
Off (factory default): Disables the feature.

DVD Initial Settings

Models with RES

1

DVD Initial Settings

Each item can be selected when DVD playback is
stopped.

18 ACURA MDX-31TZ56400.book  349 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

350

Features

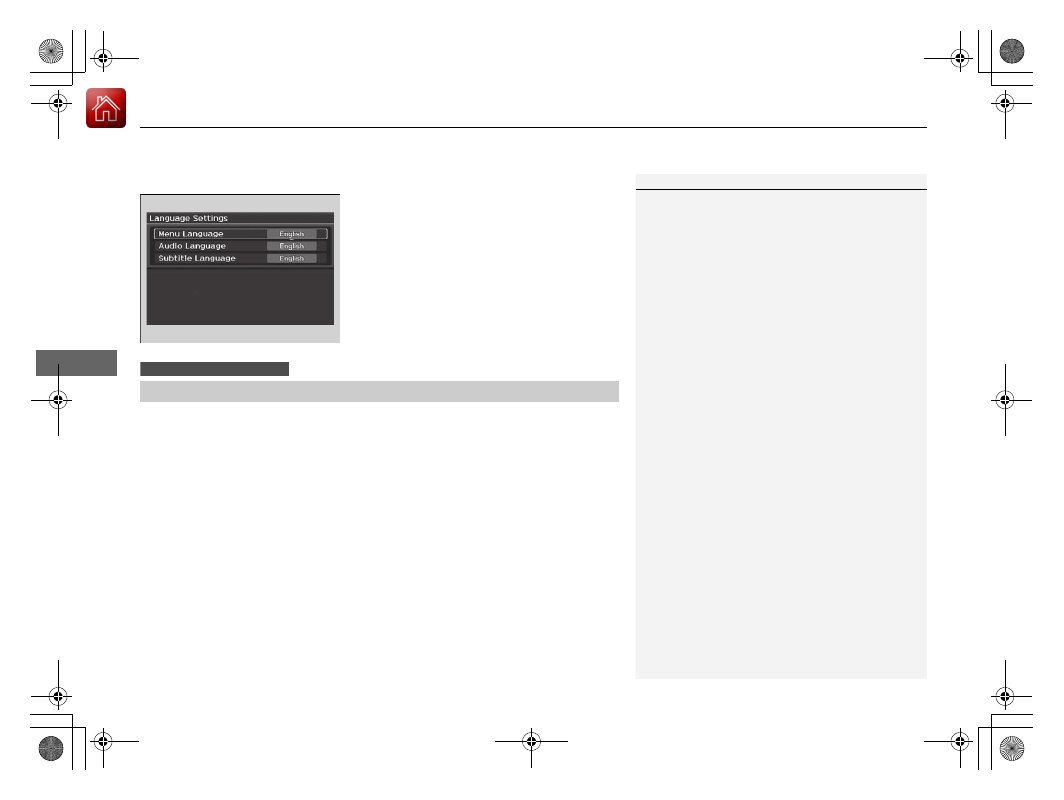

Selecting the DVD menu language

1. Press the MENU button (in DVD mode).
2. Select Initial Settings. Press the ENTER

button.

3. Select Language Settings. Press the

ENTER button.

4. Select an item. Press the ENTER button.
5. Select a language. Press the ENTER button.

Select between the two screen modes, single or dual.

Rear Control Panel Operation P. 340

Single mode

The selected source is displayed in the center of the screen.

Dual mode

Two separate screens are displayed side by side. You can only select one output
source from the front audio system. The other source must come from “REAR AUX
Video
” or “REAR AUX HDMI”.

1

Selecting the DVD menu language

When you select Other, enter a 4-digit language
code.

Dual Screen Mode

Models with ultrawide RES

18 ACURA MDX-31TZ56400.book  350 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

351

uu

Rear Entertainment System (RES)

*

u

Rear Control Panel Operation

Features

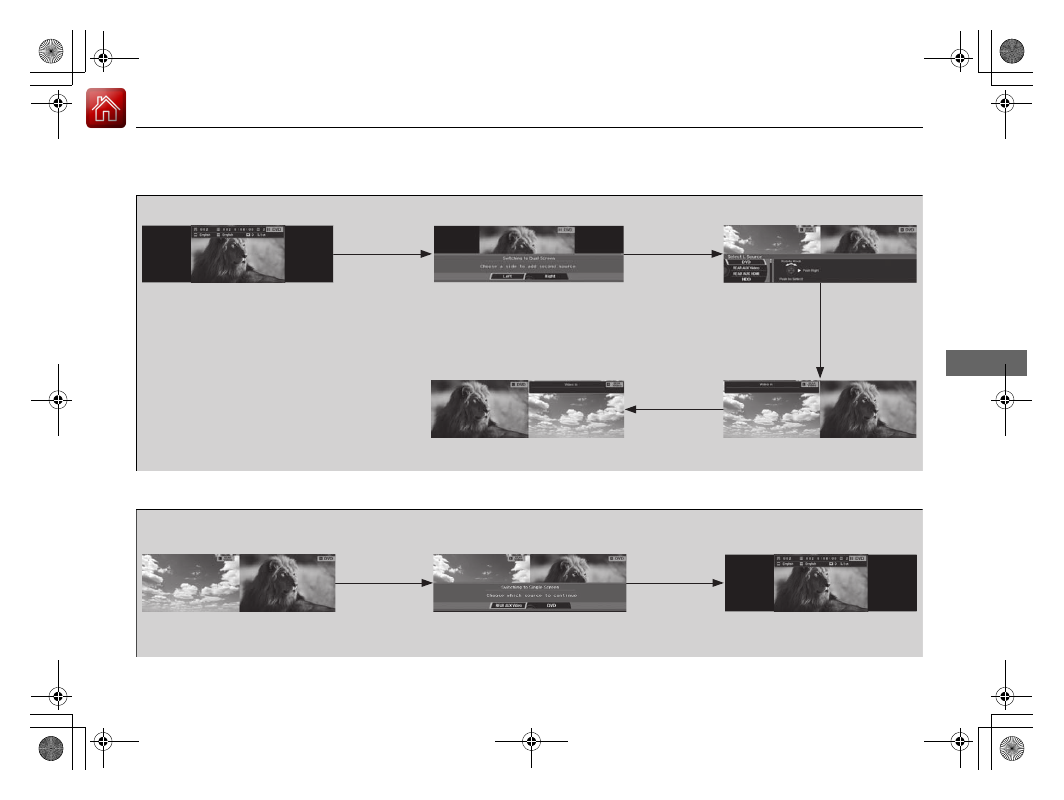

Single mode to dual mode

Dual mode to single mode

DVD

Press the DUAL
button.

Select the side
(e.g., “Left”).

Select a source
(e.g., “REAR
AUX Video
”).

DVD

REAR AUX Video

Press the SWAP
button.

REAR AUX Video

DVD

DVD

REAR AUX Video

Press the
SINGLE button.

Select a source
(e.g., “DVD”).

DVD

18 ACURA MDX-31TZ56400.book  351 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

352

uu

Rear Entertainment System (RES)

*

u

Front Control Panel Operation

Features

Front Control Panel Operation

Operate the Rear Entertainment System (RES) from the On Demand Multi-Use
Display

TM

.

1. Press the REAR

 (power) button on the

front control panel.

2. Select Front/Rear to switch Rear mode.
3. Select Source.

u

The rear source is displayed on the On
Demand Multi-Use Display

TM

.

4. Select the audio source on the On Demand

Multi-Use Display

TM

.

u

The rear source is heard from the front
speakers.

5. Select a station, channel, track, or chapter

in the same way as the front audio system.

Selecting an Audio Source P. 240

Selecting the Audio Source using Front Control Panel

18 ACURA MDX-31TZ56400.book  352 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

353

uu

Rear Entertainment System (RES)

*

u

Front Control Panel Operation

Continued

Features

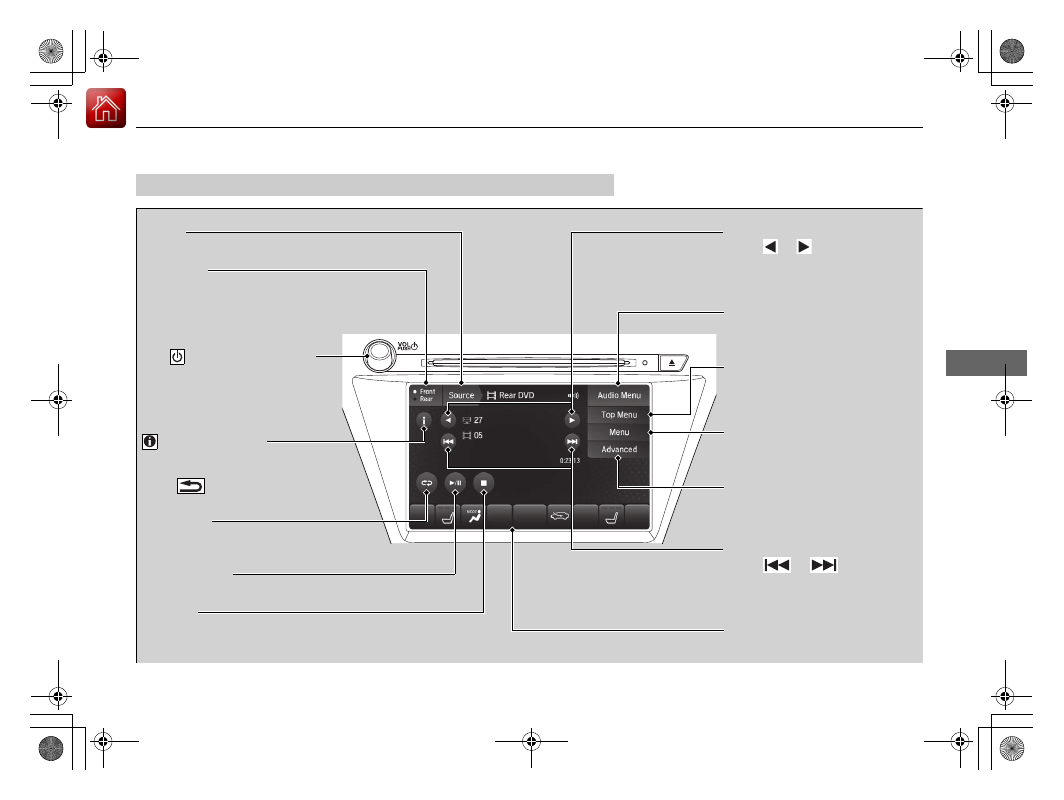

Operating the DVD Rear Entertainment System

Source
Select to change an audio source.

Front/Rear
Select to changes between the
front side audio source selection
and rear side audio source
selection.

VOL/

 (Volume/Power) Knob

Press to turn the audio system
on and off.
Turn to adjust the volume.

 (Information) Icon

Select to displays the current DVD
details.
Select

 to displays the previous

screen.

Repeat Icon
Select to repeats the current chapter
or title.

Play/Pause Icon
Select to resume or play a DVD.

Stop Icon
Select to stop the playback.

Title Up/Down Icons
Select

 to

 skip to the next

title, and to skip to the beginning
of the previous title.

Audio Menu
Select to display the menu items.

Top Menu
Select to displays the top page
of the DVD’s title menu.

Menu
Select to displays the menu.

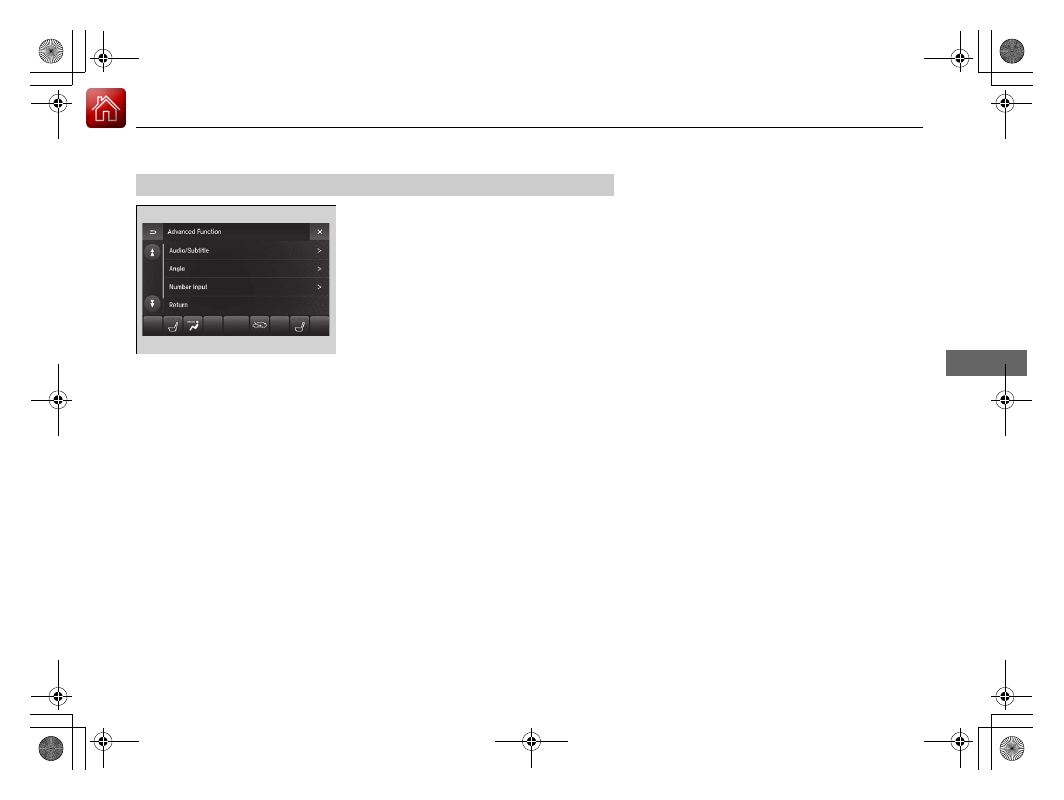

Advanced
Select to displays the DVD
setting menu.

Chapter Up/Down Icons
Select

 or

 to change

chapters.
Select and hold to fast forward
and reverse.

On Demand Multi-Use Display

TM

18 ACURA MDX-31TZ56400.book  353 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

Rear Entertainment System (RES)

*

u

Front Control Panel Operation

354

Features

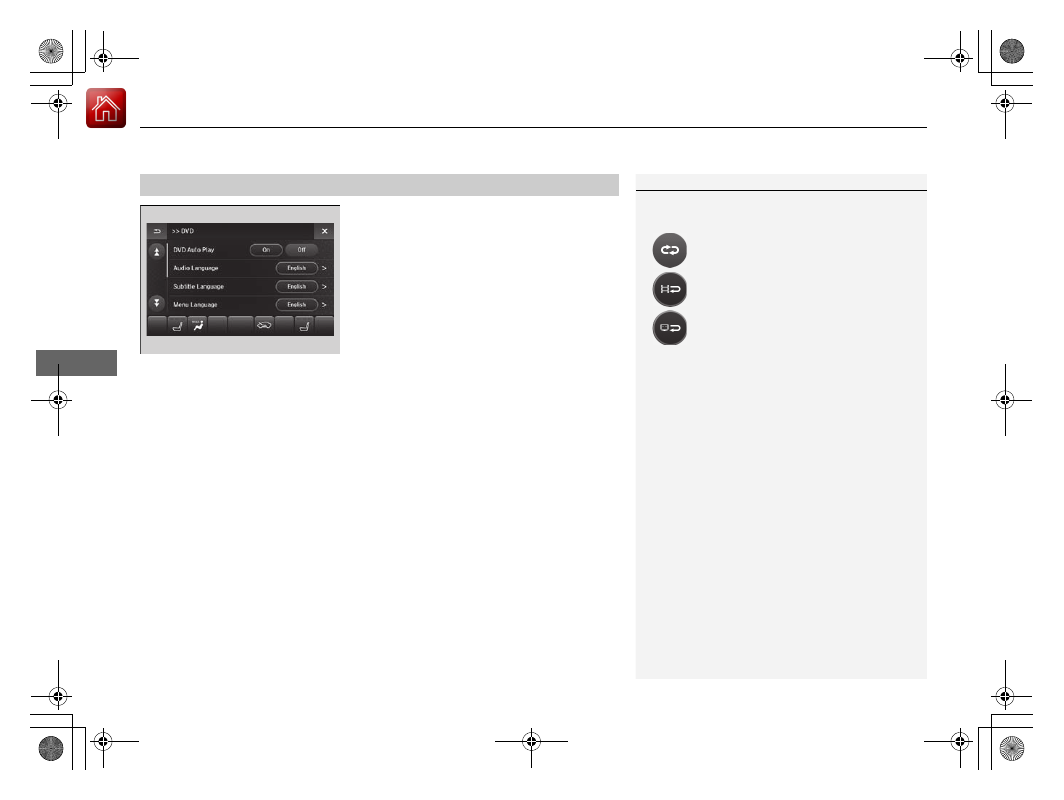

1. Select Audio Menu.
2. Select Audio Settings.
3. Select DVD.

The following items are available:
• DVD Auto Play: Turns the auto play feature on or off.
• Audio Language: Selects a language for the audio that is available on the DVD.
• Subtitle Language: Selects a language for the subtitle that is available on the

DVD.

• Menu Language: Selects a language for the DVD menu that is available on the

DVD.

• Dynamic Range: Sets whether to control the range of the loud and low sounds.

DVD Setup

1

Operating the DVD Rear Entertainment System

Play Mode Menu Item
Repeat

(repeat off): Repeat mode to off.

(repeat chapter): Repeats the current
chapter.

(repeat title): Repeats the current title.

18 ACURA MDX-31TZ56400.book  354 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

355

uu

Rear Entertainment System (RES)

*

u

Front Control Panel Operation

Continued

Features

Select Advanced.

The following items are available:
• Audio/Subtitle: Selects the language of the DVD audio and the DVD subtitle.
• Angle: Selects the angle of a scene shot with multiple cameras.
• Number Input: Enters a number of a title or chapter to skip.
• Return: Return to the previous screen.
• Search: Skips to a title or chapter.

Setting the DVD Menu

18 ACURA MDX-31TZ56400.book  355 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

356

uu

Rear Entertainment System (RES)

*

u

Front Control Panel Operation

Features

1. Select Audio Menu.
2. Select RES Settings.

The following items are available:
• Rear Control: Sets whether to use the rear control panel to control the RES.

When setting is set to On, operates the RES using the rear control panel.

• Rear Speaker: Sets the front audio source to play through the rear speakers,

even when the RES is on. The RES source can only be heard through the wireless
headphones. When setting is set to On, outputs the sound of the front source to
the rear speakers.

• Single/Dual Screen Mode

*

: Selects a source to continue playing when you

switch from dual mode to single mode on the overhead screen.

Rear System Setup

* Not available on all models

18 ACURA MDX-31TZ56400.book  356 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

357

uu

Rear Entertainment System (RES)

*

u

Playable Discs

Features

Playable Discs

The discs that come with these labels can be played in your vehicle’s rear
entertainment system.

Also look for the region code of 1 or ALL on the package or jacket on the disc.

DVD-ROMs are not playable in this unit.

1

Playable Discs

This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights.

Use of this copyright protection technology must be
authorized by Rovi Corporation, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Rovi Corporation. Reverse
engineering and disassembly are prohibited.

For DTS patents, see http://patents.dts.com
Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol
together are registered trademarks, and DTS Digital
Surround and Neural Surround are trademarks of
DTS, Inc. © DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, MLP Lossless and the double-D
symbol are trademarks of Dolby Laboratories.

The disc packages or jackets should have one of these marks.

Also includes:

18 ACURA MDX-31TZ56400.book  357 ページ  2017年8月23日 水曜日 午後4時1分

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     20      21      22      23     ..
