420

uu

Braking

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

*

Driving

The CMBS

TM

 may activate even when you are aware of a vehicle ahead of you, or

when there is no vehicle ahead. Some examples of this are:

When Passing

Your vehicle approaches another vehicle ahead of you and you change lanes to pass.

At an intersection

Your vehicle approaches or passes another vehicle that is making a left or right turn.

On a curve

When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.

Through a low bridge at high speed

You drive under a low or narrow bridge at high speed.

Speed bumps, road work sites, train tracks, roadside objects, etc.

You drive over speed bumps, steel road plates, etc., or your vehicle approaches train
tracks or roadside objects [such as a traffic sign and guard rail] on a curve or, when
parking, stationary vehicles and walls.

With Little Chance of a Collision

18 ACURA ILX-31TX66500.book  420 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

421

Driving

Parking Your Vehicle

When Stopped

1. Depress the brake pedal firmly.
2. Firmly apply the parking brake.
3. Move the shift lever from

(

D to

(

P.

4. Turn off the engine.

Always set the parking brake firmly, in particular if you are parked on an incline.

1

Parking Your Vehicle

Do not park your vehicle near flammable objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.

1

When Stopped

NOTICE

The following can damage the transmission:

Depressing the accelerator and brake pedals
simultaneously.

Holding the vehicle in place when facing uphill by
depressing the accelerator pedal.

Moving the shift lever into

(

P before the vehicle

stops completely.

In extremely cold temperatures, the parking brake
may freeze up if applied. If such temperatures are
expected, do not apply the parking brake but, if
parking on a slope, either turn the front wheels so
they will contact the curb if the vehicle rolls down the
slope or block the wheels to keep the vehicle from
moving. If you do not take either precaution, the
vehicle may roll unexpectedly, leading to a crash.

18 ACURA ILX-31TX66500.book  421 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

422

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

Driving

Cross Traffic Monitor

*

Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching from a rear corner is detected.

The system is convenient when you are backing out of a parking space.

1

Cross Traffic Monitor

*

3

CAUTION

Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.

Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.

Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.

* Not available on all models

18 ACURA ILX-31TX66500.book  422 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

423

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

Driving

The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor is turned on.

Cross Traffic Monitor On and Off P. 424
Customized Features

*

 P. 263

• The shift lever is in

(

R.

• Your vehicle is moving at 3 mph (5 km/h) or

lower.

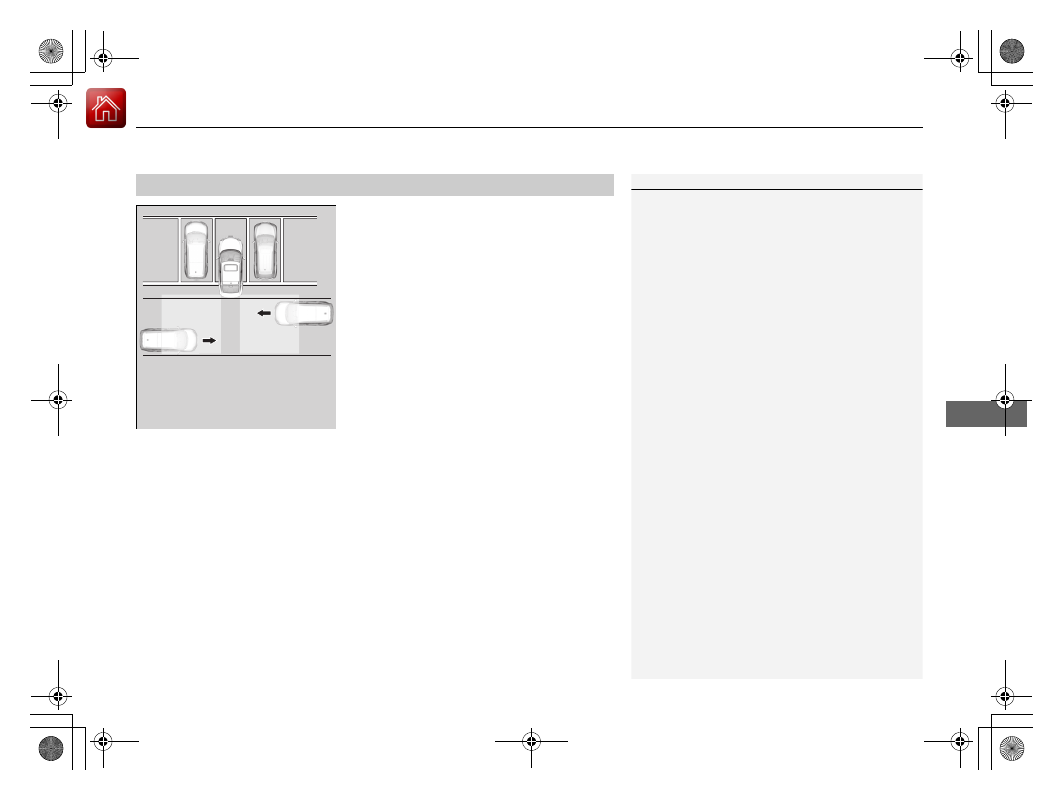

When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.

The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.

The system does not detect or provide alerts for a vehicle that is moving away from
your vehicle, and it may detect or alert for pedestrians, bicycles, or stationary
objects.

How the System Works

1

Cross Traffic Monitor

*

Cross traffic monitor may not detect or may delay
alerting an approaching vehicle, or may alert without
an approaching vehicle under the following
conditions:

An obstacle, such as another vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.

Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.

A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).

The system picks up external interference such as
other radar sensors from another vehicle or strong
radio wave transmitted from a facility nearby.

Either corner of the rear bumper is covered with
snow, ice, mud or dirt.

When there is bad weather.

Your vehicle is on an incline.

Your vehicle is tilted due to a heavy load in the rear.

Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.

The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed. Have your vehicle checked by a dealer.

For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.

Radar sensors:
Underneath the rear bumper
corners

* Not available on all models

18 ACURA ILX-31TX66500.book  423 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

424

Driving

An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.

You can switch on and off the system using
the audio/information screen.

Customized Features

*

 P. 263

When the System Detects a Vehicle

1

When the System Detects a Vehicle

If the

 on the lower right changes to

 in amber

when the transmission is in

(

R, mud snow or ice, etc.

may have accumulated in the vicinity of the sensor.
Check the bumper corners for any obstructions, and
thoroughly clean the area if necessary.

If the

 comes on in amber when the transmission

is in

(

R, there may be a problem with the Cross

Traffic Monitor system. Do not use the system and
have your vehicle checked by a dealer.

If the display remains the same with the transmission
in

(

R, there may be a problem with the rear camera

system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.

Cross Traffic Monitor On and Off

Wide View

Top Down View

Arrow Icon

Normal View

 Icon

* Not available on all models

18 ACURA ILX-31TX66500.book  424 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

425

Continued

Driving

Multi-View Rear Camera

About Your Multi-View Rear Camera

See the Navigation System Instruction.

The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the transmission is put into

(

R.

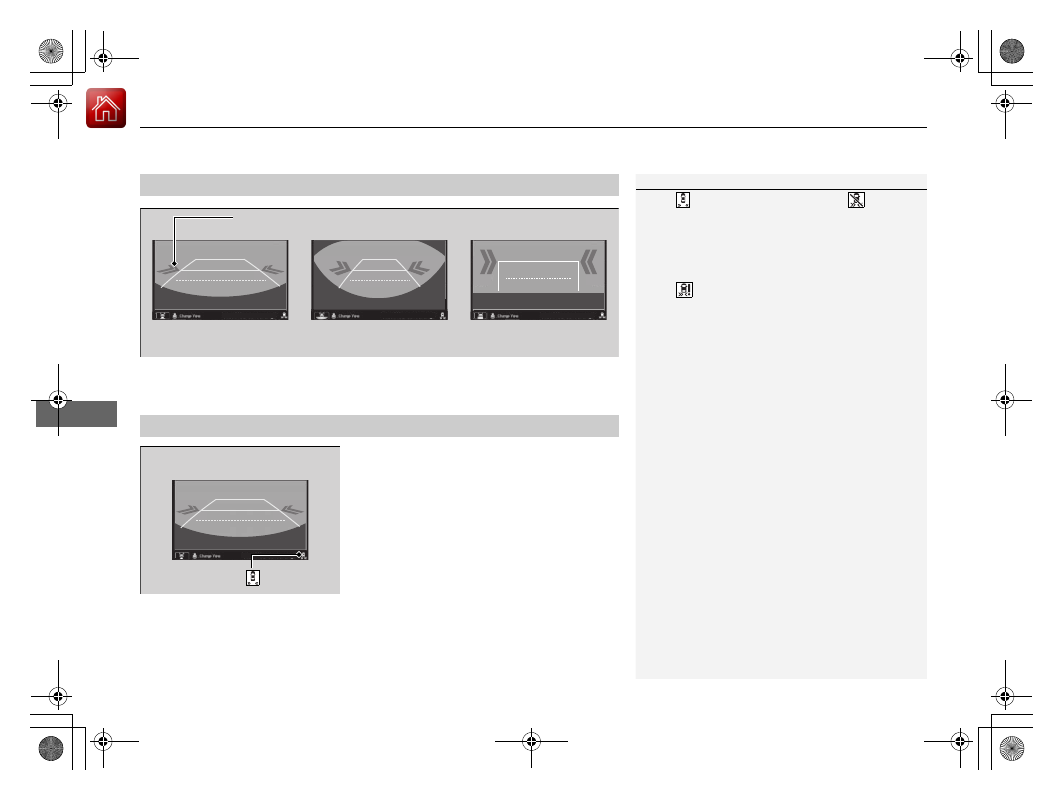

Multi-View Rear Camera Display Area

1

About Your Multi-View Rear Camera

The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique lens also makes objects
appear closer or farther than they actually are.

Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.

If the camera lens is covered with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.

You can change the Fixed Guideline and Dynamic
Guideline
 settings.

Customized Features

*

 P. 263

Fixed Guideline
On:
Guidelines appear when you put the
transmission into

(

R.

Off: Guidelines do not appear.
Dynamic Guideline
On:
Guidelines move according to the steering wheel
direction.
Off: Guidelines do not move.

Models with navigation system

Models without navigation system

Top Down View Mode

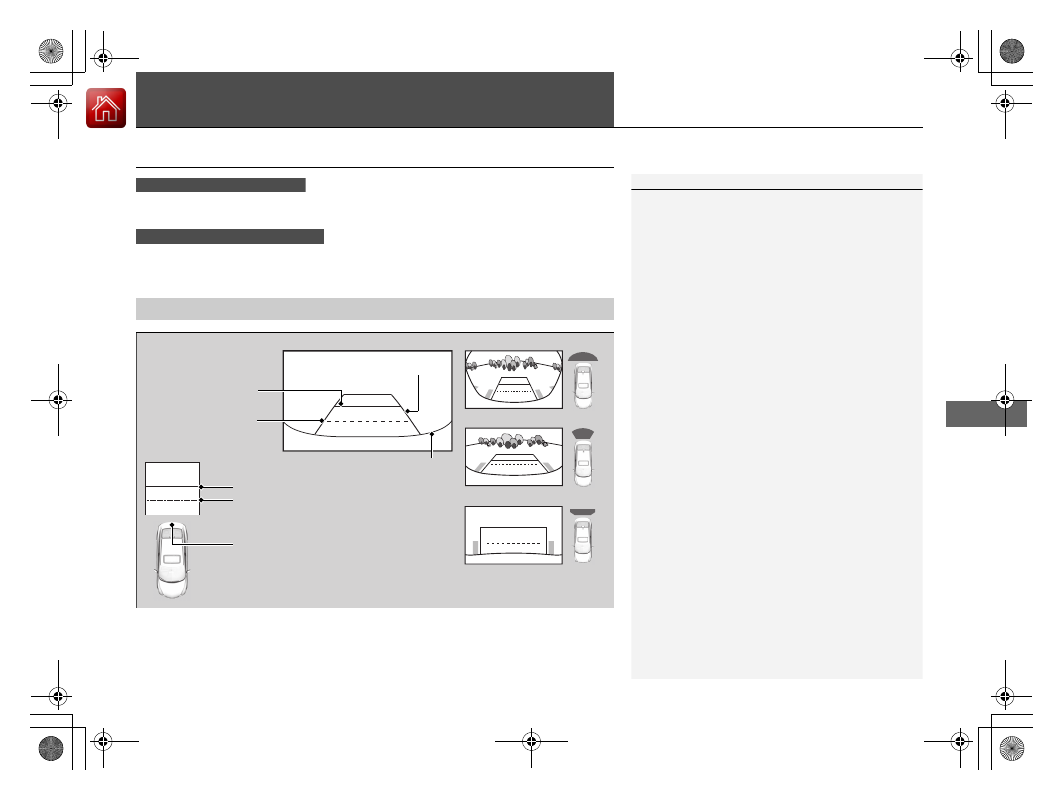

Normal View Mode

Wide View Mode

Guidelines

Bumper

Camera

Approx. 39 inches (1 m)
Approx. 20 inches (50 cm)

Approx. 39 inches
(1 m)

Approx. 20 inches
(50 cm)

* Not available on all models

18 ACURA ILX-31TX66500.book  425 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

426

uu

Multi-View Rear Camera

u

About Your Multi-View Rear Camera

Driving

You can view three different camera modes on the rearview display. Press the
selector knob to switch the mode.

: Wide view mode
: Normal view mode
: Top down view mode

• If the last used viewing mode was Wide or Normal view mode, the same mode is

selected the next time you put the transmission into

(

R.

• If Top down view mode was last used before you turned the power mode to OFF,

Wide View mode is selected next time you set the power mode to ON and put the
transmission into

(

R.

• If Top down view mode was last used more than 10 seconds after you change

from

(

R, Wide View mode is selected the next time you put the transmission into

(

R.

18 ACURA ILX-31TX66500.book  426 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

427

Driving

Refueling

Fuel Information

Fuel recommendation

Use of lower octane gasoline can cause occasional metallic knocking noise in the
engine and will result in decreased engine performance.
Use of gasoline with a pump octane less than 87 can lead to engine damage.

Top tier detergent gasoline

Because the level of detergency and additives in gasoline vary in the market, Acura
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.

Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.

For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit Acura Owners at owners.acura.com. In
Canada, visit www.acura.ca for additional information on gasoline. For more
information on top tier gasoline, visit www.toptiergas.com.

Fuel tank capacity: 13.2 US gal (50 liters)

Unleaded premium gasoline, pump octane number 91 or higher

1

Fuel Information

NOTICE

We recommend quality gasoline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly recommend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.

Use of gasoline with these additives may adversely
affect performance, and cause the malfunction
indicator lamp on your instrument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gasoline containing methanol.
If you notice any undesirable operating symptoms, try
another service station or switch to another brand of
gasoline.

18 ACURA ILX-31TX66500.book  427 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

428

uu

Refueling

u

How to Refuel

Driving

How to Refuel

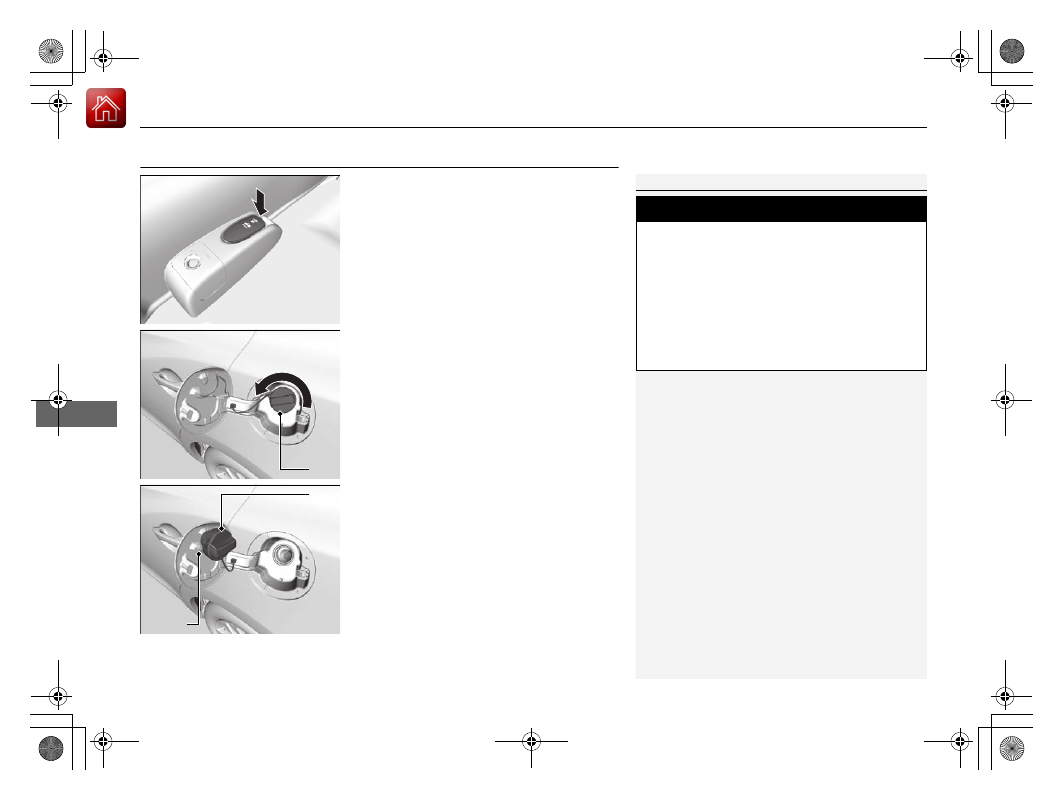

1. Stop your vehicle with the service station

pump on the left side of the vehicle in the
rear.

2. Turn off the engine.
3. Push on the fuel fill door release handle at

the foot of the driver’s seat.

u

The fuel fill door opens.

4. Remove the fuel fill cap slowly. If you hear a

release of air, wait until this stops, then turn
the knob slowly to open the fuel fill cap.

5. Place the fuel fill cap in the holder.
6. Insert the filler nozzle fully.

u

When the tank is full, the filler nozzle will
click off automatically. This leaves space
in the fuel tank in case the fuel expands
with a change in the temperature.

7. After filling, replace the fuel fill cap,

tightening it until you hear it click at least
once.

u

Shut the fuel fill door by hand.

1

How to Refuel

If the filler nozzle keeps turning off when the tank is
not full, there may be a problem with the pump’s fuel
vapor recovery system. Try filling at another pump. If
this does not fix the problem, consult a dealer.

Do not continue to add fuel after the filler nozzle has
automatically stopped. Additional fuel can exceed
the full tank capacity.

The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat, sparks,

and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Push

Cap

Cap

Holder

18 ACURA ILX-31TX66500.book  428 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

429

Driving

Fuel Economy and CO

2

 Emissions

Improving Fuel Economy and Reducing CO

2



Emissions

Achieving fuel economy and reducing CO

2

 emissions is dependent on several

factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.

You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
multi-information display.
• Use the recommended viscosity engine oil, displaying the API Certification Seal.
• Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle's underside

adds weight and increases wind resistance.

Maintenance and Fuel Economy

1

Improving Fuel Economy and Reducing CO

2

 Emissions

Direct calculation is the recommended method to
determine actual fuel consumed while driving.

In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/

Miles driven

Gallons of

fuel

Miles per

Gallon

100

L per 100 km

Kilometers

driven

Liters of

fuel

18 ACURA ILX-31TX66500.book  429 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

431

Maintenance

This chapter discusses basic maintenance.

Before Performing Maintenance

Inspection and Maintenance ............ 432
Safety When Performing Maintenance..433
Parts and Fluids Used in Maintenance

Service ........................................... 434

Maintenance Minder

TM

..................... 435

Maintenance Under the Hood

Maintenance Items Under the Hood.. 440
Opening the Hood ........................... 441
Recommended Engine Oil ................ 442
Oil Check ......................................... 443
Adding Engine Oil ............................ 444
Changing the Engine Oil and Oil Filter ...445

Engine Coolant ................................ 447
Transmission Fluid............................ 449
Brake Fluid....................................... 450
Refilling Window Washer Fluid......... 450

Replacing Light Bulbs ....................... 451

Checking and Maintaining Wiper

Blades .......................................... 460

Checking and Maintaining Tires

Checking Tires ................................. 462
Tire and Loading Information Label .. 463
Tire Labeling .................................... 463
DOT Tire Quality Grading (U.S. Vehicles)..465
Wear Indicators................................ 467

Tire Service Life................................ 467
Tire and Wheel Replacement ........... 468
Tire Rotation.................................... 469
Winter Tires ..................................... 470

Battery............................................... 471
Remote Transmitter Care

Replacing the Button Battery ........... 472

Climate Control System Maintenance ..474
Cleaning

Interior Care .................................... 475
Exterior Care.................................... 478

Accessories and Modifications ........ 481

18 ACURA ILX-31TX66500.book  431 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

432

Main

tenan

ce

Before Performing Maintenance

Inspection and Maintenance

For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintenance booklet for detailed maintenance and
inspection information.

Daily inspections

Perform inspections before long distance trips, when washing the vehicle, or when
refueling.

Periodic inspections

• Check the brake fluid level monthly.

Brake Fluid P. 450

• Check the tire pressure monthly. Examine the tread for wear and foreign objects.

Checking and Maintaining Tires P. 462

• Check the operation of the exterior lights monthly.

Replacing Light Bulbs P. 451

• Check the condition of the wiper blades at least every six months.

Checking and Maintaining Wiper Blades P. 460

Types of Inspection and Maintenance

1

Inspection and Maintenance

Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.

According to state and federal regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordance with the intervals
indicated by the multi-information display (MID).

Maintenance Service Items P. 438

If you want to perform complex maintenance tasks
that require more skills and tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com.

Authorized Instructions P. 533

If you want to perform maintenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenance, update the records in
the separate maintenance booklet.

U.S. models

18 ACURA ILX-31TX66500.book  432 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

433

uu

Before Performing Maintenance

u

Safety When Performing Maintenance

Main

tenan

ce

Safety When Performing Maintenance

Some of the most important safety precautions are given here.
However, we cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether you should perform a given
task.

• To reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames

away from the battery and all fuel related parts.

• Never leave rags, towels, or other flammable objects under the hood.

u

Heat from the engine and exhaust can ignite them, causing a fire.

• To clean parts, use a commercially available degreaser or parts cleaner, not

gasoline.

• Wear eye protection and protective clothing when working with the battery or

compressed air.

• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.

u

Only operate the engine if there is sufficient ventilation.

• The vehicle must be in a stationary condition.

u

Make sure your vehicle is parked on level ground, the parking brake is set, and
the engine is off.

• Be aware that hot parts can burn you.

u

Make sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.

• Be aware that moving parts can injure you.

u

Do not start the engine unless instructed, and keep your hands and limbs away
from moving parts.

Maintenance Safety

Vehicle Safety

1

Safety When Performing Maintenance

3

WARNING

Improperly maintaining this vehicle or
failing to correct a problem before driving
can cause a crash in which you can be
seriously hurt or killed.

Always follow the inspection and
maintenance recommendations according
to the schedules in this owner's instruction.

3

WARNING

Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.

Always follow the procedures and
precautions in this owner's instruction.

18 ACURA ILX-31TX66500.book  433 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

434

uu

Before Performing Maintenance

u

Parts and Fluids Used in Maintenance Service

Main

tenan

ce

Parts and Fluids Used in Maintenance Service

The use of Acura genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Acura genuine parts are manufactured according to the same
high quality standards used in Acura vehicles.

18 ACURA ILX-31TX66500.book  434 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

435

Main

tenan

ce

Maintenance Minder

TM

If the engine oil life is less than 15%, you will see the Maintenance Minder messages
appear on the multi-information display every time you set the power mode to ON.
The messages notify you when to change the engine oil, or when to bring your
vehicle to a dealer for indicated maintenance services.

18 ACURA ILX-31TX66500.book  435 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

436

uu

Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Main

tenan

ce

To Use Maintenance Minder

TM

Maintenance items, which should be serviced at the same time that you replace the
engine oil, appear on the multi-information display.
You can view them on the engine oil life screen at any time.

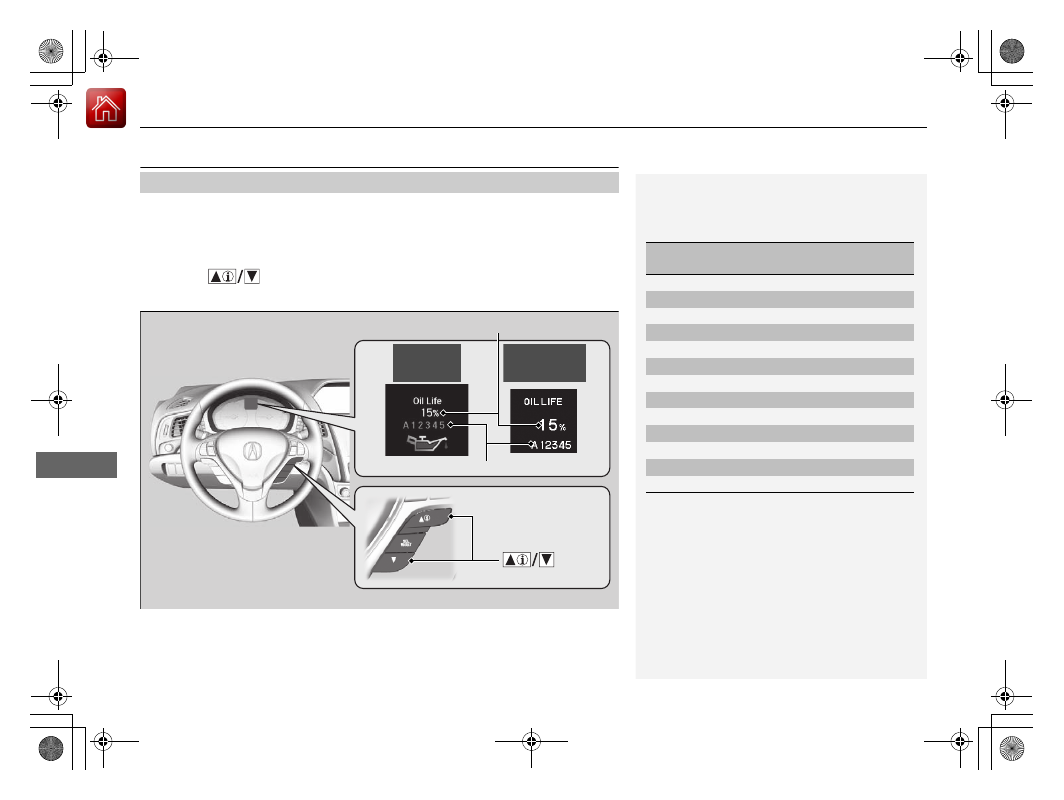

1. Set the power mode to ON.
2. Press the

 button repeatedly until the engine oil life appears on the multi-

information display.

Displaying the Maintenance Minder Information

1

Displaying the Maintenance Minder Information

Based on the engine operating conditions, the
remaining engine oil life is calculated and displayed
as a percentage.

There is a list of maintenance main and sub items you
can view on the multi-information display.

Maintenance Service Items P. 438

Displayed Engine Oil

Life (%)

Calculated Engine Oil

Life (%)

100

100 to 91

90

90 to 81

80

80 to 71

70

70 to 61

60

60 to 51

50

50 to 41

40

40 to 31

30

30 to 21

20

20 to 16

15

15 to 11

10

10 to 6

5

5 to 1

0

0

 Button

Remaining Engine Oil Life

Maintenance Service Items

Models with
full color
display

Models without
full color
display

18 ACURA ILX-31TX66500.book  436 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     25      26      27      28     ..
