Acura ILX (2018 year). Instruction - part 18





276

uu

Customized Features

*

u

Features

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

Vehicle
Settings

Mainte-
nance
Info.

Maintenance Reset

Resets the engine oil life display when you have
performed the maintenance service.

Default

Cancels/Resets all customized items in the
Vehicle Settings group as default.

Default/OK

Camera
Settings

Rear
Camera

Fixed Guideline

Selects whether the fixed guidelines come on the
rear camera monitor.

On

*1

/Off

Dynamic Guideline

Selects whether the dynamic guidelines come on
the rear camera monitor.

On

*1

/Off

Default

Cancels/Resets all customized items in the Rear
Camera
 group as default.

Default/OK

Cross
Traffic
Monitor

Turns the cross traffic monitor feature on and off.

On

*1

/Off

18 ACURA ILX-31TX66500.book  276 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

277

uu

Customized Features

*

u

Continued

Features

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

Audio
Settings

SXM

SportsFlash

TM*

Notification

Turns on and off the sports alert function.

Disable

*1

/Enable/

Enable(one time)

Beep

Causes the system to beep when the sports alert
is notified.

On

*1

/Off

Favorite
Teams

Selects your favorite sport teams.

Live Sports Alert P. 221

On

*1

/Off

Play Song from Beginning

Turns on and off the Tune Start function.

On

*1

/Off

Bluetooth

Bluetooth Device List

Edits or deletes a Bluetooth® Audio device paired
to HFL.

Connect Bluetooth Audio
Device

Connects, disconnects or pairs a Bluetooth®
Audio device to HFL.

SiriusXM® mode

SiriusXM® mode

Bluetooth® Audio, Pandora®

*

 or

Aha

TM

 mode

Bluetooth® Audio, Pandora®

*

 or

Aha

TM

 mode

* Not available on all models

18 ACURA ILX-31TX66500.book  277 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

278

uu

Customized Features

*

u

Features

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

Audio
Settings

Others

Source Select Popup

Selects whether the list of selectable audio
sources comes on when the AUDIO button is
pressed.

On/Off

*1

HD Radio Mode

*

Selects whether the audio system automatically
switches to the digital radio waves or receives the
analogue waves only.

Auto

*1

/Analog

Cover Art

Turns on and off the cover art display.

On

*1

/Off

Default

Cancels/Resets all customized items in the Audio
Settings
 group as default.

Default/OK

FM/AM mode

iPod, USB, Pandora®

*

 or Aha

TM



mode

* Not available on all models

18 ACURA ILX-31TX66500.book  278 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

279

uu

Customized Features

*

u

Continued

Features

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

Phone
Settings

Phone

Connect Phone

Pairs a new phone to HFL, or connects or
disconnects a paired phone.

Phone Setup P. 323

Bluetooth Device List

Pairs a new phone to HFL, edits or deletes a
paired phone, or creates a security PIN.

Phone Setup P. 323

Edit Speed Dial

Edits, adds or deletes a speed dial entry.

Phone Setup P. 323

Auto Transfer

Sets calls to automatically transfer from your
phone to HFL when you enter the vehicle.

On

*1

/Off

Auto Answer

Sets whether to automatically answer an
incoming call after about four seconds.

On/Off

*1

Ring Tone

Selects the ring tone.

Fixed/Mobile
Phone

*1

/Off

Automatic Phone Sync

Sets a phonebook data to be automatically
imported when a phone is paired to HFL.

On

*1

/Off

Use Contact Photo

Displays a caller’s picture on an incoming call
screen.

On

*1

/Off

18 ACURA ILX-31TX66500.book  279 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

280

uu

Customized Features

*

u

Features

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

Phone
Settings

Text/
Email

Enable Text/Email

Turns the text/e-mail message function on and
off.

On

*1

/Off

Select Account

Selects a text or e-mail message account.

New Text/Email Alert

Selects whether a pop-up alert comes on the
screen when HFL receives a new text/e-mail
message.

Message Auto Reading

Selects whether the system automatically reads
out messages, and, if selected, whether only
when driving.

On/Off/Auto

*1

Default

Cancels/Resets all customized items in the Phone
Settings
 group as default.

Default/OK

18 ACURA ILX-31TX66500.book  280 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

281

uu

Customized Features

*

u

Continued

Features

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

Info
Settings

Clock

Clock/
Wallpaper
Type

Clock

See System Settings on  P. 269 to  P. 271.

Wallpaper

Clock Adjustment

Clock Format

Other

Info Screen Preference

Selects the top menu when the INFO button is
pressed.

Info Top- A brief menu pops up.

Info Menu- A full menu pops up.

Off- A menu does not pop up.

Info Top/Info
Menu

*1

/Off

Default

Cancels/Resets all customized items in the Info
Settings
 group as default.

Default/OK

18 ACURA ILX-31TX66500.book  281 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

282

uu

Customized Features

*

u

Features

*1:Default Setting

Setup

Group

Customizable Features

Description

Selectable Settings

App
Settings

Display Adjustment

Brightness

Changes the brightness of the audio/information
screen.

Contrast

Changes the contrast of the audio/information
screen.

Black Level

Changes the black level of the audio/information
screen.

Color

Changes the color of the audio/information
screen.

Tint

Changes the tint of the audio/information screen.

Guidance Volume

Adjusts the guidance volume level with
navigation app.

0 ~ 9

*1

 ~ 11

Sync Clock w/ Smartphone

Selects whether the clock links to the device you
connect.

On/Off

*1

Default

Cancels/Resets all customized items in the App
Settings
 group as default.

Default/OK

18 ACURA ILX-31TX66500.book  282 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

283

uu

Customized Features

*

u

Defaulting All the Settings

Features

Defaulting All the Settings

You can reset all the menu and customized settings as the factory defaults.

1. Press the SETTINGS button.
2. Rotate

 to select System Settings, then

press .

3. Move

or

to

select

the

Others tab.

4. Rotate

 to select Factory Data Reset

then press

.

u

The pop-up menu appears on the screen.

5. Rotate

 to select Yes, then press

.

u

The confirmation message will appear.

6. Rotate

 to select Yes, then press



again to reset the settings.

u

The confirmation message will appear.
Press

 to select OK.

1

Defaulting All the Settings

When you transfer the vehicle to a third party, reset
all settings to default and delete all personal data.

The following settings will be reset:

Audio preset settings

Phonebook entries

Other display and each item settings.

18 ACURA ILX-31TX66500.book  283 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

284

Features

HomeLink® Universal Transceiver

*

The HomeLink® Universal Transceiver can be programmed to operate up to three
remote controlled devices around your home, such as garage doors, lighting, or
home security systems.

Refer to the safety information that came with your garage door opener to test that
the safety features are functioning properly. If you do not have the safety
information, contact the manufacturer.

Before programming HomeLink, make sure that people and objects are out of the
way of the garage or gate to prevent potential injury or damage.

When programming a garage door opener, park just outside the garage door’s
path.

Important Safety Precautions

1

HomeLink® Universal Transceiver

*

Before programming HomeLink to operate a garage
door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and reverse stop features. If it
does not, HomeLink may not be able to operate it.

* Not available on all models

18 ACURA ILX-31TX66500.book  284 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

285

uu

HomeLink® Universal Transceiver

*

u

Training HomeLink

Continued

Features

Training HomeLink

If it is necessary to erase a previously entered
learned code:
• Press and hold the two outside buttons for

about 20 seconds, until the red indicator
blinks. Release the buttons, and proceed to
step 1.

• If you are training the second or third

button, go directly to step 1.

The instructions on the next page should work for most gate or garage openers, but
may not work for all. For detailed instructions about your specific remote opener,
visit http://www.homelink.com or call (800)355-3515.

Red Indicator

18 ACURA ILX-31TX66500.book  285 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

HomeLink® Universal Transceiver

*

u

Training HomeLink

286

Features

Training a Button

1

Training HomeLink

Retraining a Button
If you want to retrain a programmed button for a
new device, you do not have to erase all button
memory. You can replace the existing memory code
using this procedure:

1. Press and hold the desired HomeLink button

until the HomeLink indicator begins to blink.

2. Quickly release the HomeLink button and follow

steps 1 - 3 under “Training a Button.” You do not
need to press and release the HomeLink button
again in step 2.

Indicator remains on
for about 25 secs.

Standard transmitter

Indicator remains on for
about 25 secs.

Rolling code transmitter

Erasing Codes
To erase all the codes, press and hold the two outside
buttons until the HomeLink indicator begins to blink
(about 10 to 20 secs). You should erase all codes
before selling the vehicle.

If you have any problems, see the device’s
instructions, visit www.homelink.com, or call
HomeLink at (800) 355-3515.

HomeLink® is a registered trademark of Gentex
Corporation.

4.

3.

2.

5.

A.

B.

1. Position the remote transmitter you wish to link 1 to 3 inches (3 - 8 cm) from the

HomeLink button you want to program.

Press and hold the desired HomeLink button. Hold the button on the remote
transmitter. Does the HomeLink indicator (LED) change from slowly blinking to
constantly on or rapidly blinking? The process should take less than 60 seconds.

Press and hold the
programmed HomeLink
button for about a sec.
Does the device (garage
door opener) work?

Press and release the HomeLink button. Press
and release the button on the remote every 2
secs.
Does the HomeLink indicator (LED) change from
slowly blinking to constantly on or rapidly
blinking
? The process should take less than 60
seconds.

Training
Complete

Press and hold the HomeLink button again.

Press and hold the HomeLink
button again.
The remote-controlled device
should operate.

Training Complete

The remote has a rolling code. Press the
“learn” button on the remote-controlled
device (e.g. garage door opener).

Within 30 secs, press and hold the
programmed HomeLink button for 2 secs.

HomeLink indicator rapidly blinks.

HomeLink LED is

constantly on.

YES

NO

YES

YES

NO

NO

18 ACURA ILX-31TX66500.book  286 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

287

Continued

Features

Bluetooth® HandsFreeLink®

Bluetooth® HandsFreeLink® (HFL) allows you to place and receive phone calls using
your vehicle's audio system, without handling your cell phone.

Using HFL

 (Pick-up) button: Press to go directly to the Phone screen or to answer an

incoming call.

 (Hang-up) button: Press to end a call.
 (Talk) button: Press to call a number with a stored voice tag.

 (Back) button: Press to cancel a command.

PHONE button: Press to go directly to the Phone screen.
Selector knob: Rotate

 to select an item on the screen, then press

.

HFL Buttons

1

Bluetooth® HandsFreeLink®

Place your phone where you can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:

U.S.: Visit www.handsfreelink.com/Acura, or call 1-
888-528-7876.

Canada: For more information on smartphone
compatibility, call 1-888-528-7876.

Models with one display

1

Using HFL

Voice control tips

Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphone.

Press the

 button when you want to call a

number using a stored voice tag. Speak clearly and
naturally after a beep.

If the microphone picks up voices other than yours,
the command may be misinterpreted.

To change the volume level, use the audio system's
volume knob or the remote audio controls on the
steering wheel.

State or local laws may prohibit the operation of
handheld electronic devices while operating a
vehicle.

If you receive a call while using the audio system, the
system resumes its operation after ending the call.

Microphone

Pick-up
Button

Selector
Knob

PHONE
Button

Hang-up Button

Volume up

Volume
down

Back Button

Talk Button

18 ACURA ILX-31TX66500.book  287 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

Bluetooth® HandsFreeLink®

u

Using HFL

288

Features

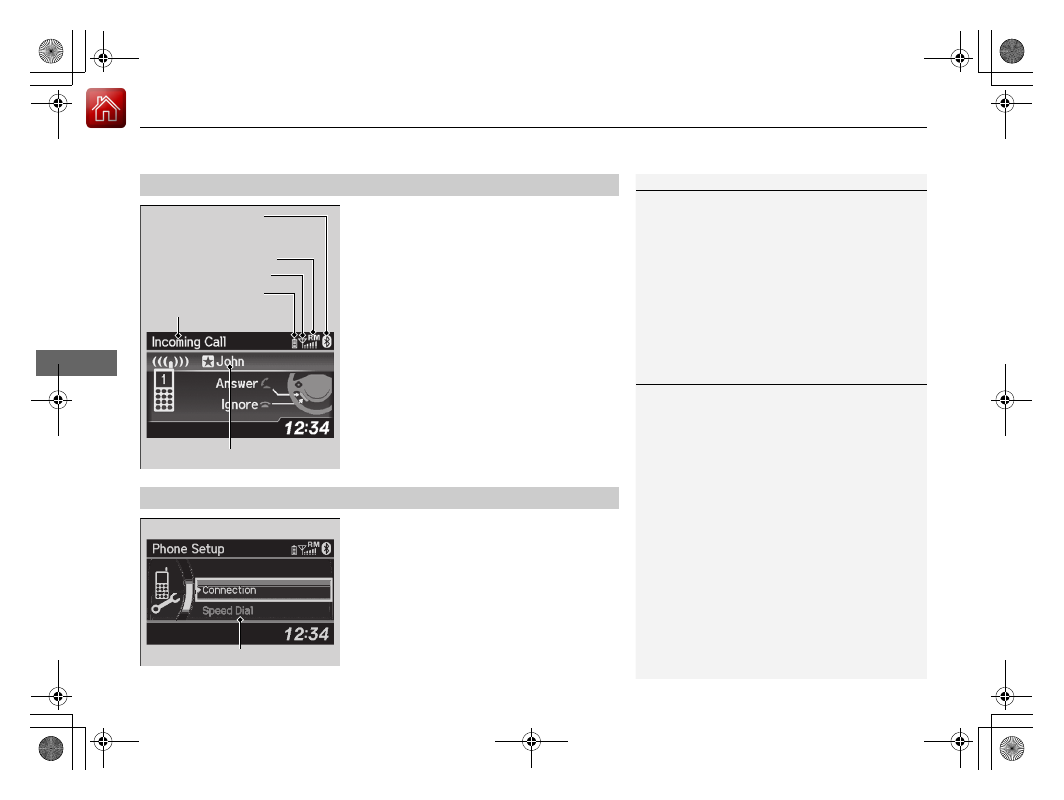

The audio/information screen notifies you
when there is an incoming call.

Certain manual functions are disabled or
inoperable while the vehicle is in motion. You
cannot select a grayed-out option until the
vehicle is stopped.

Only previously stored speed dial entries with
voice tags can be called using voice
commands while the vehicle is in motion.

Speed Dial P. 304

HFL Status Display

1

Using HFL

Bluetooth® Wireless Technology
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.

HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call
is ended.

Signal Strength

HFL Mode

Battery Level Status

Roam Status

Caller Name

Bluetooth Indicator
Comes on when your
phone is connected to HFL.

Limitations for Manual Operation

1

HFL Status Display

The information that appears on the audio/
information screen varies between phone models.

You can change the system language.

Language Selection P. 179

Disabled option

18 ACURA ILX-31TX66500.book  288 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

289

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Continued

Features

HFL Menus

The power mode must be in ACCESSORY or ON to use HFL.

*1: Appears only when a phone is connected to HFL.

Models with one display

1

HFL Menus

To use HFL, you must first pair your Bluetooth-
compatible cell phone to the system while the vehicle
is parked.

Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.

Display your speed dial entry lists.
(up to 15 entries per paired phone)

Display the last 20
outgoing calls.

Display the last 20
incoming calls.

Display the last 20
missed calls.

Display the paired phone’s phonebook.

Enter a phone number to dial.

Phone

Speed Dial

*1

Call History

*1

PHONE or

Phonebook

*1

Dial

*1

Dialed Calls

Received Calls

Missed Calls

18 ACURA ILX-31TX66500.book  289 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

290

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Features

*1: Appears only when a phone is connected to HFL.

Redial

*1

Text Message

Read/Stop reading

Message is read aloud

Reply

Call

Display Message

System reads received message aloud, or
stop message from being read.

Select message and

.

Reply to a received message using one of
six fixed phrases.

Make a call to the sender.

See an entire received message
(if more than three lines of text).

Redial the last number dialed in the phone’s history.

18 ACURA ILX-31TX66500.book  290 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

291

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Continued

Features

*1: Appears only when a phone is connected to HFL.

Phone Setup

Connection

Add a New Phone

Connect a Phone

Disconnect Phone

Delete a Phone

Pairing Code

Pair a phone to the system.

Connect a phone to the system.

Disconnect a paired phone from the
system.

Delete a previously paired phone.

Create a code for a paired phone.

18 ACURA ILX-31TX66500.book  291 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     16      17      18      19     ..
