Acura ILX (2018 year). Instruction - part 6





84

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

*1:On the left: Models without full color display

On the right: Models with full color display

Message

*1

Condition

Explanation

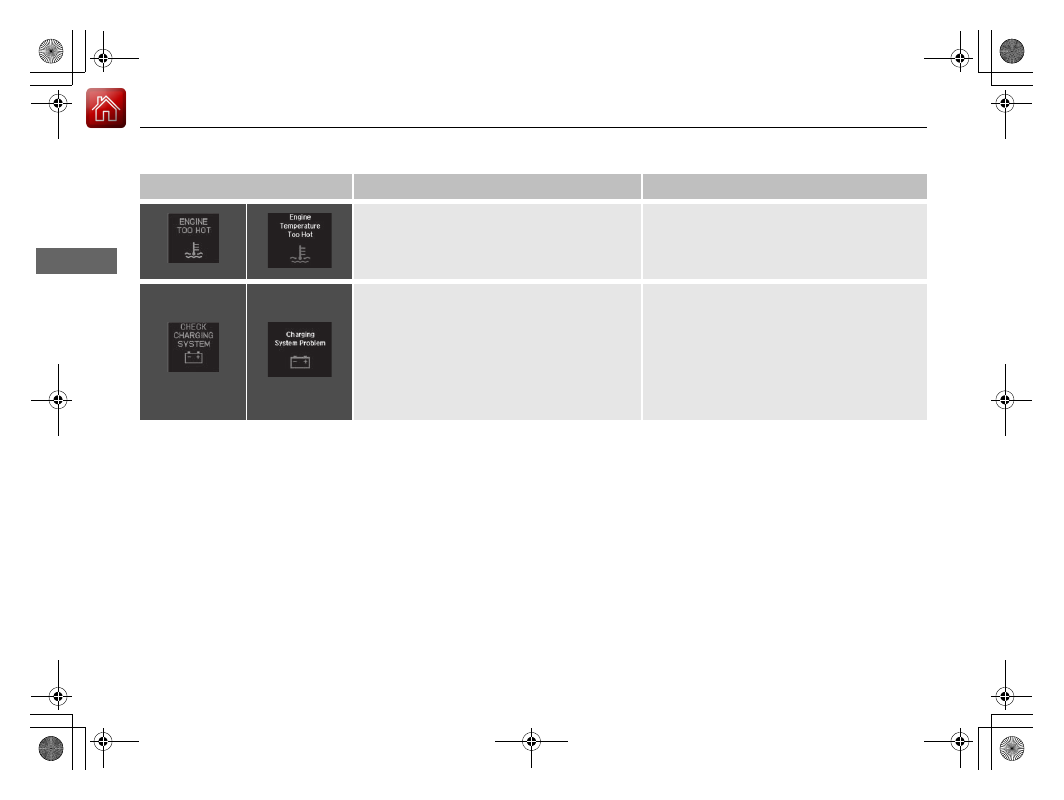

Appears when the engine coolant temperature
gets abnormally high.

Overheating P. 513

Appears when there is a problem with the
sensor on the battery.

Appears when the battery is not charging.

Have your vehicle checked by a dealer.

Checking the Battery P. 471

Appears along with the battery charging
system indicator
 - Turn off the climate
control system and rear defogger to reduce
electricity consumption.

If the Charging System Indicator Comes

On P. 515

18 ACURA ILX-31TX66500.book  84 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

85

uu

Indicators

u

Multi-Information Display Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

*1:On the left: Models without full color display

On the right: Models with full color display

Message

*1

Condition

Explanation

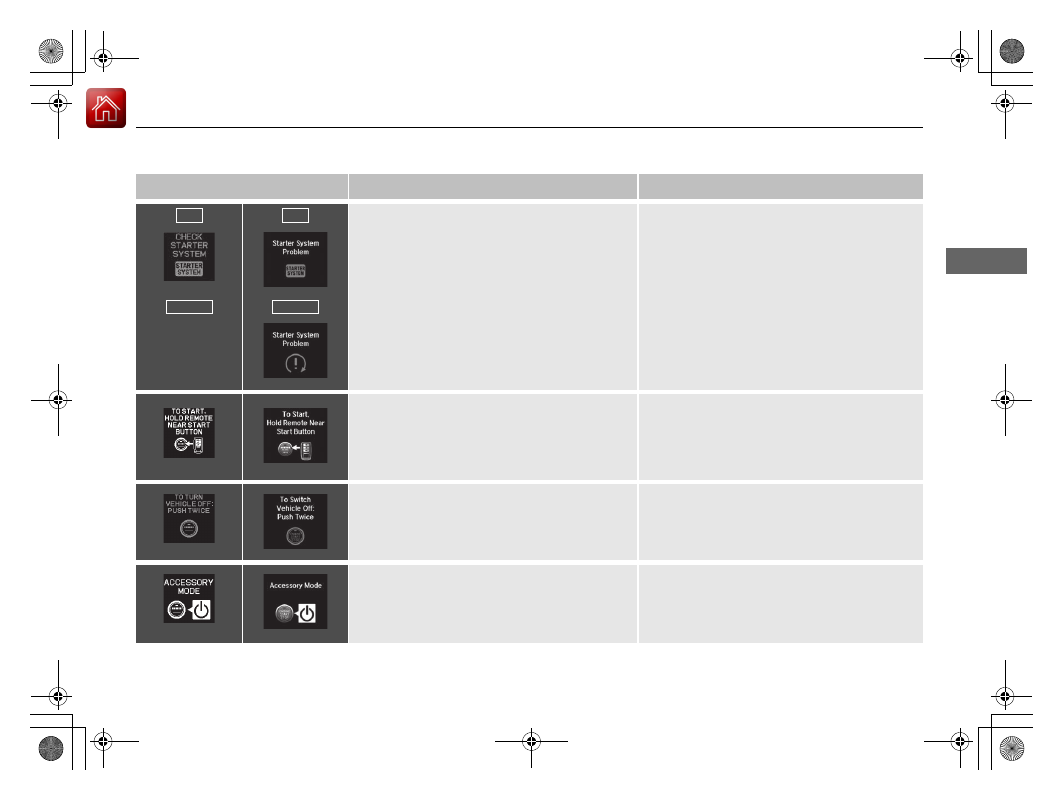

Appears when the starter system has a
problem.

As a temporary measure, press and hold the
ENGINE START/STOP button for 15 seconds
while pressing the brake pedal and instructionly
start the engine.
Have your vehicle checked by a dealer.

Appears if the keyless access remote’s battery
is too weak to start the engine or the key is not
within operating range to start the engine.
A beeper sounds six times.

Bring the keyless remote in front of the
ENGINE START/STOP button to be touched
with.

If the Keyless Access Remote Battery is

Weak P. 507

Appears after the driver’s door is opened when
the power mode is in ACCESSORY.

Press the ENGINE START/STOP button twice
with your foot off the brake pedal to change
the power mode to VEHICLE OFF (LOCK).

Appears when the power mode is in
ACCESSORY.

U.S.

Canada

U.S.

Canada

18 ACURA ILX-31TX66500.book  85 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

86

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

*1:On the left: Models without full color display

On the right: Models with full color display

Message

*1

Condition

Explanation

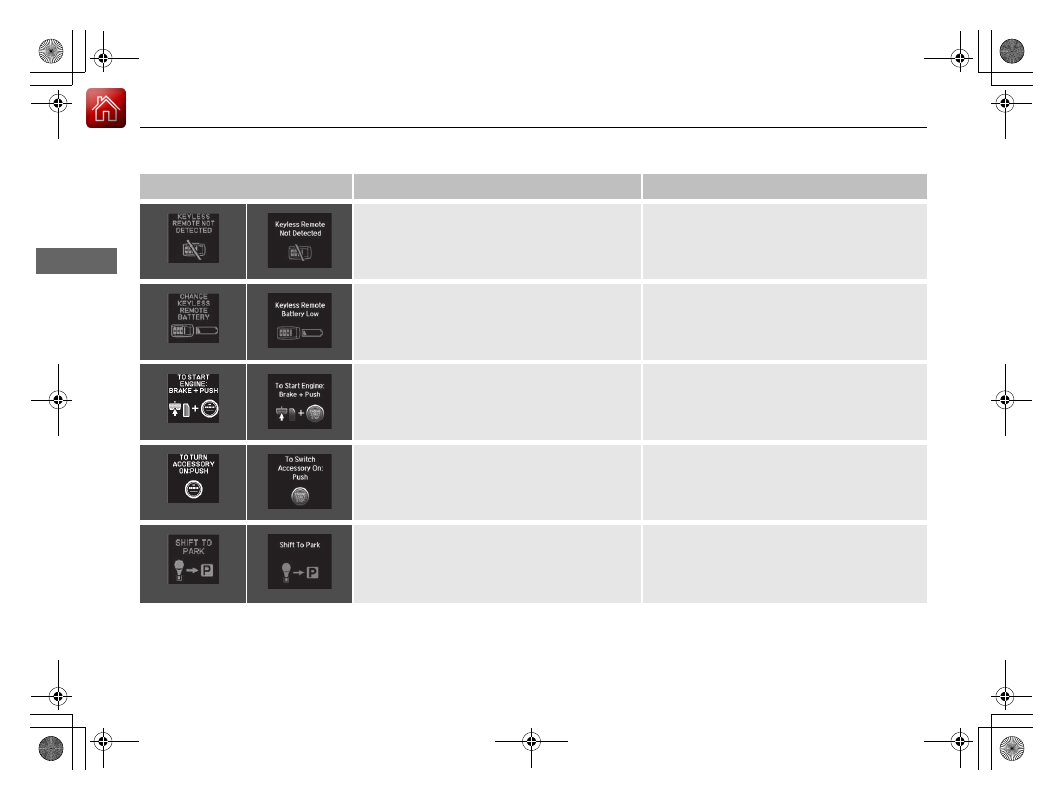

Appears when you close the door with the
power mode in ON without the keyless access
remote inside the vehicle.

Disappears when you bring the keyless access
remote back inside the vehicle and close the
door.

Keyless Access Remote Reminder P. 138

Appears when the keyless access remote
battery becomes weak.

Replace the battery as soon as possible.

Replacing the Button Battery P. 472

Appears after you unlock and open the driver’s
door.

Starting the Engine P. 356

Appears three seconds after the TO START
ENGINE
 message appears.

Starting the Engine P. 356

Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift
lever in

(

P.

Move the shift lever to

(

P. The power mode

changes to VEHICLE OFF.

18 ACURA ILX-31TX66500.book  86 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

87

uu

Indicators

u

Multi-Information Display Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

*1:On the left: Models without full color display

On the right: Models with full color display

Message

*1

Condition

Explanation

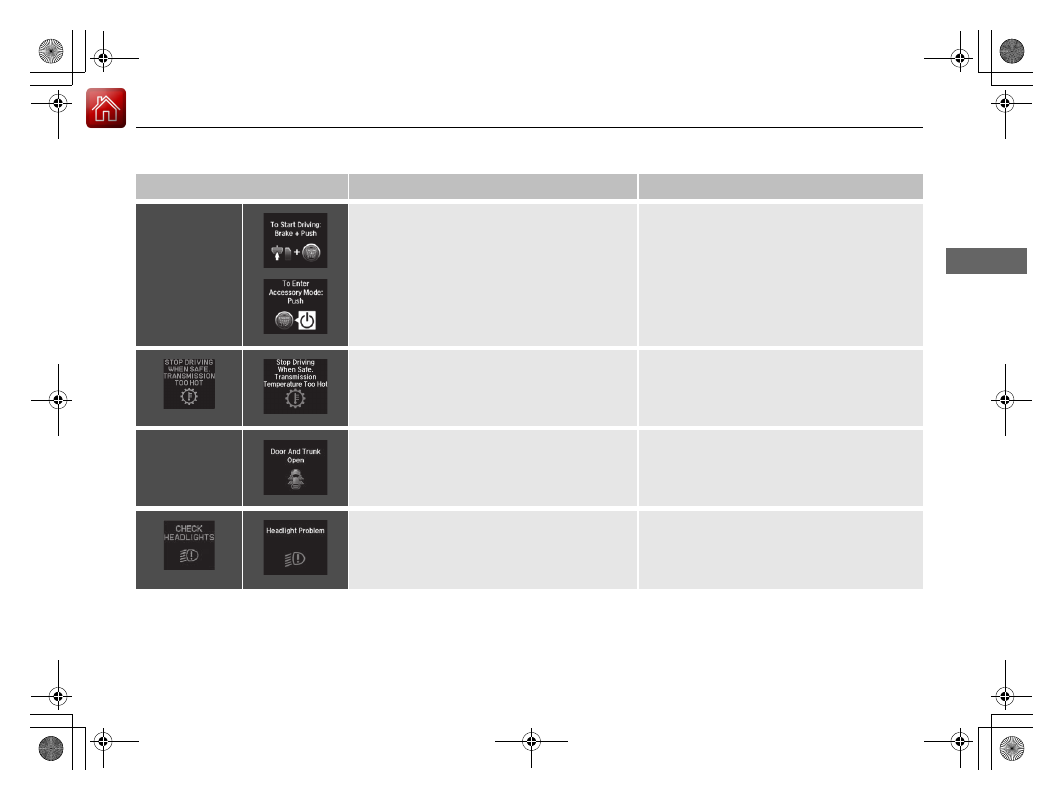

Appears when you unlock and open the
driver’s door while the engine is running by
two-way keyless access remote

*

.

Remote Engine Start with Vehicle

Feedback

*

 P. 358

Appears when the transmission system
temperature is too high. The vehicle no longer
moves.

Immediately stop in a safe place in

(

P.

Let the engine idle until the message
disappears.

Appears if any door or the trunk is not
completely closed.

Appears if any door is opened while driving.
The beeper sounds.

Goes off when all doors and the trunk are
closed.

Appears when there is a problem with the
headlights.

Appears while driving - The low beam
headlights may not be on. When conditions
allow you to drive safely, have your vehicle
checked by a dealer as soon as possible.

* Not available on all models

18 ACURA ILX-31TX66500.book  87 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

88

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

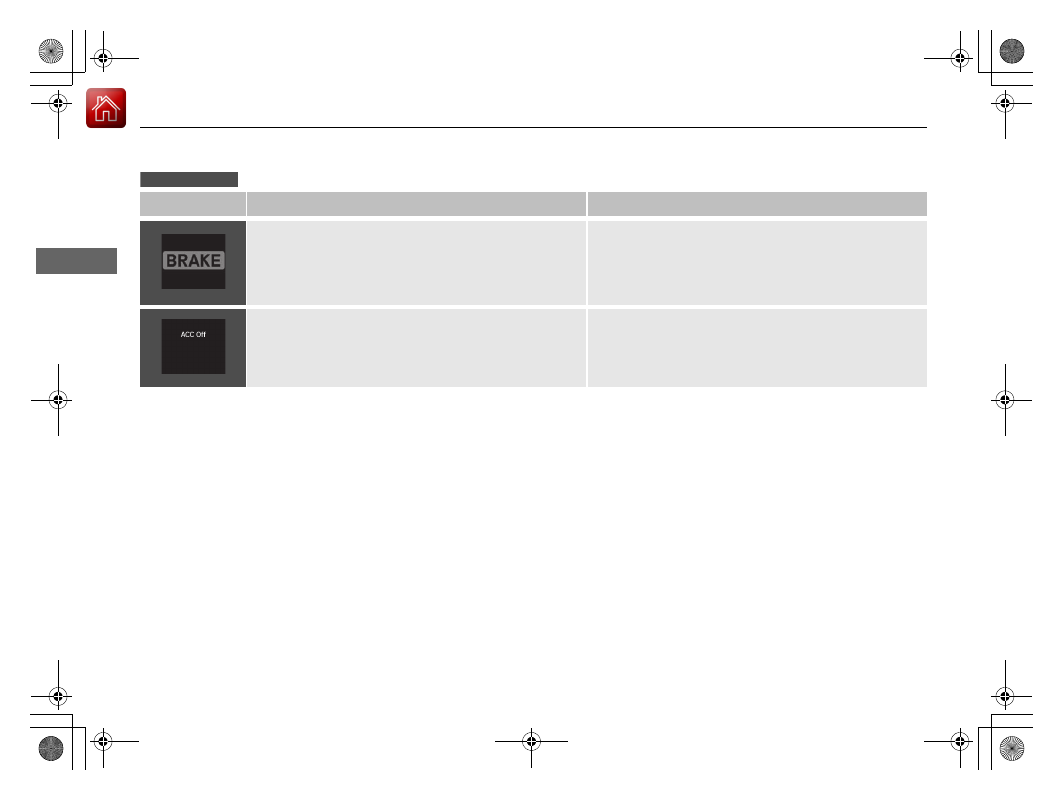

Flashes when the system senses a likely collision with a
vehicle in front of you.

Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)

Collision Mitigation Braking System

TM

 (CMBS

TM

)

*



P. 412

Adaptive Cruise Control (ACC)

*

 P. 372

Appears when ACC has been automatically canceled.

You can resume the set speed after the condition that
caused ACC to cancel improves. Press the RES/ACCEL
button.

Adaptive Cruise Control (ACC)

*

 P. 372

Models with ACC

* Not available on all models

18 ACURA ILX-31TX66500.book  88 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

89

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

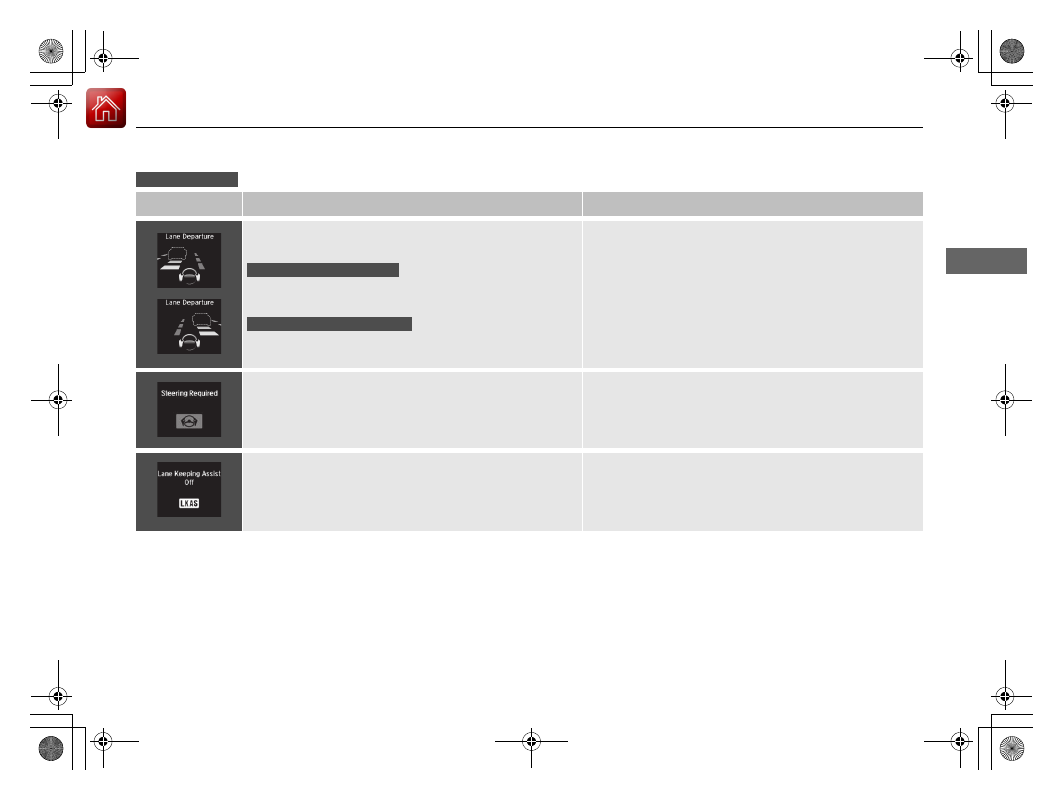

Appears when the vehicle is driving out of a detected
line. The beeper sounds simultaneously.

Alerts you with a beep that the vehicle is drifting out of
a detected lane.

Alerts you with rapid vibrations on the steering wheel
that the vehicle is drifting out of a detected lane.

Keep the vehicle within the lane you are driving.

The color of either line changes from white to amber as
the vehicle gets closer to that side of the lane line.

Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.

Operate the steering wheel to resume the LKAS.

Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a system
related to the LKAS. The LKAS cancels automatically.
The beeper sounds simultaneously.

If any other system indicators come on, such as the
VSA®, ABS and brake system, take appropriate action.

Models with LKAS

RDM selected Warning only

RDM selected Normal or Wide

18 ACURA ILX-31TX66500.book  89 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

90

In

strum

e

nt Pa

nel

Gauges and Multi-Information Display

Gauges

Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the power mode is in ON.

Displays your driving speed in mph or km/h.

Shows the number of engine revolutions per minute.

Displays the amount of fuel left in the fuel tank.

Displays the temperature of the engine coolant.

Speedometer

Tachometer

Fuel Gauge

Temperature Gauge

1

Fuel Gauge

NOTICE

You should refuel when the needle approaches

.

Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.

The actual amount of remaining fuel may differ from
the fuel gauge reading.

E

1

Temperature Gauge

NOTICE

Driving with the temperature gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.

Overheating P. 513

18 ACURA ILX-31TX66500.book  90 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

91

uu

Gauges and Multi-Information Display

u

Multi-Information Display

Continued

In

strum

e

nt Pa

nel

Multi-Information Display

The multi-information display shows the odometer, trip meter, outside temperature
indicator, and other gauges. It also displays important messages such as warnings
and other helpful information.

18 ACURA ILX-31TX66500.book  91 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

92

uu

Gauges and Multi-Information Display

u

Multi-Information Display

In

strum

e

nt Pa

nel

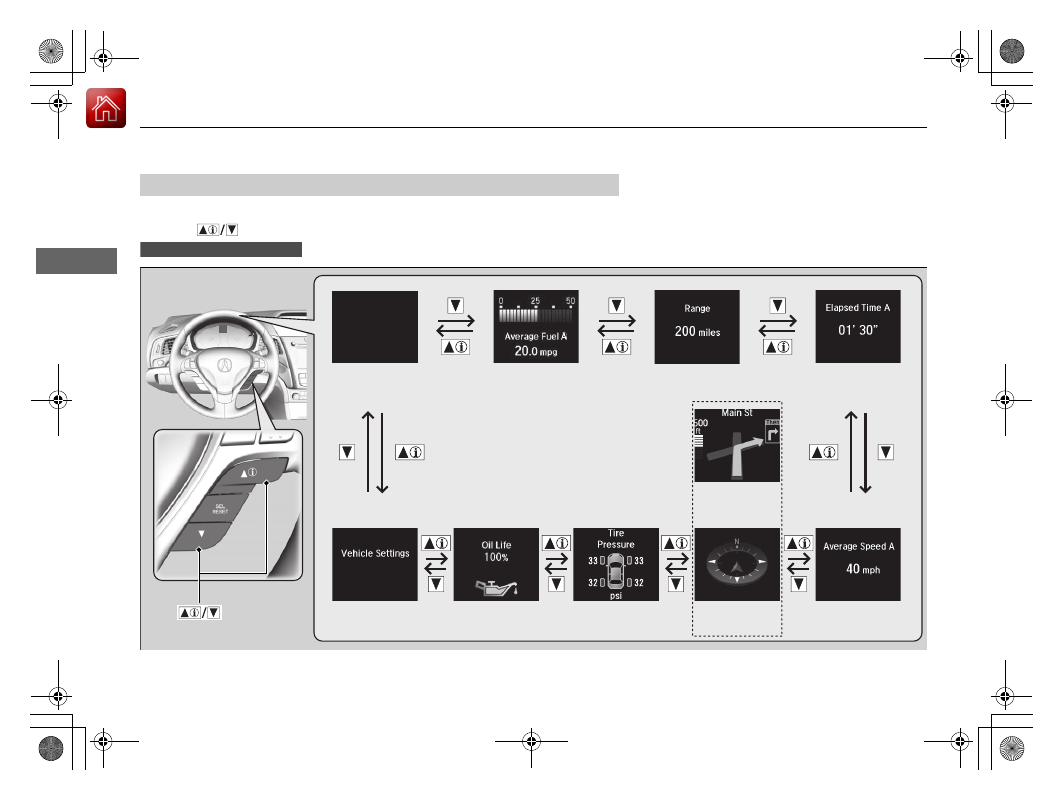

Main displays

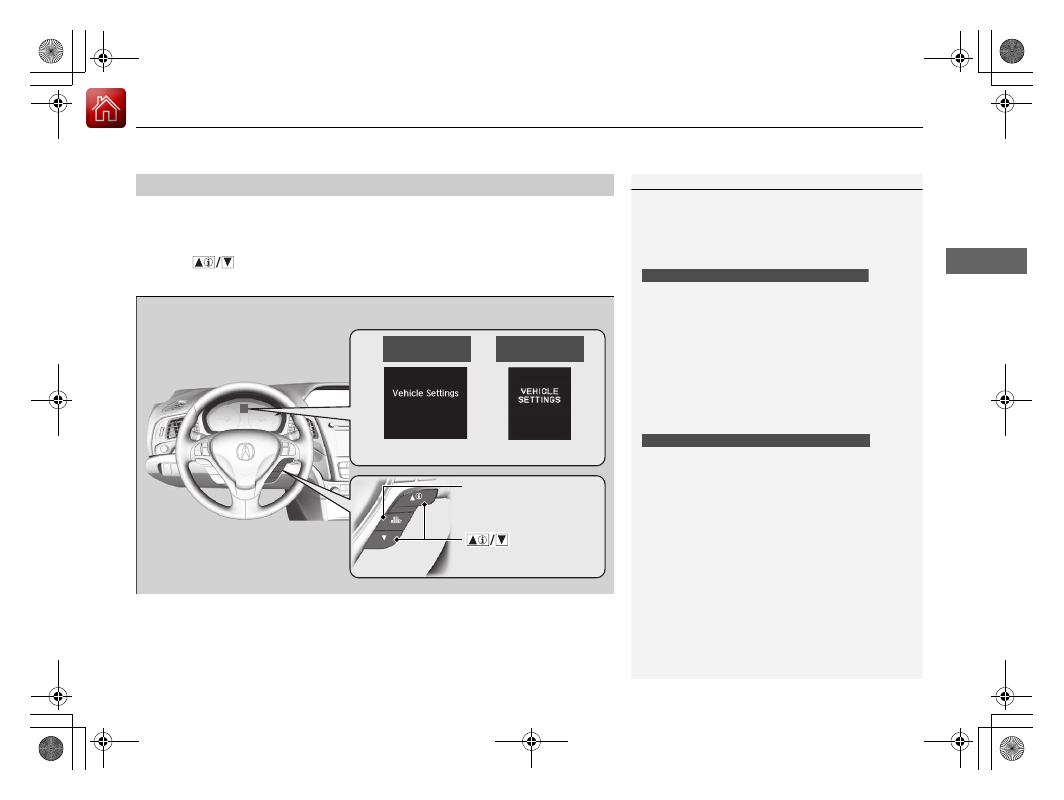

Press the

 (information) button to change the display.

Switching the Display

Models with full color display

ᵑᵐ

ᵑᵑ

ᵑᵐ

ᵑᵑ

 (information)

Button

Engine Oil Life

Vehicle Settings

Elapsed Time

Blank Screen

Average Speed

Range

Instant Fuel Economy/
Average Fuel Economy

Compass

*

Tire Pressure for
Each Tire

Turn-by-Turn
Directions

*

* Not available on all models

18 ACURA ILX-31TX66500.book  92 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

93

uu

Gauges and Multi-Information Display

u

Multi-Information Display

Continued

In

strum

e

nt Pa

nel

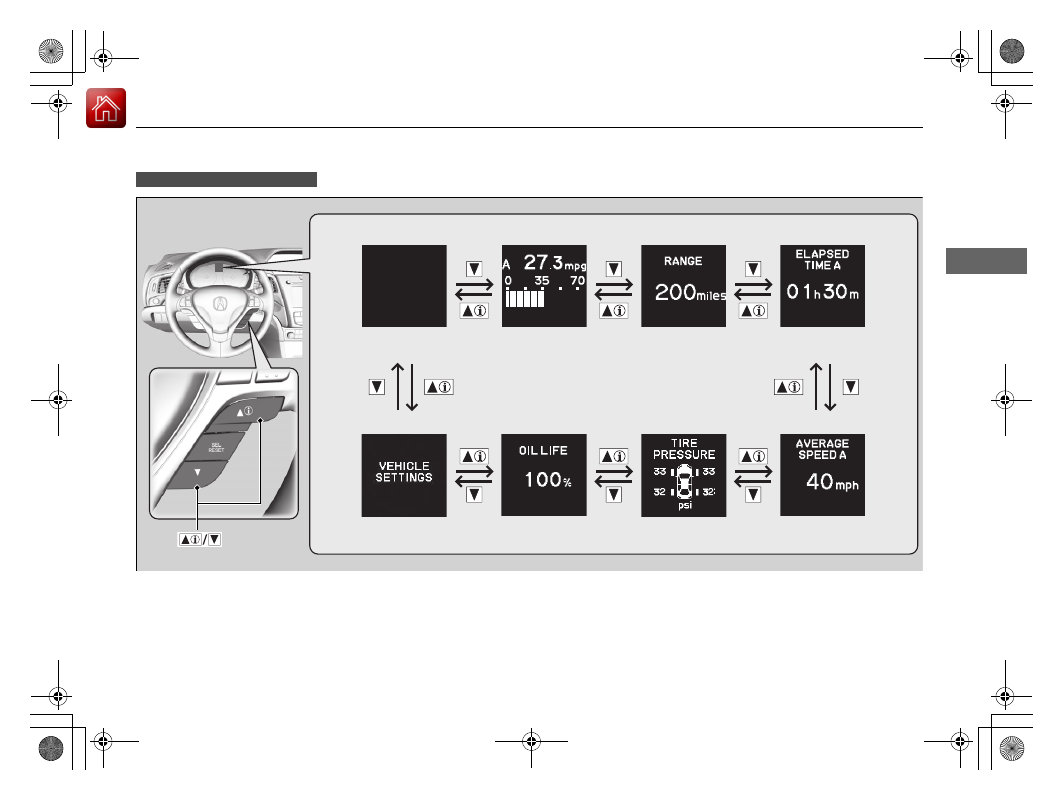

Models without full color display

Engine Oil Life

Vehicle Settings

Elapsed Time

Blank Screen

Average Speed

Range

Instant Fuel Economy/
Average Fuel Economy

Tire Pressure for
Each Tire

 (information)

Button

18 ACURA ILX-31TX66500.book  93 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

94

uu

Gauges and Multi-Information Display

u

Multi-Information Display

In

strum

e

nt Pa

nel

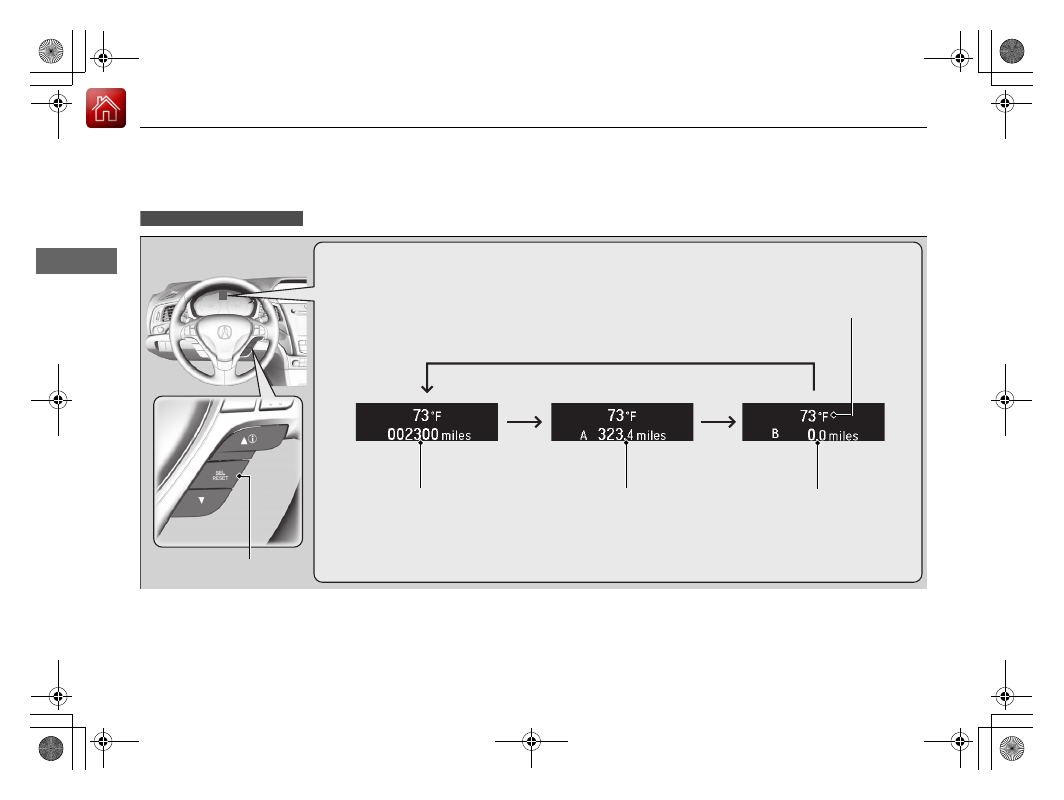

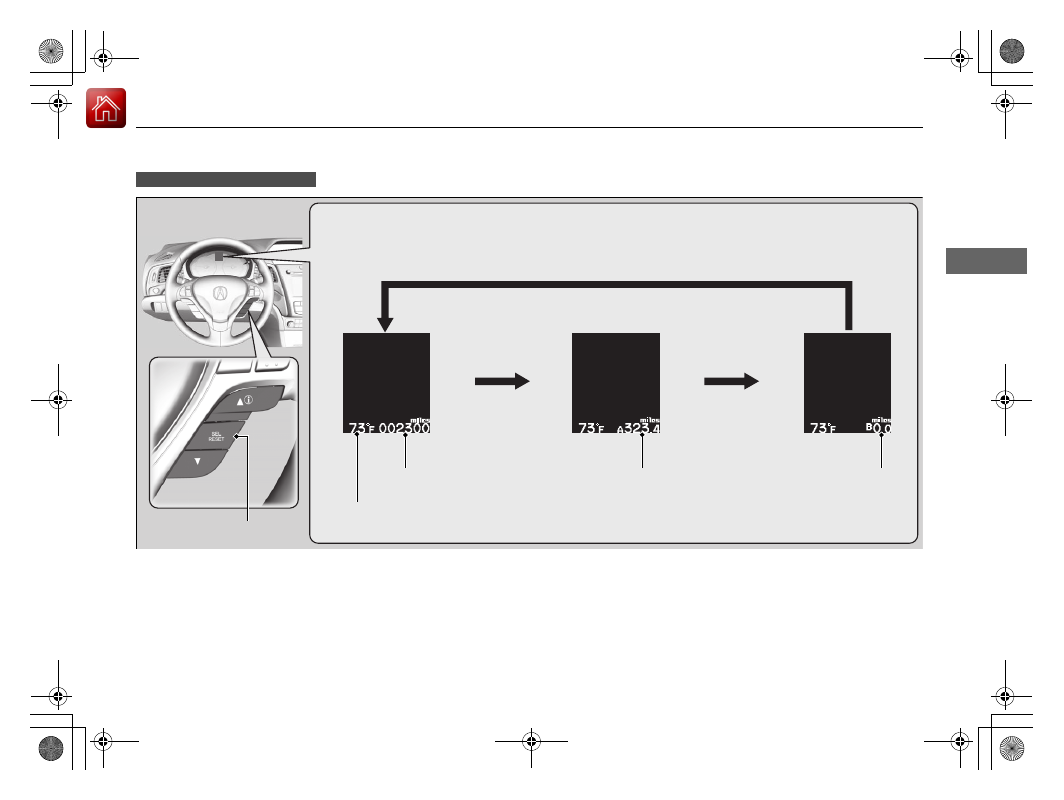

Lower displays

Press the SEL/RESET button to change the display.

Models with full color display

Odometer

Trip A

Trip B

Outside temperature

SEL/RESET Button

SEL/RESET
Button

SEL/RESET
Button

SEL/RESET Button

18 ACURA ILX-31TX66500.book  94 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

95

uu

Gauges and Multi-Information Display

u

Multi-Information Display

Continued

In

strum

e

nt Pa

nel

Models without full color display

Odometer

Trip A

Trip B

Outside temperature

SEL/RESET Button

SEL/RESET Button

SEL/RESET
Button

SEL/RESET
Button

18 ACURA ILX-31TX66500.book  95 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

uu

Gauges and Multi-Information Display

u

Multi-Information Display

96

In

strum

e

nt Pa

nel

Shows the total number of miles or kilometers that your vehicle has accumulated.

Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.

Resetting a trip meter

To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

Adjusting the outside temperature display

Adjust the temperature reading up to ± 5°F (U.S.) or ± 3°C (Canada) if the
temperature reading seems incorrect.

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or
l/100 km (Canada). The display is updated at set intervals. When a trip meter is reset,
the average fuel economy is also reset.

Odometer

Trip Meter

Outside Temperature

Average Fuel Economy

1

Trip Meter

Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.

1

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

Use the multi-information display’s customized
features to correct the temperature.

Customized Features P. 99, 263

1

Average Fuel Economy

You can change when to reset the average fuel
economy.

Customized Features P. 99, 263

18 ACURA ILX-31TX66500.book  96 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

97

uu

Gauges and Multi-Information Display

u

Multi-Information Display

In

strum

e

nt Pa

nel

Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).

Shows the estimated distance you can travel on the remaining power and fuel. This
distance is estimated from the fuel economy of your previous trips.

Shows the time elapsed since the Trip A or Trip B was reset.

Shows the average speed in mph (U.S.) or km/h (Canada) since the Trip A or Trip B
was reset.

Shows you turn-by-turn driving directions to your destination linked with the
navigation system.

Refer to the Navigation System Instruction

Instant Fuel Economy

Range

Elapsed Time

Average Speed

Turn-by-Turn Directions

*

1

Elapsed Time

You can change when to reset the elapsed time.

Customized Features P. 99, 263

1

Average Speed

You can change when to reset the average speed.

Customized Features P. 99, 263

1

Turn-by-Turn Directions

*

The multi-information display shows a compass when
the route guidance is not used.

You can select whether the turn-by-turn display
comes on or not during the route guidance.

Customized Features P. 99, 263

* Not available on all models

18 ACURA ILX-31TX66500.book  97 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

98

uu

Gauges and Multi-Information Display

u

Multi-Information Display

In

strum

e

nt Pa

nel

Shows each tire’s pressure.

Tire Pressure Monitor P. 405

Shows the remaining oil life and Maintenance Minder

TM

.

Maintenance Minder

TM

 P. 435

Tire Pressure Monitor

Engine Oil Life

18 ACURA ILX-31TX66500.book  98 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

99

uu

Gauges and Multi-Information Display

u

Multi-Information Display

In

strum

e

nt Pa

nel

Use the multi-information display to customize certain features.

How to customize

Press the

 button to select Vehicle Settings and press the SEL/RESET

button.

Customized Features

1

Customized Features

To customize other features, roll the right selector
wheel.

List of customizable options P. 102
Example of customization settings P. 107

Customization is possible when you see the driver’s
ID (Driver 1 or Driver 2) on the screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door. The
customized settings are recalled every time you
unlock the driver’s door with that remote.

Put the transmission into

(

P before you attempt to

change any customized setting.

Customizing is also available from the audio/
information screen.
You cannot have Vehicle Settings displayed on the
multi-information display while the audio/
information screen shows the same menu.

Customized Features

*

 P. 263

Models with driving position memory system

Models with On Demand Multi-Use Display

TM

Multi-information Display: Goes to Vehicle Settings.

Models without
full color display

Models with full
color display

SEL/RESET Button:
Enters the selected item

 Button:

Changes the customize
menus and items

* Not available on all models

18 ACURA ILX-31TX66500.book  99 ページ  2017年8月25日 金曜日 午前11時31分

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
