Главная Manuals FM 4-20.105-1 Airdrop of Supplies and Equipment: Dual Row Airdrop Systems (Volume, August 2006)
|
|
|
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
3
4

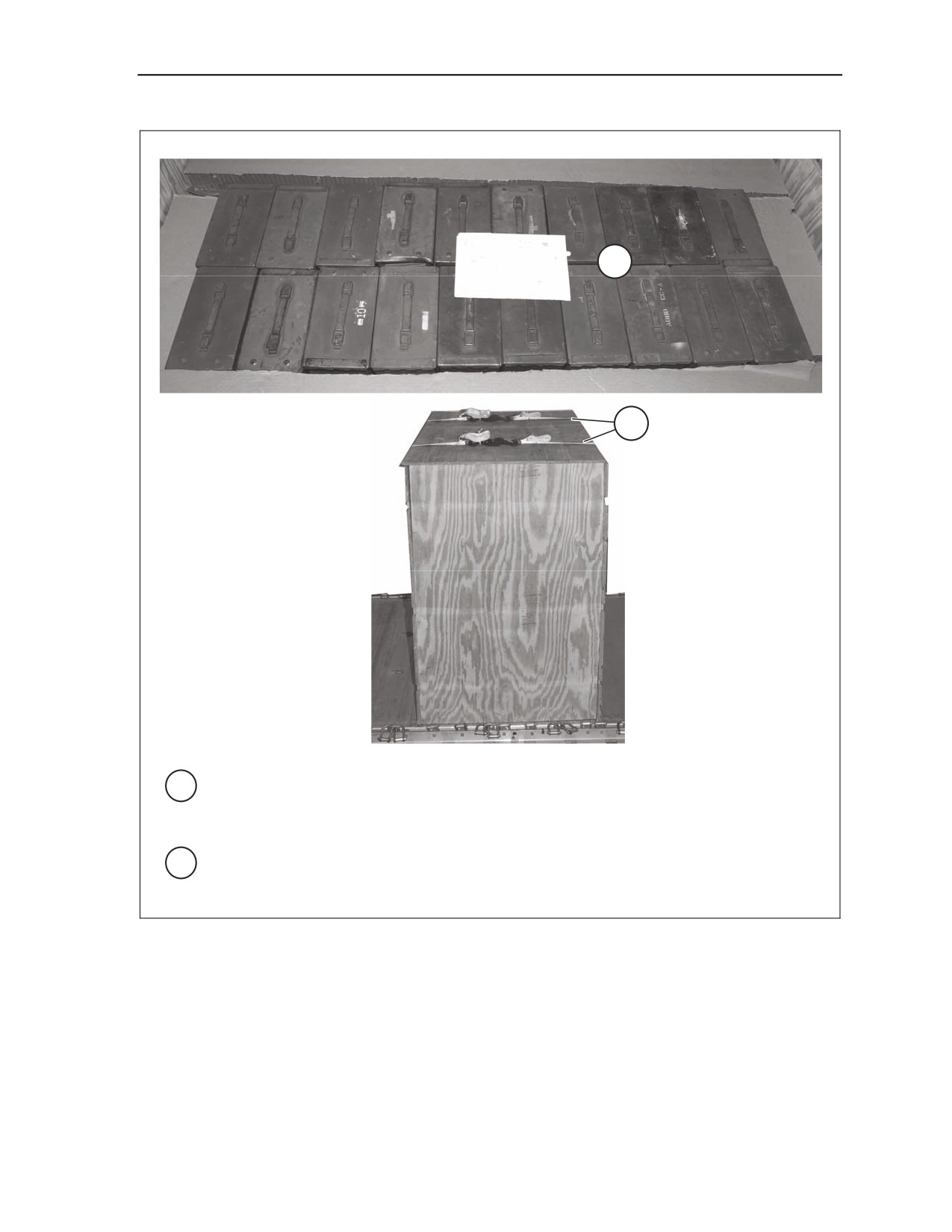

3 Place supplies in the box with a minimum weight of 2,000 pounds and a maximum weight
of 4,000 pounds. The load shown has 5.56 mm ammunition cans.
Note. Fill all voids with honeycomb.

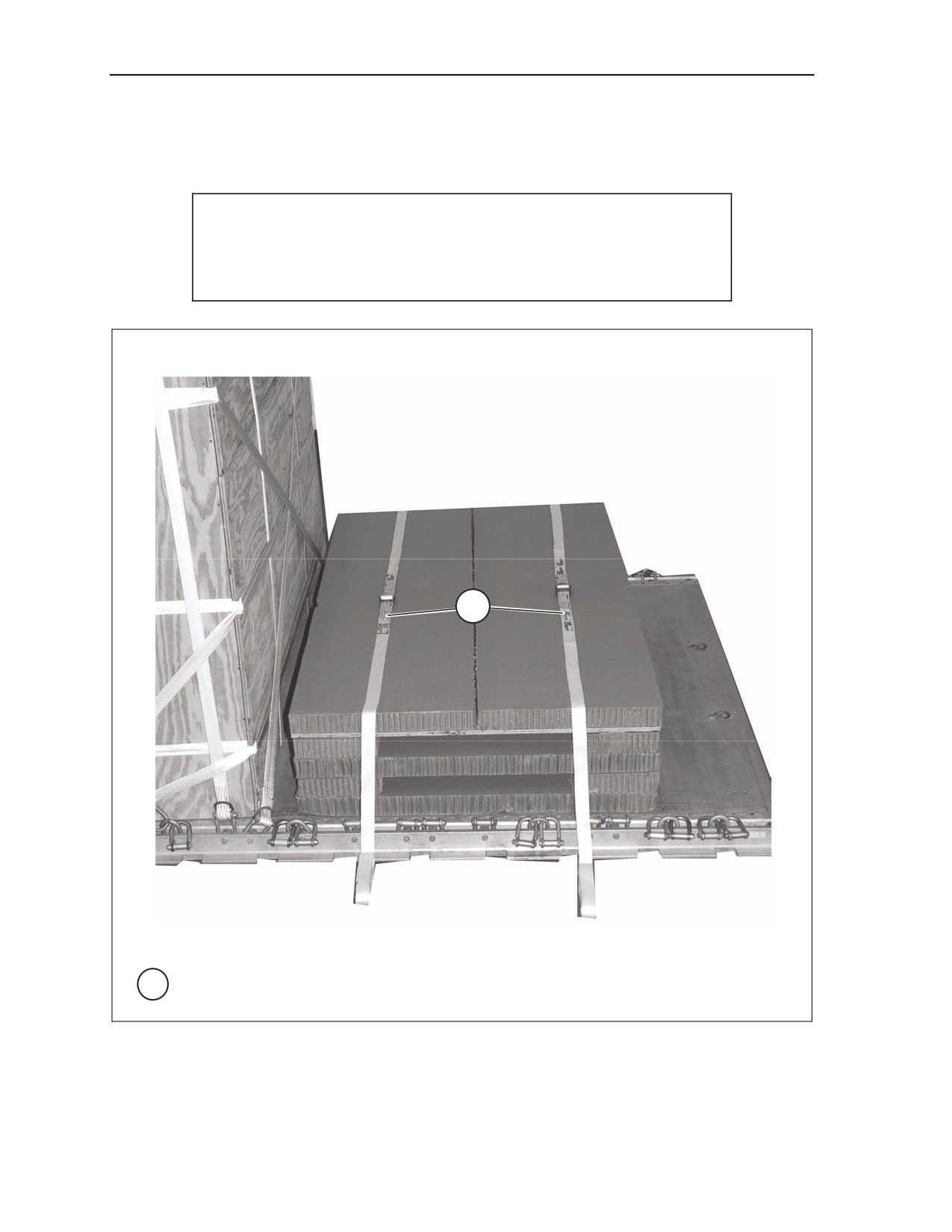

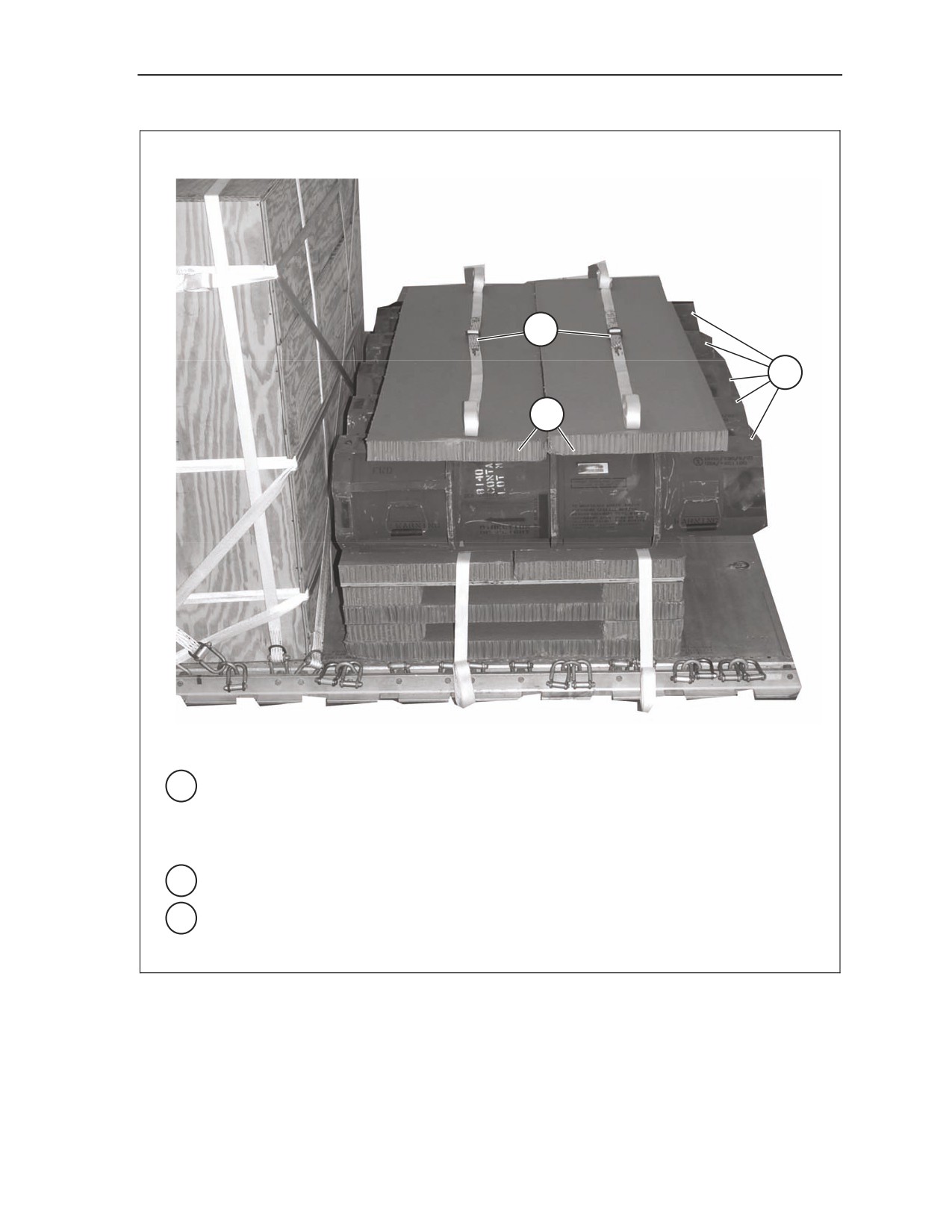

4 Place the lid on top of the supply box. Secure the 30-foot lashings around the supply box
to the top of the box with two D-rings and a load binder on each lashing.

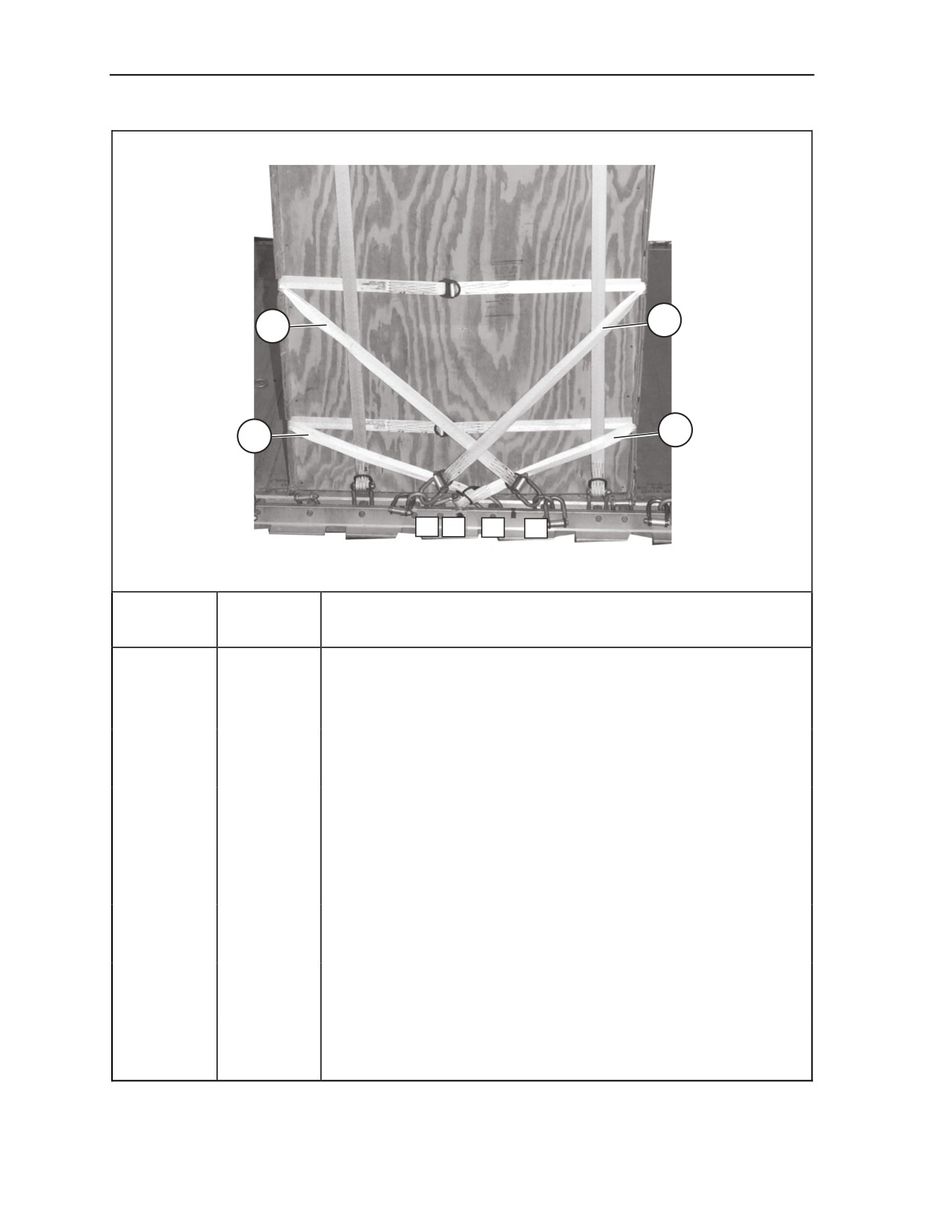

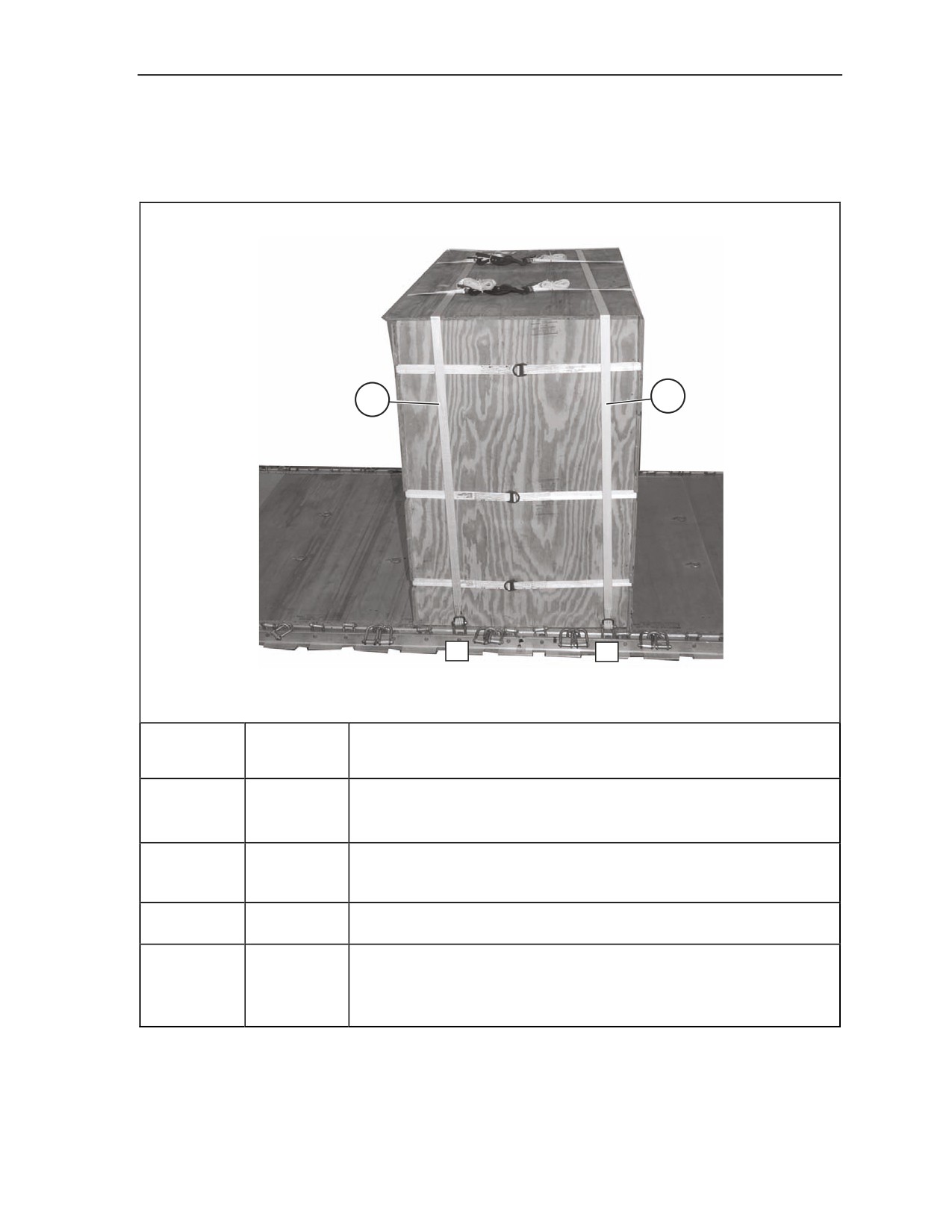

Figure 8-3. Supply Box Positioned (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-5
Chapter 8
5
5 Form three 30-foot lashings and route them around the supply box horizontally through
each of the cutouts. Secure each lashing on the left side with two D-rings and a load
binder.

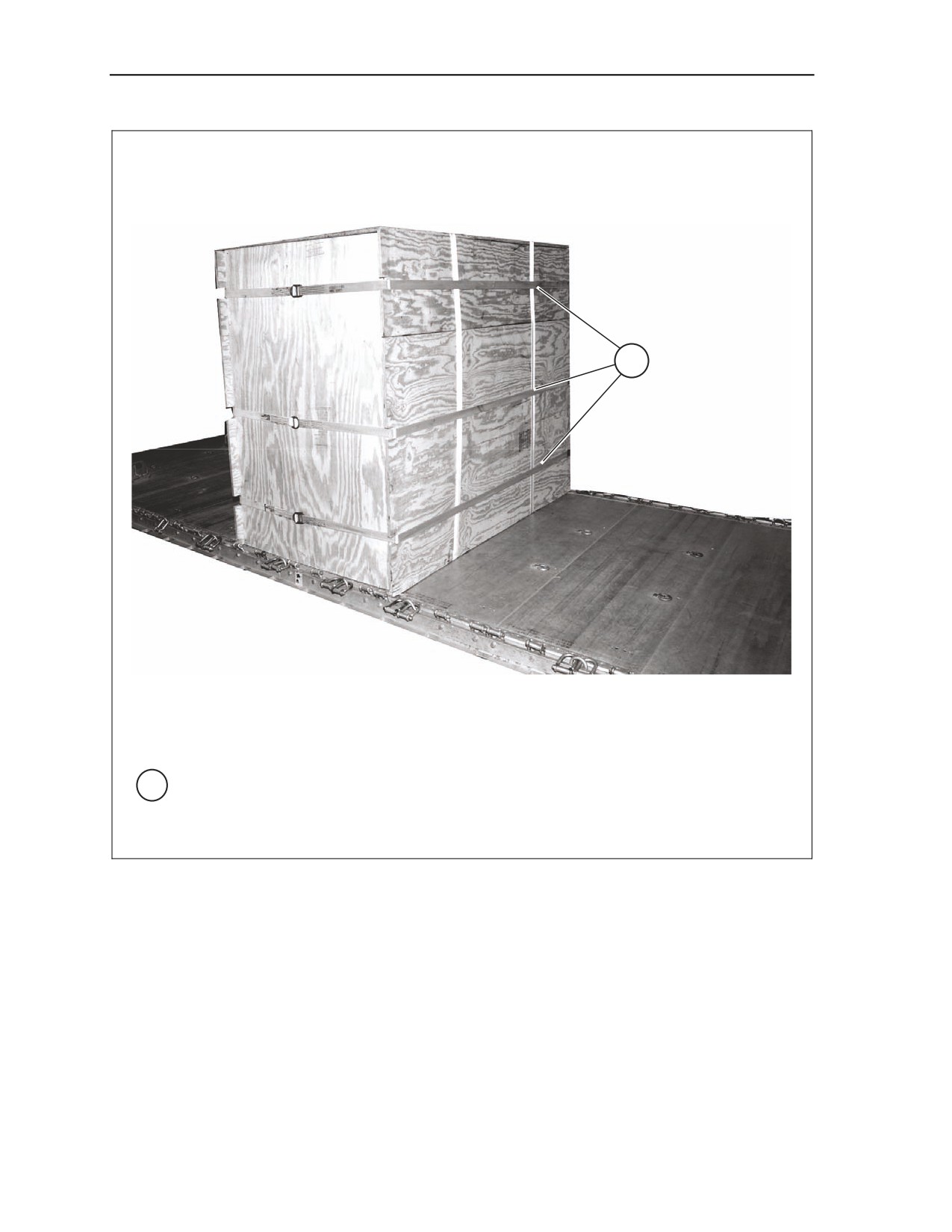

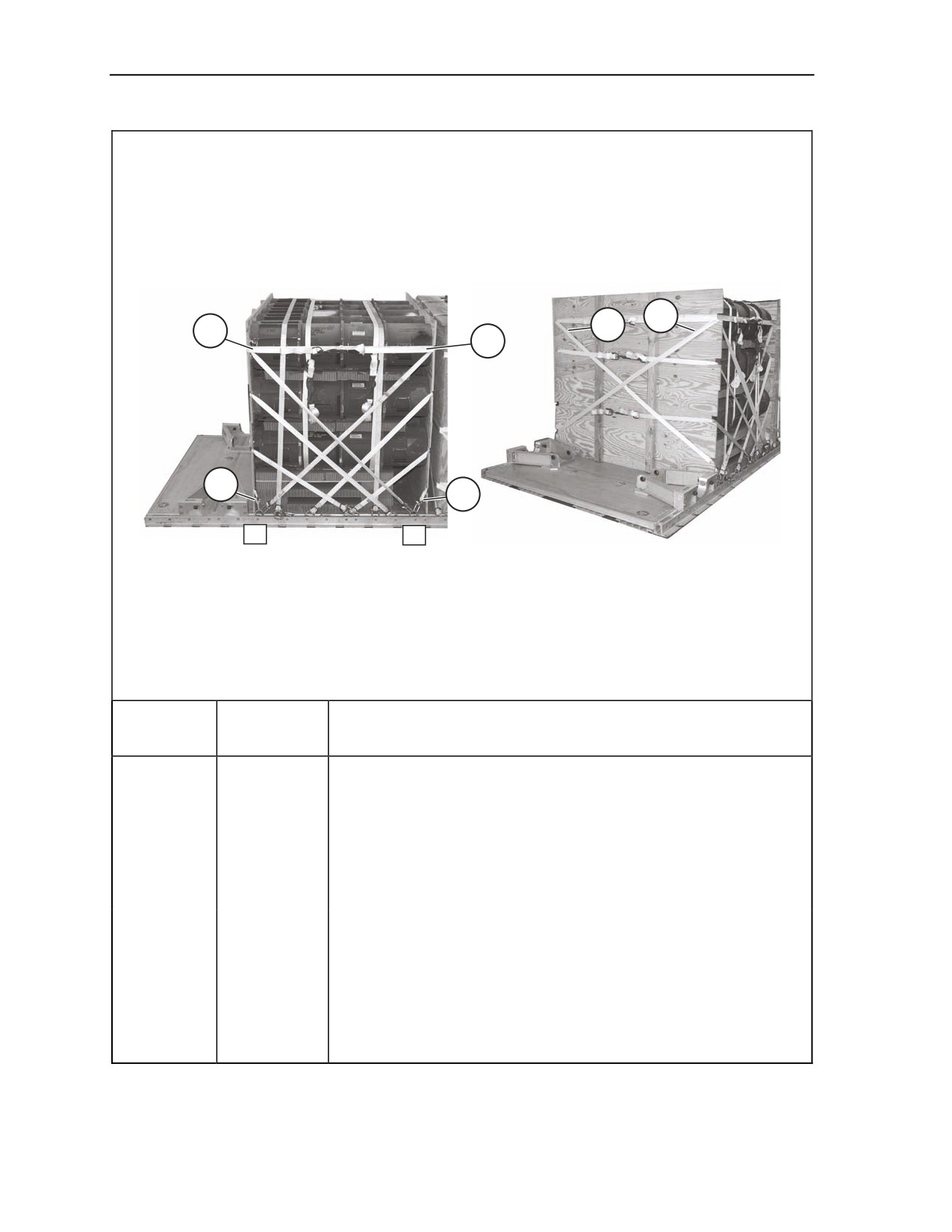

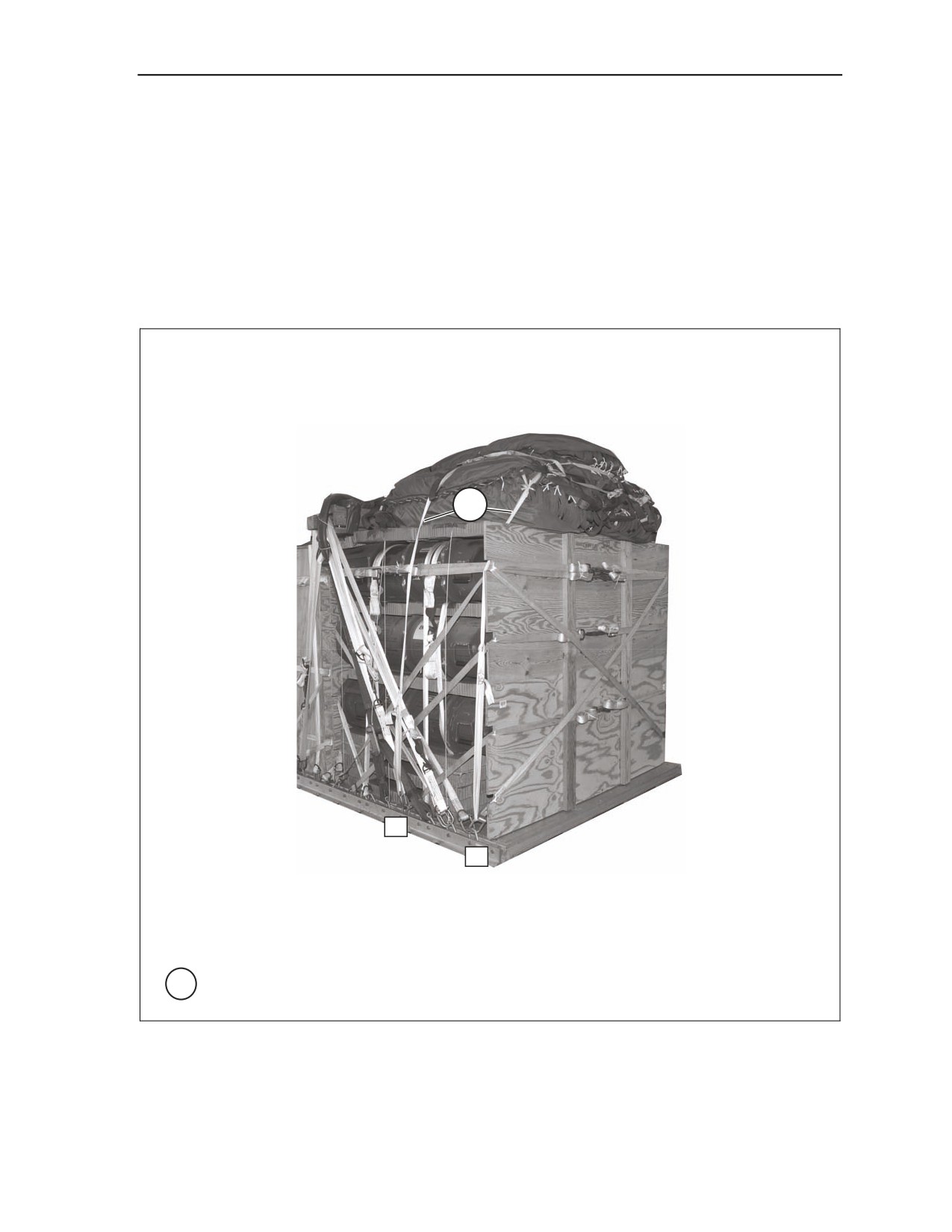

Figure 8-3. Supply Box Positioned (Continued)
8-6
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
LASHING SUPPLY BOX

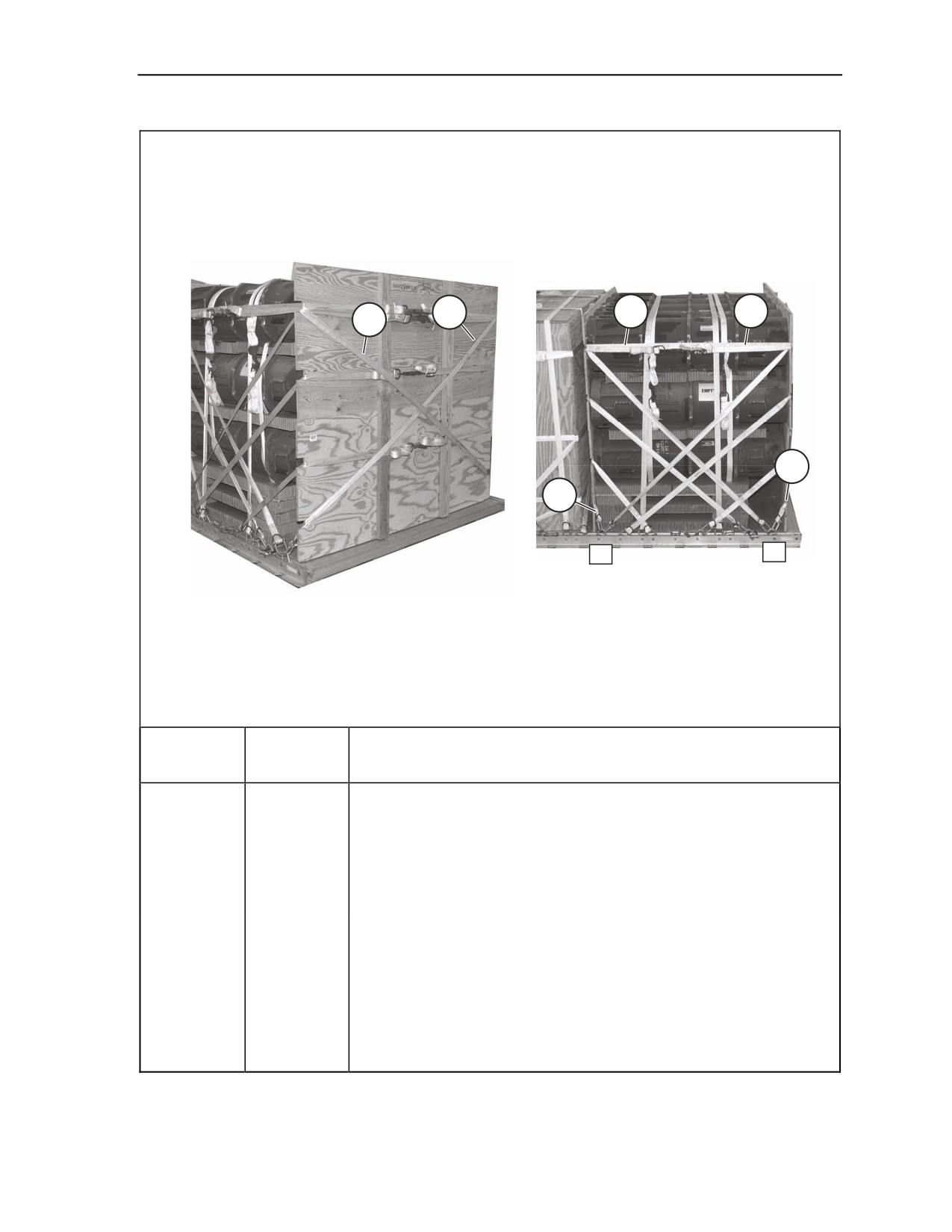

8-5. Lash the supply box as shown in Figure 8-4.
1
3
23
16
Lashing
Tiedown
Instructions
Number
Clevis
Number
1
16
Route a 15-foot lashing through clevis 16 and through its own D-
ring. Route the lashing over the top of the supply box.
2
16A
Route a 15-foot lashing through clevis 16A and through its own D-
ring. Secure the lashing to the lashing from clevis 16 on the left side
with two D-rings and a load binder.
3
23
Route a 15-foot lashing through clevis 23 and through its own D-
ring. Route the lashing over the top of the supply box.
4
23A
Route a 15-foot lashing through clevis 23A and through its own D-
ring. Secure the lashing to the lashing from clevis 23 on the left side
with two D-rings and a load binder

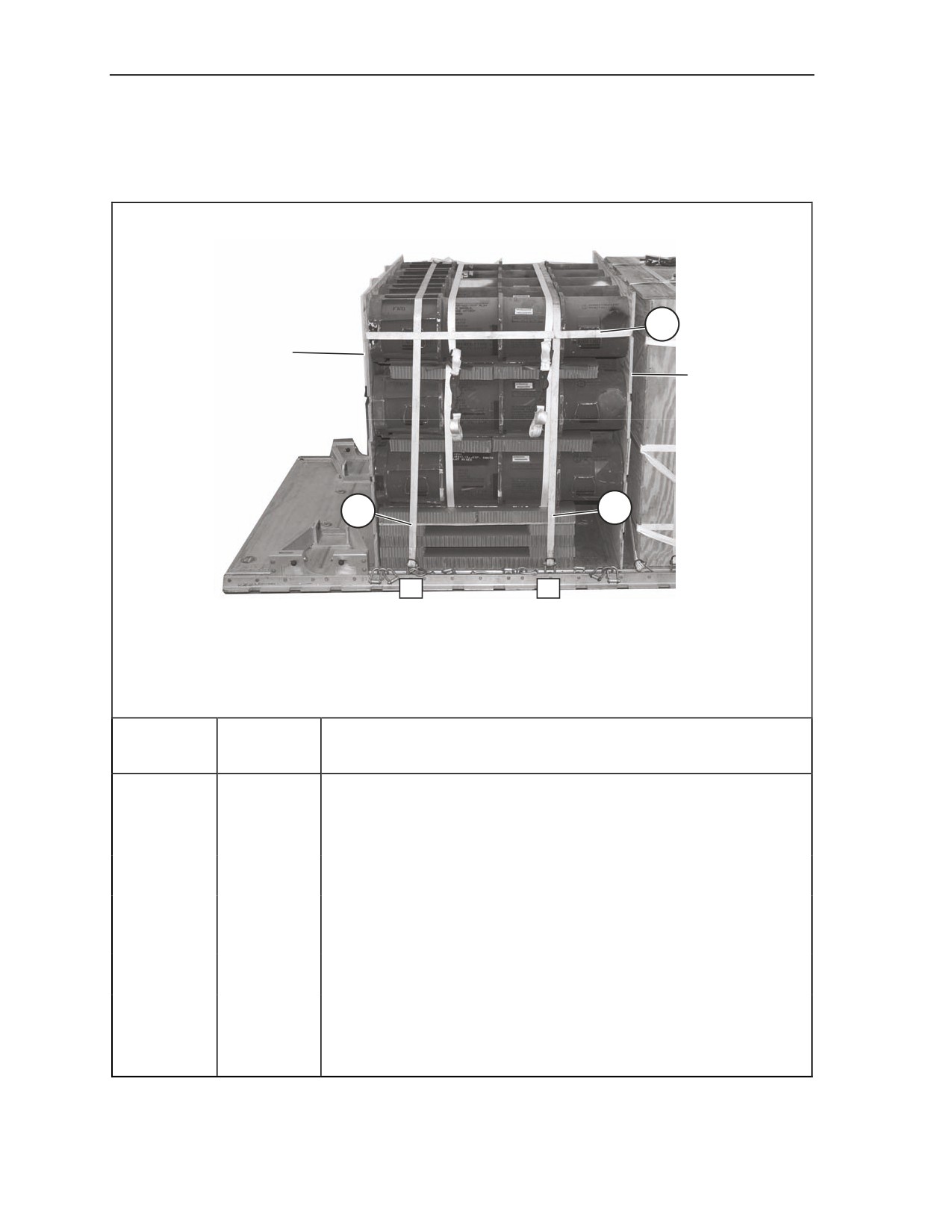

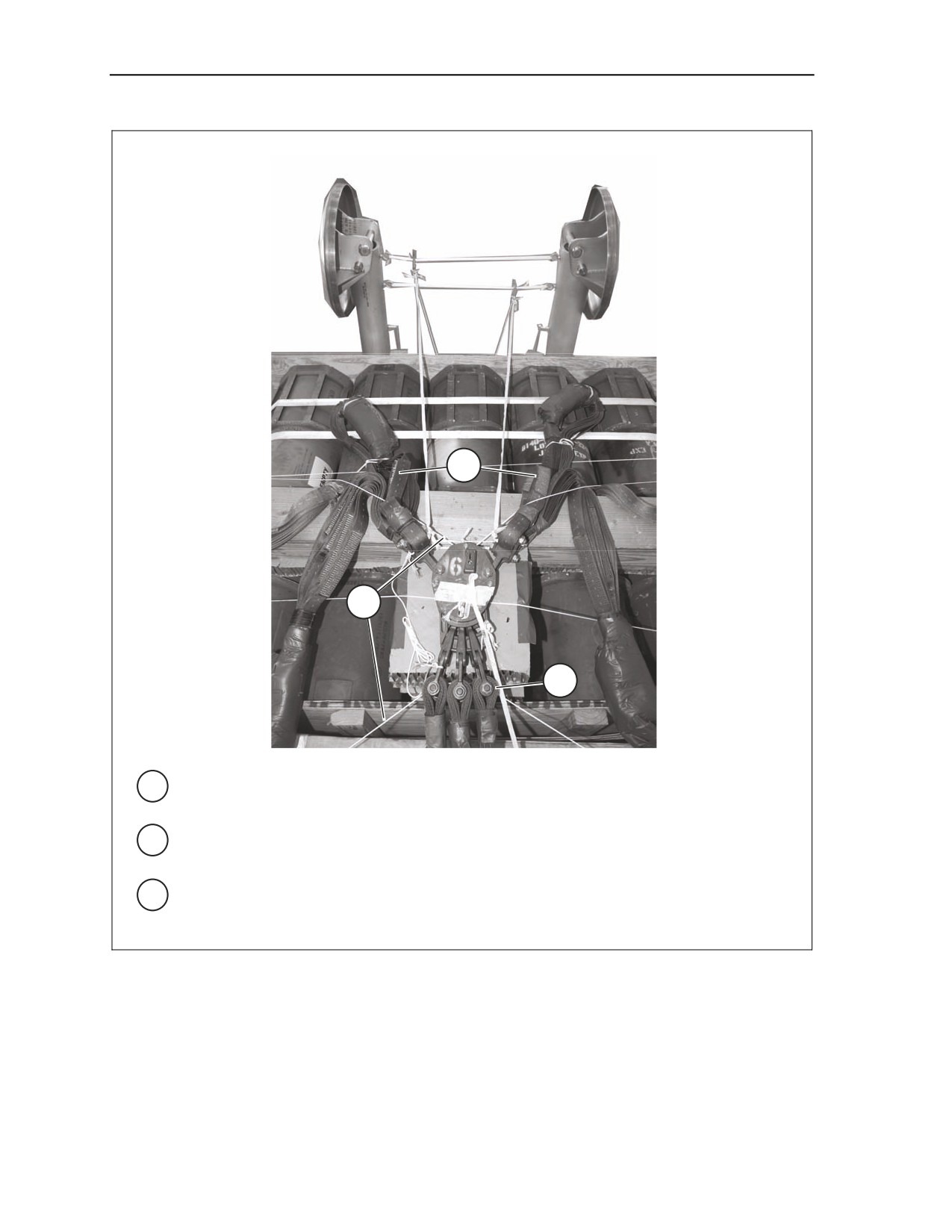

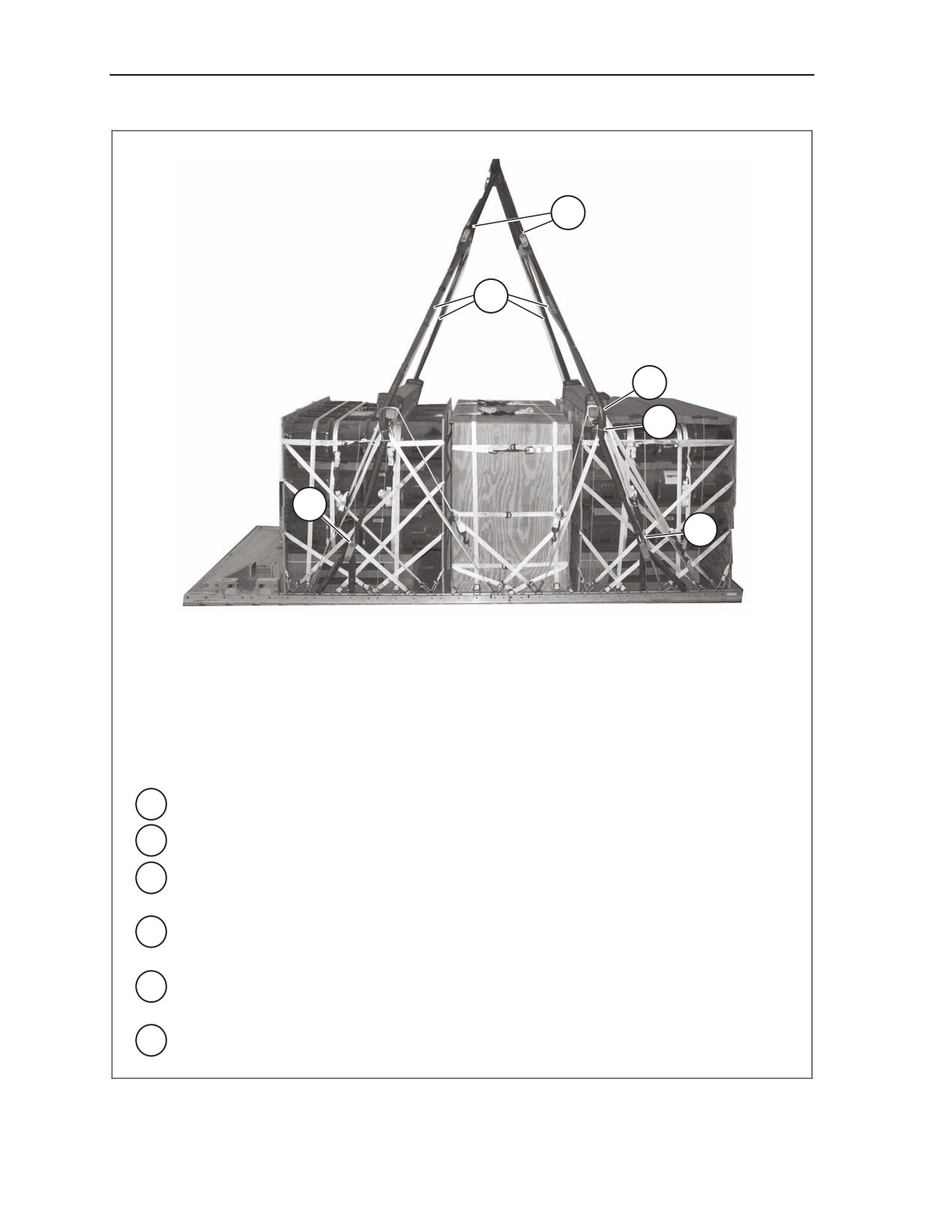

Figure 8-4. Supply Box Lashed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-7
Chapter 8
10
8
5
7
21
20
19
18
Lashing
Tiedown
Instructions
Number
Clevis
Number
5
20
Route a 15-foot lashing through clevis 20 and through its own D-
ring. Route the lashing through the front bottom cutouts of the supply
box.
6
20A
Route a 15-foot lashing through clevis 20A and through its own D-
ring. Secure the lashing to the lashing from clevis 20 on the left side
with two D-rings and a load binder.
7
19 and 19A
Route a 15-foot lashing through clevis 19 and through its own D-
ring. Route the lashing through the rear bottom cutouts of the supply
box. Secure the lashing with a load binder to clevis 19A.
8
18
Route a 15-foot lashing through clevis 18 and through its own D-
ring. Route the lashing through the rear middle cutouts of the supply
box.
9
18A
Route a 15-foot lashing through clevis 18A and through its own D-
ring. Secure the lashing to the lashing from clevis 18 on the left side
with two D-rings and a load binder.
10
21
Route a 15-foot lashing through clevis 21 and through its own D-
ring. Route the lashing through the front middle cutouts of the supply
box.
11
21A
Route a 15-foot lashing through clevis 21A and through its own D-
ring. Secure the lashing to the lashing from clevis 21 on the left side
with two D-rings and a load binder.
Figure 8-4. Supply Box Lashed (Continued)
8-8
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
12
13
24
15
Lashing
Tiedown
Instructions
Number
Clevis
Number
12
15
Route a 15-foot lashing through clevis 15 and through its own D-
ring. Route the lashing to the upper left front cutout of the supply
box.
13
24
Route a 15-foot lashing through clevis 24 and through its own D-
ring. Route the lashing to the upper left rear cutout of the supply box.
Secure the lashing to the lashing from clevis 15 on the left side with
two D-rings and a load binder.
14
15A
Route a 15-foot lashing through clevis 15A and through its own D-
ring. Route the lashing to the upper right front cutout of the supply
box.
15
24A
Route a 15-foot lashing through clevis 24A and through its own D-
ring. Route the lashing to the upper right rear cutout of the supply
box. Secure the lashing to the lashing from clevis 15A on the right
side with two D-rings and a load binder.
Figure 8-4. Supply Box Lashed (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-9
Chapter 8

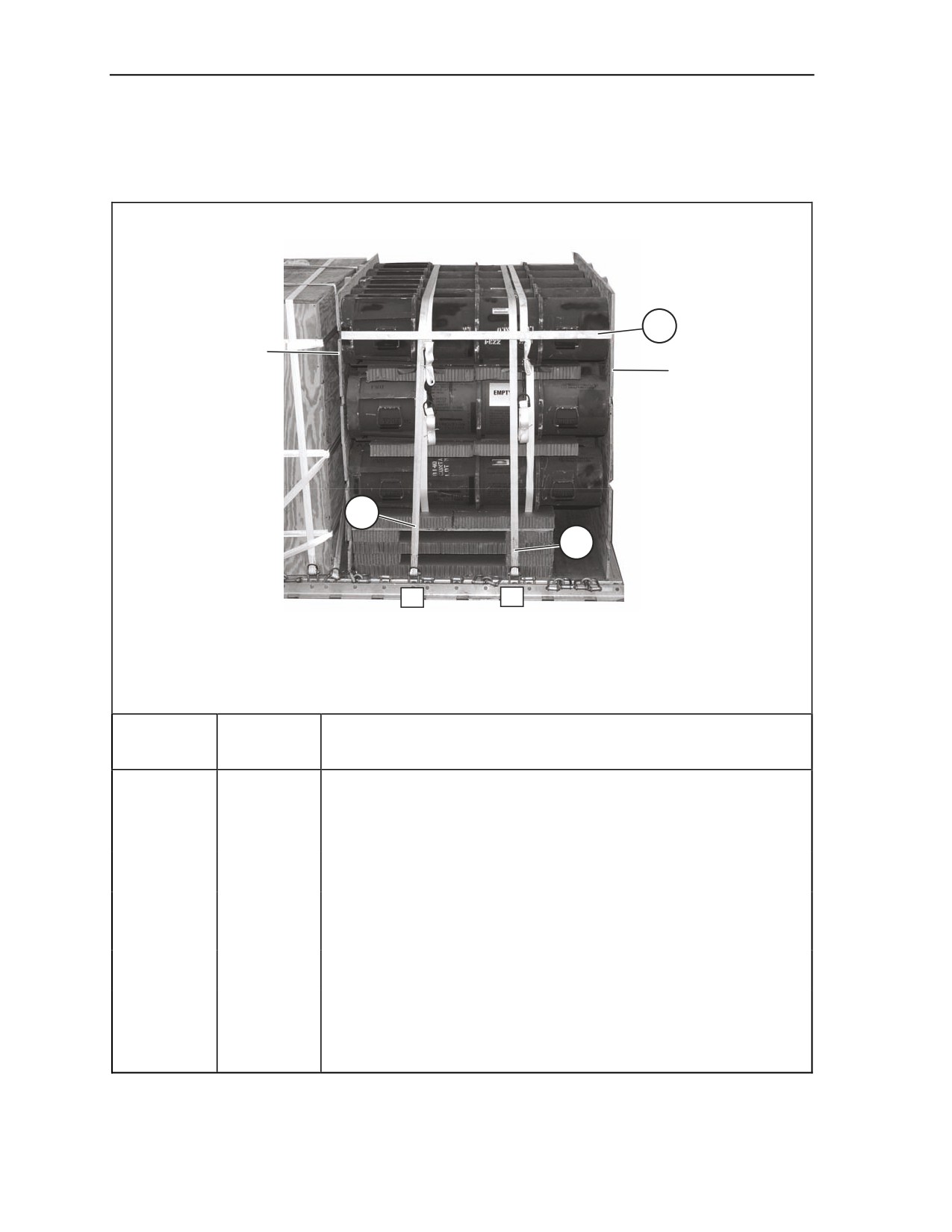

PREPARING HONEYCOMB STACKS
8-6. Prepare honeycomb stacks 1 and 2 as shown in Figure 8-5.
REAR
FRONT
LEFT
RIGHT
Stack
Pieces
Width
Length
Material
Instructions
Number
(inches)
(inches)
1 and 2
2
36
48
Honeycomb
Cut the two pieces to form the base.
2
76
11
Honeycomb
Cut two pieces and place them on top
of the two 36- by 48-inch pieces.
Position them flush with the front and
the rear. Make sure that the 36- by
48-inch pieces are flush with the 11
inch side of the 11- by 76-inch ends.
2
36
48
Honeycomb
Cut two pieces and place them on top
of the 76- by 11-inch piece of
honeycomb. Position them flush with
the front and the rear.
2
76
11
Honeycomb
Cut the two pieces and place them on
top of the 36- by 48-inch piece of
honeycomb. Position them flush with
the front and the rear.
1
76
48
¾-inch
Position and glue on top of the 11- by
Plywood
76-inch pieces.
2
76
24
Honeycomb
Place the two pieces on top of the 76-
by 48-inch piece of plywood.

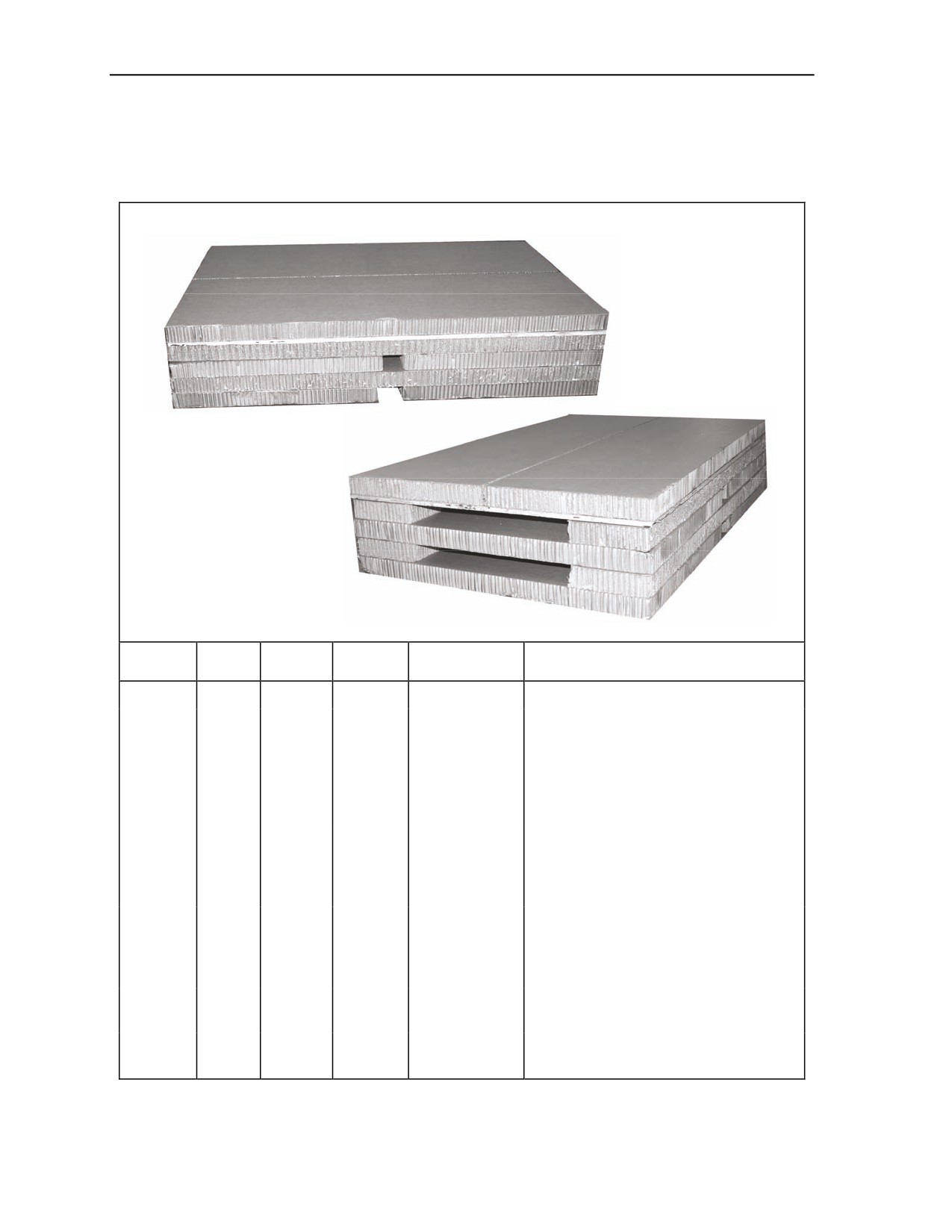

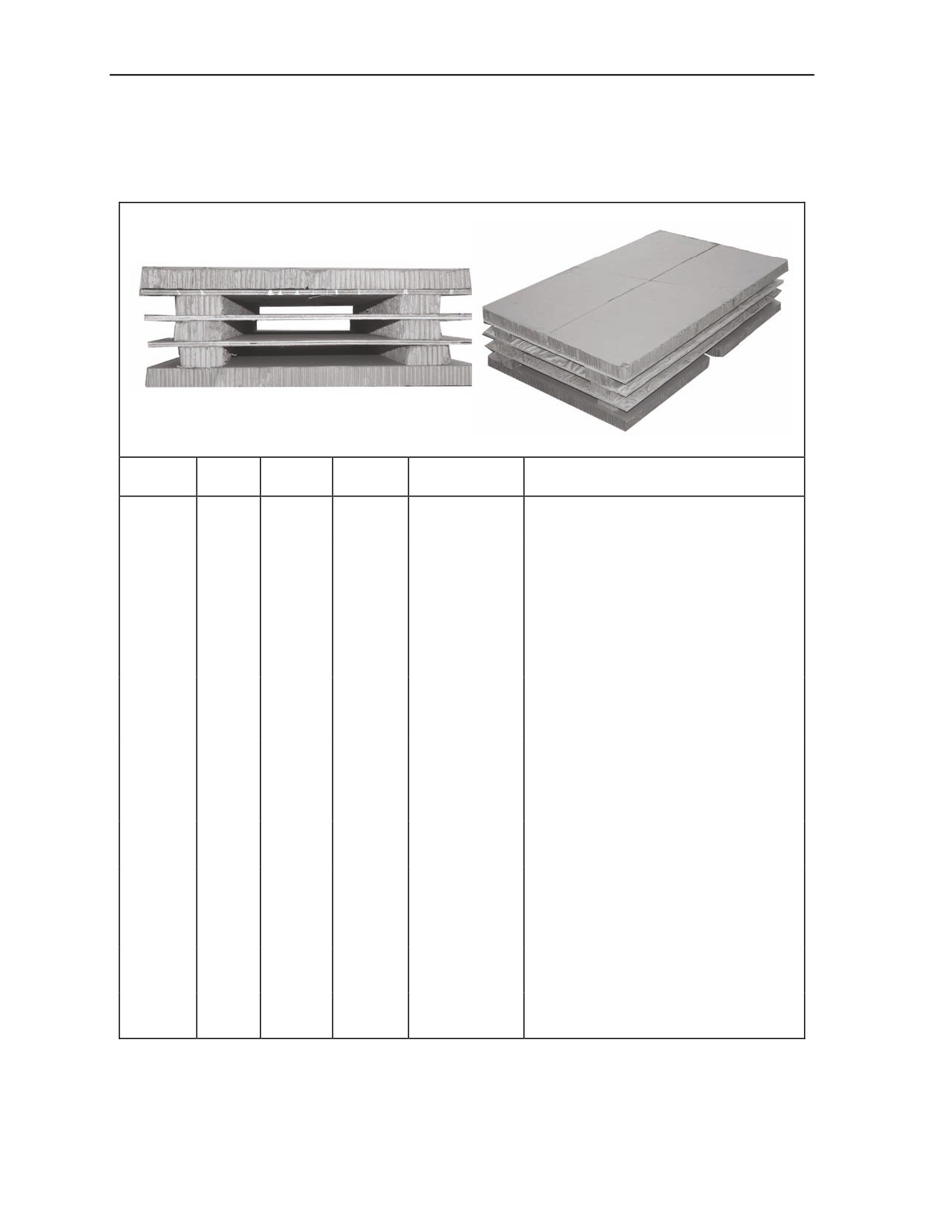

Figure 8-5. Honeycomb Stacks 1 and 2 Prepared
8-10
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
POSITIONING HONEYCOMB STACKS

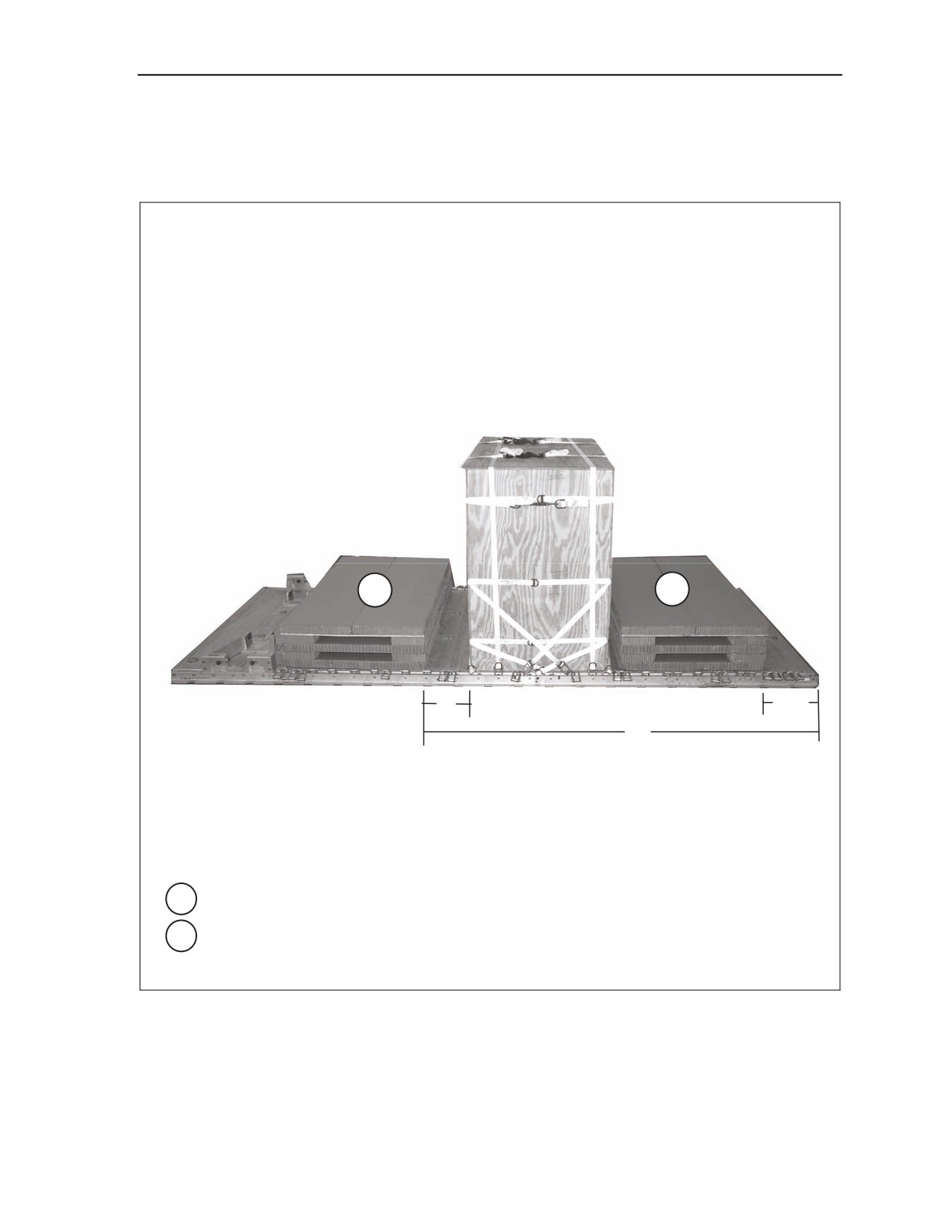

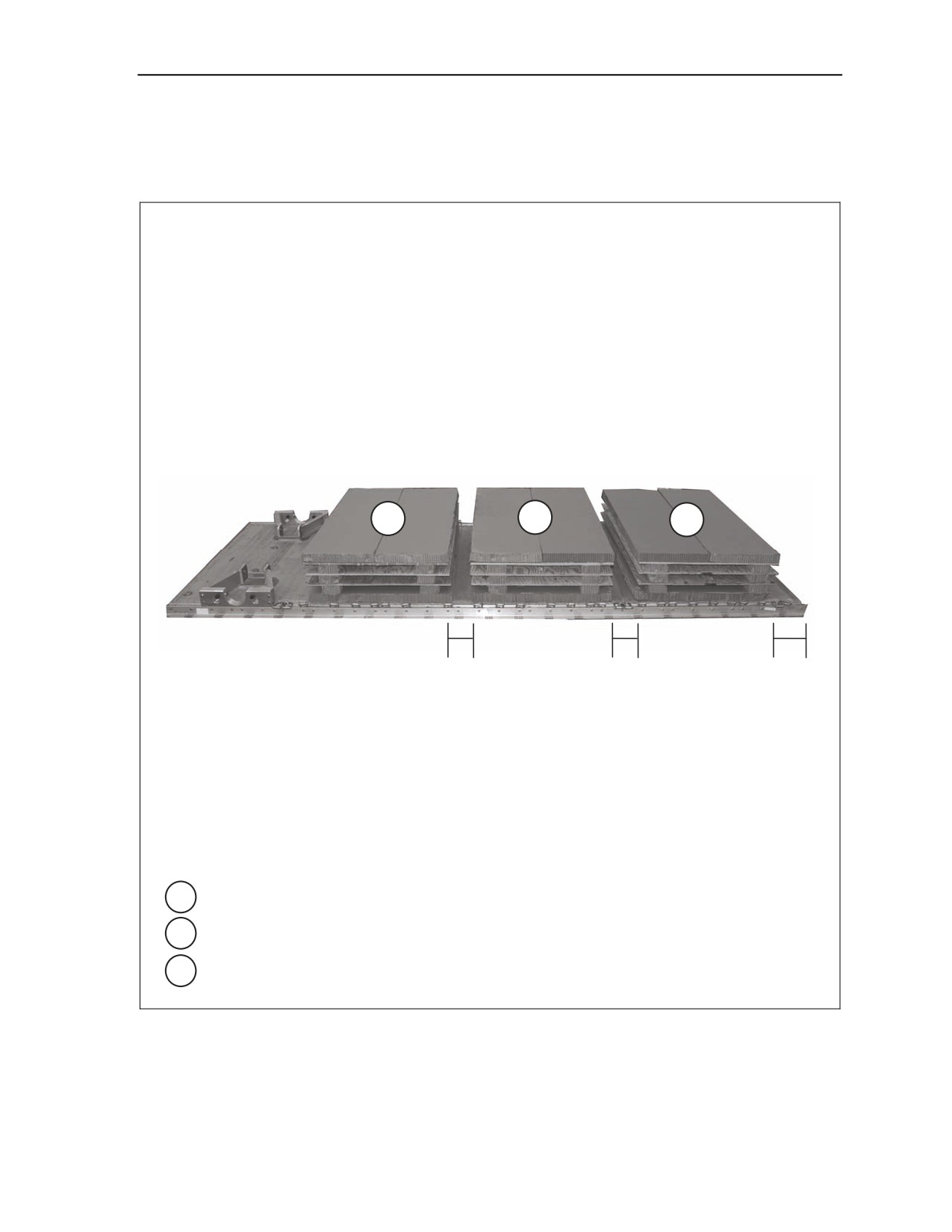

8-7. Position honeycomb stacks 1 and 2 as shown in Figure 8-6.
Note. All dimensions are in inches.
STACK 2
STACK 1
2
1
15
16 ½
129
1 Position stack 1, 16 ½ inches centered from the front edge of the platform.
2 Position stack 2, 15 inches centered from the supply box and 129 inches centered from the
front edge of the platform.
Figure 8-6. Honeycomb Stacks 1 and 2 Positioned
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-11
Chapter 8

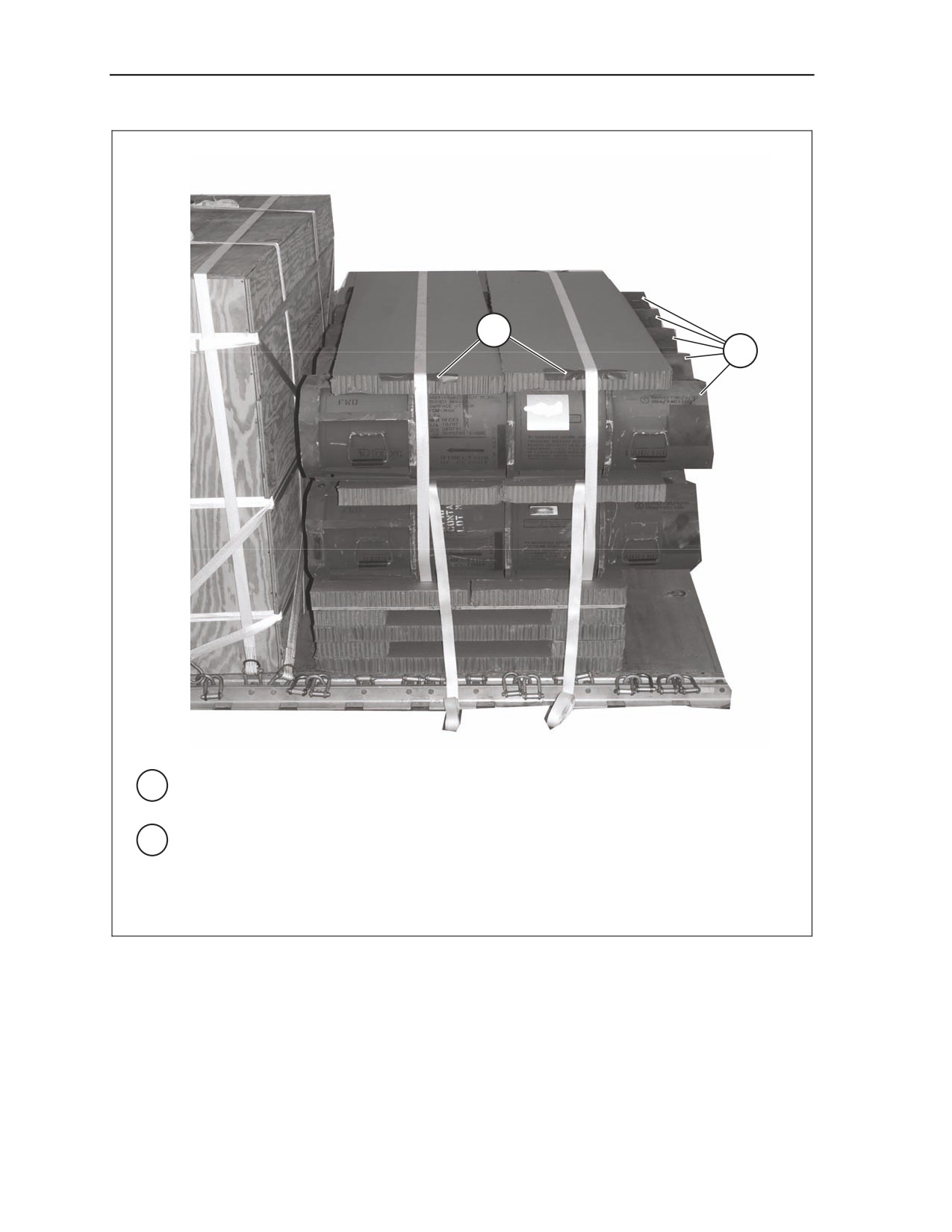

POSITIONING AND SECURING JAVELINS ON STACK 1
8-8. Position and secure the Javelins on stack 1 as shown in Figure 8-7.
CAUTION
The Javelins must be positioned with the direction of the flight arrow
toward the rear of the platform.
1
1 Pre-position two 30-foot lashings 10 inches from each end of stack 1.

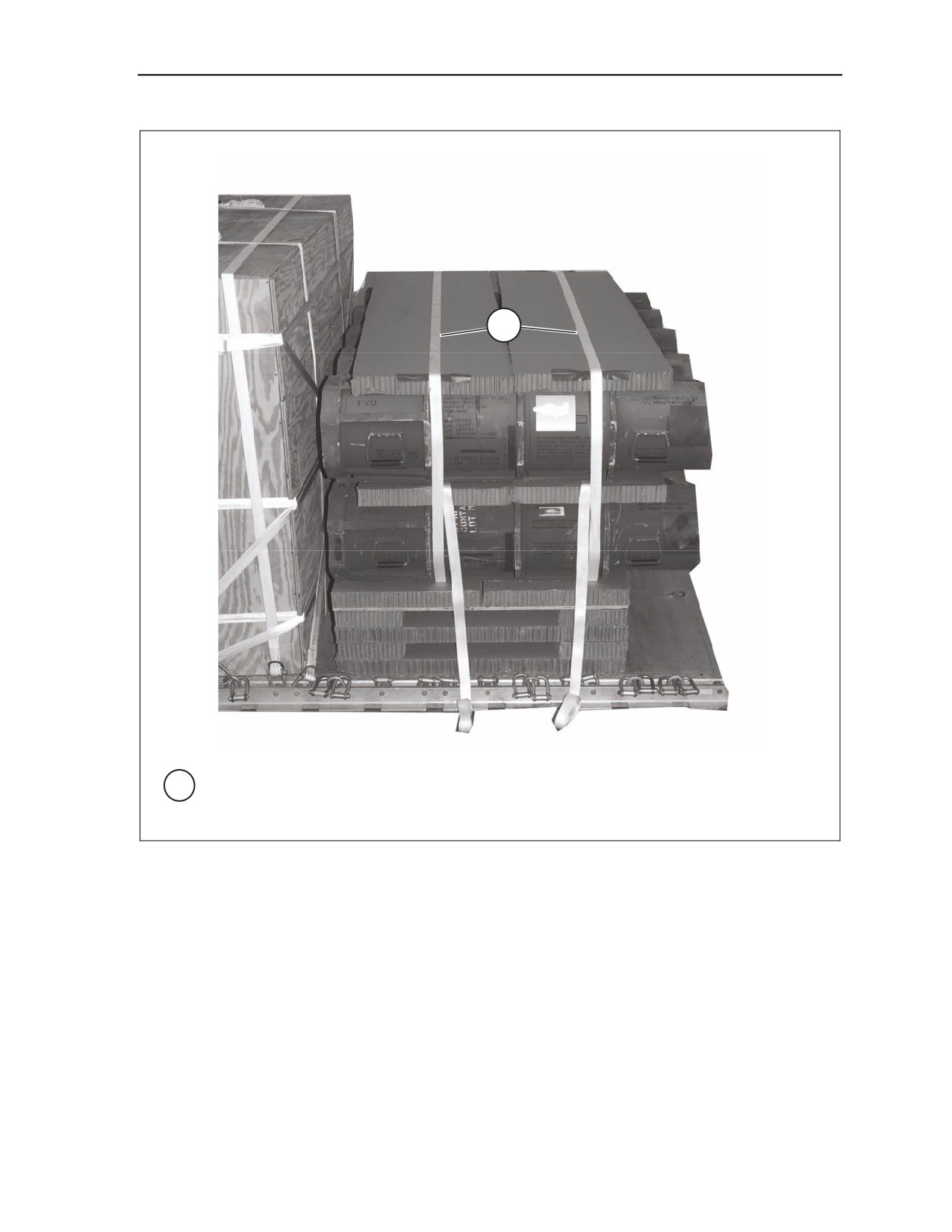

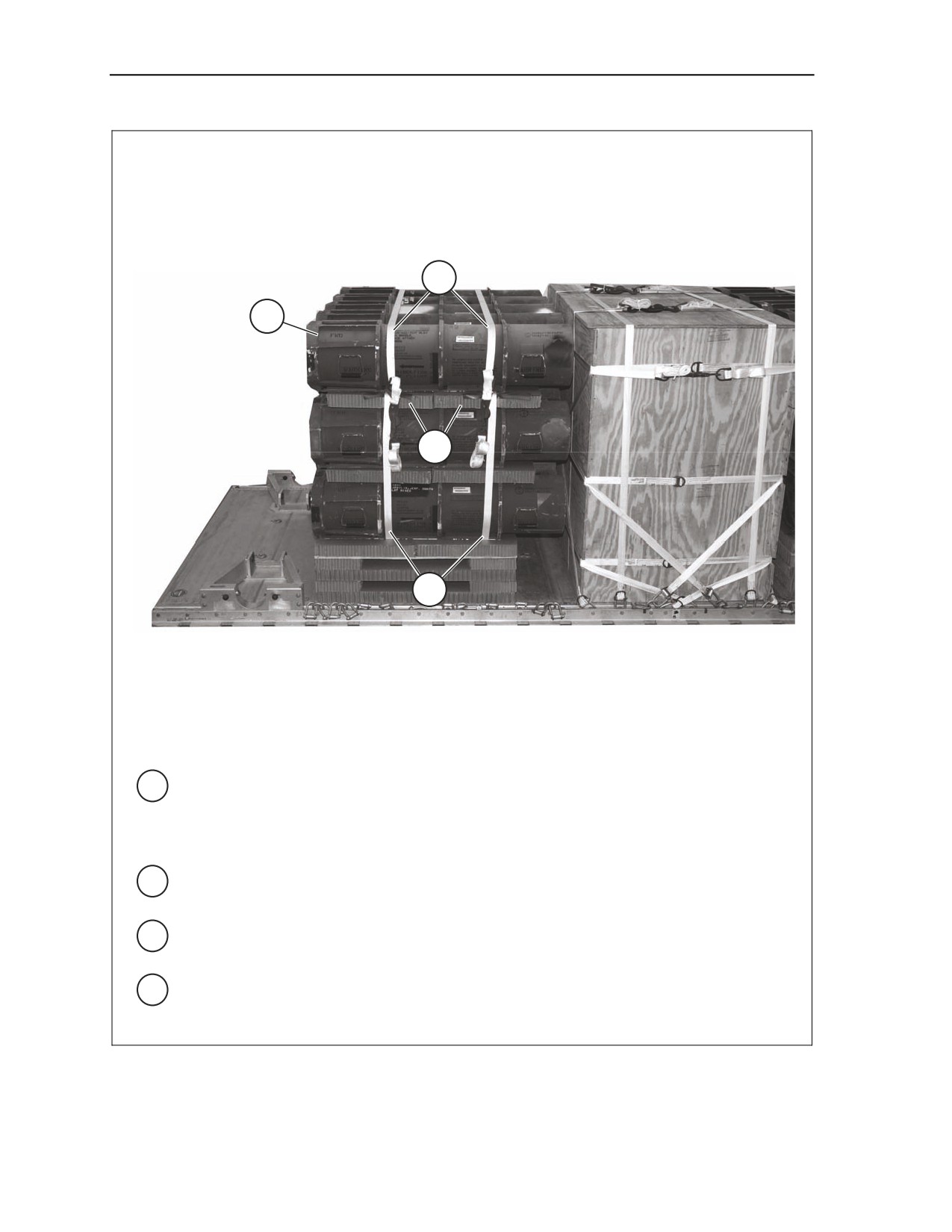

Figure 8-7. Javelins Positioned and Secured on Stack 1
8-12
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
4
2
3
2
Position five Javelin containers on top of the pre-positioned lashings with the rear edges of
the Javelin containers flush with the rear edges of stack 1.
Note. The Javelins must be positioned with the direction of the flight arrow toward the rear of the
platform.
3
Cut and position two 24- by 76-inch pieces of honeycomb across the Javelin containers.
4 Pre-position two 30-foot lashings and place them on the honeycomb stack positioned in
step 3.

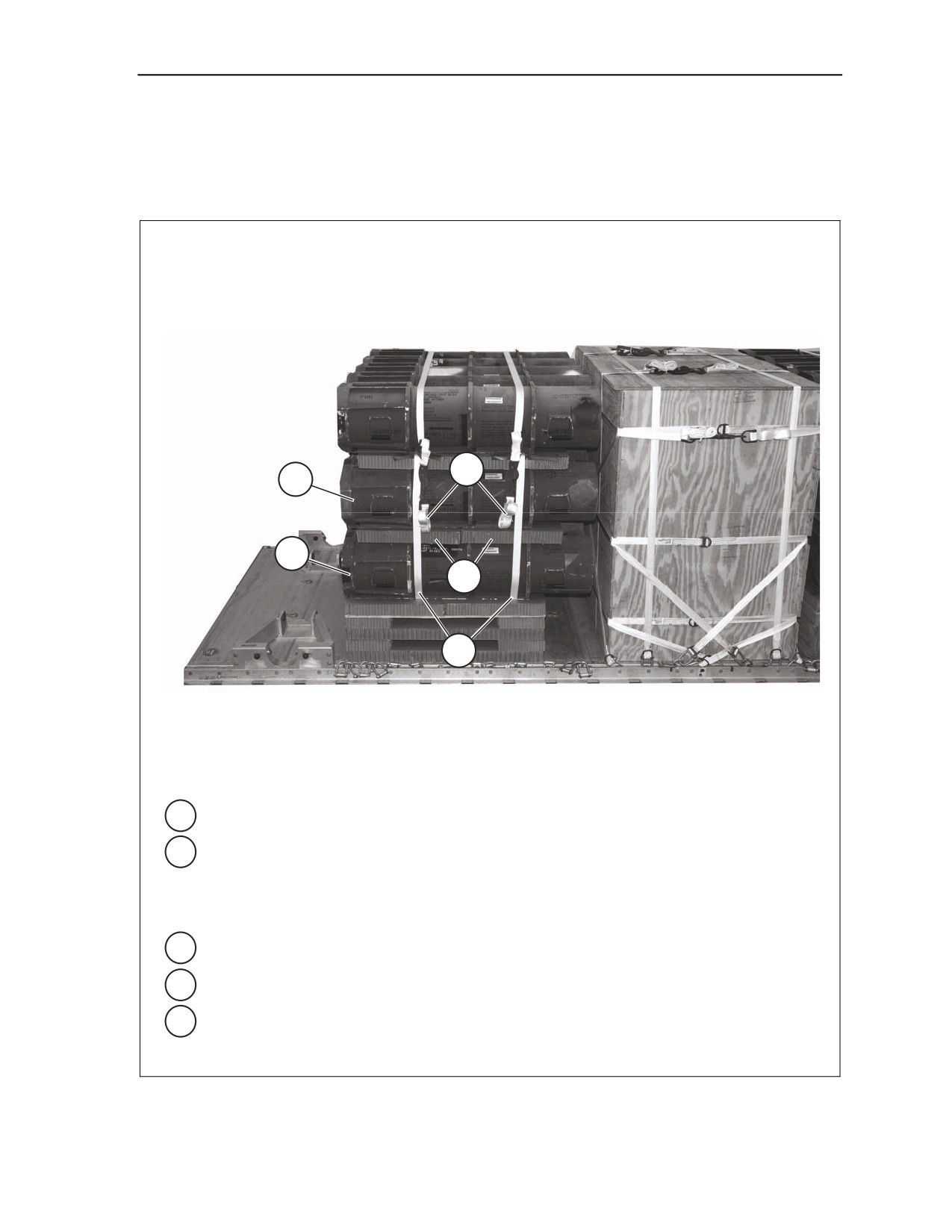

Figure 8-7. Javelins Positioned and Secured on Stack 1 (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-13
Chapter 8
6
5
5 Position five Javelin containers on top of the pre-positioned lashings with the rear edges of
the Javelin containers flush with the rear edges of stack 1.
6 Cut and position two 24- by 76-inch pieces of honeycomb across the Javelin containers.
Tape the edges of the honeycomb where the lashings will touch when secured.
Note. Place the lashings toward the inside so the first set of lashings are not touching when
secured.
Figure 8-7. Javelins Positioned and Secured on Stack 1 (Continued)
8-14
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
7

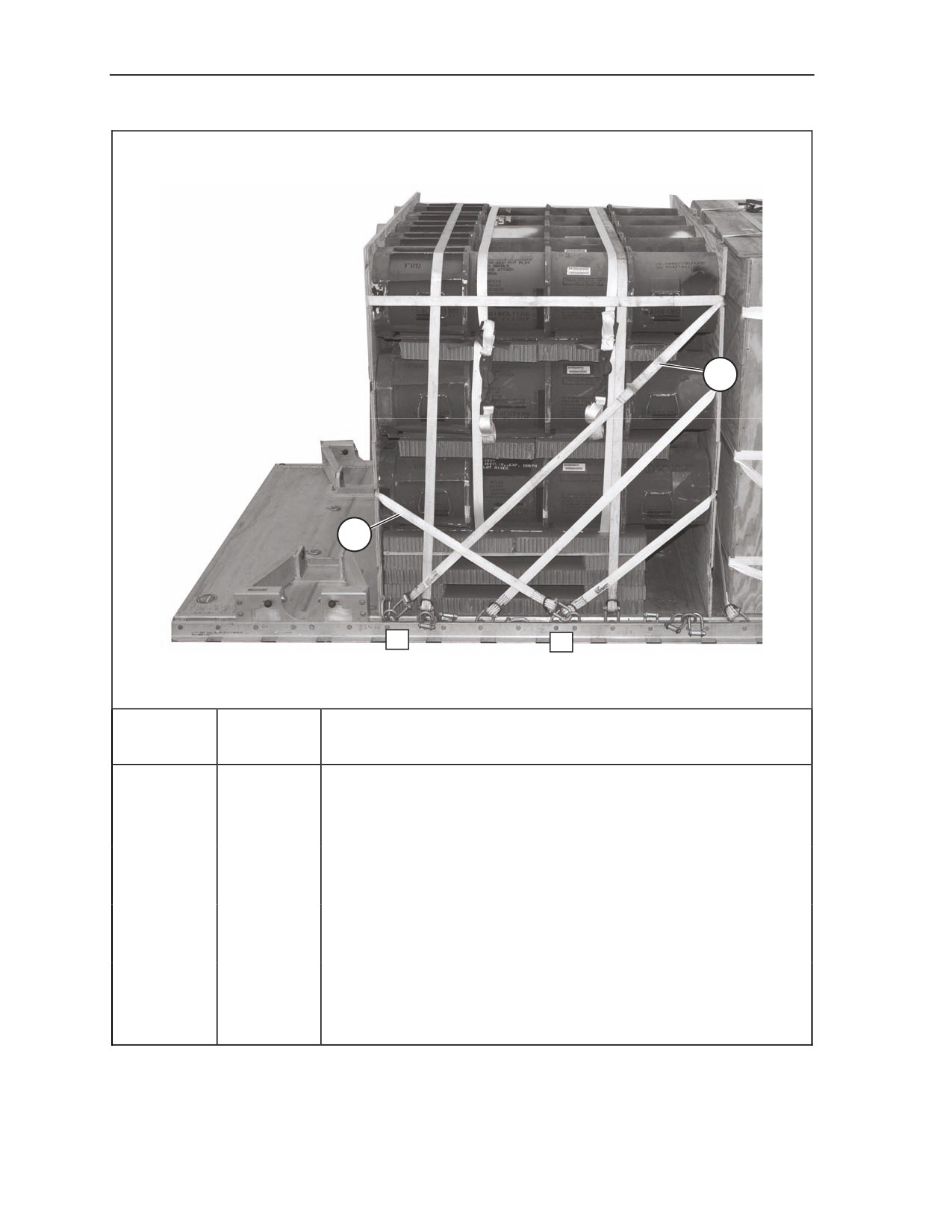

7 Secure the first and second layers with the pre-positioned lashings on the bottom of the left
side with two D-rings and a load binder.
Figure 8-7. Javelins Positioned and Secured on Stack 1 (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-15
Chapter 8
8
9

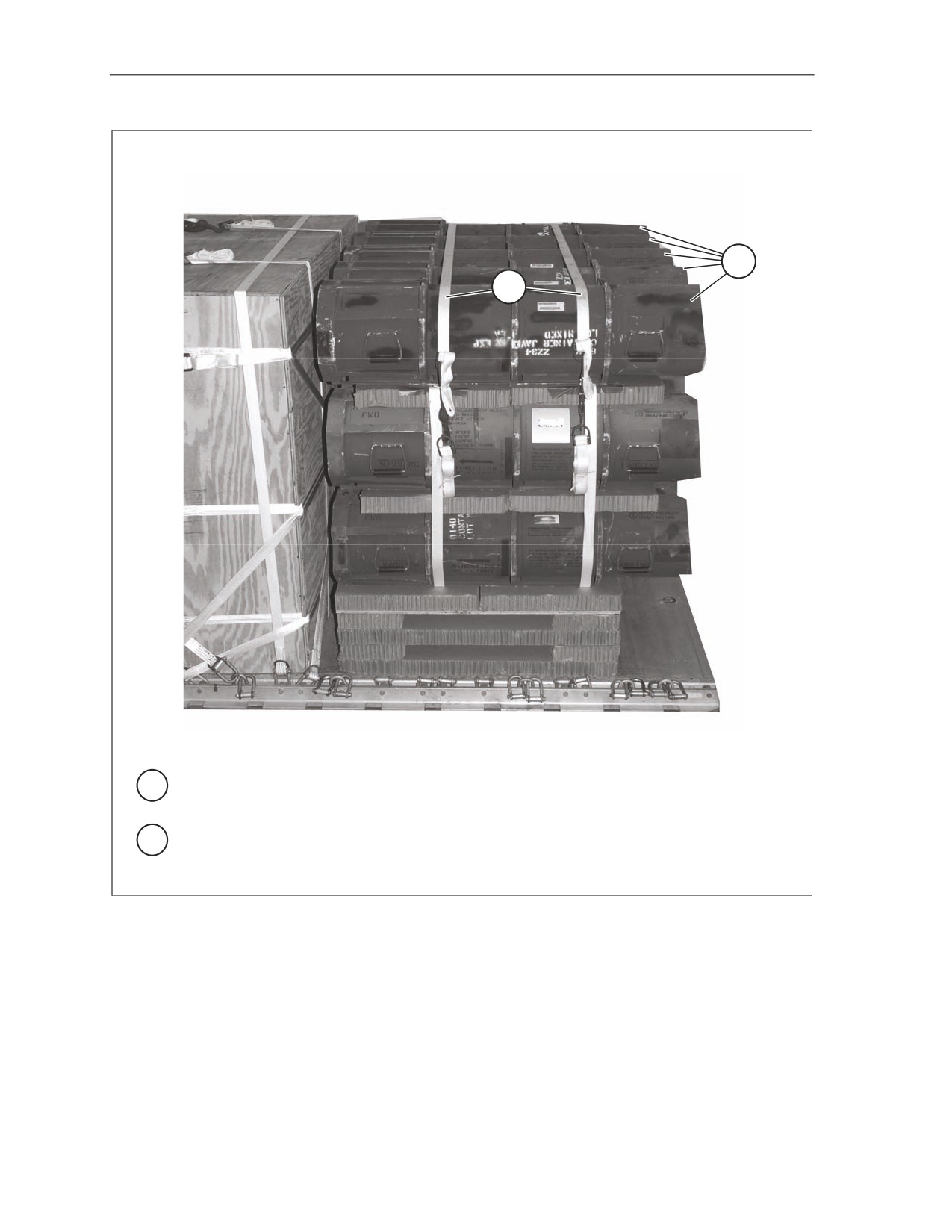

8 Position five Javelin containers on top of the honeycomb with the rear edges of the Javelin
containers flush with the rear edges of stack 1.
9 Secure the second and third layers with the pre-positioned lashings, that were placed on
the second layer, on the right side of the platform with two D-rings and a load binder.
Figure 8-7. Javelins Positioned and Secured on Stack 1 (Continued)
8-16
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform

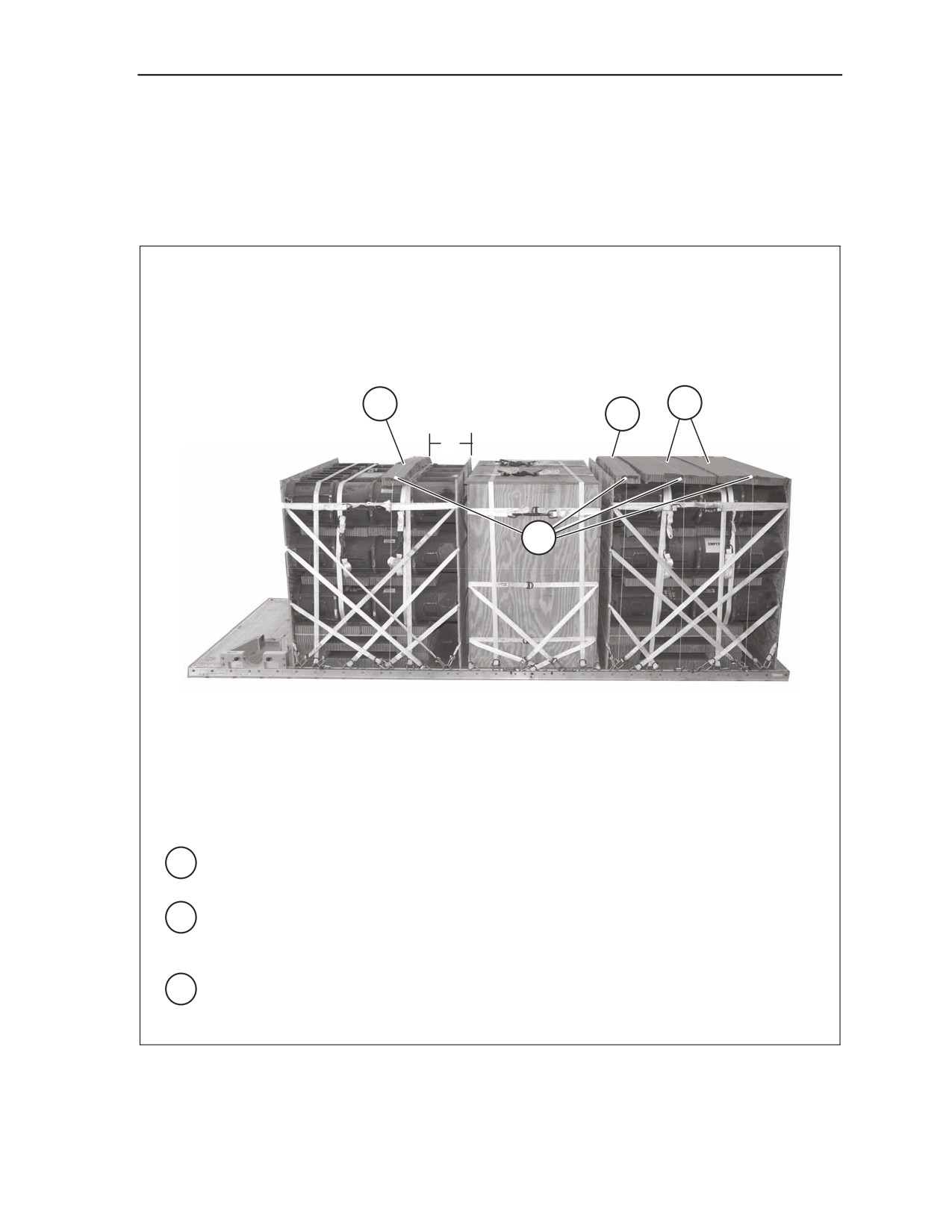

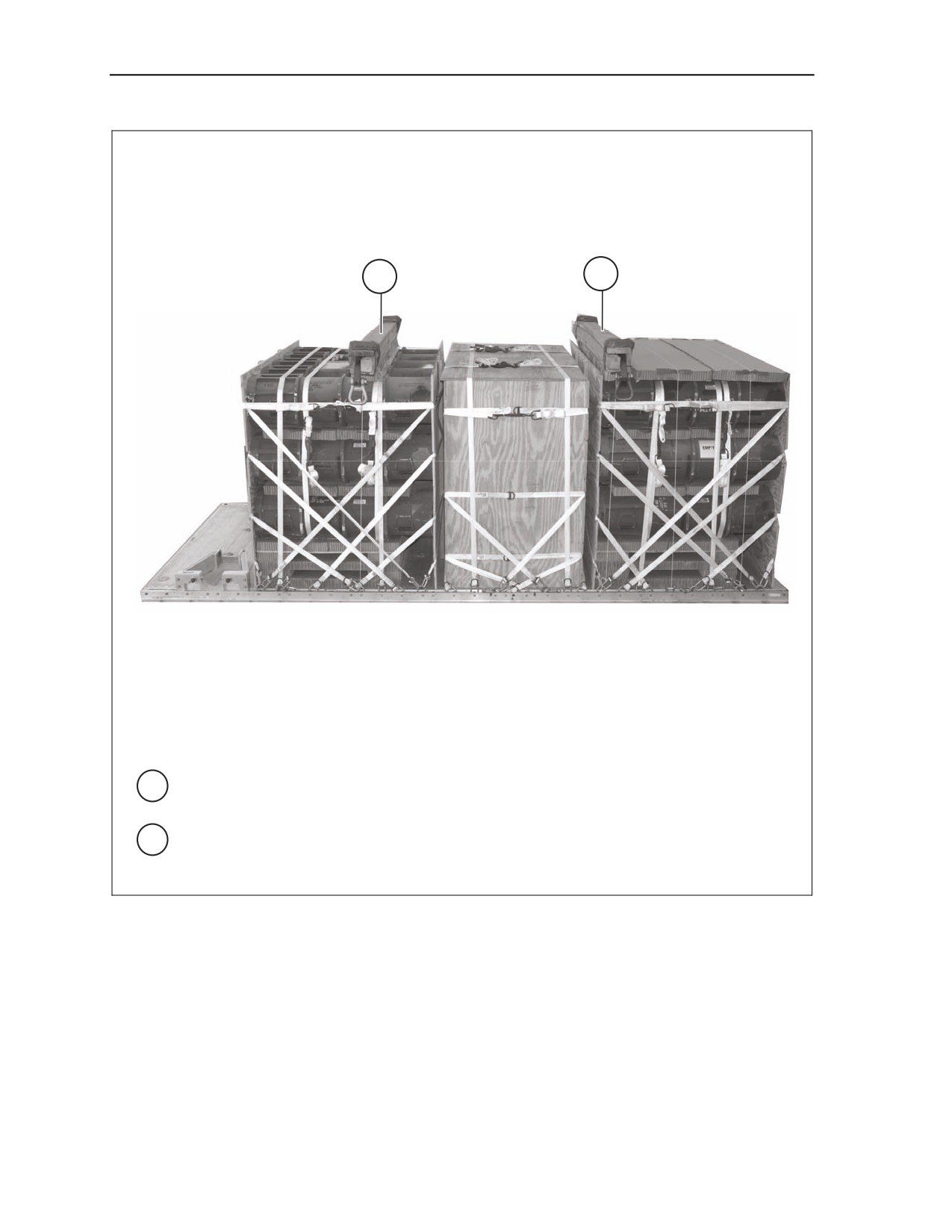

POSITIONING AND SECURING JAVELINS ON STACK 2
8-9. Position and secure the Javelins on stack 2 as shown in Figure 8-8. The same procedures and
dimensions used in stack 1 will be duplicated for stack 2.
4
5
2
3
1
1
Pre-position two 30-foot lashings 10 inches from each end of stack 2.
2
Position five Javelin containers on top of the pre-positioned lashings with the rear edges of
the Javelin containers flush with the rear edges of stack 2.
Note. The Javelins must be positioned with the direction of the flight arrow toward the rear of the
platform.
3
Cut and position two 24- by 76-inch pieces of honeycomb across the Javelin containers.
4
Pre-position two 30-foot lashings and place them on the honeycomb positioned in step 3.
5 Position five Javelin containers on top of the pre-positioned lashings with the rear edges of
the Javelin containers flush with the rear edges of stack 2.
Figure 8-8. Javelins Positioned and Secured on Stack 2
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-17
Chapter 8
9
8
6
7
6
Cut and position two 24- by 76-inch pieces of honeycomb across the Javelin containers.
Tape the edges of the honeycomb where the lashings will touch when secured.
Note. Place the lashings toward the inside so as not to touch the first set of lashings are not
touching when secured.
7
Secure the first and second layers with the pre-positioned lashings on the bottom on the
left side with two D-rings and a load binder.
8
Position five Javelin containers on top of the honeycomb with the rear edges of the Javelin
containers flush with the rear edges of stack 2.
9 Secure the second and third layers with the pre-positioned lashings, that were placed on
the second layer, on the right side of the platform with two D-rings and a load binder.
Figure 8-8. Javelins Positioned and Secured on Stack 2 (Continued)
8-18
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
CONSTRUCTING ENDBOARDS
8-10. Construct four endboards as shown in Figure 8-9.
Notes. 1. This drawing is not to scale.
2. All dimensions are in inches.
3. Use 8d nails.
24
24
8
CUTOUTS
PLYWOOD
13
2 X 2
(¾ X 34 X 80)
9
68
8
PLYWOOD
CUTOUTS
(¾ X 34 X 80)
2 X 2
13
9
80
Step:
1. Cut four ¾- by 80- by 34-inch pieces of plywood.
2. Make eight 2- by 2-inch cutouts on each endboard as shown.
3. Cut four 2- by 4- by 68-inch pieces of lumber.
4. Nail two pieces of plywood flush together using two 2- by 4- by 68-inch pieces of lumber
placed 24 inches from each cutout end with 8d nails to make an endboard. Repeat to
make two endboards.

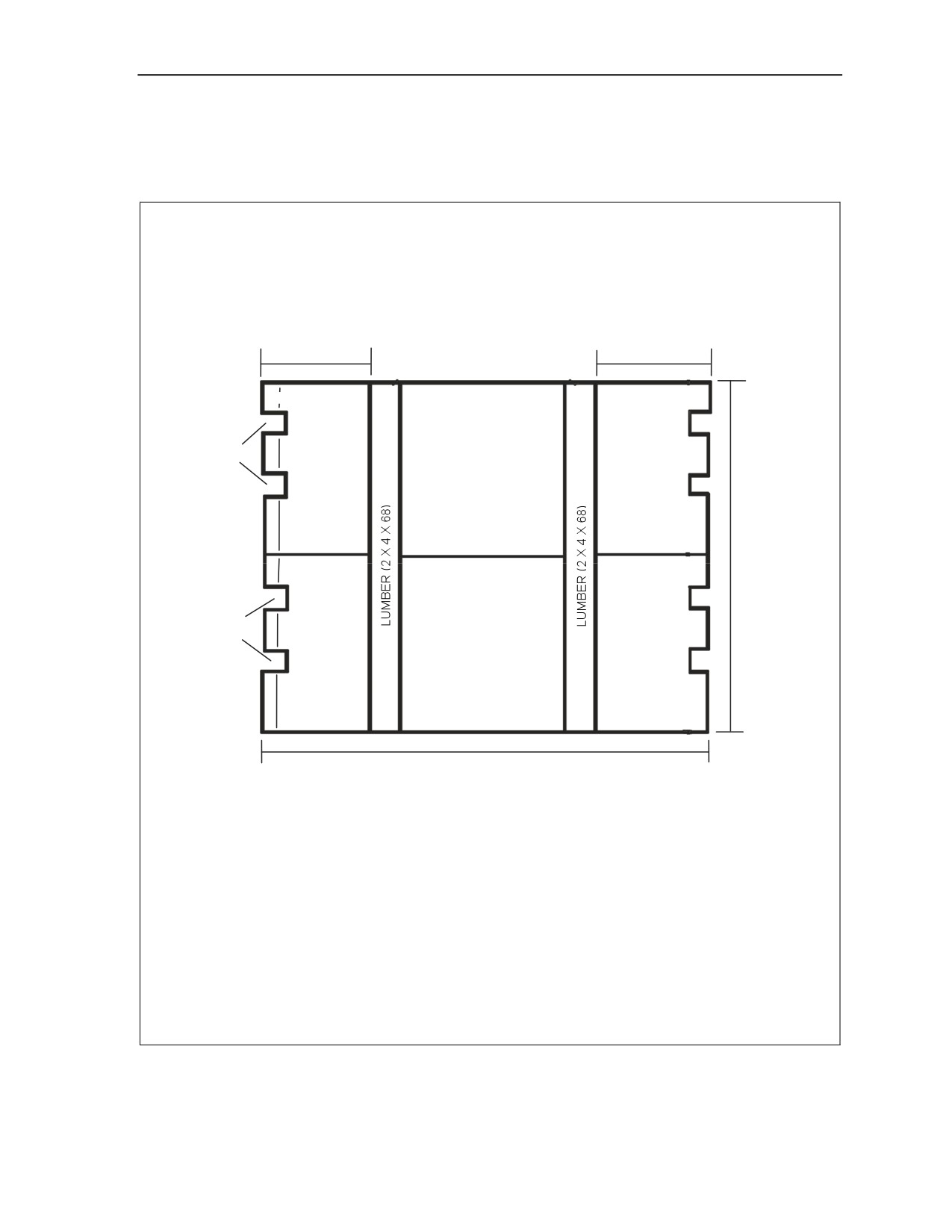

Figure 8-9. Endboards Constructed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-19
Chapter 8
LASHING ENDBOARDS AND LOAD FOR STACK 1

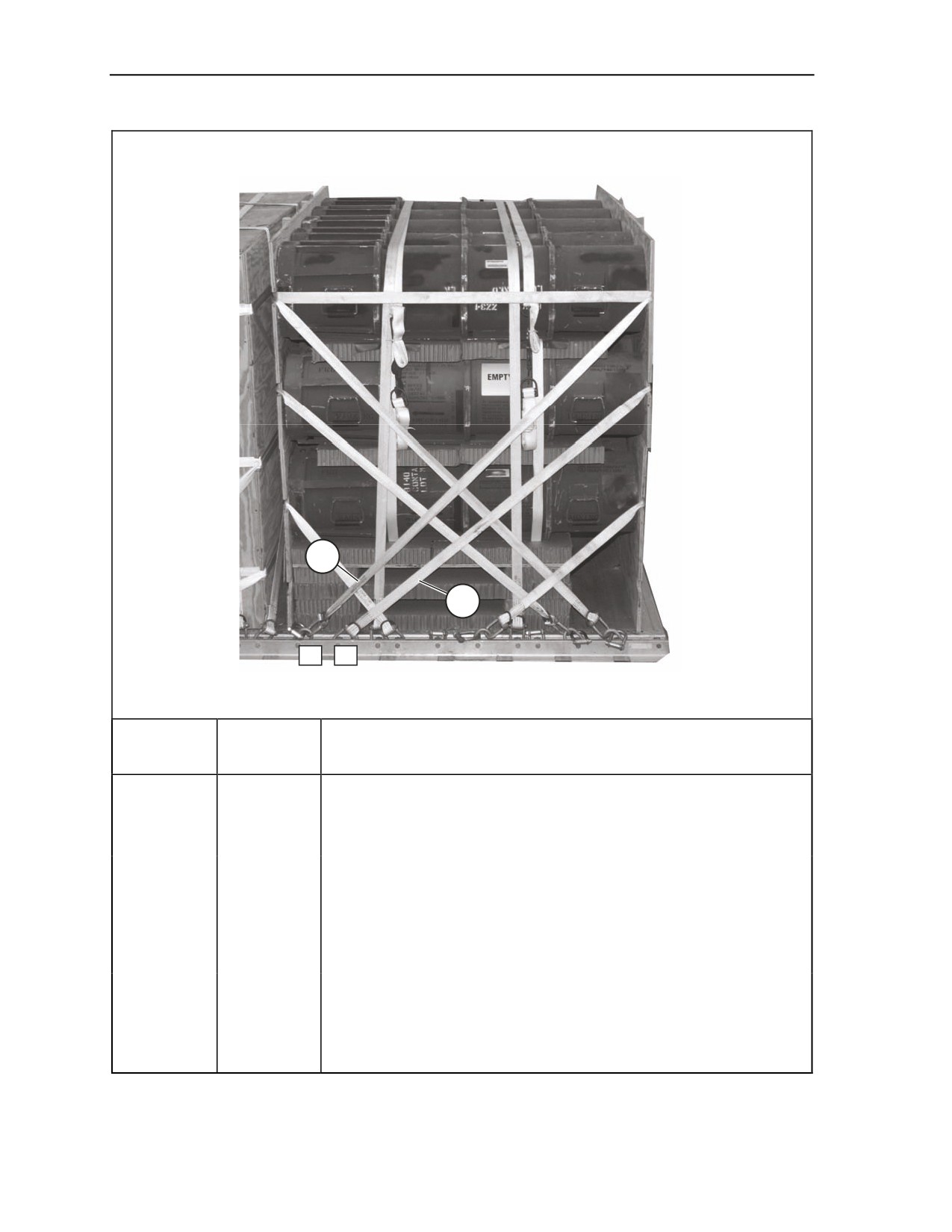

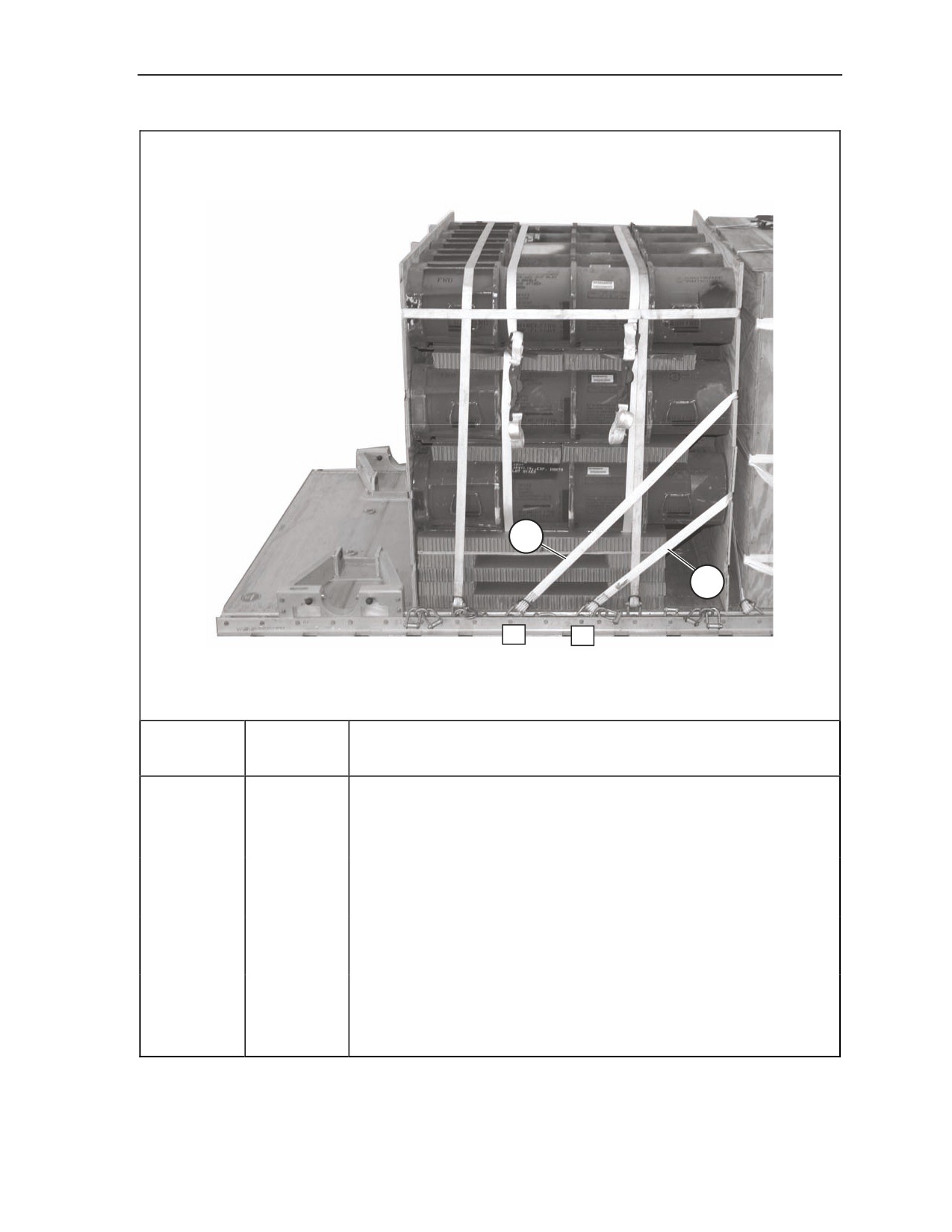

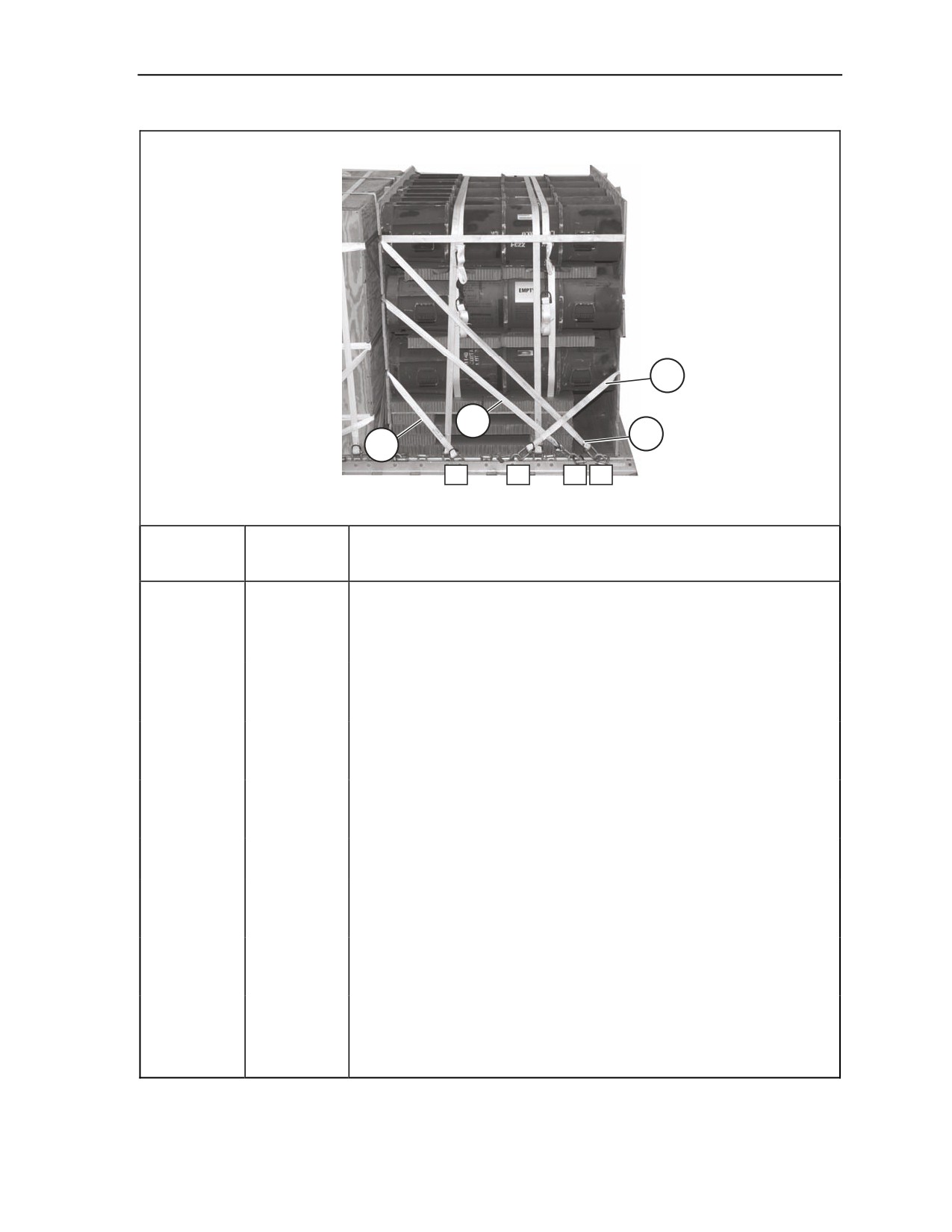

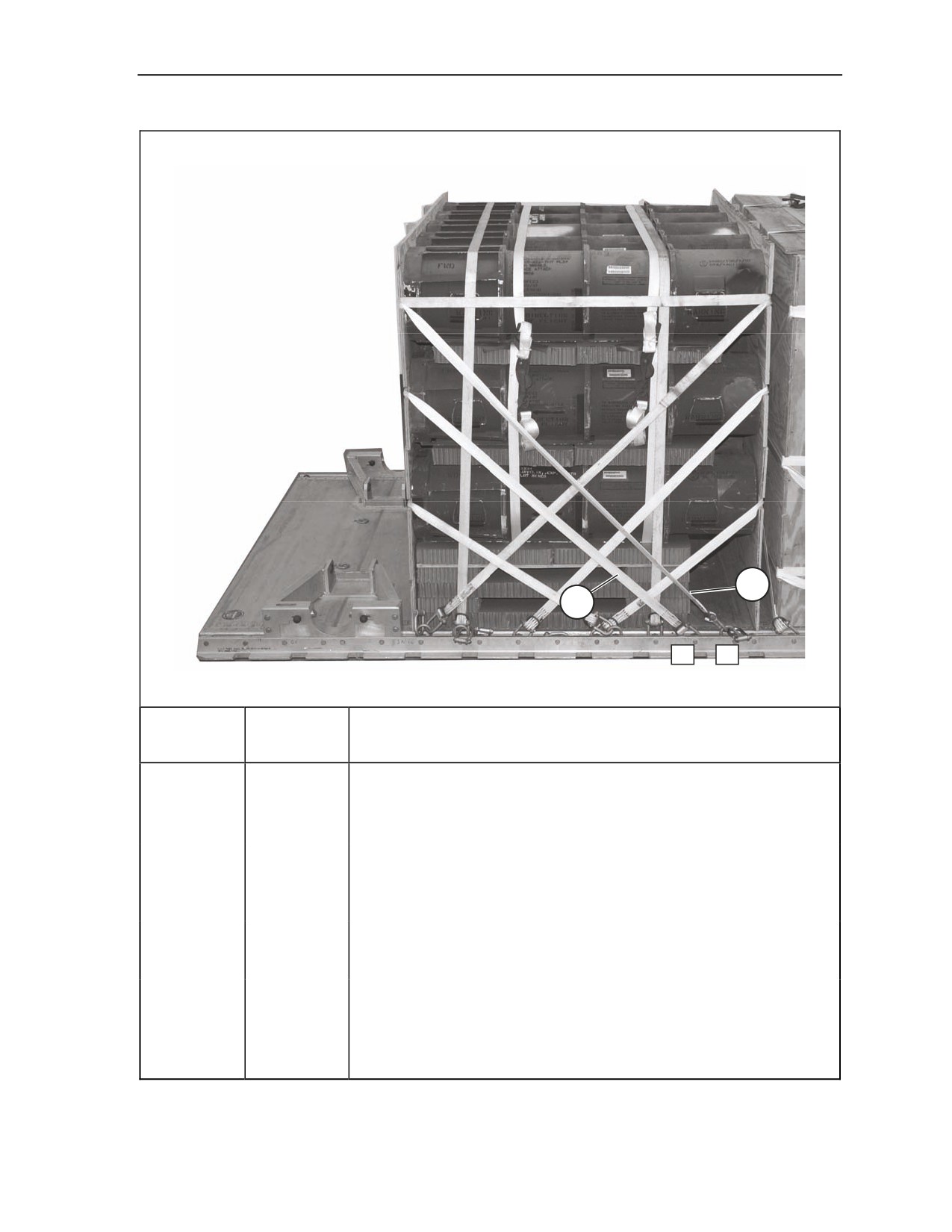

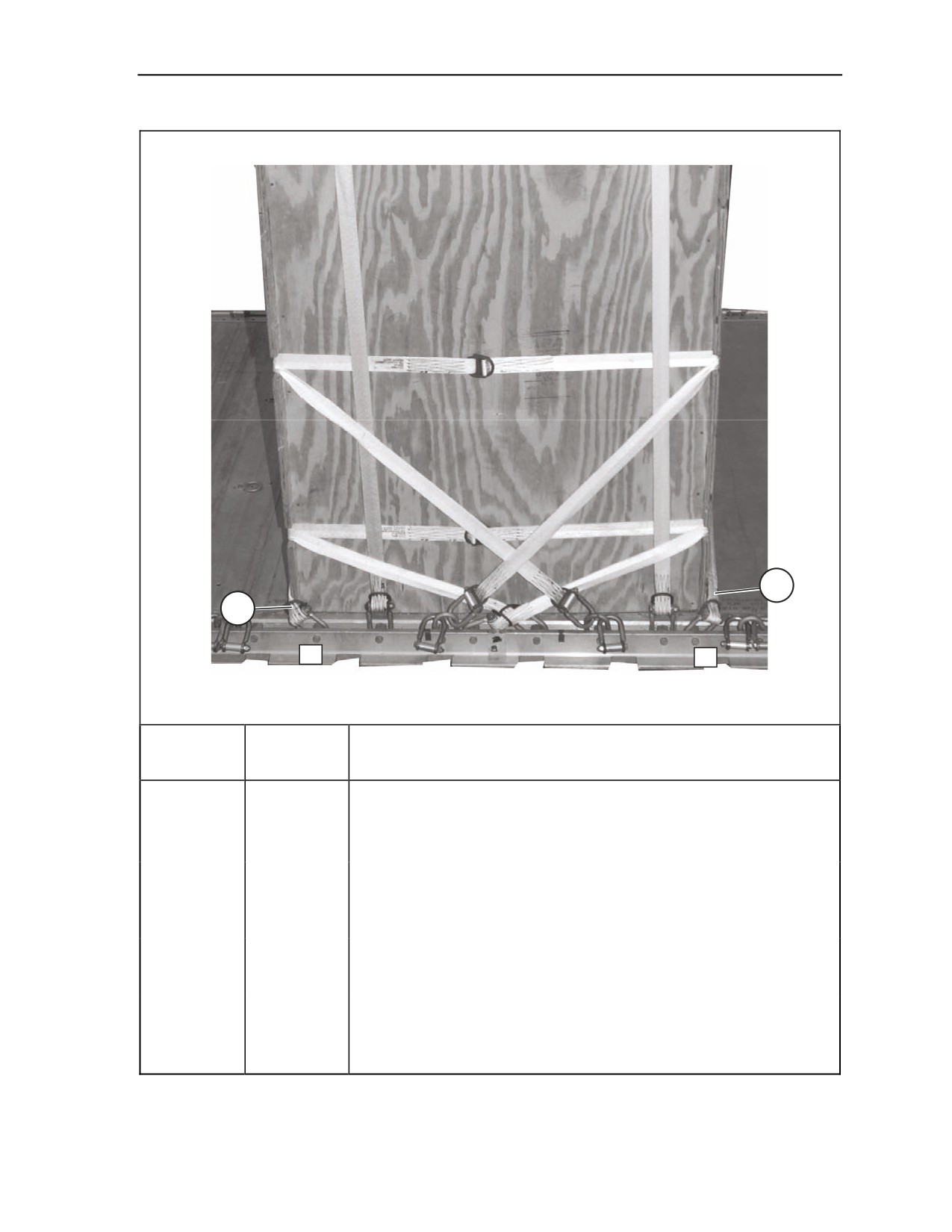

8-11. Lash the endboards and the load for stack 1 as shown in Figure 8-10.
1
ENDBOARD
ENDBOARD
4
2
11
6
Step:
1. Position an endboard on each side of stack 1 with the 2- by 4-inch piece of lumber side
placed to the outside.
Lashing
Tiedown
Instructions
Number
Clevis
Number
1
Form a 30-foot lashing and route it through the top cutouts of stack 1
and secure centered on the front endboard of stack 1 with two D-
rings and a load binder.
2
6
Route a 15-foot lashing through clevis 6 and through its own D-ring.
Route the lashing over the top of stack 1.
3
6A
Route a 15-foot lashing through clevis 6A and through its own D-
ring. Secure the lashing to the lashing from clevis 6 on the left side
with two D-rings and a load binder.
4
11
Route a 15-foot lashing through clevis 11 and through its own D-
ring. Route the lashing over the top of stack 1.
5
11A
Route a 15-foot lashing through clevis 11A and through its own D-
ring. Secure the lashing to the lashing from clevis 11 on the left side
with two D-rings and a load binder.
Figure 8-10. Endboards and Load for Stack 1 Lashed
8-20
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
12
6
10
8
10
7
4
2
Lashing
Tiedown
Instructions
Number
Clevis
Number
6
4
Route a 15-foot lashing through clevis 4 and through its own D-ring.
Route the lashing through the top middle cutouts of the rear
endboard.
7
4A
Route a 15-foot lashing through clevis 4A and through its own D-
ring. Secure the lashing to the lashing from clevis 4 on the left side
with two D-rings and a load binder.
8
10
Route a 15-foot lashing through clevis 10 and through its own D-
ring. Route the lashing through the bottom middle cutouts of the rear
endboard.
9
10A
Route a 15-foot lashing through clevis 10A and through its own D-
ring. Secure the lashing to the lashing from clevis 10 on the left side
with two D-rings and a load binder.
10
2
Route a 15-foot lashing through clevis 2 and through its own D-ring.
Route the lashing through the top cutouts of the rear endboard.
11
2A
Route a 15-foot lashing through clevis 2A and through its own D-
ring. Secure the lashing to the lashing from clevis 2 on the left side
with two D-rings and a load binder.
12
7
Route a 15-foot lashing through clevis 7 and through its own D-ring.
Route the lashing through the bottom middle cutout of the front
endboard.
13
7A
Route a 15-foot lashing through clevis 7A and through its own D-
ring. Secure the lashing to the lashing from clevis 7 on the front
endboard center with two D-rings and a load binder.
Figure 8-10. Endboards and Load for Stack 1 Lashed (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-21
Chapter 8
16
14
13
12
Lashing
Tiedown
Instructions
Number
Clevis
Number
14
12
Route a 15-foot lashing through clevis 12 and through its own D-
ring. Route the lashing through the top middle cutout of the front
endboard.
15
12A
Route a 15-foot lashing through clevis 12A and through its own D-
ring. Route the lashing through the top middle cutout of the front
endboard. Secure the lashing to the lashing from clevis 12 on the
front endboard centered with two D-rings and a load binder.
16
13
Route a 15-foot lashing through clevis 13 and through its own D-
ring. Route the lashing through the top cutout of the front endboard.
17
13A
Route a 15-foot lashing through clevis 13A and through its own D-
ring. Route the lashing through the top cutout of the front endboard.
Secure the lashing to the lashing from clevis 13 on the front
endboard centered with two D-rings and a load binder.
Figure 8-10. Endboards and Load for Stack 1 Lashed (Continued)
8-22
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
18
19
19
19
18
18
14
1
Lashing
Tiedown
Instructions
Number
Clevis
Number
18
1 and 14
Route a 15-foot lashing through clevis 1 and through its own D-ring.
Route the lashing through the bottom cutout to the top cutout of the
front endboard. Route a 15-foot lashing through clevis 14 and
through its own D-ring and through the bottom cutout to the top
cutout of the rear endboard. Secure the lashing from clevises 1 and
14 together on the left side with two D-rings and a load binder.
19
1A and 14A
Route a 15-foot lashing through clevis 1A and through its own D-
ring. Route the lashing through the bottom cutout to the top cutout of
the front endboard. Route a 15-foot lashing through clevis 14A and
through its own D-ring and through the bottom cutout to the top
cutout of the rear endboard. Secure the lashing from clevises 1A
and 14A together on the right side with two D-rings and a load
binder.
Figure 8-10. Endboards and Load for Stack 1 Lashed (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-23
Chapter 8
LASHING ENDBOARDS AND LOAD FOR STACK 2
8-12. Lash the endboards and the load for stack 2 as shown in Figure 8-11.
1
ENDBOARD
ENDBOARD
4
2
36
28
Step:
1. Position an endboard on each side of stack 2 with the side of the 2- by 4-inch pieces of
lumber placed to the outside.
Lashing
Tiedown
Instructions
Number
Clevis
Number
1
Form a 30-foot lashing and route it through the top cutouts of stack 2
and secure centered on the front endboard of stack 2 with two
D-rings and a load binder.
2
28
Route a 15-foot lashing through clevis 28 and through its own
D-ring. Route the lashing over the top of stack 2.
3
28A
Route a 15-foot lashing through clevis 28A and through its own
D-ring. Secure the lashing to the lashing from clevis 28 on the left
side with two D-rings and a load binder.
4
36
Route a 15-foot lashing through clevis 36 and through its own
D-ring. Route the lashing over the top of stack 2.
5
36A
Route a 15-foot lashing through clevis 36A and through its own
D-ring. Secure the lashing to the lashing from clevis 36 on the left
side with two D-rings and a load binder.
Figure 8-11. Endboards and Load for Stack 2 Lashed
8-24
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
8
6
33
31
Lashing
Tiedown
Instructions
Number
Clevis
Number
6
31
Route a 15-foot lashing through clevis 31 and through its own
D-ring. Route the lashing through the bottom middle cutouts of the
front endboard.
7
31A
Route a 15-foot lashing through clevis 31A and through its own
D-ring. Secure the lashing to the lashing from clevis 31 on the left
side with two D-rings and a load binder
8
33
Route a 15-foot lashing through clevis 33 and through its own
D-ring. Route the lashing through the top middle cutouts of the front
endboard.
9
33A
Route a 15-foot lashing through clevis 33A and through its own
D-ring. Secure the lashing to the lashing from clevis 33 on the left
side with two D-rings and a load binder.
Figure 8-11. Endboards and Load for Stack 2 Lashed (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-25
Chapter 8
10
12
37
30
Lashing
Tiedown
Instructions
Number
Clevis
Number
10
37
Route a 15-foot lashing through clevis 37 and through its own
D-ring. Route the lashing through the top cutouts of the front
endboard.
11
37A
Route a 15-foot lashing through clevis 37A and through its own
D-ring. Secure the lashing to the lashing from clevis 37 on the left
side with two D-rings and a load binder.
12
30
Route a 15-foot lashing through clevis 30 and through its own
D-ring. Route the lashing through the bottom middle cutout of the
rear endboard.
13
30A
Route a 15-foot lashing through clevis 30A and through its own
D-ring. Secure the lashing to the lashing from clevis 30 on the rear
endboard center with two D-rings and a load binder.
Figure 8-11. Endboards and Load for Stack 2 Lashed (Continued)
8-26
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
14
16
27
26
Lashing
Tiedown
Instructions
Number
Clevis
Number
14
26
Route a 15-foot lashing through clevis 26 and through its own
D-ring. Route the lashing through the top cutout of the rear endboard
on the right side.
15
26A
Route a 15-foot lashing through clevis 26A and through its own
D-ring. Route the lashing to the top cutout of the rear endboard.
Secure the lashing to the lashing from clevis 26 on the rear
endboard centered with two D-rings and a load binder.
16
27
Route a 15-foot lashing through clevis 27 and through its own
D-ring. Route the lashing through the top middle cutout of the rear
endboard on the right side.
17
27A
Route a 15-foot lashing through clevis 27A and through its own
D-ring. Route the lashing to the top middle cutout of the rear
endboard. Secure the lashing to the lashing from clevis 27 on the
rear endboard centered with two D-rings and a load binder.
Figure 8-11. Endboards and Load for Stack 2 Lashed (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-27
Chapter 8
19
18
19
19
18
18
38
25
Lashing
Tiedown
Instructions
Number
Clevis
Number
18
25 and 38
Route a 15-foot lashing through clevis 25 and through its own
D-ring. Route the lashing through the bottom cutout to the top
cutout of the front endboard. Route a 15-foot lashing through clevis
38 and through its own D-ring and through the bottom cutout to the
top cutout of the rear endboard. Secure the lashings from clevises
25 and 38 together on the left side with two D-rings and a load
binder.
19
25A and 38A
Route a 15-foot lashing through clevis 25A and through its own
D-ring. Route the lashing through the bottom cutout to the top
cutout of the front endboard. Route a 15-foot lashing through clevis
38A and through its own D-ring and through the bottom cutout to
the top cutout of the rear endboard. Secure the lashings from 25A
and 38A together on the right side with two D-rings and a load
binder.
Figure 8-11. Endboards and Load for Stack 2 Lashed (Continued)
8-28
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
POSITIONING ATTITUDE CONTROL SYSTEM (ACS) AND
INSTALLING SUSPENSION SLINGS
8-13. Construct the ACS according to Chapter 2. Position the ACS and install suspension slings as shown
in Figure 8-12.
Note. All dimensions are in inches.
2
1
2
14
3
1
Cut two 24- by 76-inch pieces of honeycomb. Position one piece on the front of stack 1
and the second piece flush against the first piece.
2
Cut two 8- by 76-inch pieces of honeycomb. Position the first piece against the rear
endboard of stack 1. Position the second piece 14 inches from the front endboard of stack
2.
3 Secure the pieces in place with type III nylon cord to convenient points on the platform,
taping the edges of the honeycomb where the type III nylon cord will make contact.
Figure 8-12. ACS Positioned and Suspension Slings Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-29
Chapter 8
5
4
4 Position the front ACS on top of the 8- by- 76-inch piece of honeycomb on top of stack 1
with the 4- by- 4-inch piece of lumber to the rear.
5 Position the rear ACS on top of the 8- by- 76-inch piece of honeycomb on top of stack 2
with the 4- by- 4-inch piece of lumber to the front.
Figure 8-12. ACS Positioned and Suspension Slings Installed (Continued)
8-30
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
6
6
8
7
34
32
9
5
6 Attach a 3 ¾-inch two-point link to an 11-foot (4-loop), type XXVI sling. Pass a 3-foot (4
loop), type XXVI sling through the two-point link. Repeat this procedure three more times.
7 Attach the ends of the 3-foot sling to clevises 5 and 9.
8 Attach the ends of the 3-foot sling to clevises 32 and 34.
9 Repeat steps 7 and 8 for clevises 5A and 9A, and 32A and 34A (not shown).
Figure 8-12. ACS Positioned and Suspension Slings Installed (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-31
Chapter 8
10
14
10
13
11
12
17
8
3
10
Pad and tape the slings 6 inches above and 6 inches below the ACS clevis. Pass each
sling through the closest ACS clevis.
11
Run a 15-foot lashing from clevis 3, through the right front ACS clevis from the outside to
inside, rear to front, around the 4- by 4-inch piece of lumber, and back to clevis 3. Loosely
secure the lashing with a D-ring and a load binder and repeat with clevis 3A on the left
side.
12
Run a 15-foot lashing from clevis 8, through the right front ACS clevis from the outside to
inside, rear to front, around the 4- by 4-inch piece of lumber, and back to clevis 8. Loosely
secure the lashing with a D-ring and a load binder and repeat with clevis 8A on the left
side.
13
Run a 15-foot lashing from clevis 17, through the right front ACS clevis from the outside to
inside, front to rear, around the 4- by 4-inch piece of lumber, and back to clevis 17. Loosely
secure the lashing with a D-ring and a load binder and repeat with clevis 17A on the left
side.
14
Make sure the ACS is centered on the load. Tighten all the lashings on the left side and on
the right side at the same time. Tighten the lashings in the following order: 3 and 3A, 8 and
8A, and 17 and 17A.
Figure 8-12. ACS Positioned and Suspension Slings Installed (Continued)
8-32
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
17
16
15
35
22
15 Run a 15-foot lashing from clevis 22, through the right rear ACS clevis from the outside to
inside, rear to front, around the 4- by 4-inch piece of lumber, and back to clevis 22.
Loosely secure the lashing with a D-ring and a load binder and repeat with clevis 22A on
the left side.
16 Run a 15-foot lashing from clevis 35, through the right rear ACS clevis from the outside to
inside, front to rear, around the 4- by 4-inch piece of lumber, and back to clevis 35.
Loosely secure the lashing with a D-ring and a load binder and repeat with clevis 35A on
the left side.
17 Make sure the ACS is centered on the load. Tighten all the lashings on the left and right
sides at the same time. Tighten the lashings in the following order: 22 and 22A, and 35
and 35A.
Figure 8-12. ACS Positioned and Suspension Slings Installed (Continued)
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-33
Chapter 8
22
19
21
20
18
18
18

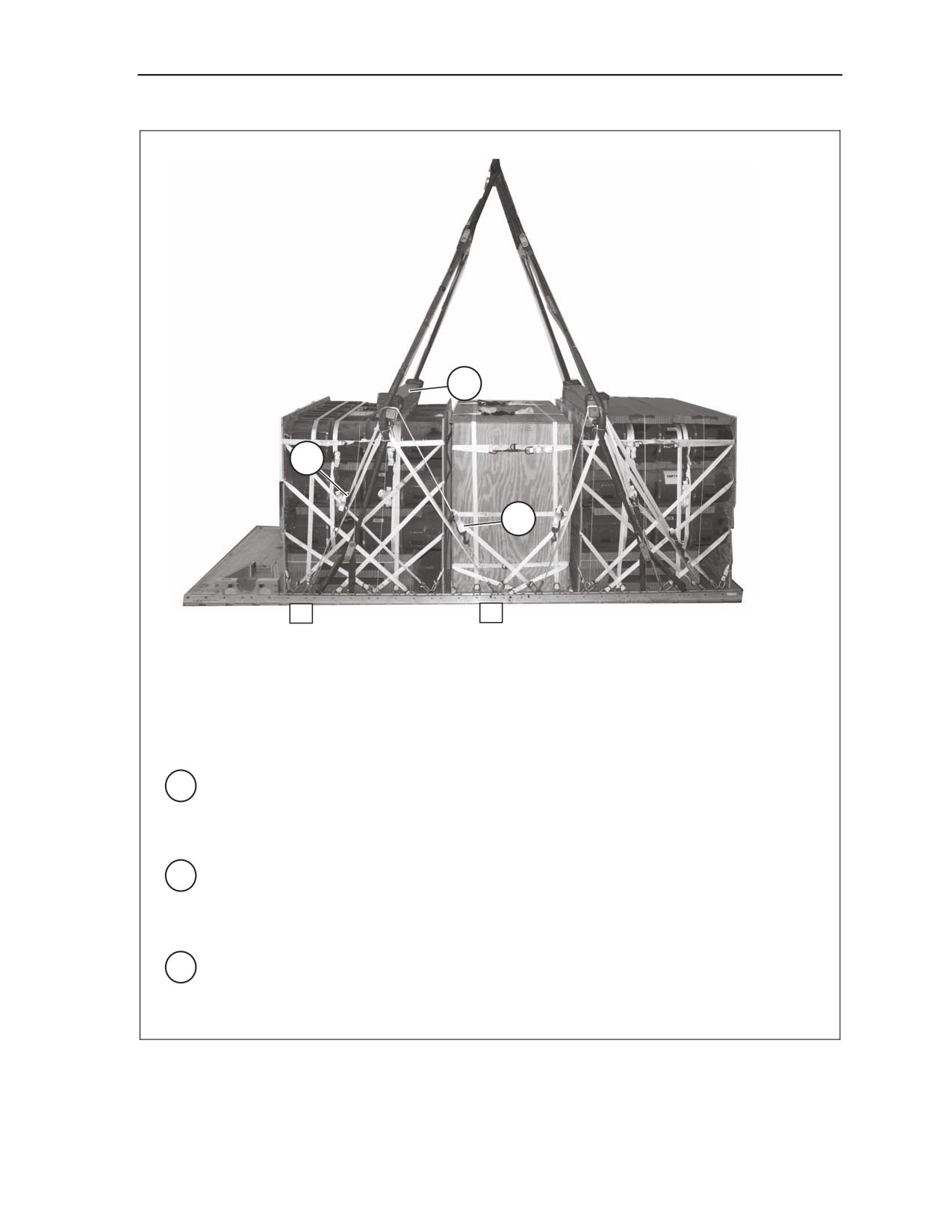

Safety tie the two-point links with one turn of type III nylon cord to the ACS clevis.
19
Extend the slings upward, placing them on a crane and pulling them taut.
20
Tie a length of type III nylon cord around and behind the suspension sling, and around
each ACS sling. See Figure 2-7 for a detailed view. Repeat for all suspension slings.
21
Tie a length of type III nylon cord around the suspension sling, behind all lashings and
around the 4- by 4-inch piece of lumber of the ACS. Repeat for all suspension slings.
22
Attach the 11-foot (4-loop), type XXVI nylon sling to a 3-foot (4-loop), type XXVI nylon sling
with a 3 ¾-inch (two-point) link. Repeat for all suspension slings.
23 Pad with felt and tape the links (not shown).
Figure 8-12. ACS Positioned and Suspension Slings Installed (Continued)
8-34
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
INSTALLING OUTRIGGER ASSEMBLIES
8-14. Assemble, install, and safety tie the mast and foot assemblies on the DRAS platform according to
TM 10-1670-268-20&P/TO 13C7-52-22 and as shown in Chapter 2, Figures 2-42 through 2-44 and Figure
2-45, Steps 1, 2, and 3.
STOWING CARGO PARACHUTES
8-15. Prepare, stow, and restrain three G-11D cargo parachutes as shown in Chapter 2 and as shown on top
of the honeycomb on stack 1 in Figure 8-13.
1
8
1

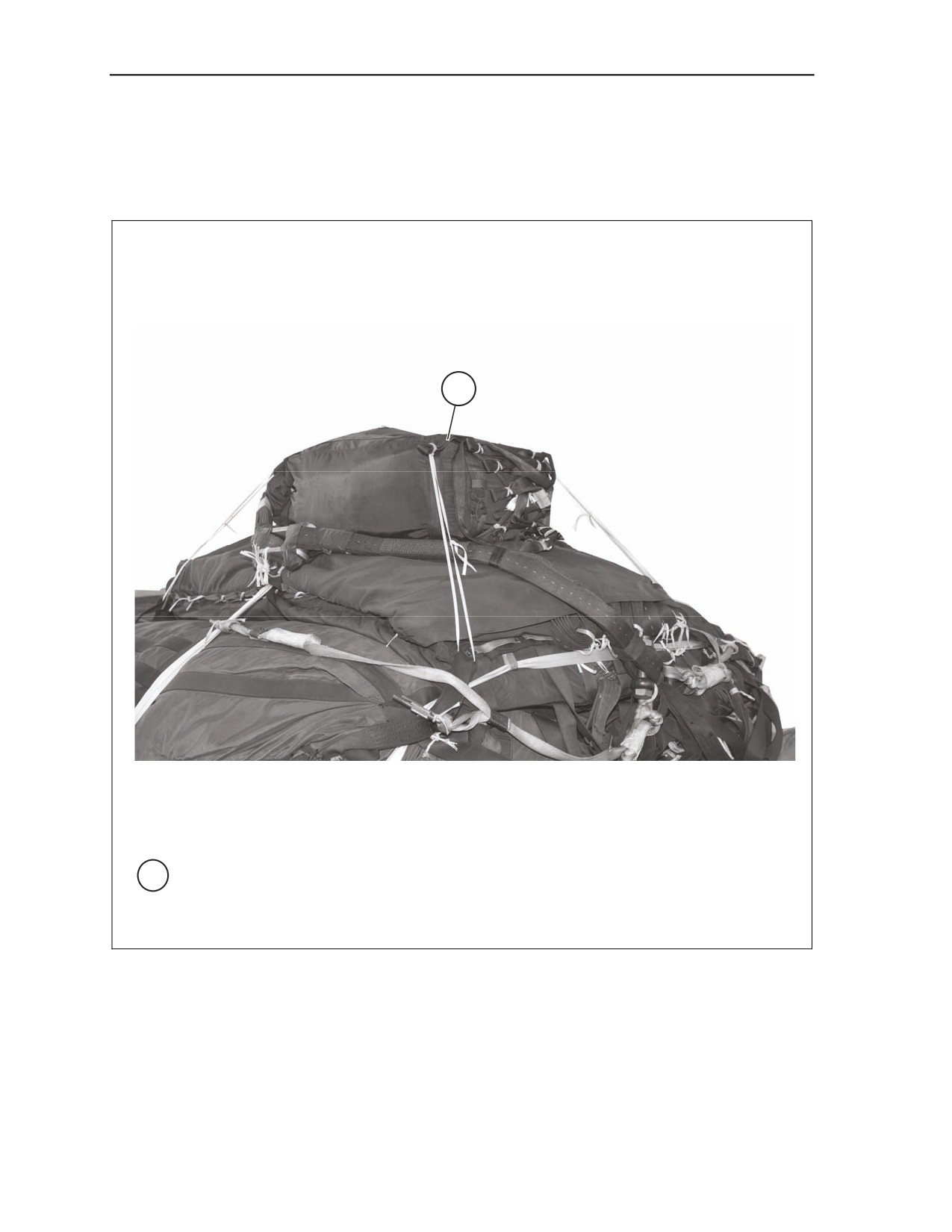

1 Restrain the parachutes with type VIII nylon webbing to clevises 1 and 1A, 8 and 8A.
Figure 8-13. Cargo Parachutes Installed and Restrained
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-35
Chapter 8
STOWING DEPLOYMENT PARACHUTE
8-16. Prepare, stow, and install the deployment parachute according to Chapter 2, Section V and as shown
in Figure 8-14.
1
1 Prepare, stow and install the deployment parachute according to Chapter 2, Section V and
as shown above.
Figure 8-14. Deployment Parachute Installed
8-36
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
INSTALLING PARACHUTE RELEASE SYSTEM
8-17. Build an M-1 parachute release stack. Prepare and install an M-1 release system according to
Chapter 2, Section VI and as shown in Figure 8-15.
1
2
3
1 Cut three 14- by 14-inch pieces of honeycomb and glue together to form the M-1 release
stack. Tape the top edges of the honeycomb. Center the stack in front of the ACS on stack
2 and secure it with type III nylon cord.
2 Position the M-1 release on top of the release stack.

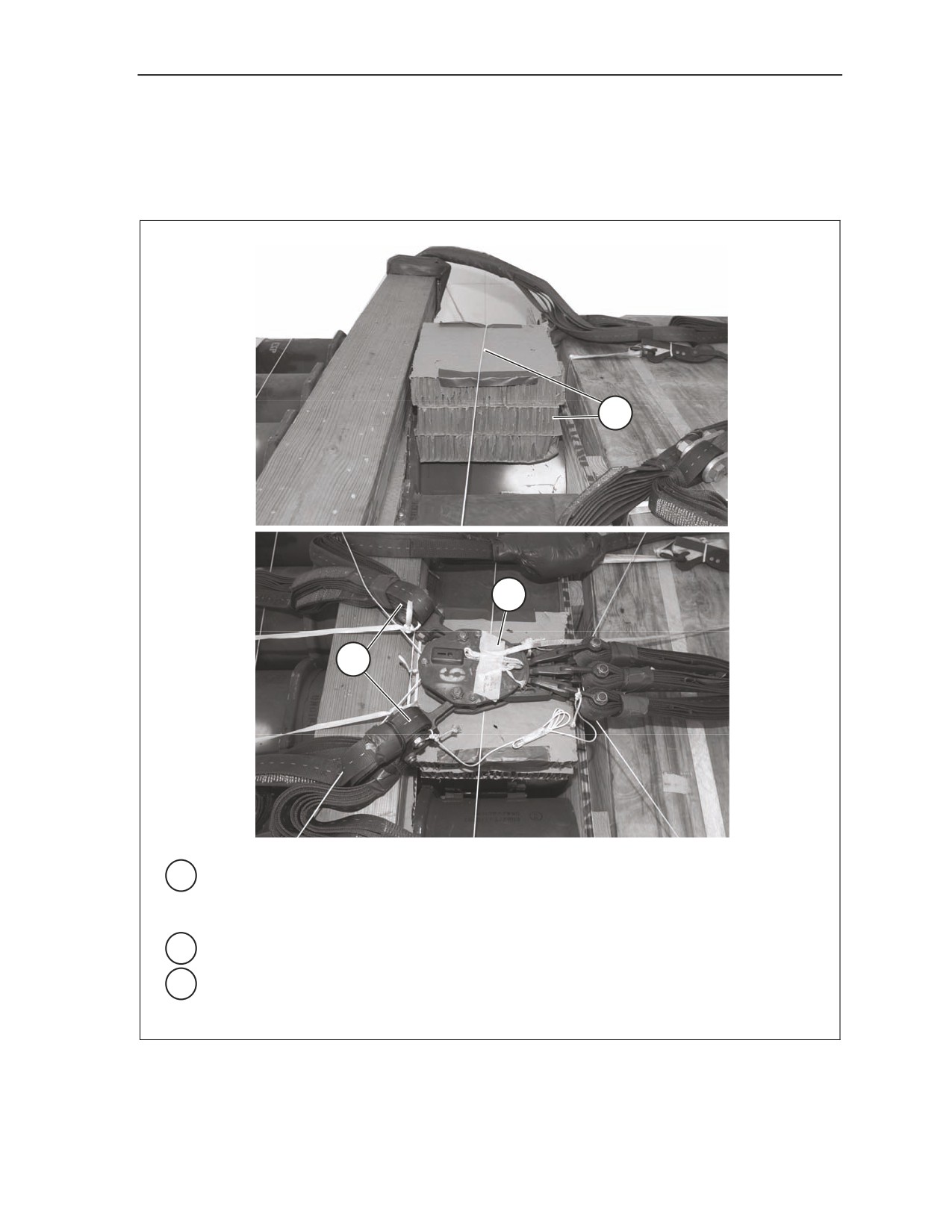

3 Remove the buffers from the free ends of the suspension slings and attach them to the
release.
Figure 8-15. Parachute Release System Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-37
Chapter 8
4
6
5
4
S-fold the slack in the suspension slings and tie them around the links with type I, ¼-inch
cotton webbing.
5
Attach the riser extensions to the parachute connectors. Secure the riser extensions
together with type I, ¼-inch cotton webbing.
6 Restrain the release through the parachute release connectors to convenient points on the
platform. Secure the bottom of the release to convenient points on the platform.
Figure 8-15. Parachute Release System Installed (Continued)
8-38
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
INSTALLING MAST RELEASE KNIVES

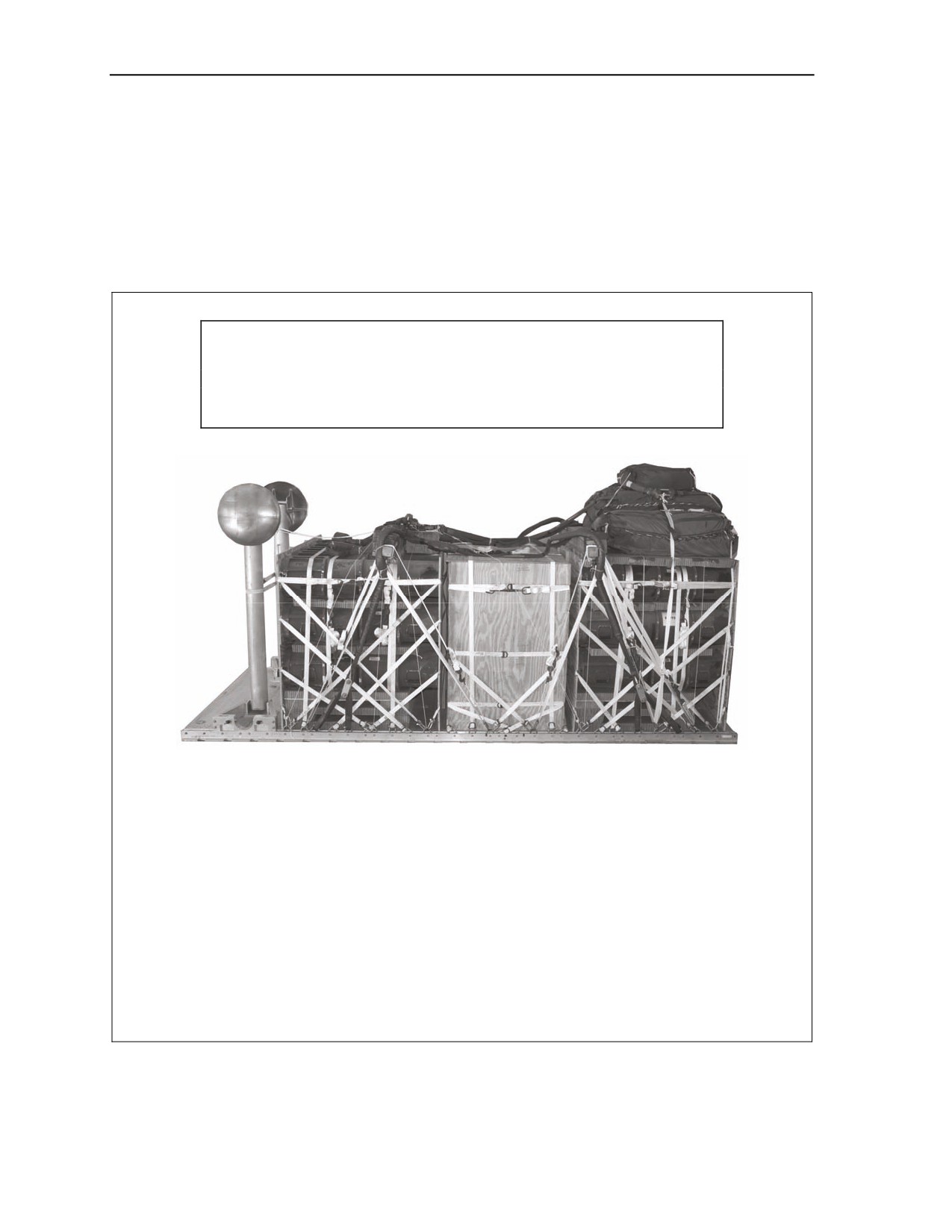

8-18. Install the mast release knives according to Chapter 2, Figure 2-45, Steps 4 through 10 and as shown
in Figure 8-16.
1
2

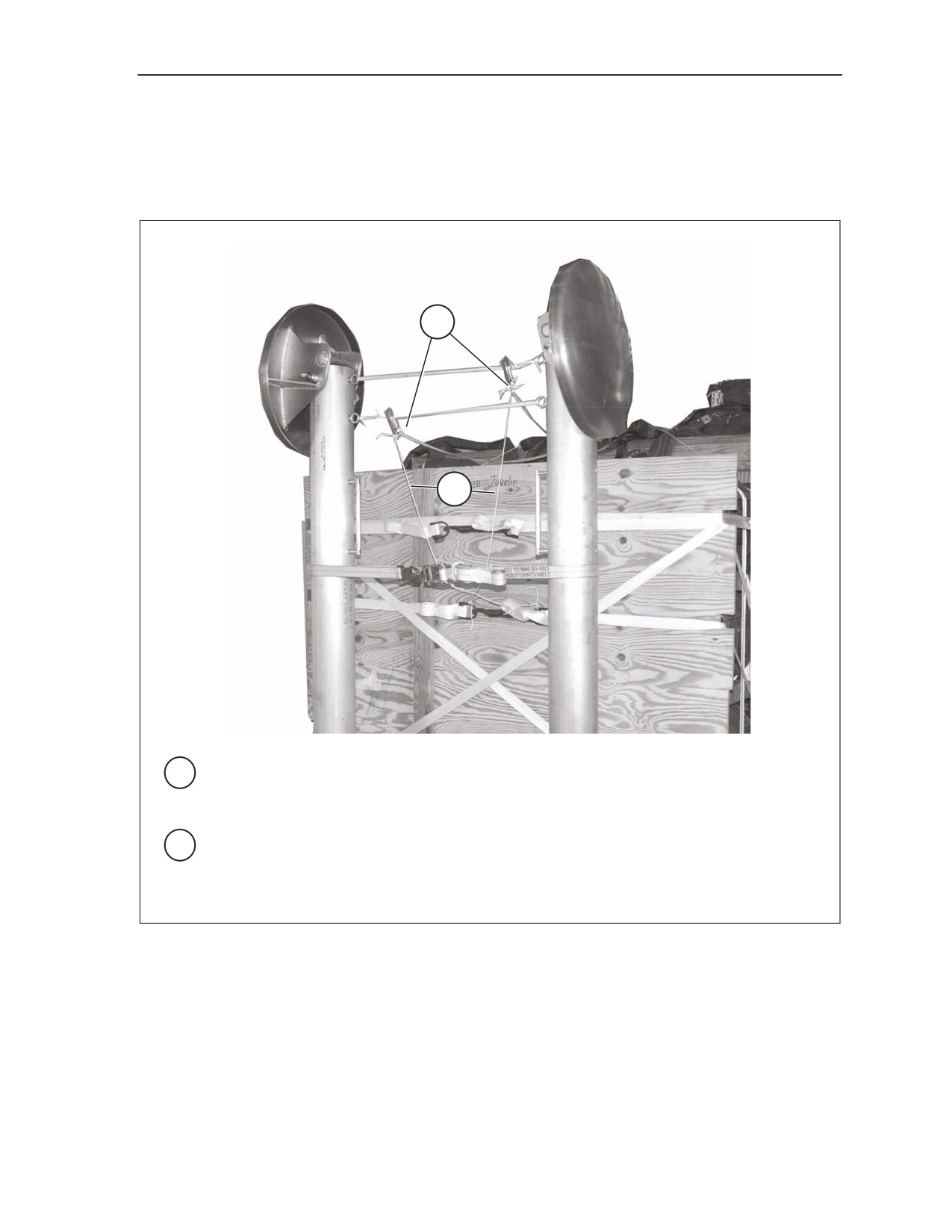

1 The length of the left and right ½-inch tubular nylon webbing from the base of the guillotine
knives to the lower suspension links of the M-1 release is 70 inches as shown in Steps 5
and 6 of Figure 2-45.
2 Tie a length of type III nylon cord from each guillotine knife to the sweeper handle on the
left side of the load that measures 60 inches as shown in Steps 9 and 10 of Figure 2-45.
Note. All measurements are from knot to knot.
Figure 8-16. Mast Release Knives Installed
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-39
Chapter 8
MARKING RIGGED LOAD
8-19. Mark the rigged load according to Chapter 2, Section IX and as shown in Figure 8-17. A Shipper’s
Declaration for Dangerous Goods is required.
EQUIPMENT REQUIRED
8-20. The equipment required to rig this load is listed in Table 8-1.
CAUTION
Make the final rigger inspection required by Chapter 2, Section IX
before the load leaves the rigging site.
RIGGED LOAD DATA
Weight: Load shown
11,140 pounds
Maximum load allowed
13,500 pounds
Height
110 inches
Width
94 inches
Overall Length
216 inches
Overhang: Front
0 inches
Rear
0 inches
Center of Balance: (from front edge of platform):
93 inches
Figure 8.17. Javelin (Metal) Containers Rigged on DRAS Platform
8-40
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
Table 8-1. Equipment Required for Rigging Javelin (Metal) Containers on DRAS Platform
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive paste, 1-gallon
As required
4020-00-240-2146
Cord, nylon, type III, 550-pound
As required
Clevis:
4030-00-090-5354
Large
5
4030-00-678-8562
Medium
4
1670-00-360-0328
Cover, clevis, large
3
8135-00-664-6958
Cushioning material, cellulose wadding
As required
8305-00-191-1101
Felt, ½-inch
As required
1670-01-493-6418
Link assembly, two-point, 3 ¾-inch
9
Lumber:
5510-00-220-6146
2- by 4-inch
As required
5510-00-220-6148
2- by 6-inch
As required
5510-00-220-6274
4- by 4-inch
As required
5530-00-618-8073
Plywood, ¾-inch
13 sheets
Nail, steel wire, common:
5315-00-010-4659
8d
As required
5315-00-010-4662
12d
As required
5315-00-753-3885
16d
As required
1670-00-753-3928
Pad, energy dissipating, honeycomb
33 sheets
1670-01-487-5461
Static line assembly release away
1
Parachute:
Cargo:
1670-01-016-7841
G-11D
3
1670-00-040-8135
Cargo extraction: 28-foot (deployment parachute)
1
Platform, dual row, 18-foot
1670-01-485-1654
Rail, DRAS
2
1670-01-486-1342
Roller Pad, DRAS
4
1670-01-486-1656
Panel Assembly, Main
9
1670-01-162-2372
Clevis assembly
94
1670-01-097-8816
Release, cargo parachute, M-1
1
Sling, cargo airdrop
For suspension:
1670-01-062-6310
11-foot (4-loop), type XXVI nylon webbing
4
1670-01-062-6306
3-foot (4-loop), type XXVI nylon webbing
8
For deployment:
1670-01-062-6306
3-foot (4-loop), type XXVI nylon webbing
1
For riser extension:
1670-01-062-6313
60-foot (3-loop), type XXVI nylon webbing
3
For ACS:
1670-01-063-7761
16-foot (2-loop), type XXVI nylon webbing
2
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-41
Chapter 8
Table 8-1. Equipment Required for Rigging Javelin (Metal) Containers on DRAS Platform
(Continued)
National Stock Number
Item
Quantity
1670-00-040-8219
Strap, parachute release, multicut
2
1670-00-937-0271
Knife release, cargo (guillotine)
6
1670-01-487-5464
Outrigger assembly
1
7510-00-266-5016
Tape, adhesive, 2-inch
As required
1670-00-937-0271
Tie-down assembly, 15-foot
89
1670-00-725-1437
Tie-down, cargo, aircraft, (CGU-1B)
5
Webbing:
8305-00-268-2411
Cotton, ¼-inch, type I
As required
Nylon:
8305-00-082-5752
Tubular, ½-inch
As required
8305-00-263-3591
Type VIII
As required
SECTION II - RIGGING JAVELIN (PLASTIC) CONTAINERS
DESCRIPTION OF LOAD
8-21. The guided missile, surface, attack Javelin (plastic) container is rigged on an 18-foot dual row
platform. The rigged weight is 8,920 pounds. Each individual missile container weighs approximately 96
pounds. The load is rigged with 50 Javelin containers. The height of the load is 98 inches and the width is
94 inches. The load is rigged with two G-11D cargo parachutes.
PREPARING PLATFORM
8-22. Inspect, or assemble and inspect, a DRAS platform with outrigger assemblies and outrigger platform
support weldments according to TM 10-1670-268-23&P and as shown in Figure 8-18.
8-42
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
CLEVISES
28A THROUGH 1 A
LEFT
REAR
FRONT
RIGHT
CLEVISES
28 THROUGH 1
Step:

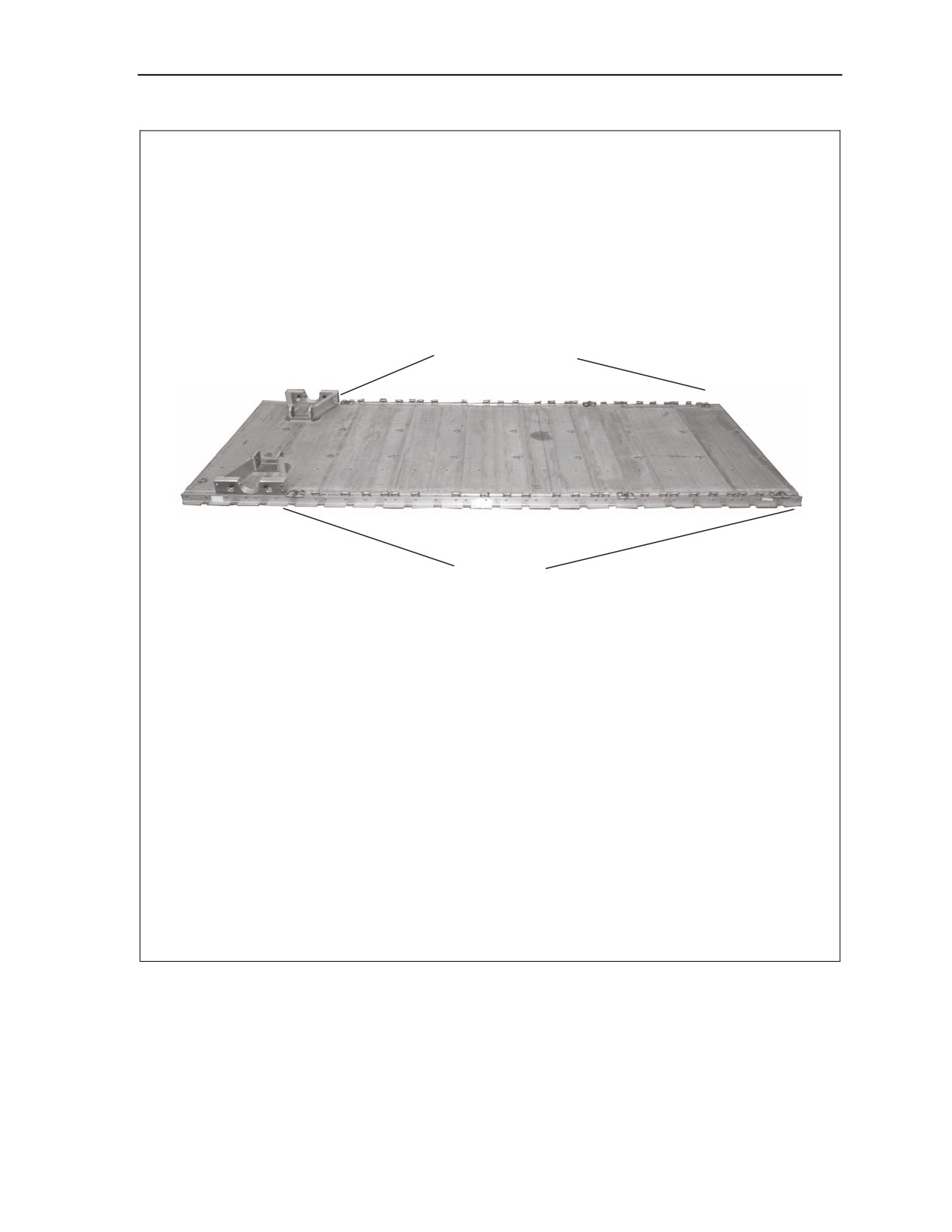

1. Starting at the front of each platform side rail, install clevises on the bushings bolted on
holes 2 (triple), 3 , 4, 5, 6 , 7, 8, 9, 10, 11 (triple), 12, 13, 14 , 15, 17, 18, 19, 21, 23, 24 , 25,
26, 27, 29, and 30 (triple).
2. Starting at the front of the platform, number the clevises bolted to the right side from 1
through 28 and those bolted to the left side from 1A through 28A.
3. Label the tiedown rings according to Figure 2-2.
Figure 8-18. Platform Prepared
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-43
Chapter 8
PREPARING HONEYCOMB STACKS
8-23. Prepare honeycomb stacks 1, 2, and 3 as shown in Figure 8-19.
LEFT
REAR
FRONT
RIGHT
Stack
Pieces
Width
Length
Material
Instructions
Number
(inches)
(inches)
1, 2, and
2
36
48
Honeycomb
Cut the two pieces to form base.
3
2
76
6
Honeycomb
Cut two pieces and place them on top
of the two 36- by 48-inch pieces.
Position them 4 inches in from the
front and from the rear. Make sure
that the 36- by 48-inch pieces are
flush with the 6-inch side of the 6- by
76-inch ends.
1
76
48
¾-inch
Position and glue on top of the 6- by
Plywood
76-inch pieces and align it with the
bottom pieces.
2
76
6
Honeycomb
Cut the two pieces and place them on
top of the 76- by 48-inch piece of
plywood. Position them 4 inches in
from the front and from the rear.
1
76
48
¾-inch
Position and glue on top of the 6- by
Plywood
76-inch pieces.
2
76
6
Honeycomb
Cut the two pieces and place them on
top of the 76- by 48-inch piece of
plywood. Position them 4 inches in
from the front and from the rear.
1
76
48
¾-inch
Position and glue on top of the 6- by
Plywood
76-inch pieces.
2
76
24
Honeycomb
Place the two pieces on top of the 76-
by 48-inch piece of plywood.
Figure 8-19. Honeycomb Stacks 1, 2, and 3 Prepared
8-44
FM 4-20.105-1/TO 13C7-1-51 VOL I
29 August 2006
Rigging Guided Missile, Surface, Attack Javelin Container on Dual Row Airdrop System Platform
POSITIONING HONEYCOMB STACKS
8-24. Position honeycomb stacks 1, 2, and 3 as shown in Figure 8-20.
Note. All dimensions are in inches.
STACK 3
STACK 2
STACK 1
3
2
1
8
9
13
1
Position stack 1, 13 inches centered from the front edge of the platform.
2
Position stack 2, 9 inches centered from stack 1.
3 Position stack 3, 8 inches centered from stack 2.
Figure 8-20. Honeycomb Stacks 1, 2, and 3 Positioned
29 August 2006
FM 4-20.105-1/TO 13C7-1-51 VOL I
8-45
|
|
