FM 4-20.119 Airdrop of Supplies and Equipment: Rigging 105-Millimeter Howitzers (MAY 2006) - page 5





Rigging M119 Howitzer for Low-Velocity Airdrop on Type V Platform
INSTALLING EXTRACTION SYSTEM
3-27. Install the EFTC extraction system on the load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 3-30. If applicable install the extraction
parachute jettison system (EPJS) according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5.
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
3-28. Install provisions for emergency restraints on the front of the platform according to FM
4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
INSTALLING RELEASE SYSTEM
3-29. Prepare and install an M-1 cargo parachute release according to FM
4-20.102/MCRP
4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 3-31.
PLACING EXTRACTION PARACHUTE
3-30. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Rig the extraction
line in an extraction line bag according to TM 10-1670-286-20/TO13C5-2-41. Place the extraction
parachute and extraction line on the load for installation in the aircraft. If applicable install the extraction
parachute jettison system (EPJS) according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5.
MARKING RIGGED LOAD
3-31. Mark the rigged load according to FM
4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 3-41. Complete Shipper's Declaration for Dangerous Goods
according to AFMAN 24-204(I)/TM 38-250. If the load varies from the one shown, the weight, height,
CB, tip-off curve, and parachute requirements must be recomputed.
10 May 2006
FM 4-20.119/TO 13C7-10-31
3-57
Chapter 3
CAUTION
Make the final rigger inspection required by FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 before the load
leaves the rigging site.

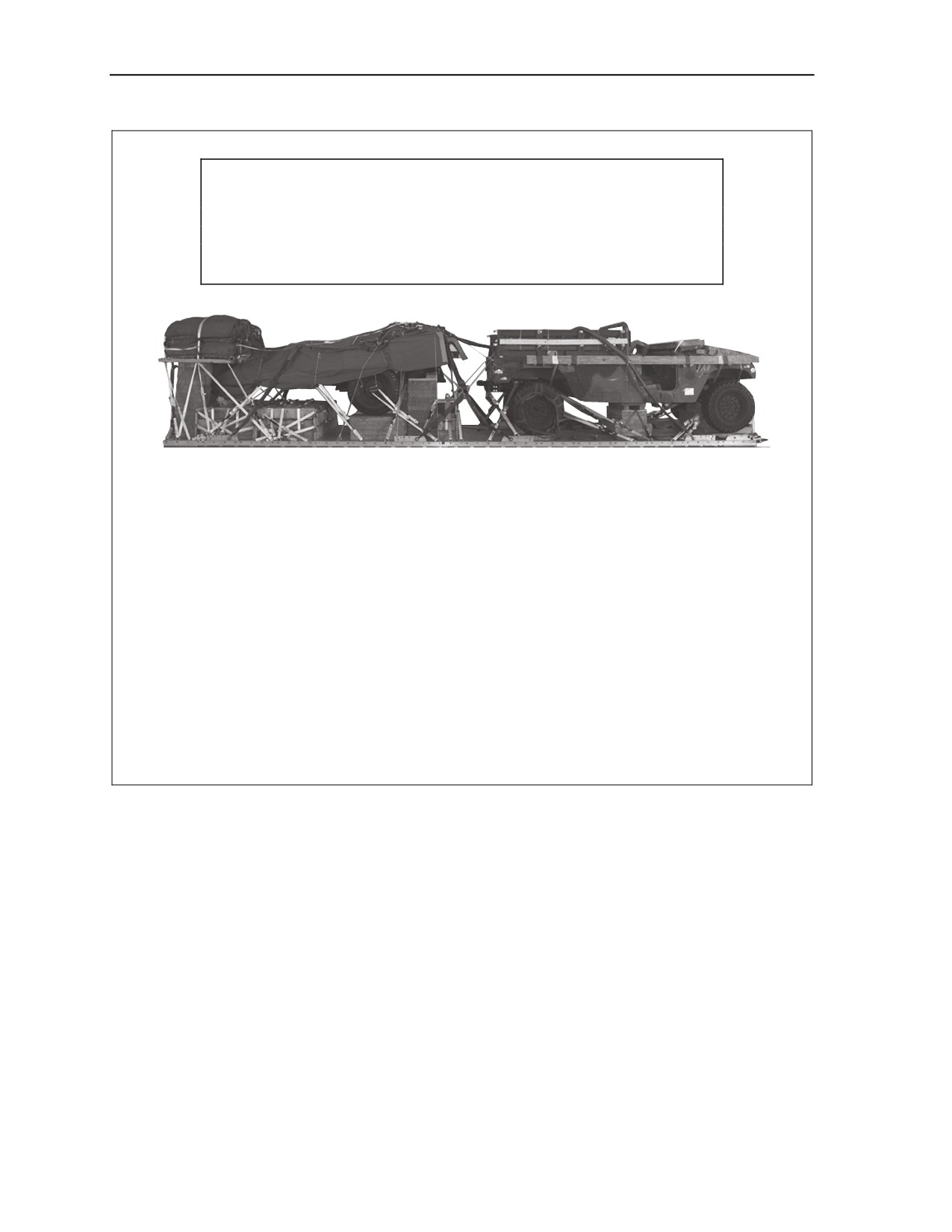

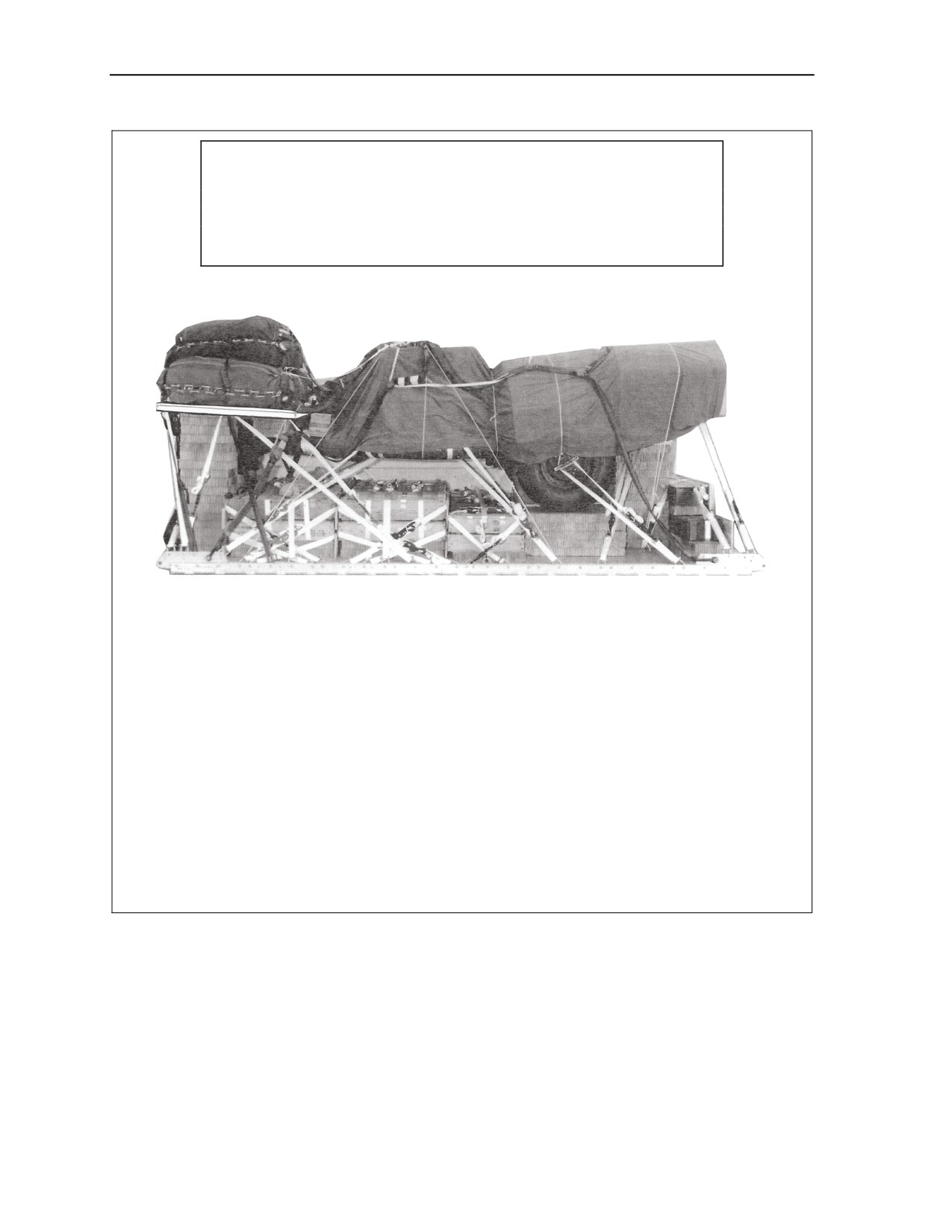

RIGGED LOAD DATA
Weight: Load shown
11,200 pounds
Maximum load allowed
15,000 pounds
Height
86 inches
Width
108 inches
Overall Length
210 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
105 inches

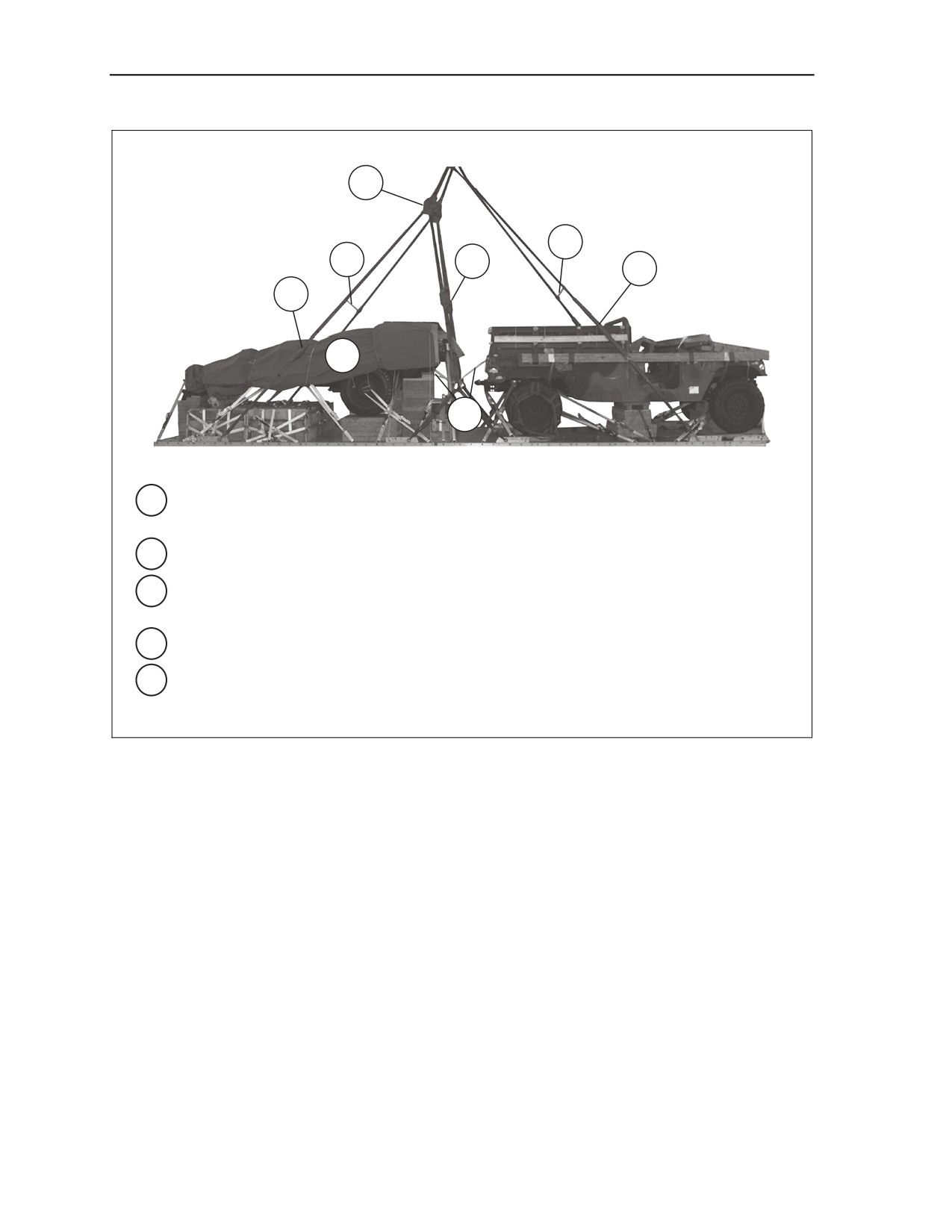

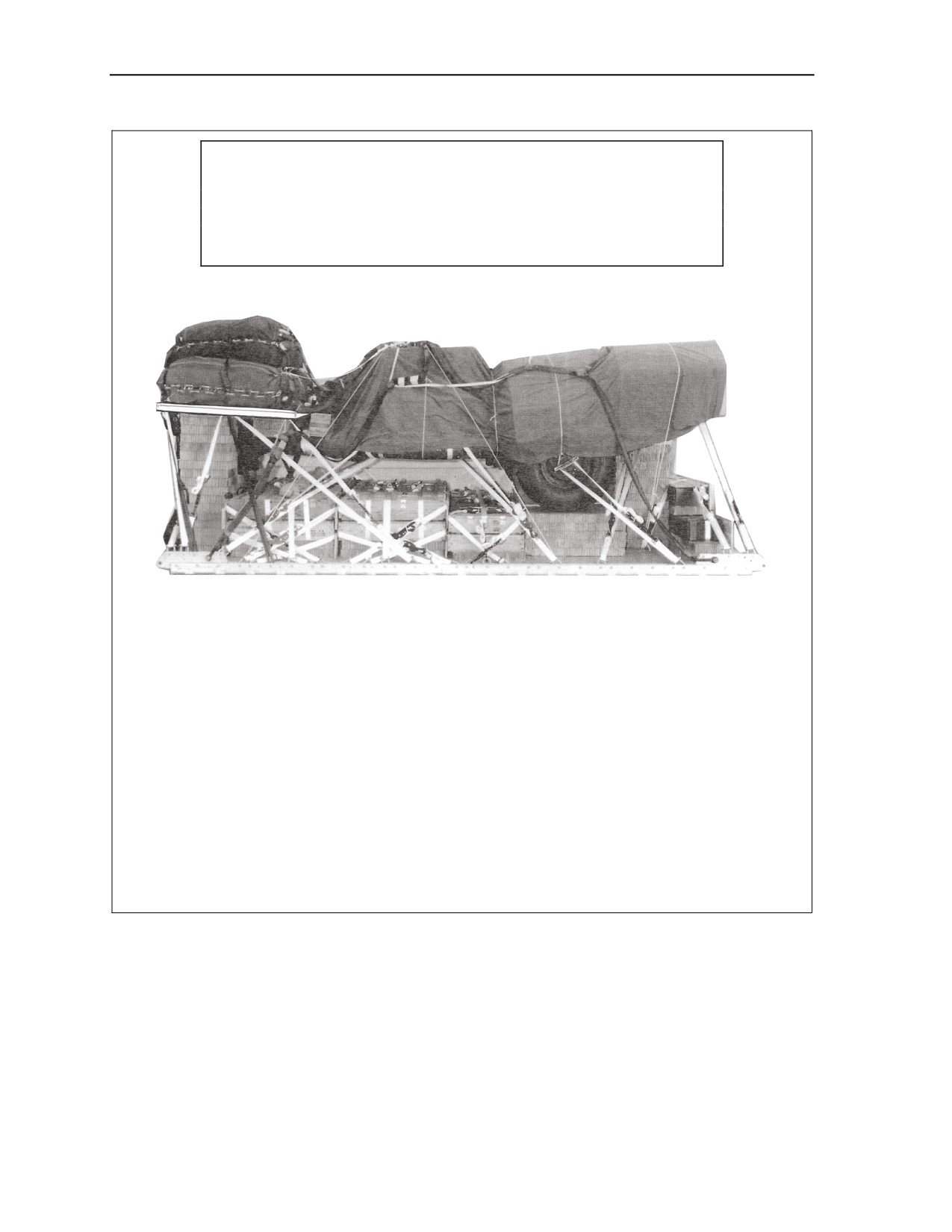

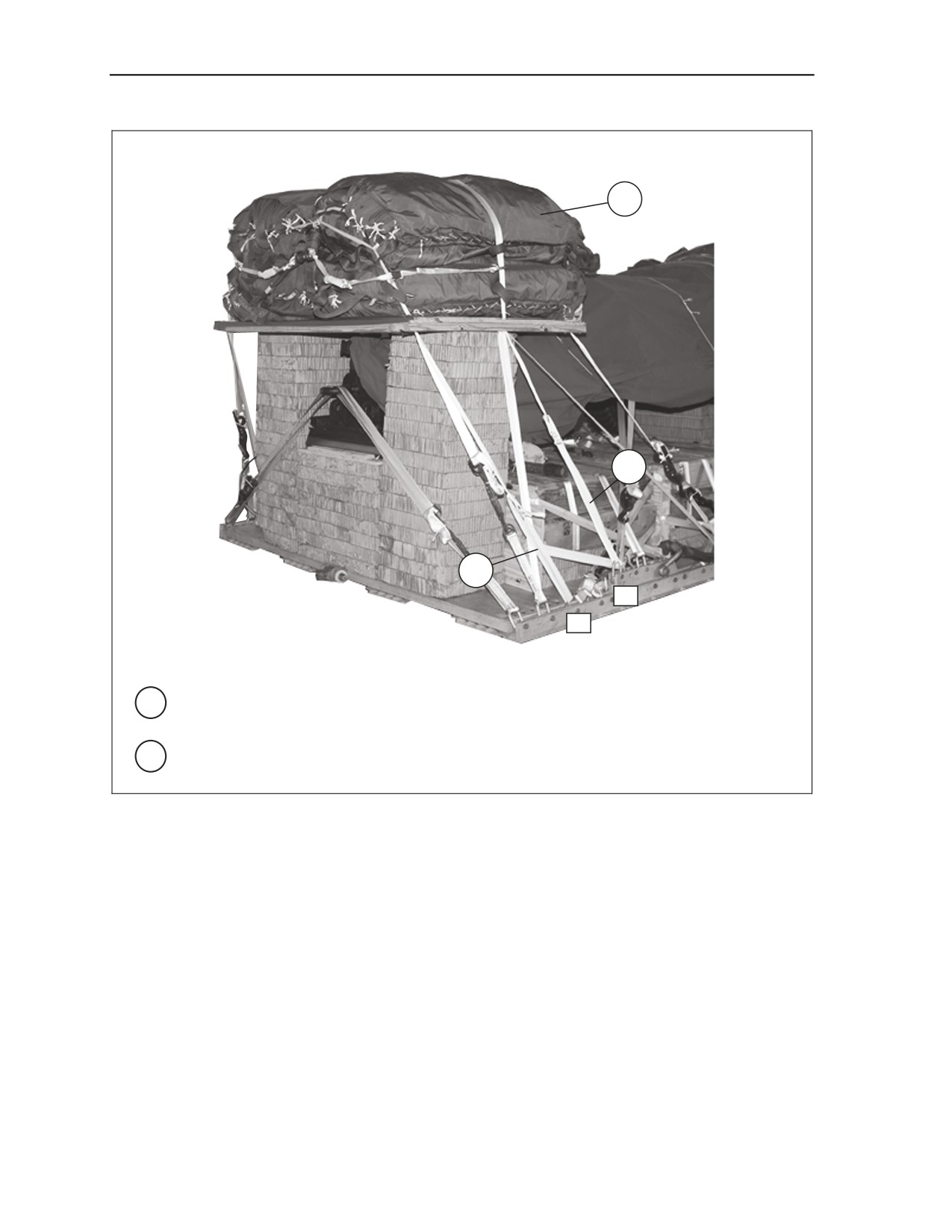

Figure 3-41. M119 Howitzer Rigged with 81-Millimeter Mortar for Low-Velocity Airdrop on a
Type V Platform
3-58
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer for Low-Velocity Airdrop on Type V Platform
EQUIPMENT REQUIRED
3-32. Use the equipment listed in Table 3-2 to rig this load.
Table 3-2. Equipment Required for Rigging the M119 Howitzer with 81-
Millimeter Mortar for Low-Velocity Airdrop on Type V Platform
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gallon
As required
Clevis, suspension:
4030-00-678-8562
3/4-inch (medium) emergency restraint
4
4030-00-090-5354
1-inch (large)
5
8305-00-184-2034
Cloth, cotton duck, 60-inch
As required
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-434-5785
Coupling, airdrop, extraction force transfer with
1
16-foot cable
1670-00-360-0328
Cover, clevis, large
1
1670-00-360-0329
Cover, link
6
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-191-1101
Felt, ½-inch
As required
1670-01-183-2678
Leaf, extraction line
2
1670-01-064-4452
Line, drogue, 60-foot (1-loop), type XXVI nylon webbing
1
Line, extraction, type XXVI nylon webbing:
1670-01-062-6313
60-foot (3-loop)
1
Or
1670-01-107-7651
140-foot (3-loop)
2
Link assembly:
1670-01-493-6418
Two-point, 3 3/4-in
1
1670-01-493-6420
Two-point, 5 1/2-in
2
Lumber:
5510-00-220-6146
2- by 4- by 96-inch
1
5510-00-220-6148
2- by 6- by 96-inch
5
5510-00-220-6246
2- by 8- by 96-inch
3
Nail, steel wire, common:
5315-00-010-4659
8d
As required
5315-00-164-5121
20d
As required
10 May 2006
FM 4-20.119/TO 13C7-10-31
3-59
Chapter 3
Table 3-2. Equipment Required for Rigging the M119 Howitzer with 81-Millimeter Mortar for
Low-Velocity Airdrop on Type V Platform (Continued)
National Stock Number
Item
Quantity
1670-00-753-3928
Pad, energy-dissipating, honeycomb
21 sheets
Parachute:
1670-01-016-7841
Cargo, G-11
3
1670-01-063-3716
Cargo, extraction, 22-foot
1
1670-01-063-3715
Drogue, 15-foot
1
Platform, airdrop, type V, 16-foot
1670-01-353-8425
Bracket assembly, EFTC
1
1670-01-162-2372
Bracket assembly, extraction
1
1670-01-162-2376
Clevis assembly
38
1670-01-162-2381
Tandem link
4
Plywood:
5530-00-129-7777
½- inch
1 sheet
5530-00-128-4981
¾- inch
9 sheets
1670-01-097-8816
Release, cargo parachute, M-1
1
Sling, cargo airdrop:
For antitumble sling:
1670-01-062-6303
12-foot (2-loop), type XXVI nylon webbing
2
For deployment line:
1670-01-062-6304
9-foot (2-loop), type XXVI nylon webbing
2
For lifting:
1670-01-063-7760
11-foot (2-loop), type XXVI nylon webbing
4
For riser extension:
1670-01-062-6302
20-foot (2-loop), type XXVI nylon webbing
4
For suspension:
1670-01-062-6306
3-foot (4-loop), type XXVI nylon webbing
2
1670-01-062-6304
9-foot (2-loop), type XXVI nylon webbing
1670-01-062-6303
12-foot (2-loop), type XXVI nylon webbing
4
1670-00-040-8219
Strap parachute release, multicut
2
1670-00-368-7486
Strap, webbing, nylon (shear strap)
1
7515-00-266-5016
Tape, adhesive, 2-inch
As required
1670-00-937-0271
Tie-down assembly, 15-foot
58
1670-01-483-8259
Tow release mechanism (H-block for C-17)
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
Nylon:
8305-00-082-5752
Tubular, 1/2-inch
As required
8305-00-263-3591
Type VIII webbing
As required
3-60
FM 4-20.119/TO 13C7-10-31
10 May 2006
Chapter 4
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and
Accompanying Ammunition
DESCRIPTION OF LOAD
4-1. The M119, 105mm Howitzer is rigged with the 1 1/4 ton truck (HMMWV) as it’s prime mover and
accompanying load of ammunition on a 32-foot, type V platform. A load weighing 800 to 2,000 pounds
must be rigged in the truck. This load requires four G-11 parachutes.
PREPARING PLATFORM
4-2. Prepare a 32- foot, type V airdrop platform as described below.
Inspecting platform. Inspect, or assemble and inspect, the platform as outlined in TM 10-1670-
268-20&P/TO 13C7-52-22.
Note. If the platform must be assembled, install the suspension bracket assemblies when
assembling the platform. See Figure 4-1 for the location of the suspension bracket assemblies.
Installing suspension bracket assemblies. Install the suspension bracket assemblies on
assembled platforms according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5, and as shown in Figure 4-1.
Installing tandem links. Install a tandem link on the front of each rail according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5, and as shown in Figure 4-
1.
Installing and numbering clevises. Bolt and number 54 clevis assemblies according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5, and as shown in Figure 4-
1.
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-1
Chapter 4
Notes.
1. The nose bumper may or may not be installed.
2. Measurements given in this chapter are from the front edge of the platform, NOT from the front
edge of the nose bumper.
CLEVISES
27A THROUGH 1 A
LEFT
REAR
FRONT
RIGHT
CLEVISES
27 THROUGH 1
Step:
1. Inspect, or assemble and inspect a 32-foot Type V platform as outlined in TM 10-1670-268-
20&P/TO 13C7-52-22.
2. Install a tandem link to each platform side rail using holes 1, 2, and 3.
3. Install a suspension bracket assembly to each platform side rail using holes 6, 7, and 8.
4. Install a suspension bracket assembly to each platform side rail using holes 26, 27, and 28.
5. Install a suspension bracket assembly to each platform side rail using holes 37, 38, and 39.
6. Install a suspension bracket assembly to each platform side rail using holes 57, 58, and 59.
7. Install a clevis on bushing 1 of each of the tandem links.
8. Install a clevis on bushing 4 of each front suspension bracket assemblies.
9. Install a clevis on bushing 3 of each of the second suspension bracket assemblies.
10. Install a clevis on bushings 1, 2, 3, and 4 of each of the fourth suspension bracket
assemblies.
11. Starting at the front of each platform side rail, install clevises on the bushing bolted on holes
9, 10, 12, 14, 30, 33, 34, 35, 41, 43, 49, 50, 52, 53, 54, 55, 61, 62, 63, 64.
12. Starting at the front of the platform number the clevises 1 through 27 on the right side and 1A
through 27A on the left side.
13. Label the tie-down rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.

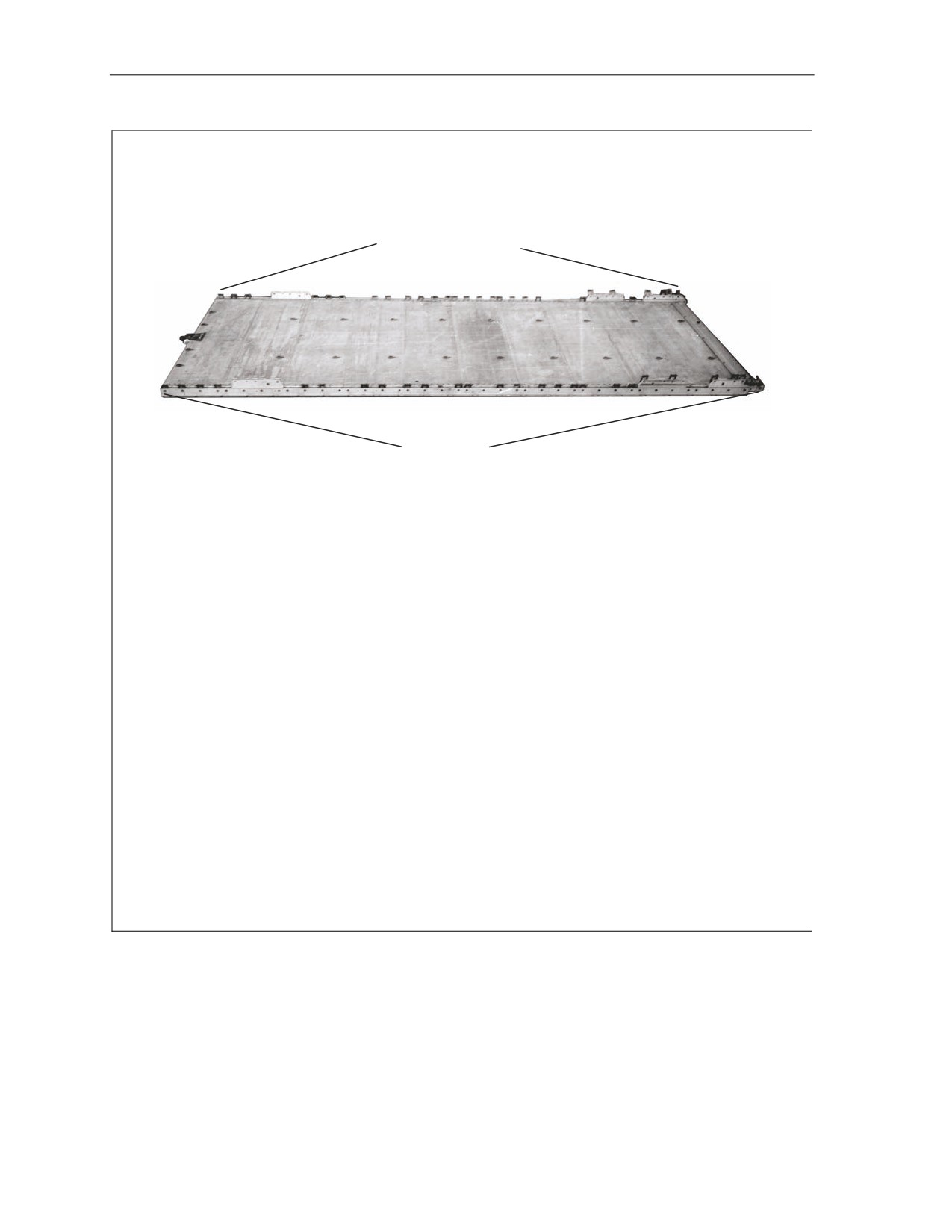

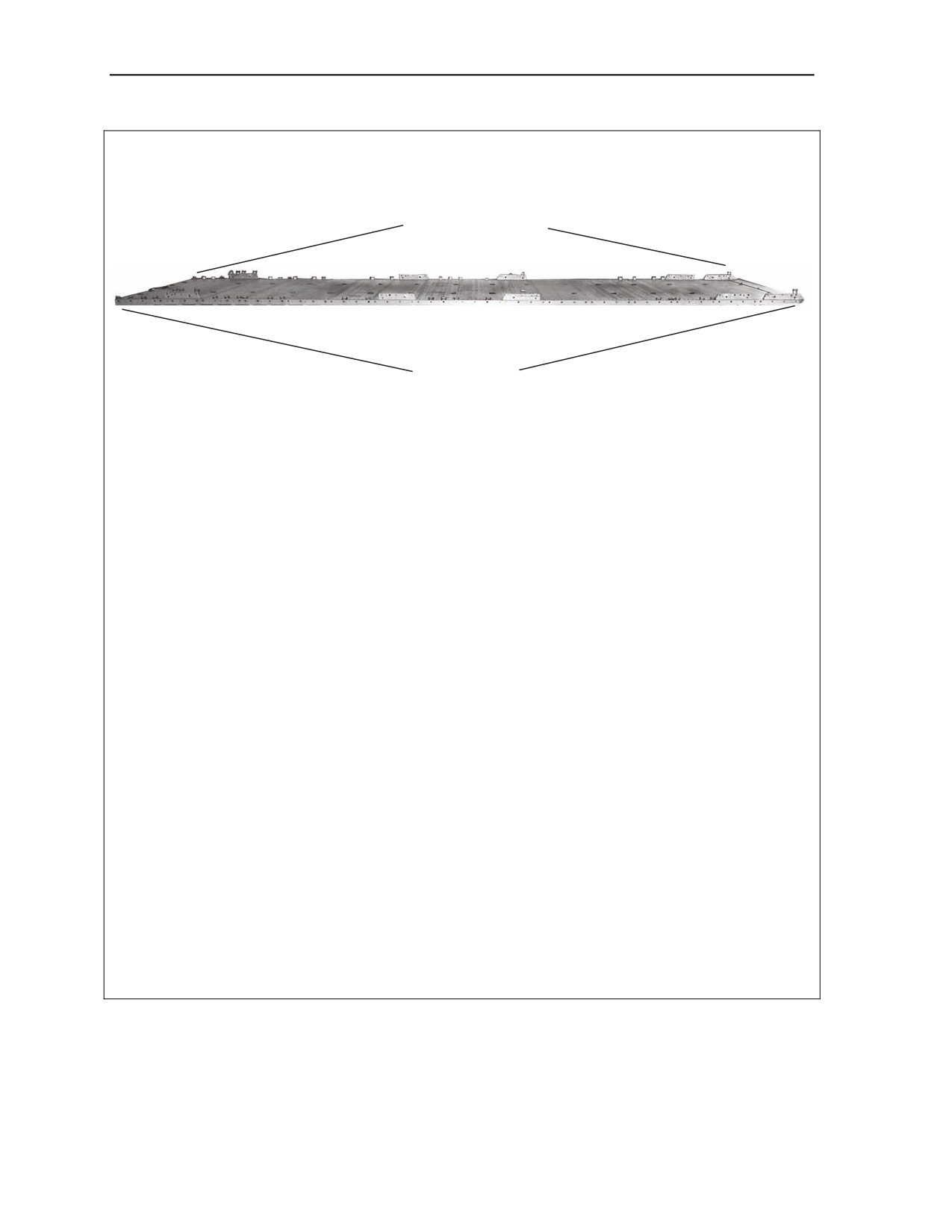

Figure 4-1. Platform Prepared
4-2
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition
STOWING ACCOMPANYING LOAD ON PLATFORM
CAUTION
Only ammunition listed in FM 4-20.153/MCRP 4-11.3B/TO 13C7-18-41
may be airdropped.

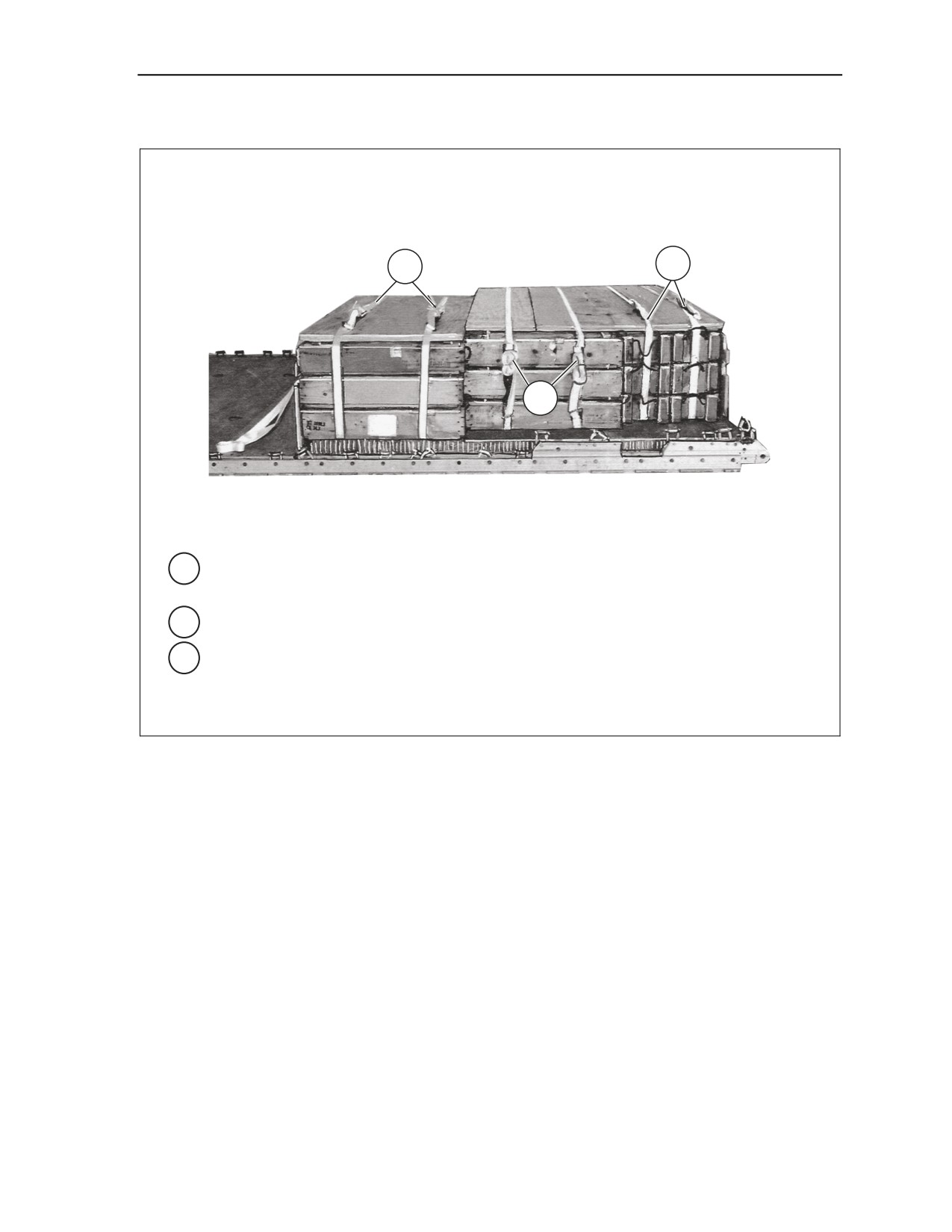

4-3. Stow 28 boxes of 105-millimeter ammunition weighing 3,360 pounds on the platform as shown in
Figure 4-2. Ammunition will be included in the accompanying load stowed in the truck. Additional
ammunition will be stowed on the platform after the gun and truck is lashed.
Note. All measurements are given in inches.
2
60
1
3

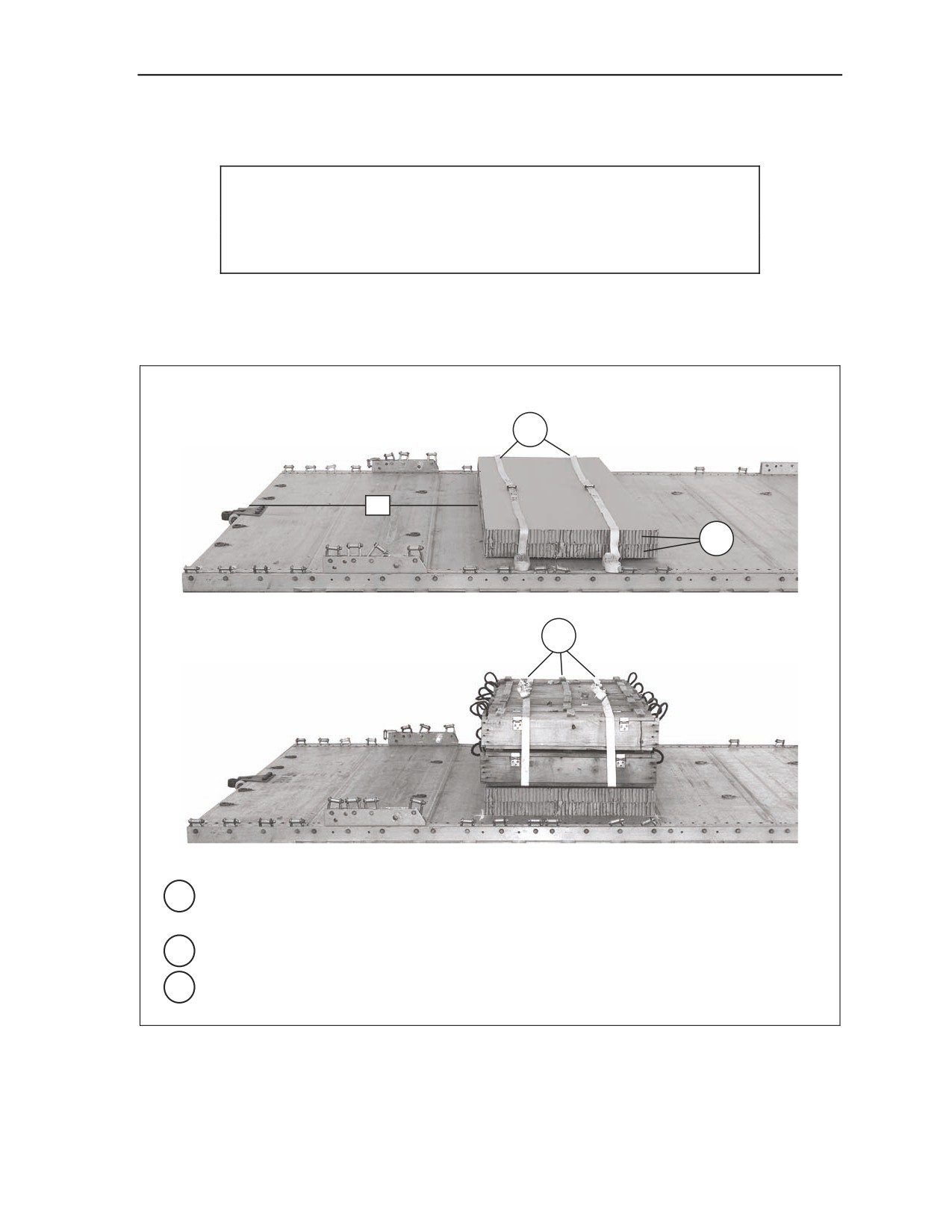

1 Center two 84- by 36-inch pieces of honeycomb 60 inches from the rear edge of the
platform.
2 Position two 30-foot lashings 8 inches from the front and rear edges of the honeycomb.
3 Position 14 ammunition boxes on the honeycomb and secure the 30-foot lashings.

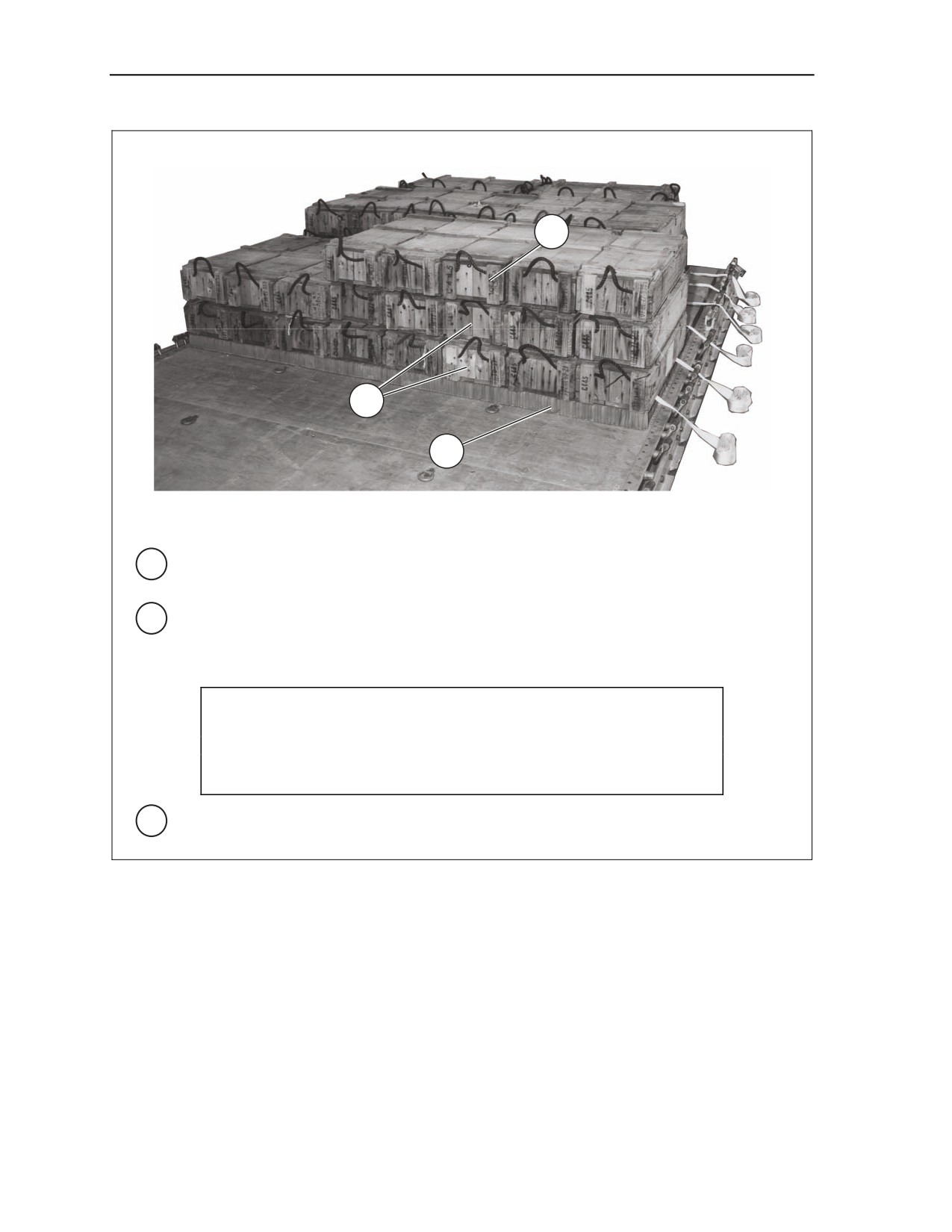

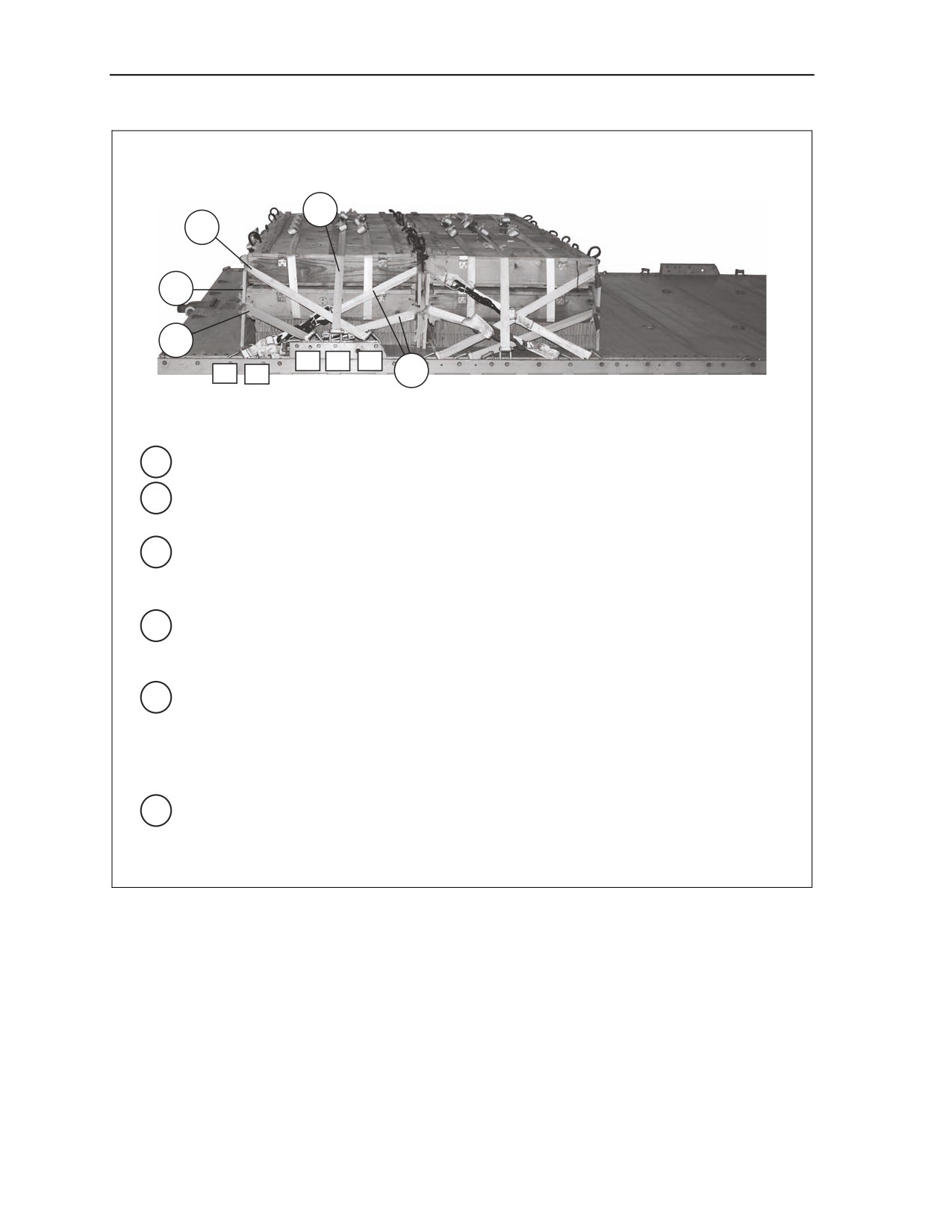

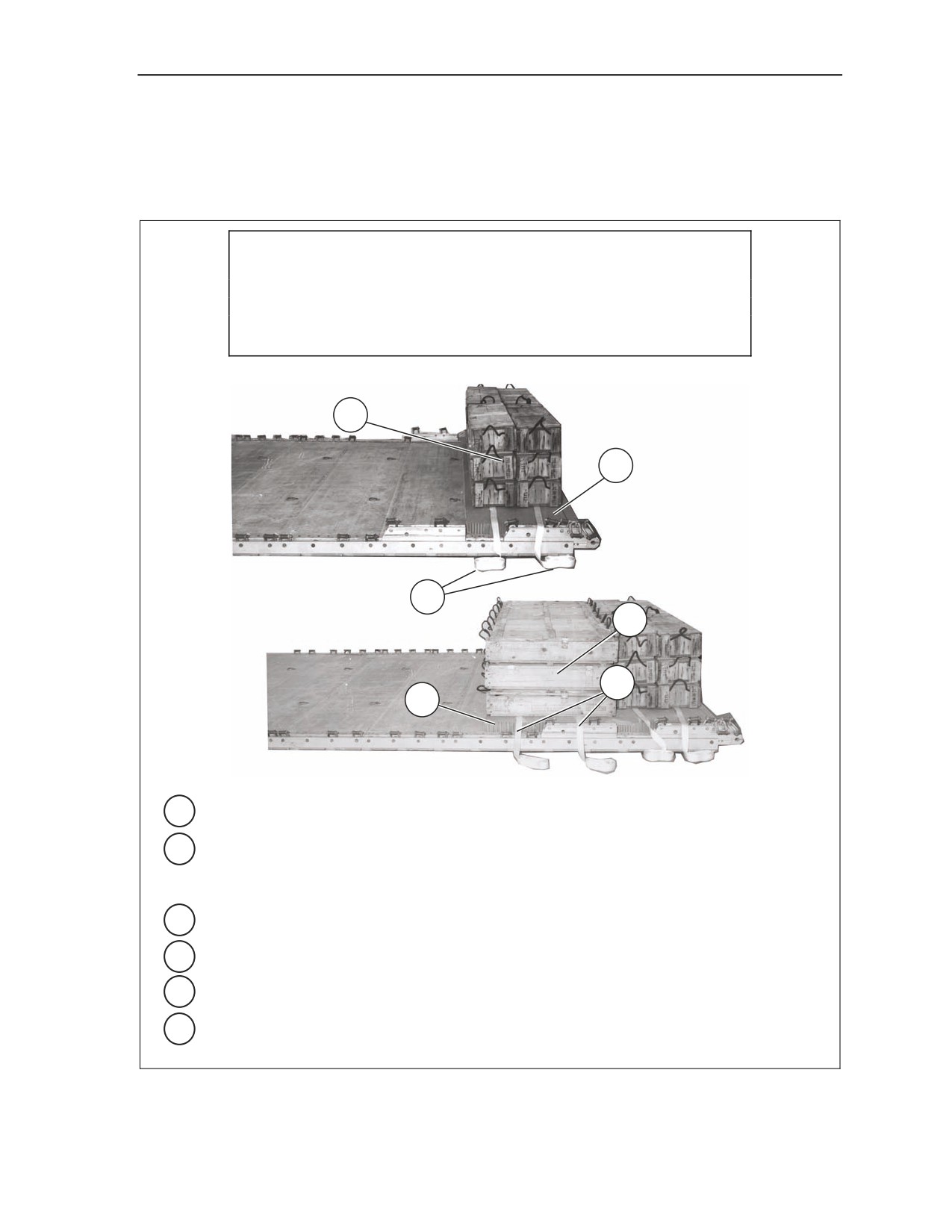

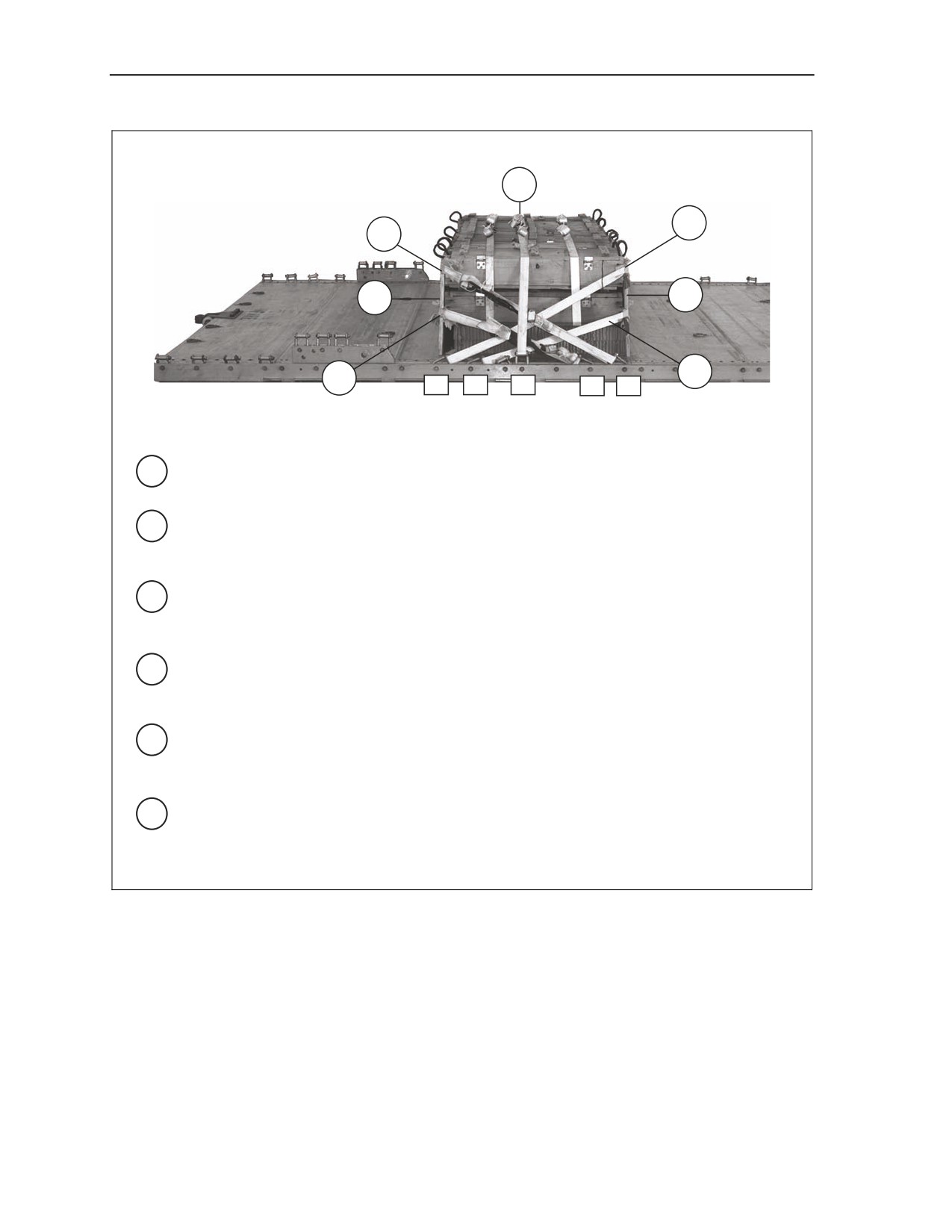

Figure 4-2. Ammunition Stowed and Lashed on Platform
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-3
Chapter 4
9
6
5
4
4

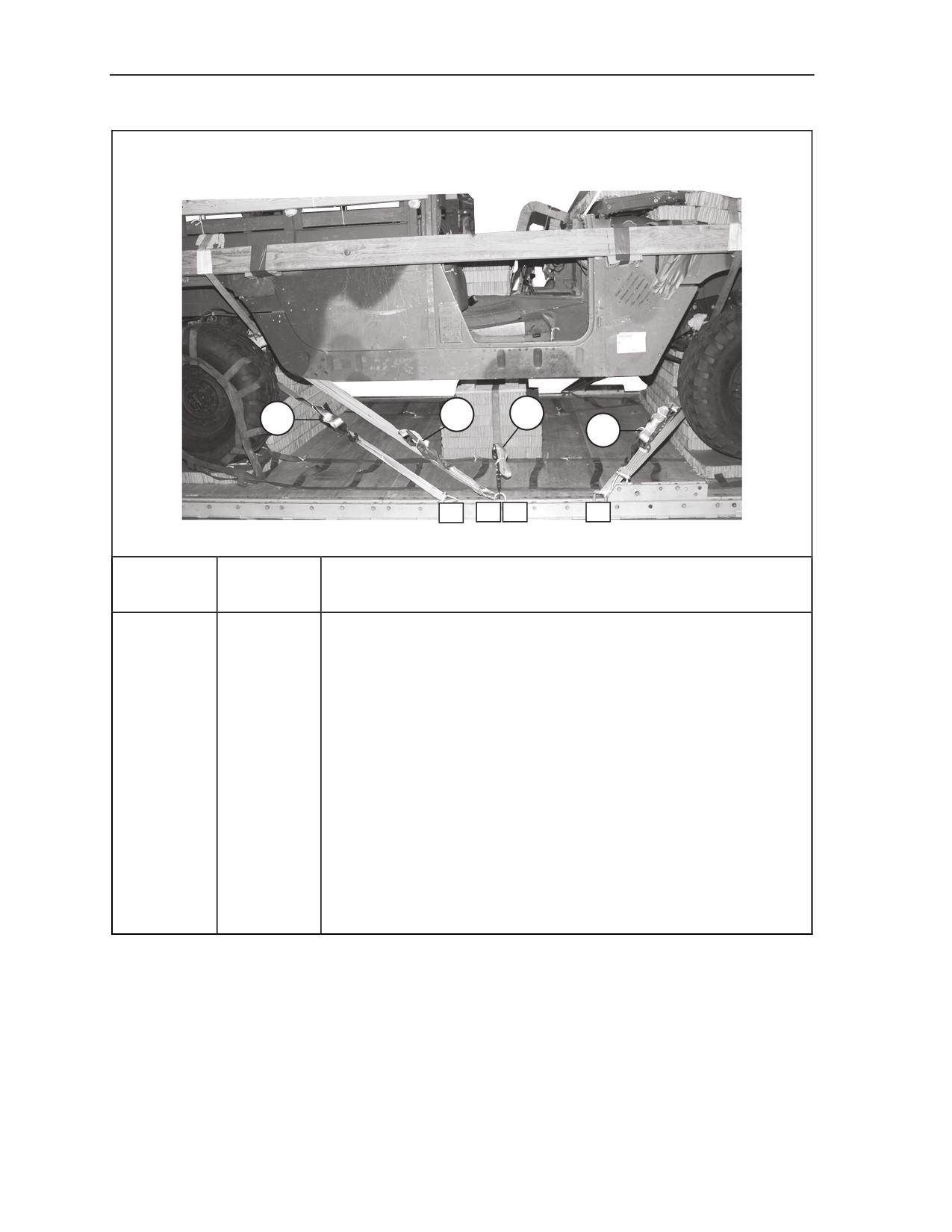

8
7
19
18
16
15
14

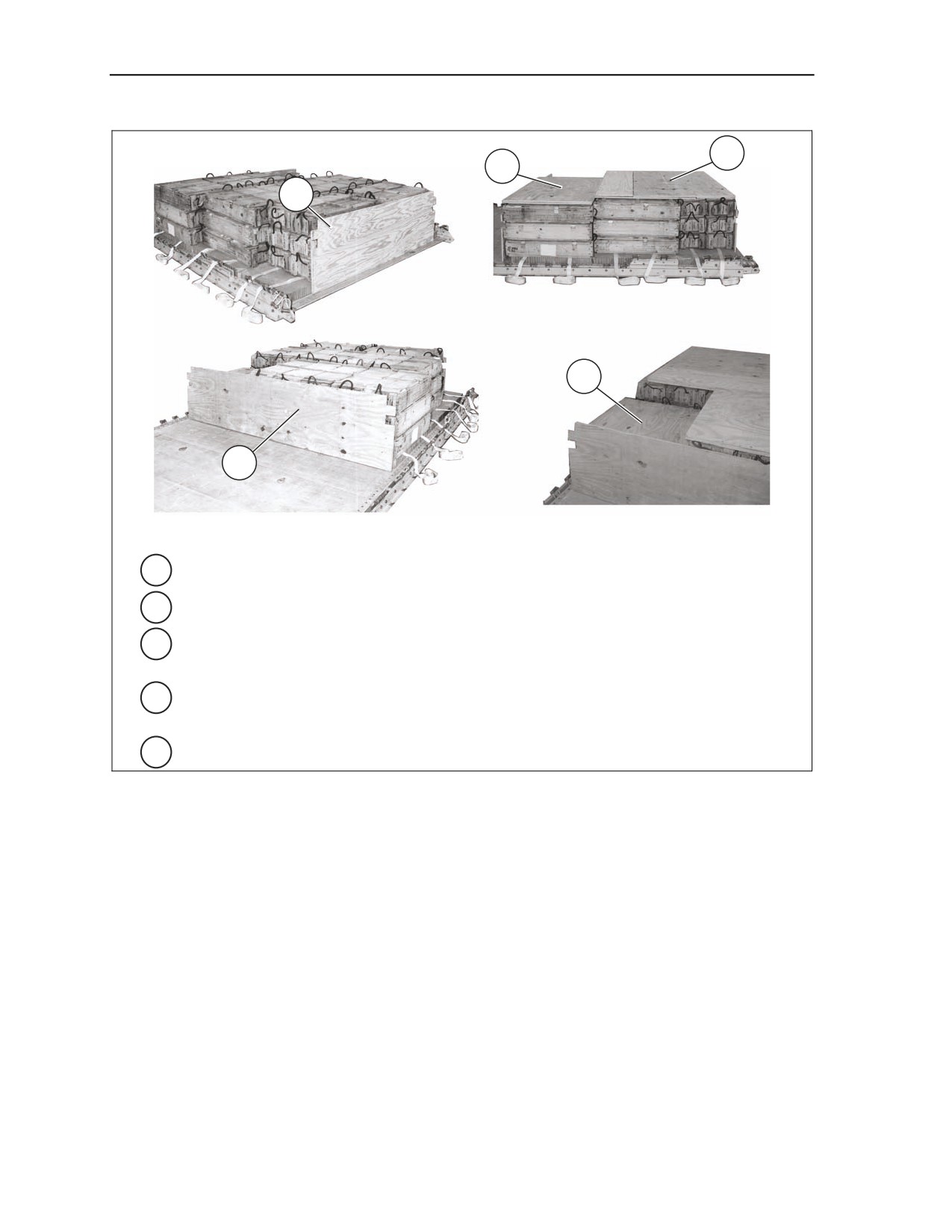

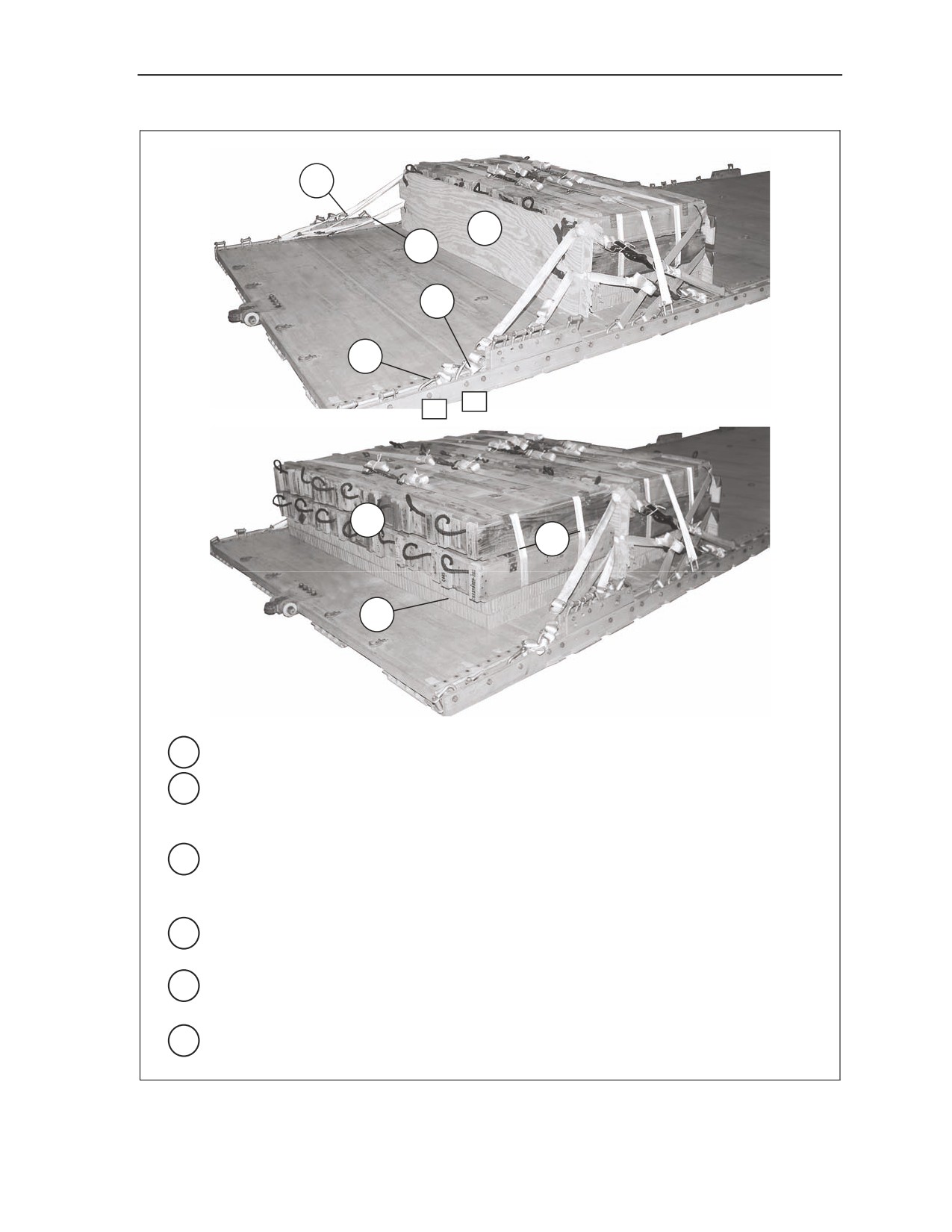

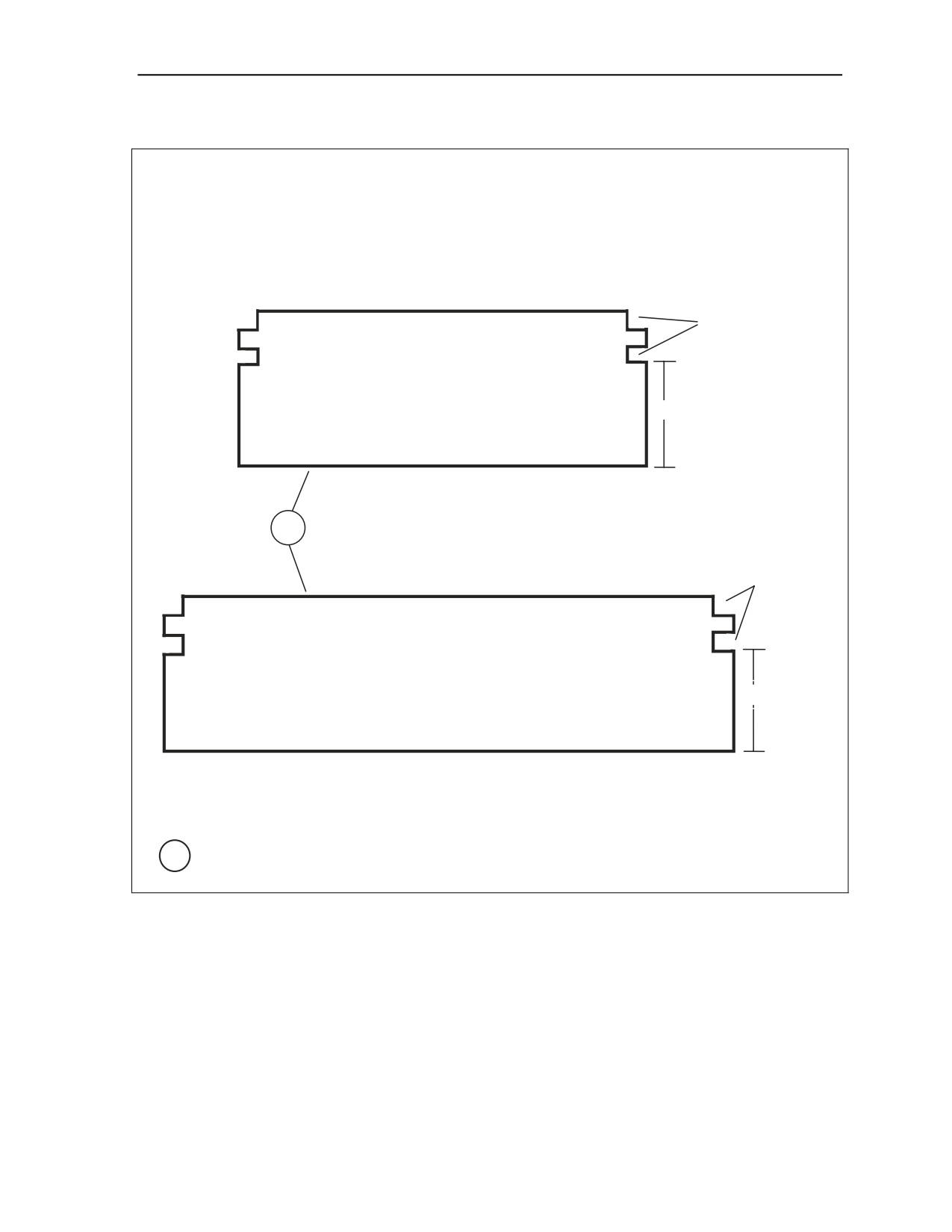

4 Cut four endboards as shown in Figure 3-3. Place one endboard to the front and one to
the rear of the ammunition boxes.
5 Route a 30-foot lashing through clevis 14 to the top right rear cutout to the top left rear
cutout through clevis 14A back through the same cutouts. Secure the lashing at the side of
the load with two D-rings and a load binder.
6 Route a 30-foot lashing through clevis 19 to the top right front cutout to the top left front
cutout through clevis 19A back through the same cutouts. Secure the lashing at the side of
the load with two D-rings and a load binder.
7 Route a 30-foot lashing through clevis 15 to the bottom right rear cutout to the bottom left
rear cutout through clevis 15A back through the same cutouts. Secure the lashing at the
side of the load with two D-rings and a load binder.
8 Route a 30-foot lashing through clevis 18 to the bottom right front cutout to the bottom left
front cutout through clevis 18A back through the same cutouts. Secure the lashing at the
side of the load with two D-rings and a load binder.
9 Route a 30-foot lashing through clevis 16 over the ammunition boxes through clevis 16A
back over the ammunition boxes. Secure the lashing at the top of the load with two D-
rings and a load binder.

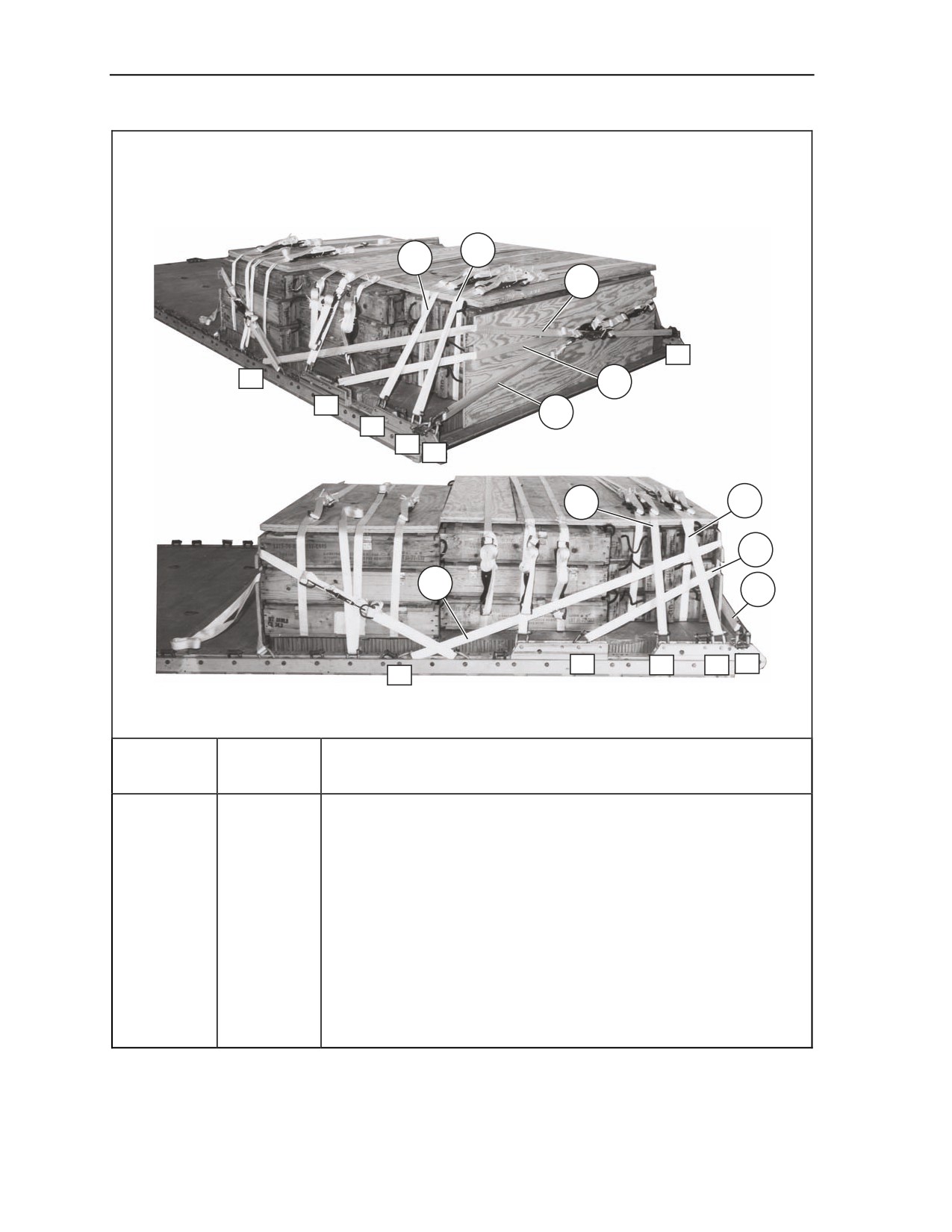

Figure 4-2. Ammunition Stowed and Lashed on Platform (Continued)
4-4
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition
12
10
11
11
12
24
25
11
14
13
10 Set a third endboard against the rear of the ammunition boxes.
11 Route a 30-foot lashing through clevis 24 to the bottom right cutout. Continue to the
bottom left cutout through clevis 24A and back through the same cutouts. DO NOT close
load binder at this time.
12 Route a 30-foot lashing through clevis 25 to the top right cutout. Continue to the top left
cutout through clevis 25A and back through the same cutouts. DO NOT close load binder
at this time.
13 Center two 84- by 36- inch pieces of honeycomb 17 inches from the rear edge of the
platform.
14 Position two 30-foot lashings 8 inches from the front and rear edges of the honeycomb as
shown in step 2.
15 Position 14 ammunition boxes on the honeycomb and secure the 30-foot lashings.
Figure 4-2. Ammunition Stowed and Lashed on Platform (Continued)
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-5
Chapter 4
20
18
16
19
22
21
20
25
24
17

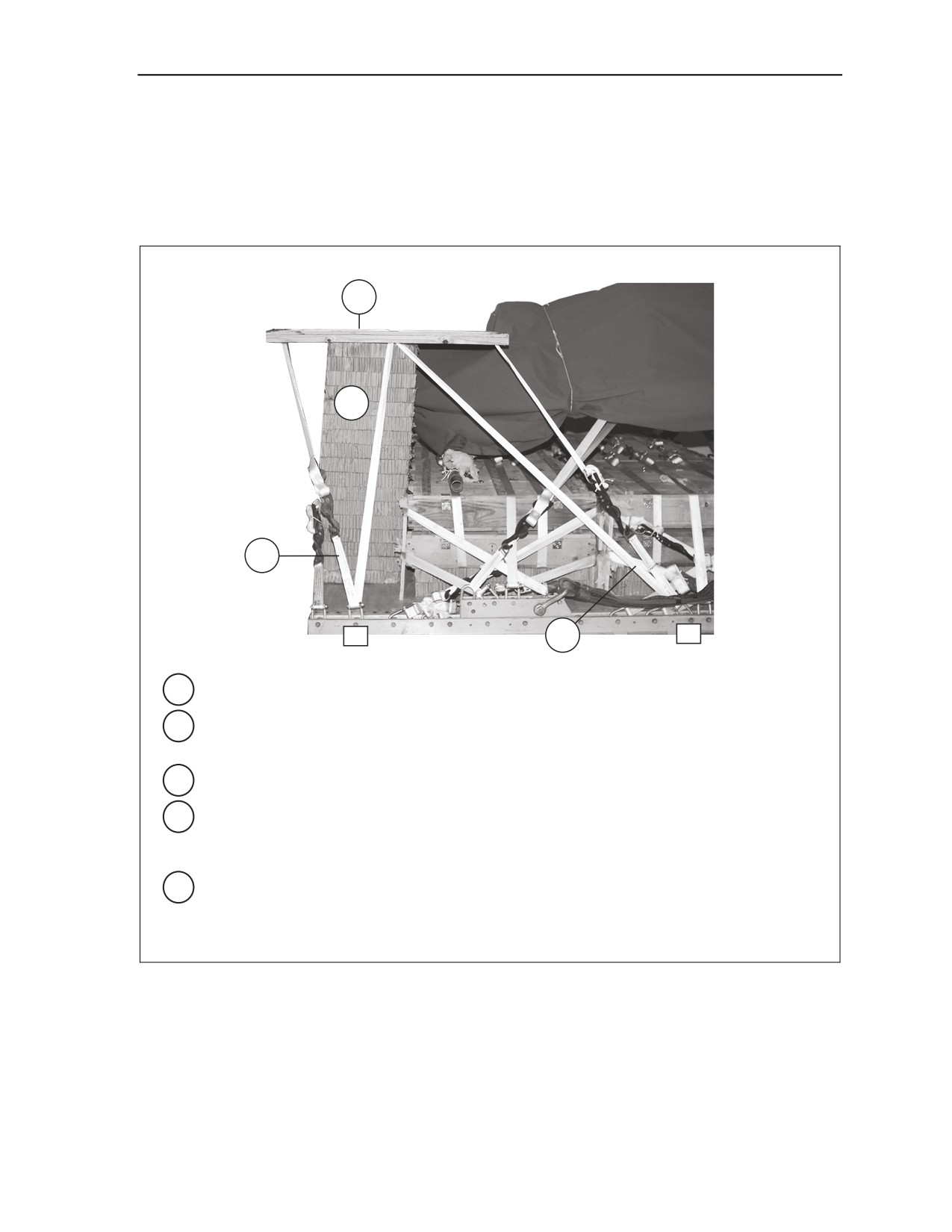

16 Place the last endboard to the rear of the ammunition boxes.
17 Close the load binder and the lashings routed from clevises 24, 24A, 25, and 25A on the
side of the ammunition boxes.
18 Route a 30-foot lashing through clevis 20 to the top right rear cutout to the top left rear
cutout through clevis 20A back through the same cutouts. Secure the lashing at the side of
the load with two D-rings and a load binder.
19 Route a 30-foot lashing through clevis 22 to the bottom right rear cutout to the bottom left
rear cutout through clevis 22A back through the same cutouts. Secure the lashing at the
side of the load with two D-rings and a load binder.
20 Route a 30-foot lashing through clevis 21 over the ammunition boxes through clevis 21A
back over the ammunition boxes. Secure the lashing at the top of the load with two D-rings
and a load binder.
Note. Step 21 is optional and is only used for recovery of the howitzer. This honeycomb stack is
not shown throughout this chapter.
21 Glue and center, four 17- by 96-inch pieces of honeycomb flush against the front end
board of the ammunition boxes. Tape the top side edges of the honeycomb and secure
with type III nylon cord using bushing 46 and 46a (not shown).
Figure 4-2. Ammunition Stowed and Lashed on Platform (Continued)
4-6
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition
BUILDING AND POSITIONING HONEYCOMB STACKS AND
INSTALLING THE OPTIONAL DRIVE-OFF AIDS
4-4. Build and position the honeycomb stacks and place the drive-off aids on the platform as explained
below.
Build honeycomb stacks 1 through 3 for the 1 1/4-ton HMMWV truck as shown in Figures 2-5
and 2-6.
Build honeycomb stacks 4 through 6 for the M119 howitzer as shown in Figures 3-5 through 3-7.
An additional honeycomb stack may be used for recovery purposes. Center four 17- by 96-inch
pieces of honeycomb flush against the front endboard of the ammunition boxes. Tape the top side
edges of the honeycomb and secure with type III nylon cord using bushings 14 and 14a. This
honeycomb stack is not shown throughout this section.
Install drive-off aids to the front of the platform as shown in Figure 2-5.
Position the honeycomb stacks on the platform as shown in Figure 4-3.
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-7
Chapter 4

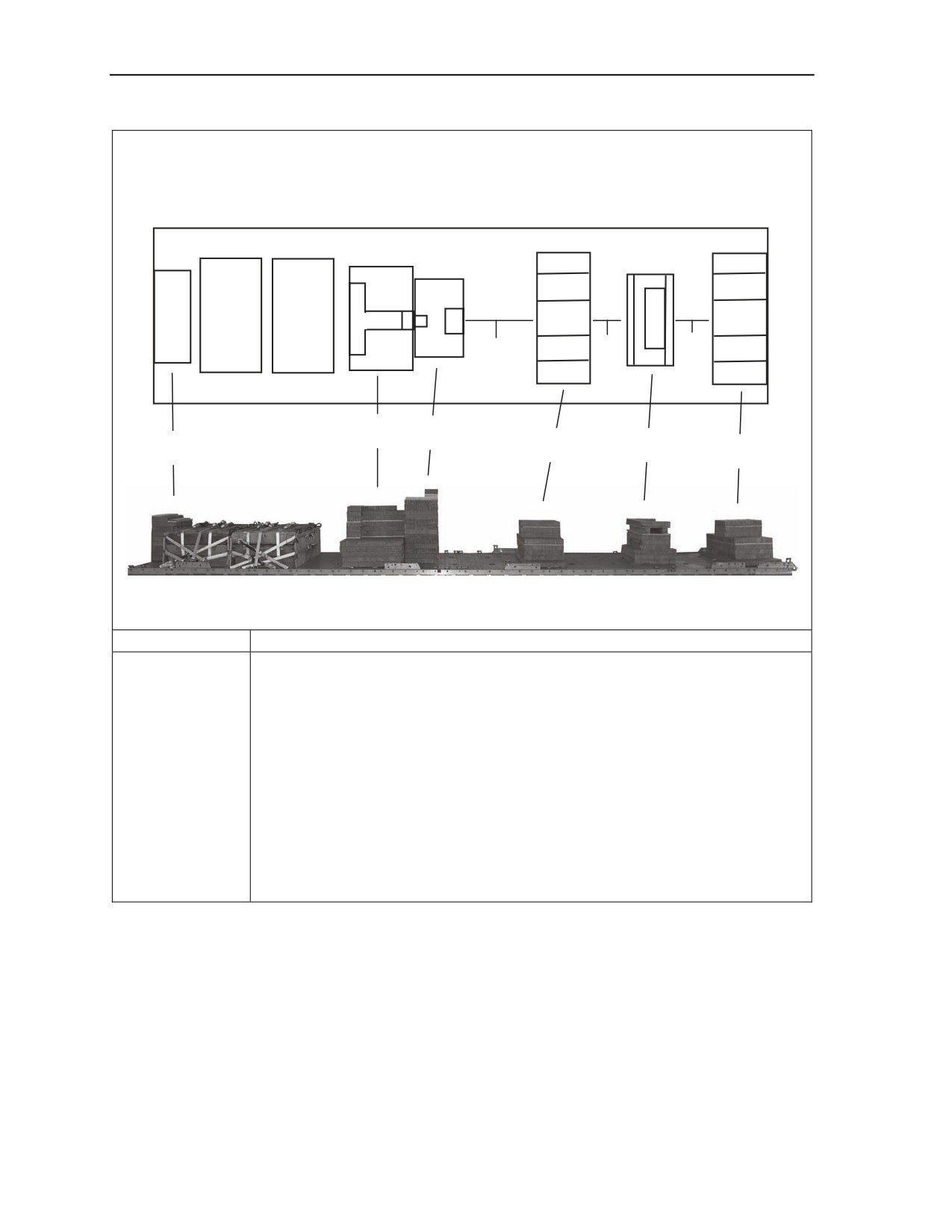

Notes. 1. All measurements are given in inches.
2. This drawing is not drawn to scale.
45
35
56
Stack Stack
Stack
Stack
Stack
Stack
5
4
6

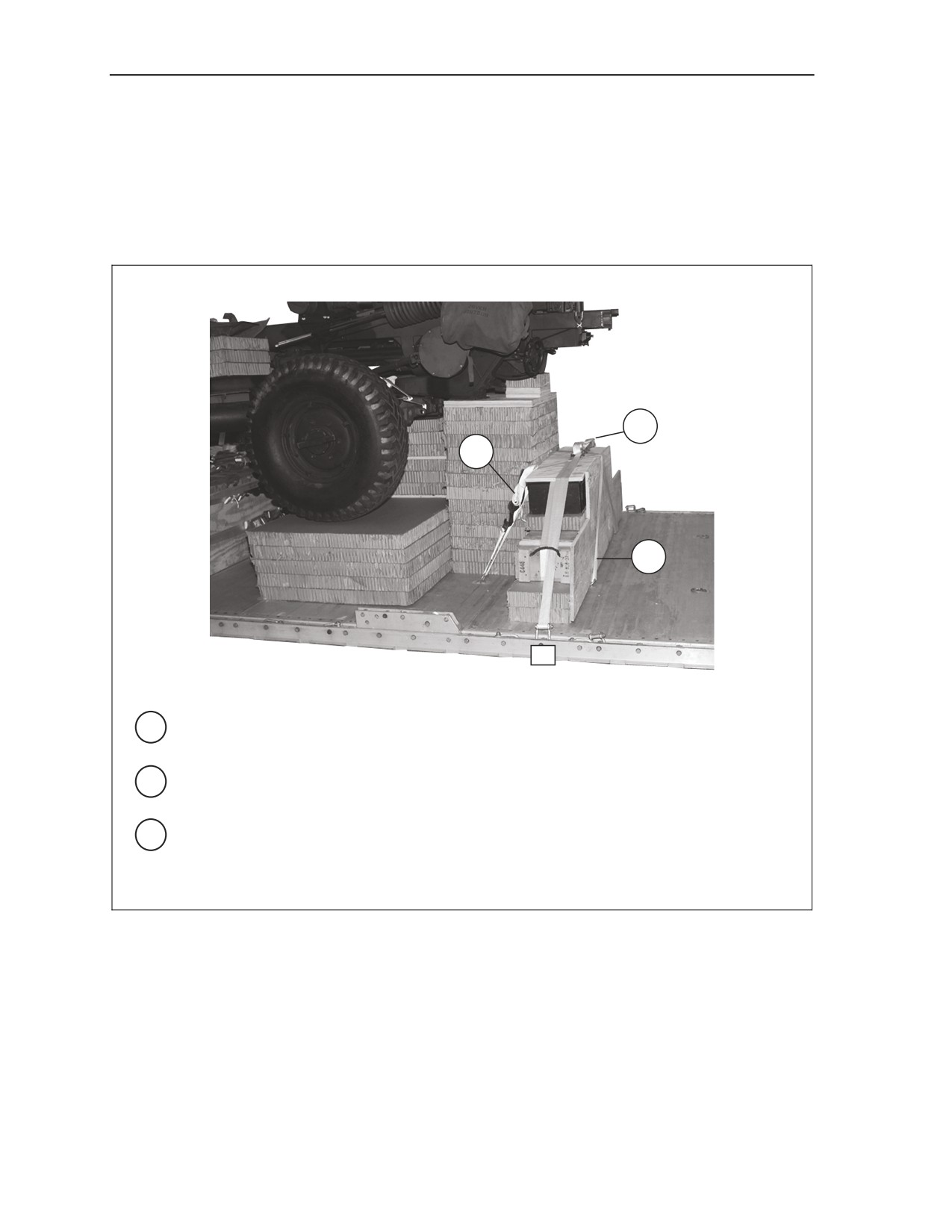

3

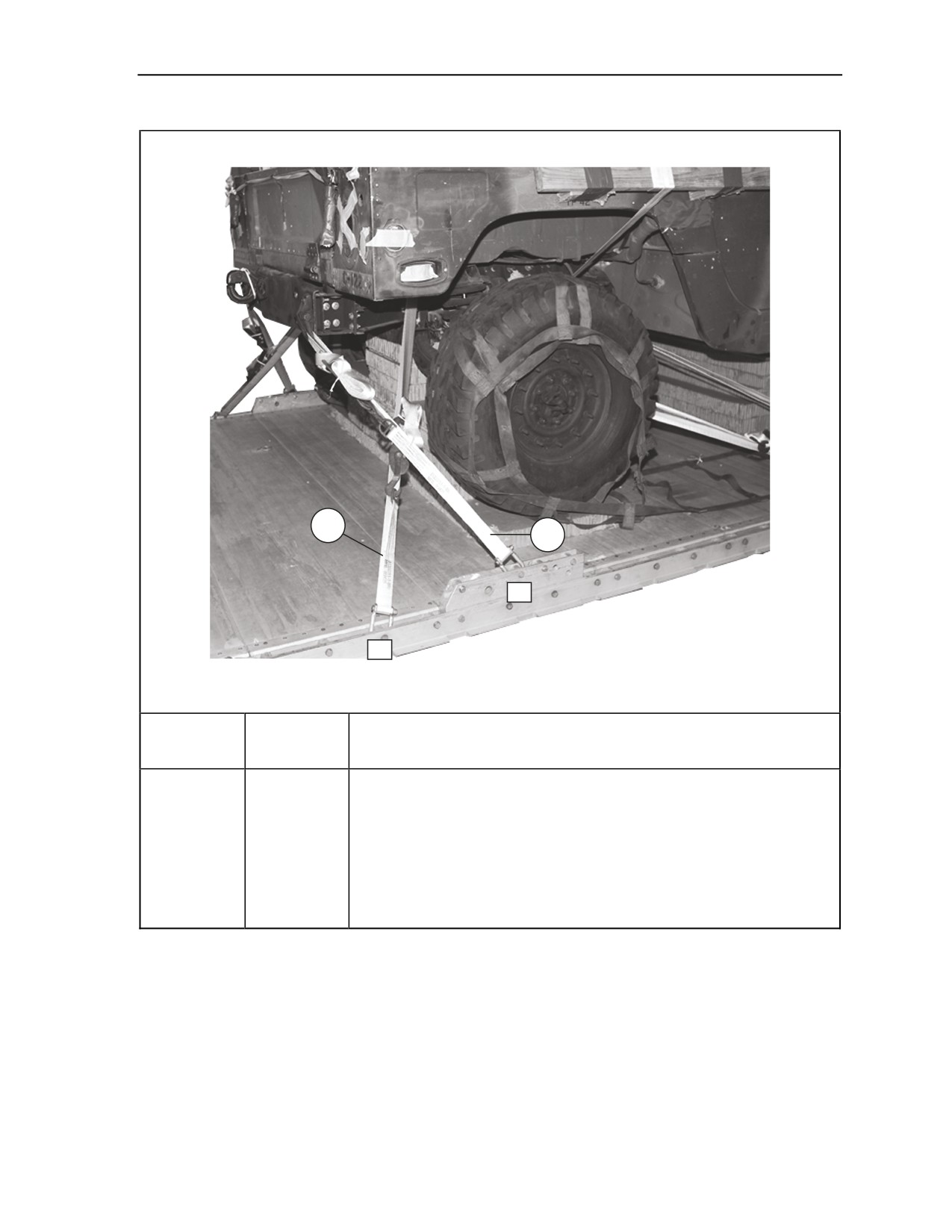

2
1
Stack Number
Position of Stack on Platform
Place Stack:
1
Centered and flush with the front edge of the platform.
Note. Place stack 1 over drive-off aids.
2
Centered and 35 inches from stack 1.
3
Centered and 45 inches from stack 2.
Note. Drive-off aids are placed over the sides of stack 3.
4
Centered and 56 inches from stack 3.
5
Centered and flush against stack 4.
6
Centered and flush with the rear edge of the platform.
Figure 4-3. Honeycomb Stacks Placed on Platform
4-8
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition
PREPARING HOWITZER AND TRUCK
4-5. Prepare the howitzer and truck.
Prepare the howitzer as explained in Paragraph 3-5.
Prepare the truck as explained in Paragraph 2-6.
STOWING HOWITZER EQUIPMENT AND AMMUNITION IN TRUCK
4-6. Use or adapt the procedures explained in Paragraph 2-7. Additionally, prepare the truck as shown in
Figure 4-4.
1

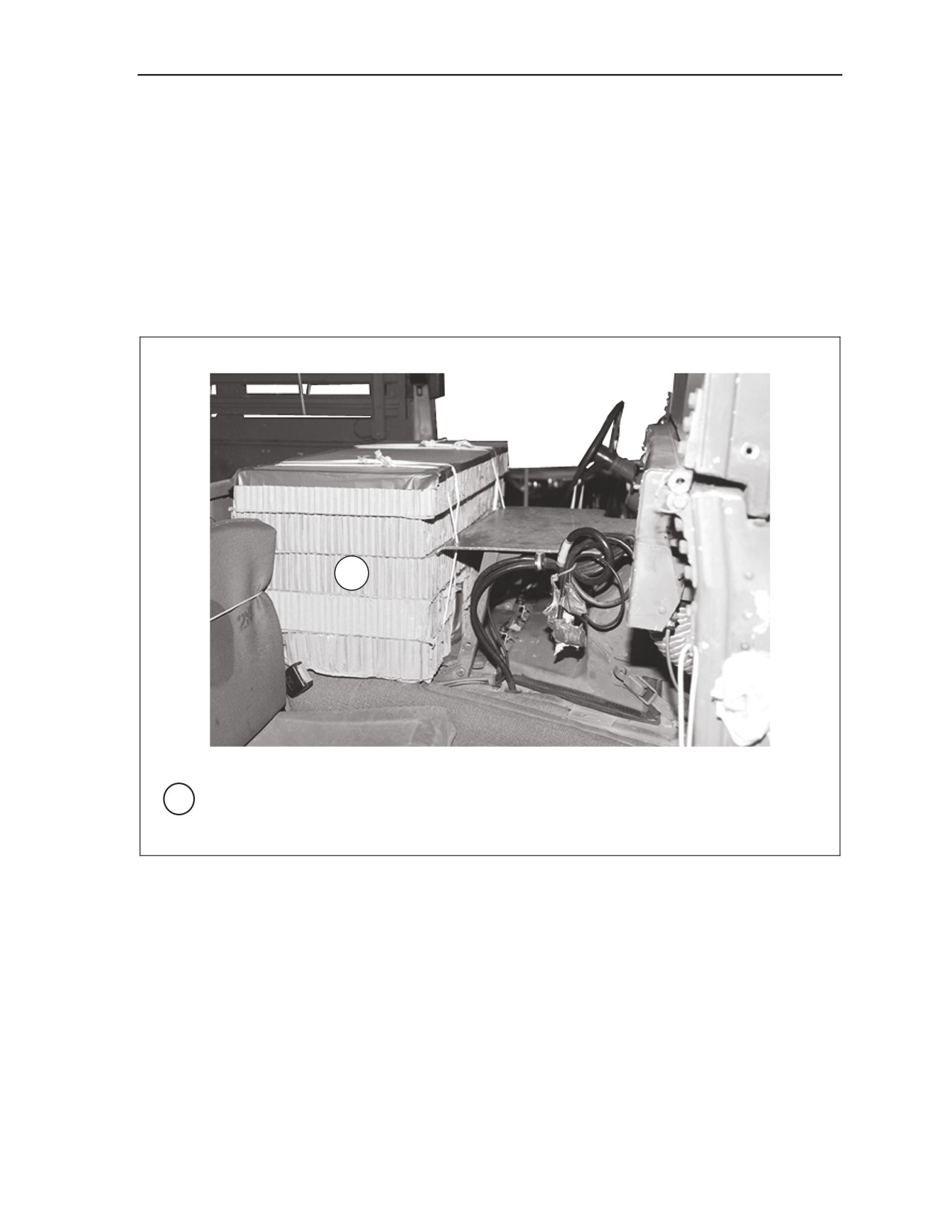

1 Prepare collimator box as shown in Figure 3-17. Set the boxed collimator between the
seats and secure in place with type III nylon cord.
Figure 4-4. Collimator Box Stowed in Truck
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-9
Chapter 4
SETTING HOWITZER AND TRUCK ON PLATFORM AND
INSTALLING DRIVE-OFF AIDS ON TRUCK
4-7. Lift the howitzer and set it on the platform as described below. Lift the truck, install the drive-off
aids on the wheels, and set the truck on the platform as described below.
Lift the howitzer as shown in Figure 3-19. Position the howitzer on the honeycomb stacks as
shown in Figure 4-5.
Lift the truck as shown in Figure 2-21. Position the truck on the honeycomb stacks and install the
drive-off aids to the rear wheels as shown in Figure 4-5.
1
1
REAR
1
1 Position the howitzer on stacks 4, 5, and 6. The lunette will have a 2 inch rear overhang.
Figure 4-5. Howitzer and Truck Positioned on Platform and Drive-off Aids Installed
4-10
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition
2
4

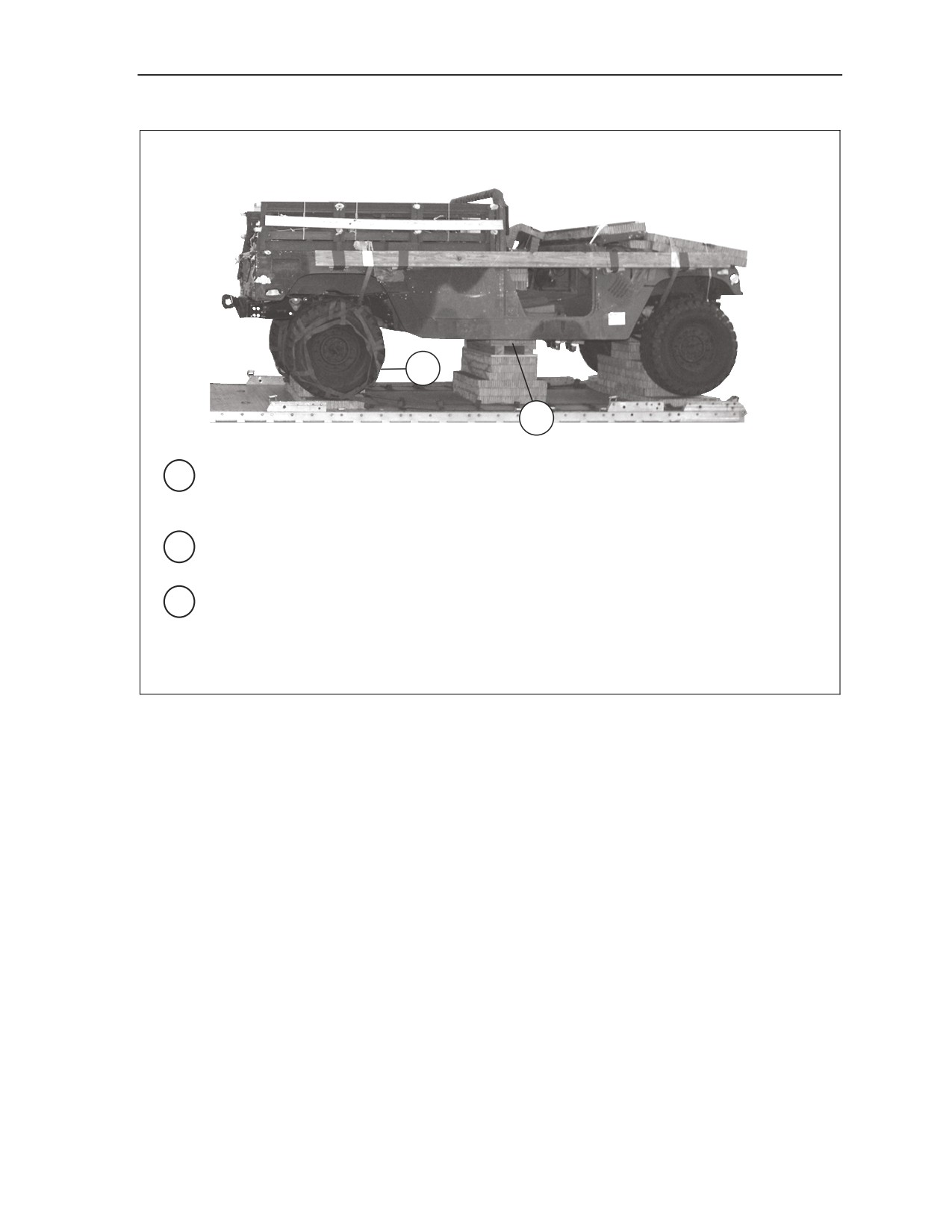

2 Suspend the truck slightly over the honeycomb stacks. Lay a drive-off aid under each rear
wheel. Turn the wheel until the webbing is wound around the wheel and under slight
tension.
3 Tie the end loop of each drive-off aid to the nearest cross piece with two turns of type I,
1/4-inch cotton webbing (not shown).
4 Position the truck on stacks 1, 2, and 3 so that the suspension cross members rest
squarely on stacks 1 and 3 with a 10 inch overhang in the front as shown. Be sure that the
frame cross-members rest squarely on the 6 inch piece of the honeycomb at the front of
stack 2.
Figure 4-5. Howitzer and Truck Positioned on Platform and Drive-off Aids Installed
(Continued)
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-11
Chapter 4
POSITIONING ADDITIONAL ACCOMPANYING LOAD

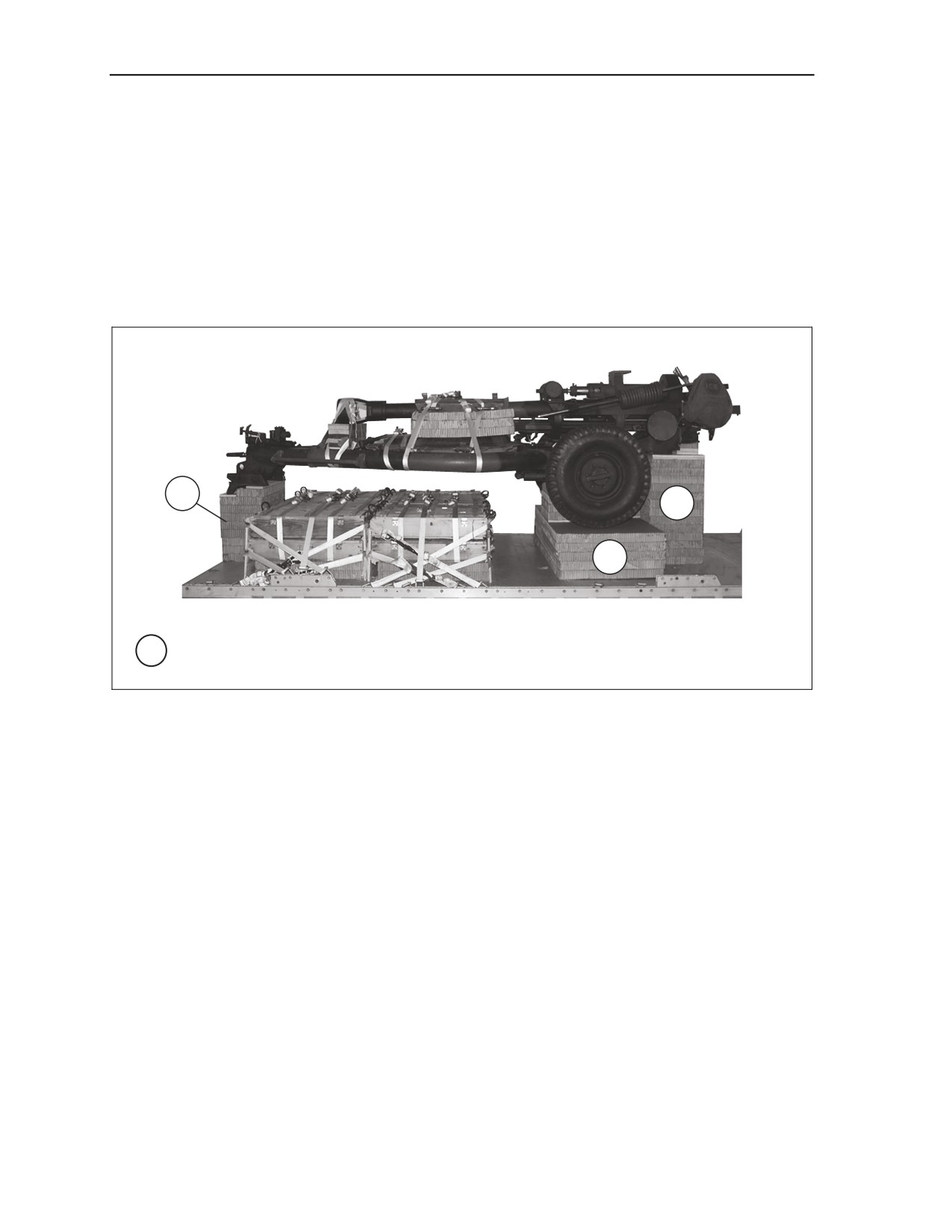

4-8. Stow two boxes of APERS or HERAP ammunition and seven boxes of fuzes as described below.
Construct the ammunition and fuze package against the front side of stack 4 as shown in Figures
3-22 and 3-23, steps 1 and 2.
Lash the ammunition package to the platform as shown in Figure 4-6.
3
2
1
10
1 Secure the plywood with a 15-foot lashing from tie-down rings A9 to B10 and secure with a
load bind and D-ring in the rear.
2 Pass a second 15-foot lashing over the plywood between tie-down rings B9 to A10 and
load bind and D-ring in the rear.
3 Form a 30-foot lashing according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5. Place the lashing over the top of the plywood and pass the ends
through clevises 10 and 10A. Secure the lashing with two D-rings and a load binder.
Figure 4-6. Boxes of Ammunition and Fuzes Lashed to Platform
4-12
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition
LASHING HOWITZER AND TRUCK
4-9. Lash the howitzer and truck to the platform with 15-foot lashings as shown in Figure 4-7. Install and
safety the lashings according to FM
4-20.102/MCRP
4-11.3J/NAVSEA SS400-AB-MMO-010/
TO 13C7-1-5.

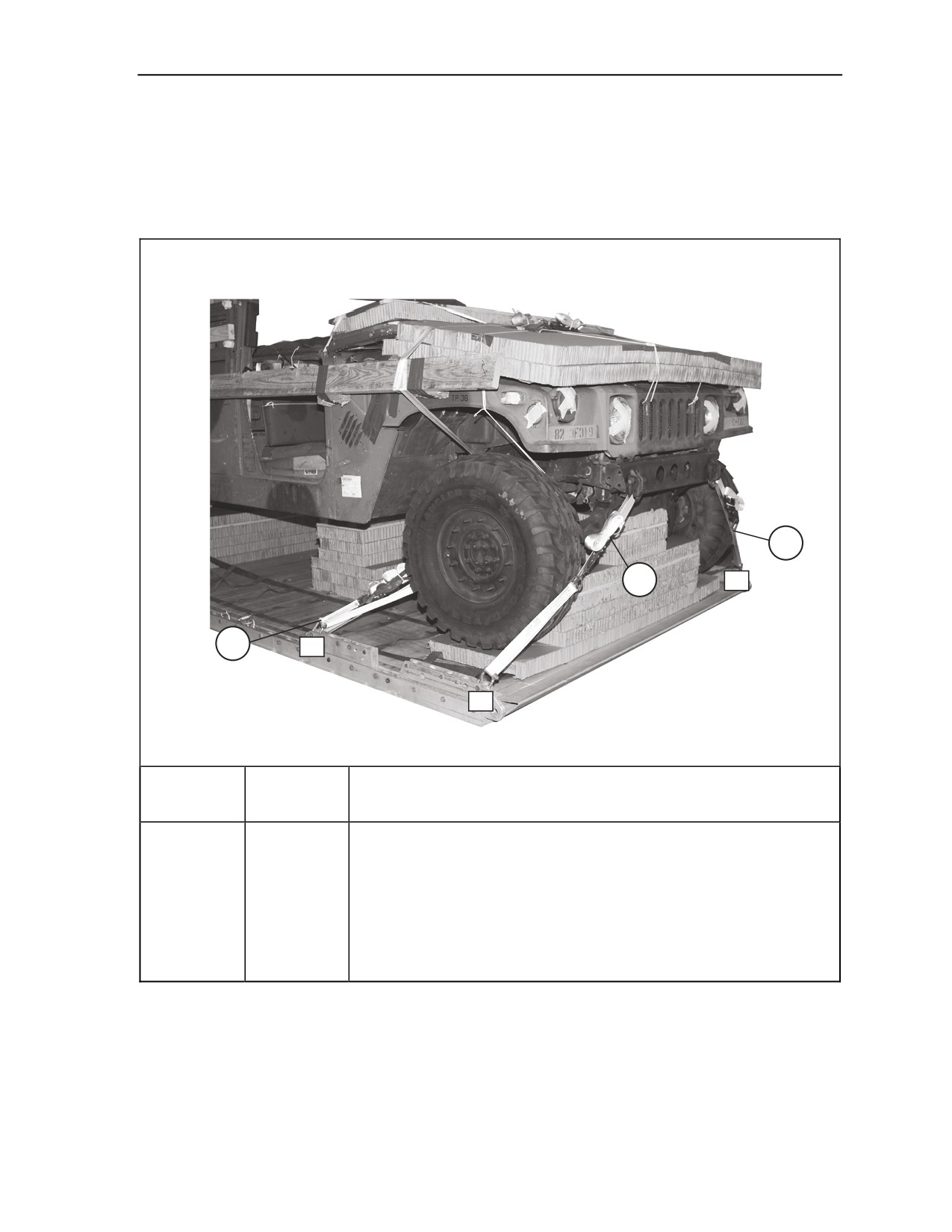

Note. Left and right refer to the truck and howitzer, NOT the platform.
2
1
1A
3
2
1
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
1
1
Through the right front tie-down.
2
1A
Through the left front tie-down.
3
2
Through the right front lower control arm.
4
2A
Through the left front lower control arm (not shown).
Figure 4-7. Lashings Installed
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-13
Chapter 4

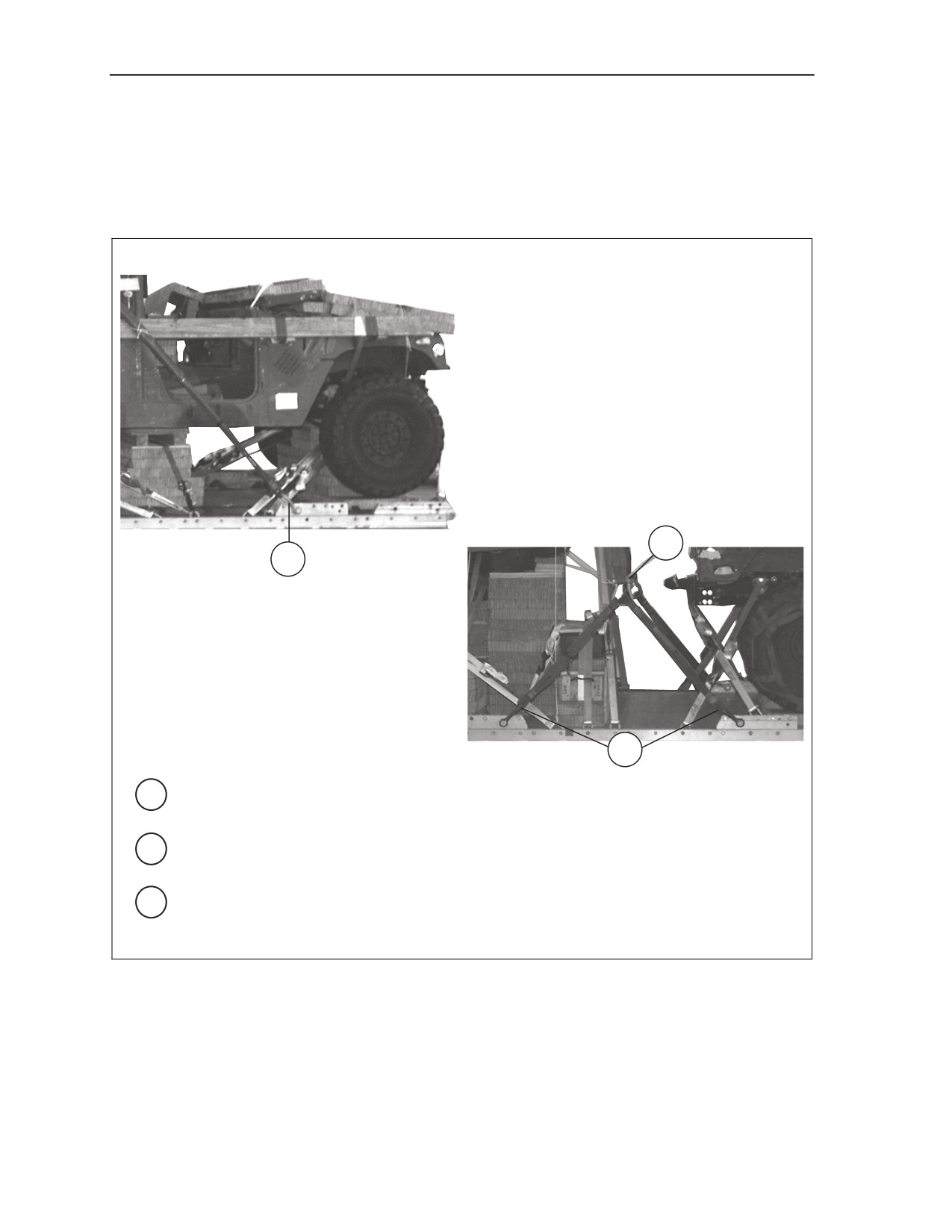

Note. Left and right refer to the truck and howitzer, NOT the platform.
8
7
10
5
6
5
4
3
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
5
3
Through tie-down bracket behind right front coil spring.
6
3A
Through tie-down bracket behind left front coil spring (not shown).
Note. When lashings are tight they should not put adverse pressure
on the tie rods.
7
4 and 4A
Pass a 15-foot lashing through clevis 4A and through its own D-ring.
Pass the lashing through the hole in stack 2. Attach the lashing to
clevis 4 with a load binder.
8
5
Through tie-down bracket in front of the right rear coil spring.
9
5A
Through tie-down bracket in left of the right rear coil spring (not
shown).
10
6
Around right rear coil spring.
11
6A
Around left rear coil spring.
Figure 4-7. Lashings Installed (Continued)
4-14
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition
14
12
7
8
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
12
7
Through the right rear lifting shackle.
13
7A
Through the left rear lifting shackle (not shown).
14
8
Through tie-down bracket behind the right rear coil spring.
15
8A
Through tie-down bracket behind the left rear coil spring (not
shown).
Figure 4-7. Lashings Installed (Continued)
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-15
Chapter 4

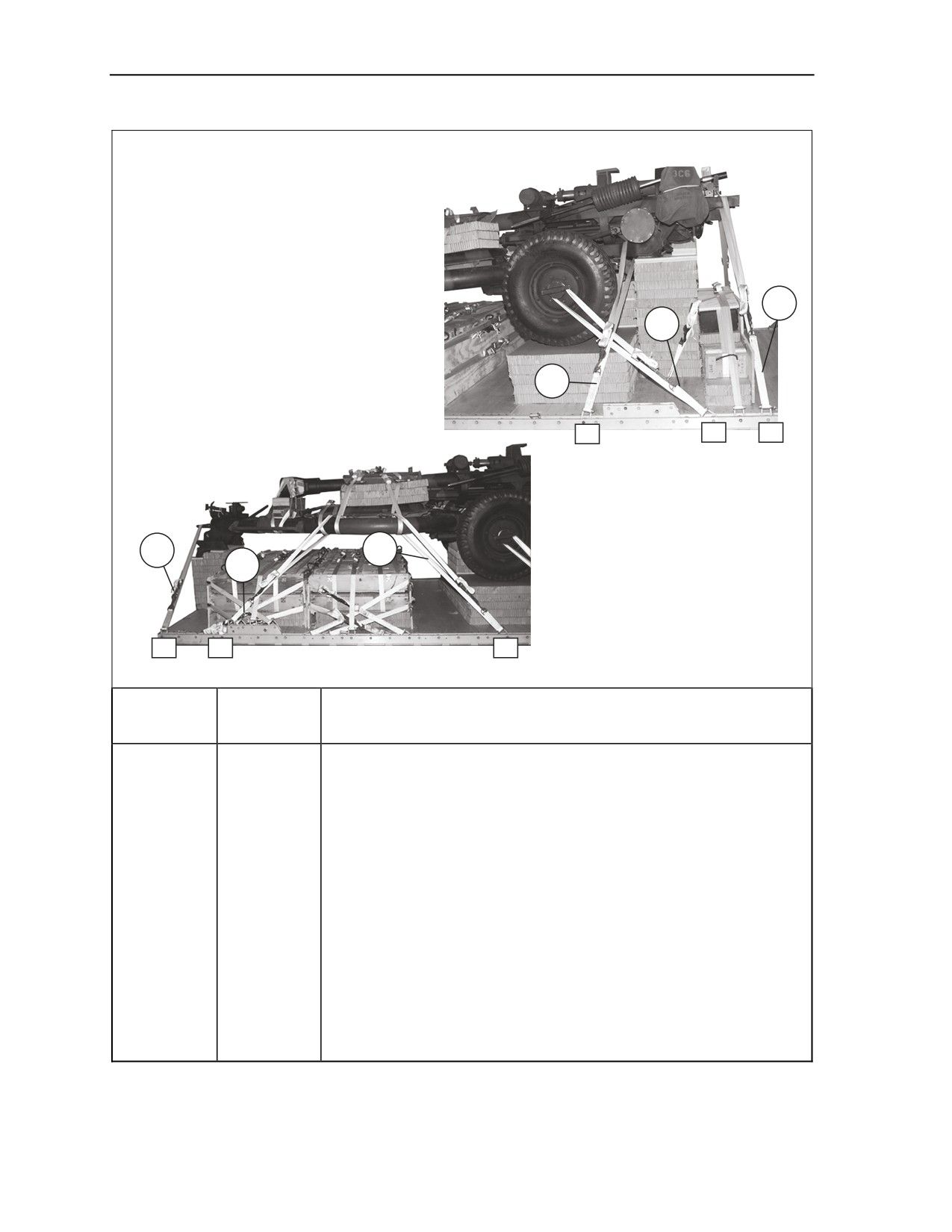

16
18
20
12
11
9
27
22
24
27
23
13
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
16
9
Around right rail.
17
9A
Around left rail.
18
11
Around right wheel hub.
19
11A
Around left wheel hub.
20
12
Around saddle, behind elevating wheel shaft, right side.
21
12A
Around saddle, left side.
22
13
Through hole in firing platform and around right trail.
23
13A
Through hole in firing platform and around left trail.
24
23
Through hole in firing platform and around right trail.
25
23A
Through hole in firing platform and around left trail.
26
27
Through the lunette.
27
27A
Through the lunette.
Figure 4-7. Lashings Installed (Continued)
4-16
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition
COVERING HOWITZER WITH HONEYCOMB
4-10. Install protective honeycomb covers as shown in Figure 4-8.
2
3
1
4

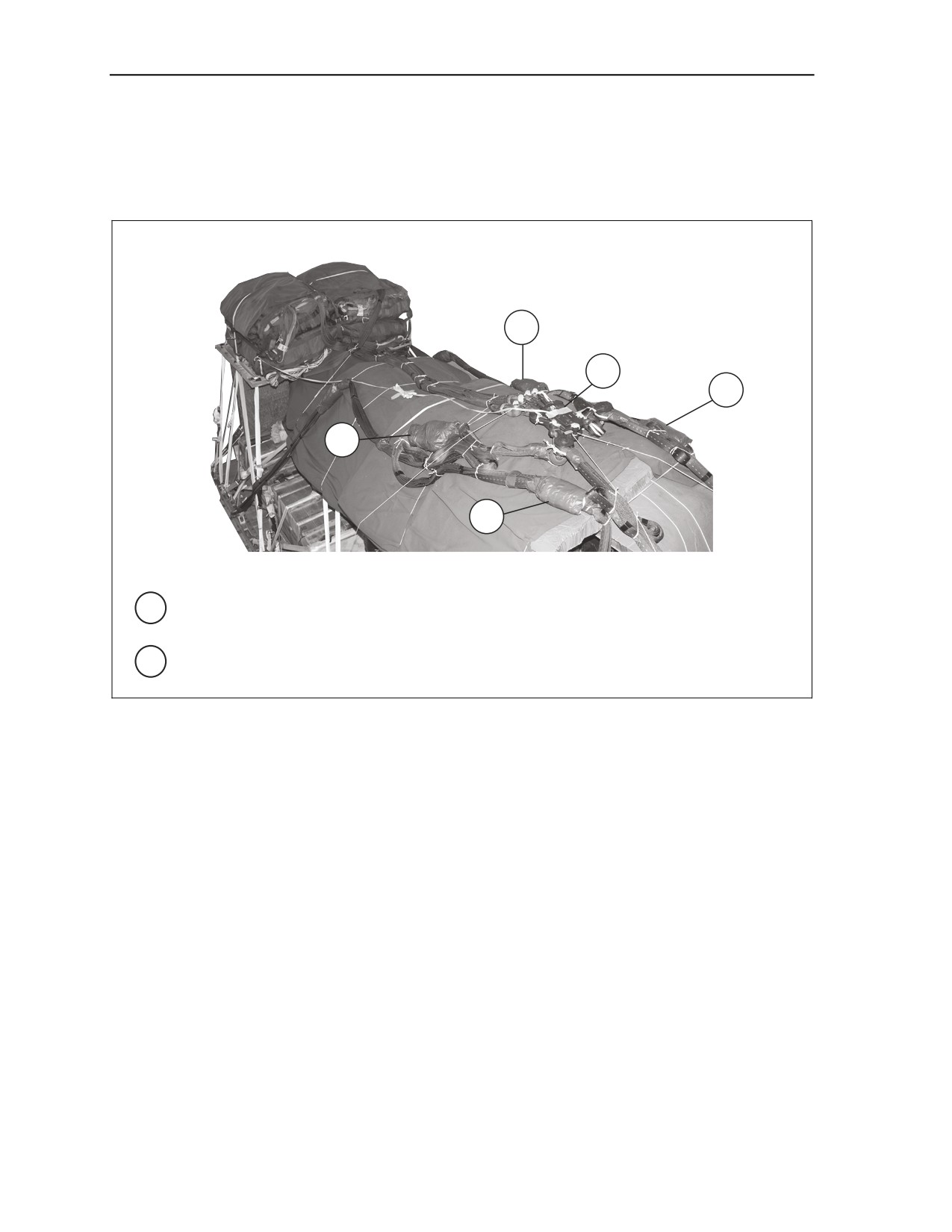

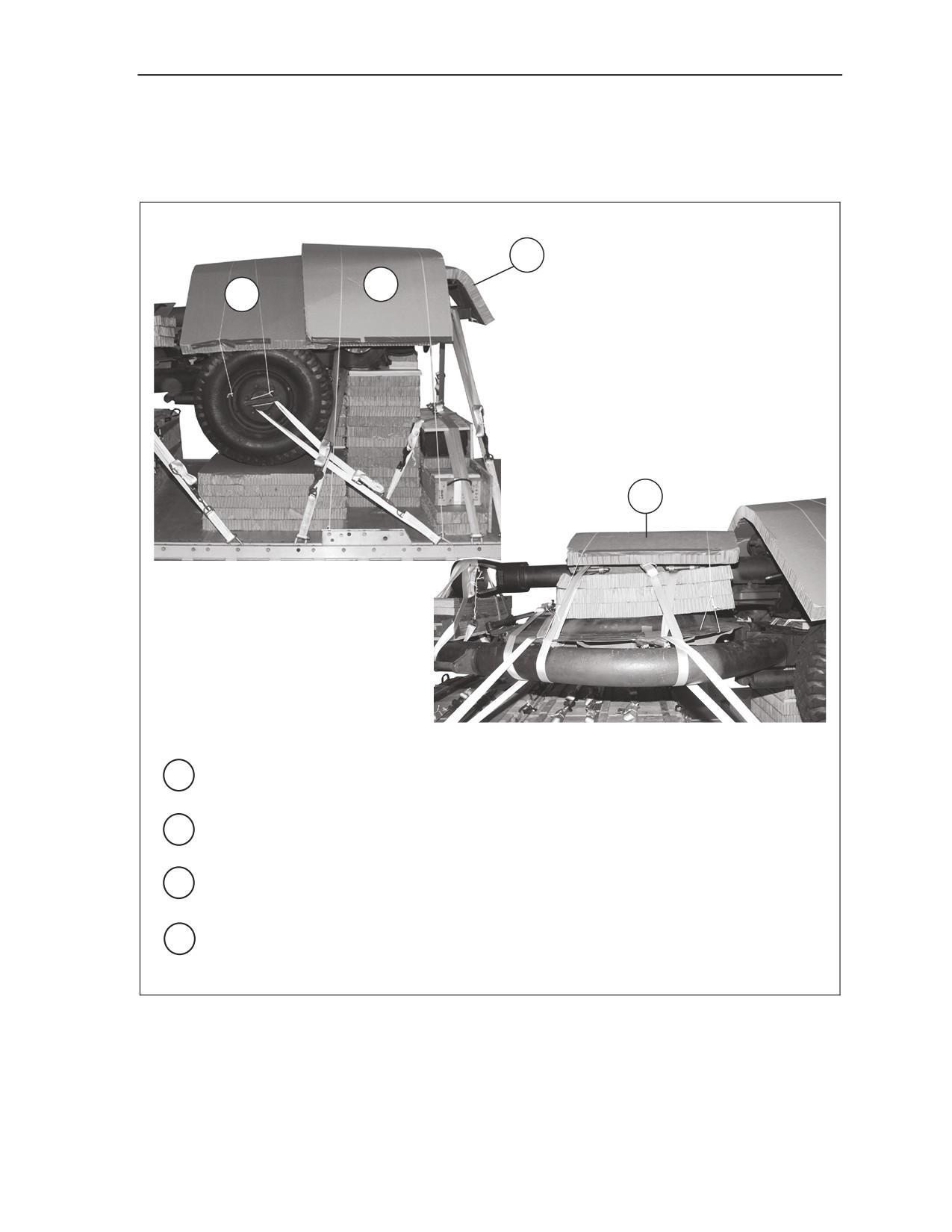

1 Center a 36- by 96-inch piece of honeycomb over the wheels and bend it over the gun.
Tape and secure the honeycomb with type III nylon cord.
2 Bend a 36- by 30-inch piece of honeycomb over the breech and tape and secure it with
type III nylon cord.
3 Bend a 36- by 96-inch piece of honeycomb over the sights and the piece of honeycomb
placed in step 2 above. Tape and secure the honeycomb with type III nylon cord.
4 Place a 36- by 36-inch piece of honeycomb over the gun tube and tape and secure it with
type III nylon cord.
Figure 4-8. Honeycomb Cover Installed
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-17
Chapter 4
INSTALLING AND SAFETYING SUSPENSION SLINGS
4-11. Install the suspension slings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 4-9. Pad and safety the suspension slings, and cover the load as
shown in Figure 4-10.
3
1
2

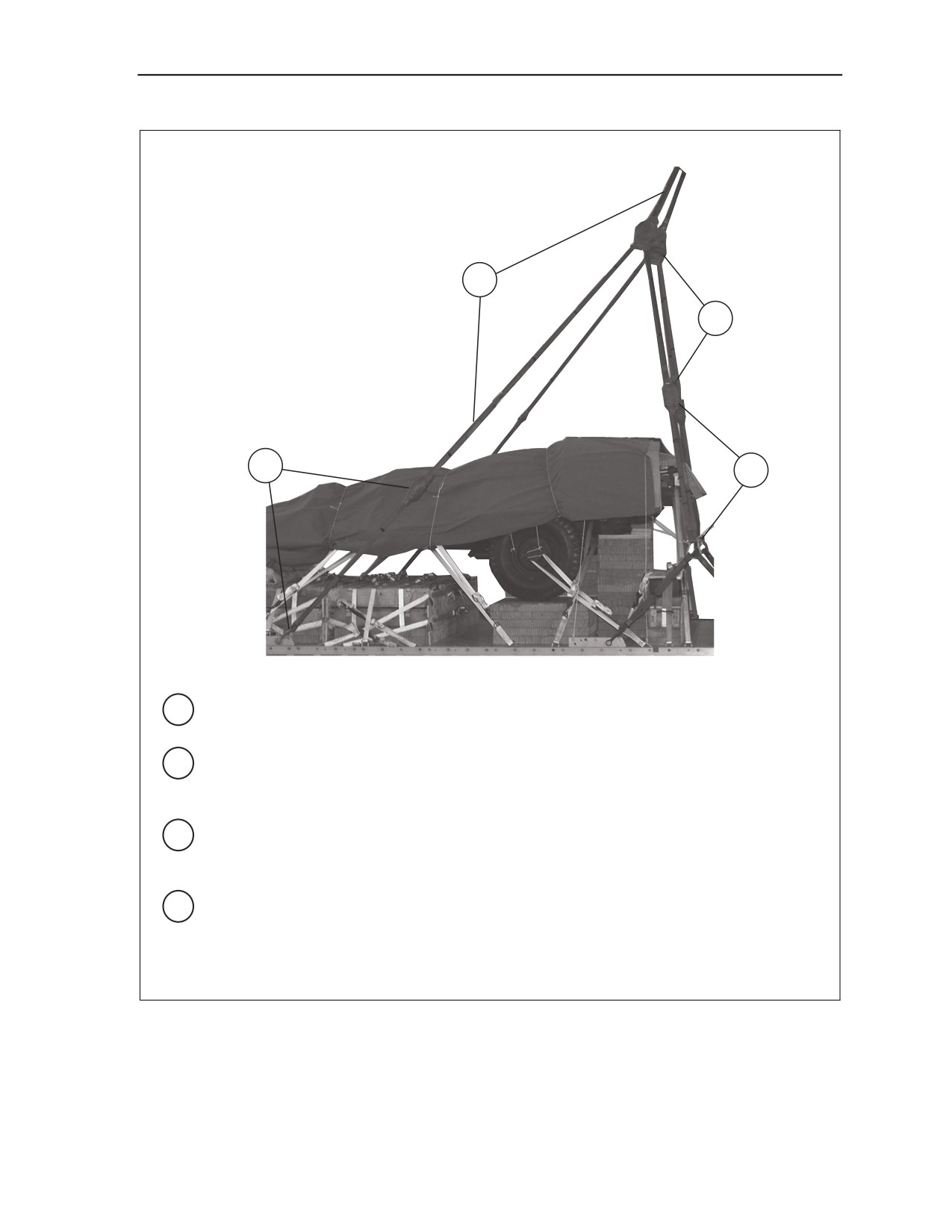

1 Attach a 20-foot (4-loop), type XXVI nylon webbing sling to each first suspension link with a
large clevis.
2 Attach a 3-foot (4-loop), type XXVI nylon webbing sling to each second and third
suspension link with a large clevis.
3 Place the 3-foot slings installed in step 2 in the bell portion of a large clevis. Repeat for the
left side.
Figure 4-9. Suspension Slings Installed
4-18
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition

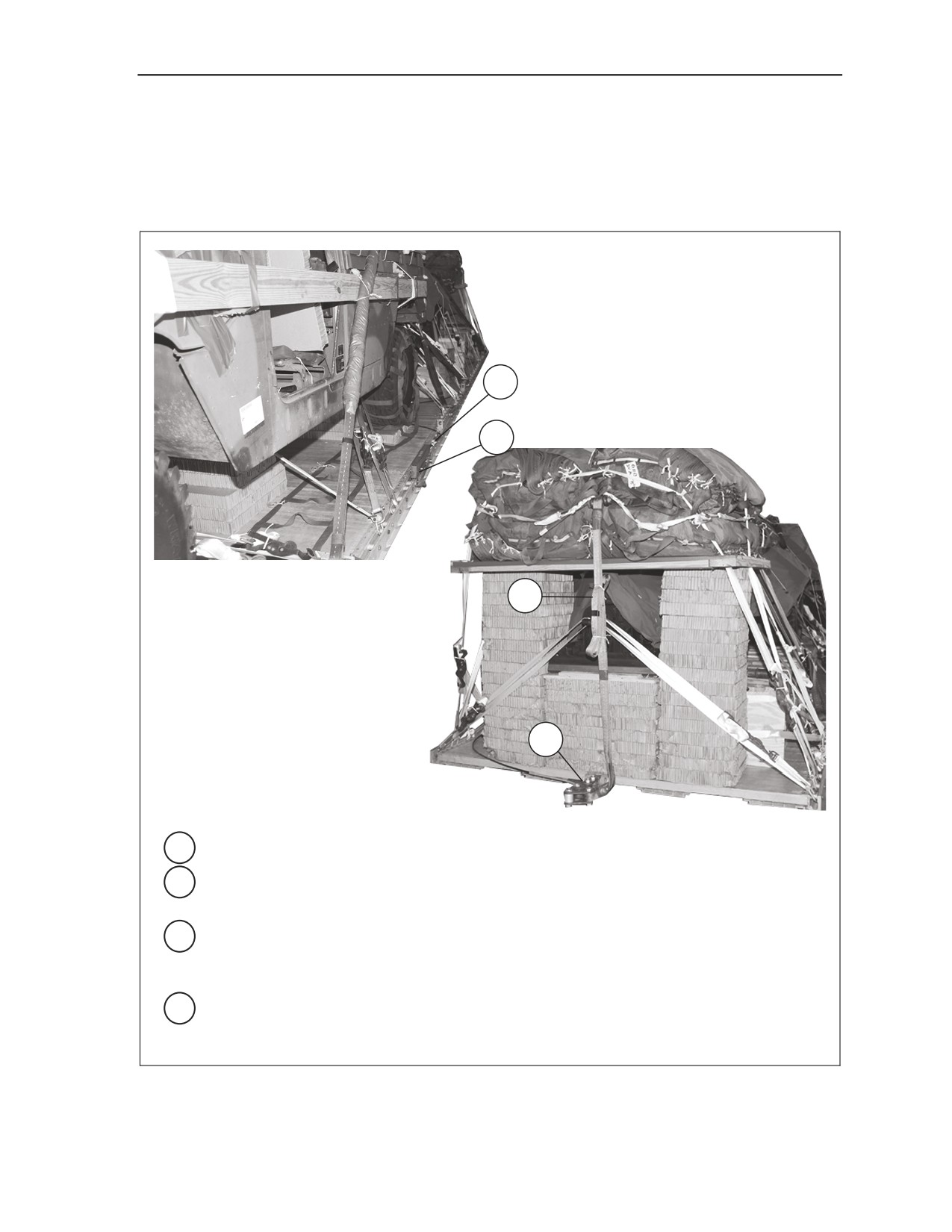

7
5
6
4
4 Pass a 9-foot (2-loop), type XXVI nylon webbing sling through a 5 1/2-inch two-point link.
Bolt both end loops to the large clevis installed in step 3.
5 Pass an 11-foot (2-loop), type XXVI nylon webbing sling through the 5 1/2-inch two-point
link installed in step 4 and attach both running ends to the same point on the three-point
link. Repeat for the left side.
6 Pass an 11-foot (2-loop), type XXVI nylon webbing sling through a 3 3/4-inch two-point
link. Place both end loops in the bell portion of a large clevis and bolt the clevis to the
fourth suspension link. Repeat for the left side.
7 Attach an 11-foot (4-loop), type XXVI nylon webbing sling to the top of the 3 3/4-inch two-
point link installed in step 6 and attach the running end to the three-point link installed in
step 5. Attach a 3-foot (4-loop), type XXVI nylon webbing sling to the top of the three-point
link. Repeat for the left side.
Figure 4-9. Suspension Slings Installed (Continued)
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-19
Chapter 4
2
1
1
2
2
3
5
4
1 Raise the slings and install a modified deadman’s tie according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2 Wrap all the links with felt and tape.
3 Wrap each front suspension sling from 45 to 115 inches above the platform with felt and
tape. Secure the suspension slings to the sideboards of the truck with type III nylon cord.
4 Secure the center clevis to the truck and howitzer with type III nylon cord.
5 Cover the howitzer with a 10- by 15-foot piece of cotton duck and secure with type III nylon
cord.
Figure 4-10. Howitzer Covered and Suspension Slings Padded and Safetied
4-20
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition
PREPARING STOWAGE PLATFORM AND STOWING CARGO
PARACHUTES
4-12. Prepare the cargo parachute stowage platform as shown in Figure 4-11. Stow the G-11 cargo
parachutes as shown in Figure 4-12.
3
2
4
26
5
17
1 Construct the parachute stowage platform as shown in Figure 3-28.
2 Set two stacks of 17 layers each of 18- by 18-inch honeycomb flush against the
accompanying load and stack 6.
3 Center the parachute stowage platform on the honeycomb stacks.
4 Route a lashing from clevis 26 through the center right hole in the parachute platform
through the rear right hole and secure with a load binder and D-ring. Repeat for the left
side using clevis 26A.
5 Route a lashing from clevis 17 through the center right hole in the parachute platform
through the front right hole and secure with a load binder and D-ring. Repeat for the left
side using clevis 17A.
Figure 4-11. Stowage Platform Prepared
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-21
Chapter 4
1
2
2
23
25
1 Prepare and install four G-11 cargo parachutes according to FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2 Restrain the parachutes using clevises 25, 25A, 23 and 23A on the platform.
Figure 4-12. Cargo Parachutes Stowed
4-22
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition
INSTALLING EXTRACTION SYSTEM
4-13. Install the EFTC extraction system according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 and as shown in Figure 4-13. If applicable install the EPJS according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
2
1
4
3
1 Install the EFTC mounting brackets in the rear mounting holes on the left platform rail.
2 Attach a 28-foot release cable to the actuator. Install the actuator to the EFTC mounting
brackets.
3 Install the latch assembly to the extraction bracket. Attach the release cable to the latch
assembly. Safety the release cable as needed using one turn type I, 1/4-inch cotton
webbing.
4 Install a 9-foot (2-loop), type XXVI nylon webbing sling as the deployment line. S-fold the
slack and secure the folds with type I, 1/4-inch cotton webbing.
Figure 4-13. Extraction System Installed
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-23
Chapter 4
INSTALLING RELEASE SYSTEM
4-14. Prepare and install an M-2 cargo parachute release according to FM
4-20.102/MCRP
4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Figure 4-14.
2
1
2
2
2
1 Place the M-2 release on the 36- by 96-inch piece of honeycomb protecting the sights and
tie the release to convenient points on the load with type III nylon cord.
2 Fold and secure any slack in the suspension slings with type I, 1/4-inch cotton webbing.
Figure 4-14. Cargo Parachute Release Installed
4-24
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition
INSTALLING PROVISIONS FOR EMERGENCY RESTRAINTS
4-15. Select and install provisions for emergency restraints according to the emergency aft restraint
requirements table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
PLACING EXTRACTION PARACHUTE
4-16. Select the extraction parachute and extraction line needed using the extraction line requirements
table in FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Rig the extraction
line in an extraction line bag according to TM 10-1670-286-20/TO13C5-2-41. Place the extraction
parachute and extraction line on the load for installation in the aircraft.
MARKING RIGGED LOAD
4-17. Marked the rigged load according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 and as shown in Figure 4-15. Complete Shipper’s Declaration for Dangerous Goods
according to AFMAN 24-204(I)/TM 38-250. If the load varies from the one shown, the weight, height,
CB, tip-off curve, and parachute requirements must be recomputed.
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-25
Chapter 4
CAUTION
Make the final rigger inspection required by FM 4-20.102/MCRP 4-
11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5 before the load
leaves the rigging site.
RIGGED LOAD DATA
Weight: Load shown
20,340 pounds
Maximum load allowed
21,000 pounds
Height
91 inches
Width
108 inches
Overall Length
402 inches
Overhang: Front
0 inches
Rear (EFTC)
18 inches
Rear (EPJS)
30 inches
Center of Balance (from front edge of platform)
201 inches
Figure 4-15. M119 Howitzer with 1 ¼-Ton Truck and Accompanying Ammunition Rigged for
Low-Velocity Airdrop on a Type V Platform
4-26
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging M119 Howitzer with 1 1/4-Ton HMMWV Truck and Accompanying Ammunition
EQUIPMENT REQUIREMENTS
4-18. Use the equipment listed in Table 4-1 to rig the load shown.
Table 4-1. Equipment Required for Rigging the M119 Howitzer with 1 1/4-Ton Truck and
Accompanying Ammunition Rigged for Low-Velocity Airdrop on a Type V Platform
National Stock Number
Item
Quantity
8040-00-273-8713
Adhesive paste, 1-gallon
As required
4020-00-240-2146
Cord, nylon, type III
As required
1670-00-157-6527
Coupling, airdrop, extraction force transfer
1
w/28-foot cable
8305-00-242-3593
Cloth, cotton duck, 60-inch
As required
Clevis, suspension:
4030-00-678-8562
3/4-inch (medium) emergency restraint
12
4030-00-090-5354
1-inch (large)
6
8135-00-664-6958
Cushioning material, packaging, cellulose wadding
As required
8305-00-191-1101
Felt sheet, 1/2-inch
As required
1670-01-183-2678
Leaf, extraction line
2
1670-01-064-4452
Line, drogue, 60-foot (1-loop), type XXVI nylon webbing
1
Line, extraction, type XXVI nylon webbing:
1670-01-062-6313
60-foot (3-loop)
1
Or
1670-01-107-7651
140-foot (3-loop)
1
Link assembly:
1670-01-493-6418
Two-point, 3 3/4-in
4
1670-01-493-6420
Two-point, 5 1/2-in
2
Lumber:
5510-00-220-6146
2- by 4-inch
As required
5510-00-220-6148
2- by 6-inch
As required
5510-00-220-6246
2- by 8-inch
As required
Nail, steel wire, common:
5315-00-010-4659
8d
As required
5315-00-164-5121
20d
As required
1670-00-753-3928
Pad, energy dissipating, honeycomb, 3- by 36- by 96-in
30 Sheets
Parachute:
Cargo:
1670-01-016-7841
G-11
4
Cargo extraction:
1670-01-063-3715
Drogue, 15-foot
1
1670-00-040-8135
28-foot
1
1670-01-097-8817
Release, cargo parachute, M-2
1
10 May 2006
FM 4-20.119/TO 13C7-10-31
4-27
Chapter 4
Table 4-1. Equipment Required for Rigging the M119 Howitzer with 1 1/4-Ton Truck and
Accompanying Ammunition Rigged for Low-Velocity Airdrop on a Type V Platform
(Continued)
National Stock Number
Item
Quantity
Platform, AD, type V, 32-foot:
1670-01-353-8425
Bracket assembly, coupling
1
1670-01-353-8424
Bracket assembly, extraction
1
1670-01-162-2376
Clevis assembly
50
1670-01-247-2389
Suspension link
4
1670-01-162-2381
Tandem link (multi-purpose)
2
Plywood:
5530-00-129-7777
1/2-in
As required
5530-00-128-4981
3/4-in
As required
Sling, cargo airdrop
For suspension:
1670-01-062-6306
3-ft (4-loop), type XXVI nylon webbing
6
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
2
1670-01-063-7760
11-ft (2-loop), type XXVI nylon webbing
4
1670-01-062-6310
11-ft (4-loop), type XXVI nylon webbing
2
1670-01-064-4453
20-ft (4-loop), type XXVI nylon webbing
2
For deployment:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
1
For riser extension:
1670-01-062-6313
60-ft (3-loop), type XXVI nylon webbing
4
For lifting:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
2
1670-01-063-7760
11-ft (2-loop), type XXVI nylon webbing
4
1670-01-062-6303
12-ft (2-loop), type XXVI nylon webbing
2
1670-00-040-8219
Strap, parachute release, multicut
2
7510-00-266-5016
Tape, adhesive, 2-in
As required
1670-00-937-0271
Tie-down assembly, 15-ft
77
1670-01-483-8259
Tow release mechanism (H-block for C-17)
1
1670-00-431-8486
Universal drive-off aid
1
Webbing:
8305-00-268-2411
Cotton, 1/4-inch, type I
As required
Nylon:
8305-00-082-5752
Tubular, 1/2-inch
As required
8305-00-268-2455
Tubular, 1-in
As required
8305-00-263-3598
Type VIII webbing
As required
4-28
FM 4-20.119/TO 13C7-10-31
10 May 2006
Chapter 5
Rigging Two M119 Howitzers for Low-Velocity Airdrop on
Type V Platform
SECTION I-RIGGING HOWITZERS WITH EIGHTY-TWO BOXES OF
AMMUNITION
DESCRIPTION OF LOAD
5-1. Two M119,
105-millimeter howitzers are rigged on a
20-foot, type V platform with an
accompanying load of 82 boxes of ammunition and 21 cans of fuzes (when required). This load requires
five G-11 cargo parachutes.
PREPARING PLATFORM
5-2. Prepare a 20-foot, type V airdrop platform as described below.
Inspecting platform. Inspect, or assemble and inspect, the platform as outlined in TM 10-1670-
268-20&P/TO 13C7-52-22.
Note. If the platform must be assembled, install the suspension bracket assemblies when
assembling the platform. See Figure 5-1 for the location of the suspension bracket assemblies.
Installing suspension links. Install a tandem link on the front of each rail according to
FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
Installing tandem links. Install a tandem link on the front of each rail according to
FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5, and as shown in
Figure 5-1.
Installing and numbering clevises. Bolt and number 56 clevis assemblies according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5, and as shown in Figure 5-
1.
10 May 2006
FM 4-20.119/TO 13C7-10-31
5-1
Chapter 5
Note. Measurements given in the chapter are from the front edge of the platform, NOT from the
front edge of the nose bumper.
CLEVISES
29A THROUGH 1 A
LEFT
REAR
FRONT
RIGHT
CLEVISES
27 THROUGH 1
Step:
1. Inspect, or assemble and inspect a 20-foot, type V platform as outlined in TM 10-1670-
268-20&P/TO 13C7-52-22.
2. Install a suspension bracket assembly to each platform side rail using holes 6, 7, and 8.
3. Install a tandem link to each platform side rail using holes 1, 2, and 3.
4. Install a suspension bracket assembly to each platform side rail using holes 33, 34, and
35.
5. Install a clevis on bushings 1 (tripled), 2, 3, and 4 of each of the tandem links.
6. Install a clevis on bushings 2 and 4 of each of front suspension bracket assemblies.
7. Starting at the front of right platform side rail, install clevises on the bushing bolted on
holes 9, 10, 12, 13, 14, 15, 17, 18, 20, 21, 23, 24, 26, 27, 30, 31, 37, 38, 39, and 40.
8. Starting at the front of left platform side rail, install clevises on the bushing bolted on holes
4, 9, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30, 31, 37, 38, 39, and 40.
9. Starting at the front of the platform number the clevises bolted to the right side from 1
through 27 on the left side and 1A through 29A on the left side.
10. Label the tie-down rings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
Figure 5-1. Platform Prepared
5-2
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging Two M119 Howitzers for Low-Velocity Airdrop on Type V Platform
STOWING AND LASHING FIRST GROUP OF AMMUNITION BOXES
5-3. Stow 54 boxes of ammunition on the platform and lash the ammunition boxes together as shown in
Figure 5-2. Lash the ammunition to the platform as shown in Figure 5-3.
NOTICE OF EXCEPTION
Exception to FM
4-20.102/MCRP
4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5 is granted to rig ammunition with one layer
of honeycomb.
3
1
2
6
5
4
1 Center a 96- by 26-inch piece of honeycomb ¾ inch from the front edge of the platform.
2 Form six 30-foot lashings according to FM 4-20.102/MCRP 4-11.3J/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5. Center two 30-foot lashings 12 inches apart across the
honeycomb.
3 Place twelve ammunition boxes flush over the lashings and honeycomb.
4 Place a 96- by 36-inch piece of honeycomb flush against the piece placed in step 1.
5 Center two 30-foot lashings 18 inches apart across the honeycomb.
6 Place 21 ammunition boxes over the lashings and honeycomb as shown.
Figure 5-2. First Group of Ammunition Boxes Stowed
10 May 2006
FM 4-20.119/TO 13C7-10-31
5-3
Chapter 5
9
8
7
7 Place a 96- by 36- inch piece of honeycomb flush against the honeycomb placed in step 4.
Place two 30-foot lashings on the honeycomb as shown in step 5.
8 Place two layers of eight boxes each flush over the lashings and honeycomb.
Note. Allow 4 inches between the bottom left box and the platform side rail. If all boxes do not rest
solidly on the honeycomb, substitute two layers of honeycomb for this box.
CAUTION
Insufficient clearance in this area may interfere with EFTC actuator
installation.
9 Place five boxes on the right side of the stack as shown.
Figure 5-2. First Group of Ammunition Boxes Stowed (Continued)
5-4
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging Two M119 Howitzers for Low-Velocity Airdrop on Type V Platform
Notes. 1. All measurements are in inches.
2. These drawings are not drawn to scale.
FRONT ENDBOARD
TOP
3 X 3
CUTOUTS
PLYWOOD
(3/4 X 24 X 80)
15
BOTTOM
10
3 X 3
REAR ENDBOARD
CUTOUTS
TOP
PLYWOOD
(3/4 X 24 X 96)
15
BOTTOM
10 Cut the front and rear endboards for the first group of ammunition from ¾-inch plywood.
Figure 5-2. First Group of Ammunition Boxes Stowed (Continued)
10 May 2006
FM 4-20.119/TO 13C7-10-31
5-5
Chapter 5
13
14
11
15
12
11 Place the front endboard against the front of the boxes.
12 Place the rear endboard against the rear of the boxes.
13 Cover the first three rows of boxes with two layers of ¾-inch plywood. Alternate two 74- by
17-inch and two 74-by 45-inch pieces of plywood as shown.
14 Cover the rear row of boxes with two layers of ¾- by 60- by 37-inch plywood placed flush
along the right side of the boxes.
15 Place two ¾- by 34- by 30-inch layers of plywood in the vacant area in the left rear.
Figure 5-2. First Group of Ammunition Boxes Stowed (Continued)
5-6
FM 4-20.119/TO 13C7-10-31
10 May 2006
Rigging Two M119 Howitzers for Low-Velocity Airdrop on Type V Platform
18
16
17
16 Secure the lashings pre-positioned in step 2 as far to the right as possible on top of the
boxes with a load binder and D-ring.
17 Secure the two lashings pre-positioned in step 5 on the right side.
18 Secure the two lashings pre-positioned in step 7 on top of the boxes.
Note. It will be necessary to leave these lashings unsecured if the metal boxes of fuzes will be
included in this load.
Figure 5-2. First Group of Ammunition Boxes Stowed (Continued)
10 May 2006
FM 4-20.119/TO 13C7-10-31
5-7
Chapter 5
Note. Lashings used below are all 30-foot lashings. Form 30-foot lashings according to FM 4-
20.102/MCRP 4-11.3J/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
3
4
2
1A
10
5
6
1
5
3
1
4
3
5
2
1
6
5
3
1
10
Lashing
Tiedown
Instructions
Number
Clevis
Number
Pass lashing:
1
1 and 10A
Through clevis 1, through the left upper cutout in the front endboard,
and through clevis 10A. Secure the lashing in the front.
2
1A and 10
Through clevis 1A, through the right upper cutout in the front
endboard, and through clevis 10. Secure the lashing in the front.
3
3 and 3A
Through both clevises and over the top of the load. Secure the
lashing on the top right.
4
5 and 5A
Through both clevises and over the top of the load. Secure the
lashing on the top right.
5
6 and 7A
Through both clevises and through the lower right and left cutouts in
the front endboard. Secure the lashings in the front.
Figure 5-3. First Group of Ammunition Boxes Lashed to Platform
5-8
FM 4-20.119/TO 13C7-10-31
10 May 2006















Content      ..     3      4      5      6     ..
